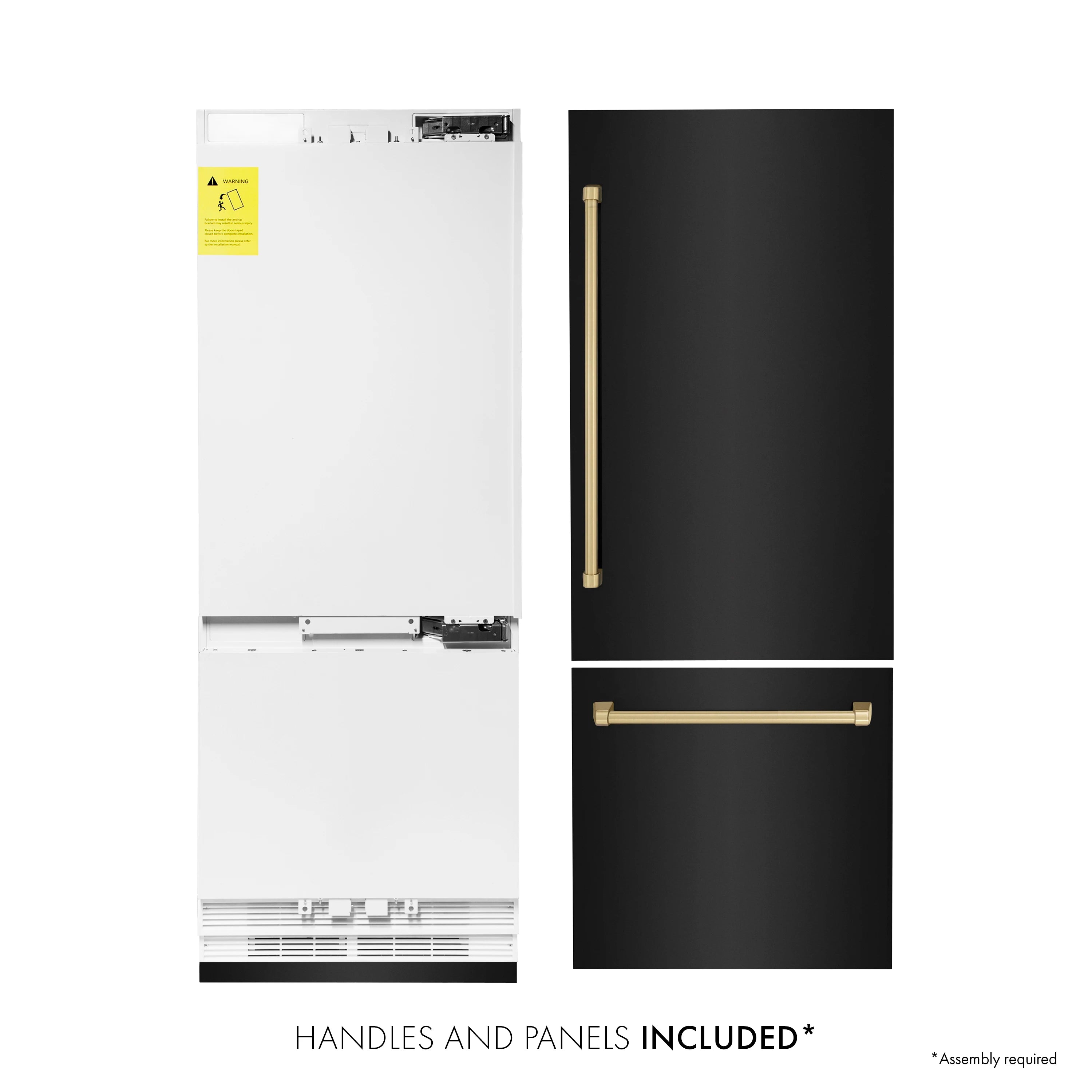

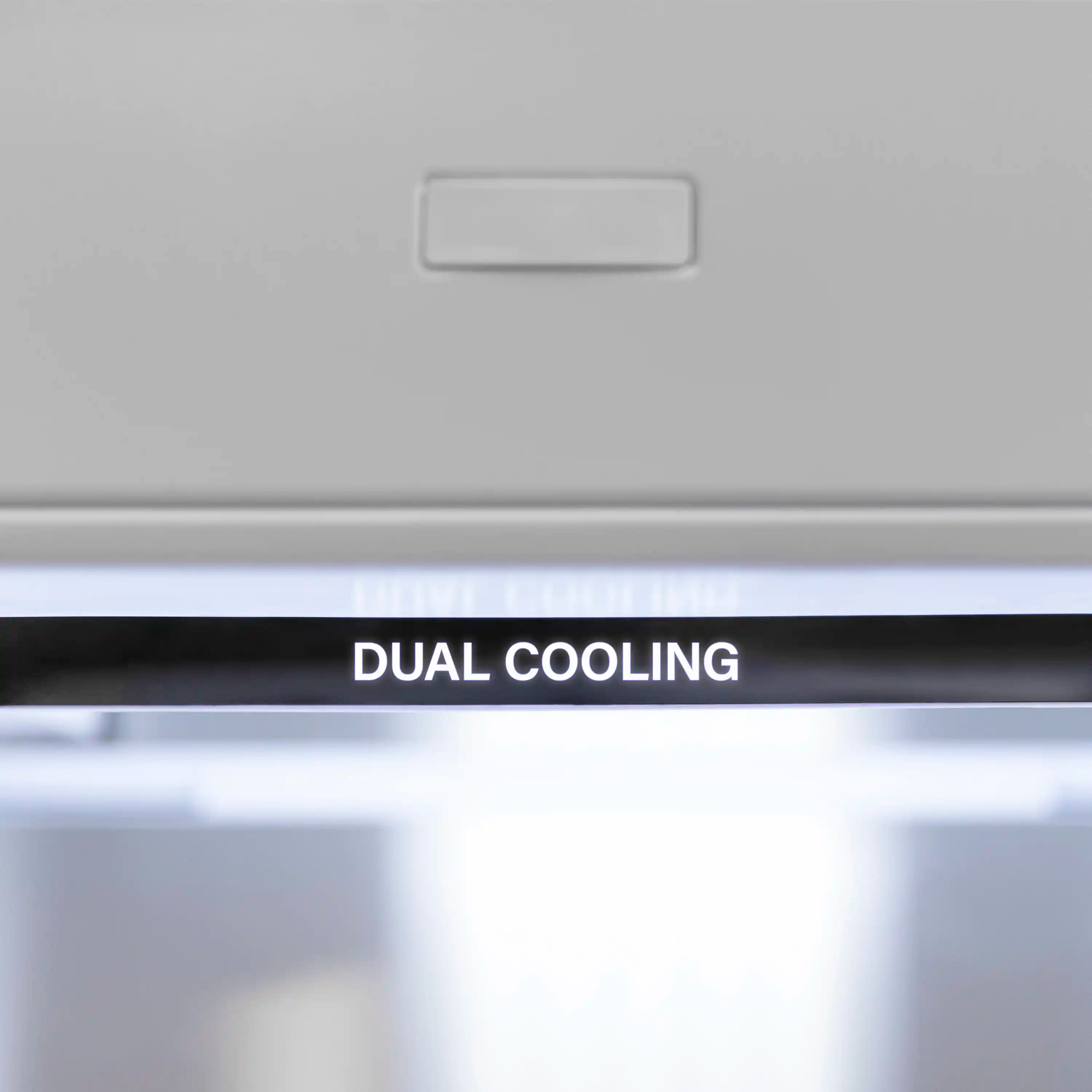

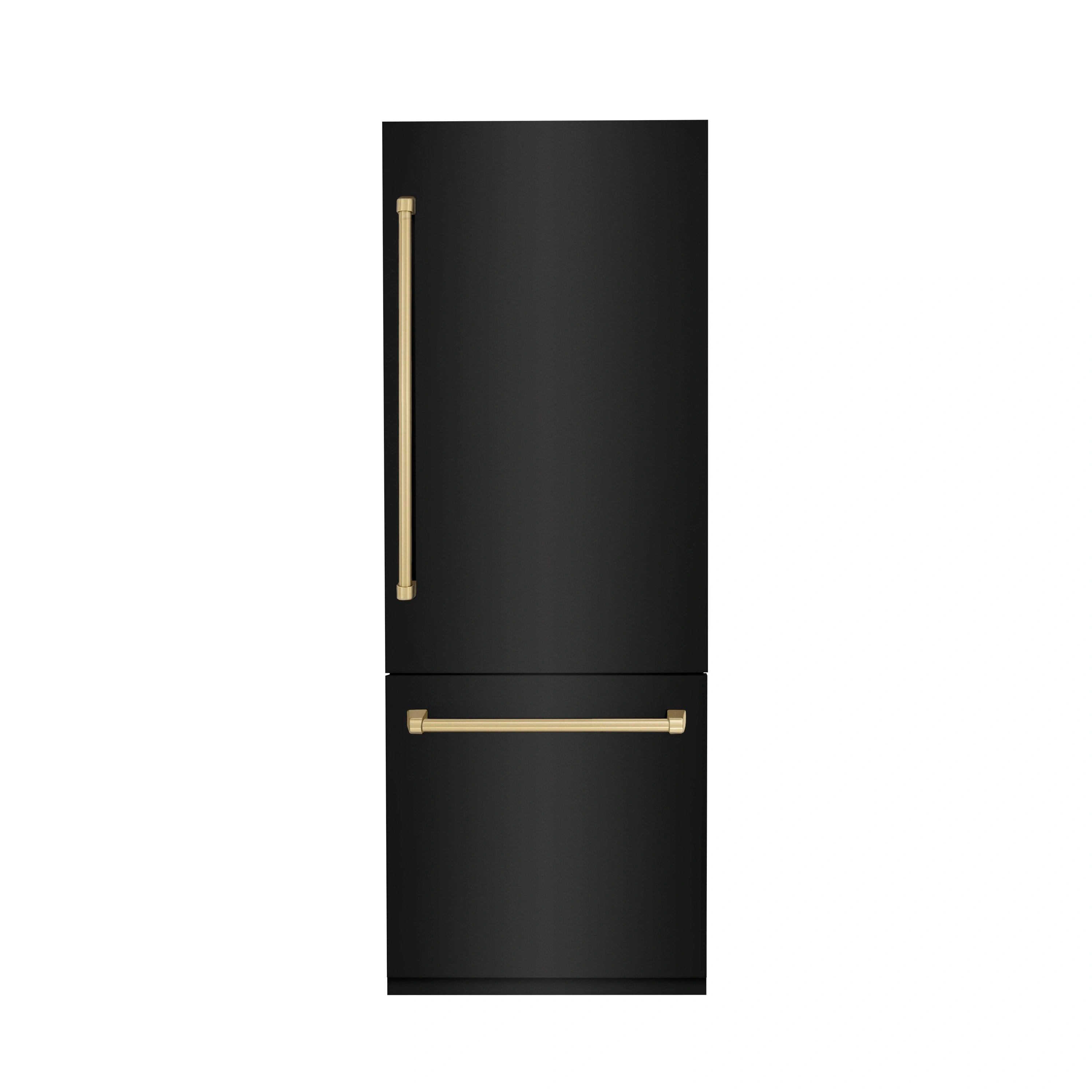

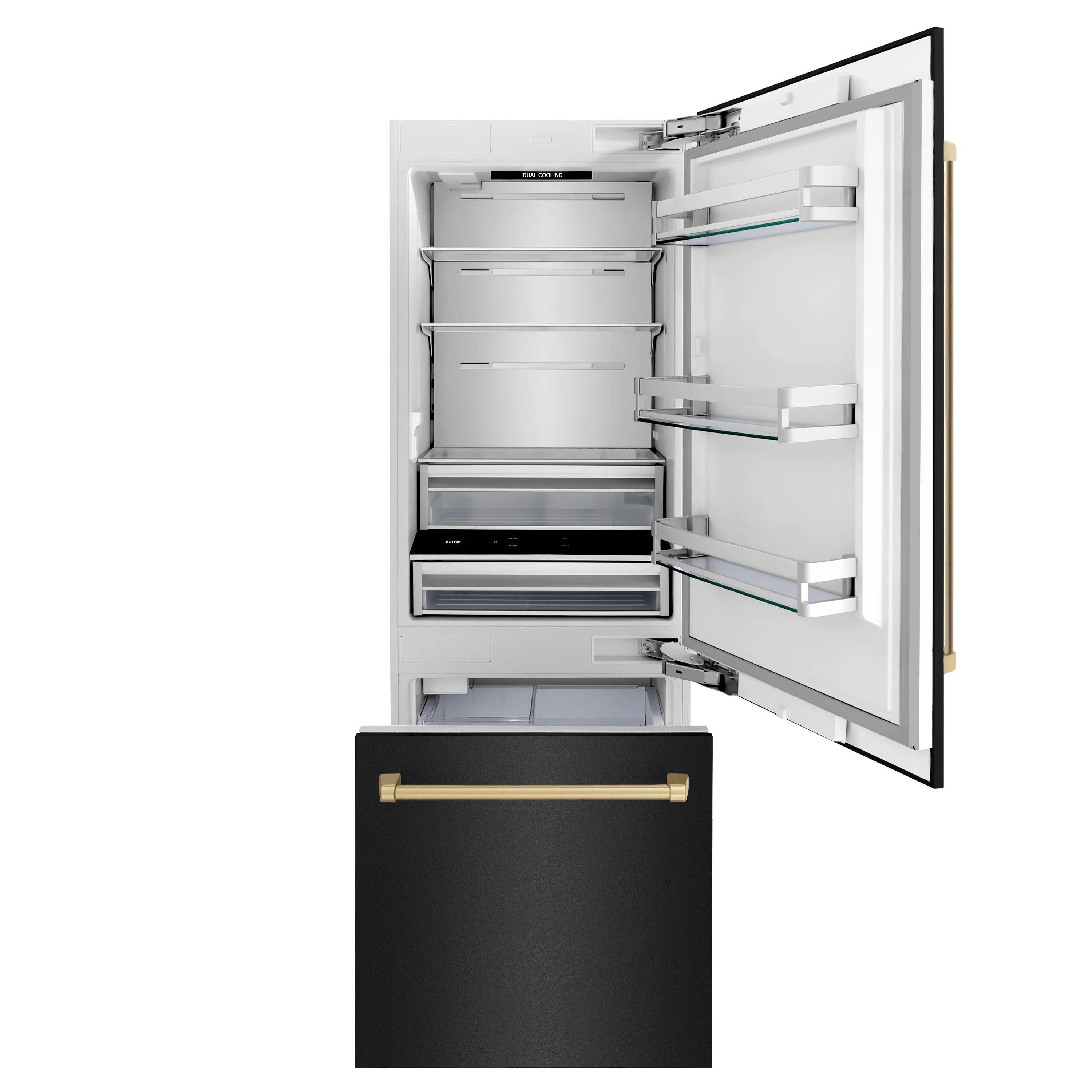

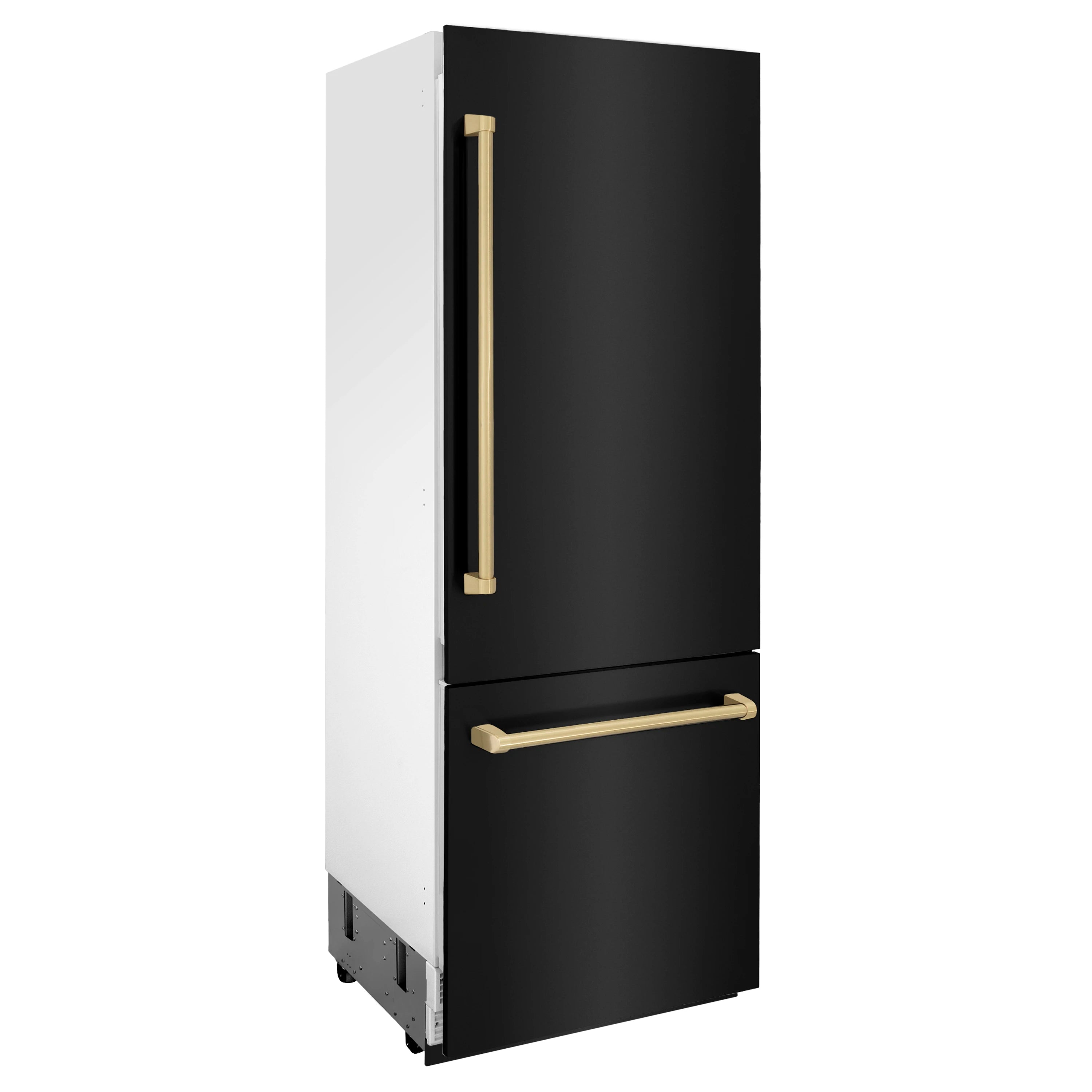

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 16.1 cu. ft. Built-In Bottom Freezer Refrigerator with Water Dispenser and Ice Maker in Black Stainless Steel with Champagne Bronze Accents (RBIVZ-BS-30-CB) provides the ultimate upgrade to the center of your home by pairing premium dual cooling technology with enhanced storage capacity for multiple grocery items. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s cooling and freezing capability.
| Standard Sizing-Product Width | 30" |

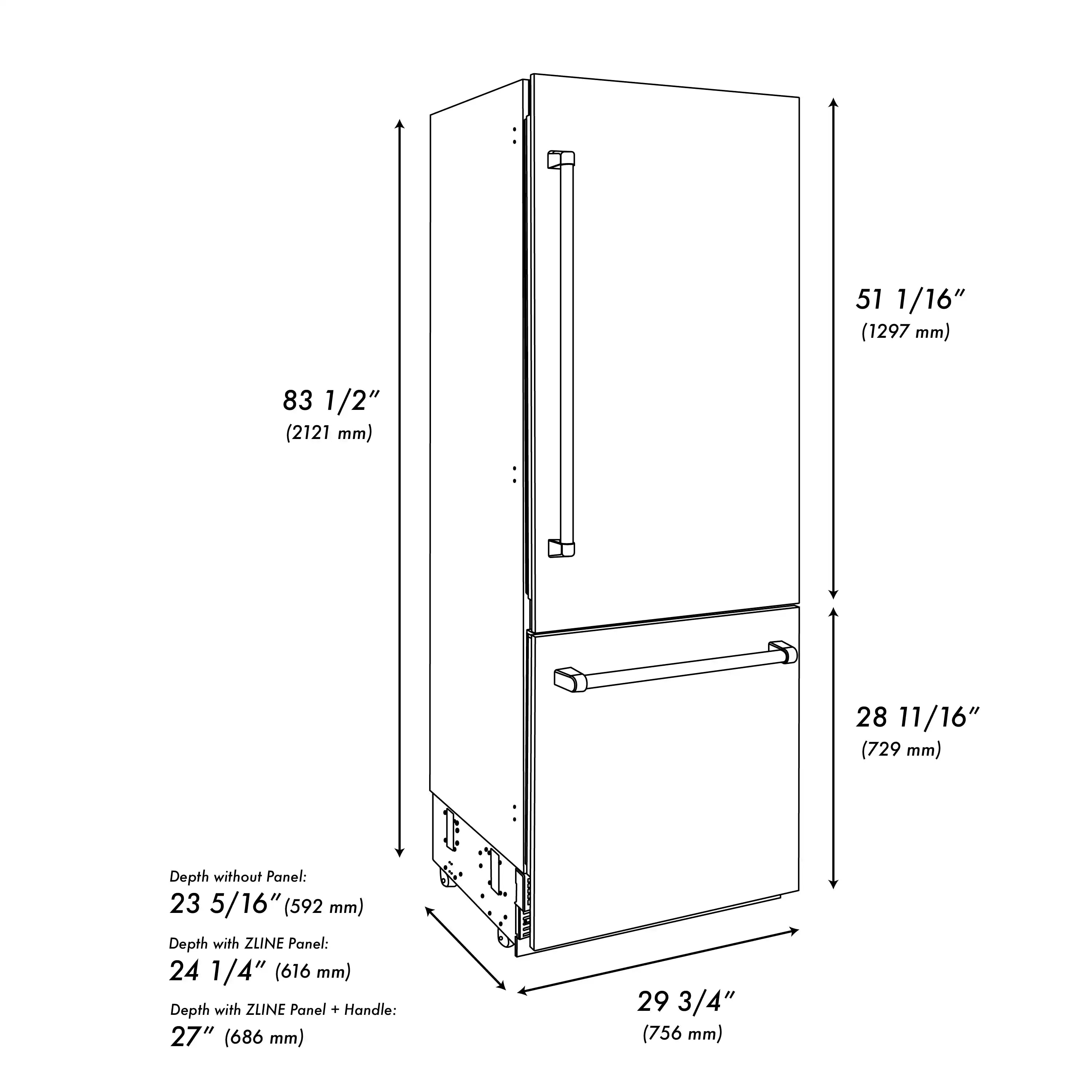

| Product Dimensions | 29.75 in. W x 23.31 in. D x 83.5 in. H |
| Cut Out Dimensions | 30.19 in. W x 25 in. D x 84 in. H |
|
Depth with Door Open |
55.1" |
| Weight | 405.8 lbs |
|
Ice Maker |
Yes |
|

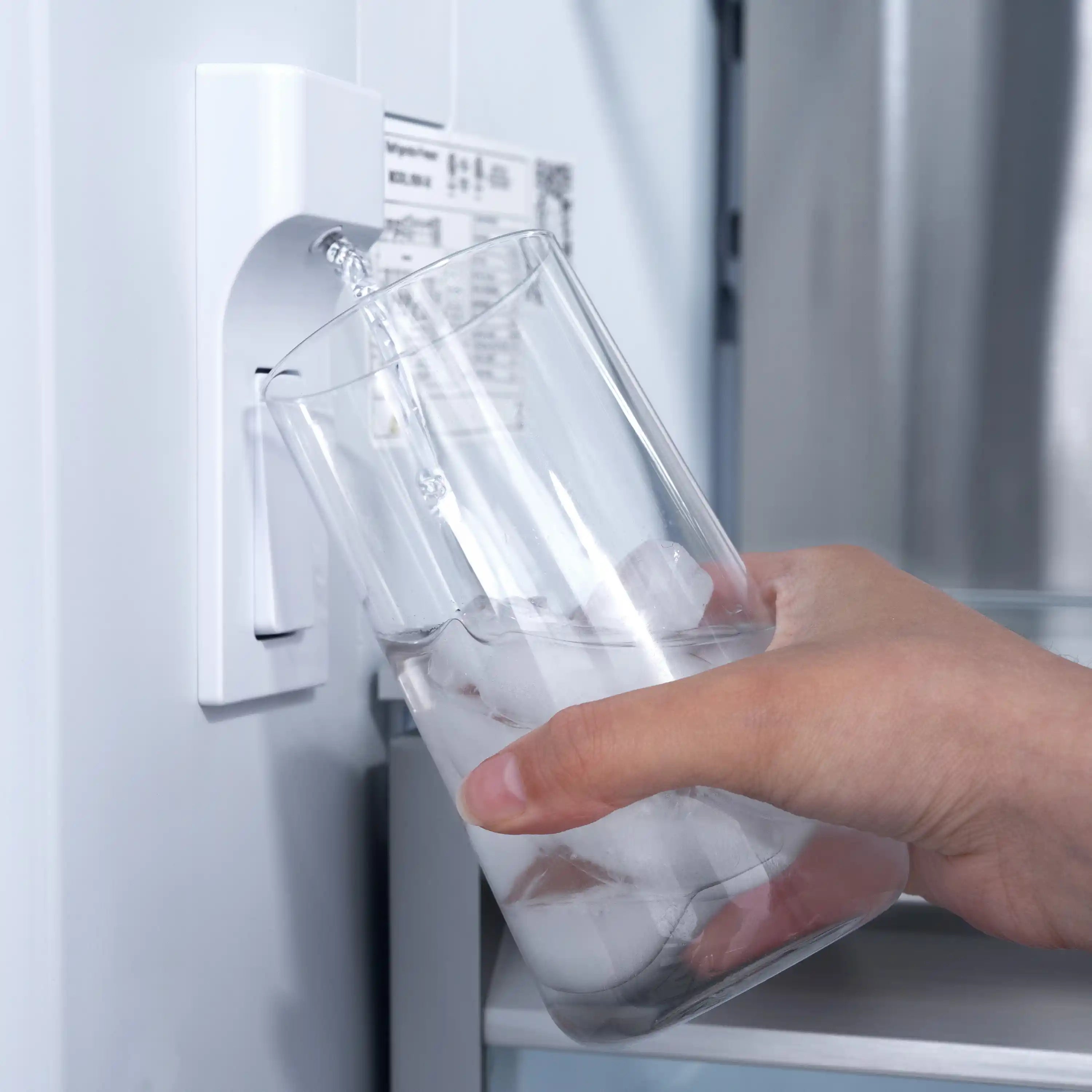

Water Dispenser |
Yes |
|
Flow Rate for Water Dispenser |
0.5 GPM |
|
Filter Water |
NSF. ANSI 42 |
|
Capacity |
16.1 cu. ft. |
|
Fridge Capacity |
11.6 cu. ft. |
|
Freezer Capacity |
4.5 cu. ft. |
|
Flex Drawer Capacity |
2.7 cu. ft. |
|

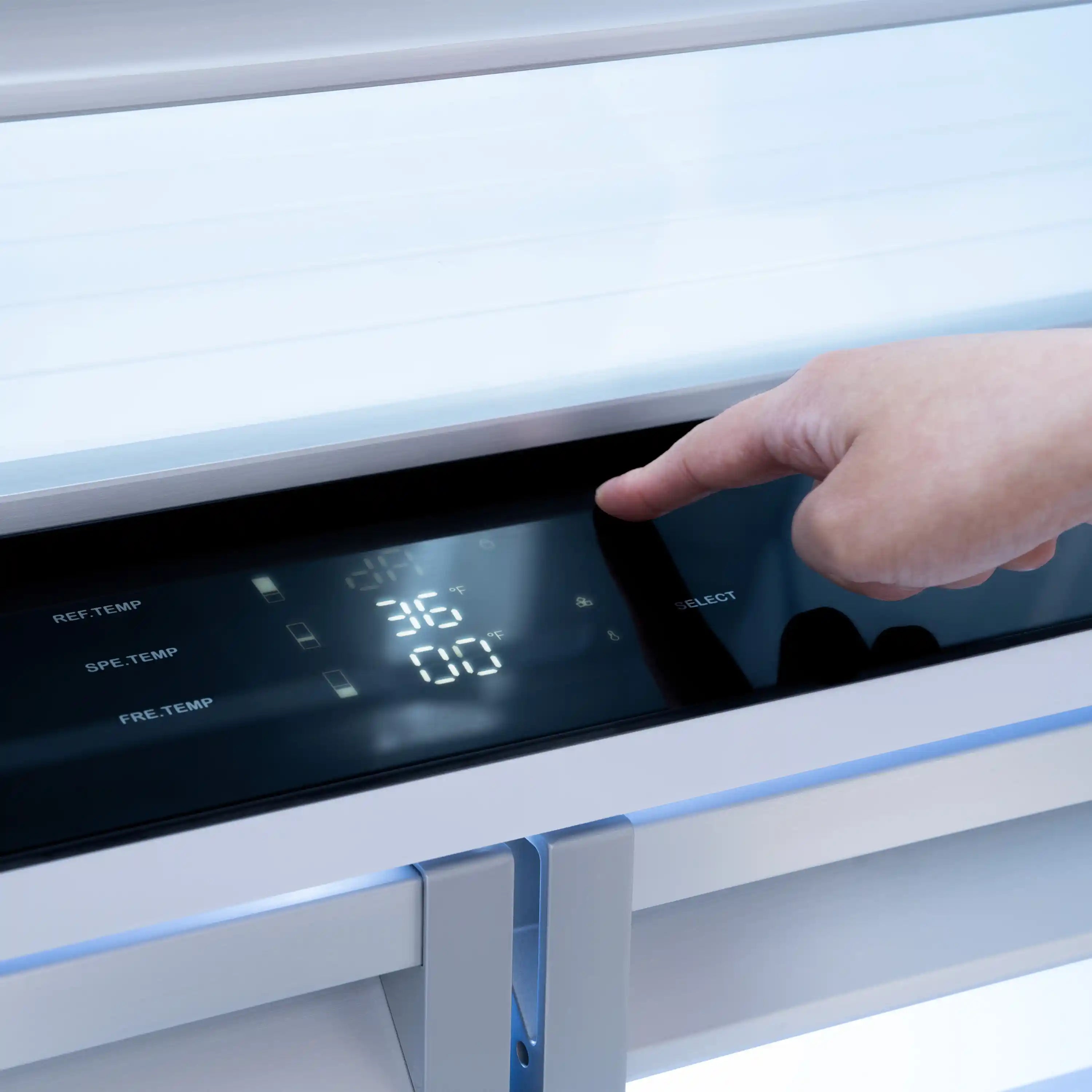

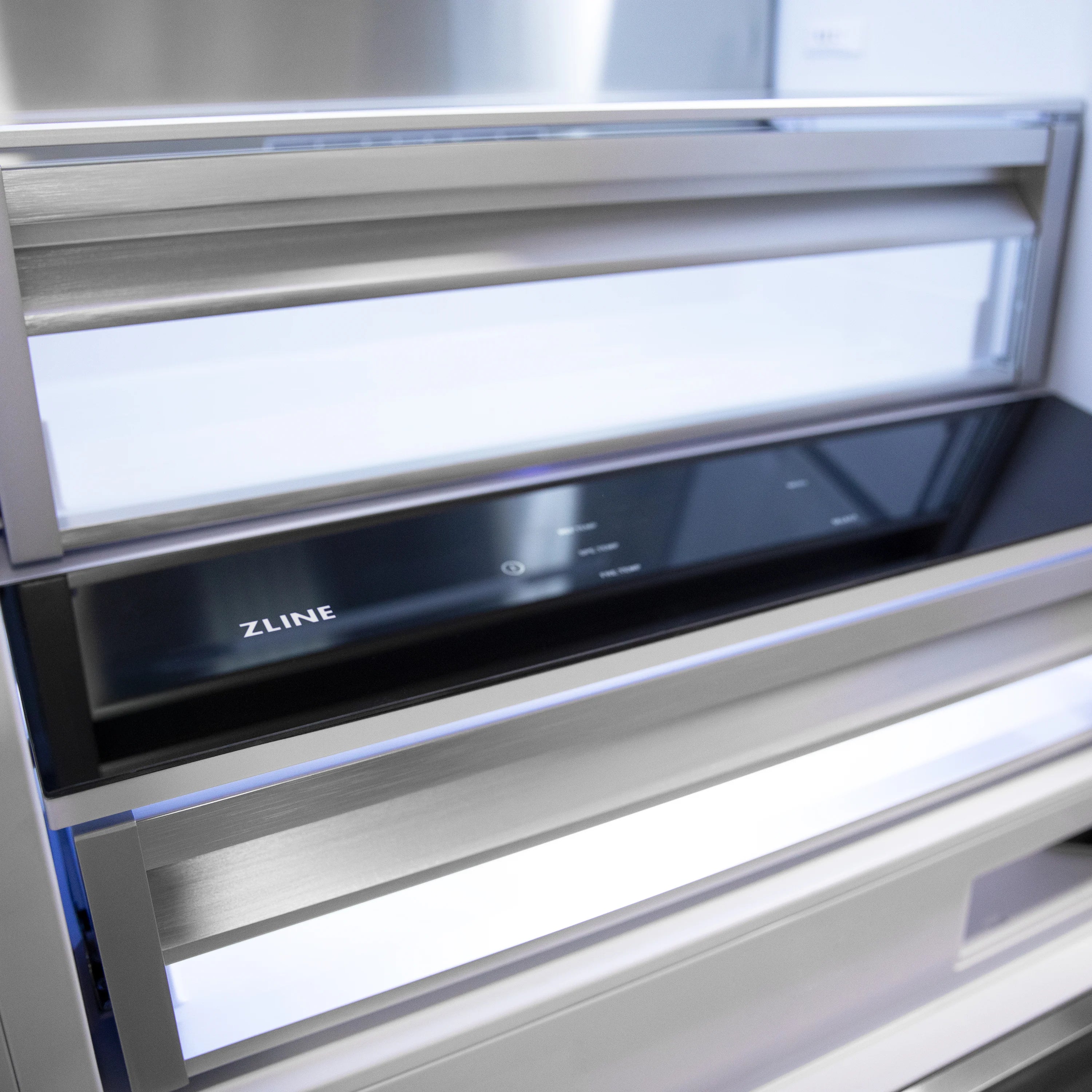

Additional Temperature Zone Controls |
30°F (-1°C) - 41°F (5°C) |
|
Decibels |
43 dBA |
|
Supply Voltage |
120V/60Hz |
|
Dedicated Circuit |
15A |
|
Rated Current (Amps) |
2.6A |
|
ENERGYSTAR |
Yes |
|
Energy Consumption |
551 kWh/year |
|
Estimated Yearly Energy Cost |
66 |
|
Door Alarm |
Yes |
|
Depth Type |
Counter-Depth |
|

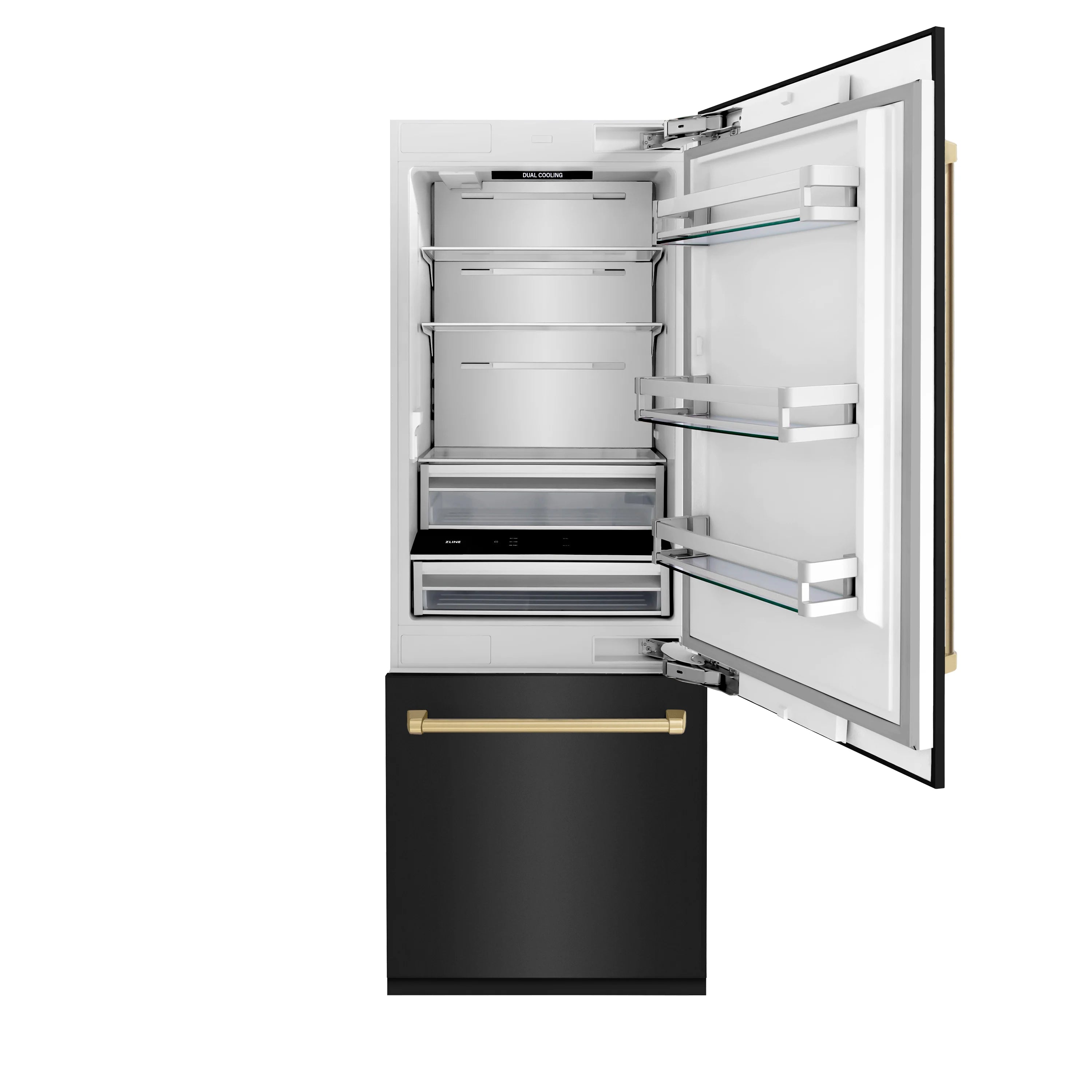

Door Style |
Single Door (Reversible Hinge) |
|
Freezer Drawer Bins |
2 |
|
Freezer Door Style |
Pull-Out Drawer |
|
Door Bins |
3 |
|

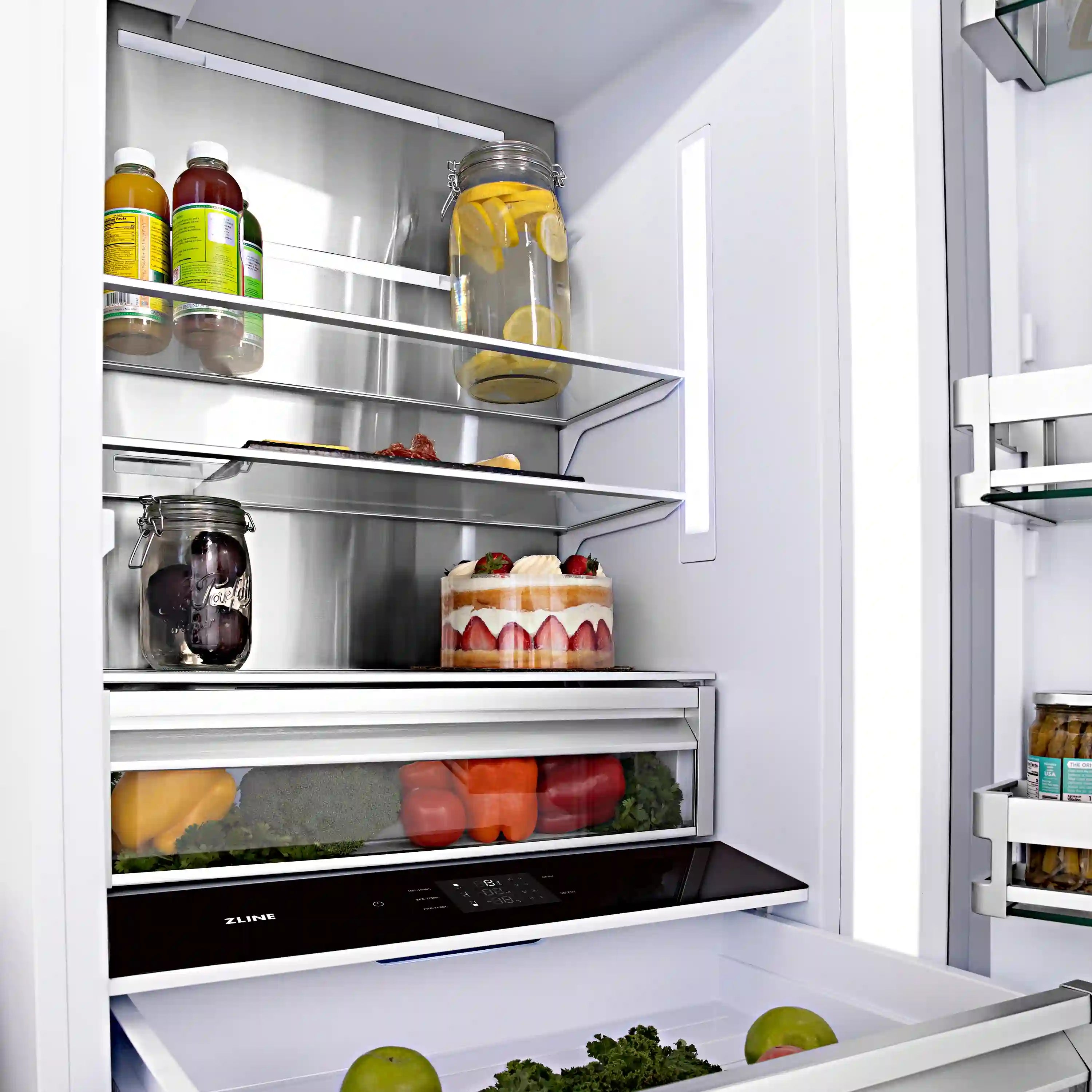

Number of Fridge Shelves |
3 |
|
Height to Top of Door |
83.56" |
|
Ice Maker Type |
Automatic |
|
Ice Amount per Day (lbs.) |
3.9 lbs |
|
Ice Tray Storage (lbs.) |
8.4 lbs |
|
Ice/Water Dispenser Location |
Internal |
|
Replacement Filter Model Number |
RBIV-205A |
|

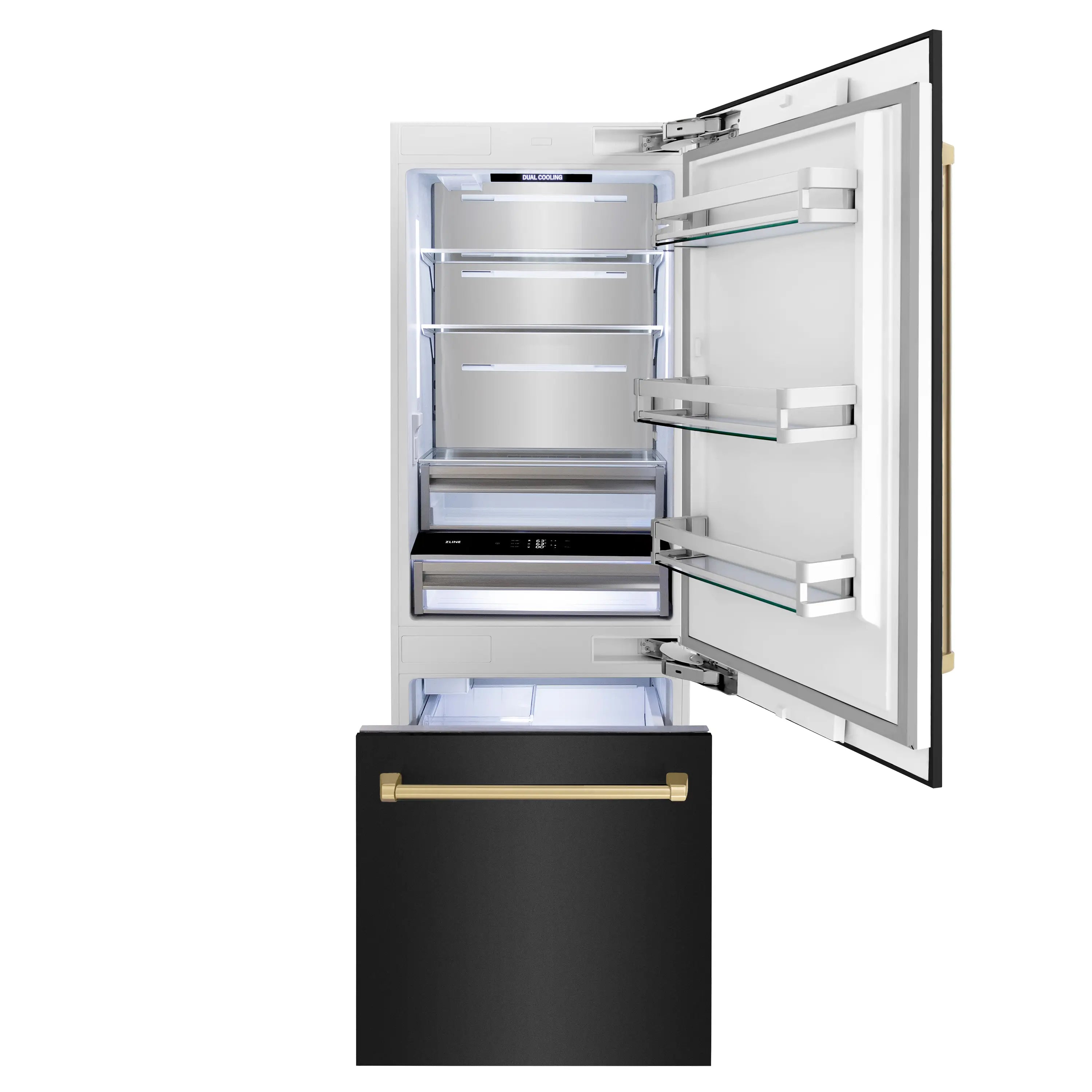

Lights |
4 LED (3 fridge, 1 freezer) |
|
Installation Depth |
25" |
|
Warranty |
Manufacturing Warranty - 2-year parts and labor warranty, 5 years sealed system parts and labor |
|
Certifications |
ETL Listed, Energy Star Certified |
