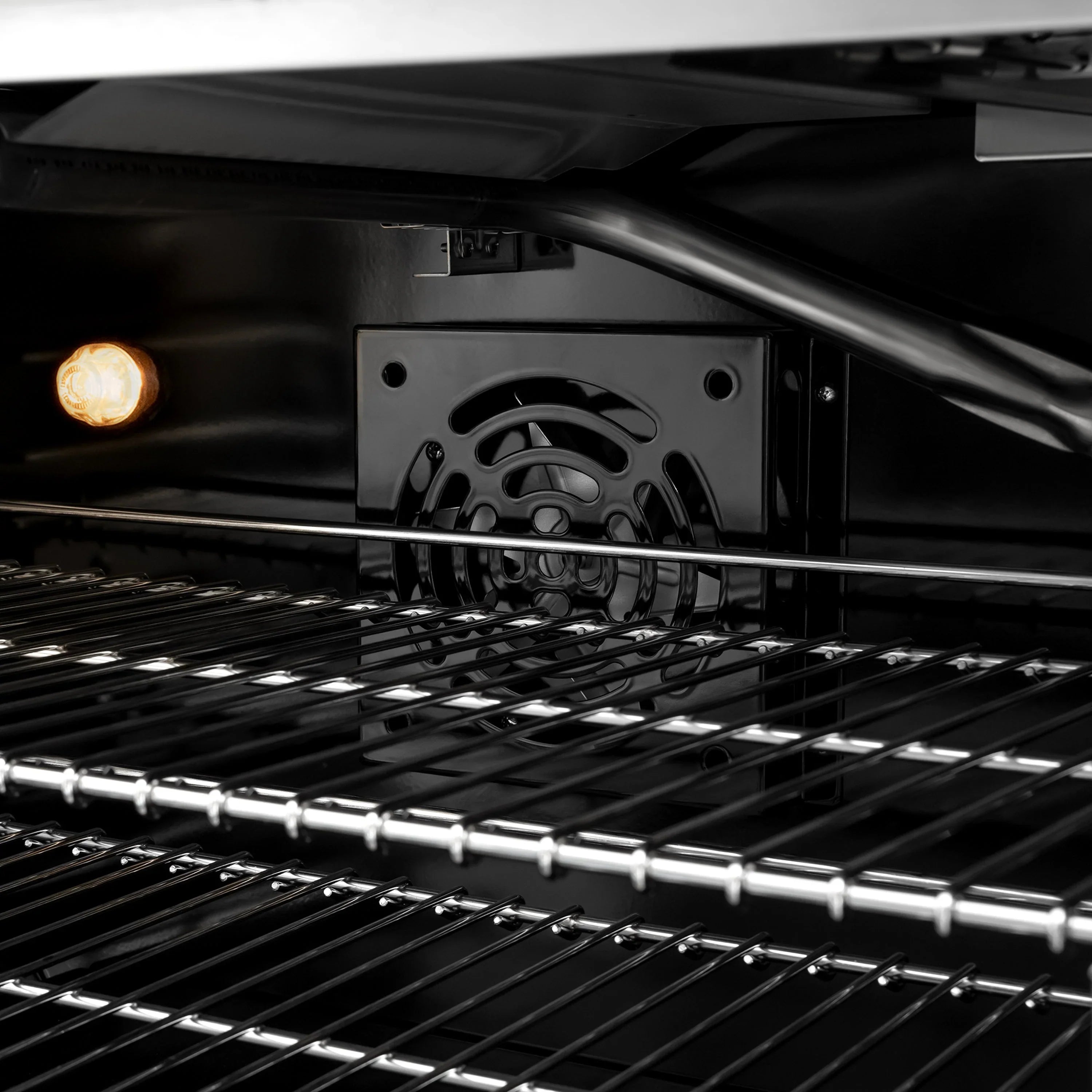

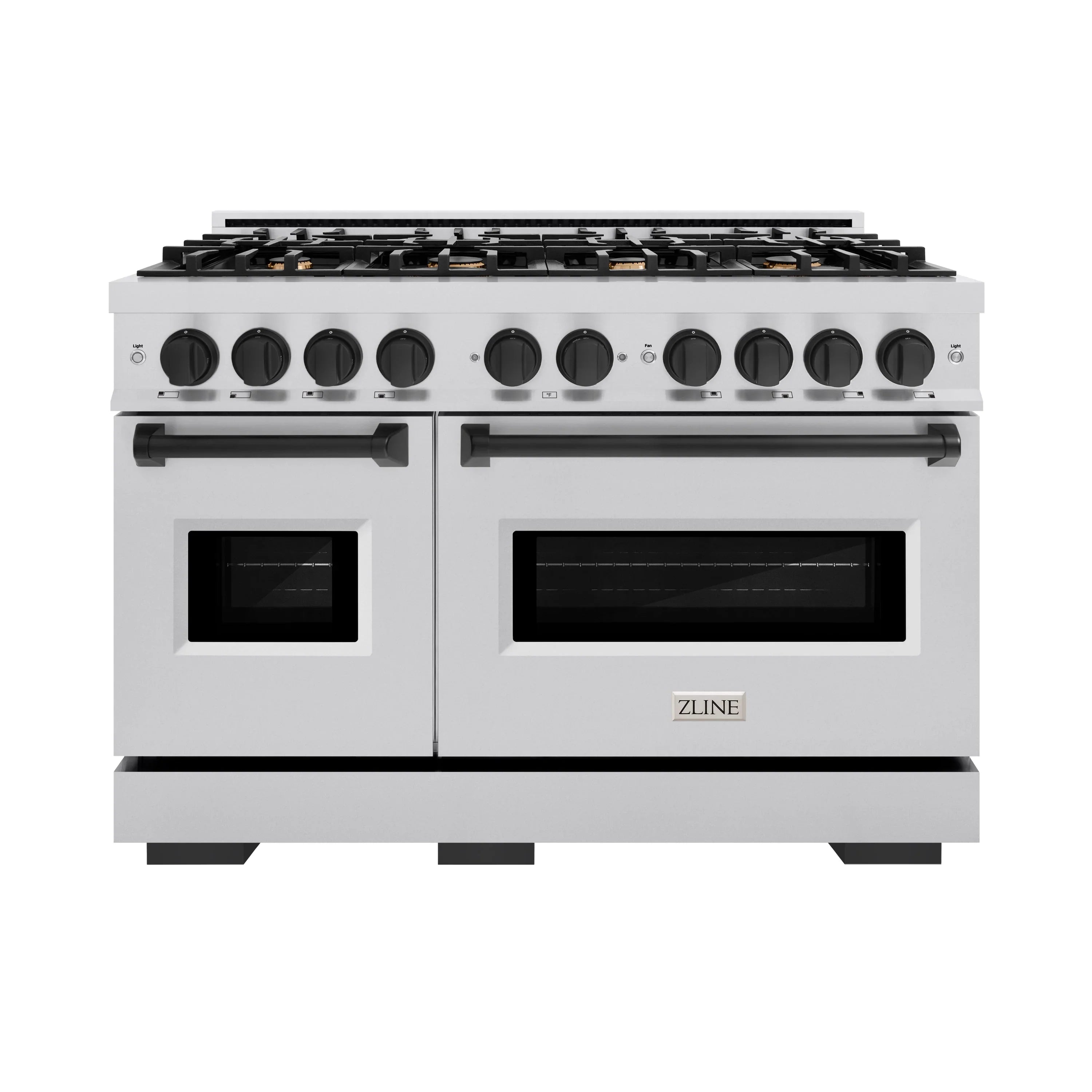

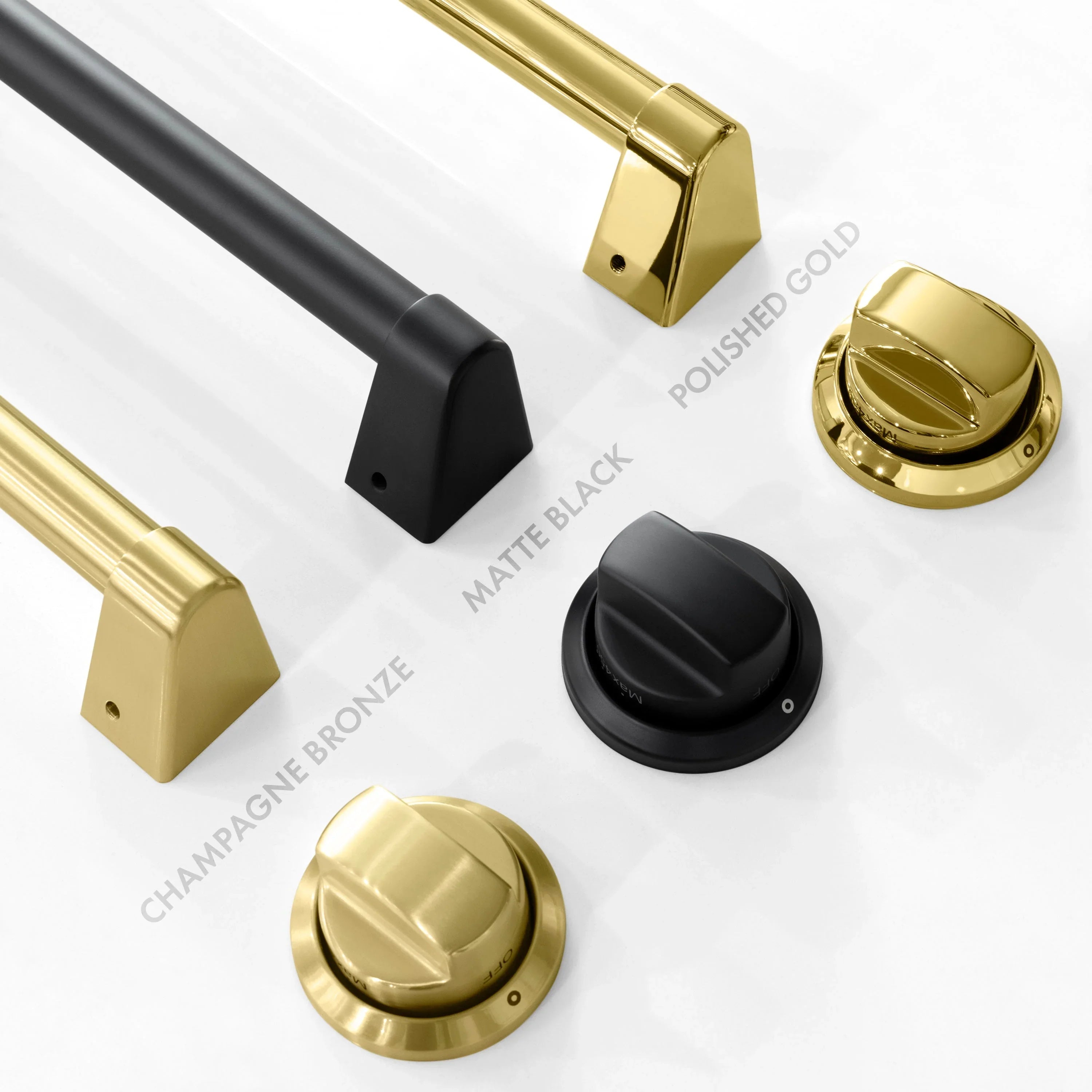

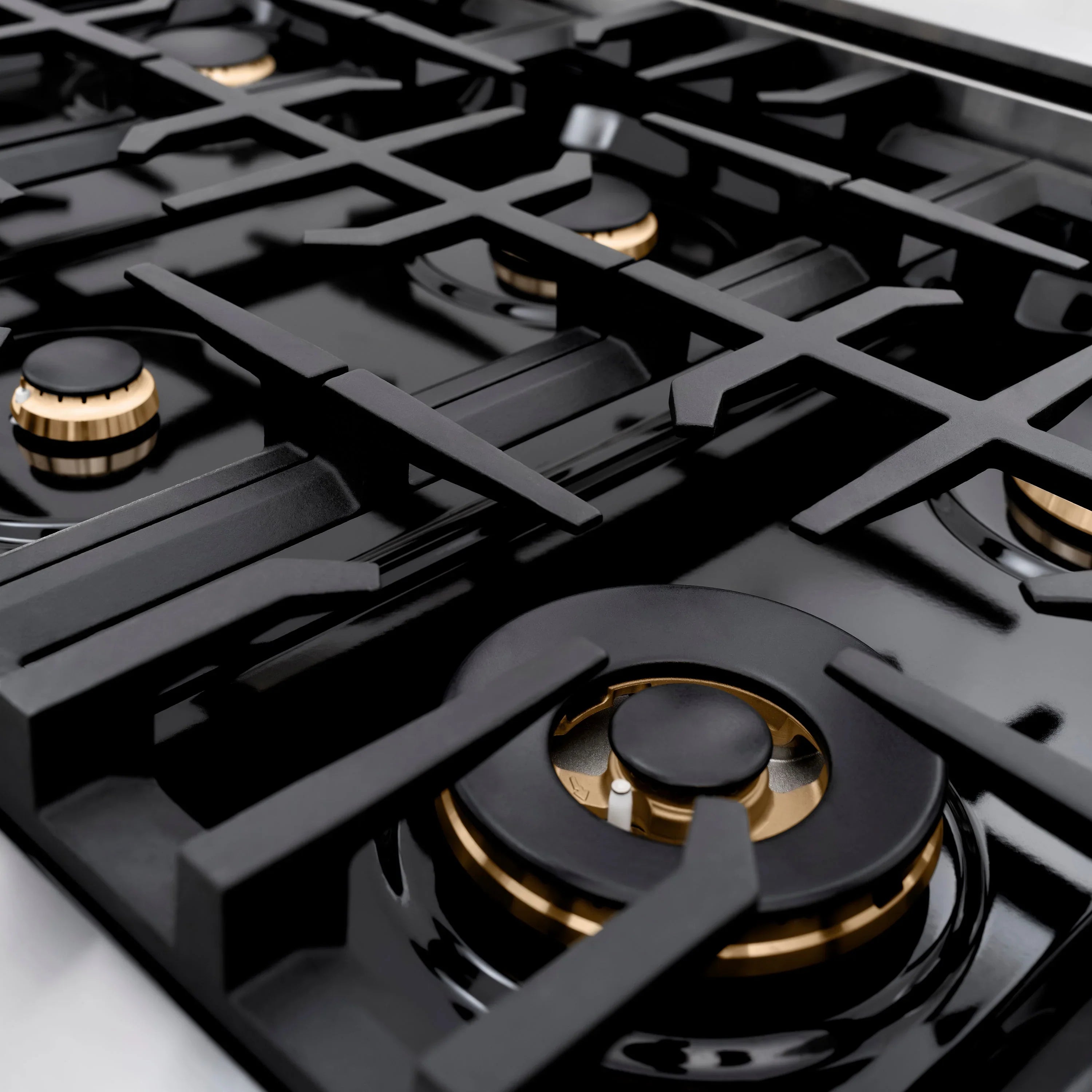

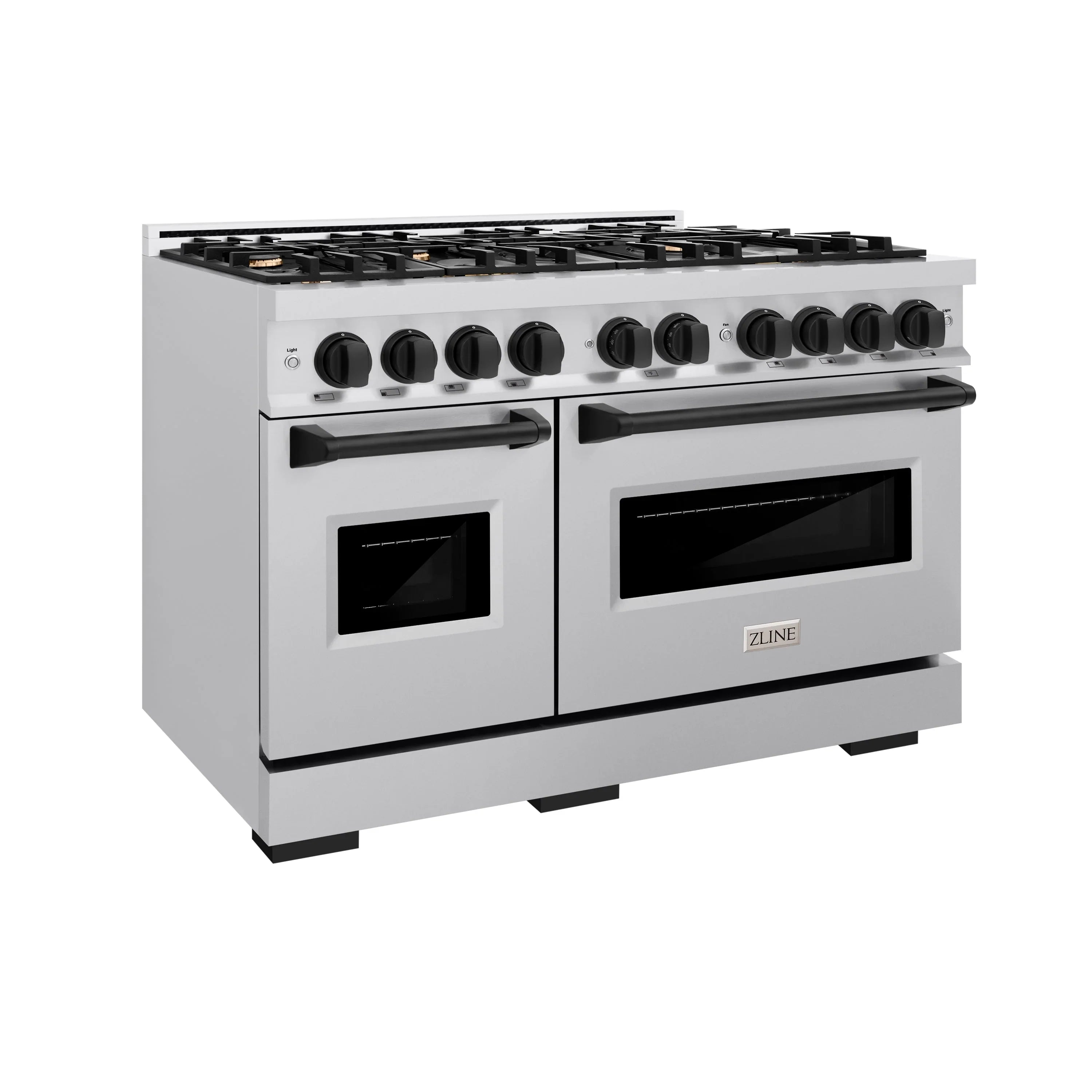

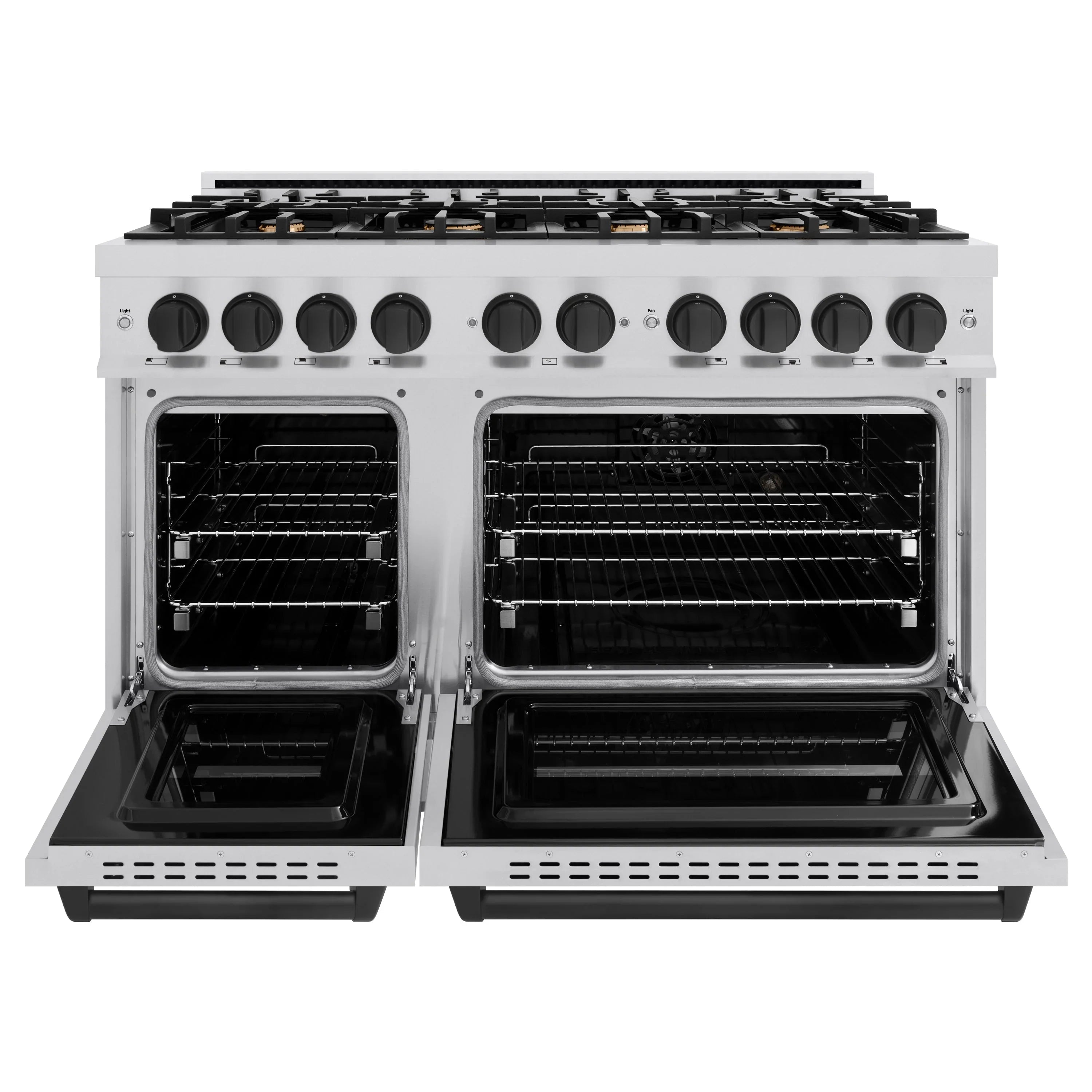

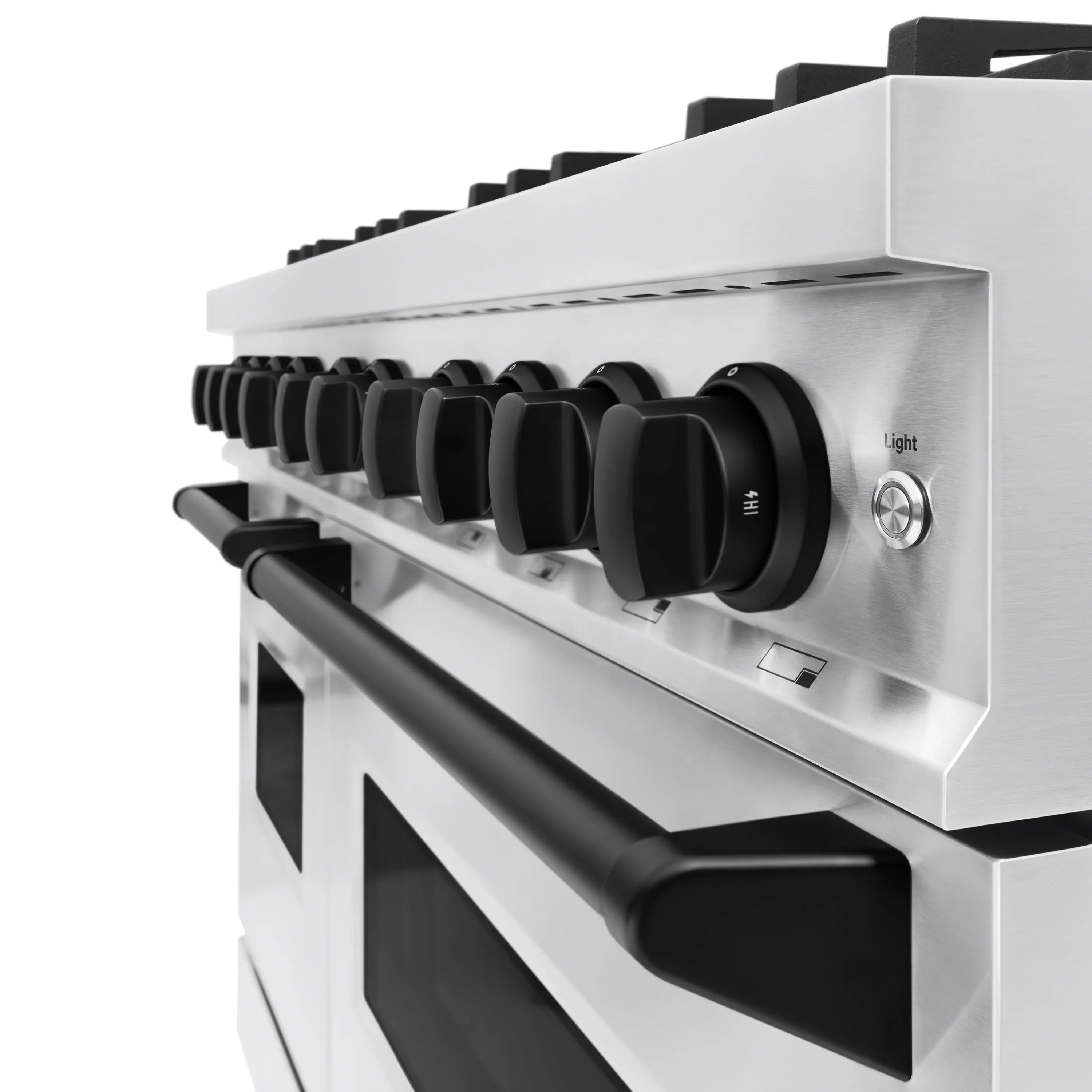

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 48 in. 6.7 cu. ft. Classic Double Oven Gas Range with 8 Burner Cooktop in Stainless Steel and Matte Black Accents (CGRZ-48-MB) combines the elegance of a hand-finished porcelain gas cooktop with 8 Italian-made auto-reignition burners, a large gas convection oven with an energy-efficient cooling fan to ensure quiet operation, a small baking oven, Landscape oven door window designs, and stunning matte black knobs and handles allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Classic Gas Ranges are masterfully crafted to deliver an elevated culinary experience.
| Dimensions: | 47.88 in. W x 27.75 in. D x 36 in. H |
| Interior Oven Dimensions | 13.38 (left) /24.88 (right) in. W x 17.75 in. D x 16 in. H |
| Cutout Dimensions | 48.13 in. W x 24.75 in. D x 36 in. H |
| Open Door Depth | 45.1 in. |
| Oven Capacity (cu. ft.) | Overall: 6.7 cu. ft. Left: 2.5 cu. ft. Right: 4.2 cu. ft. |
| Number of Racks | 2 |
| Installation Type | Freestanding |
| Timer (Y/N) | No |
| Self Cleaning (Y/N) | No |
| Outdoor Approved (Y/N) | No |
| Broil (Y/N) | Yes |
| Additional Features | Includes Griddle |
| Burner Fuel | Natural Gas (Includes Liquid Propane Conversion Kit) |
| Oven Fuel | Natural Gas (Includes Liquid Propane Conversion Kit) |
| Number of Burners | 8 |
| Electrical Requirement | 120V/60Hz/15A |
| Material | Stainless Steel with Brass Burners |

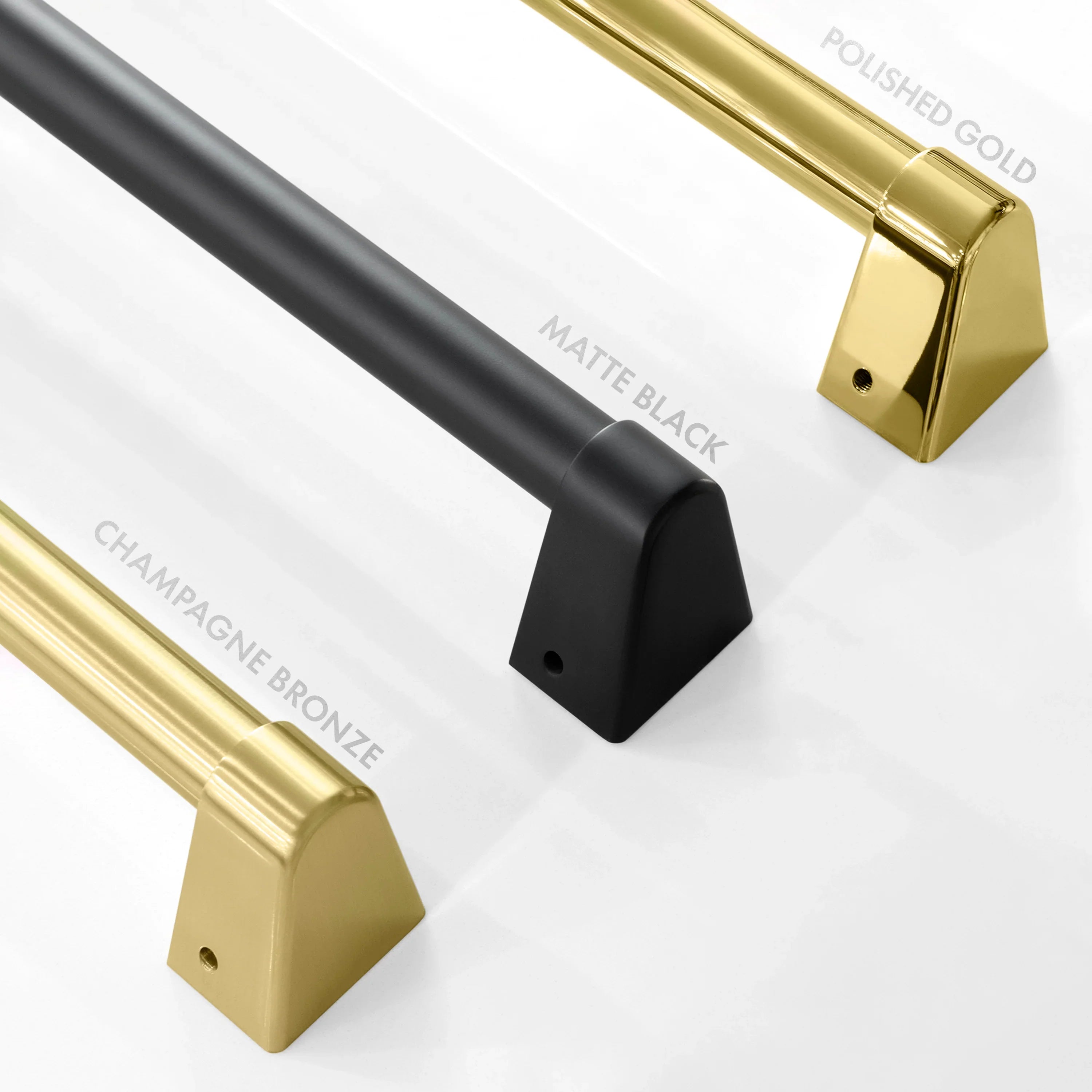

| Accent Finish | Matte Black |
| Convection Fan | Yes |
| Warranty |
1 Year Parts and Service, Limited Lifetime on Burners |
| Certifications | ETL Listed |

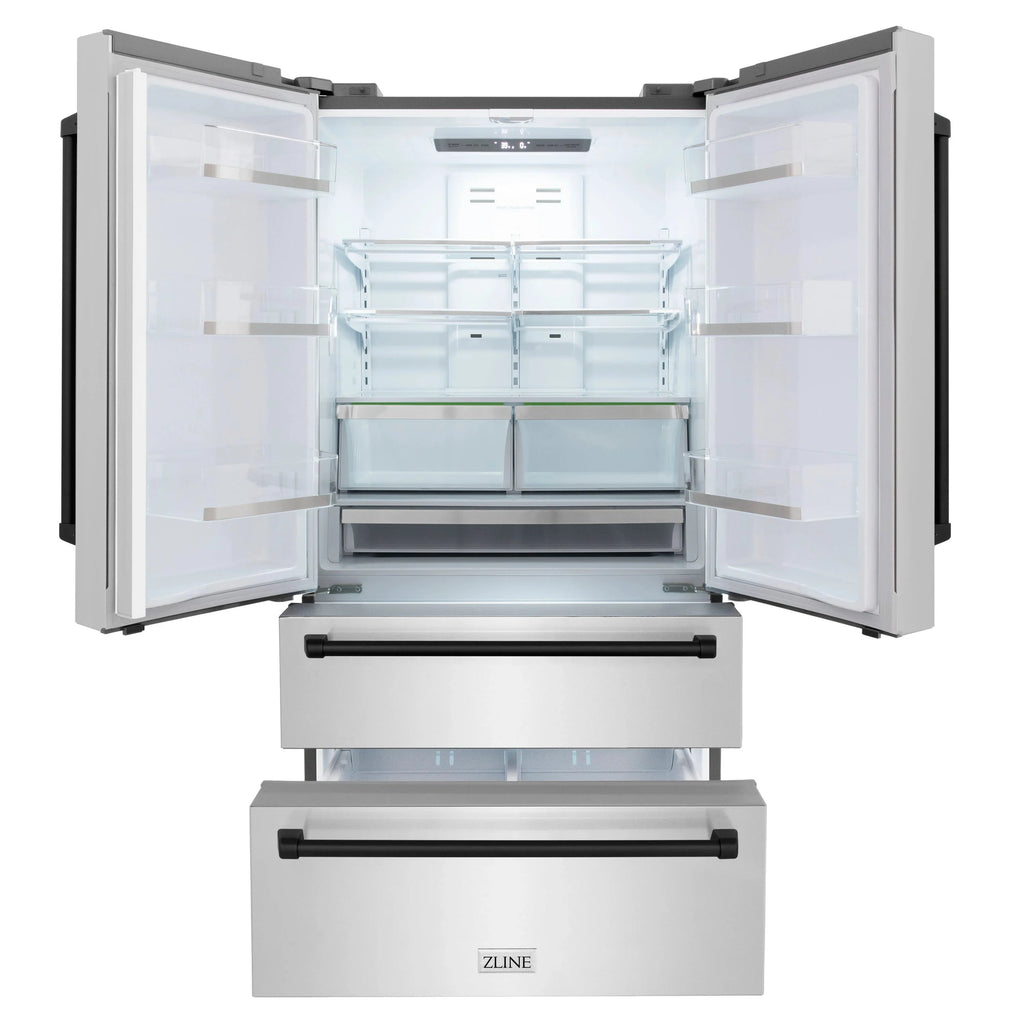

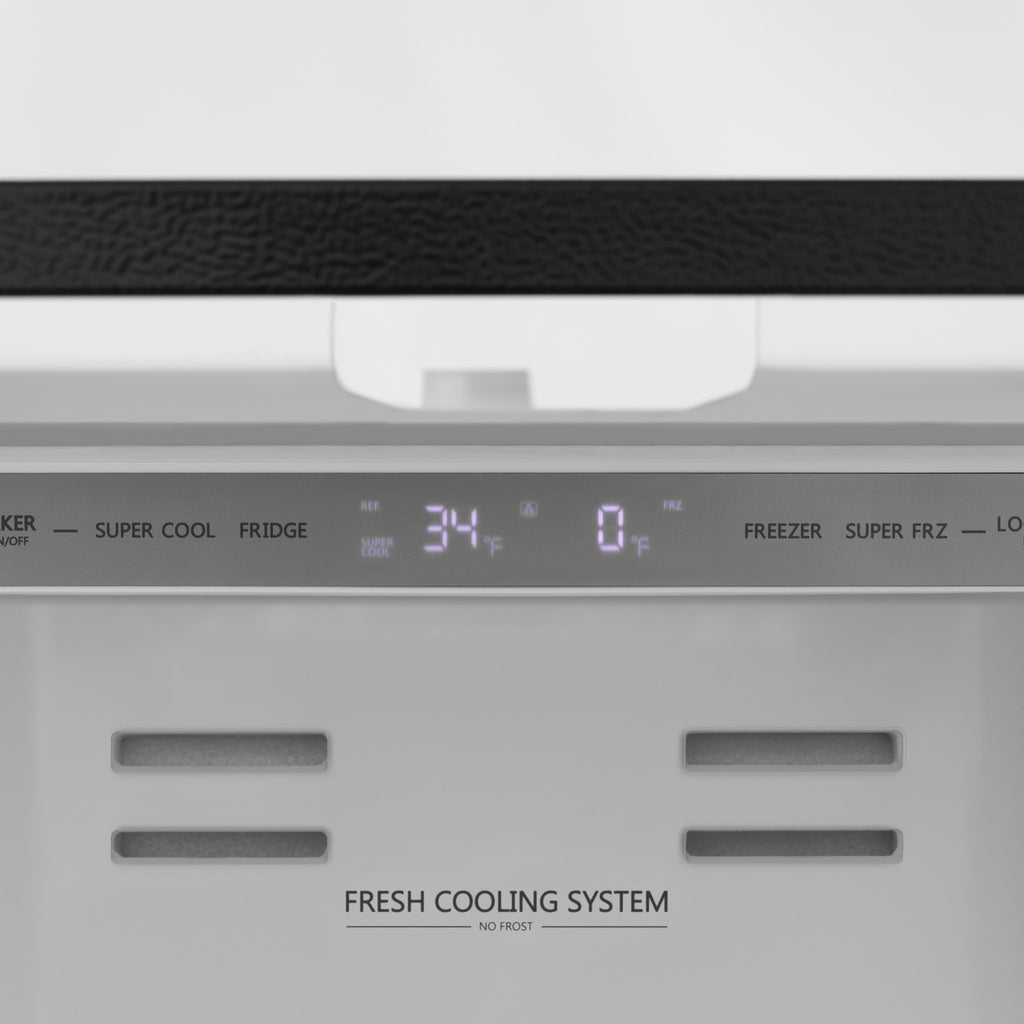

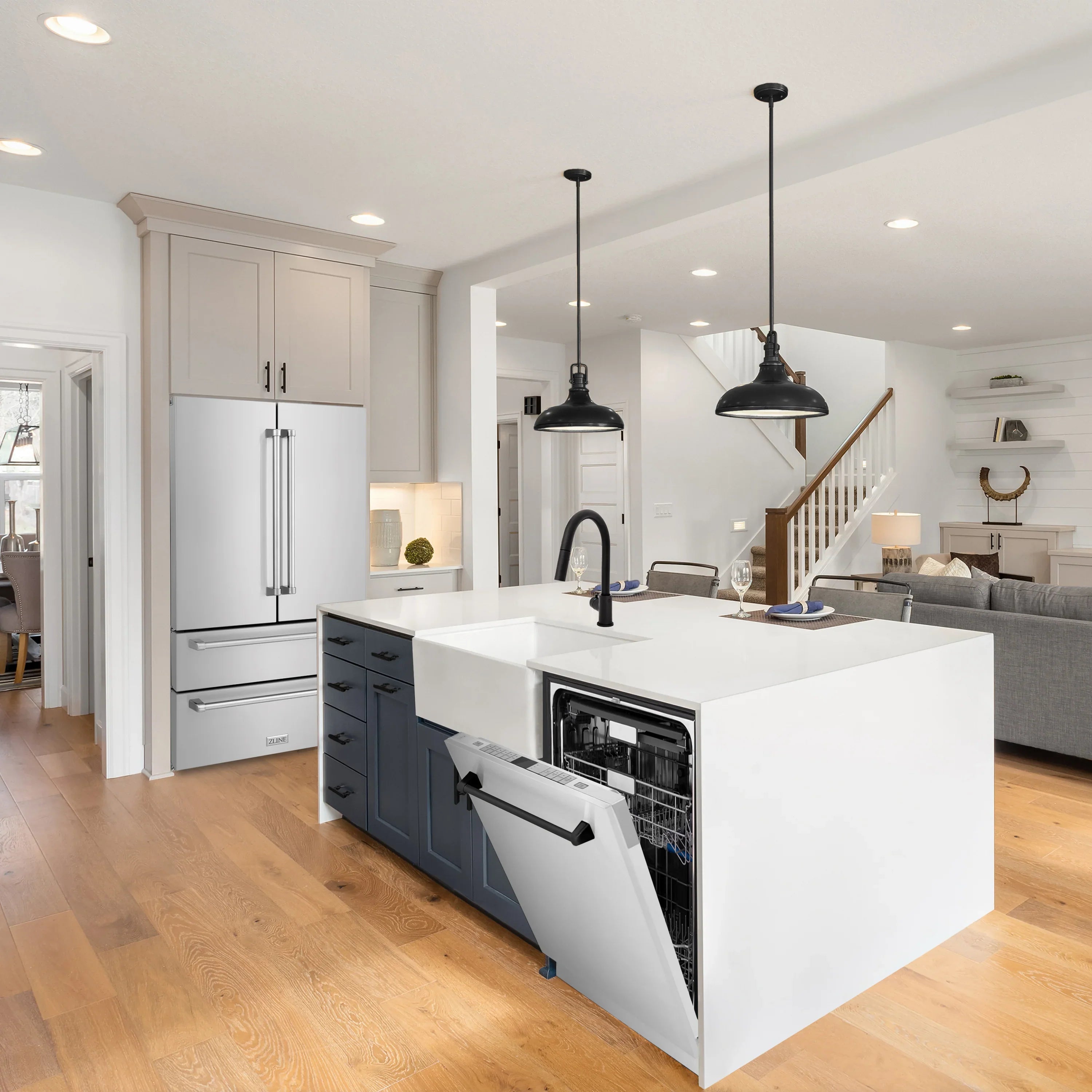

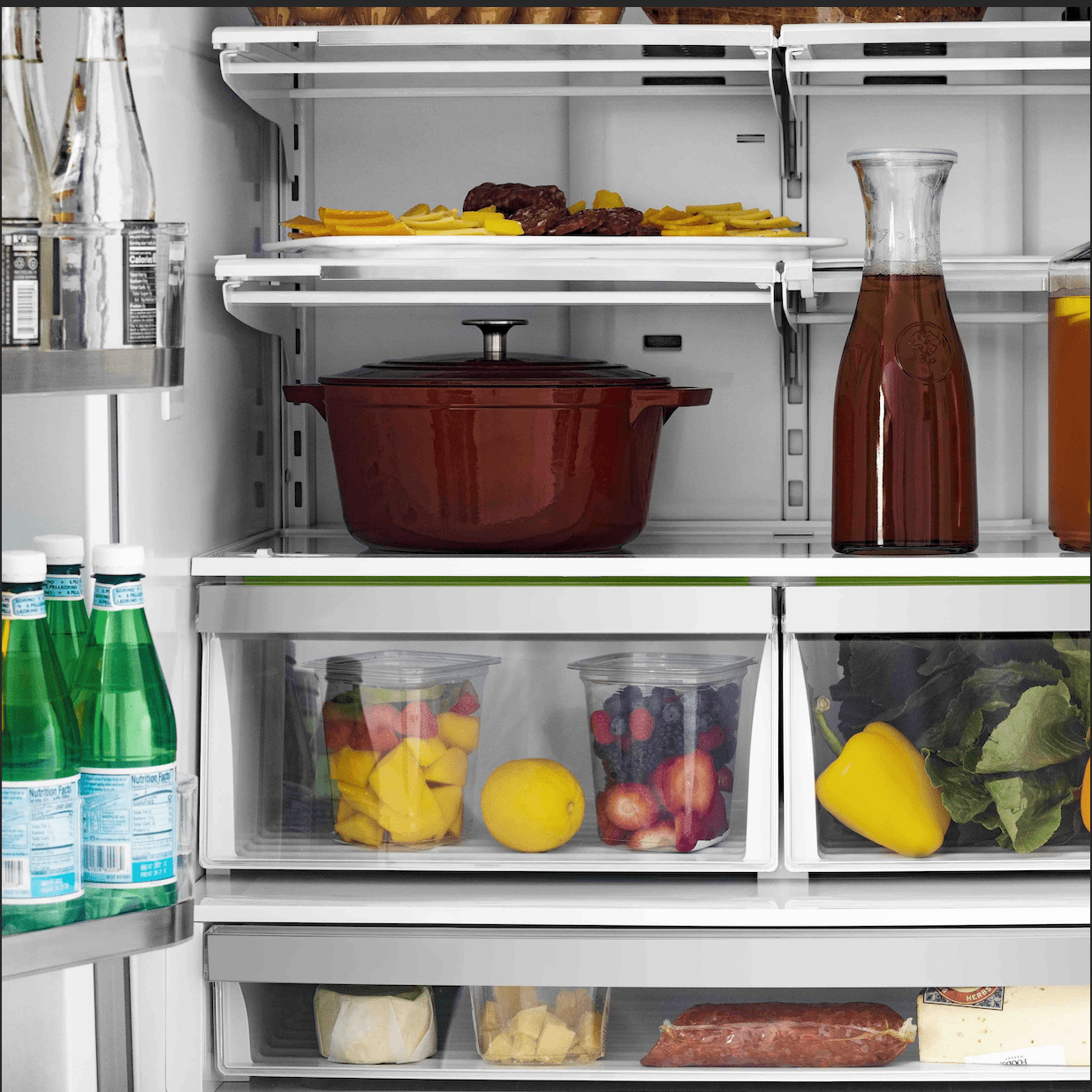

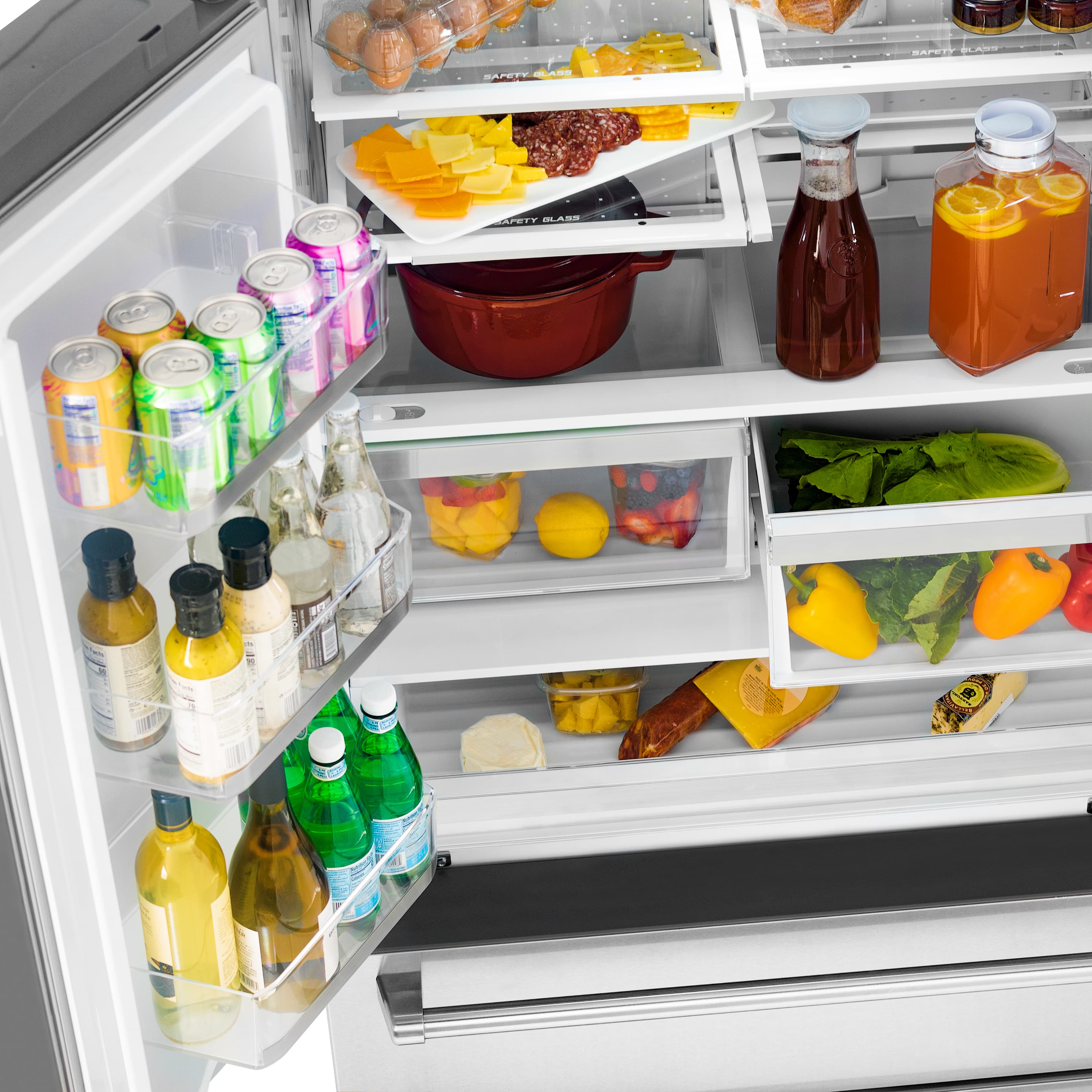

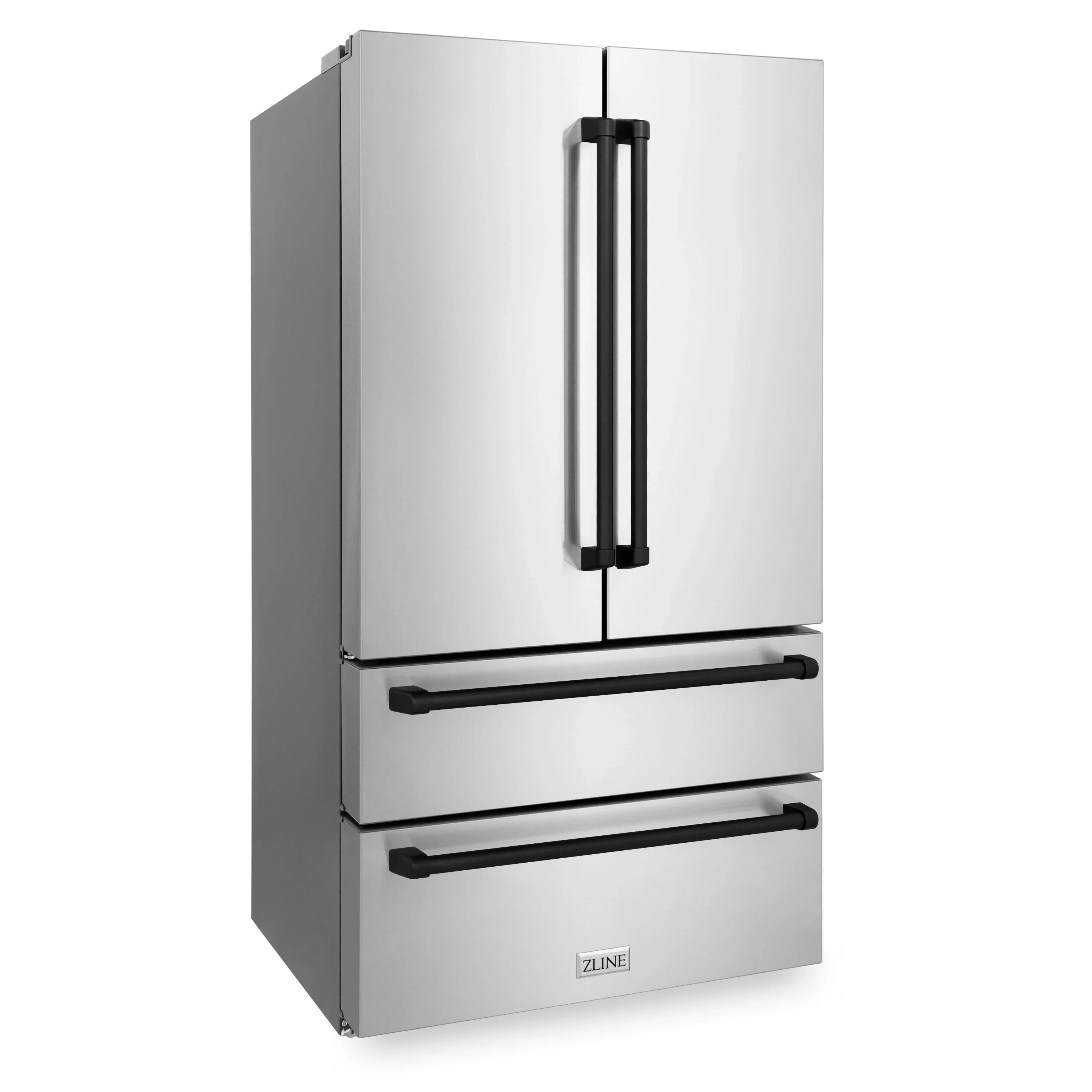

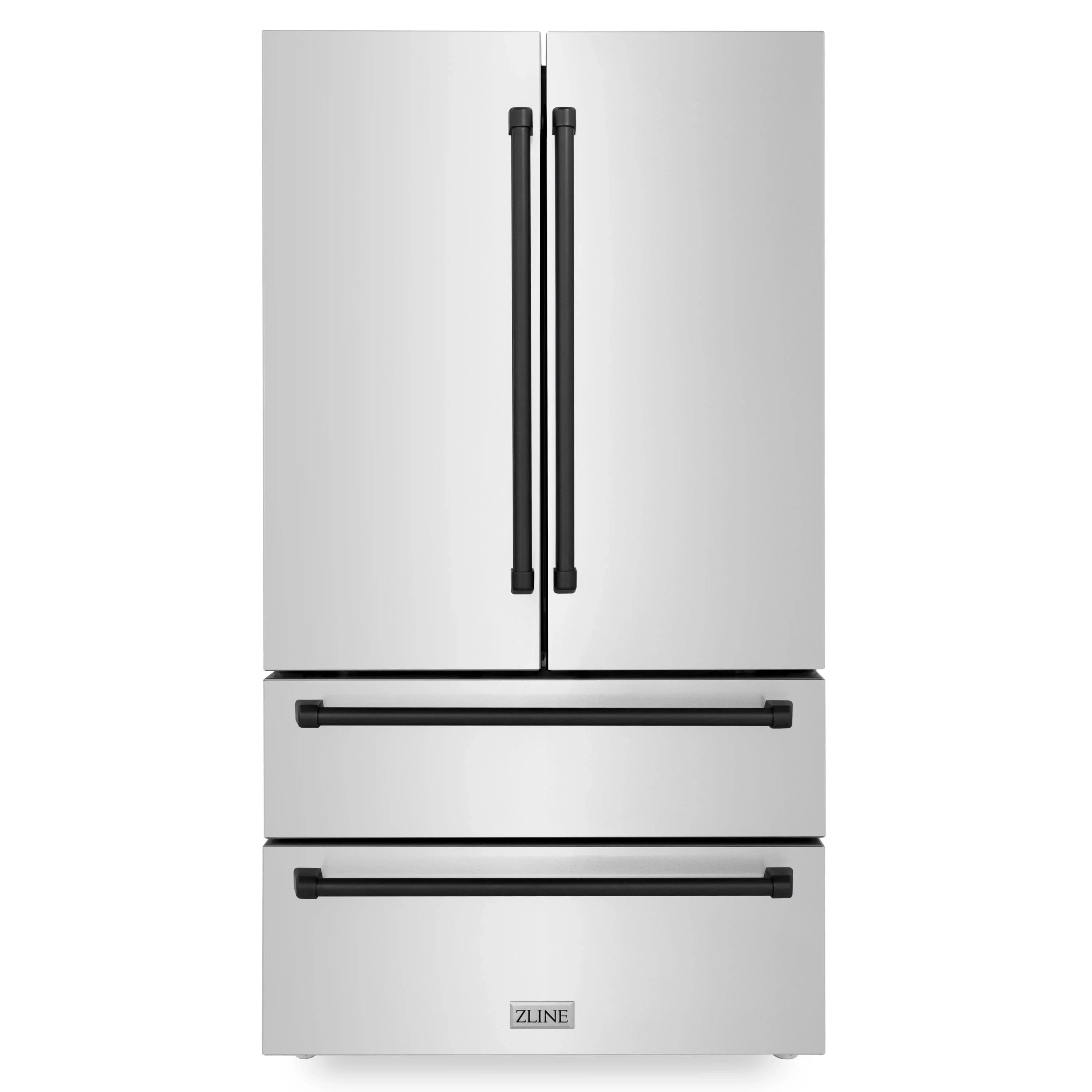

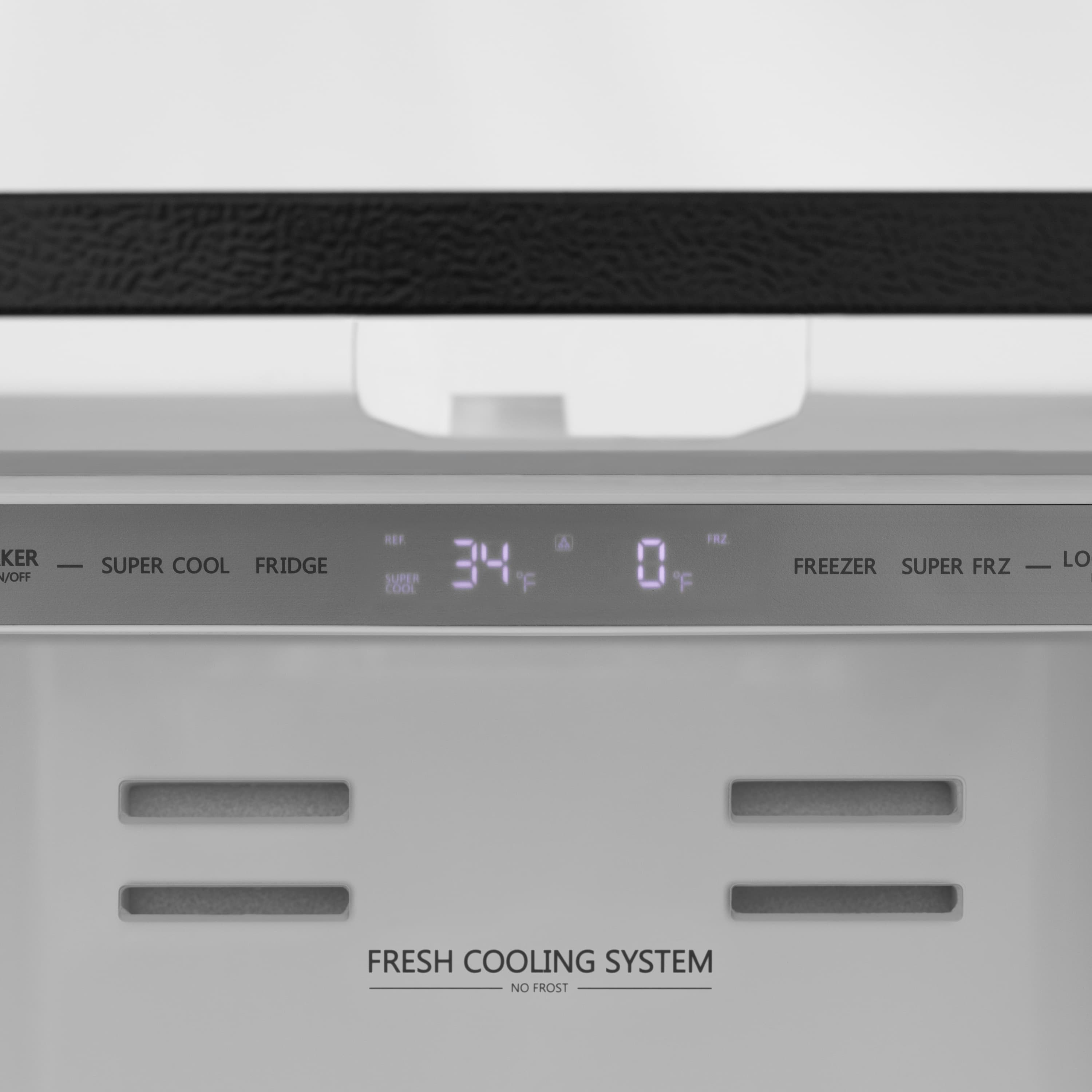

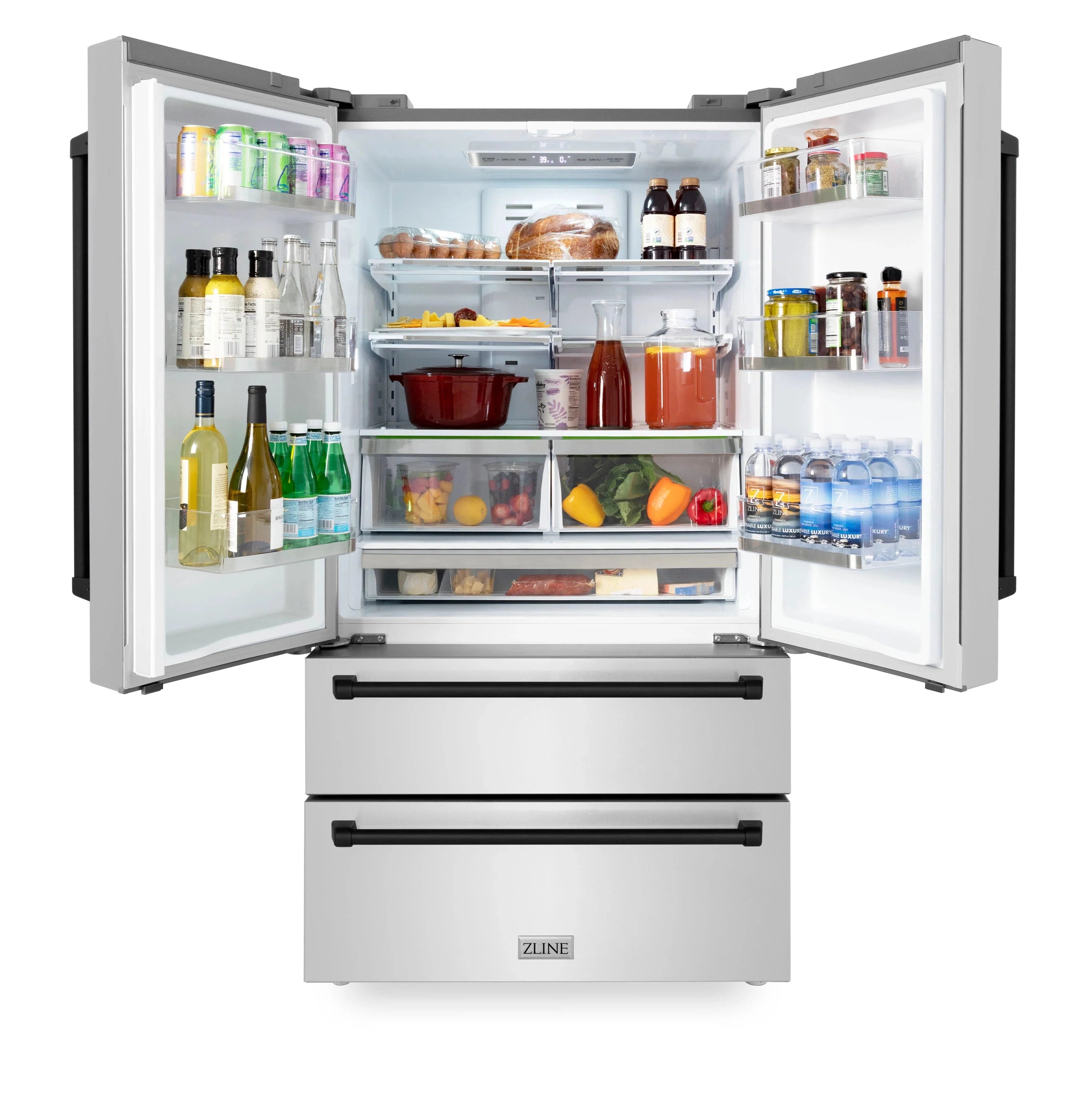

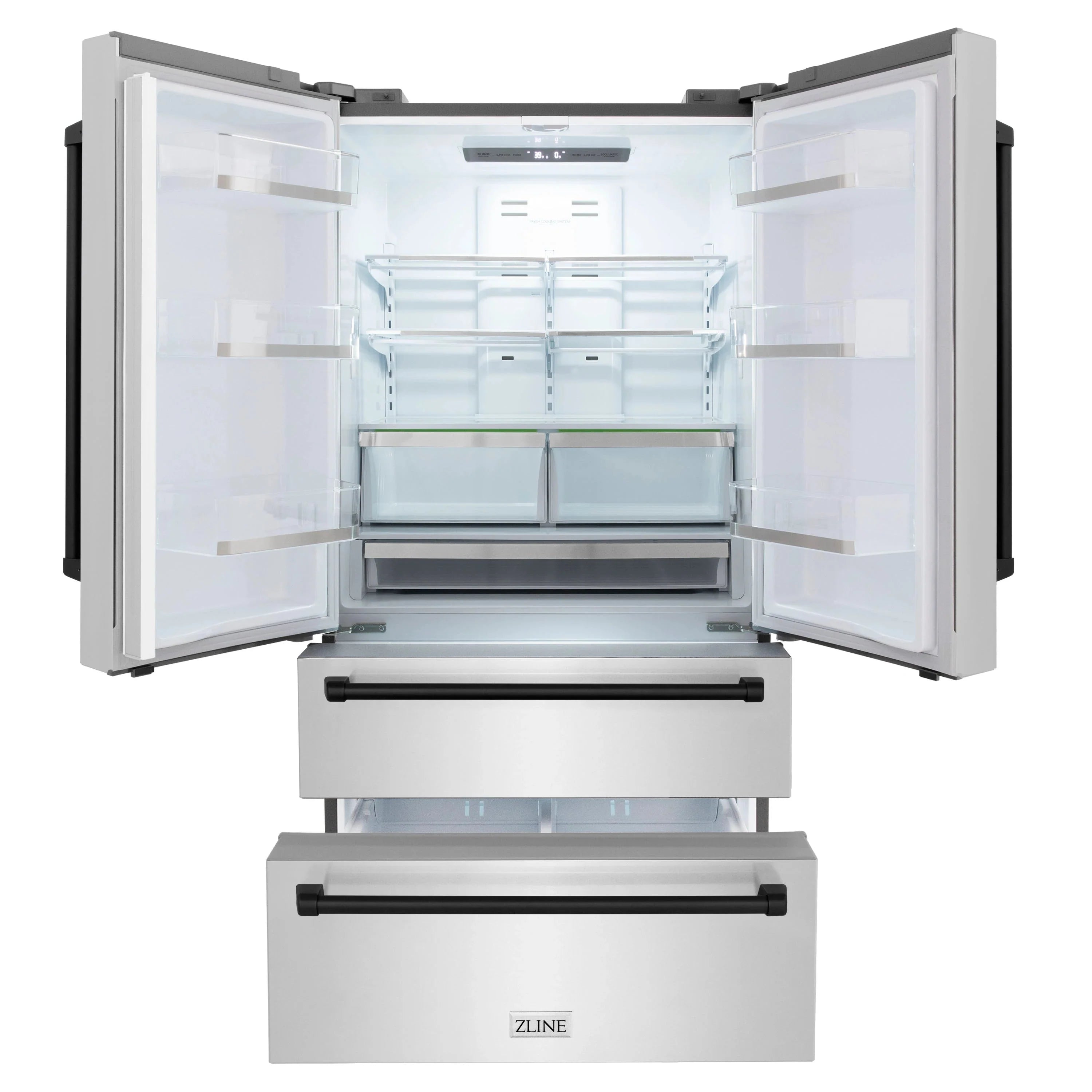

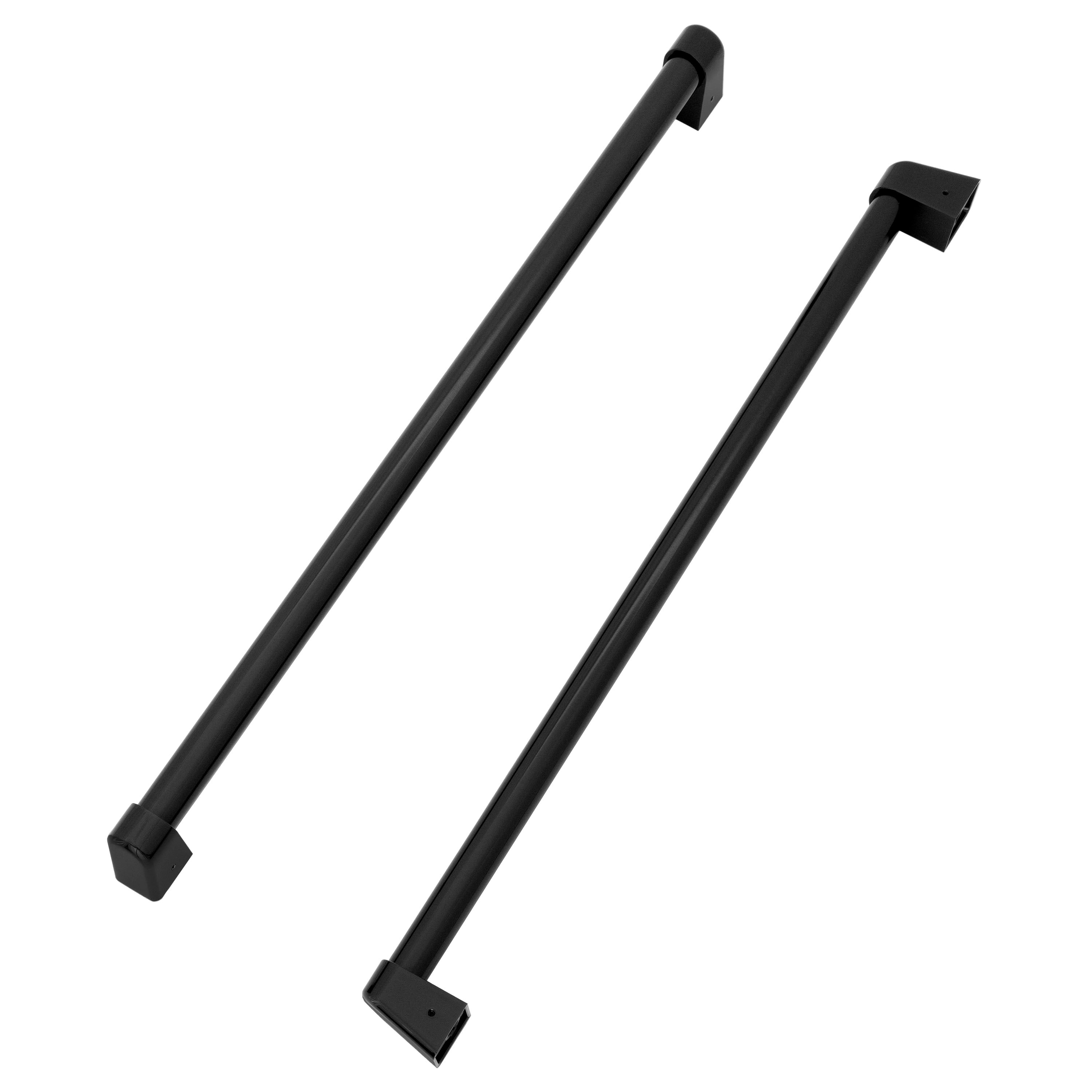

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel with Matte Black Traditional Handles (RFMZ-36-MB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

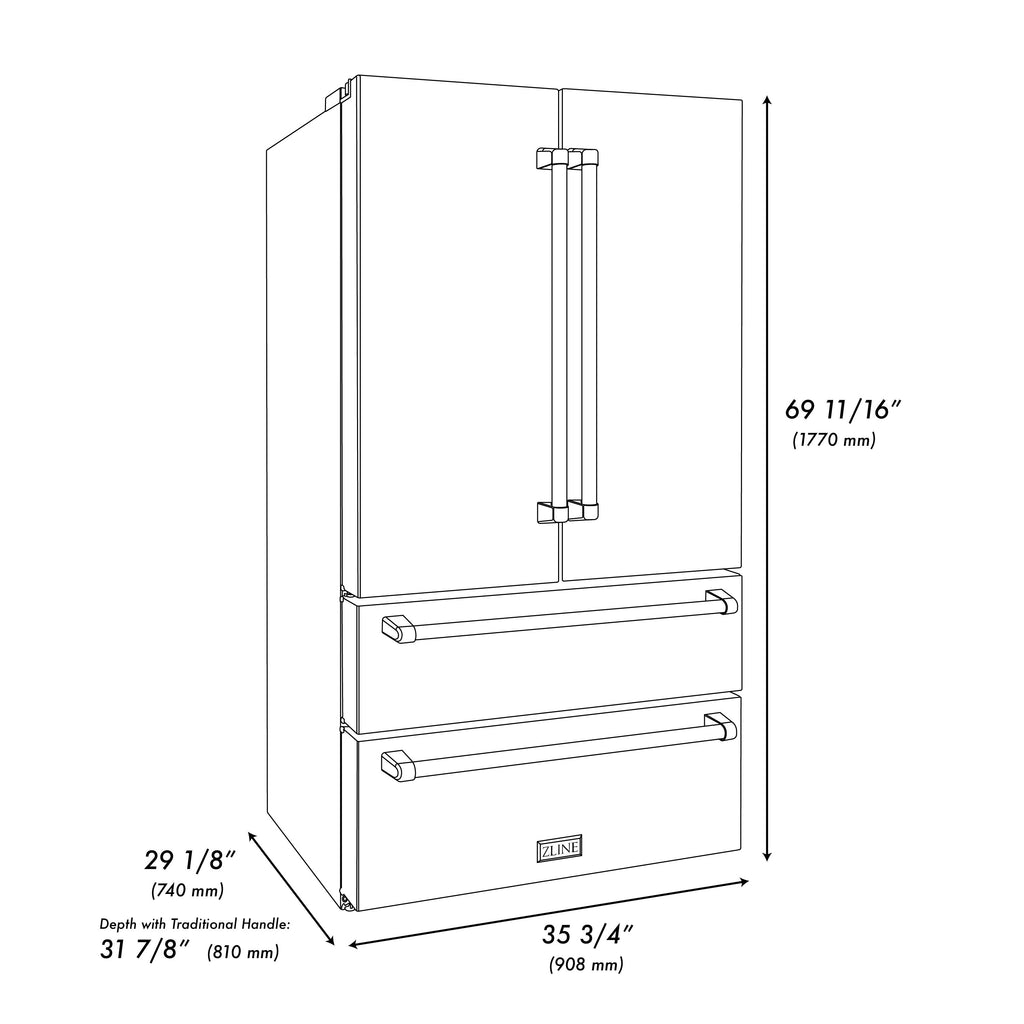

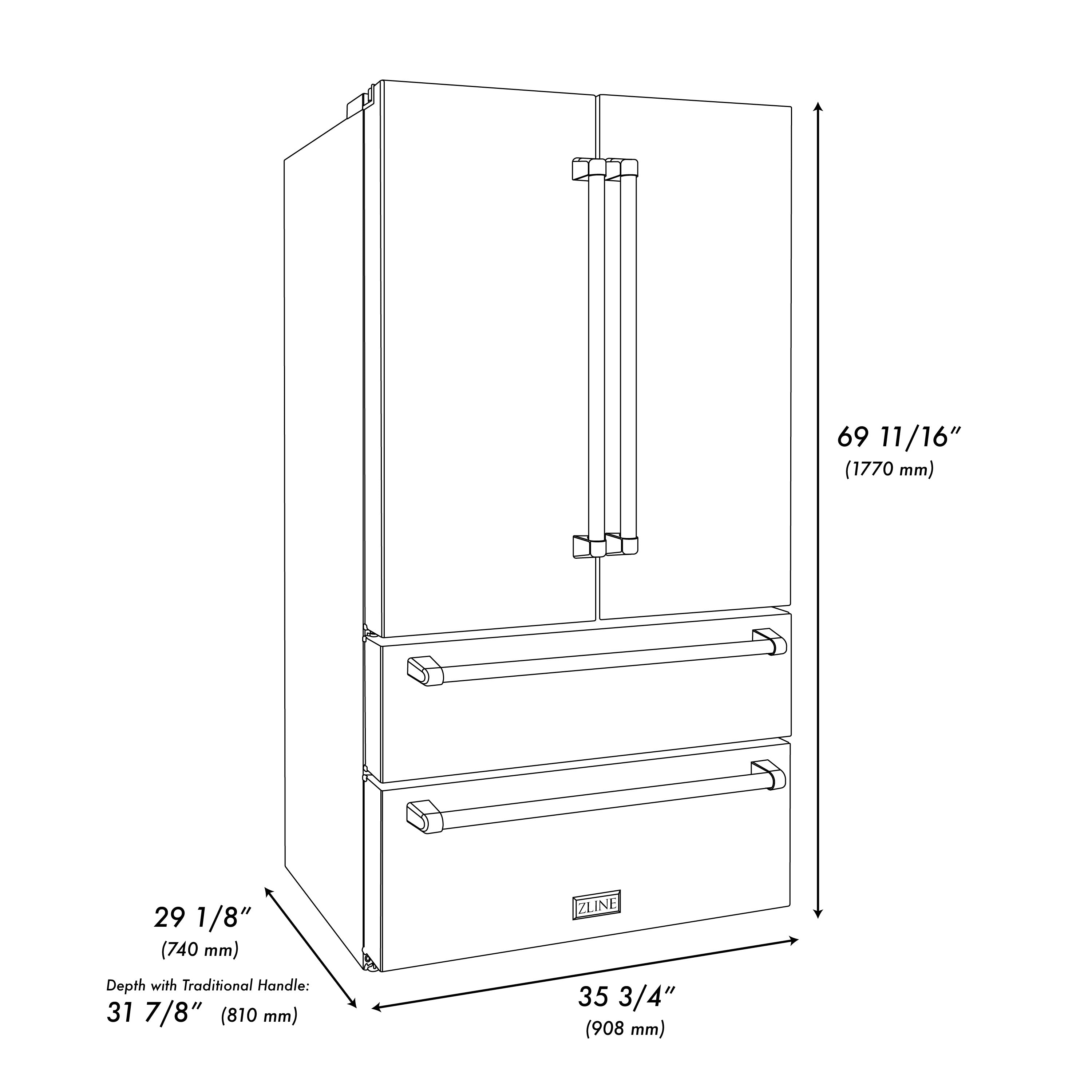

| Dimensions: | 35.75 in. W x 29.13 in. D x 69.69 in. H |
| Total Capacity: | 22.5 cu. ft |
| Fridge Capacity: | 15.9 cu. ft |
| Freezer Capacity: | 6.6 cu. ft |
| Flex Drawer Capacity: | N/A |
| Flex Drawer Temp Controls: | N/A |
| Installation Depth: | 29 in. D |
| Depth with Door Open: | 43.5 in. |

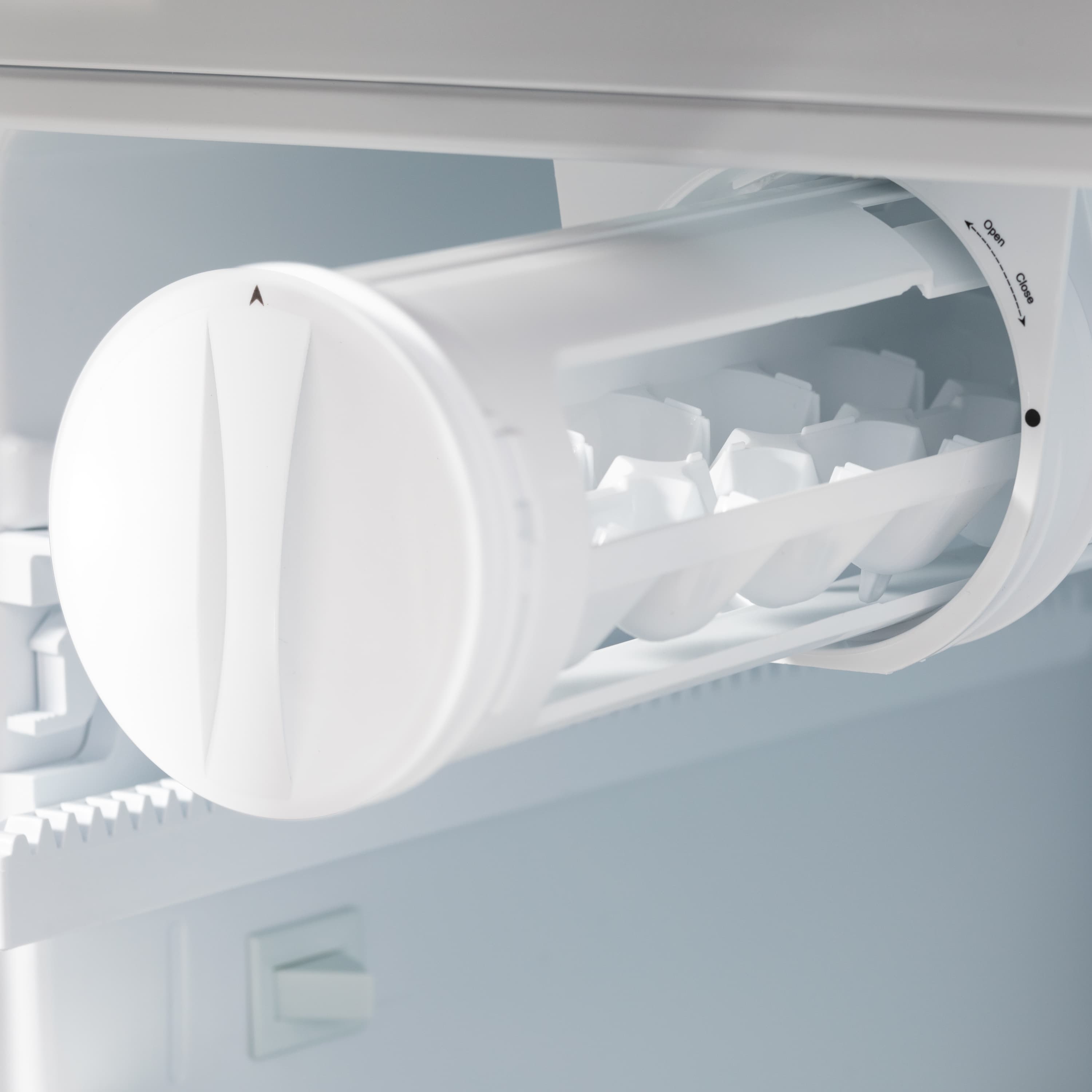

| Ice Maker: | Yes |
| Ice Maker Types: | Single Ice Maker |
| Ice Amount Per Day: | 4.85 lbs |
| Ice Tray Storage: | 1.75 lbs |
| Water Dispenser: | No |
| Flowrate for Water Dispenser: | N/A |
| Fridge Lights: | 3 |
| Energy Star: | Yes |
| Energy Consumption (kWh/year) | 588 |
| Voltage: | 120V/60Hz |
| Amps: | 3 |
| Noise Level: | 45 Decibels |

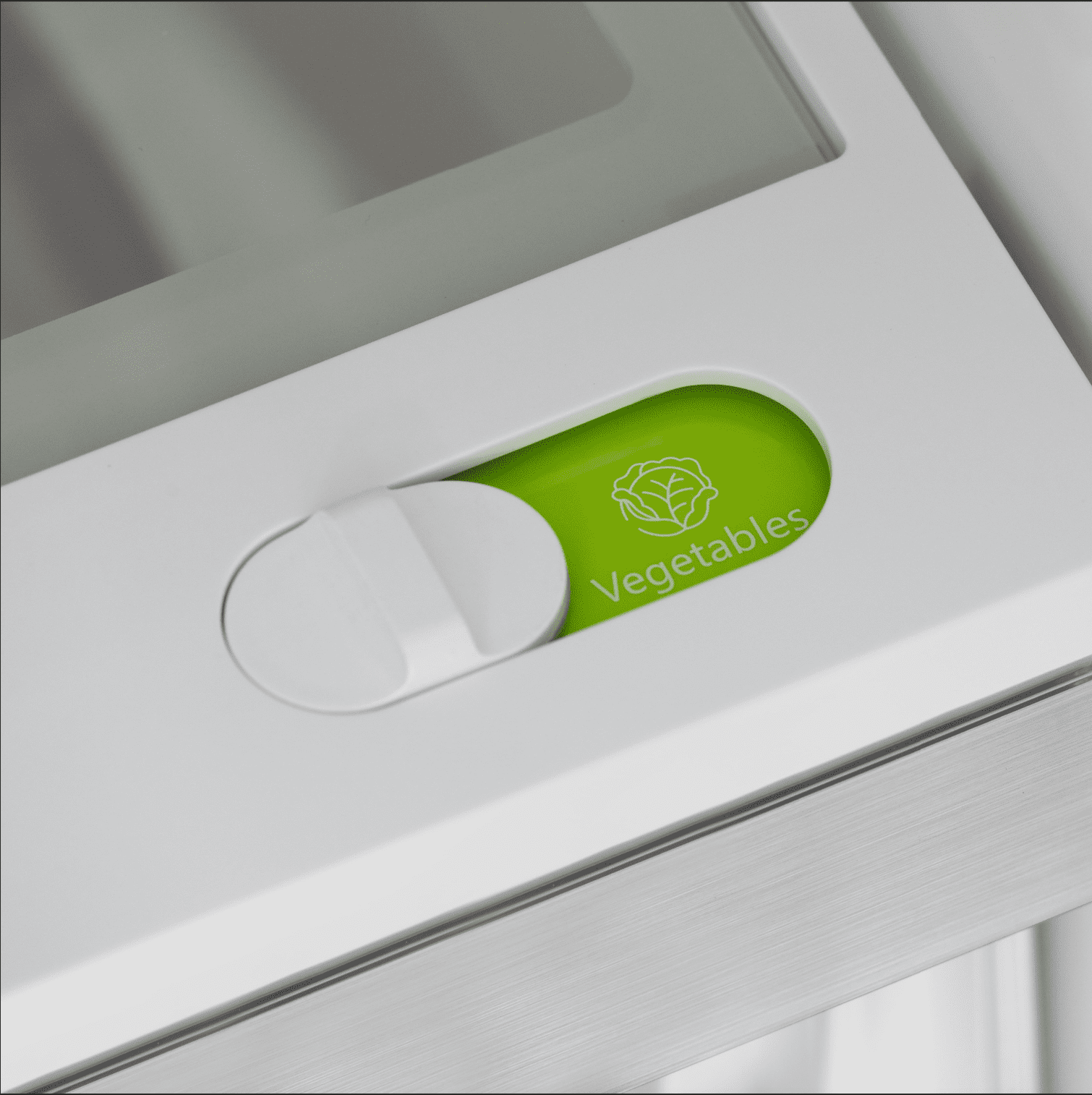

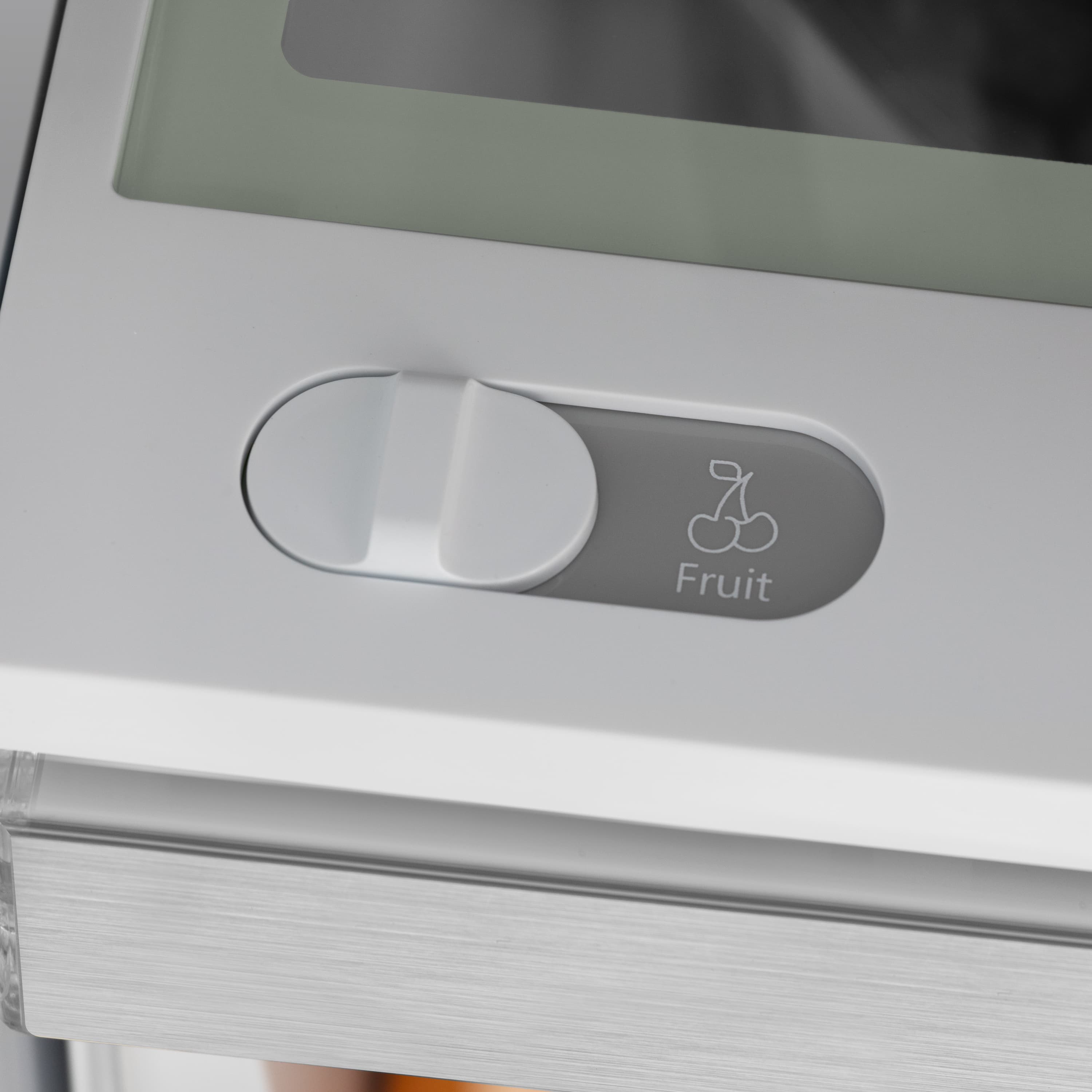

| Humidity-Controlled Crispers: | 2 |
| Freezer Drawer Bins: | 2- Pull Out Drawers |
| Door Shelves: | 6 |
| Number of Fridge Shelves: | 4 |
| Mount Type: | Freestanding |
| Certifications: | ETL Listed, ENERGY STAR certified |
| Material: |
Stainless Steel with Matte Black Accents |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
| Weight | 284.4 lbs |
Luxury isn’t meant to be desired - it’s meant to be attainable.

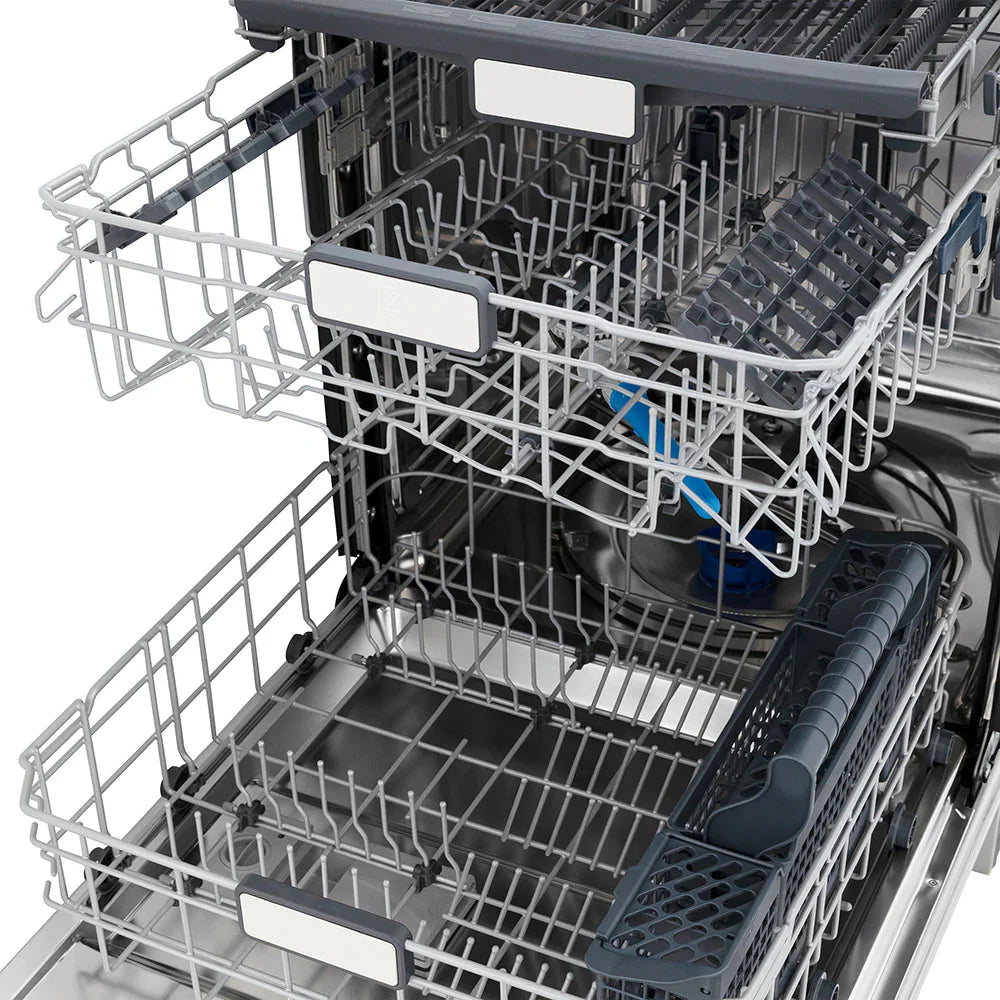

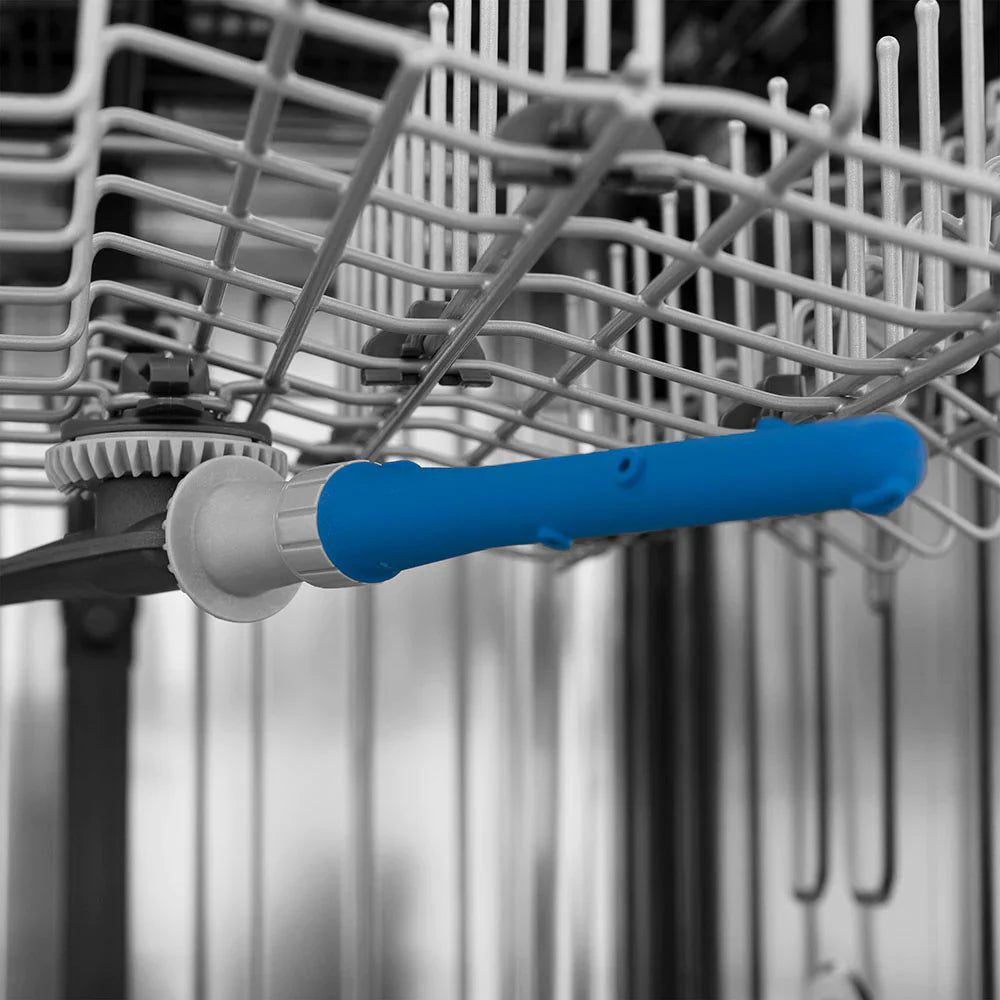

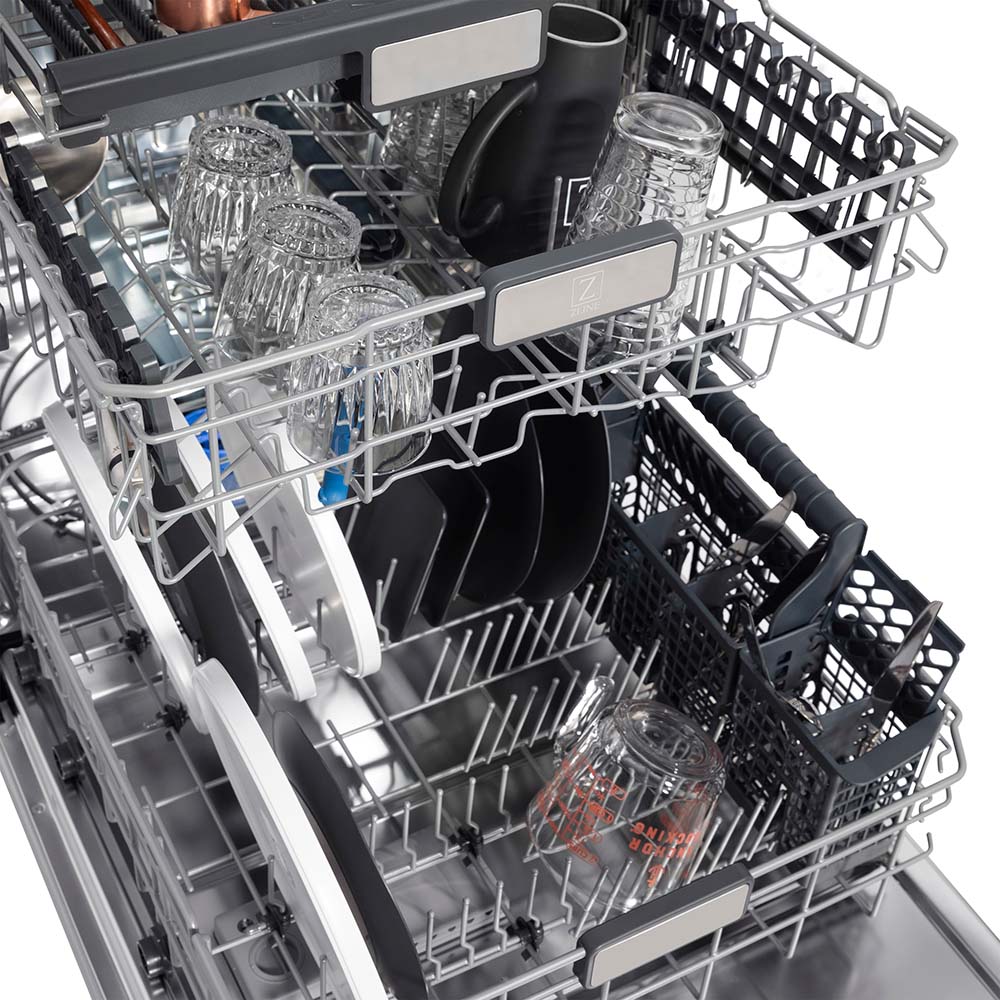

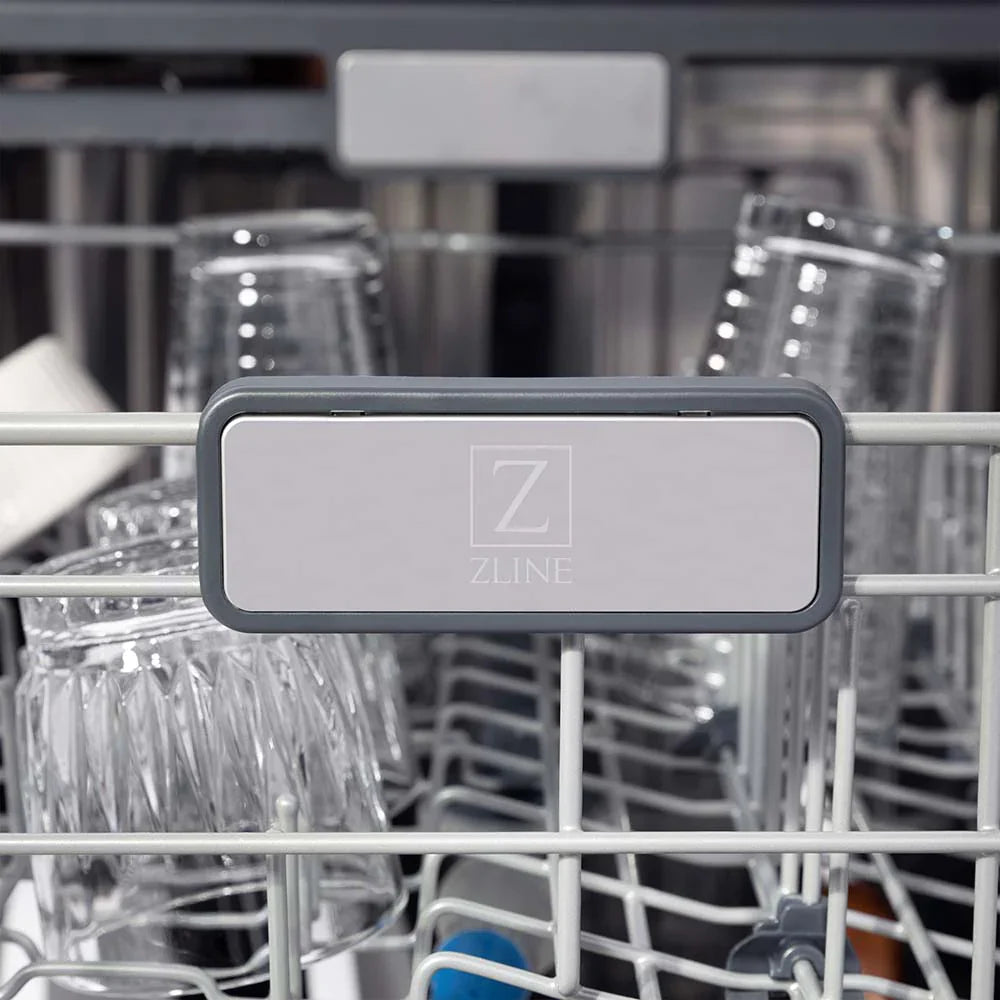

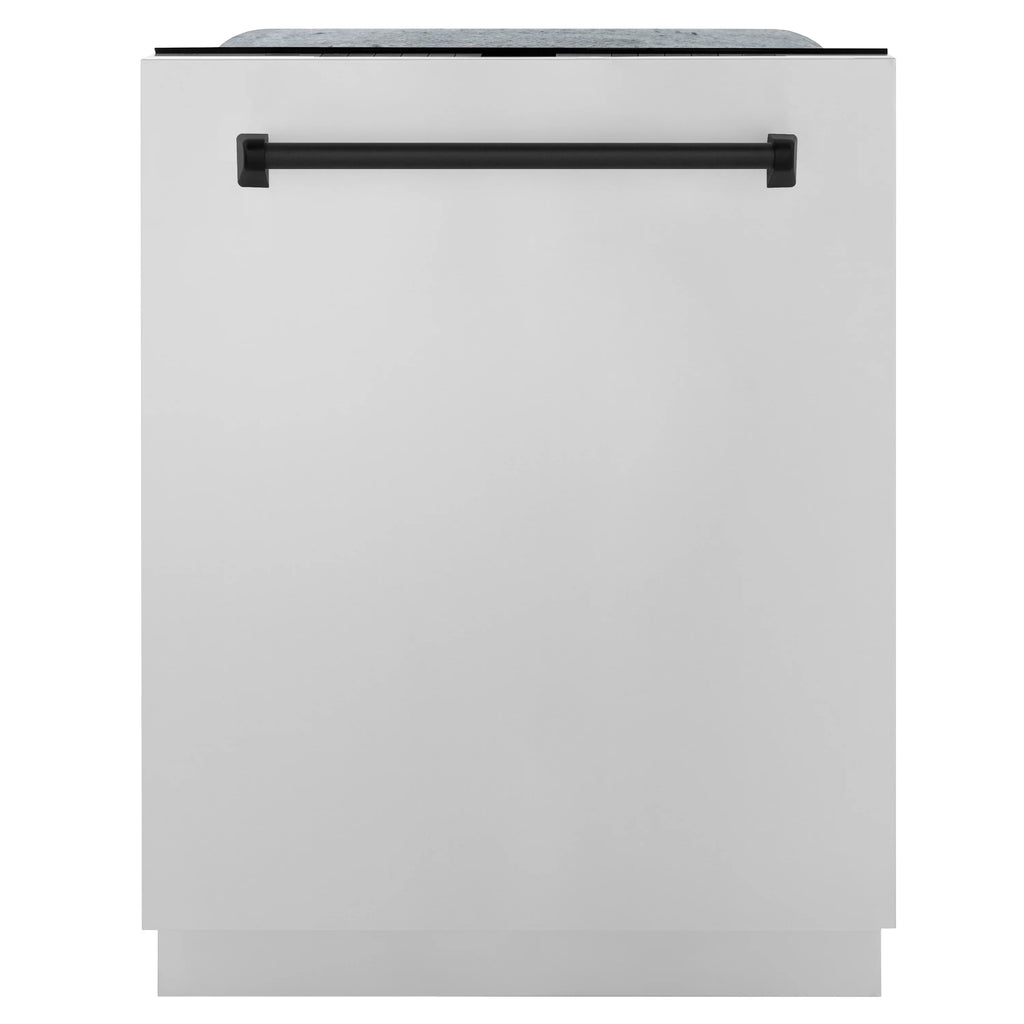

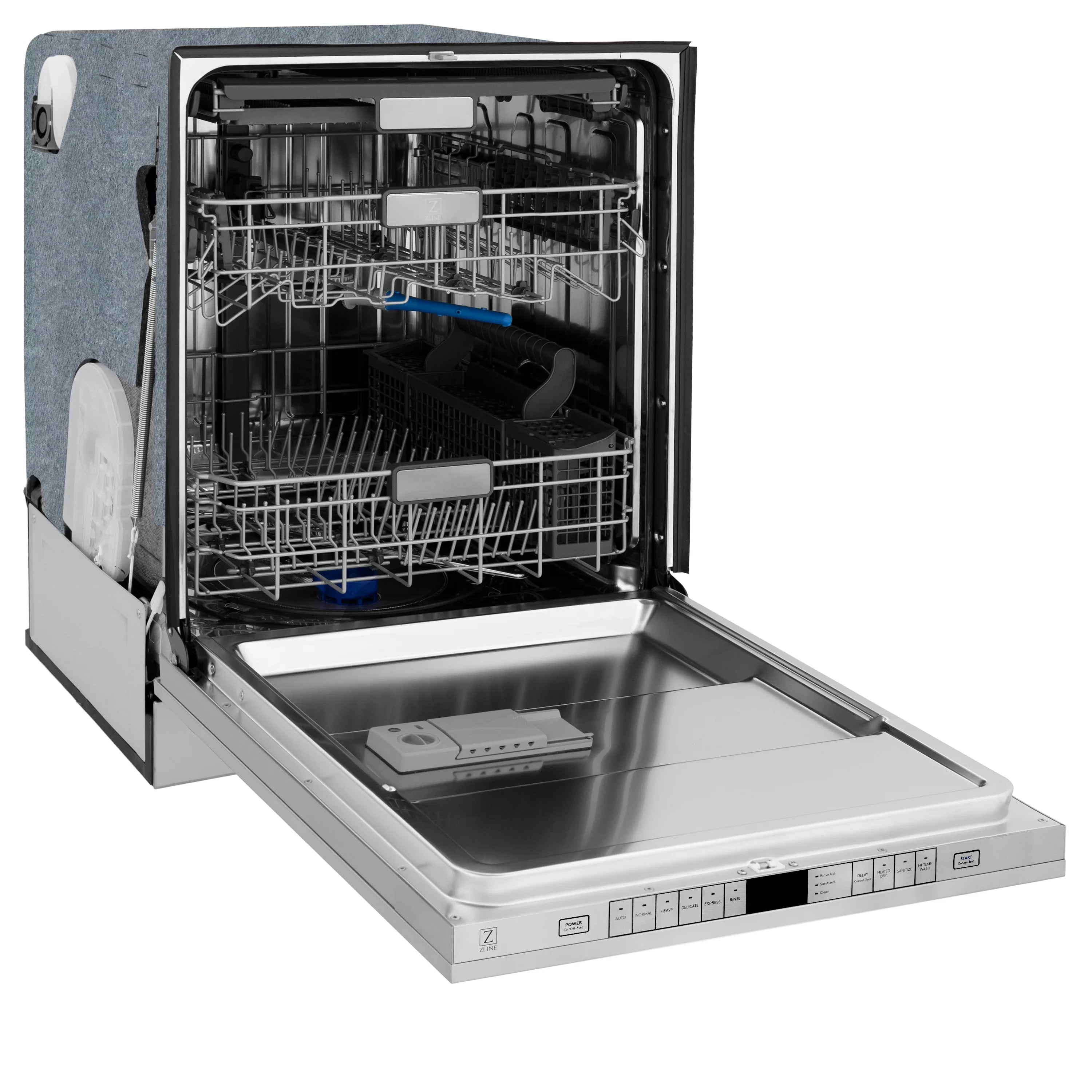

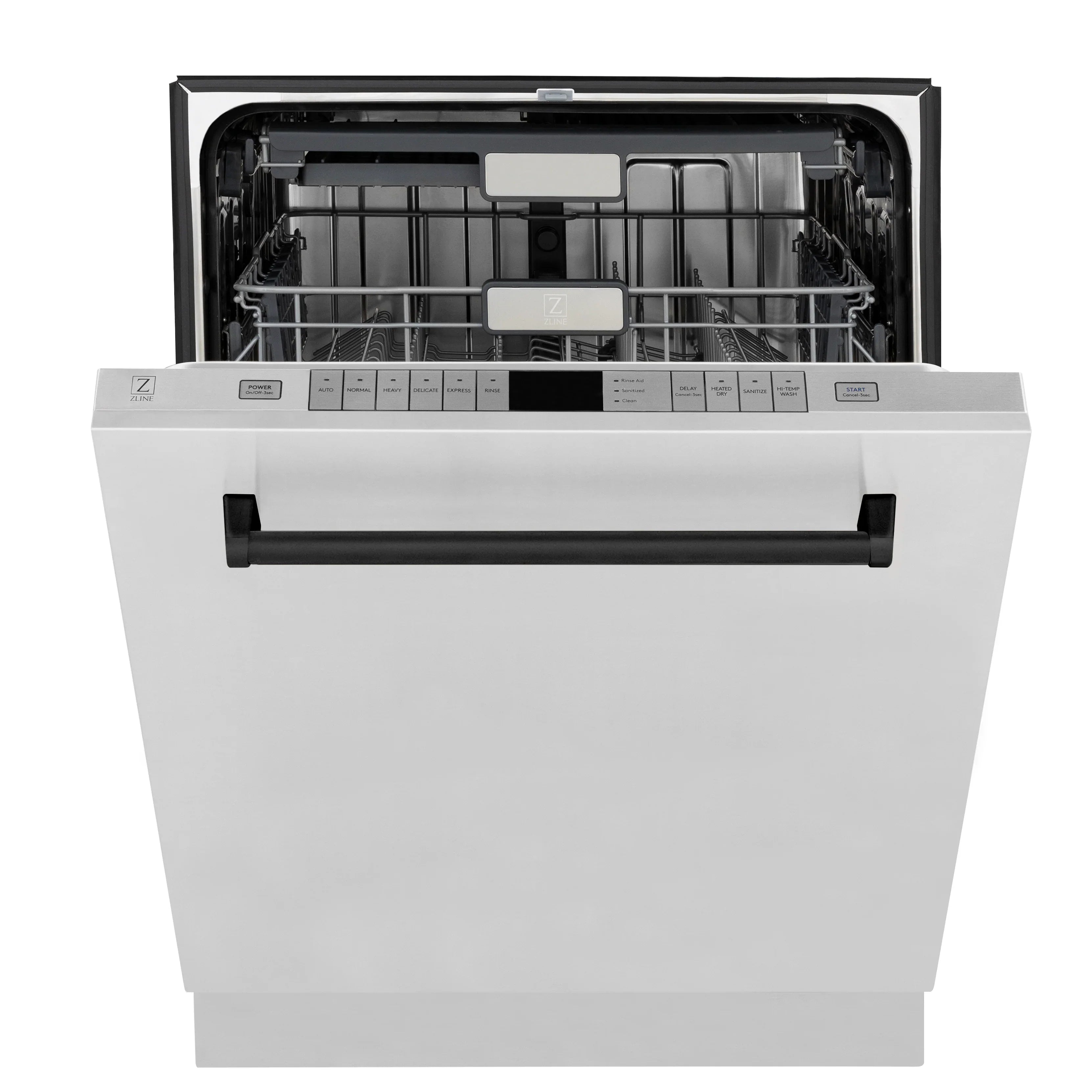

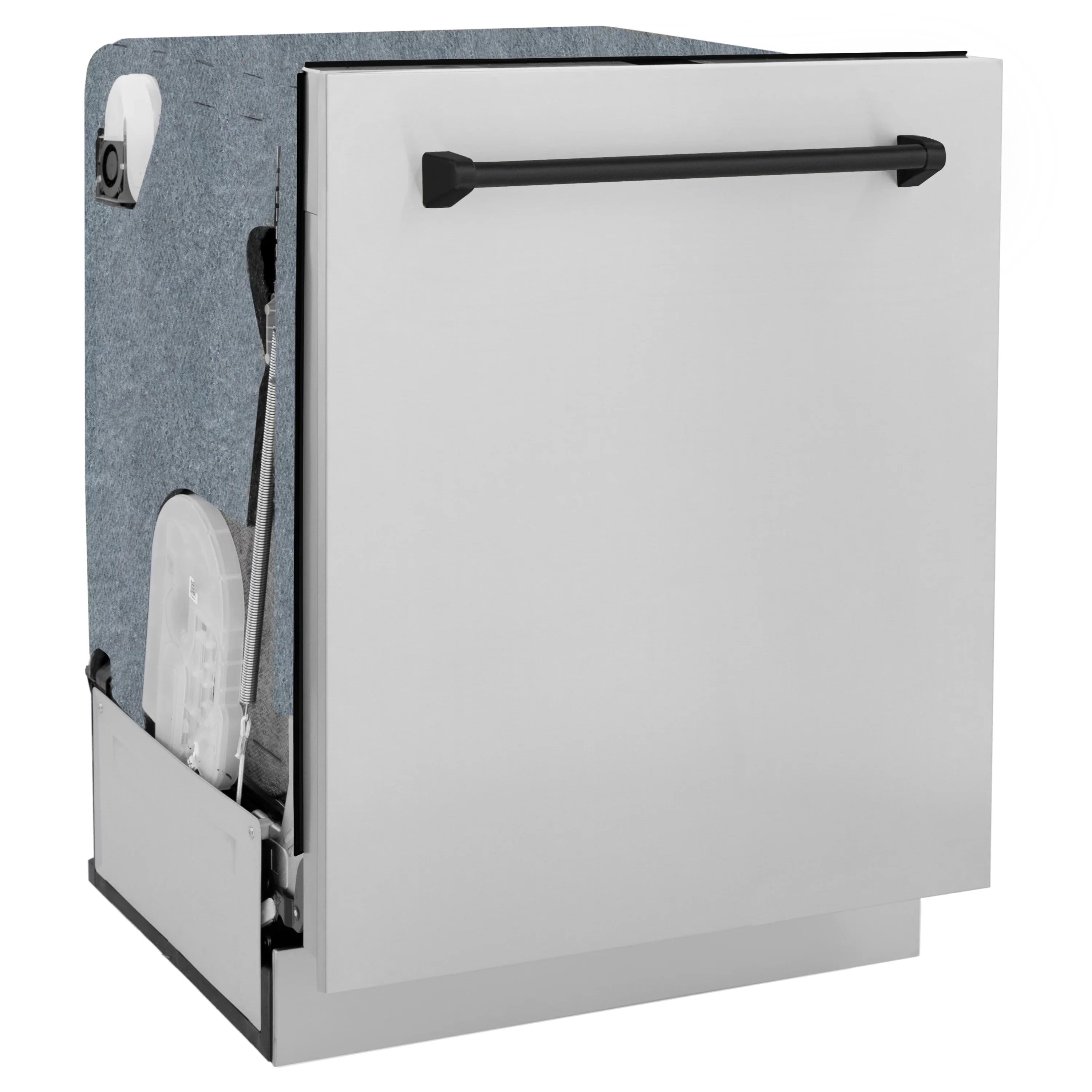

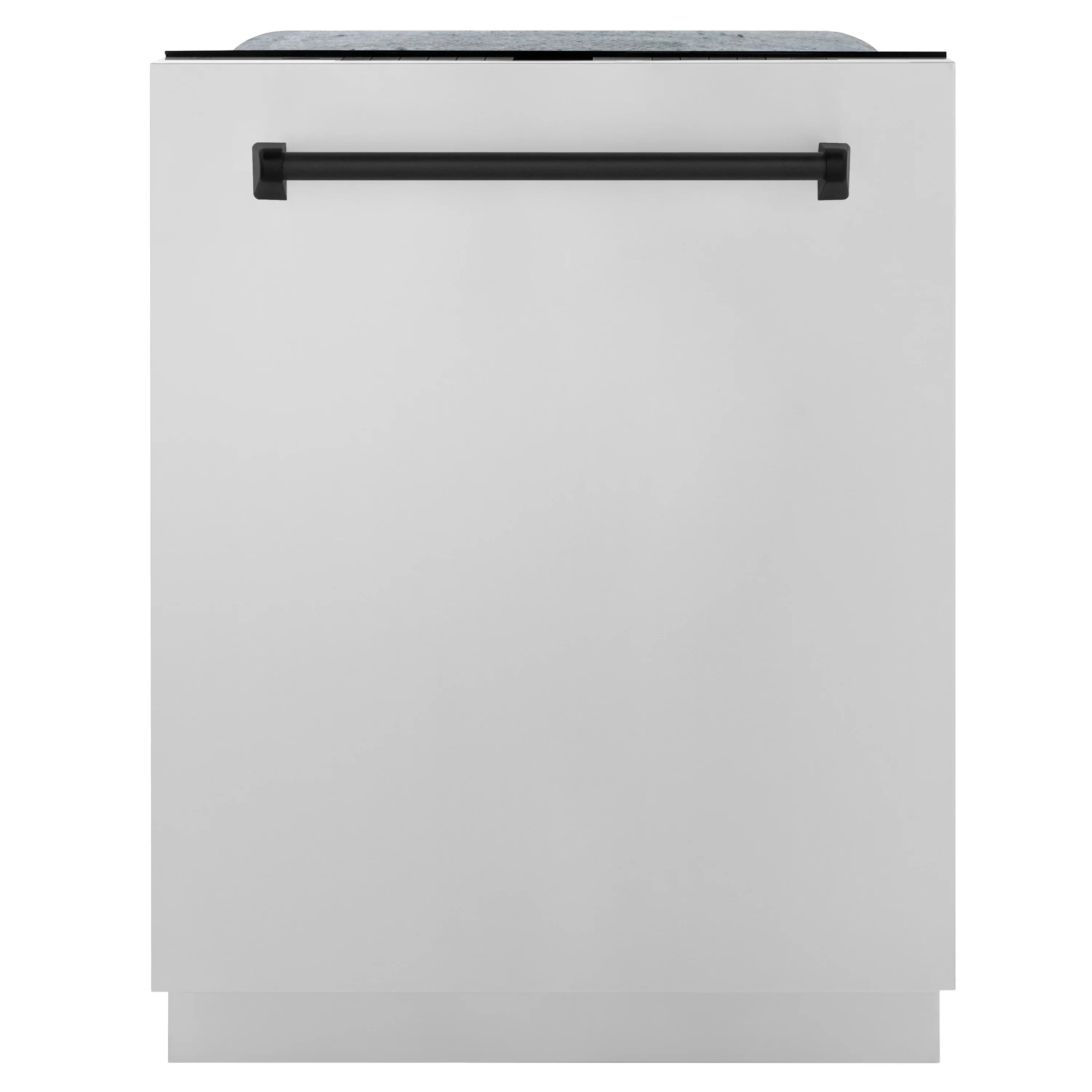

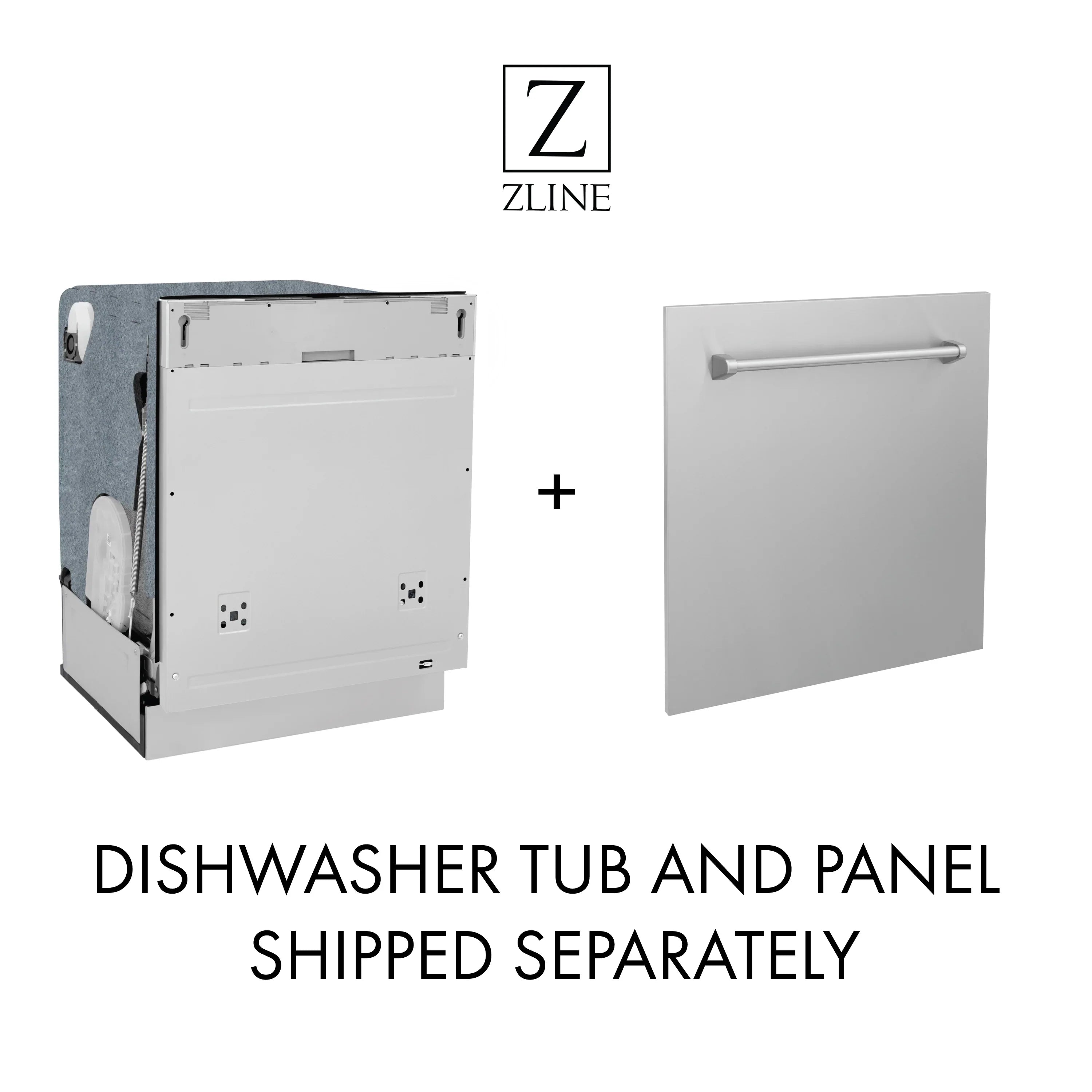

Designed in Lake Tahoe, USA, the ZLINE Autograph Edition 24" 3rd Rack Top Control Tall Tub Dishwasher in Stainless Steel with Matte Black Handle, 45dBa (DWMTZ-304-24-MB) provides a professional culinary experience by pairing unmatched performance with personalized touches.
Encompassing limitless beauty, precision, and quality, the Autograph Edition Series creates a luxury look that will transform your space.
Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
| Brand |
ZLINE Kitchen and Bath
|
|

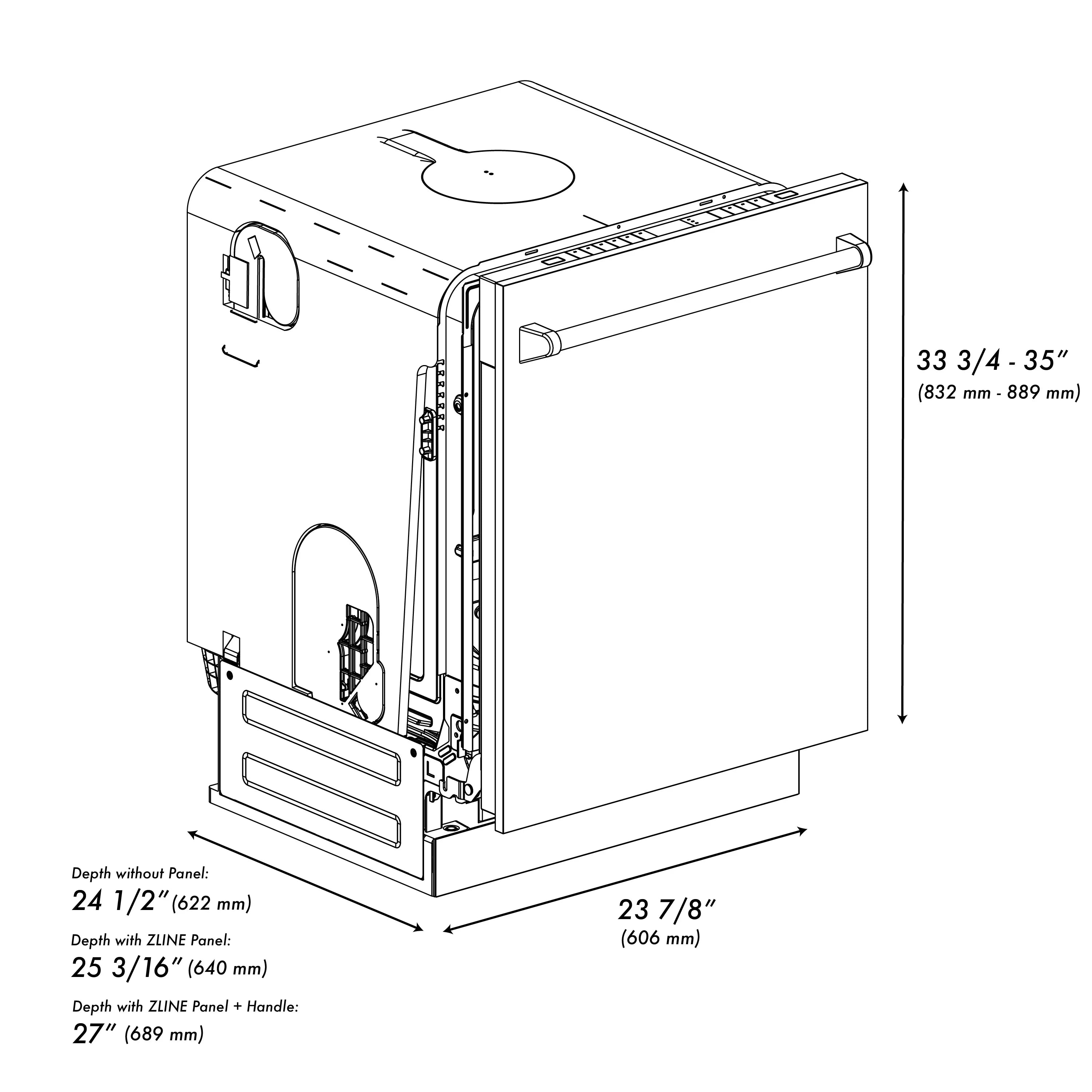

Product Dimensions Minimum Height |
23.875 in. W x27 in. D x 33.75 in. H |
|
Product Dimensions Maximum Height
|
23.875 in. W x27 in. D x 35 in. H |
|
Cut Out Dimensions
|
24 in. W x 25 in. D x 34 in. H
|
| Weight | 109.6 lbs |
|
Voltage
|
120vac
|
| Frequency (Hz) | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current (Amps) | 8.4A |
|
Motor Wattage
|
120
|
|
Heater Wattage
|
888
|
| Motor Amperage |
1.0A
|
| Heater Amperage |
7.4A
|

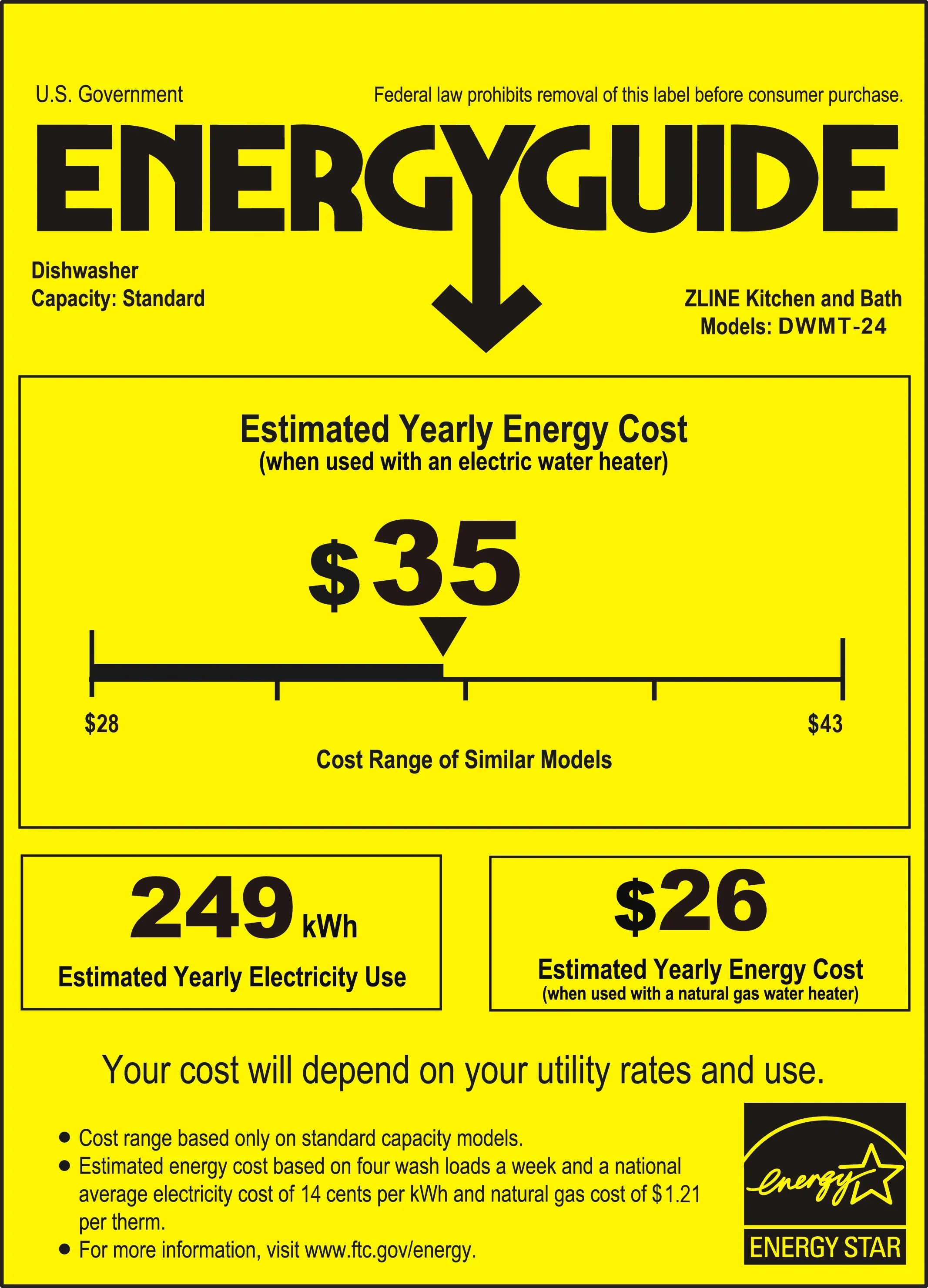

| Energy Consumption Per Year (kWh) |
249
|
| Water Consumption Per Cycle (Liters/Cycle) |
11.7
|
| Water Consumption Per Cycle (Gallons) |
3.1
|
| Hose Length (in.) |
56
|
| Panel Ready? Y/N | N |
| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Matte Black |
| Drying System | Residual Heat Dry |
| Control Location | Top Control |
| Control Type | Touch Control |
| Decibels | 45 |
| Power Cord | Hardwired - Junction Box Included |
| Installation Type | Direct Wired |

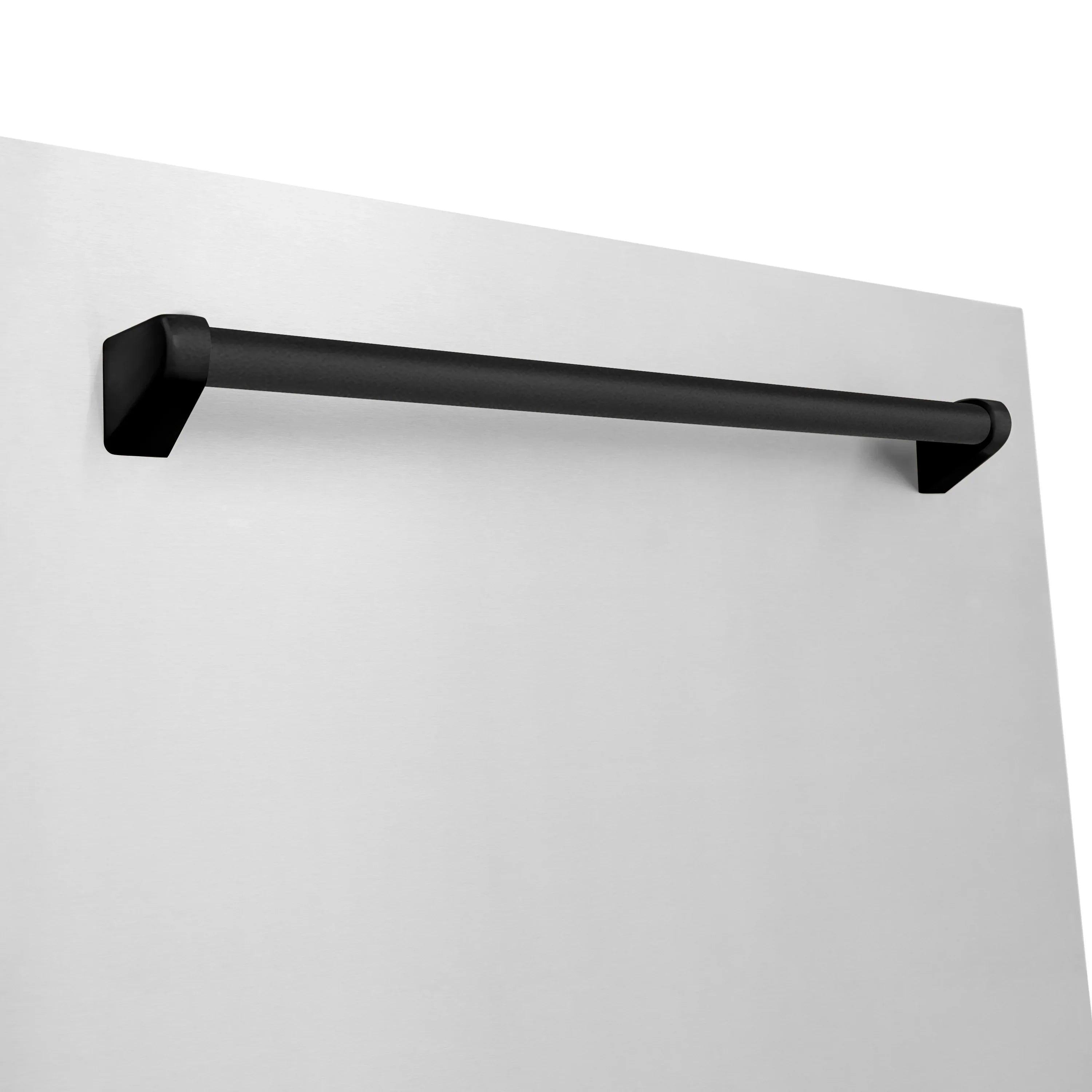

| Handle Type | Bar Handle- Traditional Style |
| Number of Cycles | 6 |
| Number of Place Settings | 14 |
| Max Plate Height (in.) | 13 |
| Rack Material | Polypropelyne (PP) |

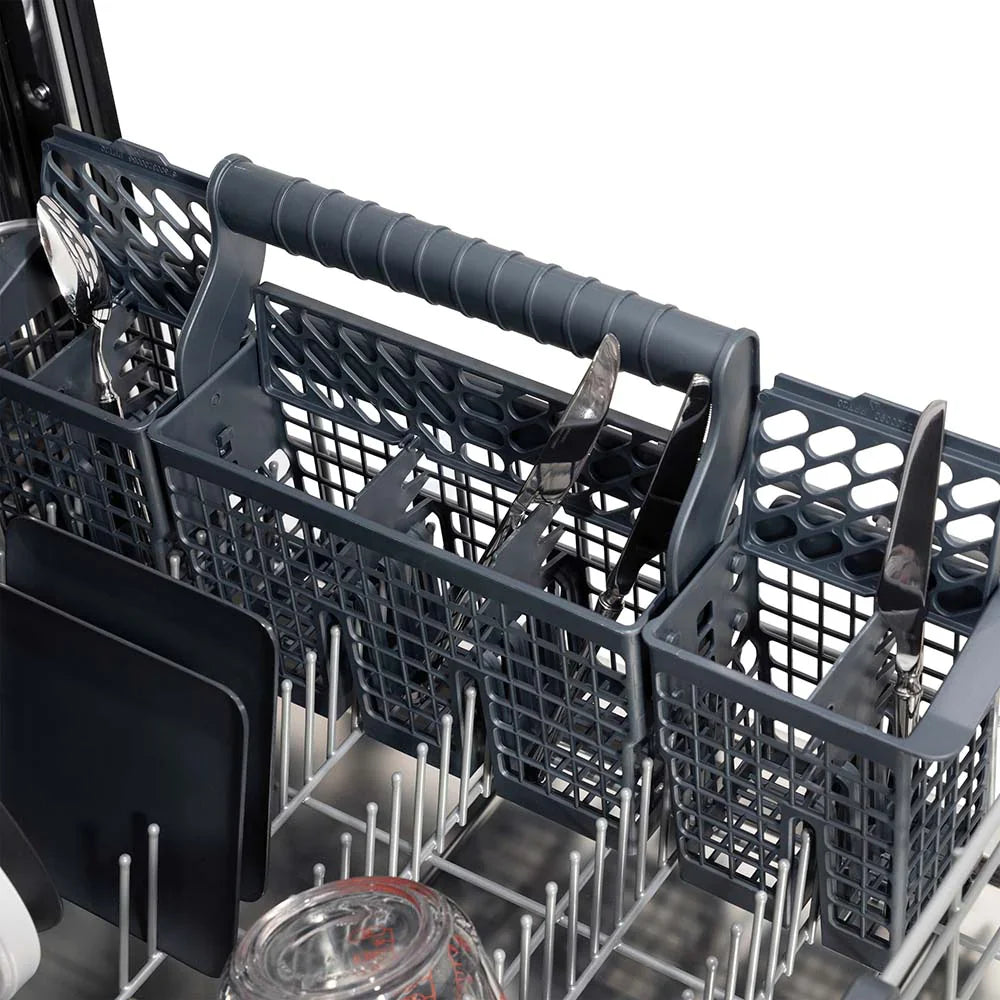

| Silverware Basket Location | Bottom Rack Left |
| Steam Function | Without Steam |
| Tub Material | Stainless Steel Tub |
| Certifications | Energy Star, CEC, UL |
