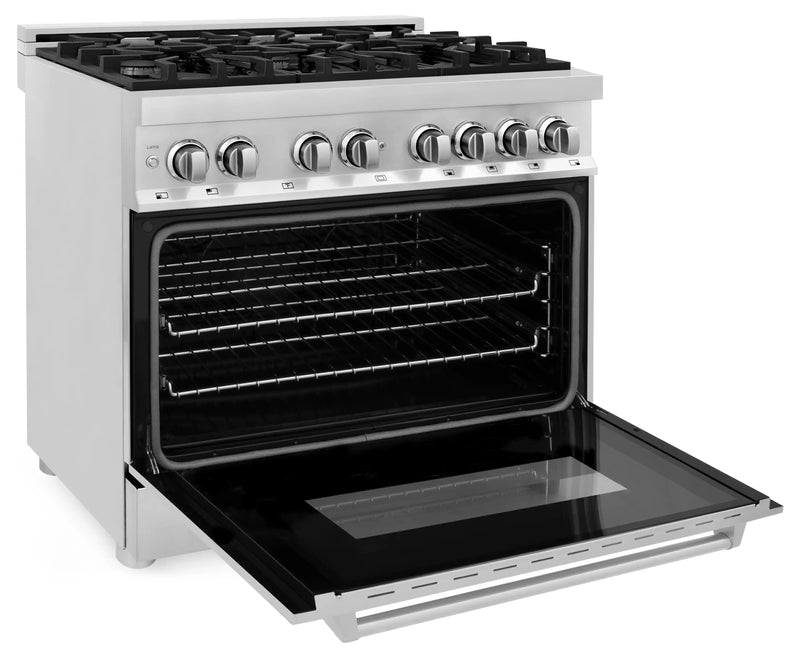

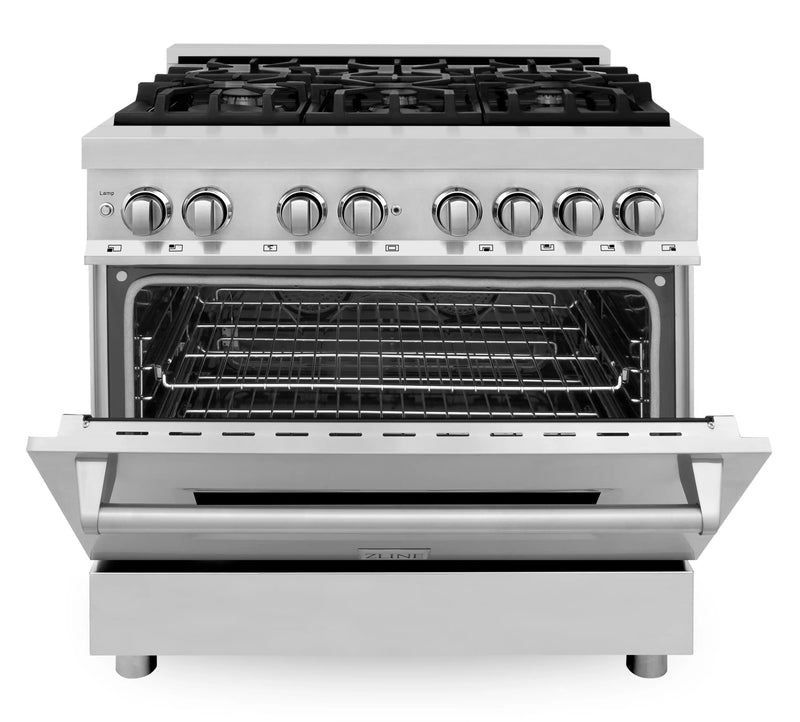

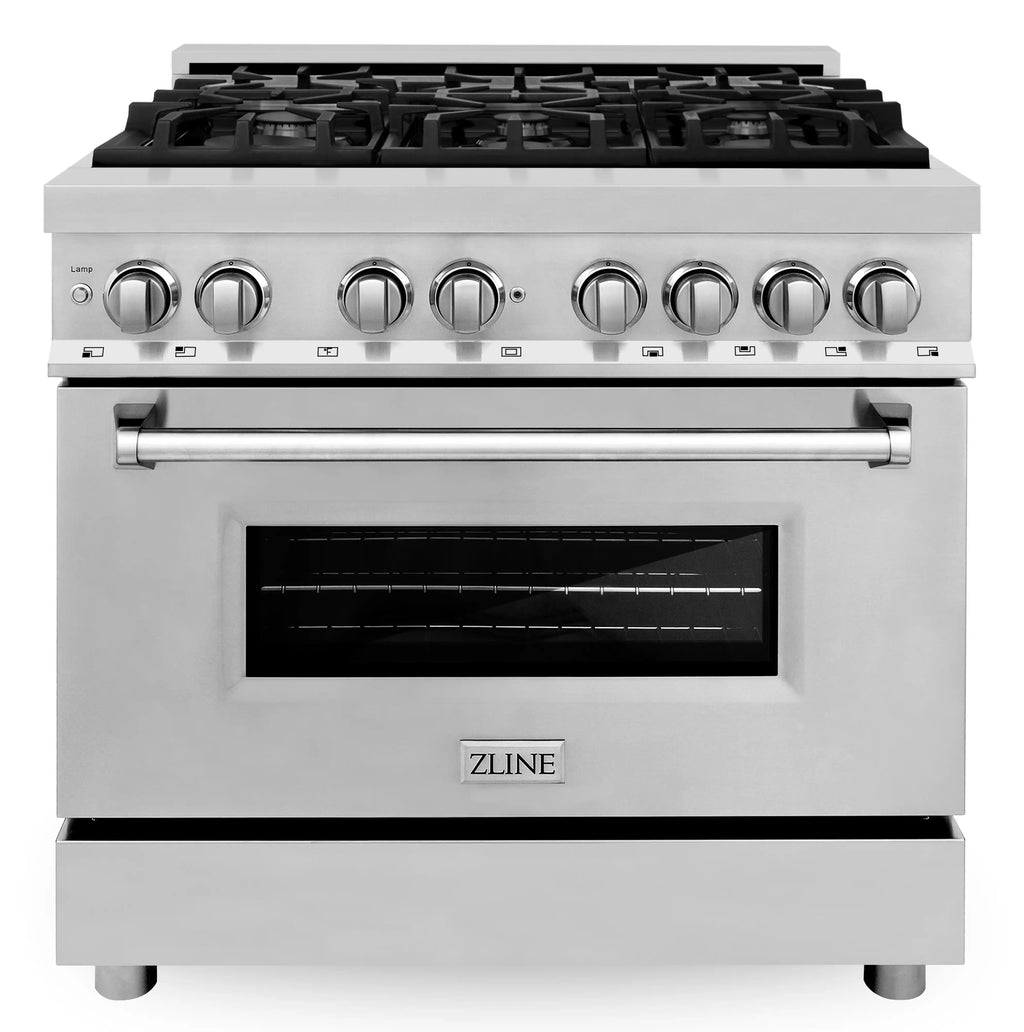

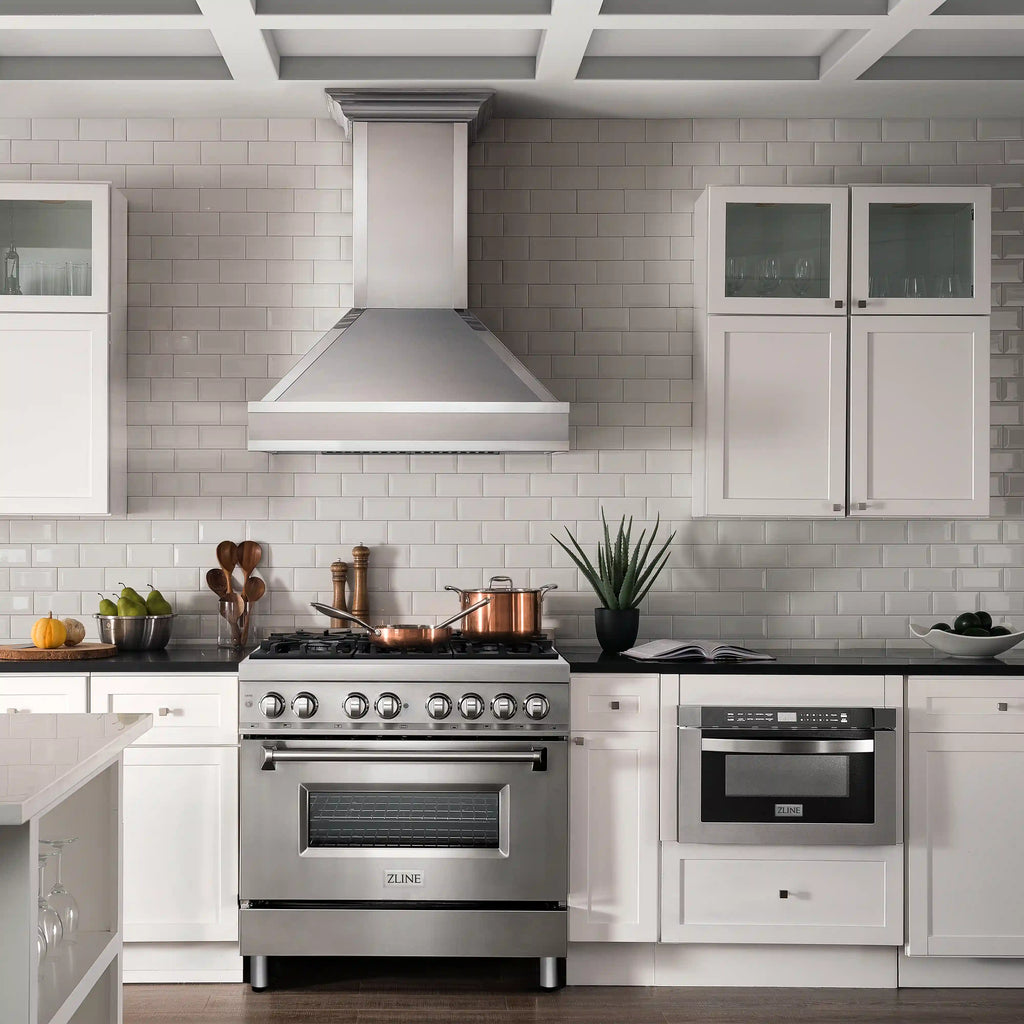

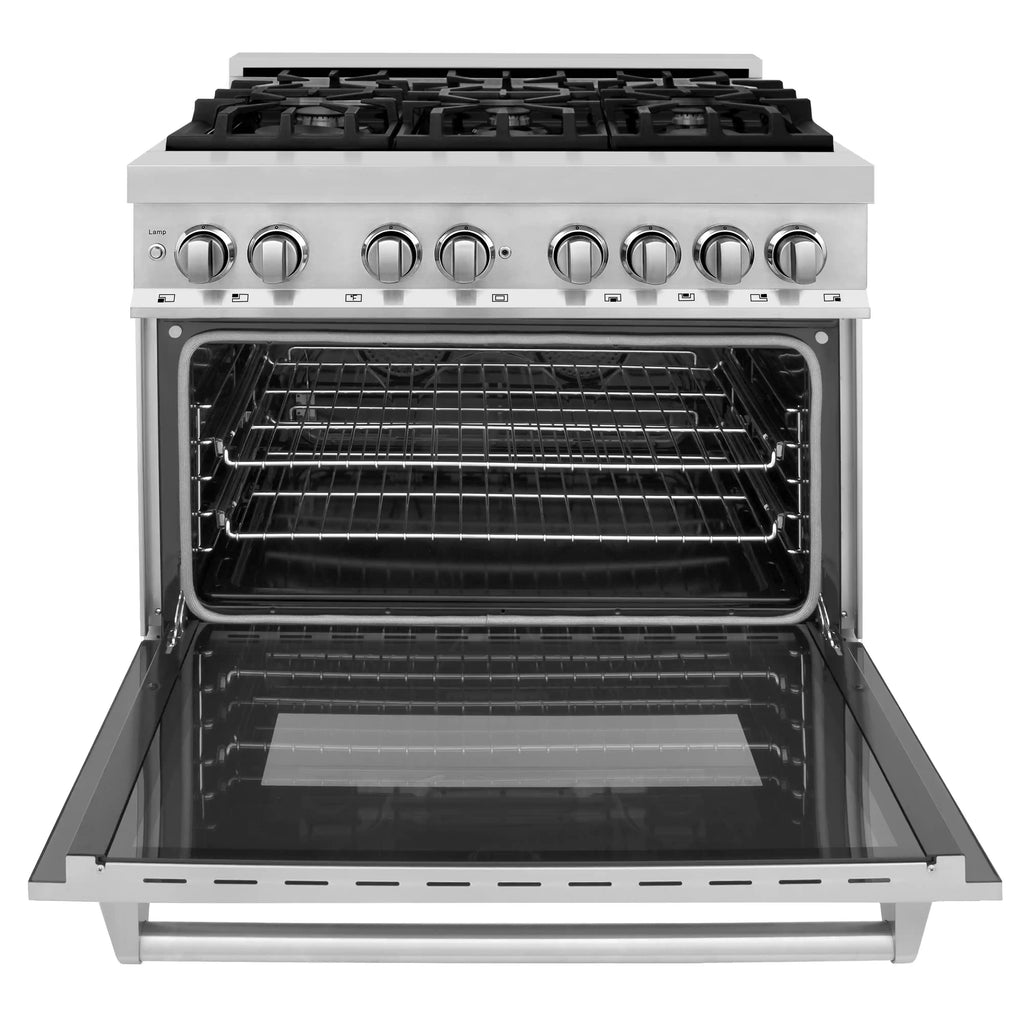

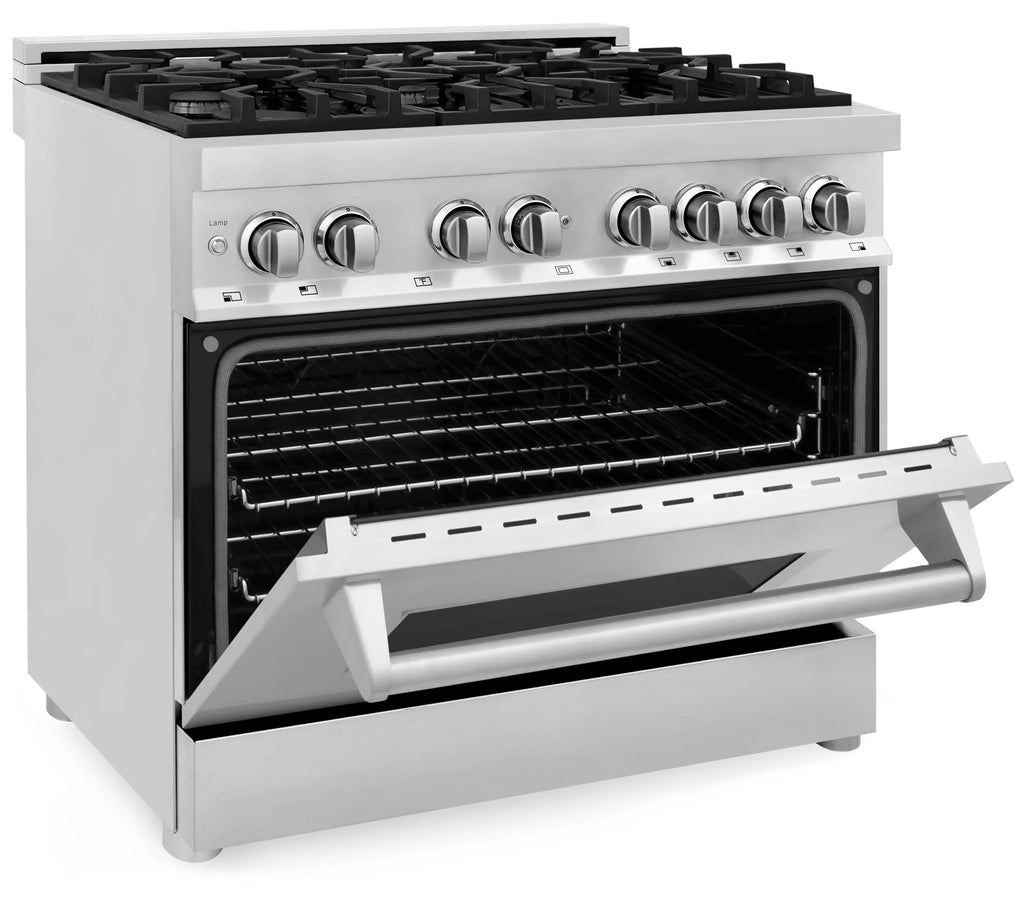

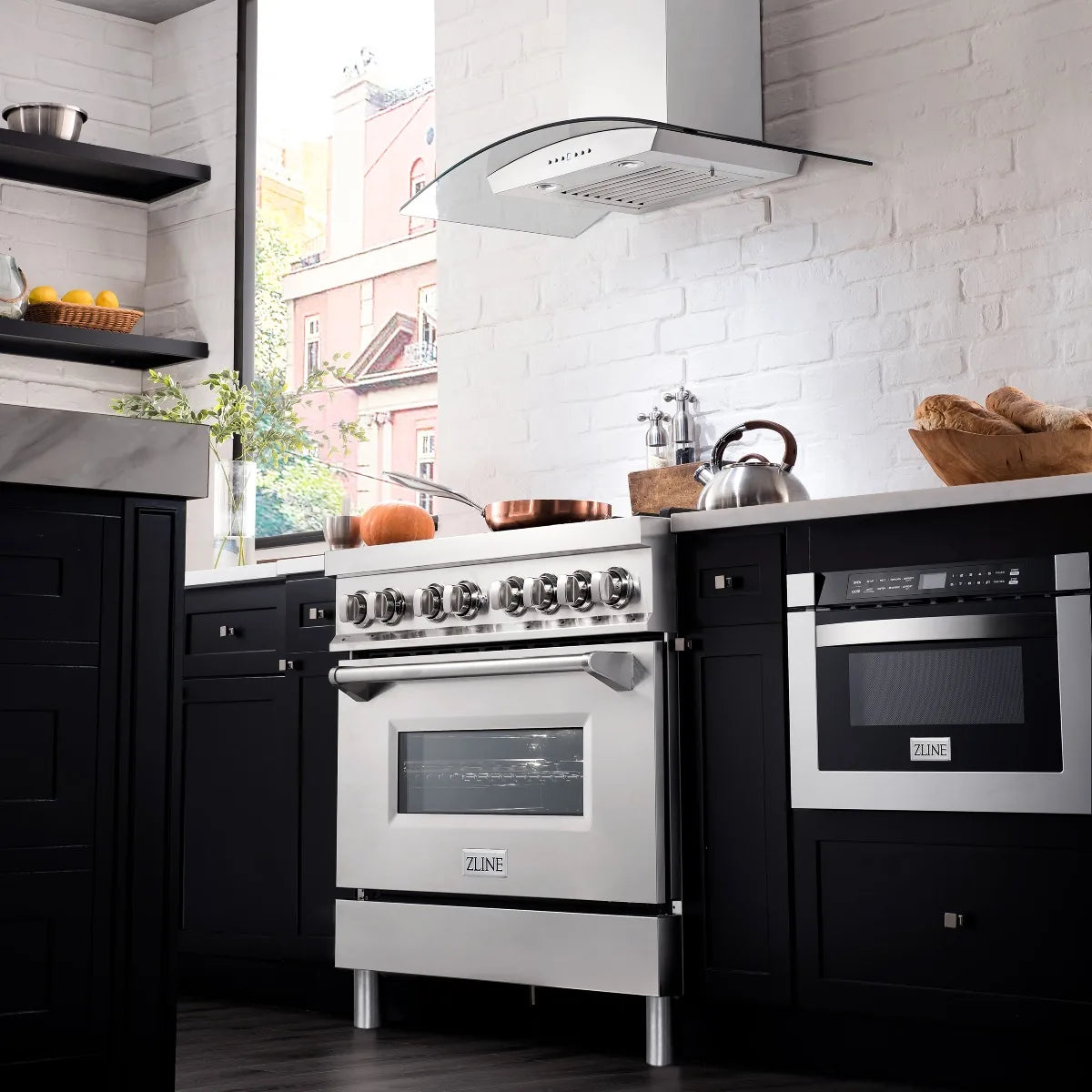

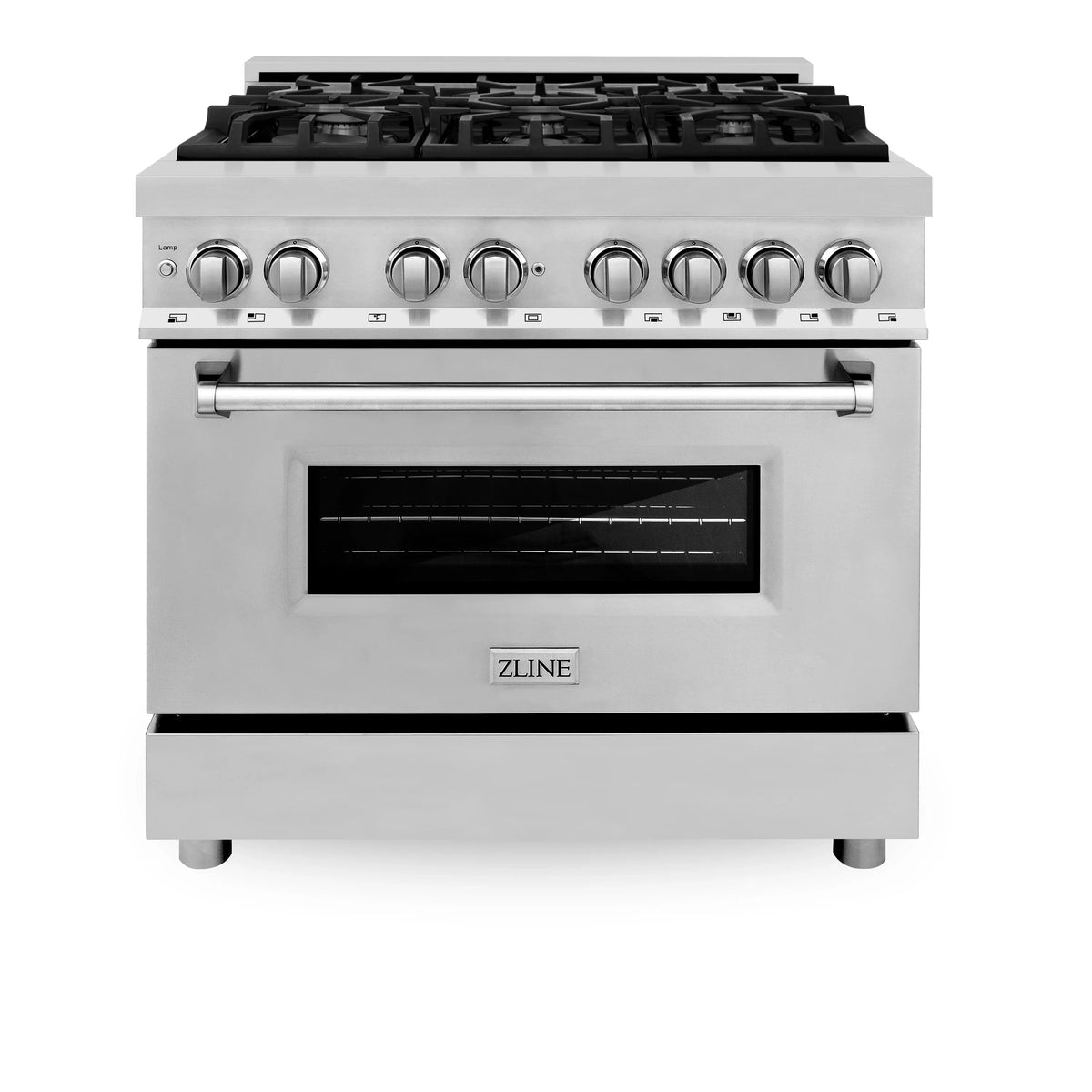

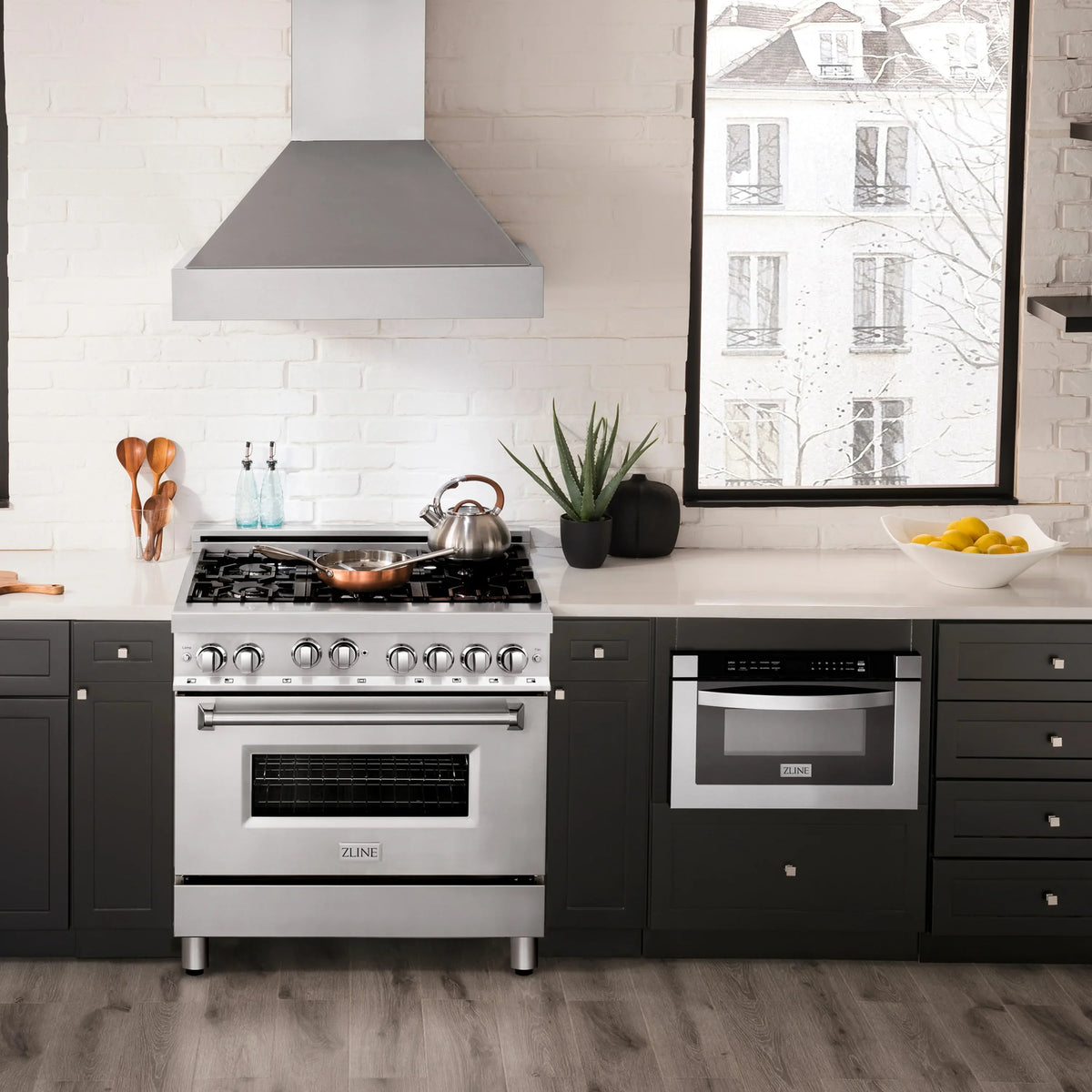

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 36-Inch 4.6 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA36) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

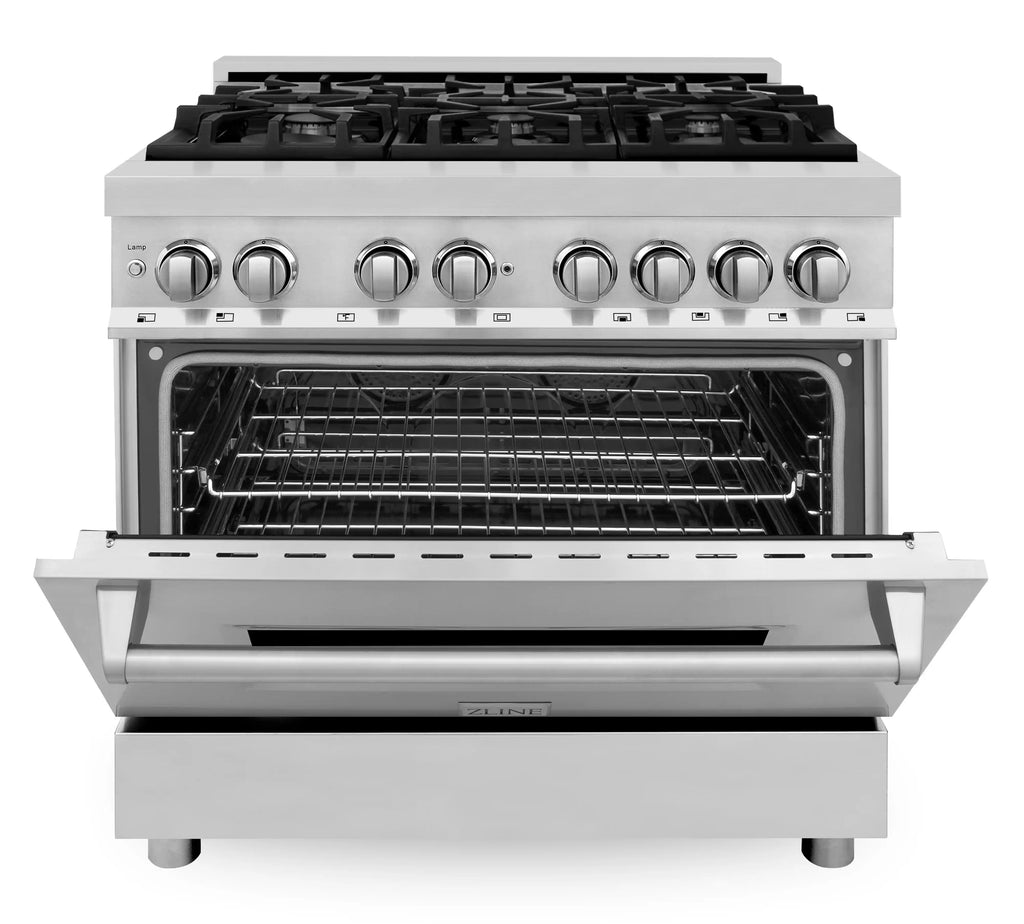

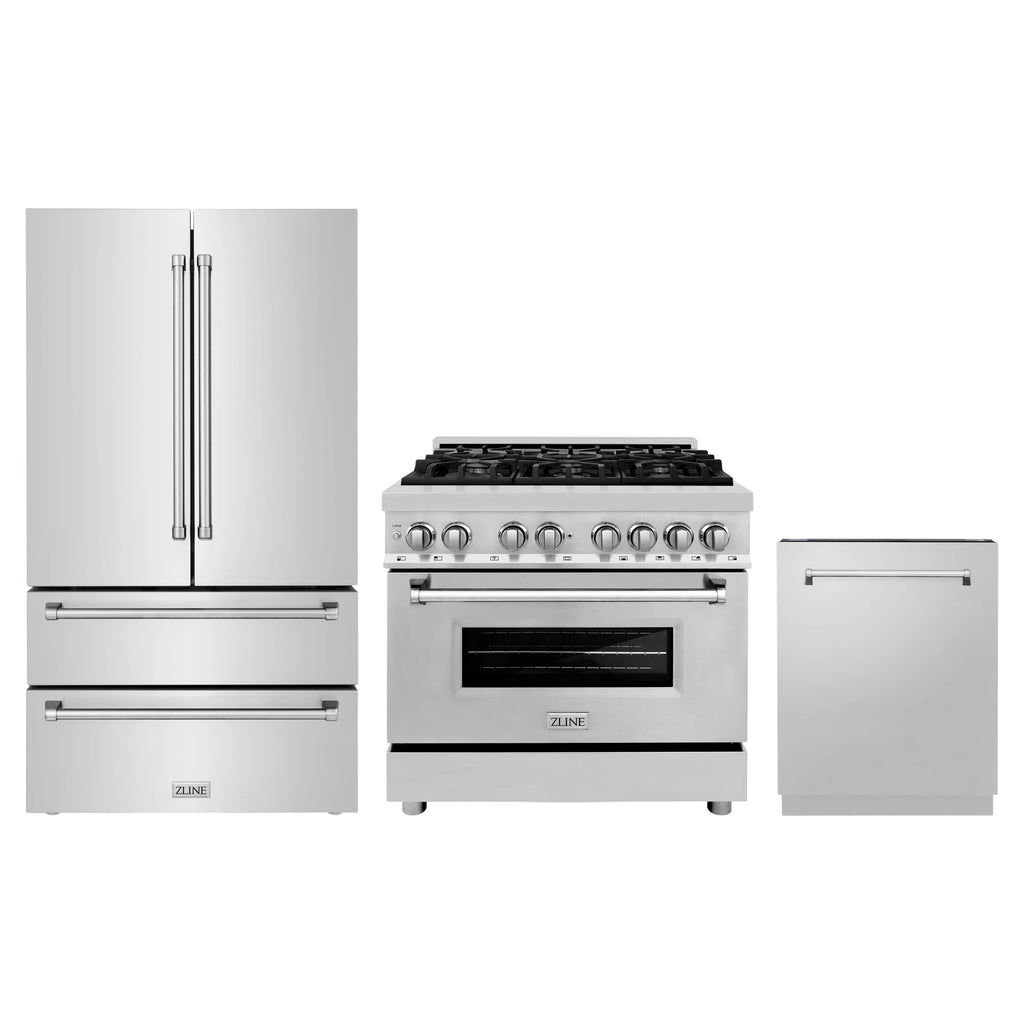

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 36" 4.6 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA36) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability. Build your dream kitchen with the ZLINE Dual Fuel Range

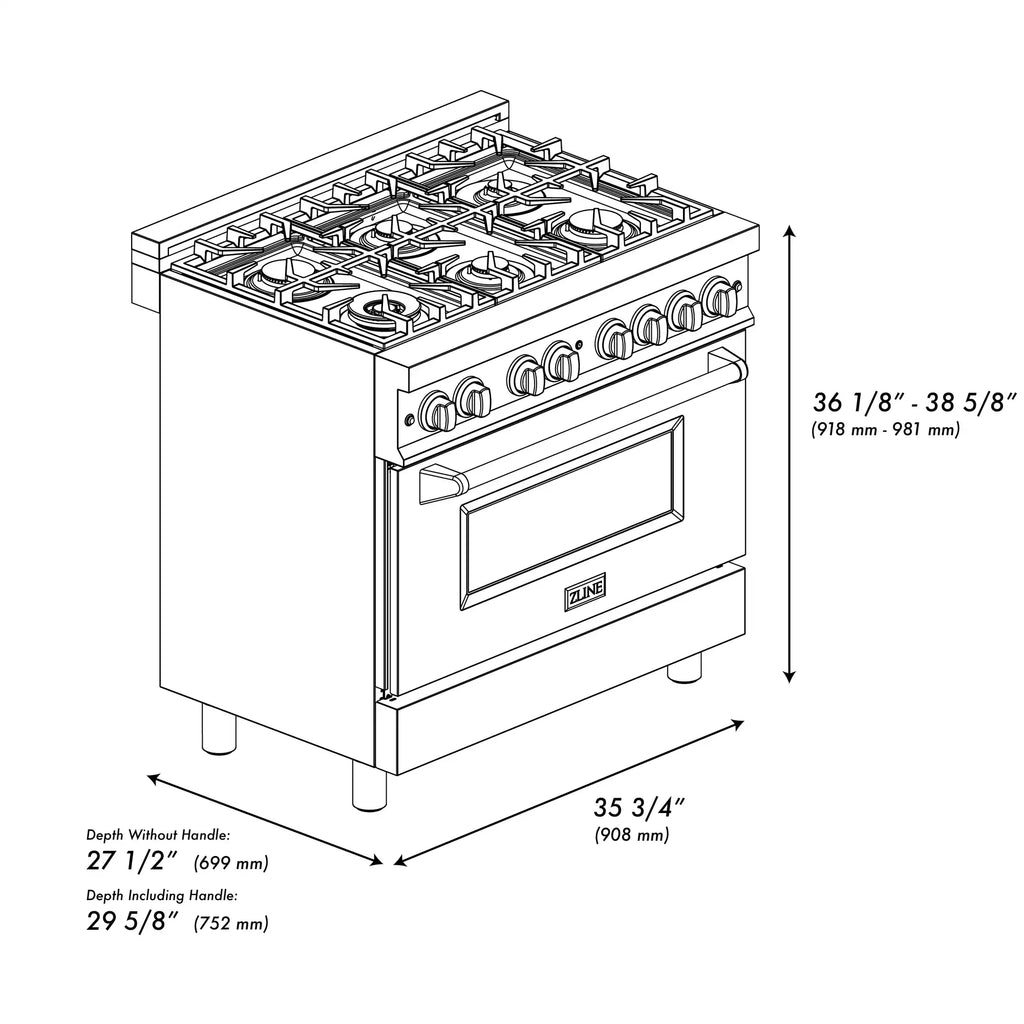

| DIMENSIONS | |
|---|---|
| Dimension | 35.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 35.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |
| Oven Dimensions | Oven Dimensions: 30.5 in. W x 18.5 in. D x 14 in. H |
| Product Weight | 253lbs |
| GENERAL INFORMATION | |
| Features | Manufactured by ZLINE Kitchen and Bath |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |

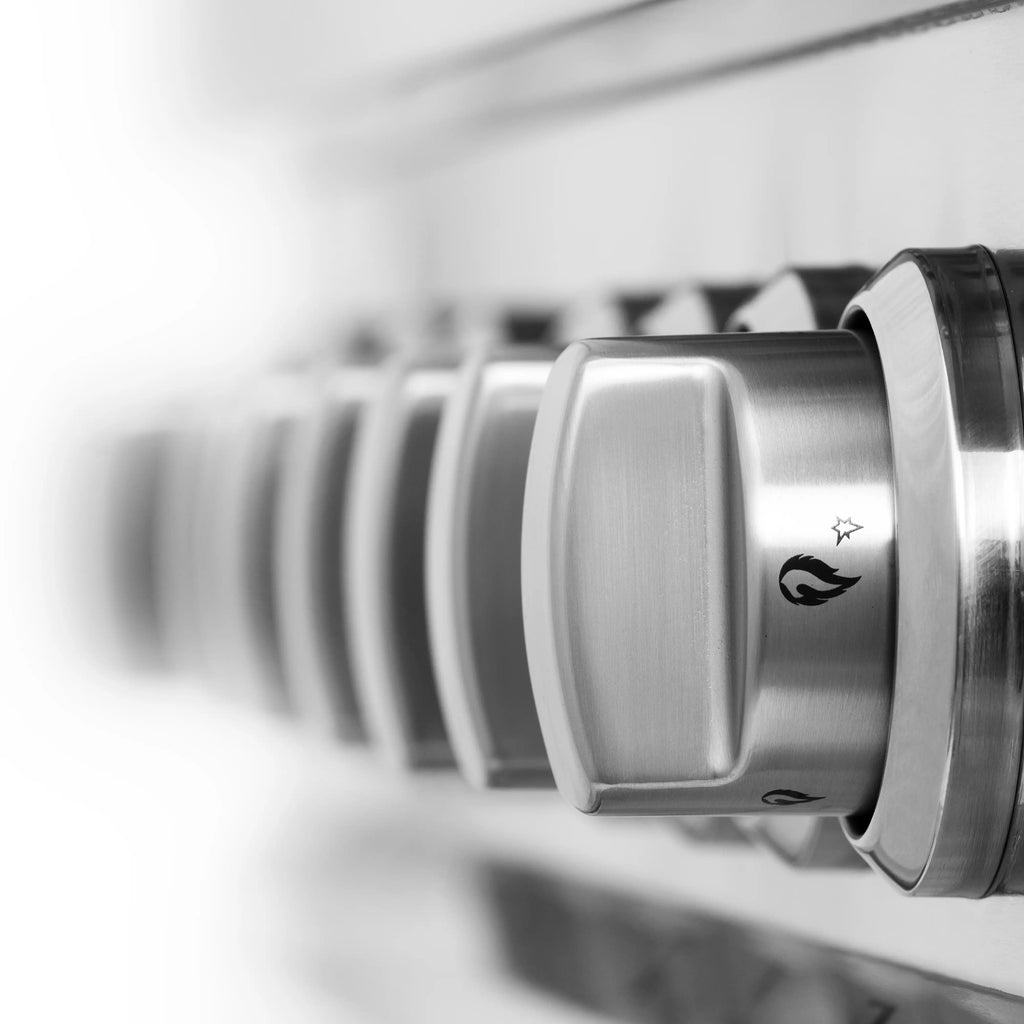

| Control Type | Durable Front Control |

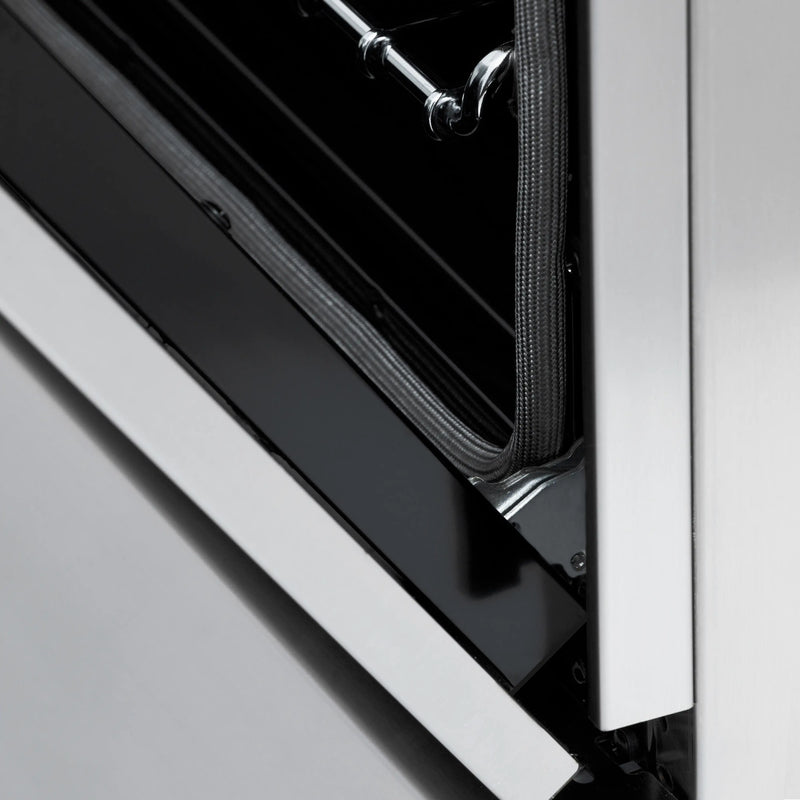

| Material | - Stainless Steel frame with Porcelain Top - Italian-made hinges and burners |
| TECHNICAL DETAILS | |
| Voltage | Requires a minimum of 220V-240V/60HZ/50A |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. An LP conversion kit is included - this conversion process must be done by a professional |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Fuel Type | Electric Convection Oven - Gas Cooktop |
| COOKTOP FEATURES | |

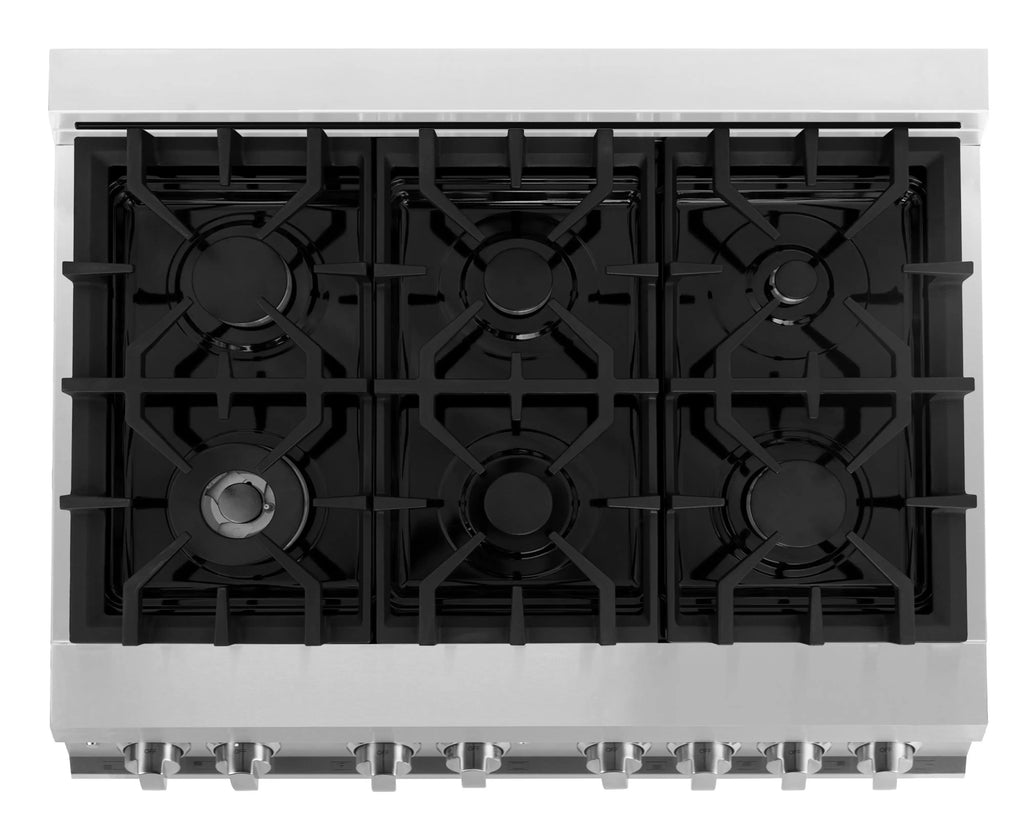

| Cooktop | (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| BTU Rating |
|
| OVEN FEATURES | |

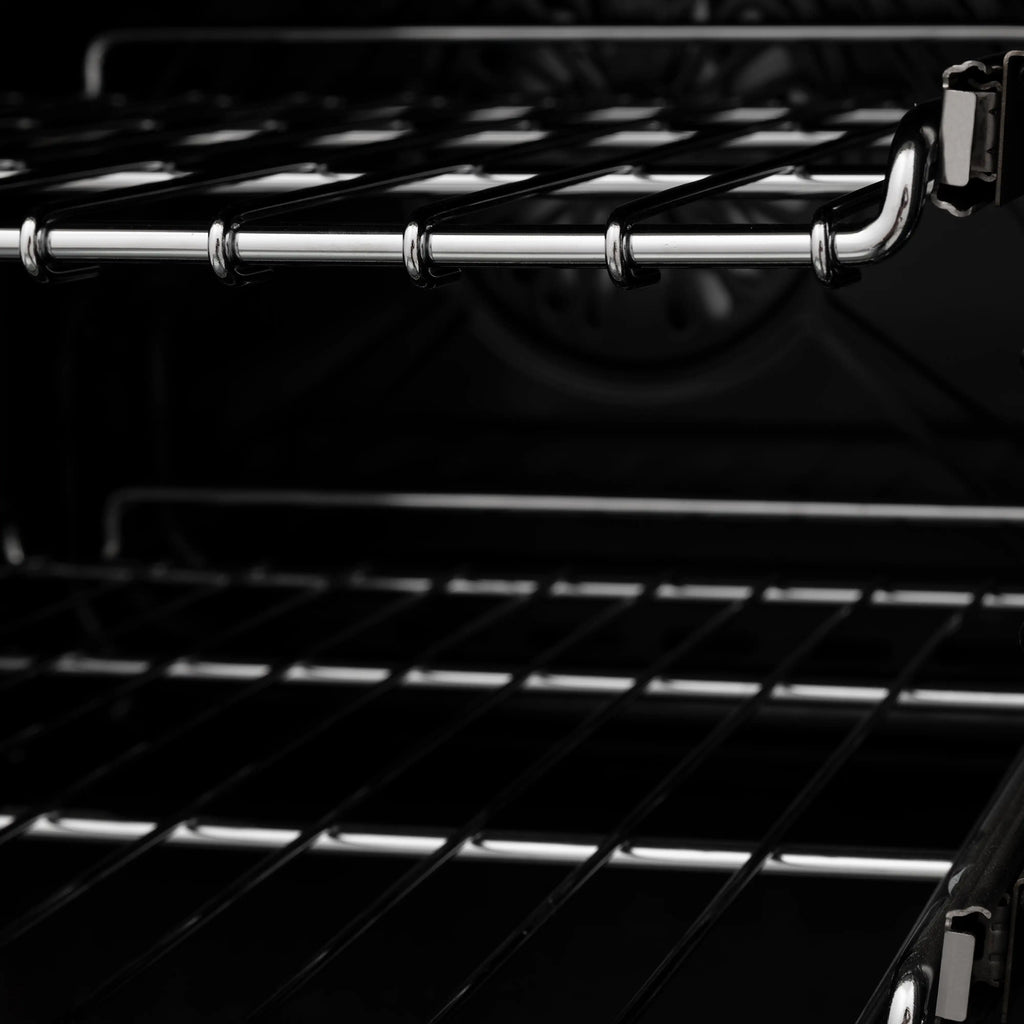

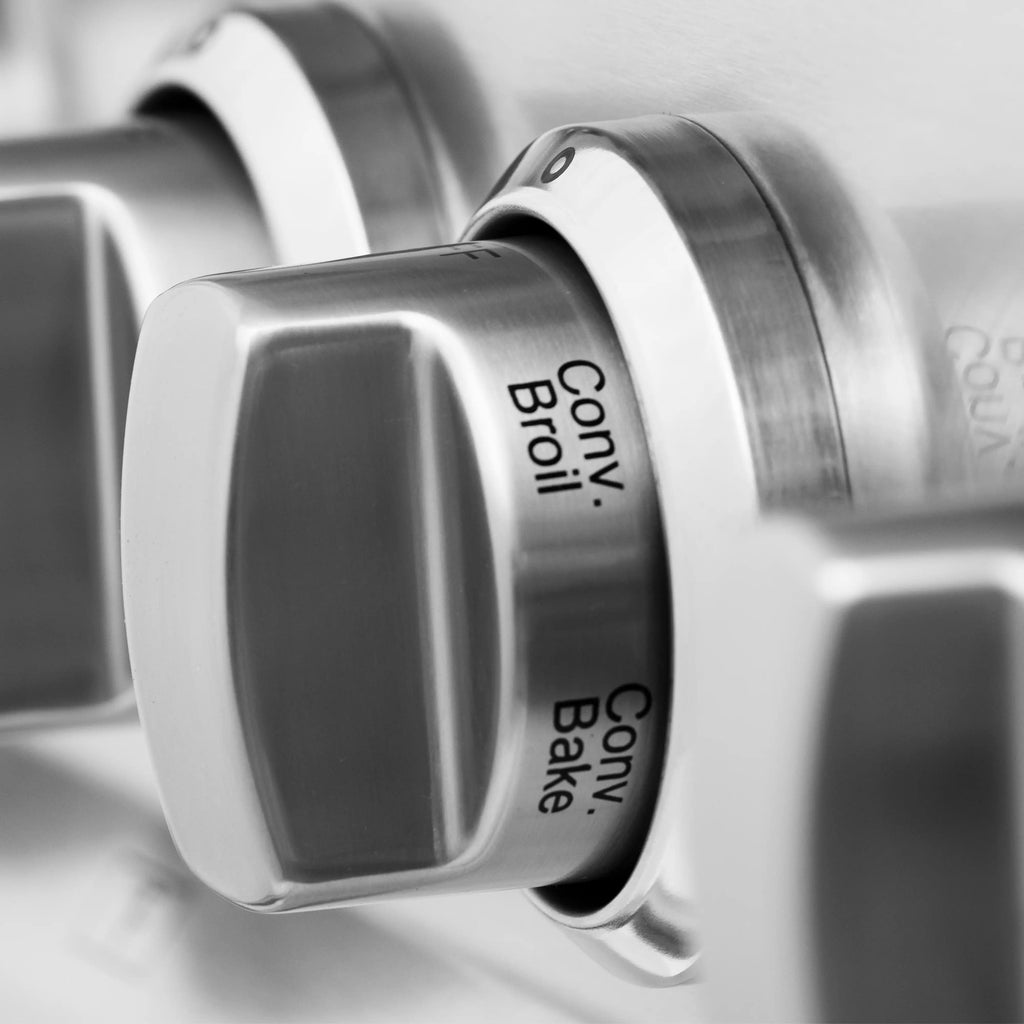

| Oven | Manual Clean Convection Electric 4.6 cu. ft. deep oven Triple Glass Window Dual Lighting Professional Aluminum Mesh Seal |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year Warranty |
| Certifications | ETL Certified |

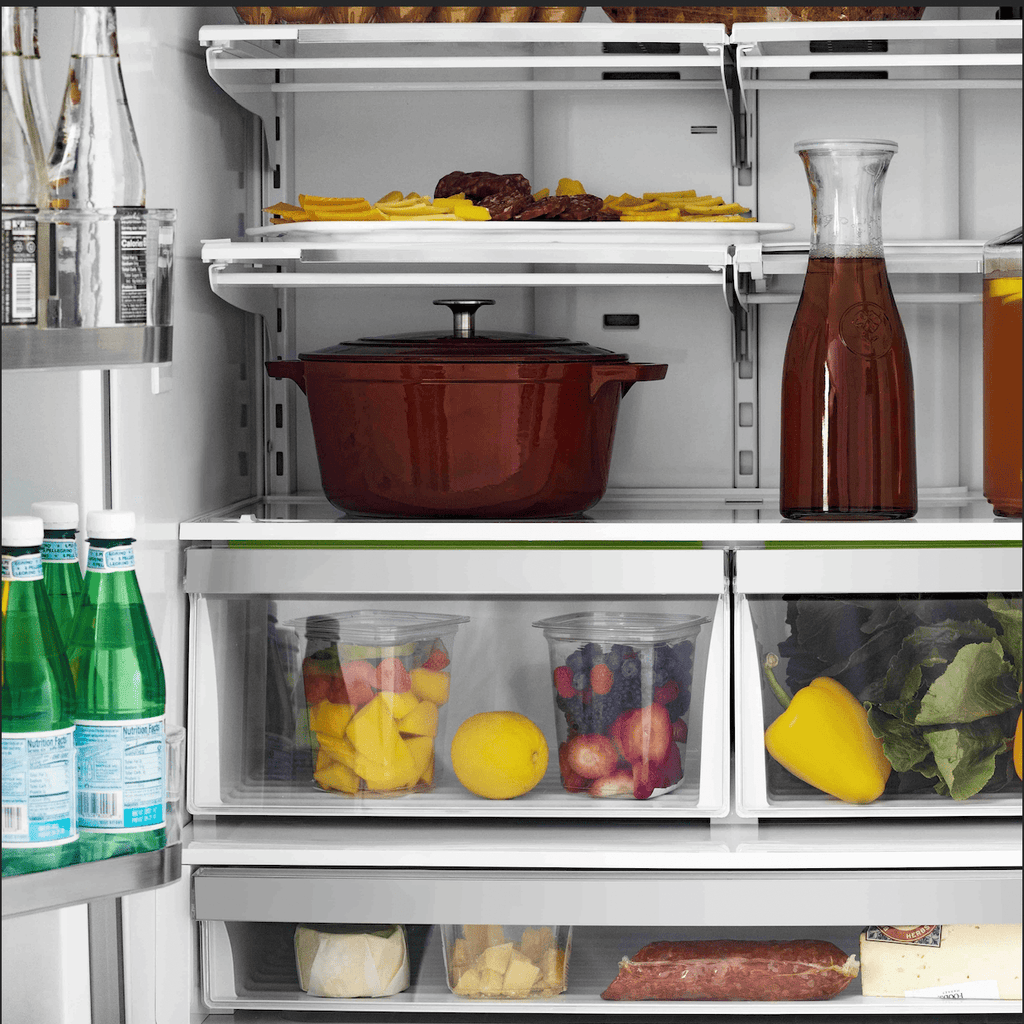

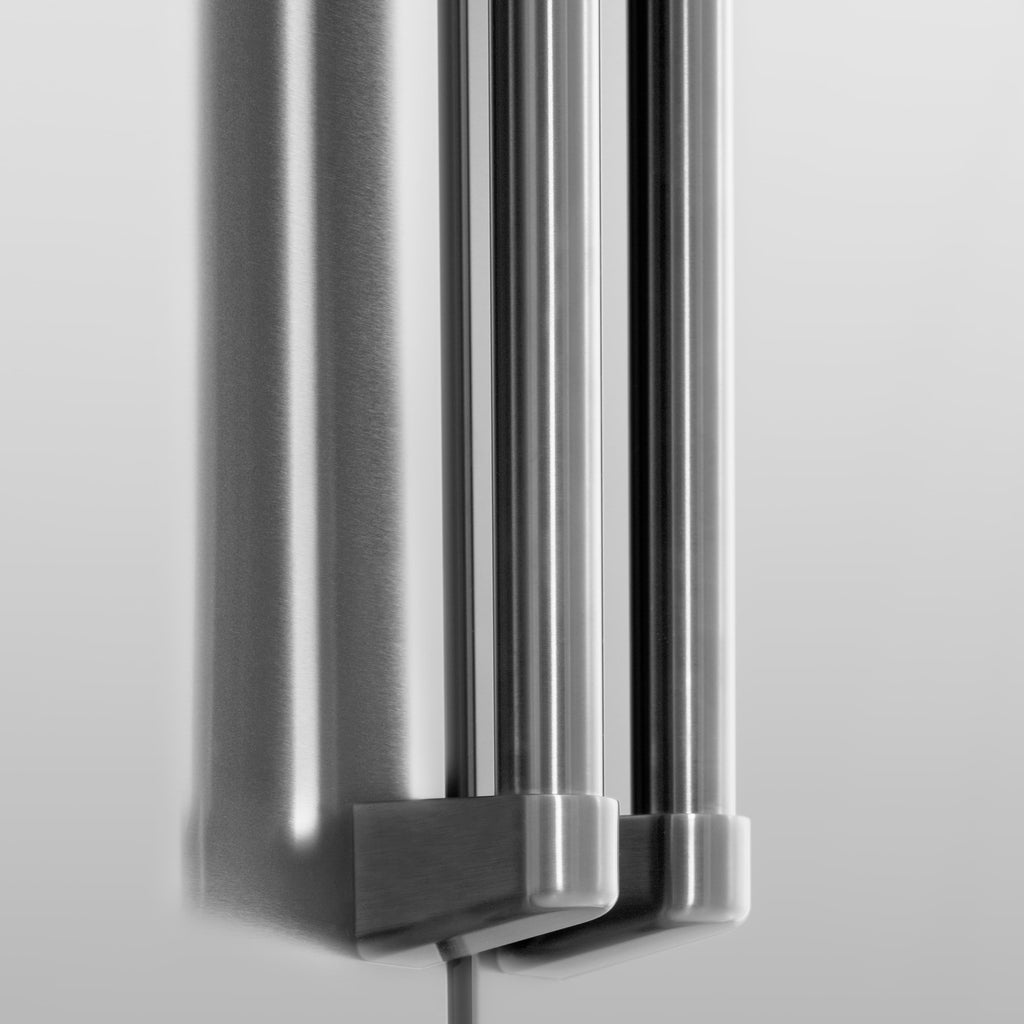

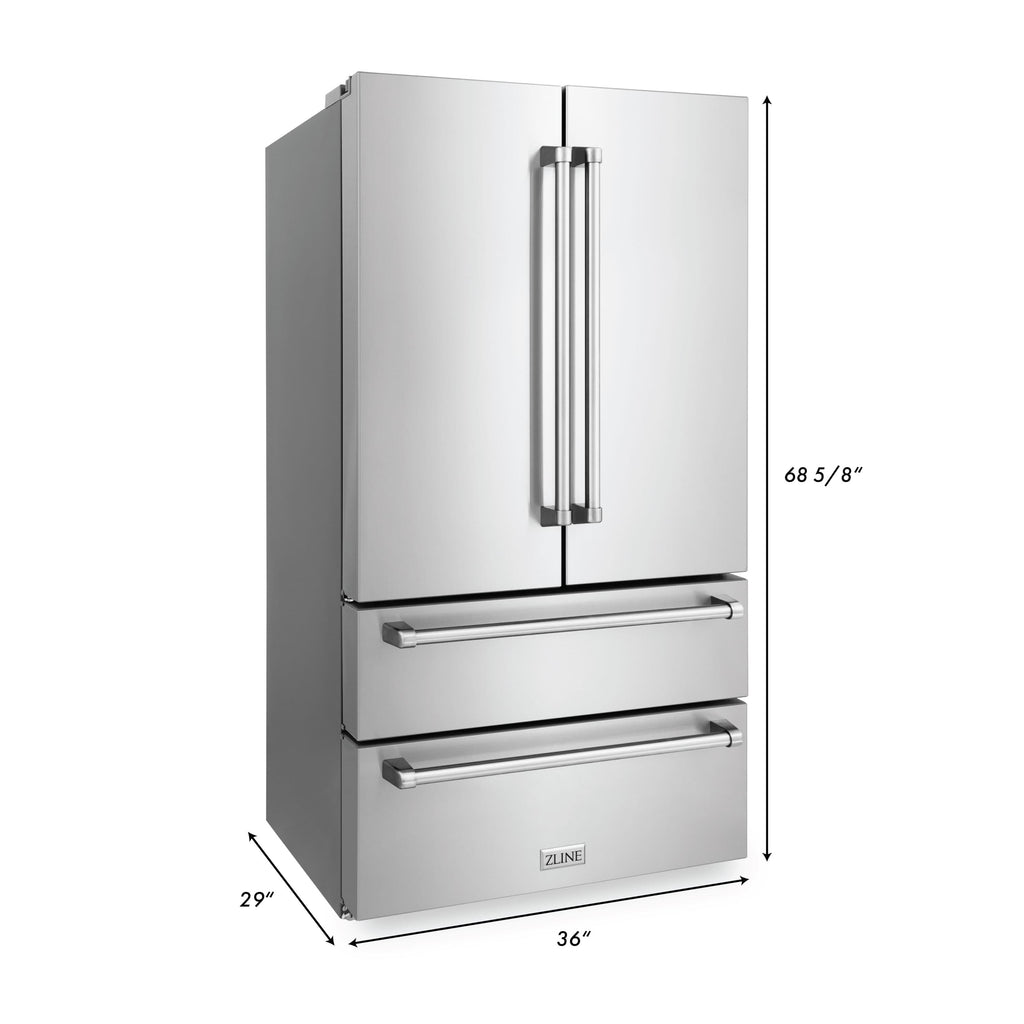

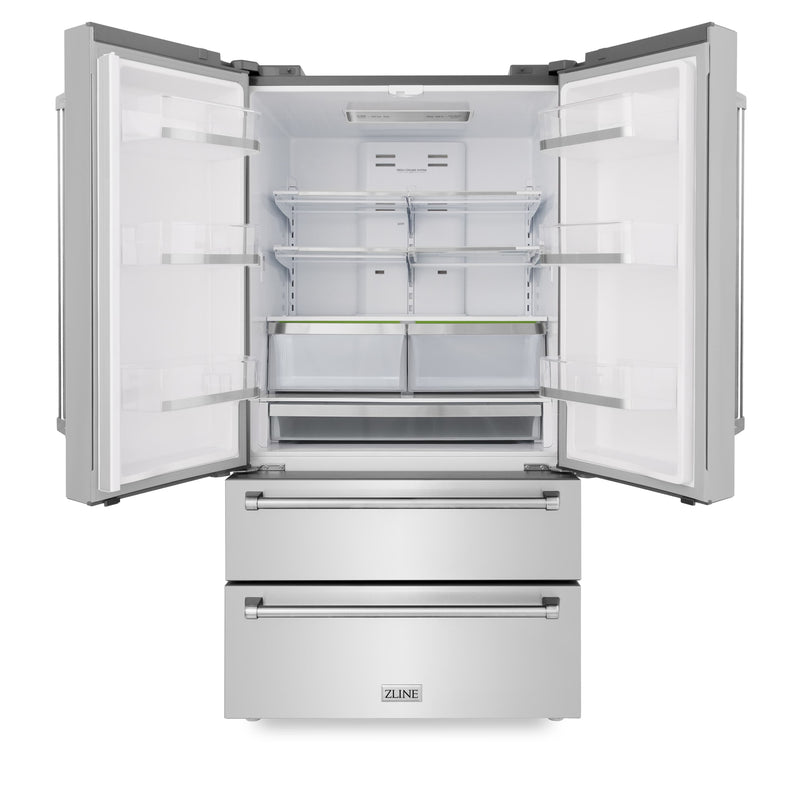

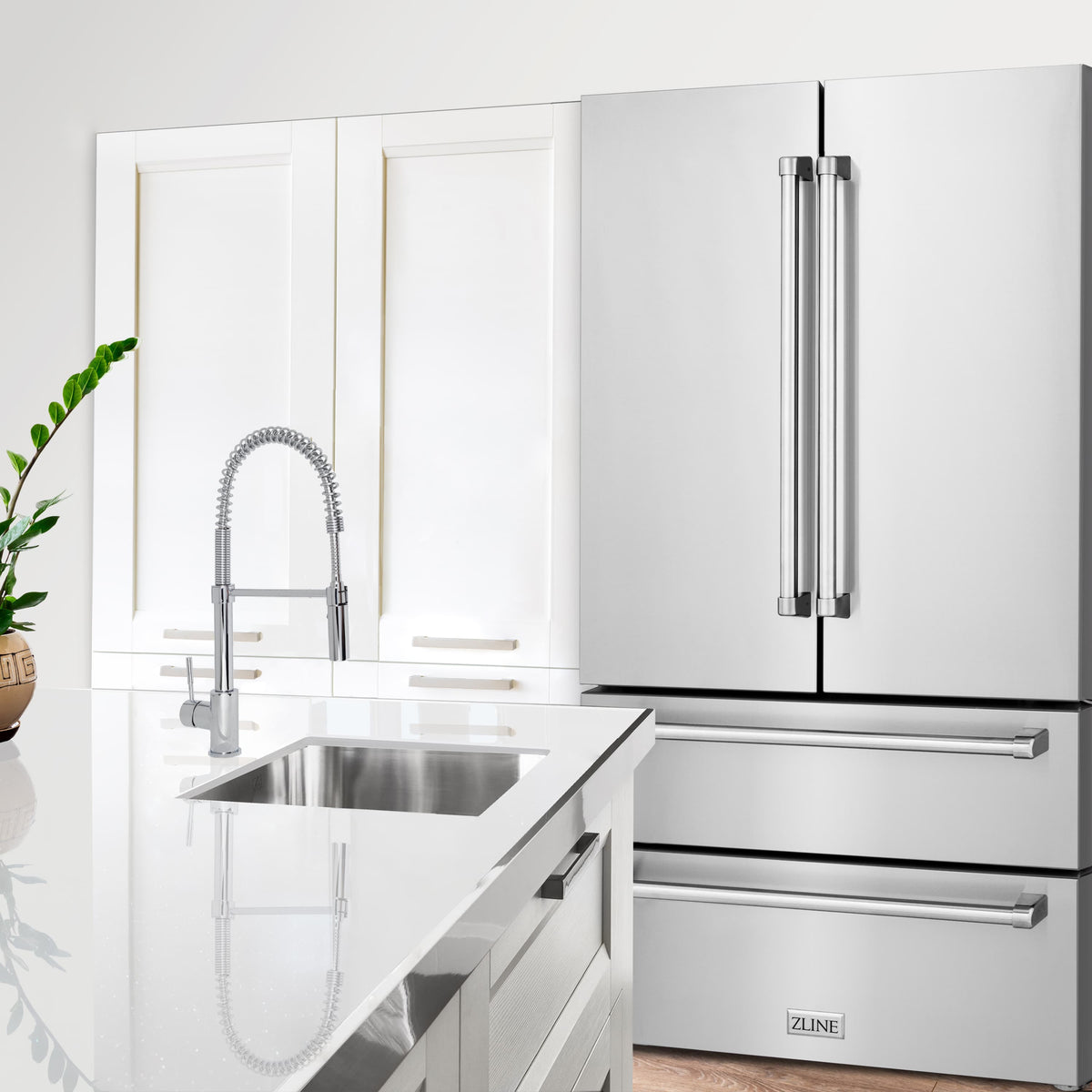

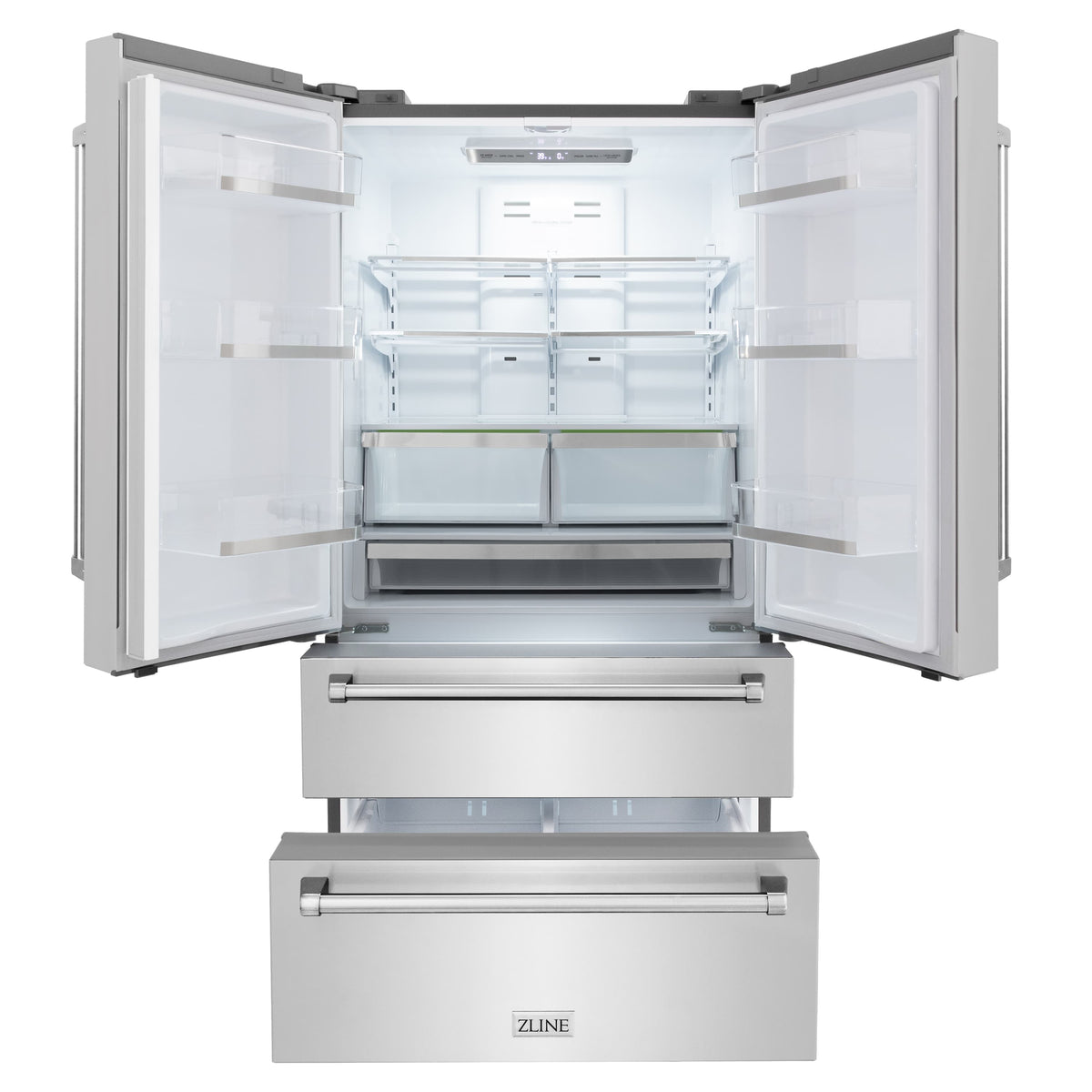

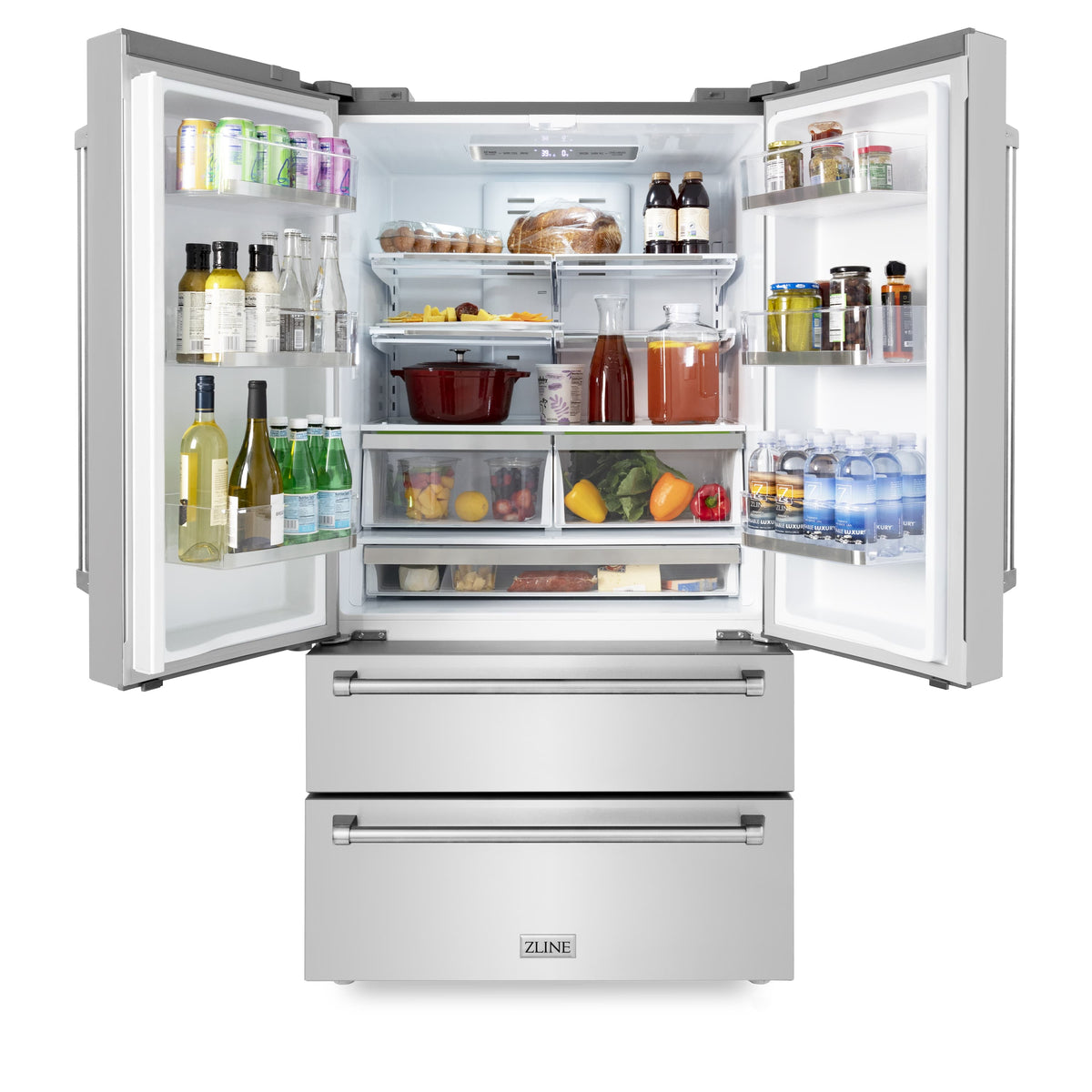

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel (RFM-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| TECHNICAL DETAILS | |
| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |

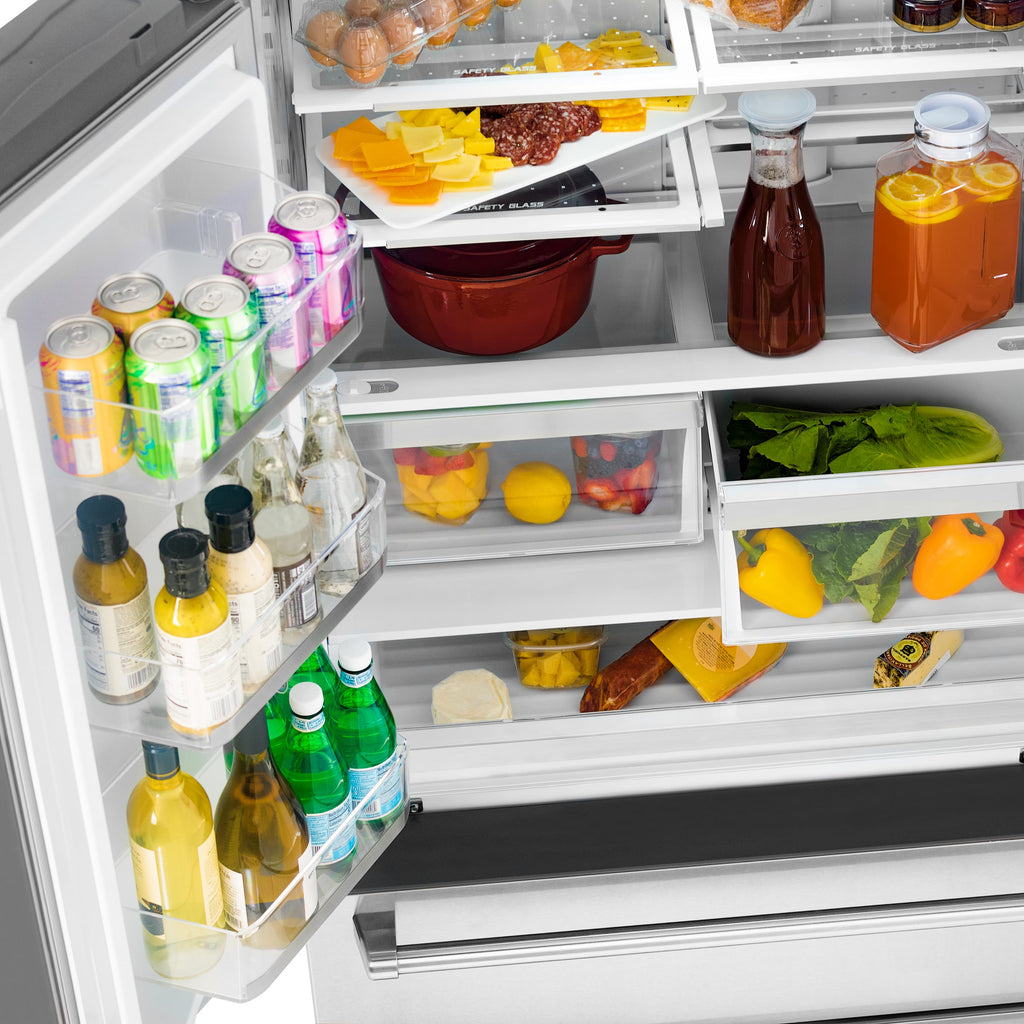

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |

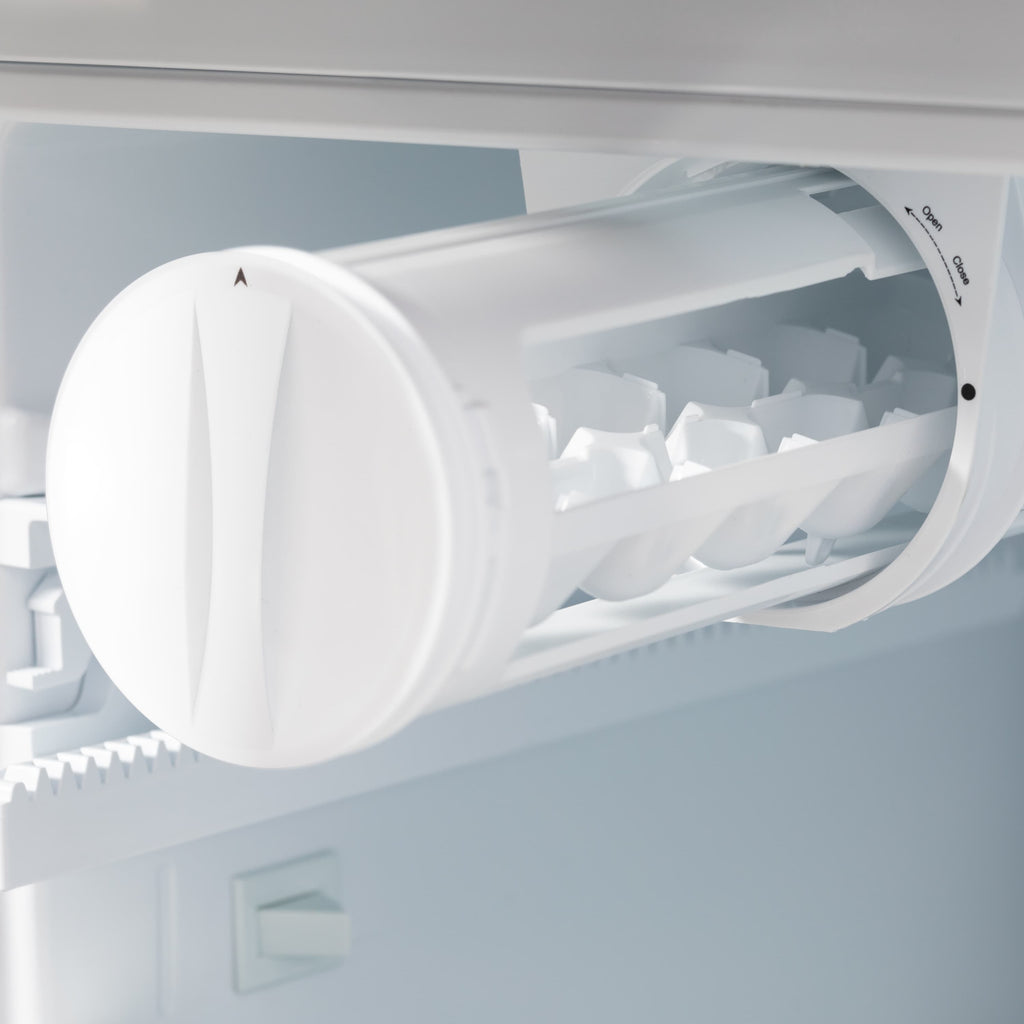

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |

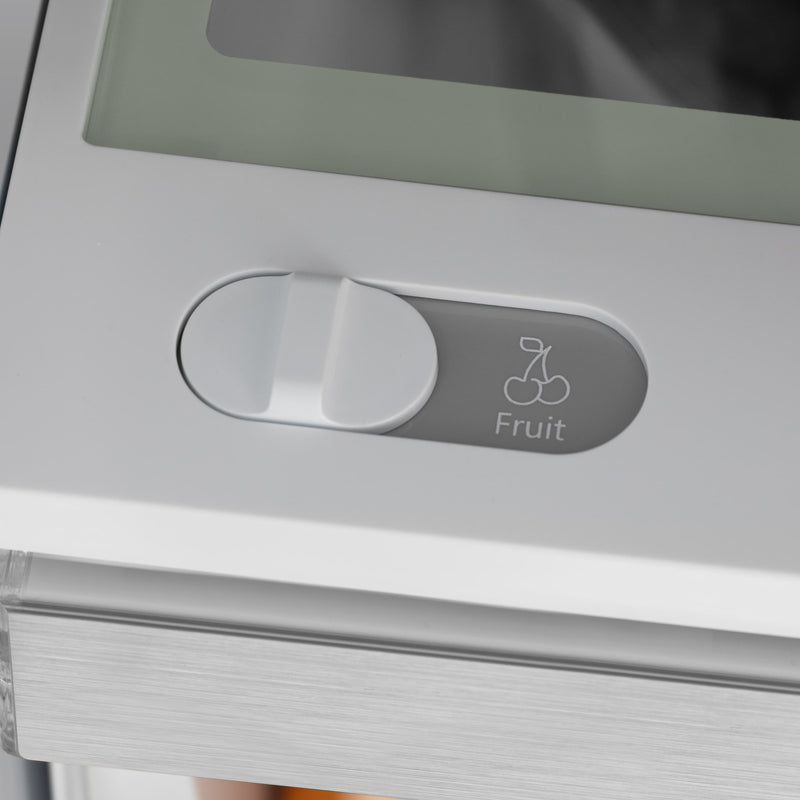

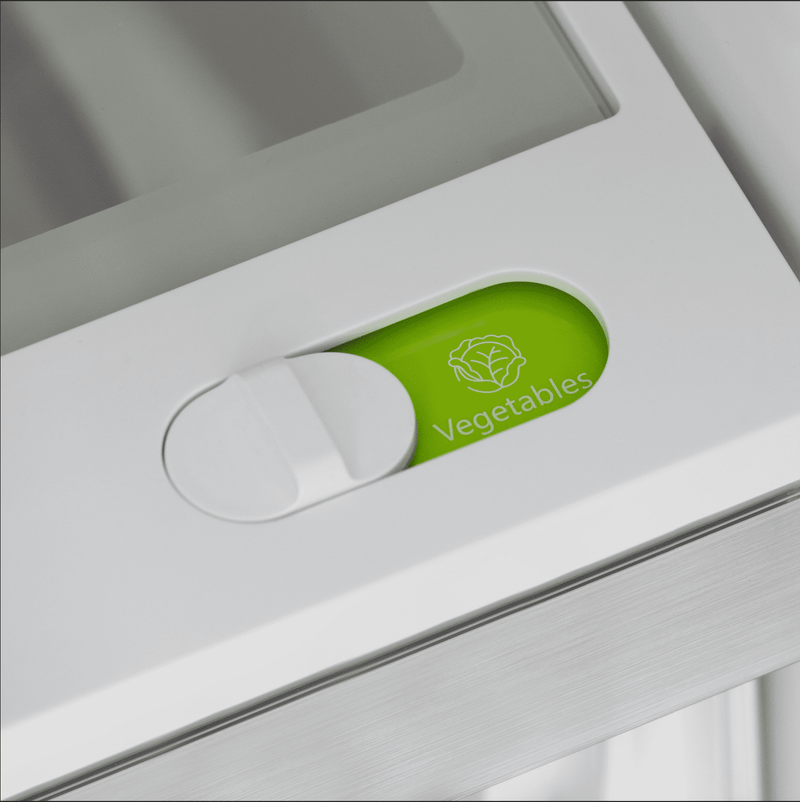

| Humidity-Controlled Crispers | 2 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

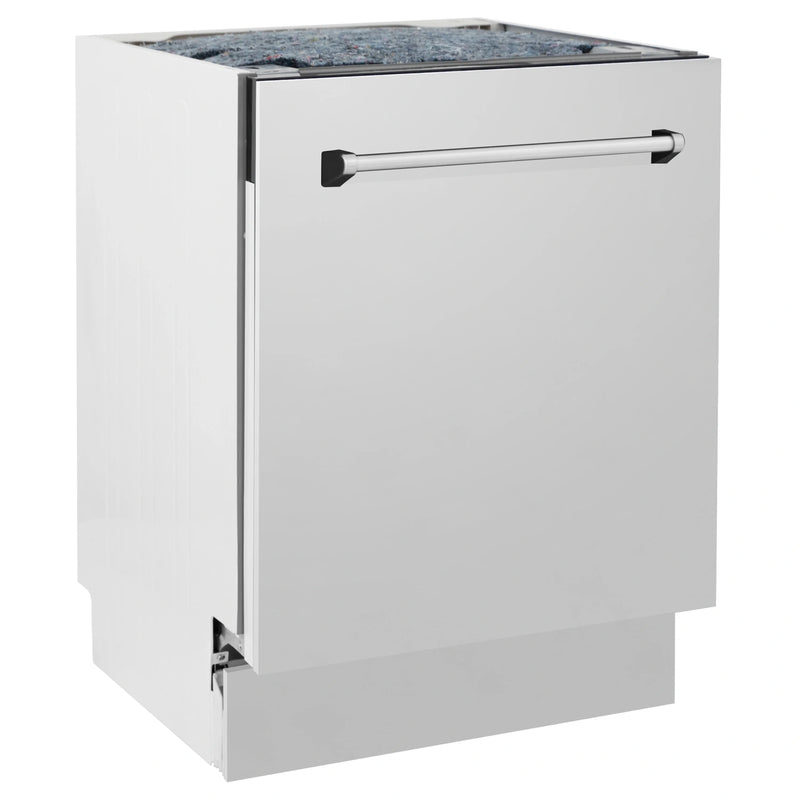

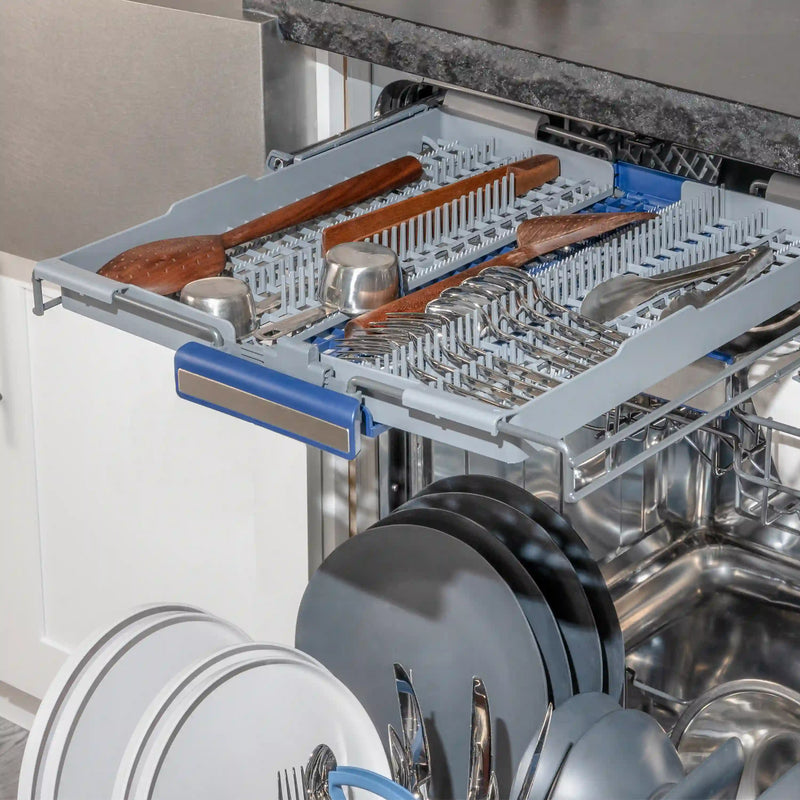

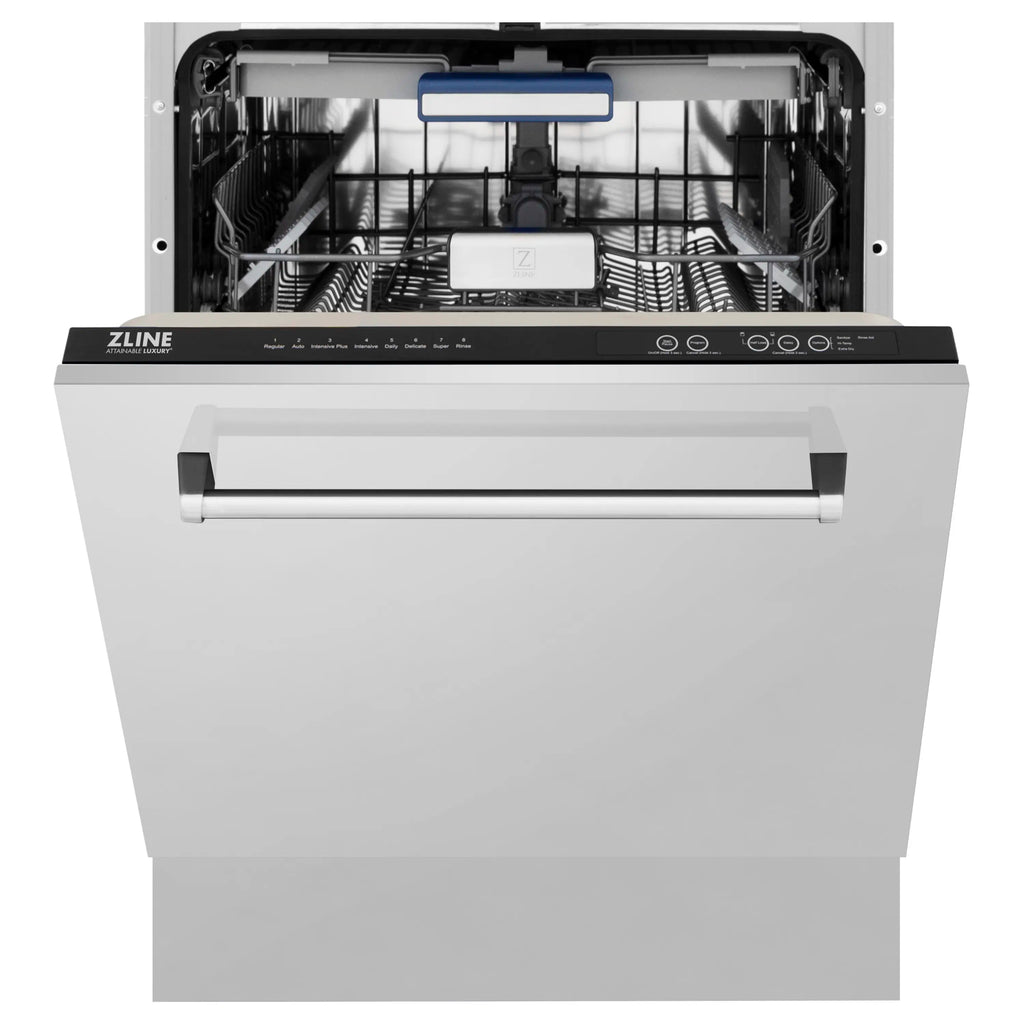

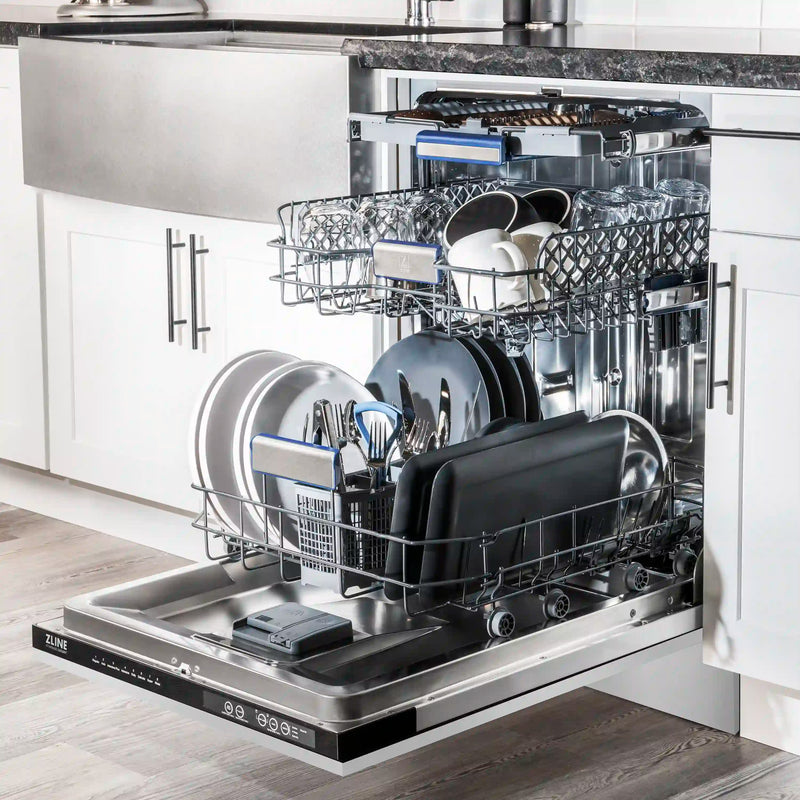

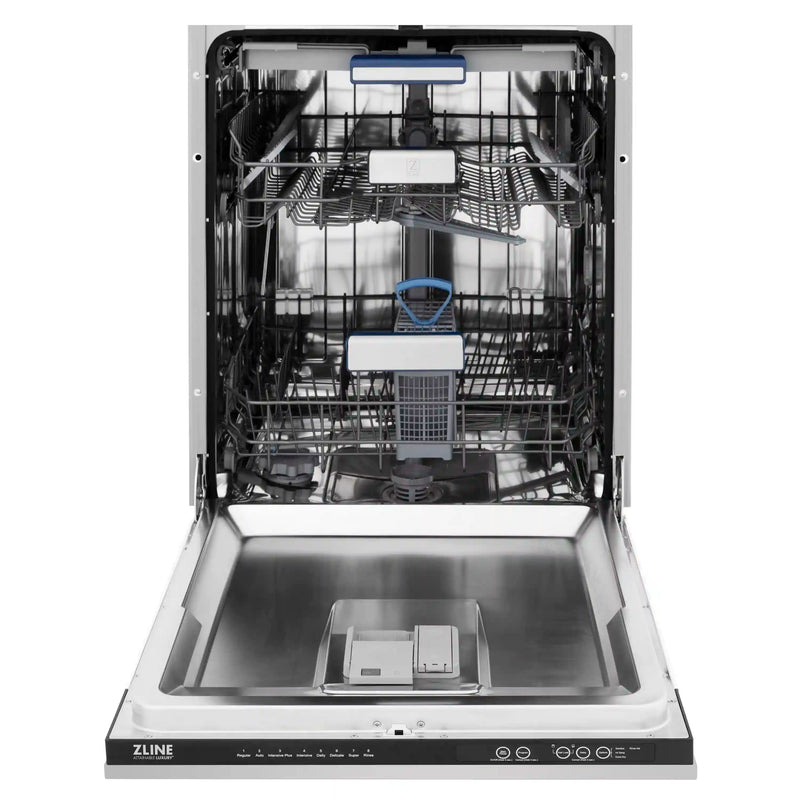

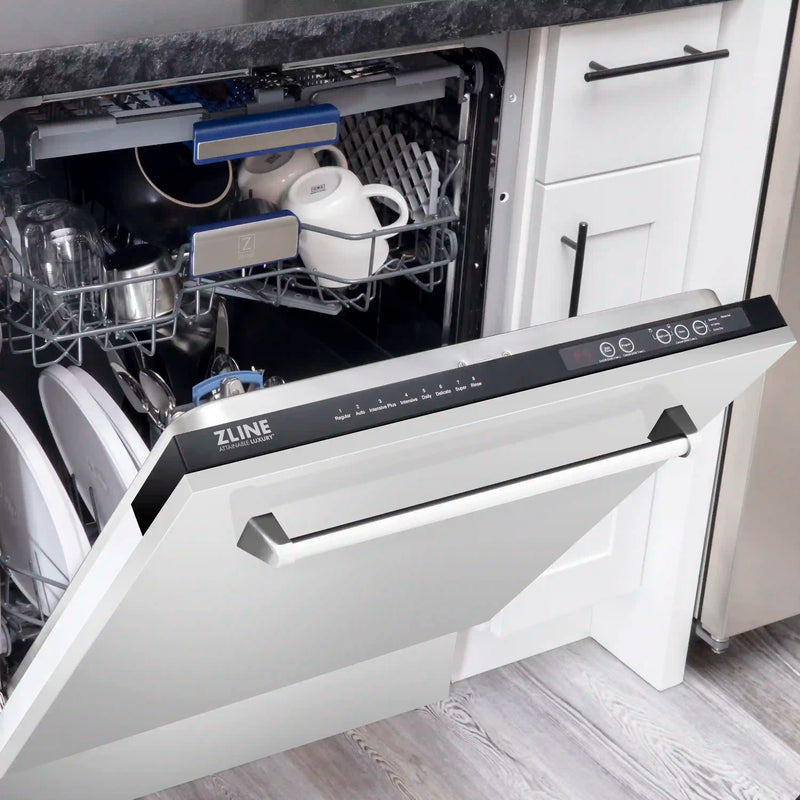

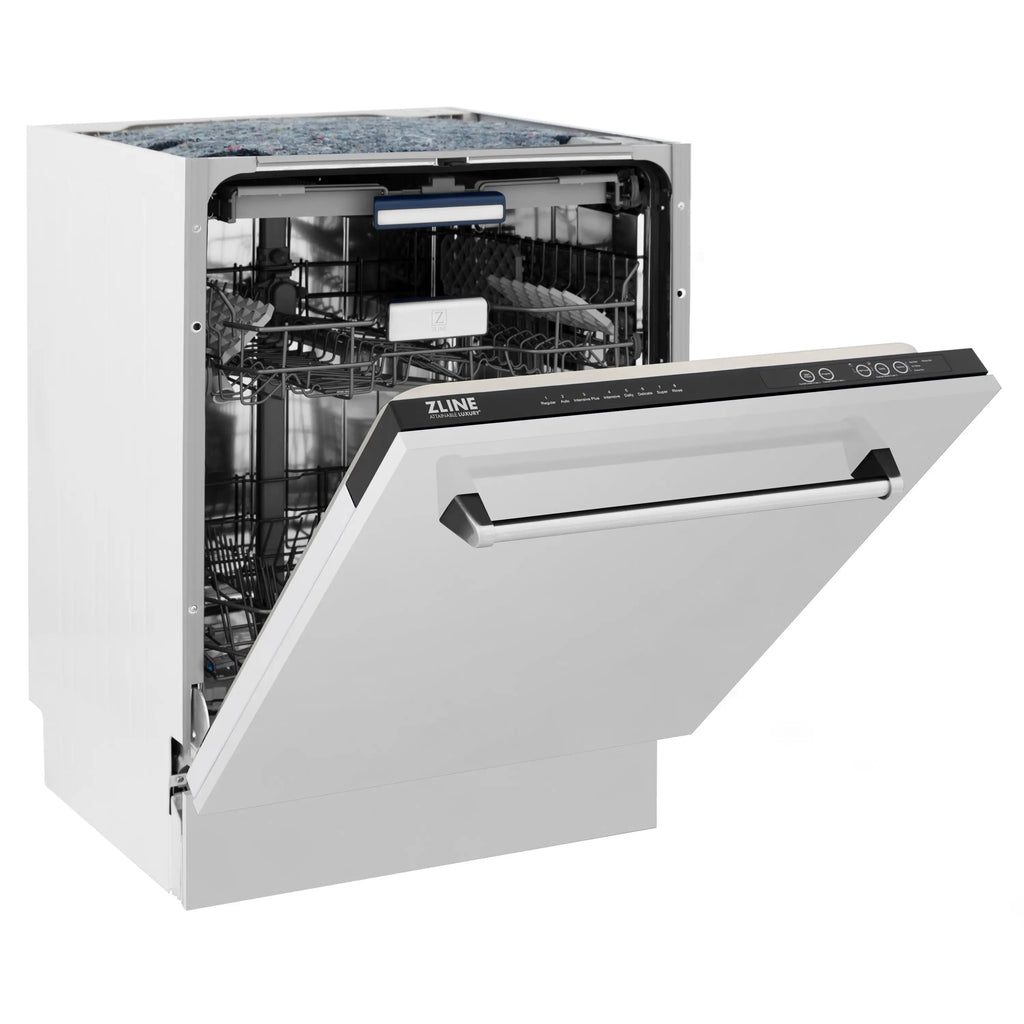

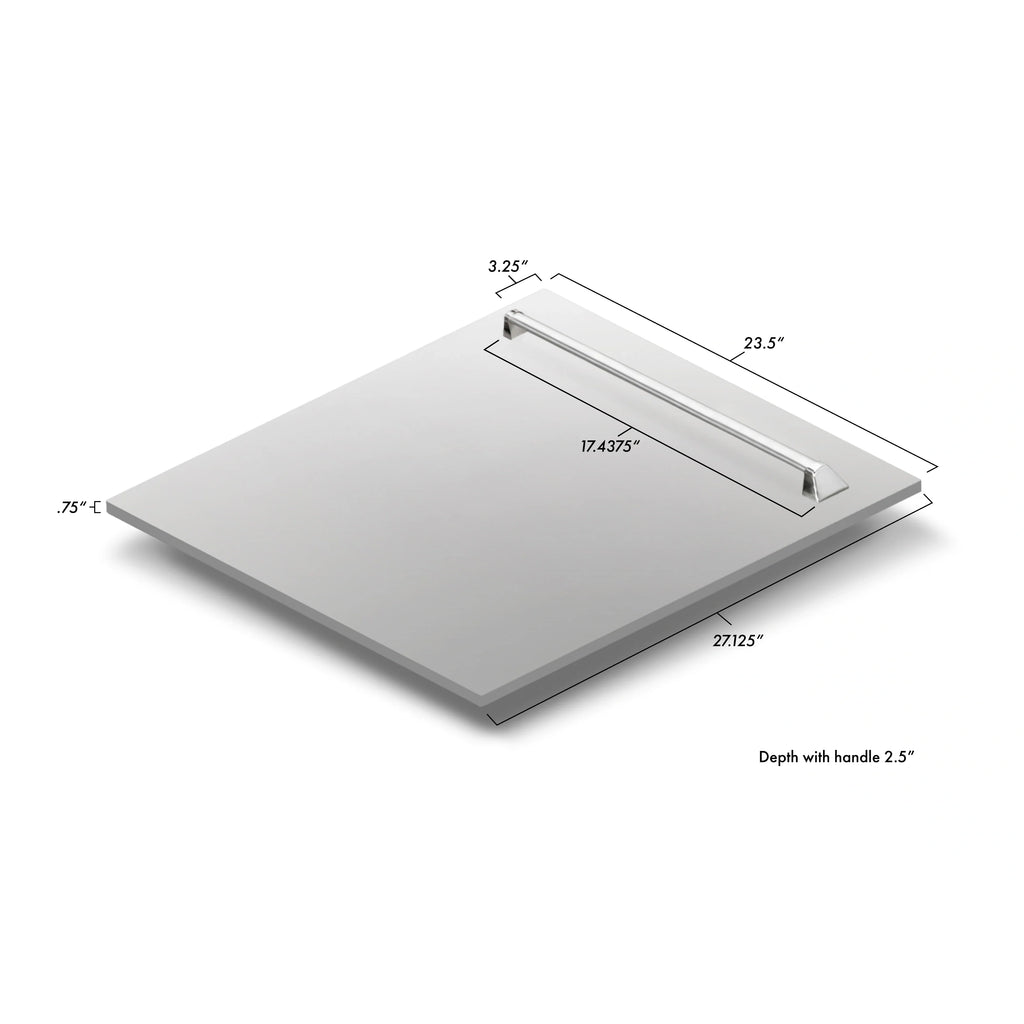

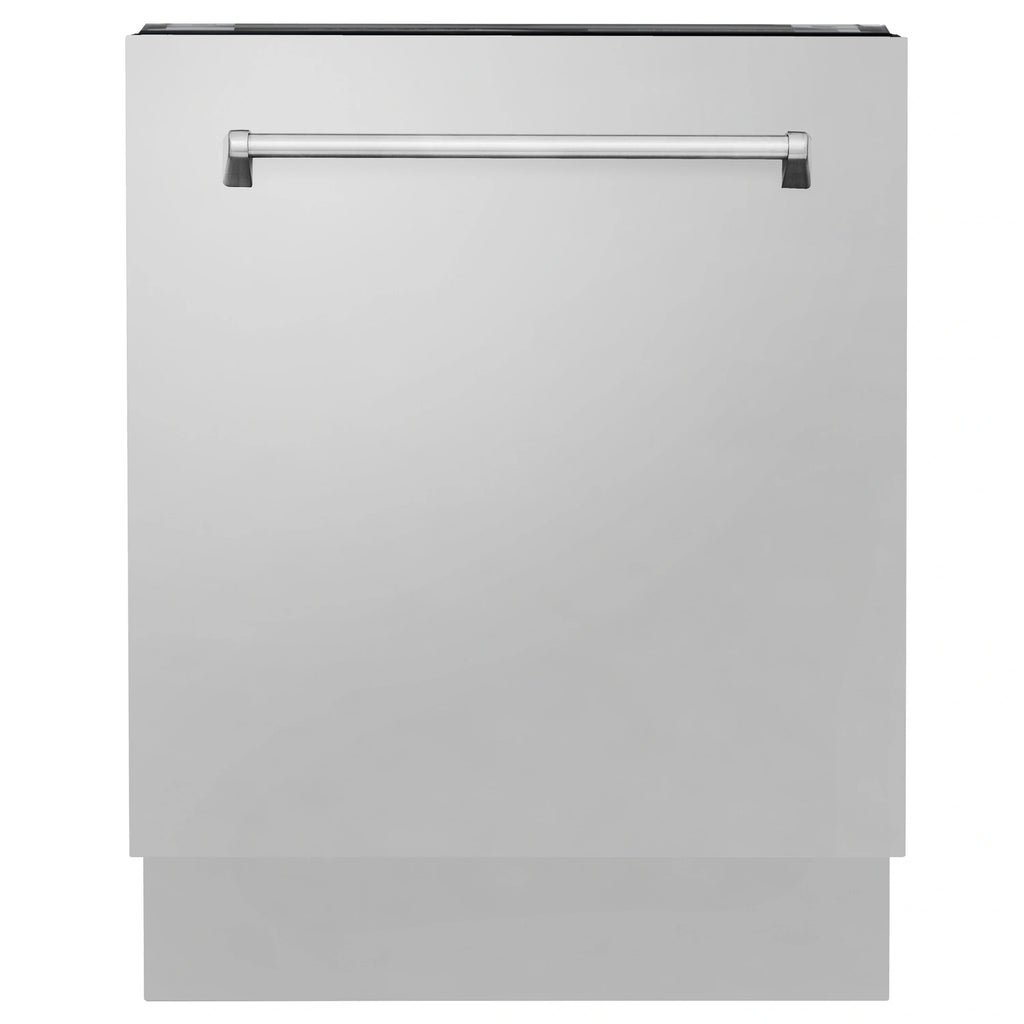

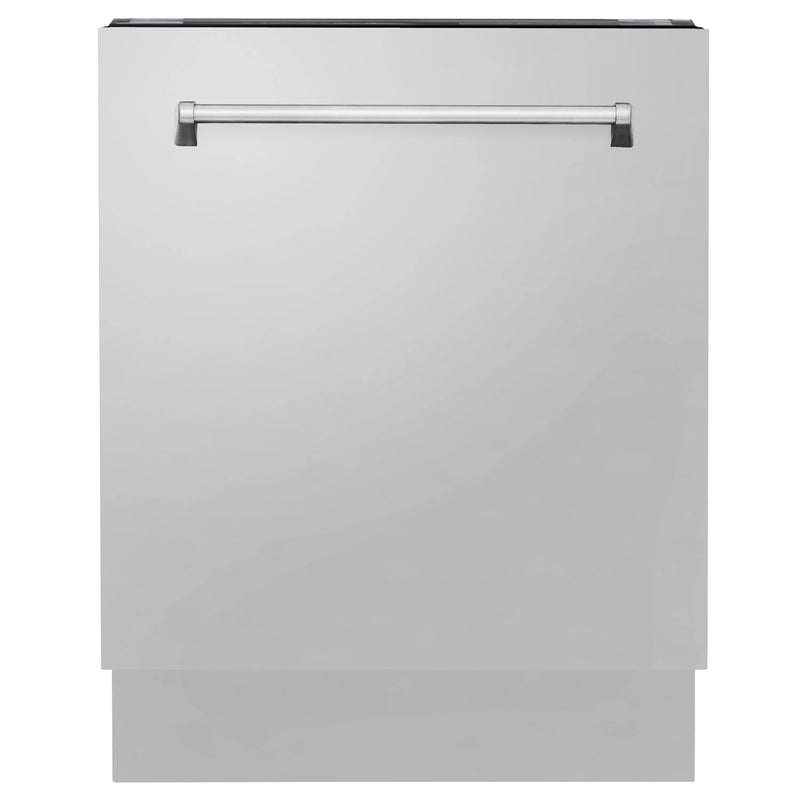

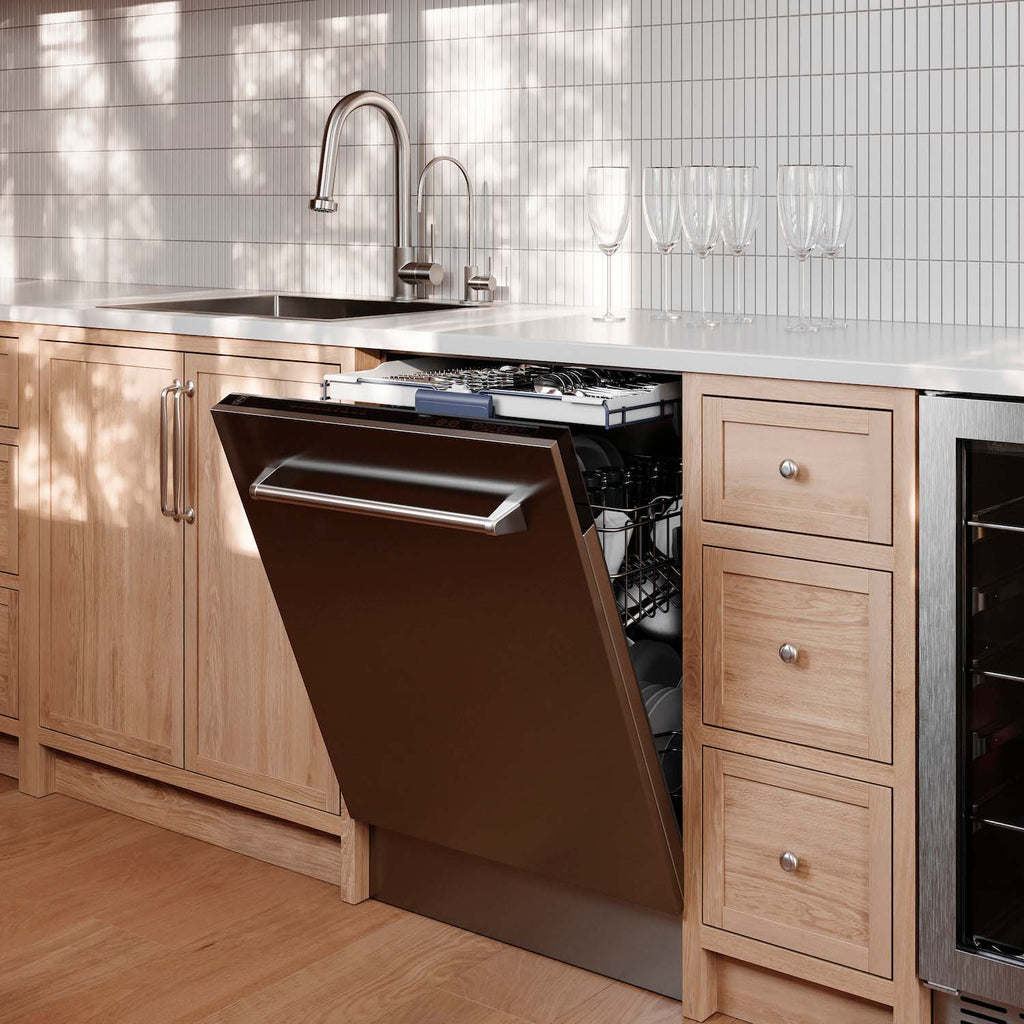

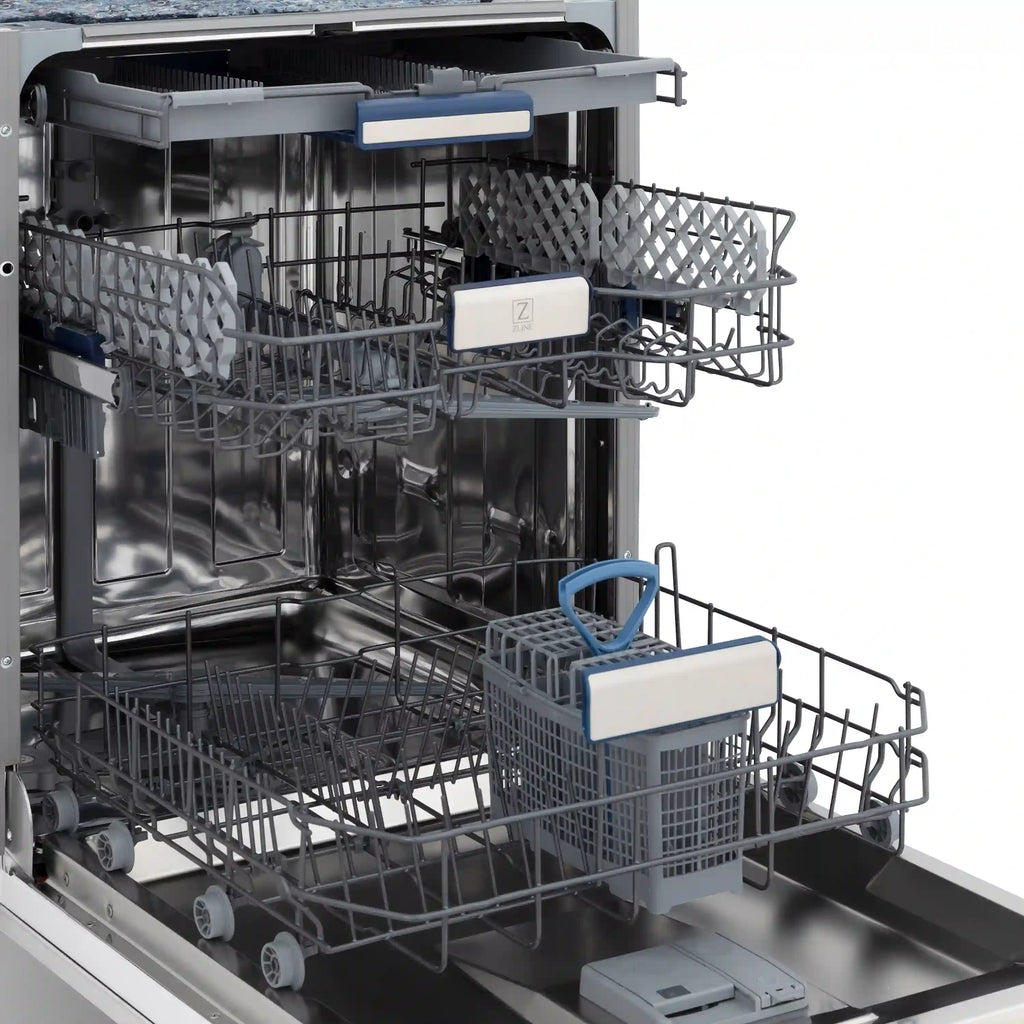

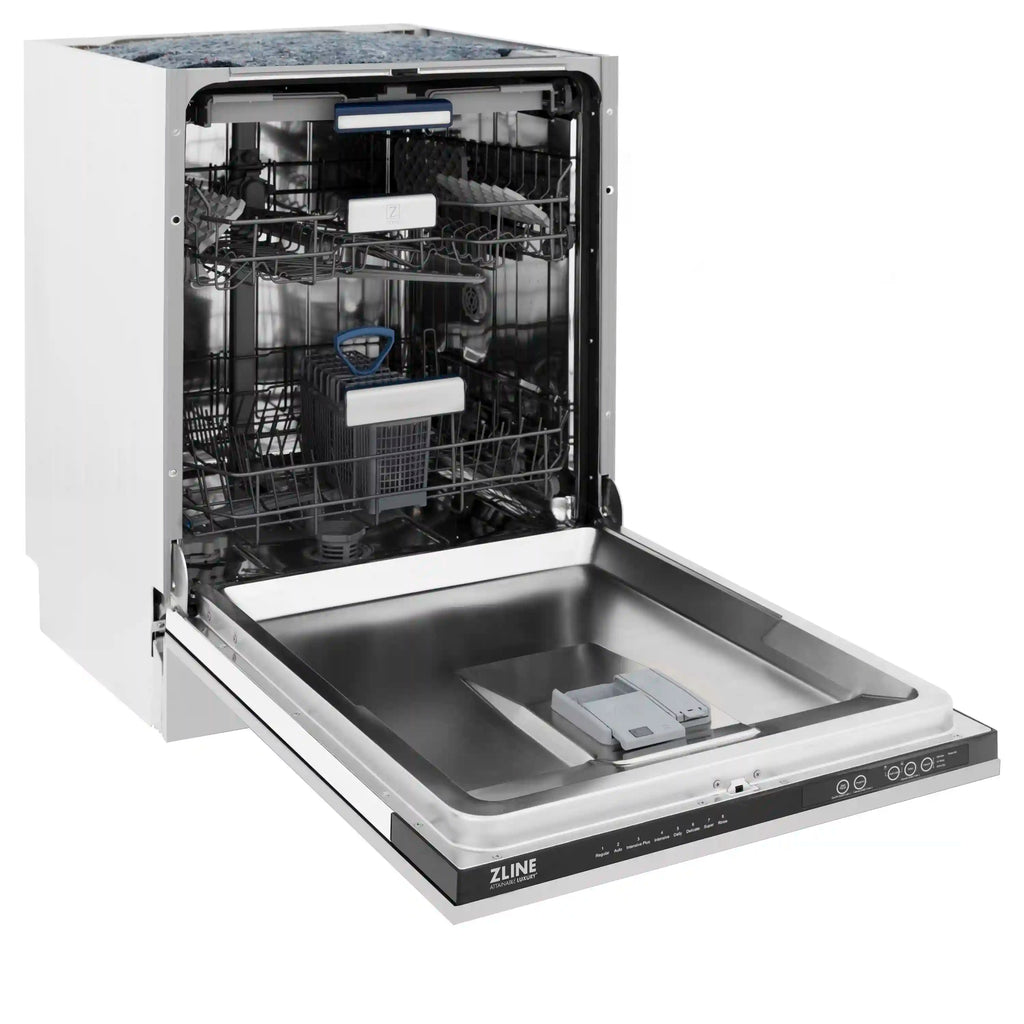

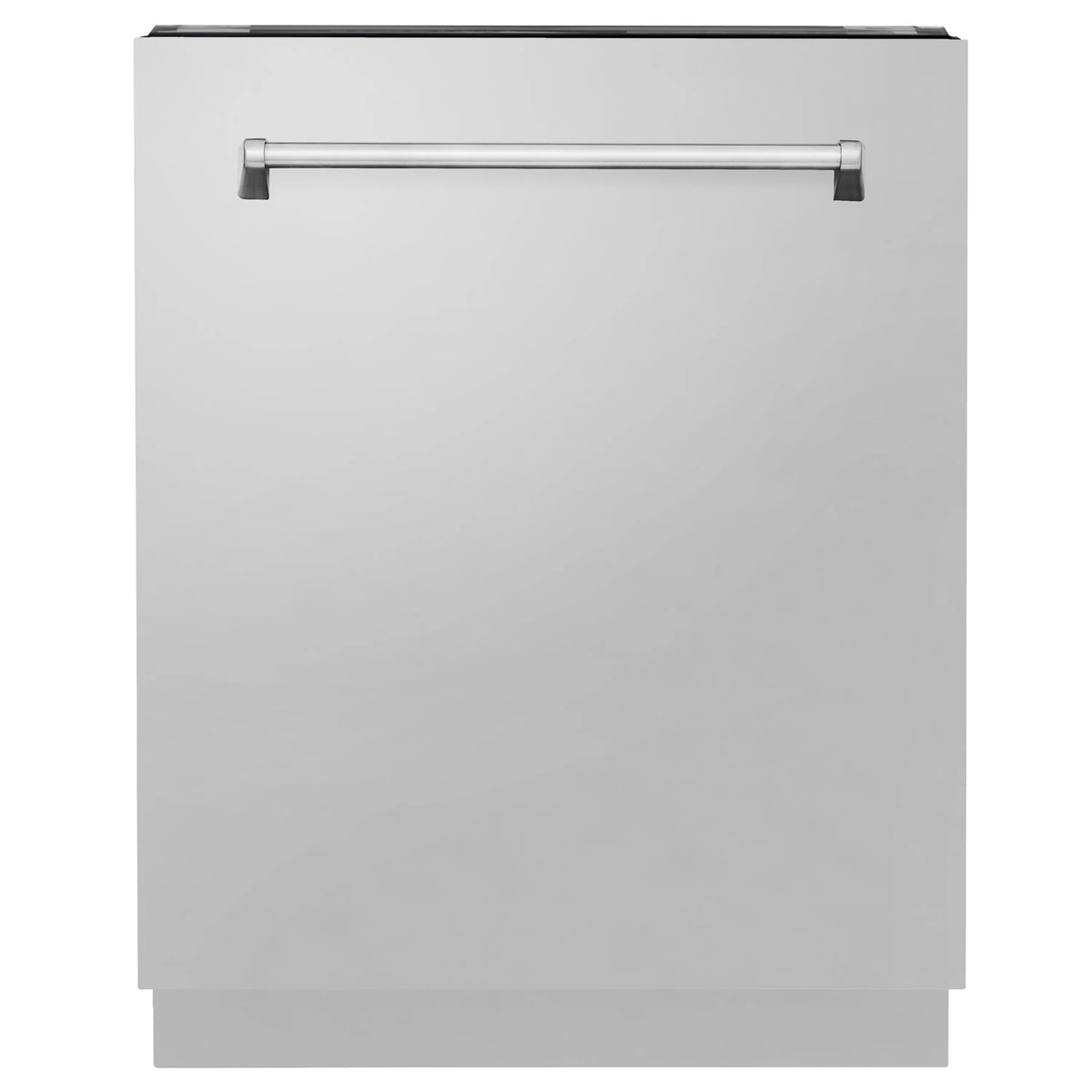

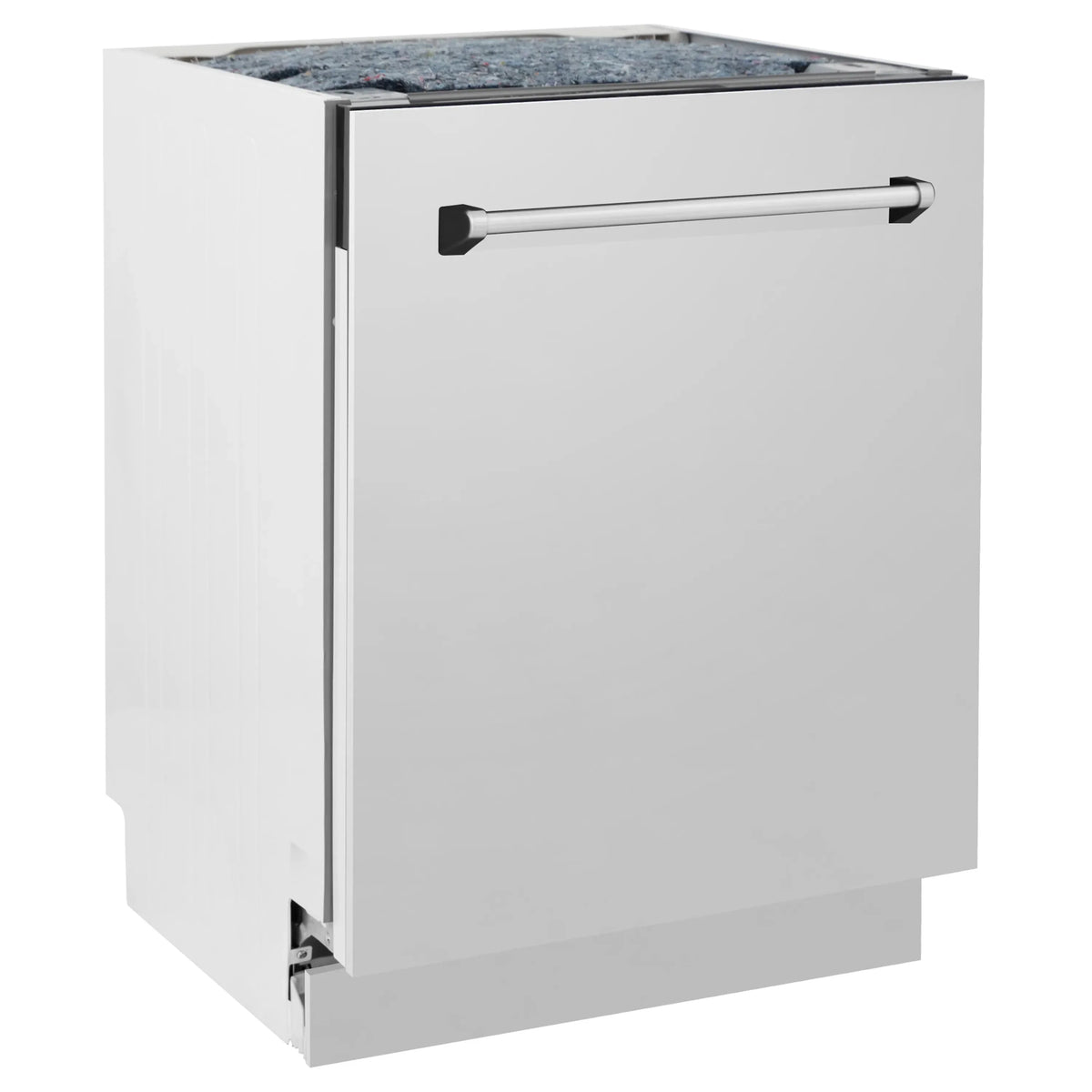

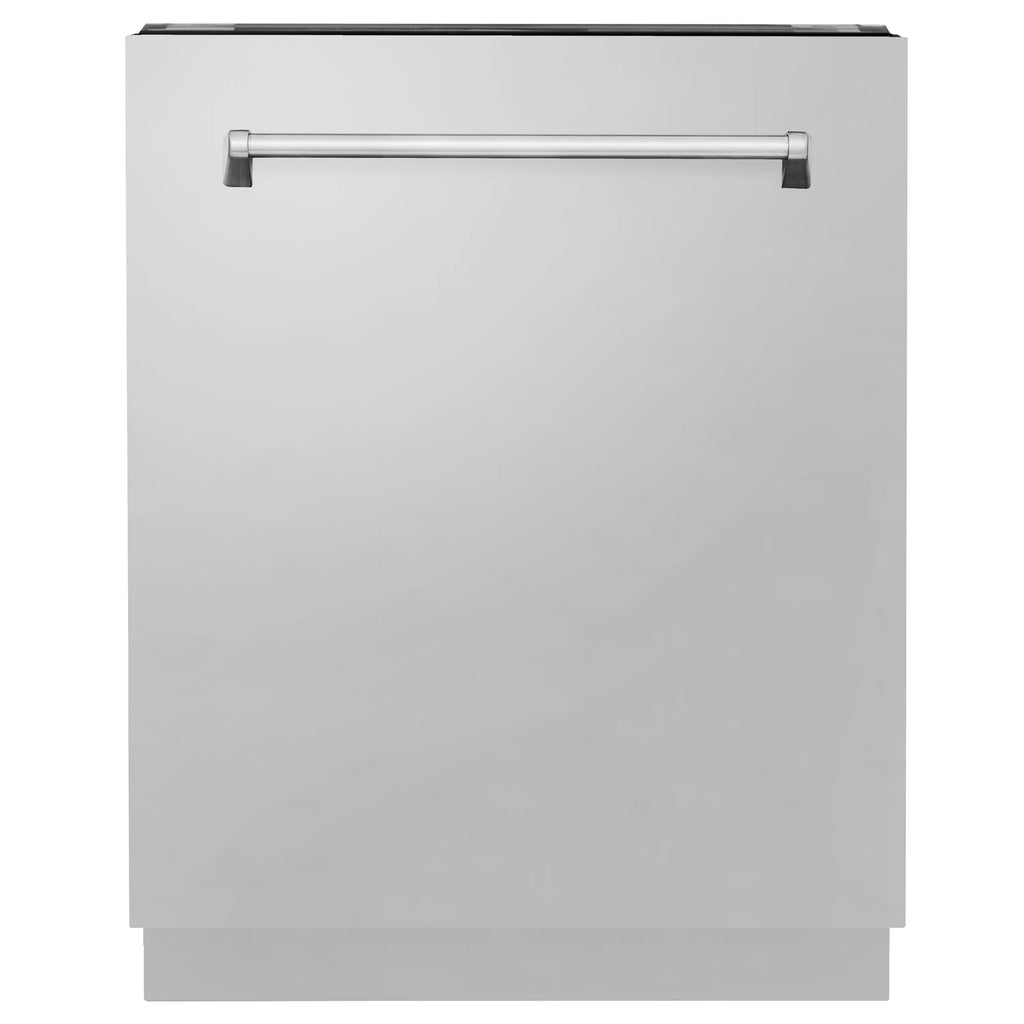

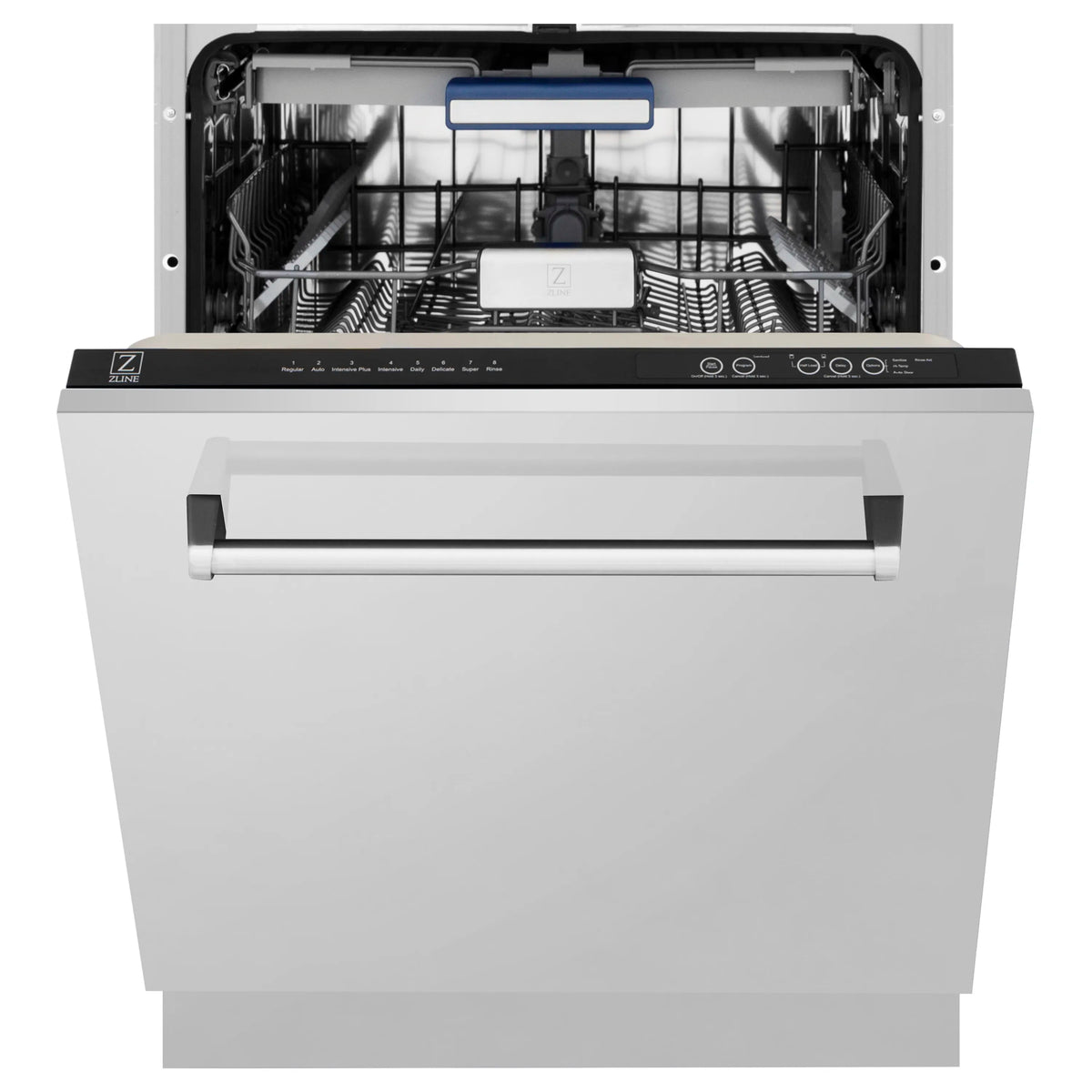

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |

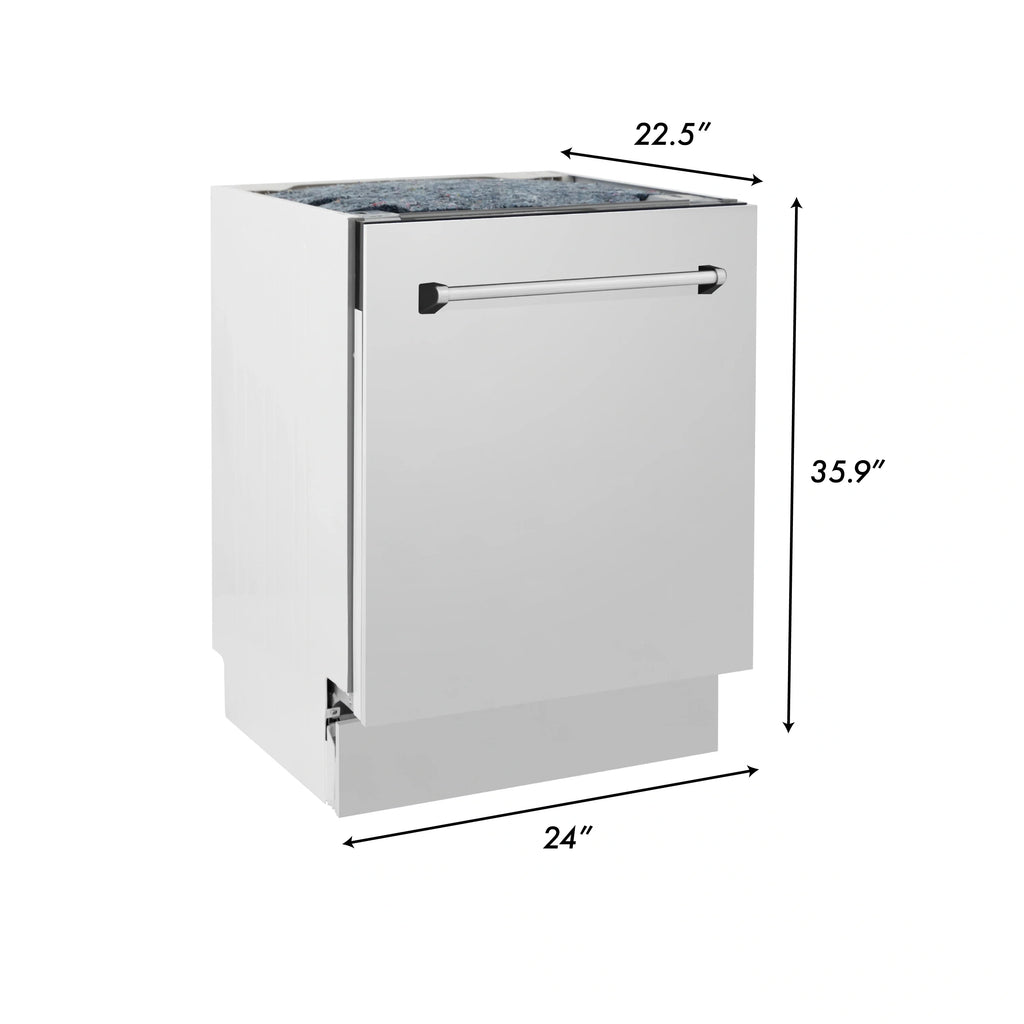

| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |

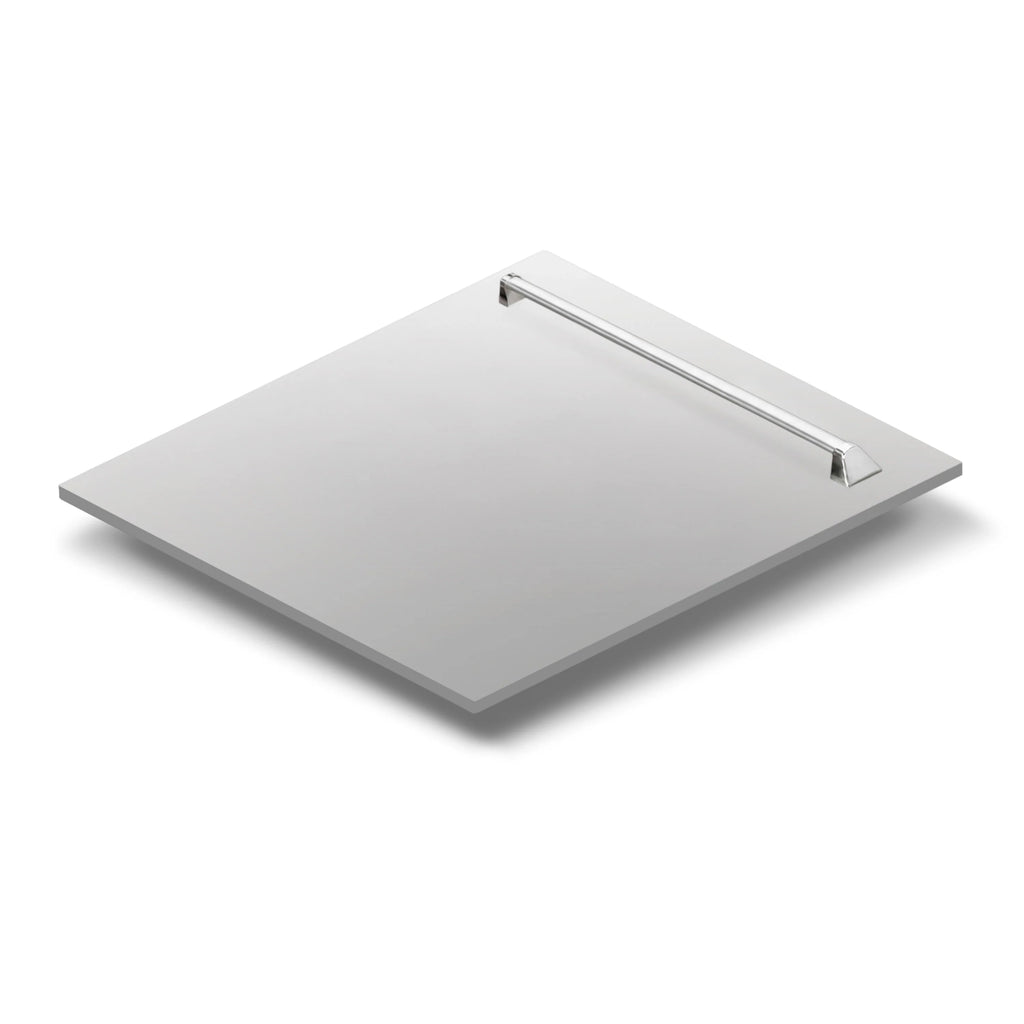

| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |
| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |

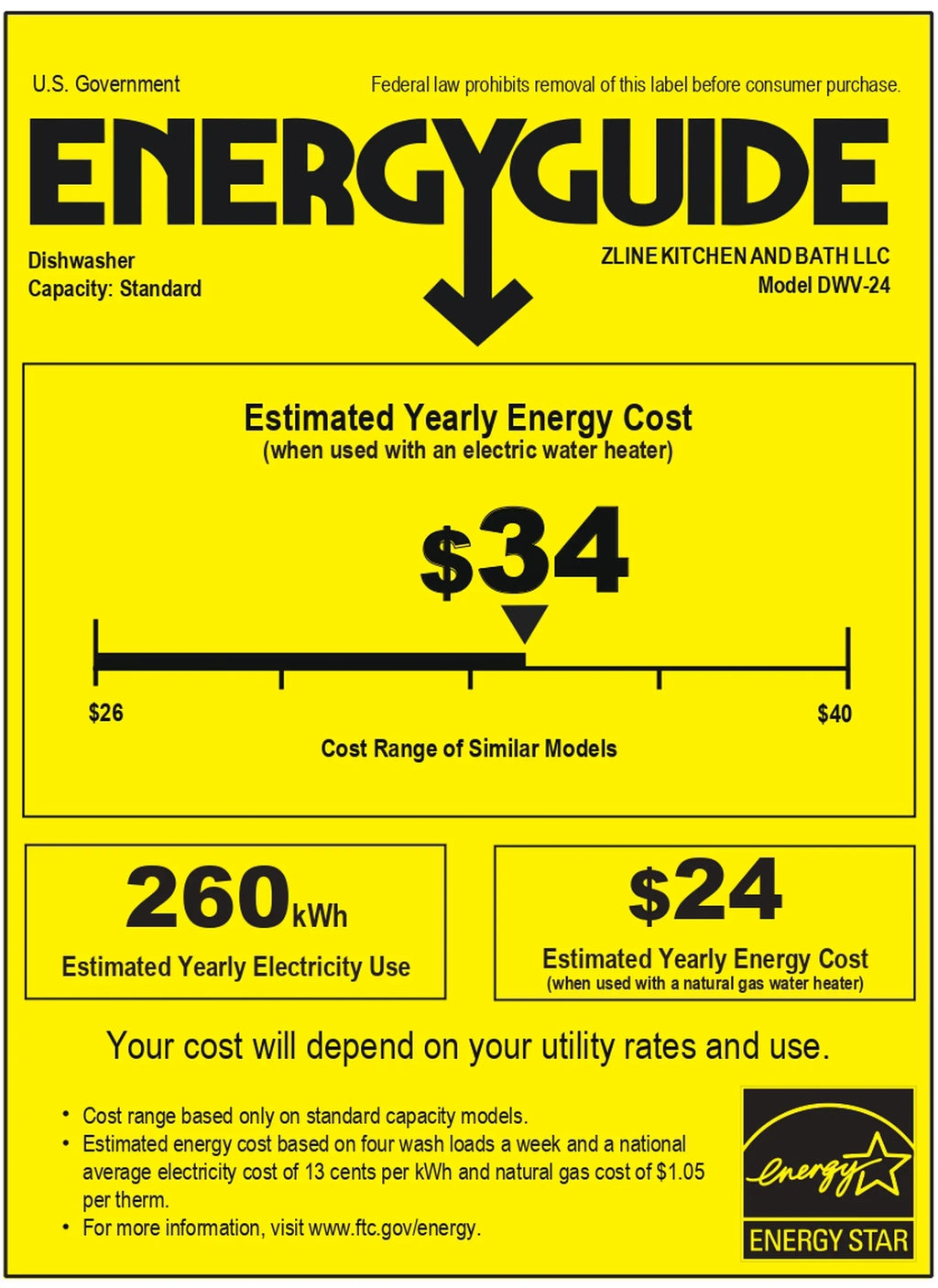

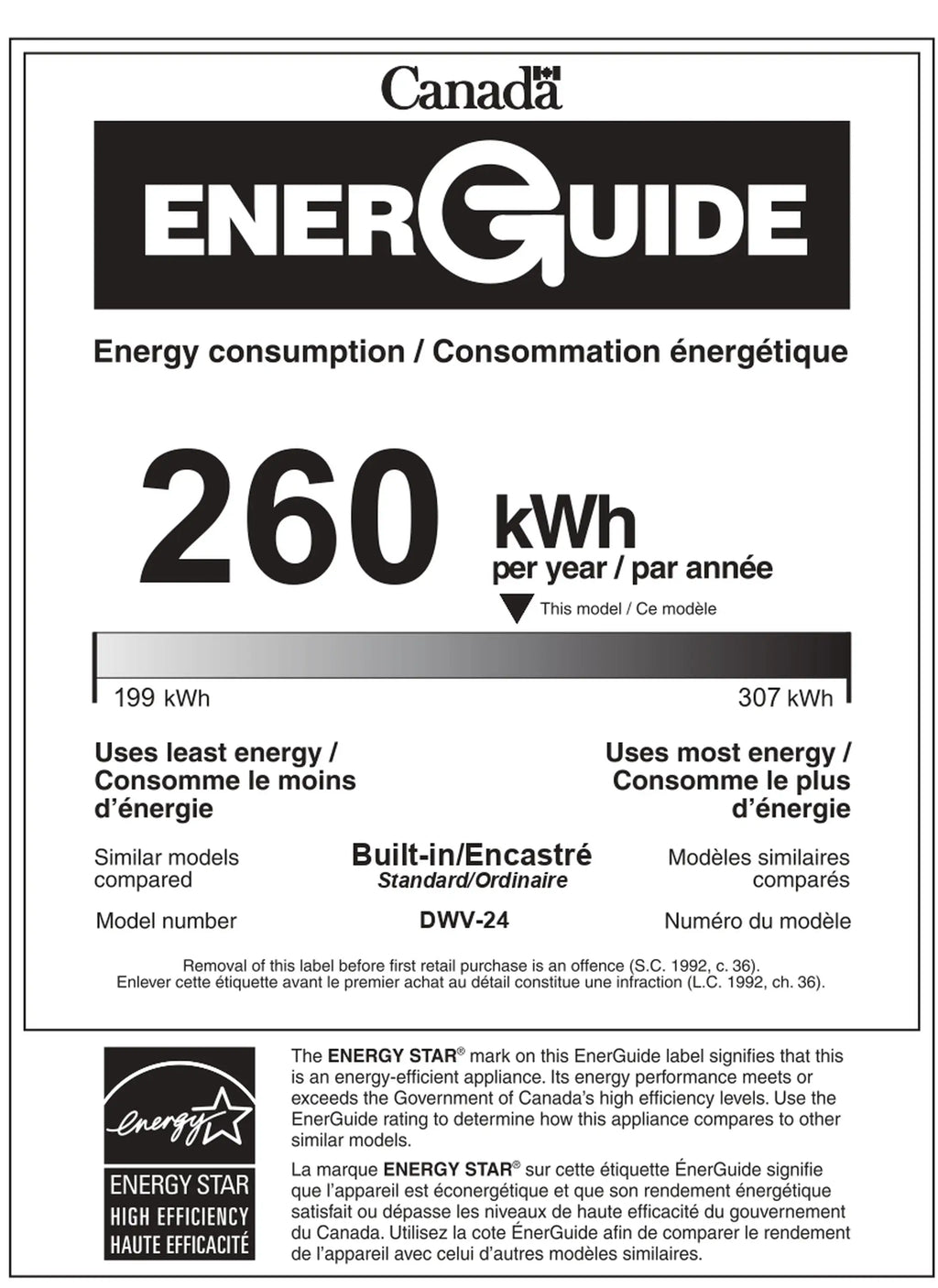

| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
