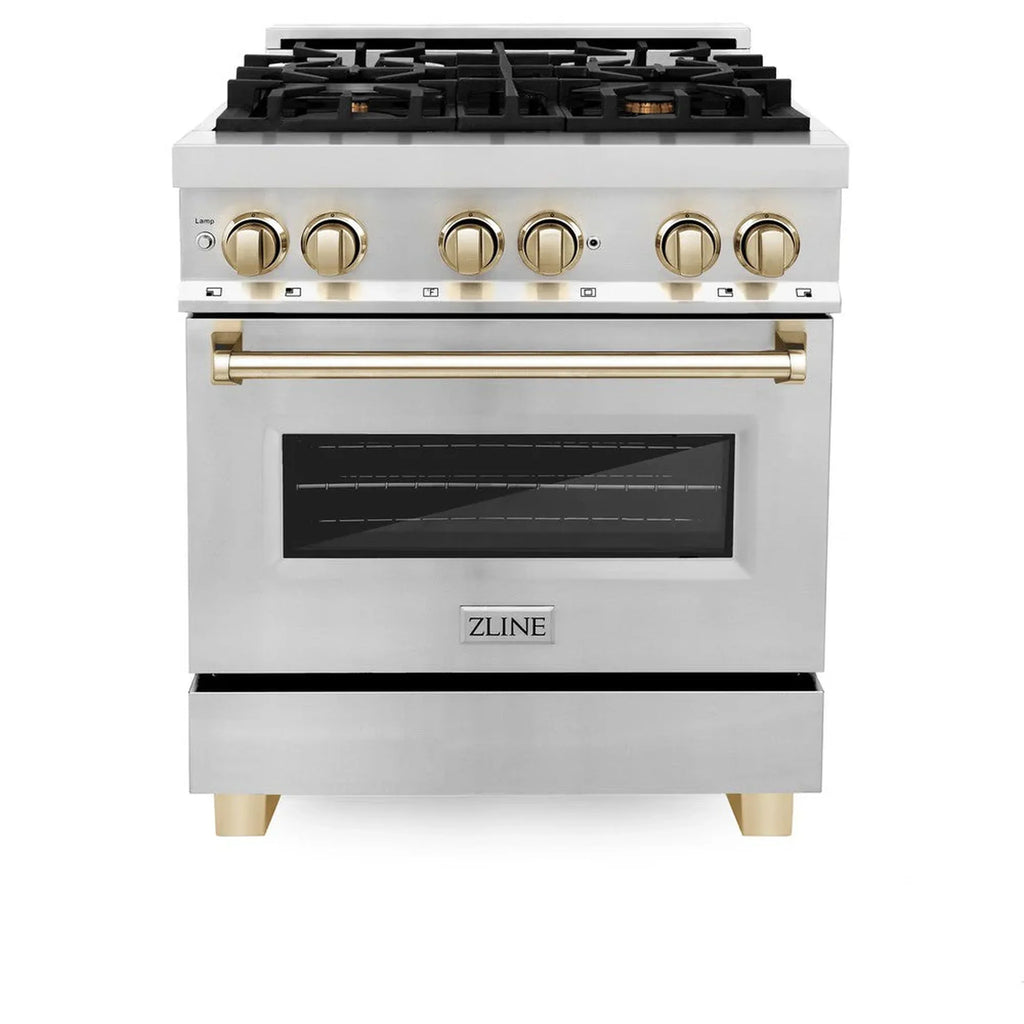

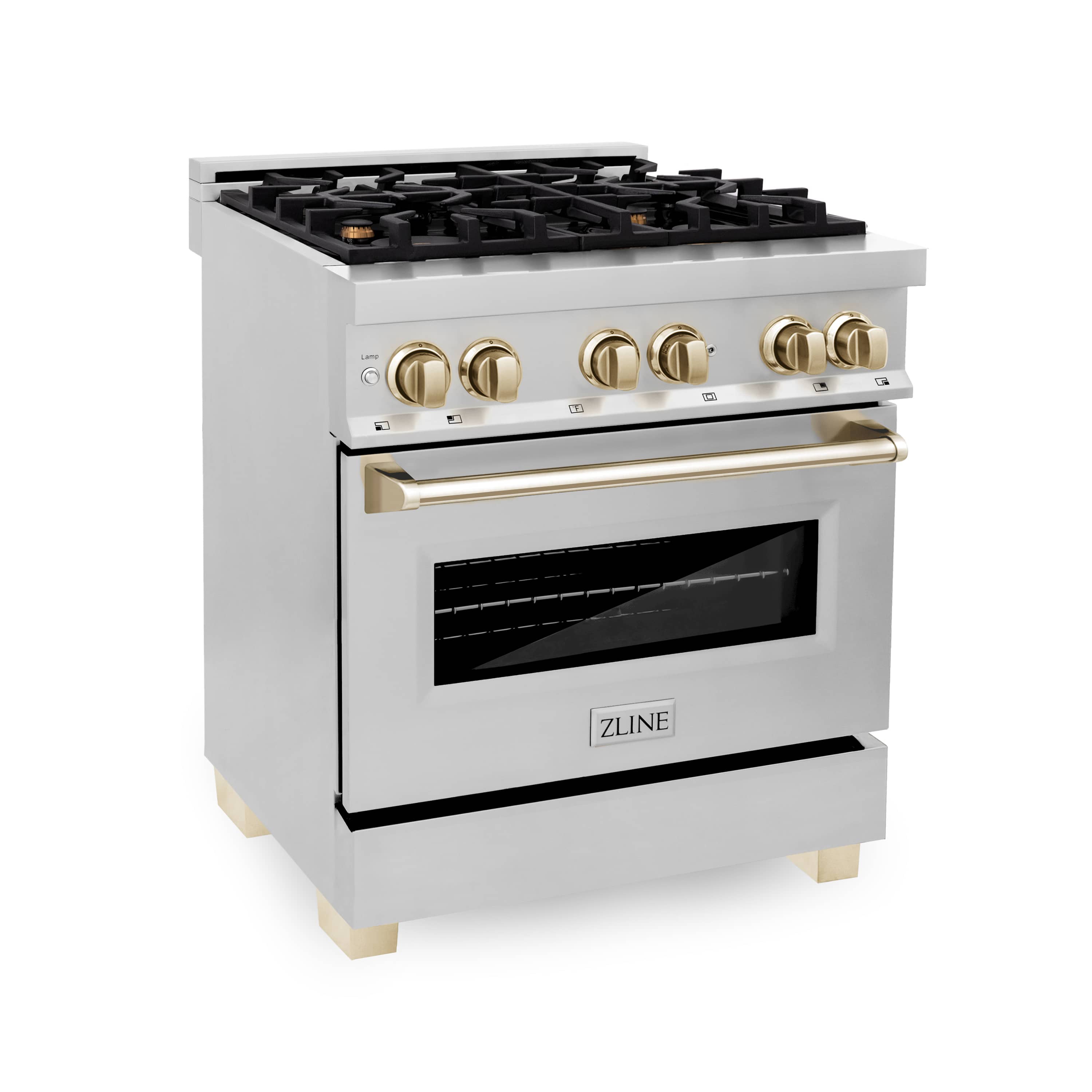

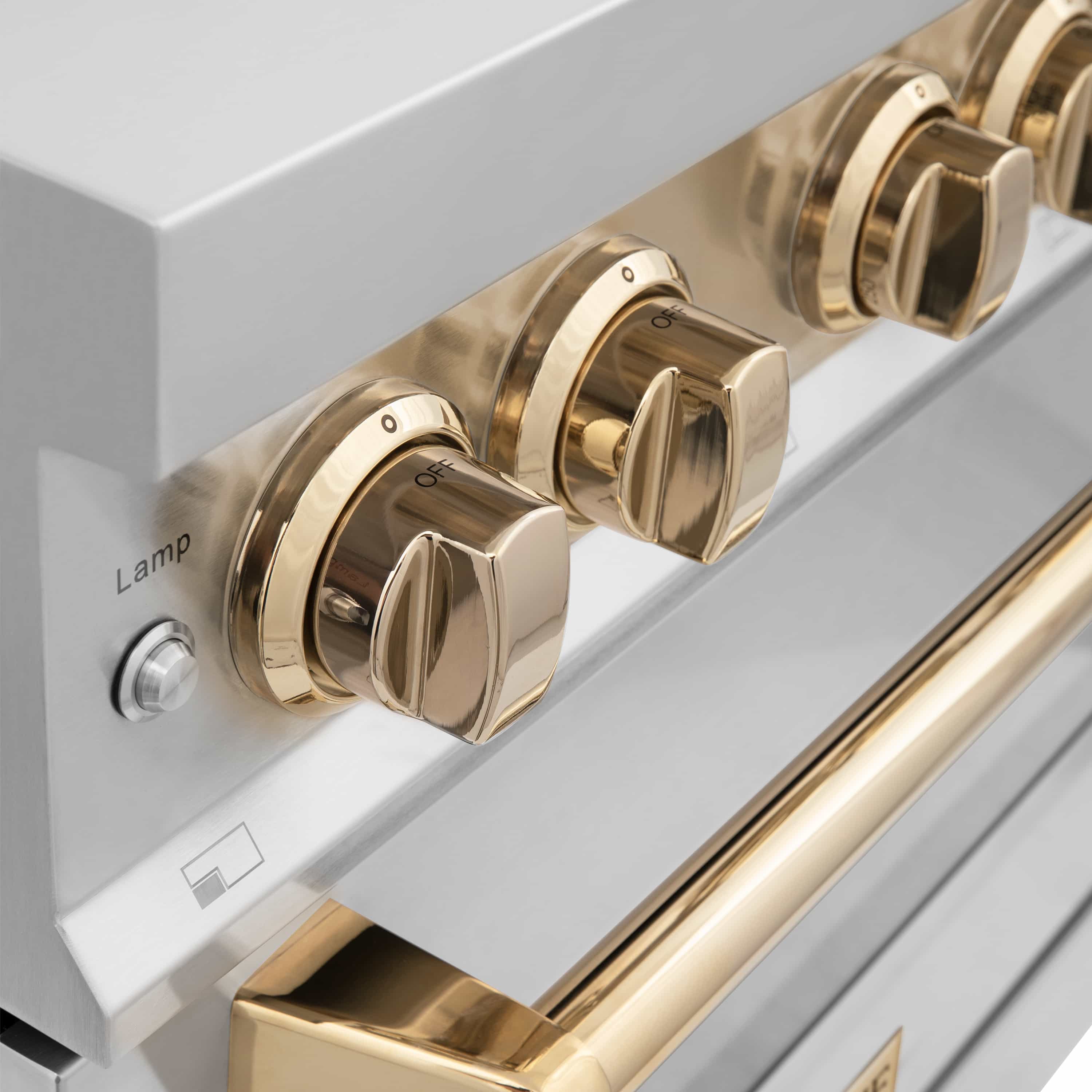

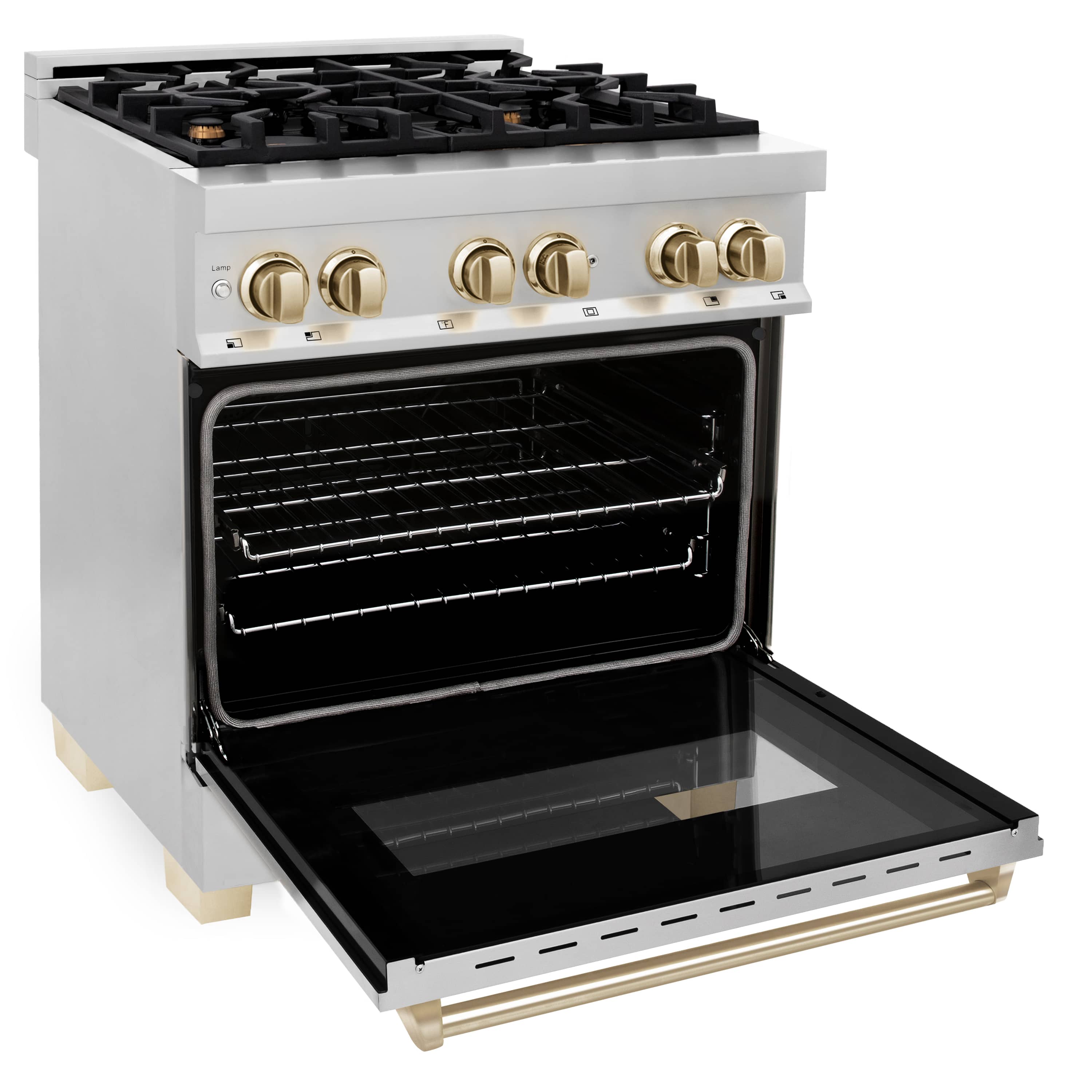

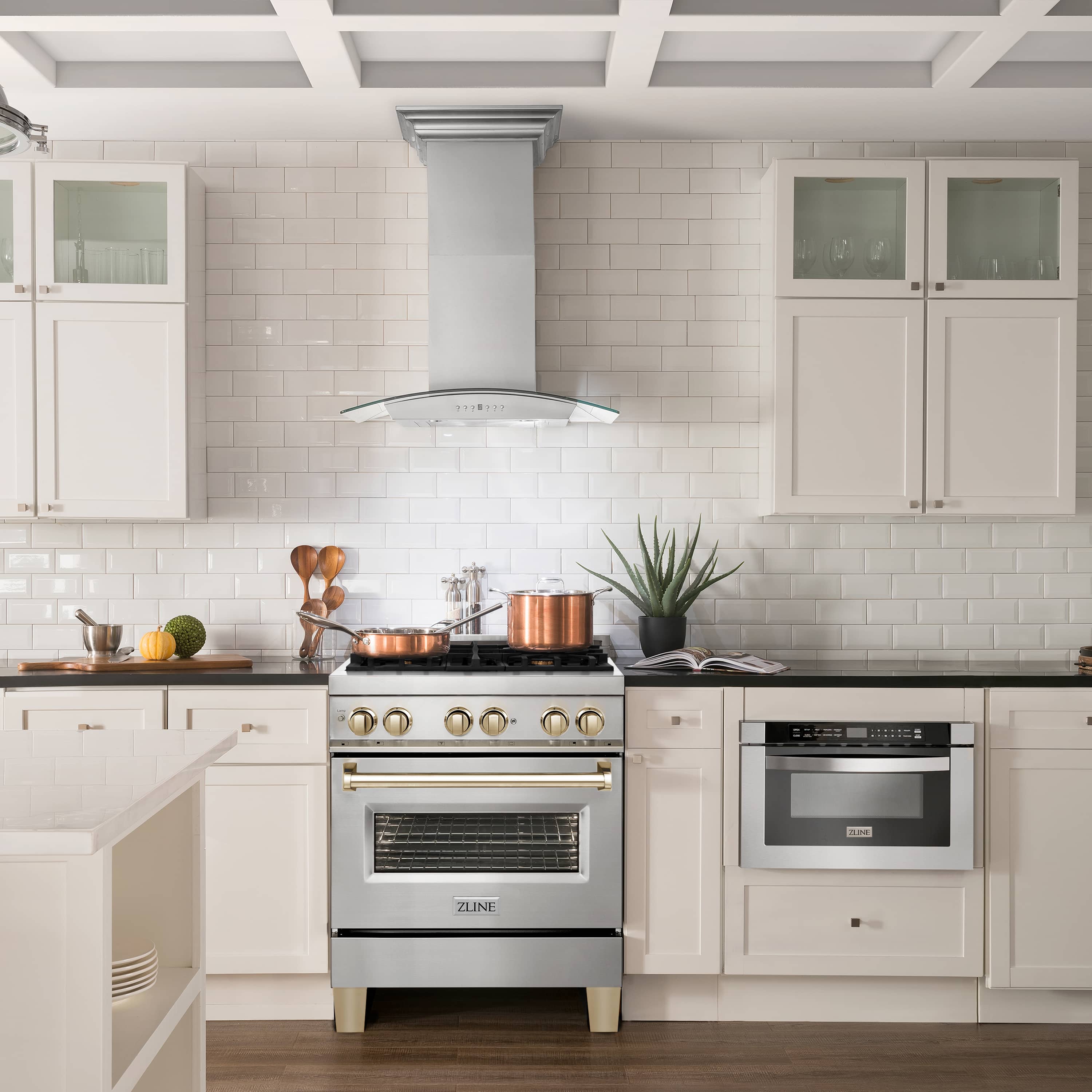

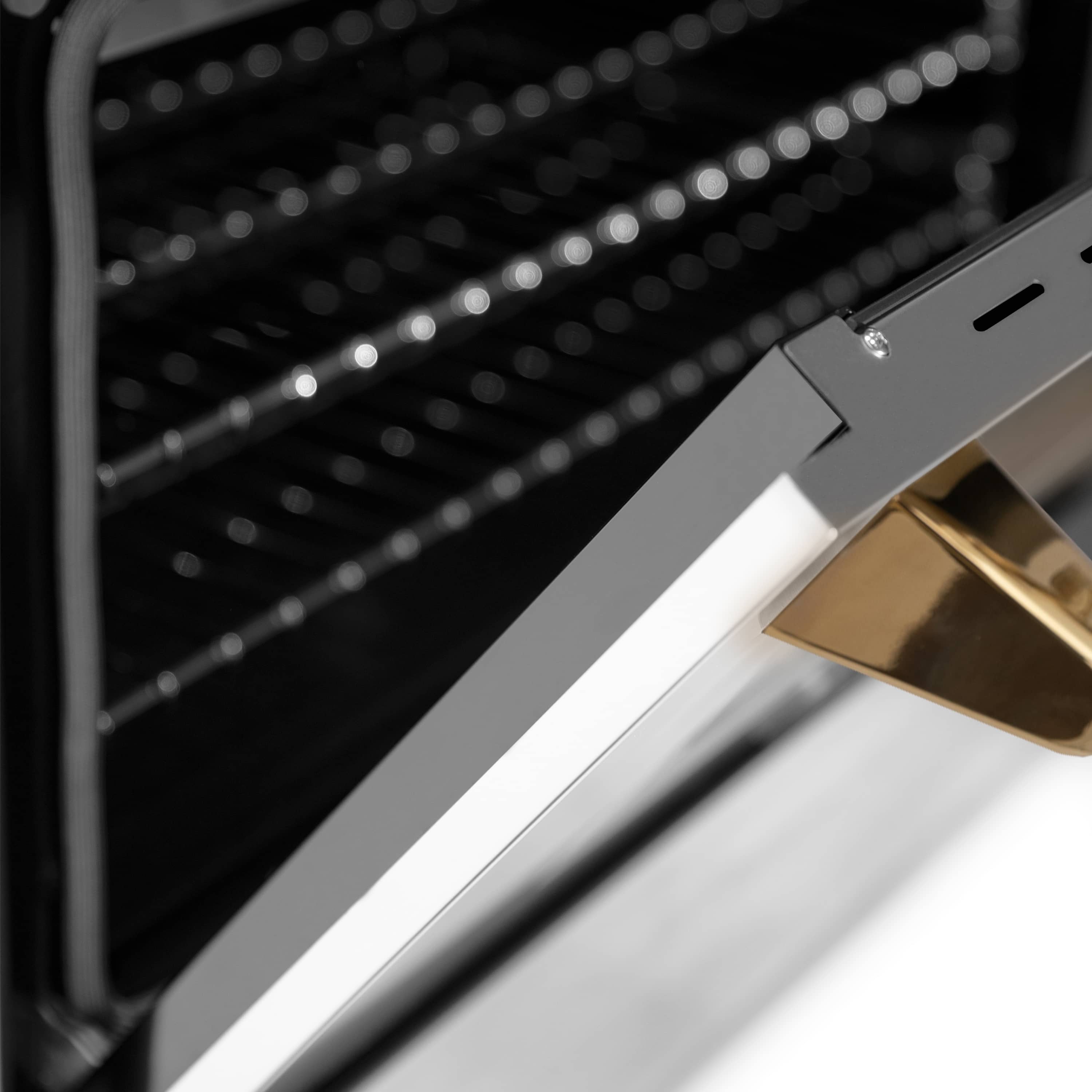

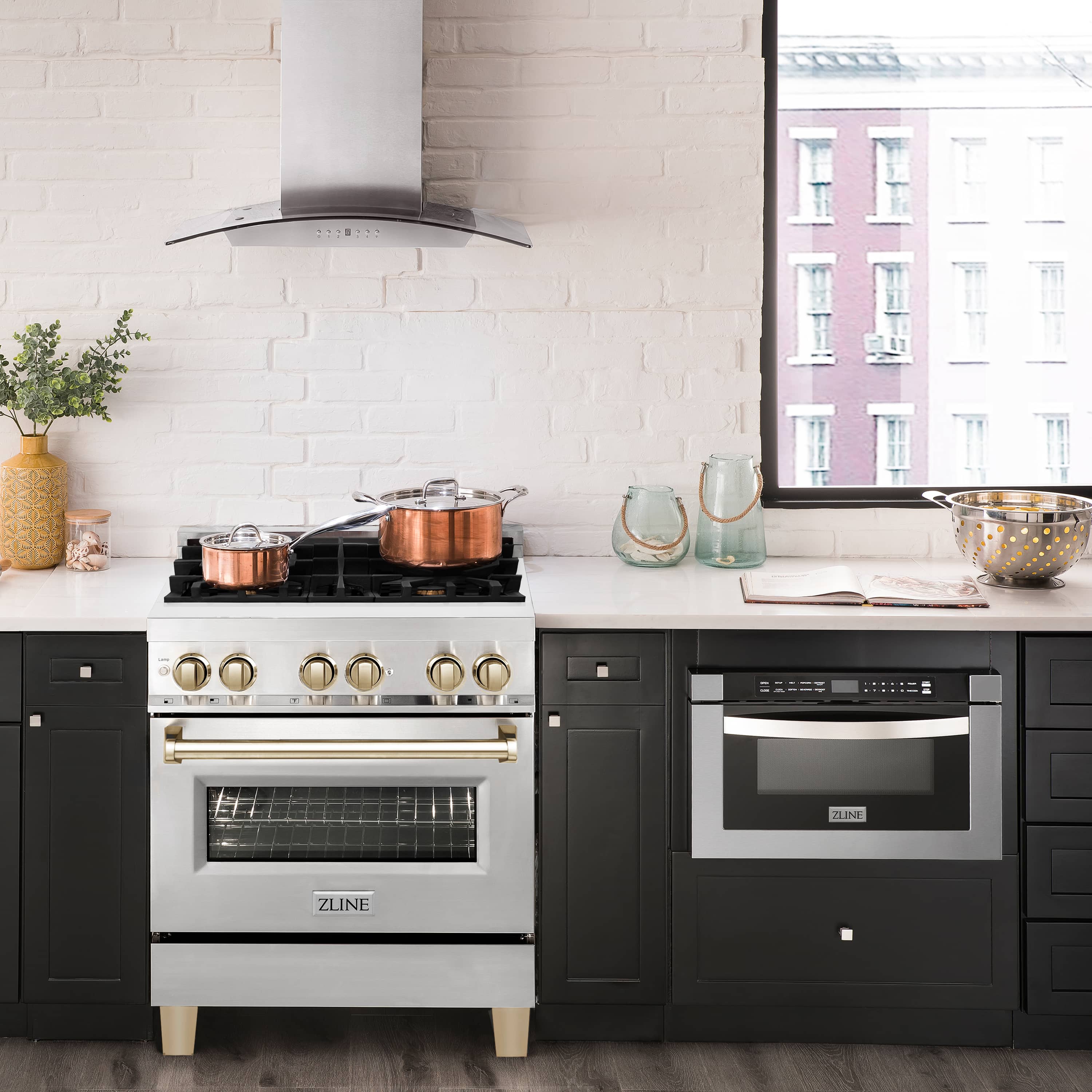

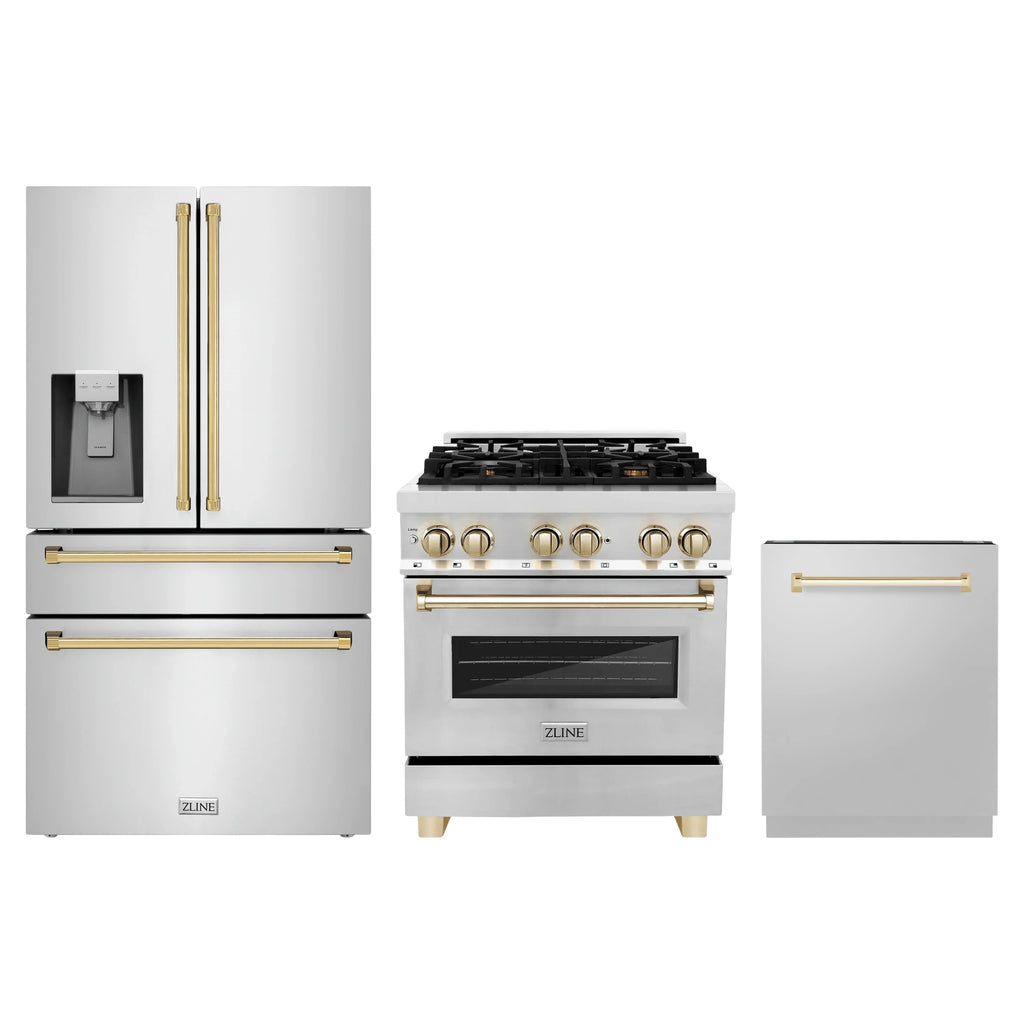

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.0 cu. ft. Legacy Dual Fuel Range with 4 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel and Polished Gold Accents (RAZ-30-G) pairs a powerful gas cooktop with 4 Italian-crafted burners, an electric convection oven with a Landscape oven door window design, and elegant polished gold knobs and handle. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
| DIMENSIONS | |
|---|---|

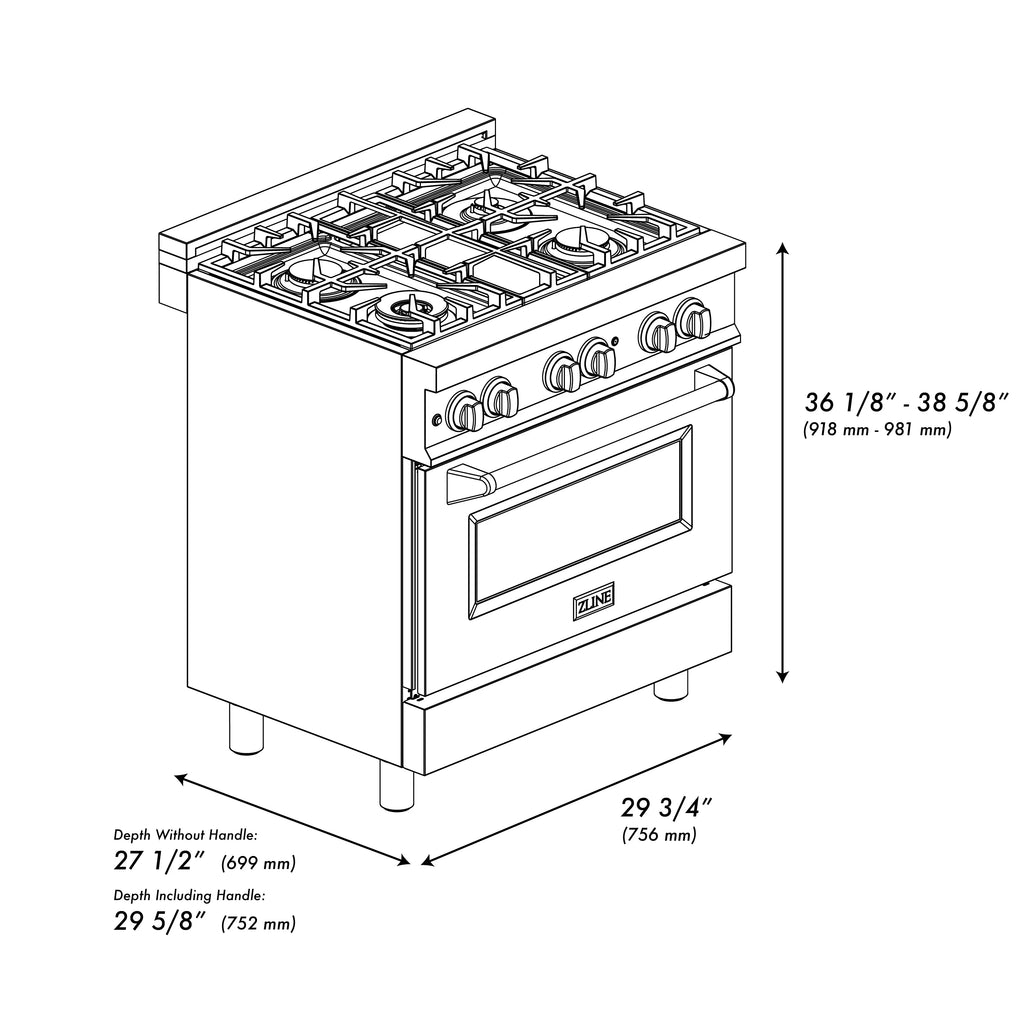

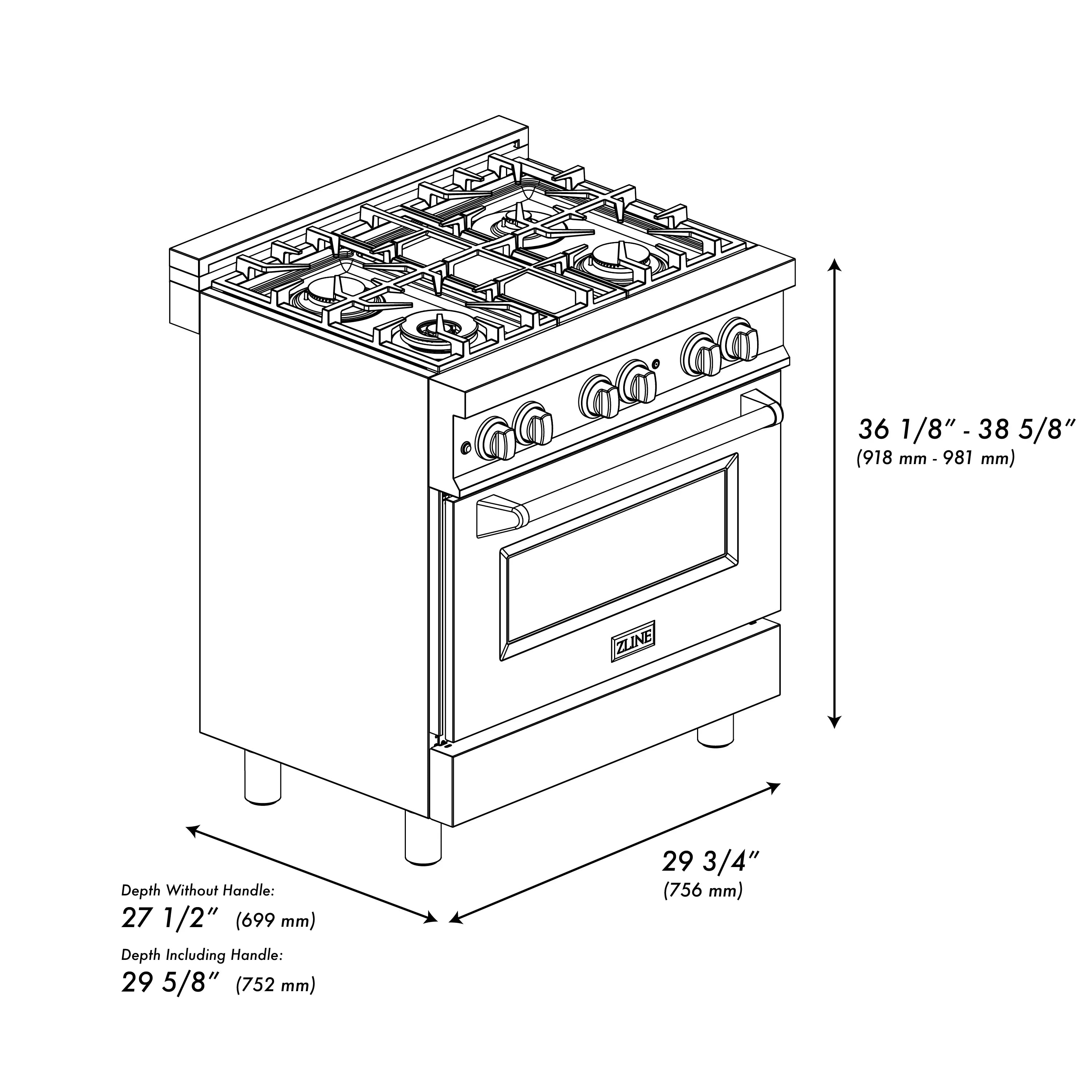

| Dimension | 29.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 29.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |
| Interior Oven Dimensions | 24.875" W x 17.75 in. D x 16 in. H |
| Weight | 230 lbs |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath |
| Features | ETL Listed |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Material |
|
| Control Type | Durable Front Control |
| Range Finish | Stainless Steel |

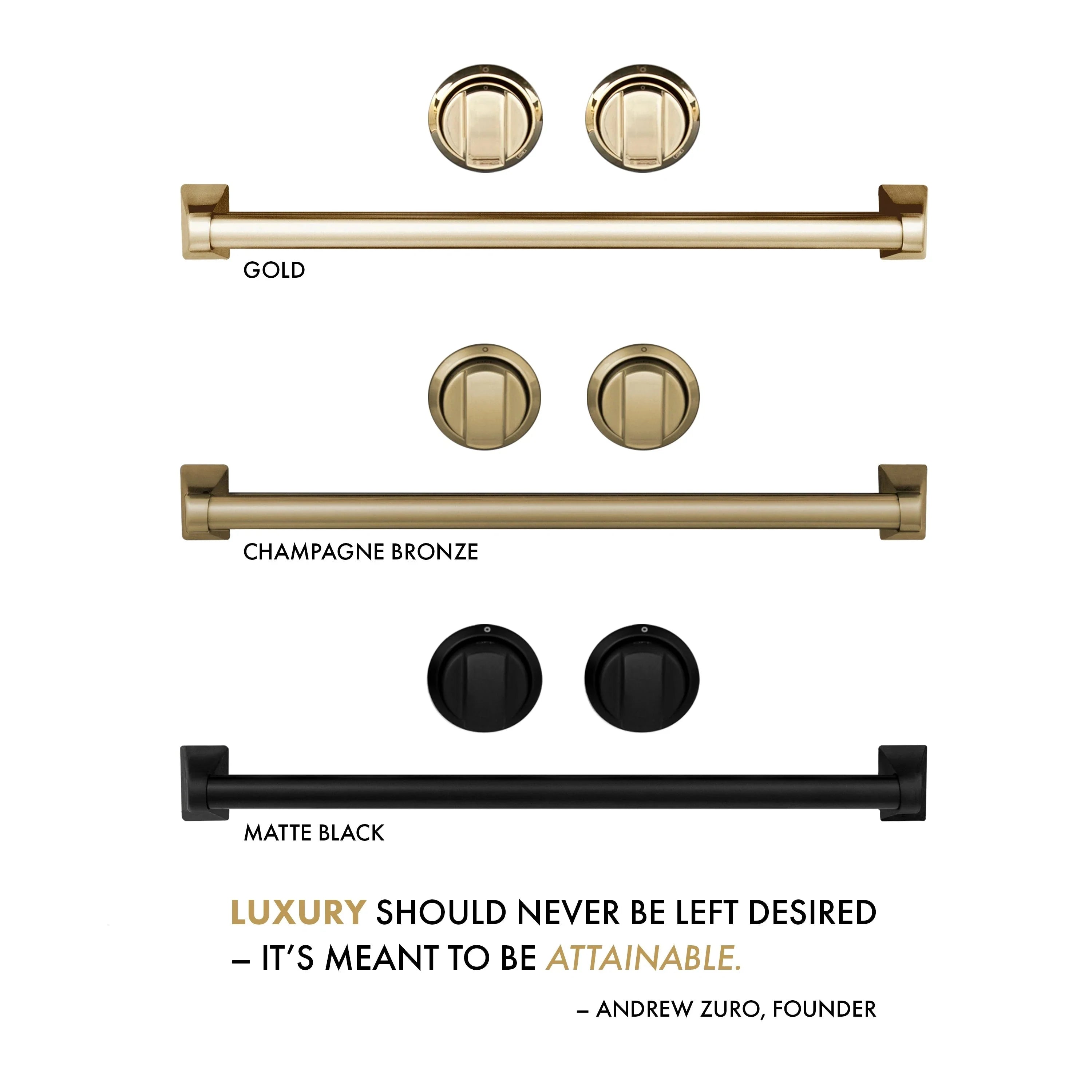

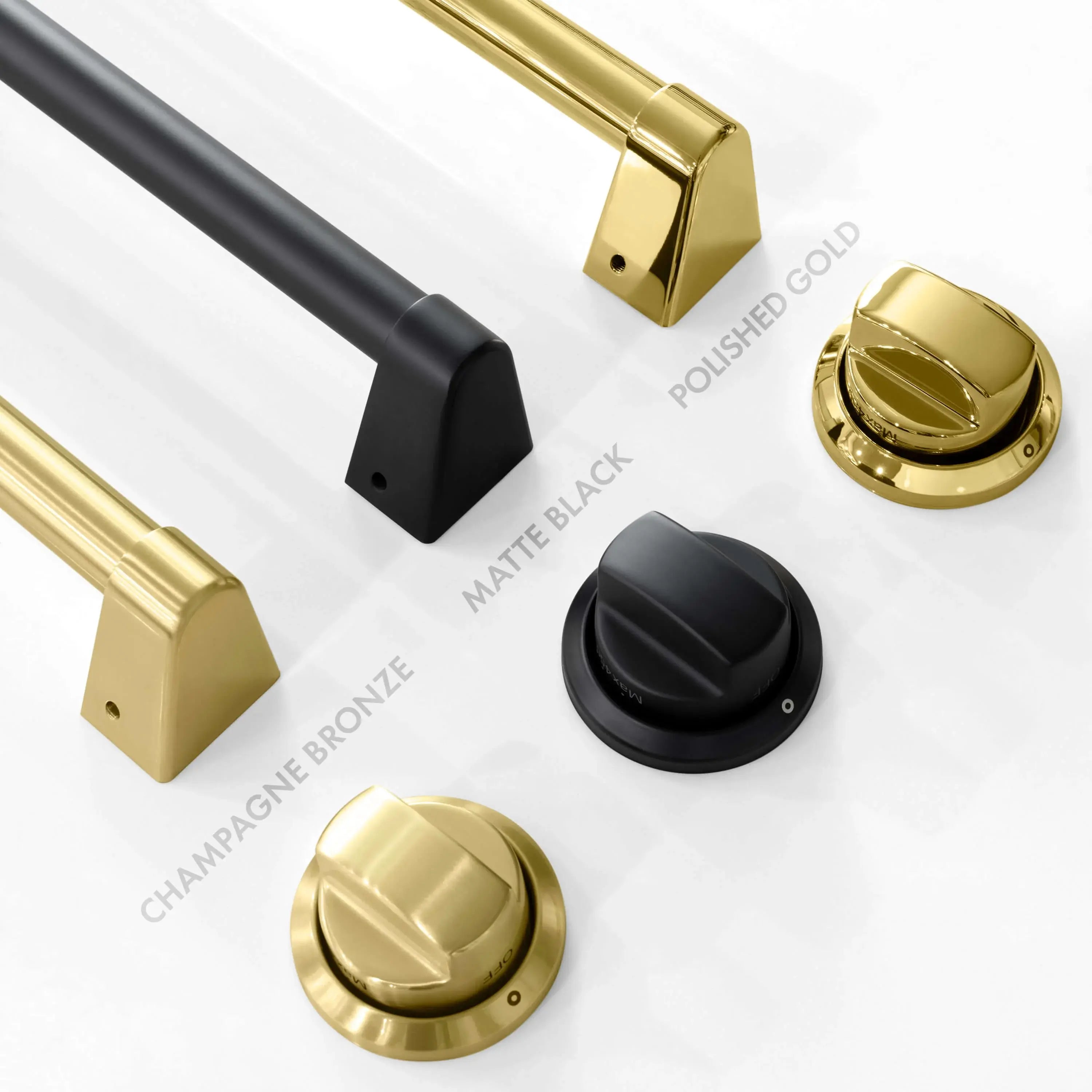

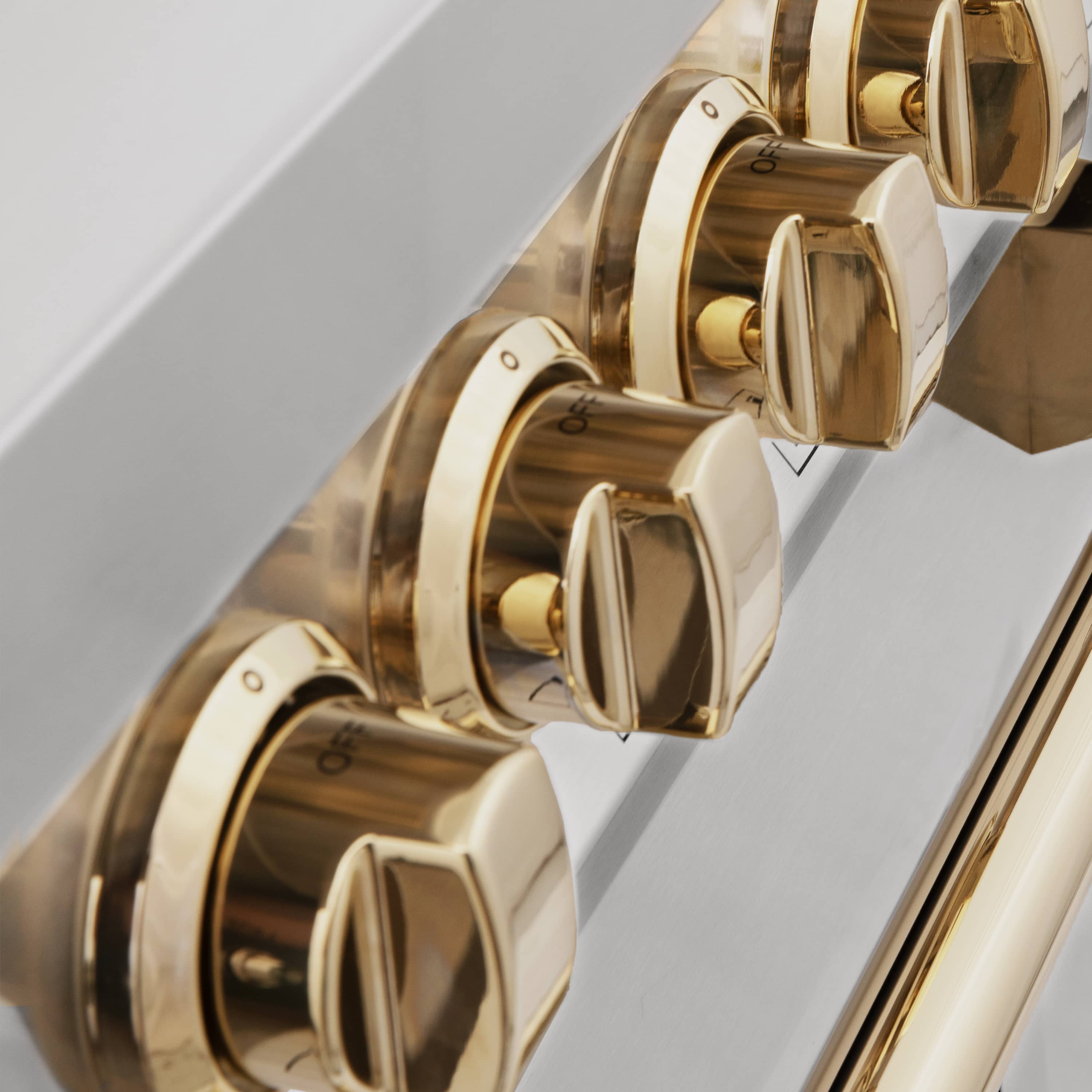

| Parts Finish (Handle, Legs, Knobs) | Gold |
| TECHNICAL DETAILS | |
| Voltage | 220V-240V/60HZ/50A |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel Type |
|
| Mount Type | Free Standing |
| COOKTOP FEATURES | |

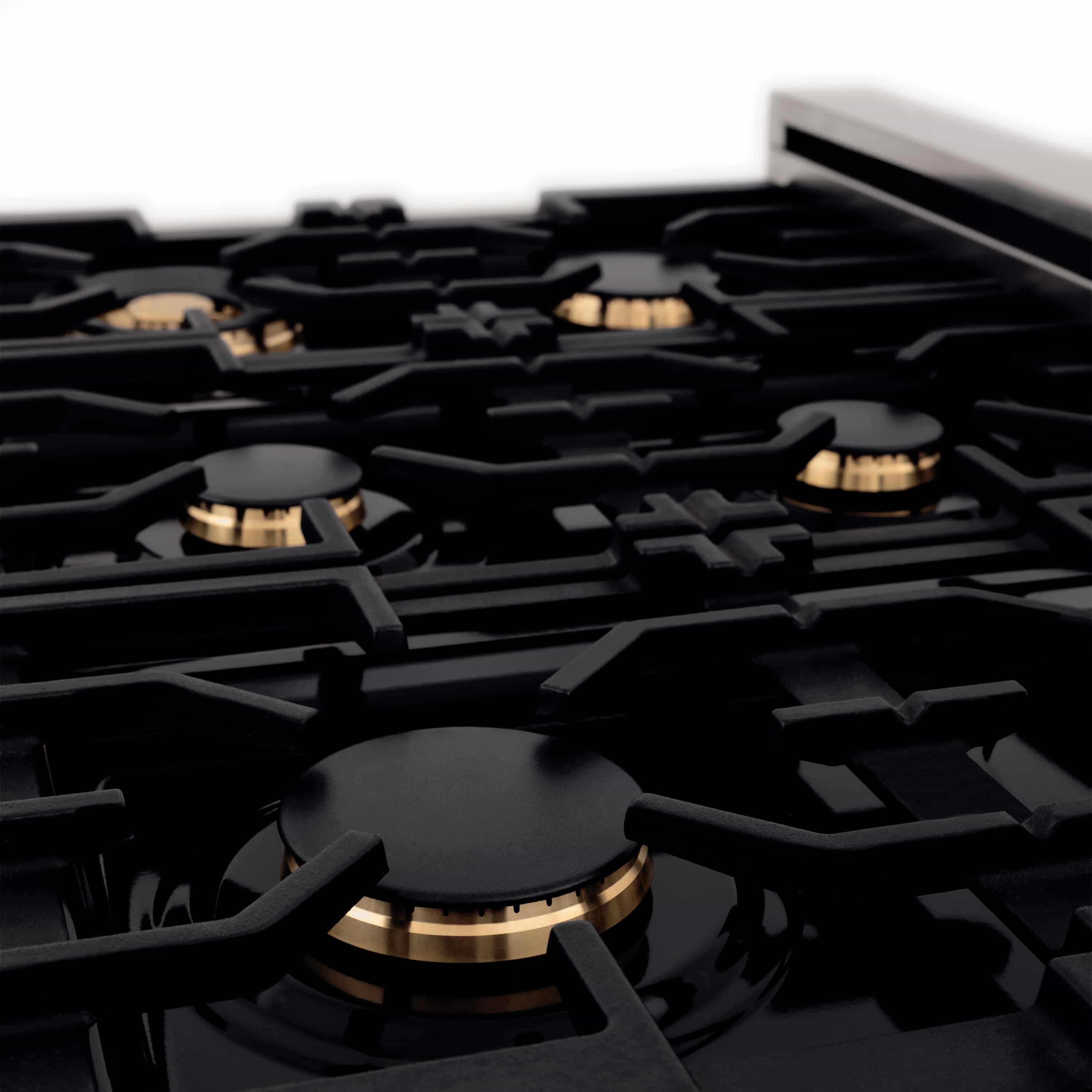

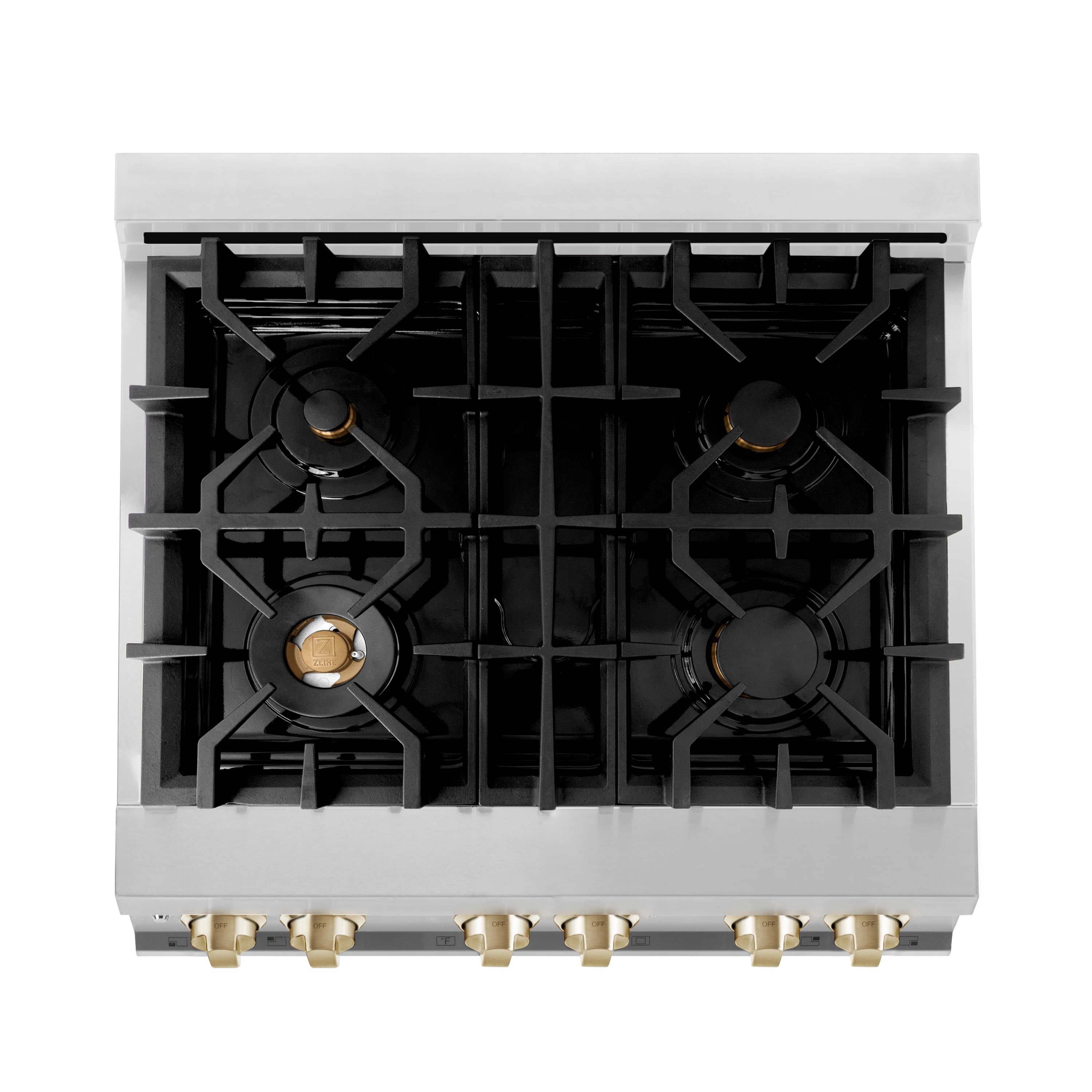

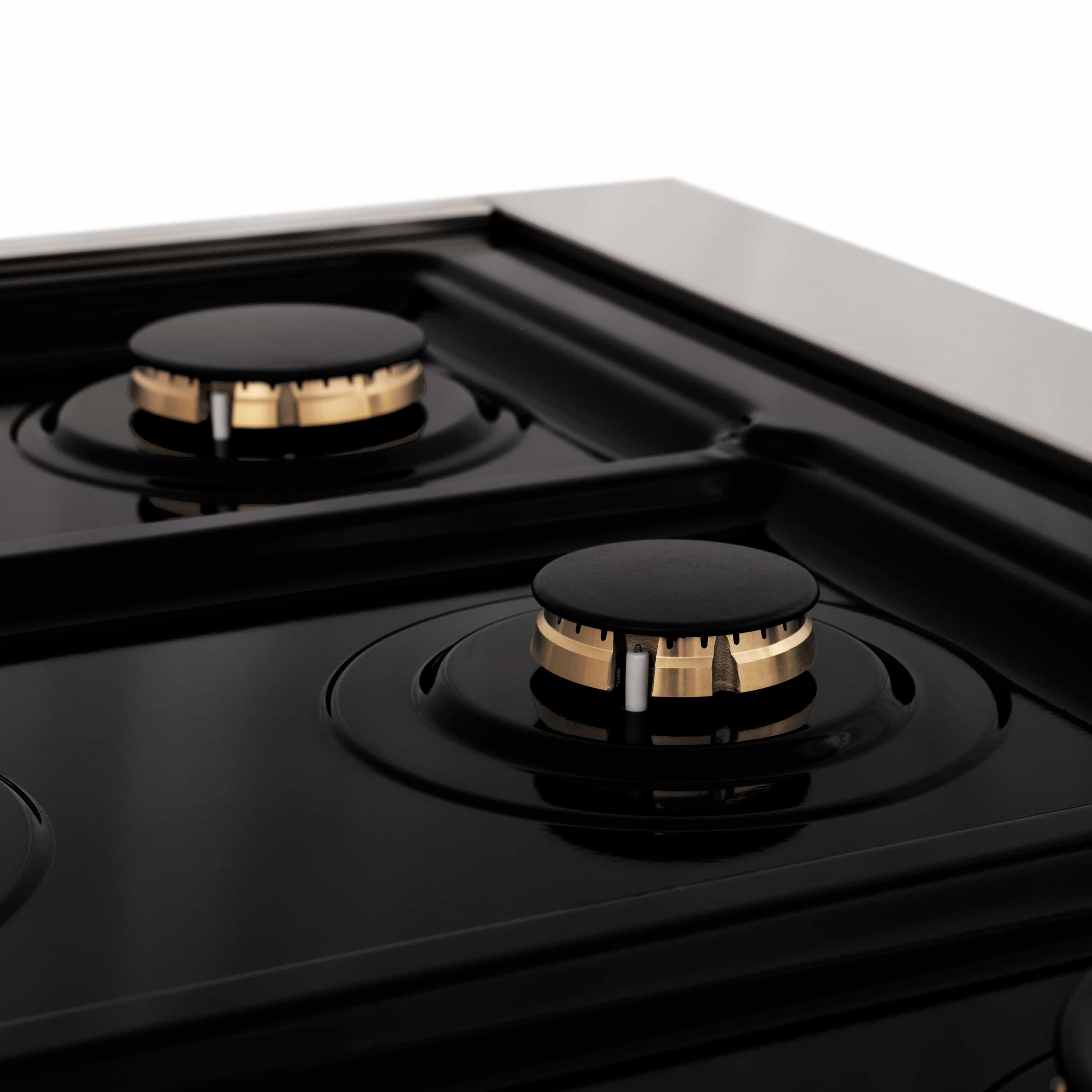

| Burners | Burner 1 (Back Left): 13,000 Burner 2 (Front Left): 18,000 Burner 3 (Back Right): 4,200 Burner 4 (Front Right): 13,000 |

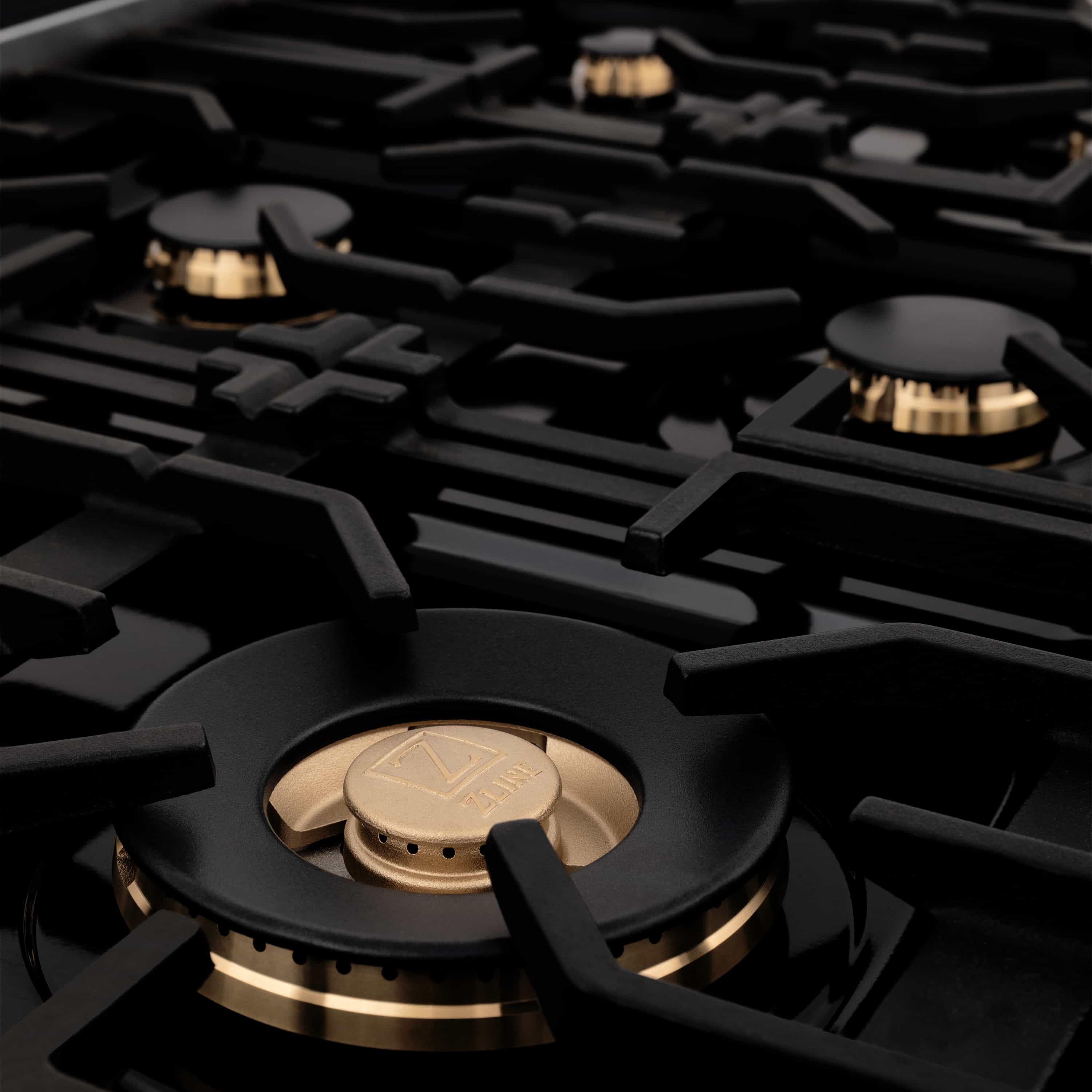

| Cooktop | (4) Burners with Enamel Cook Top with electronic spark ignition for all burners |

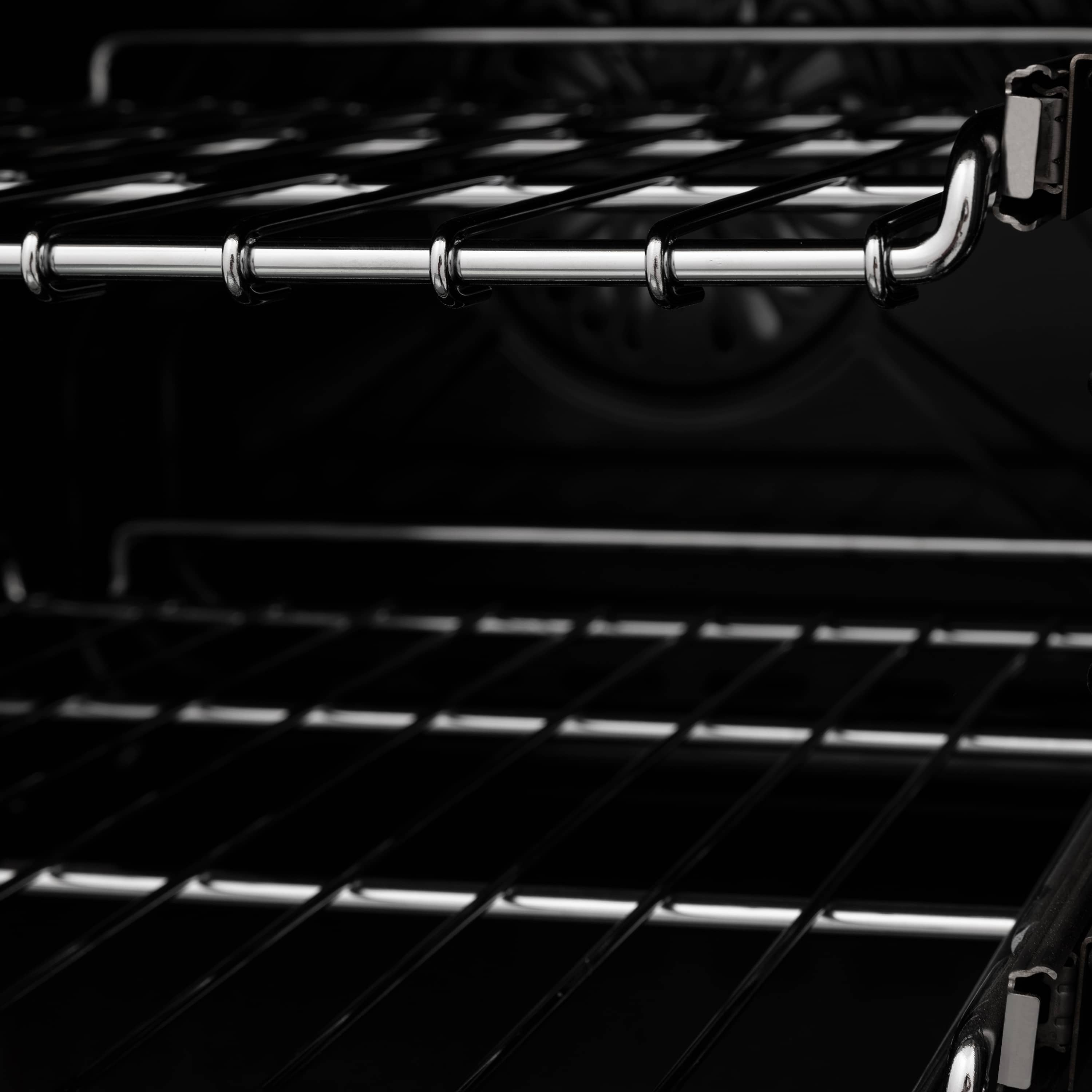

| OVEN FEATURES | |
| Oven Capacity | 4.0 cu. ft. |
| Oven |
|
| Convection | Yes |
| Timer | No |
| Self-Clean | No |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year |

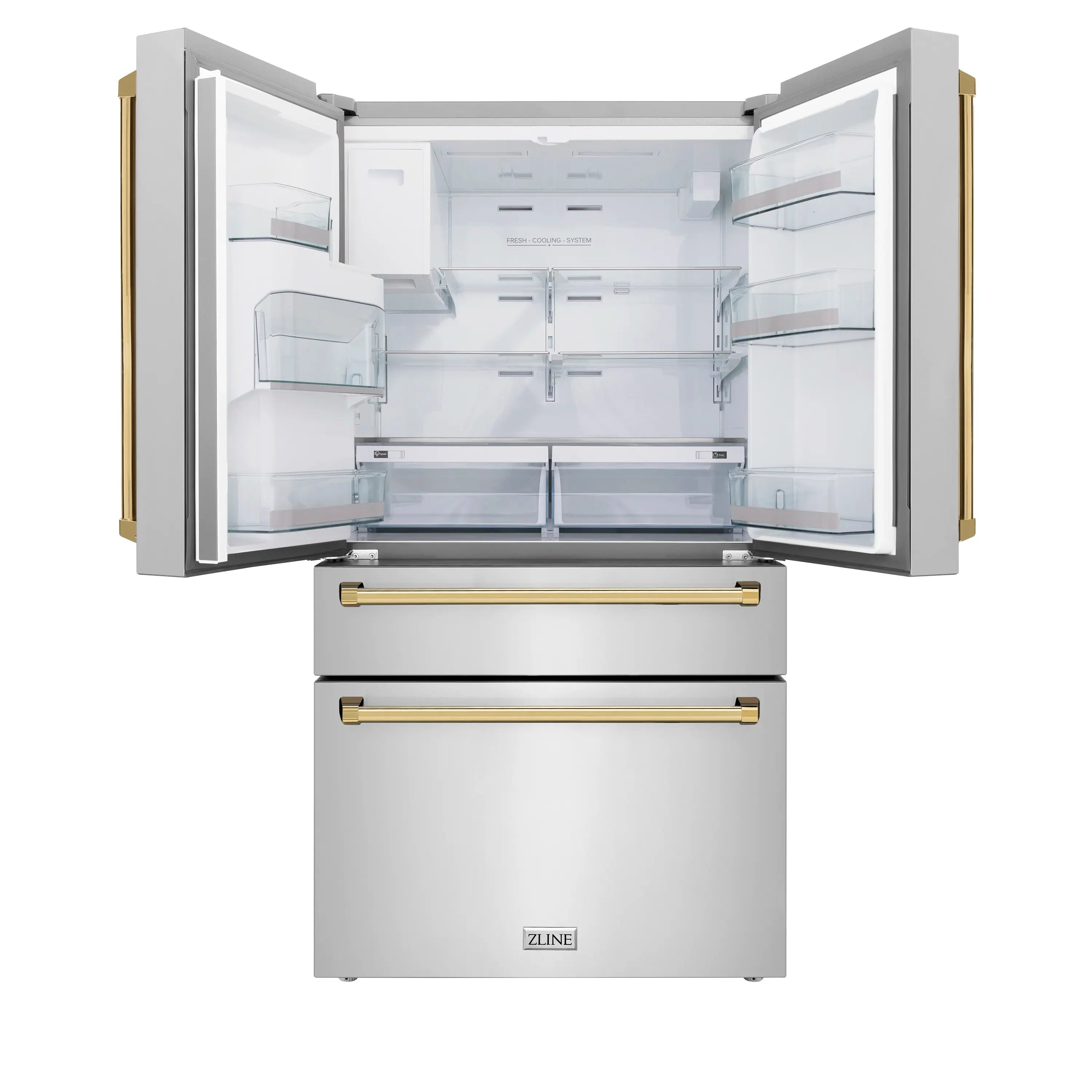

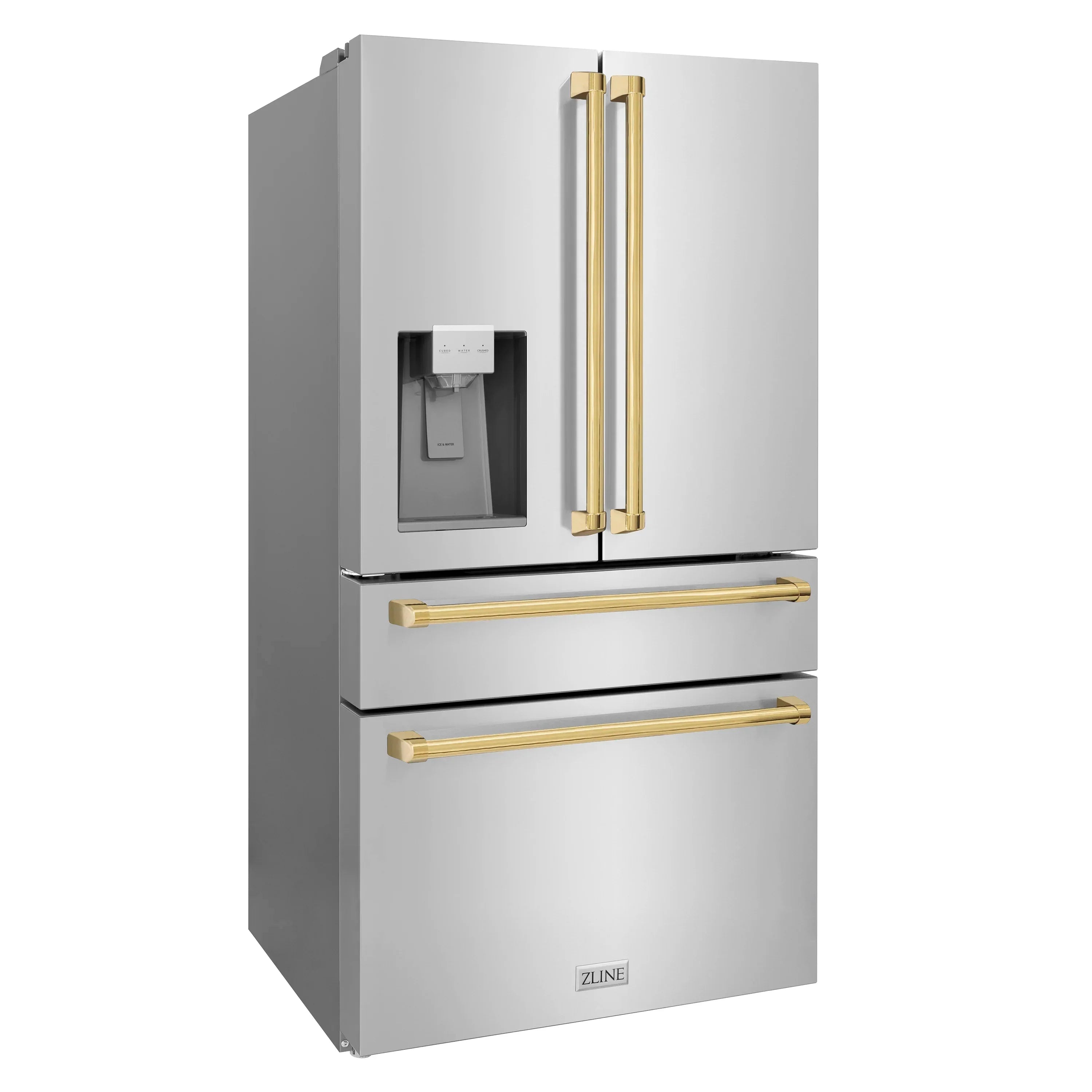

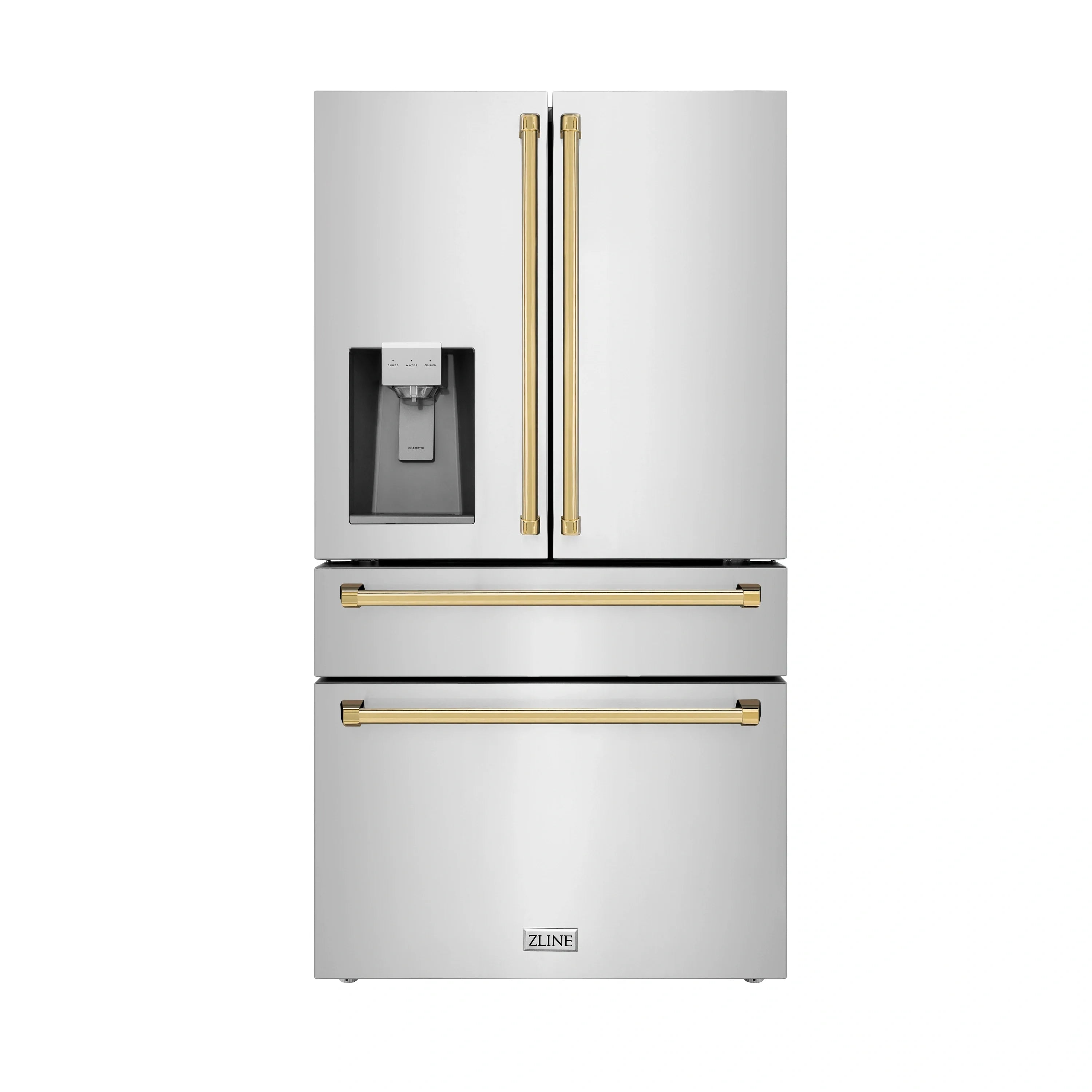

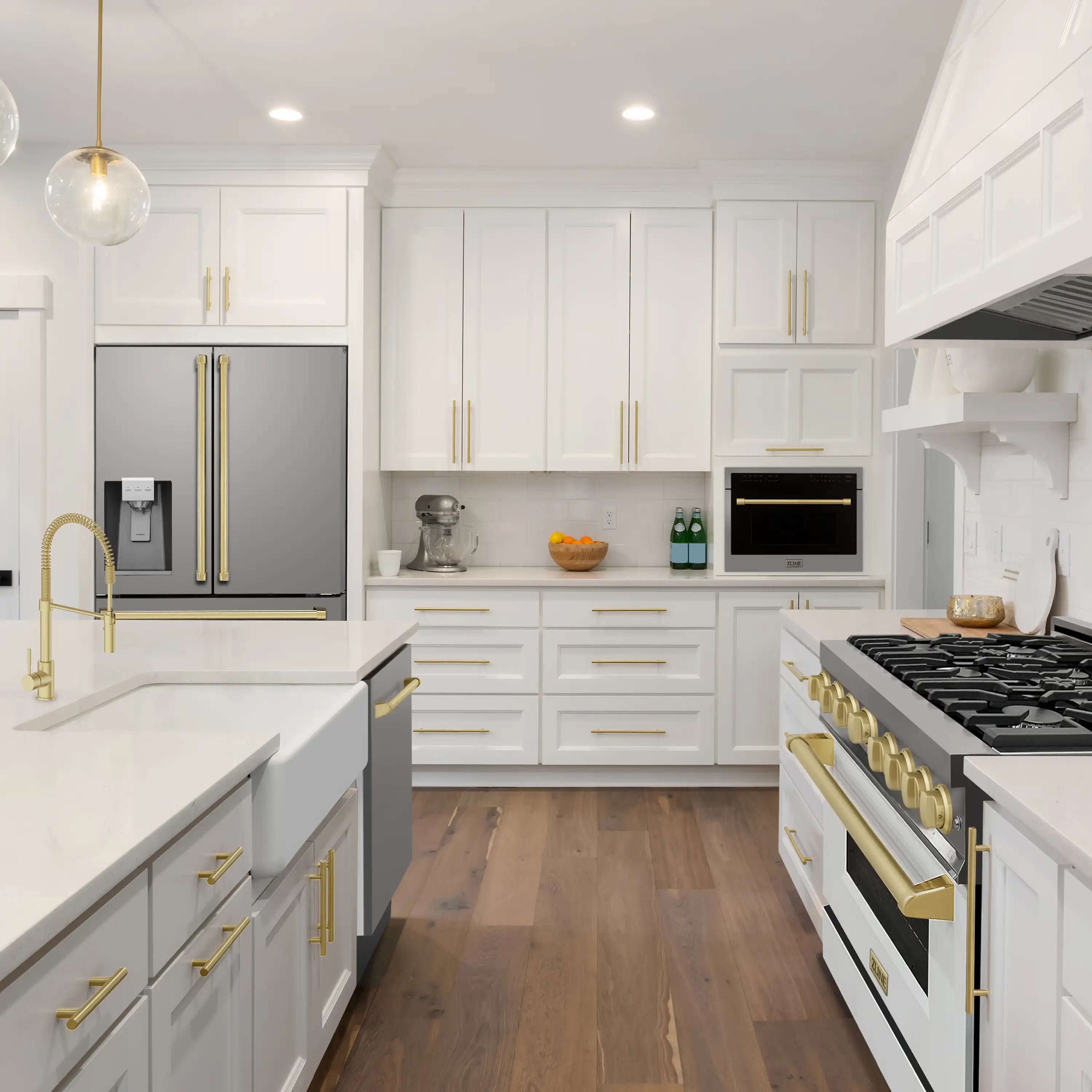

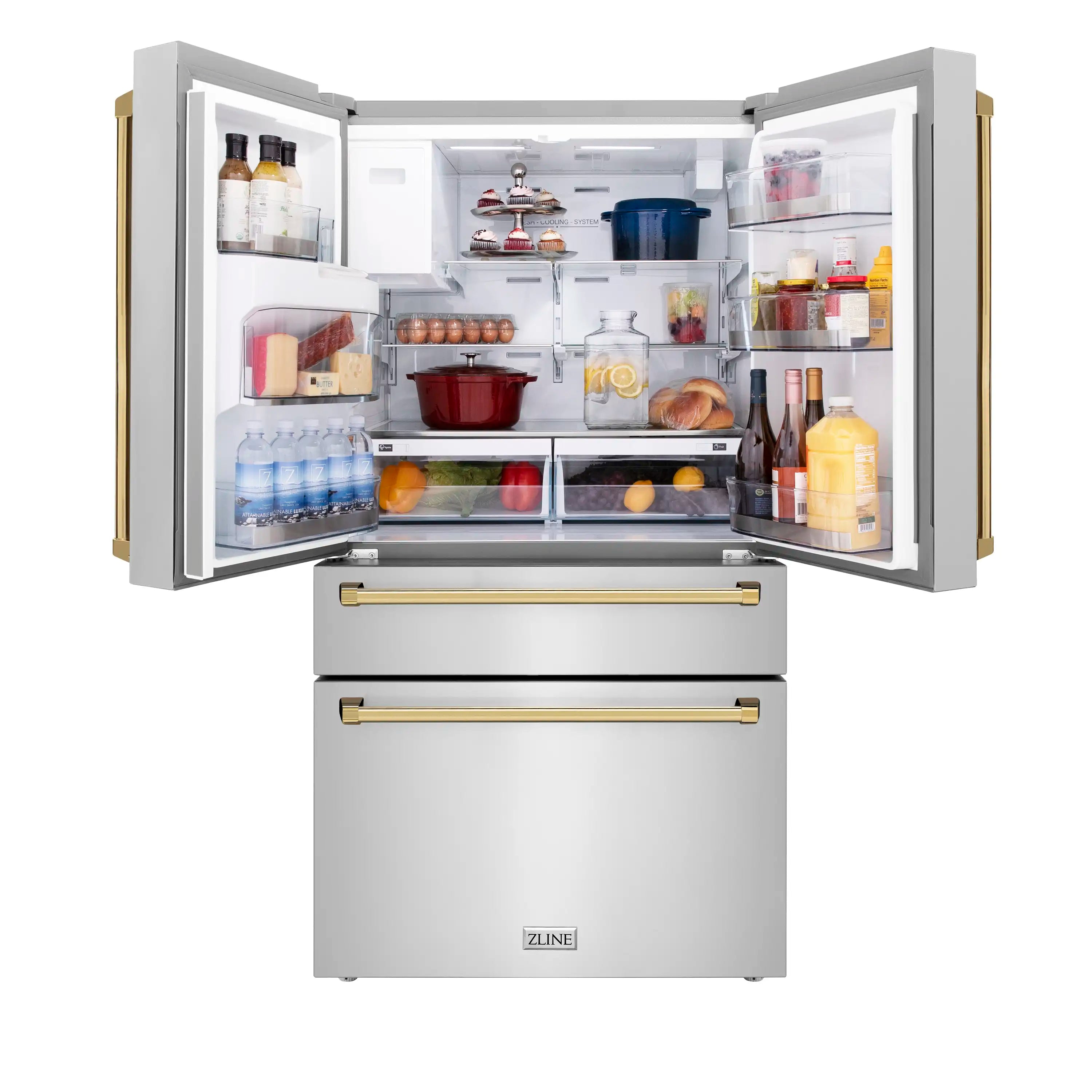

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel with Polished Gold Traditional Handles (RFMZ-W-36-G) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|

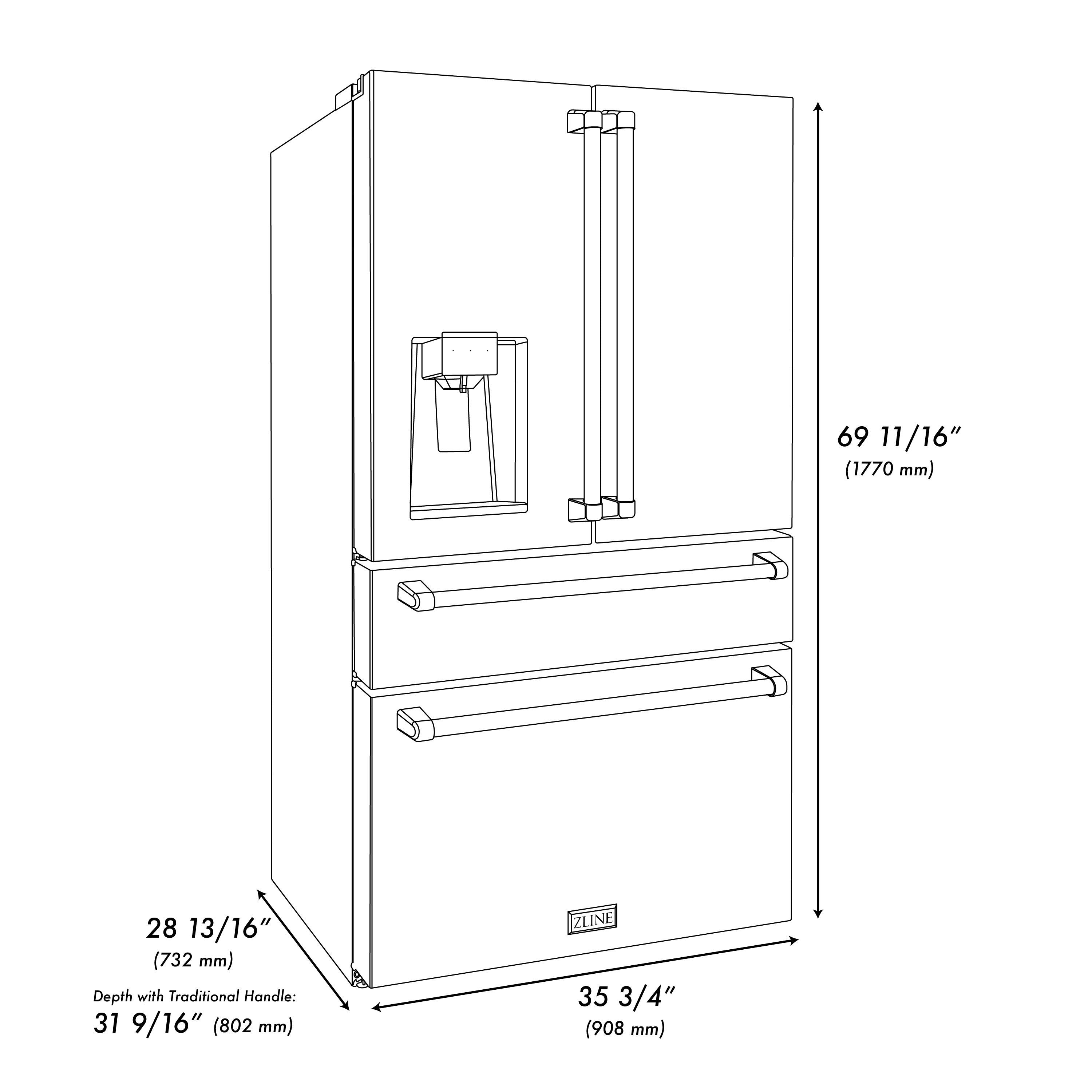

| Dimensions | 35.75 in. W x 28.81 in. D x 69.69 in. H |
| Total Capacity | 21.6 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Stainless Steel with Gold Accents |
| TECHNICAL DETAILS | |

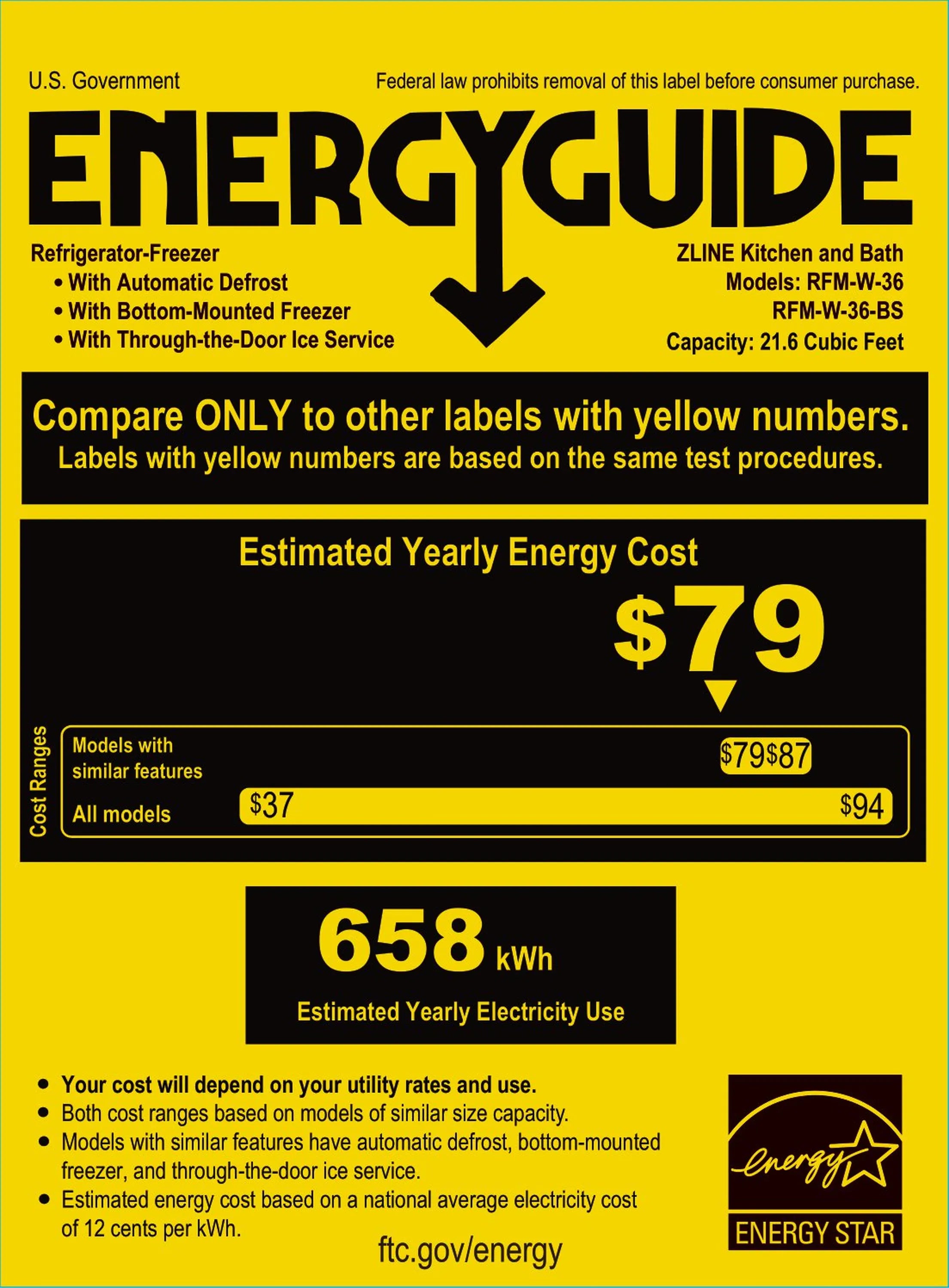

| Energy Consumption (kWh/year) | 658 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 43 Decibels |

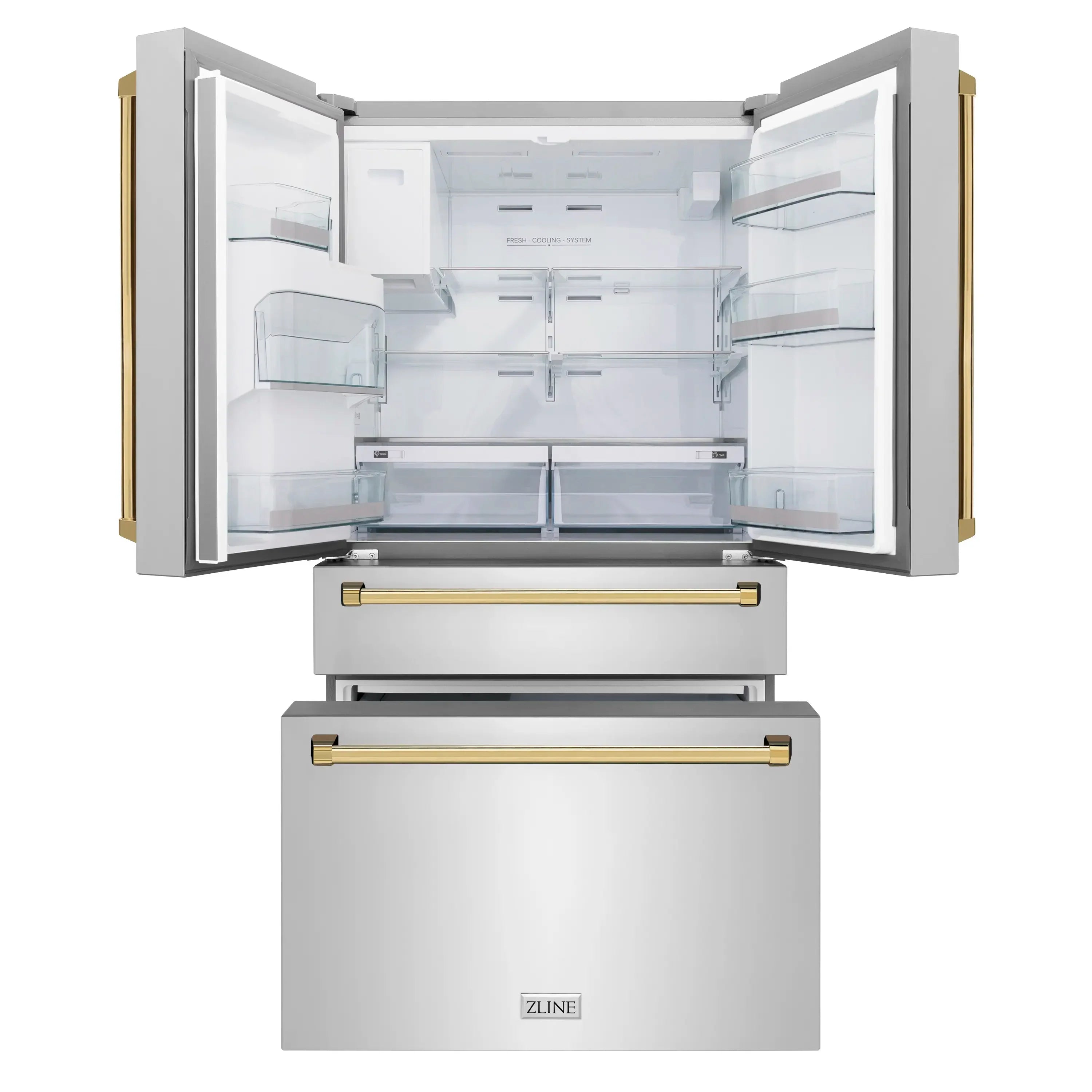

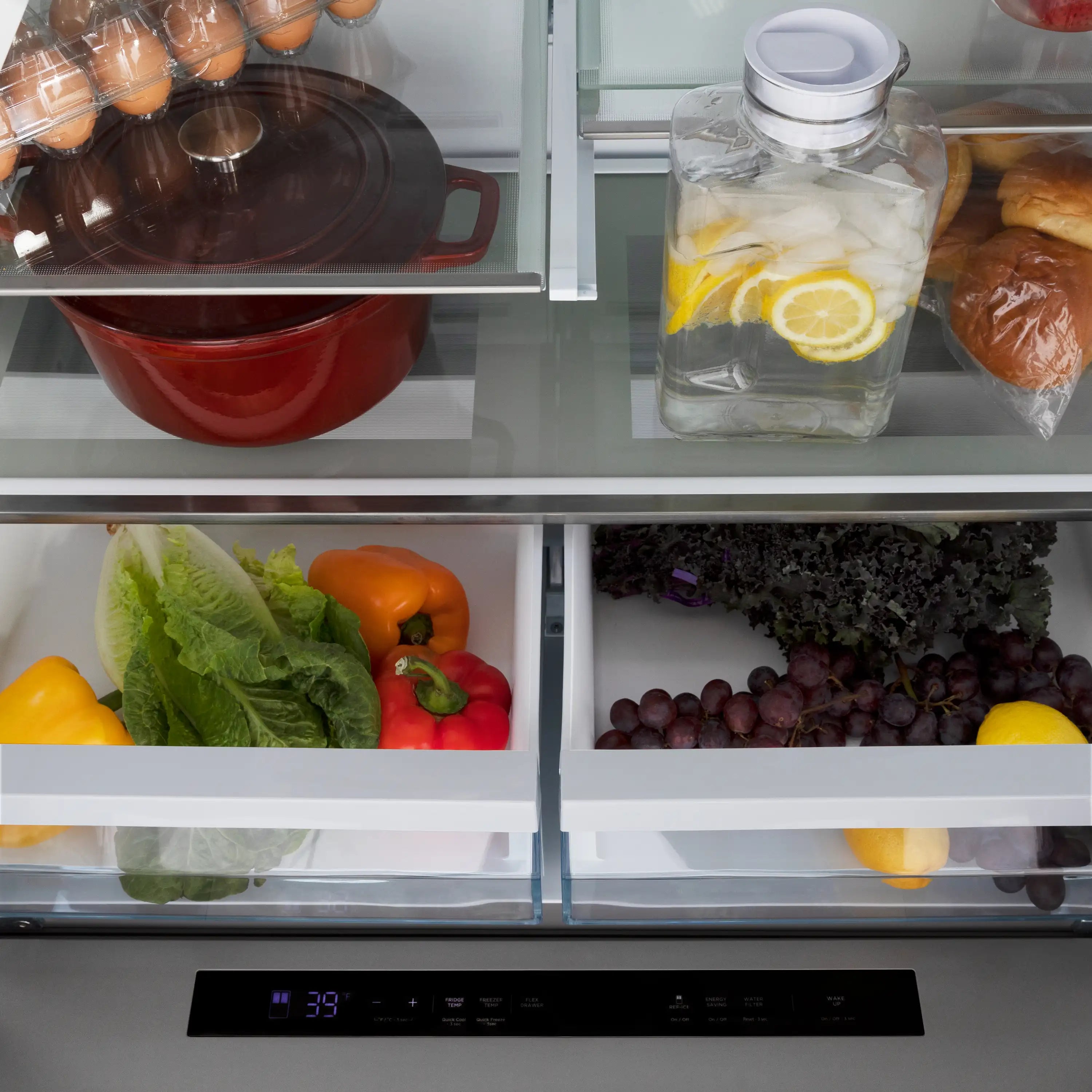

| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15 cu. ft |
| Flex Drawer Capacity | 2.6 |

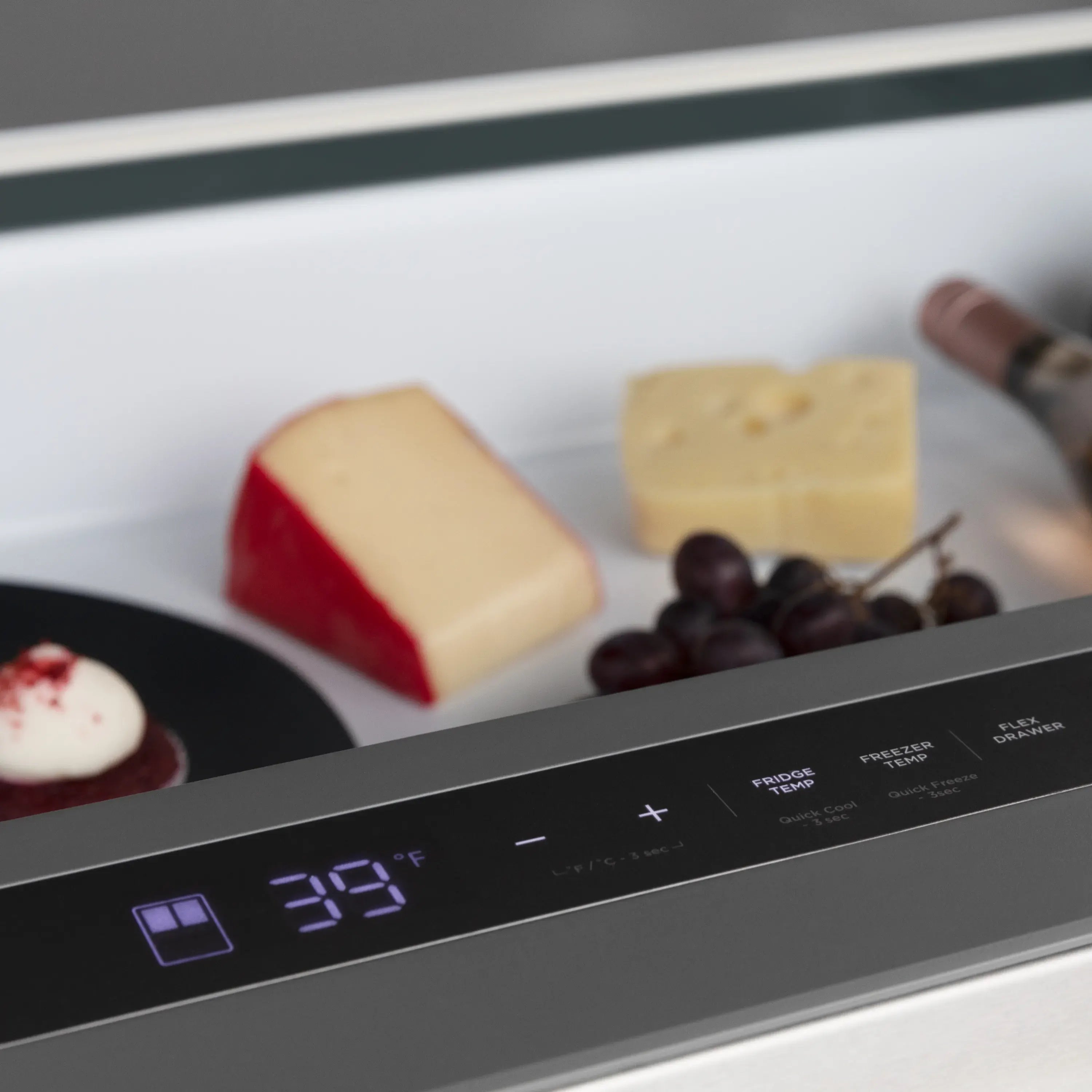

| Flex Drawer Temp Controls | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | N/A |

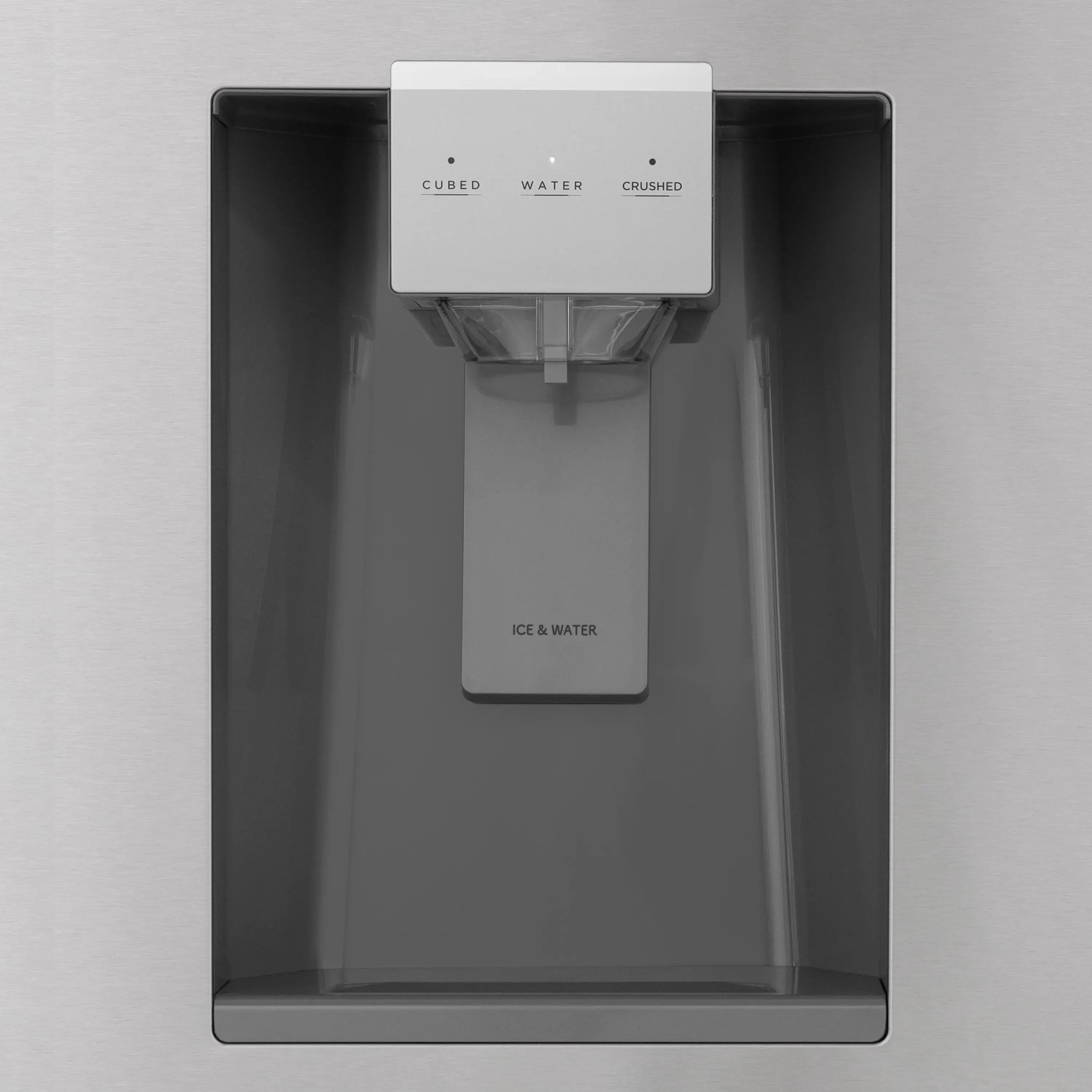

| Water Dispenser | Yes |
| Flowrate for Water Dispenser | .5 GPM |
| Fridge Lights | 4 |

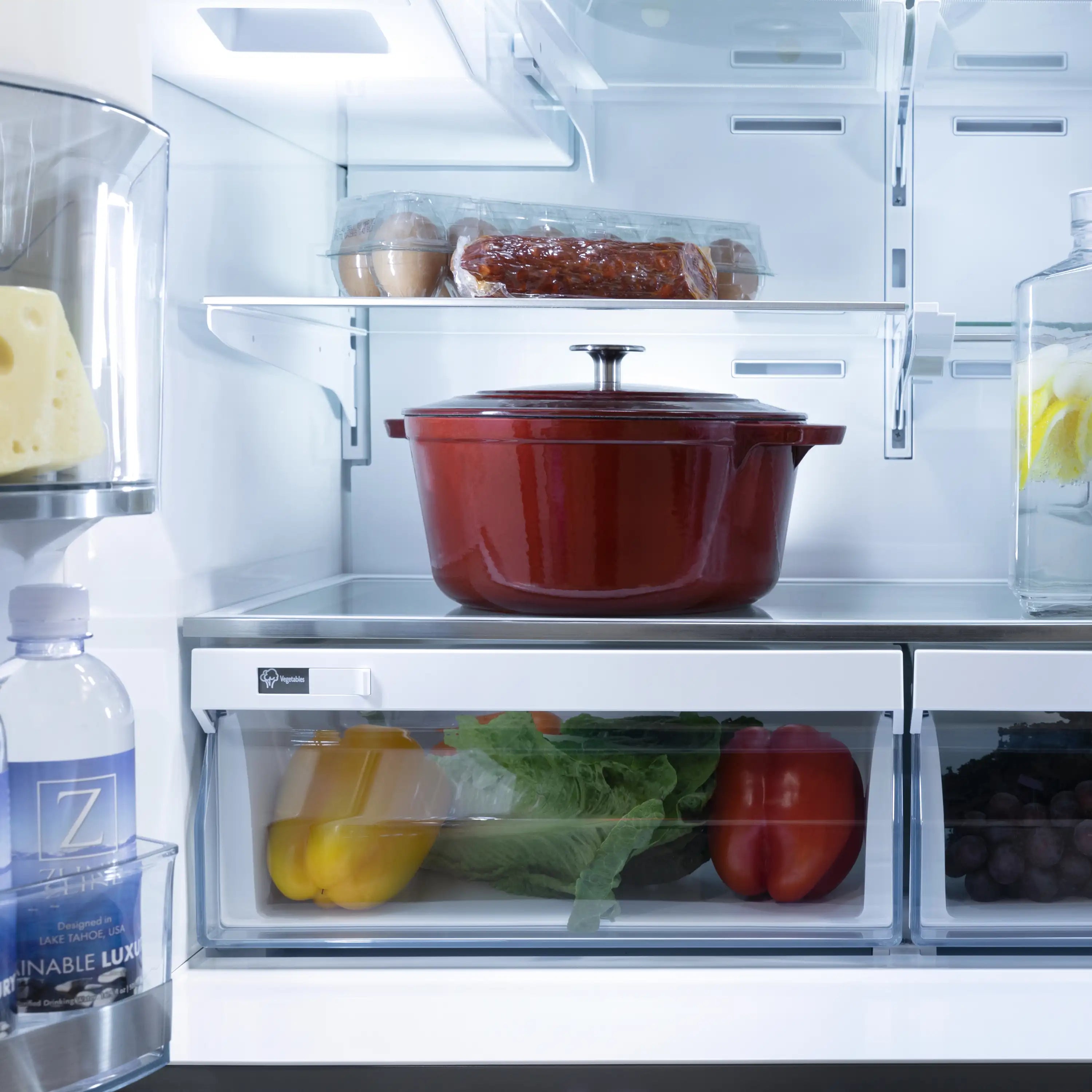

| Humidity-Controlled Crispers | 2 |
| Door Shelves | 4 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

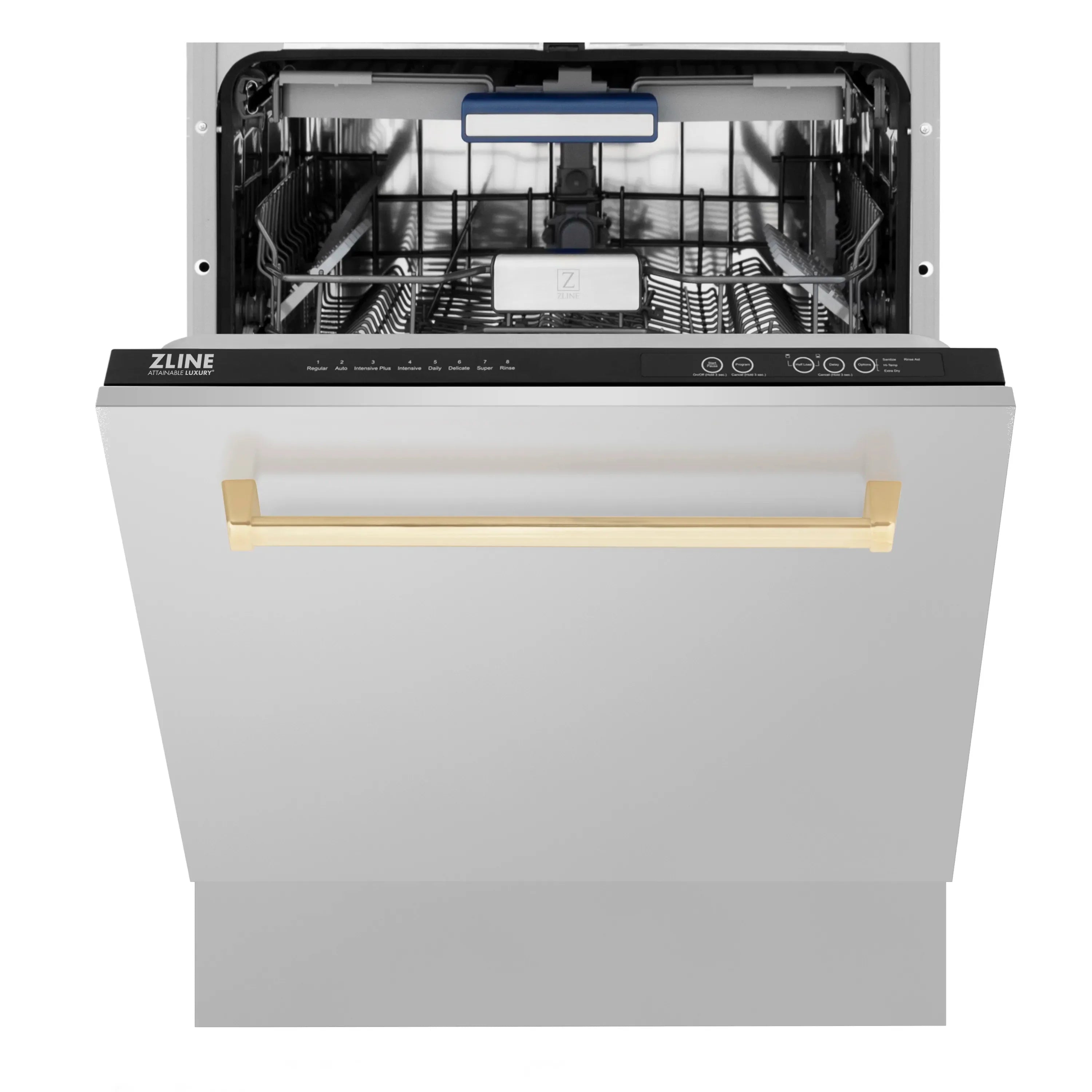

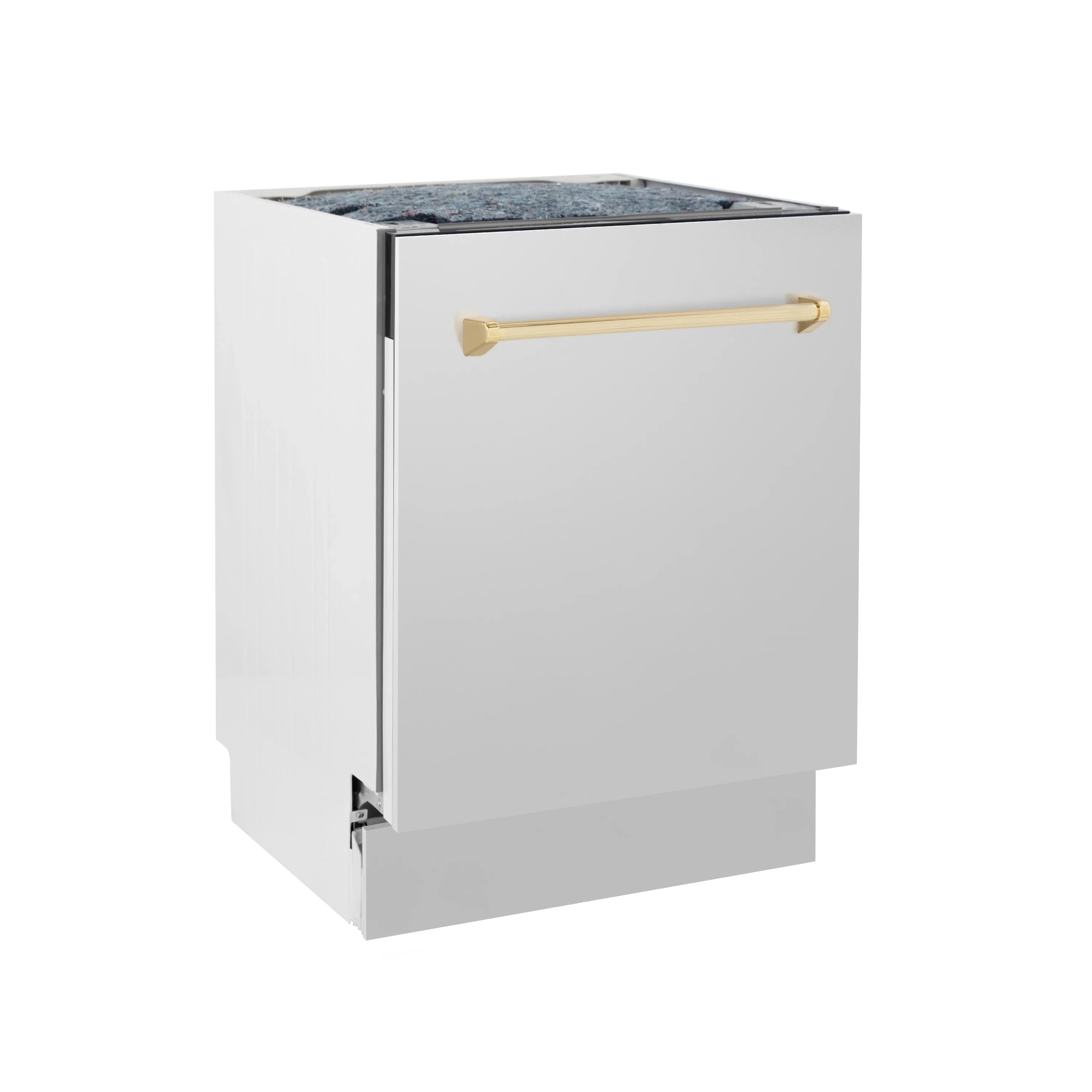

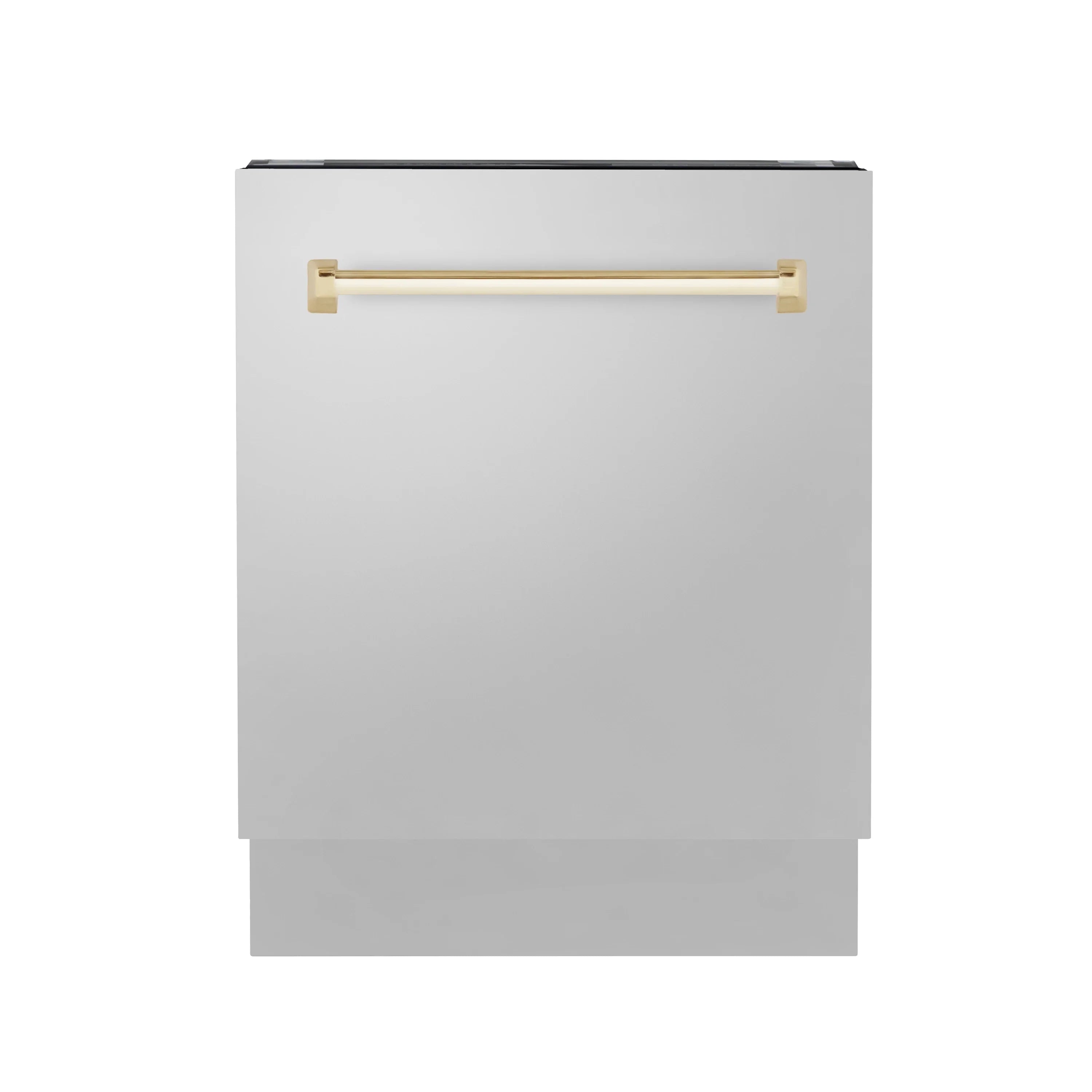

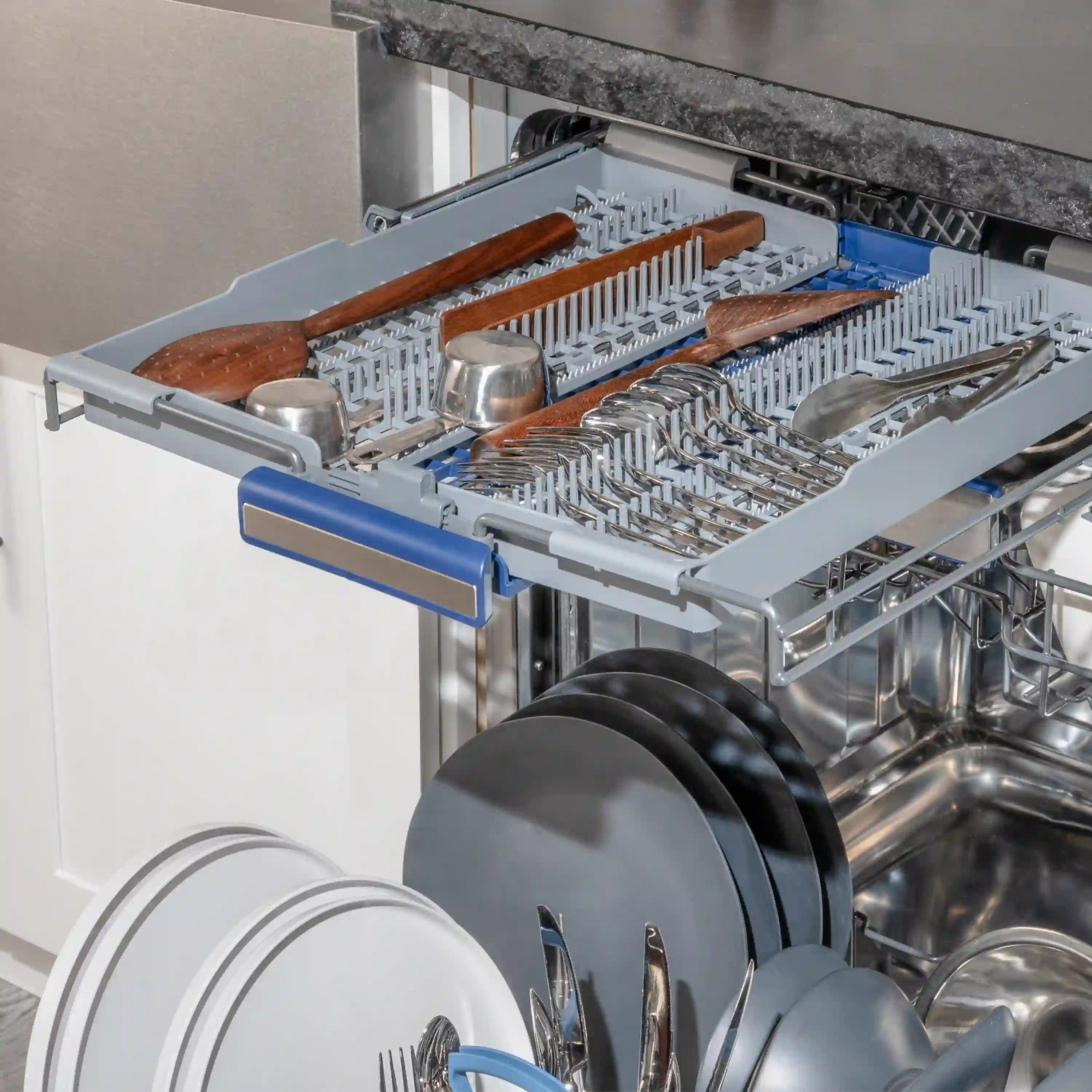

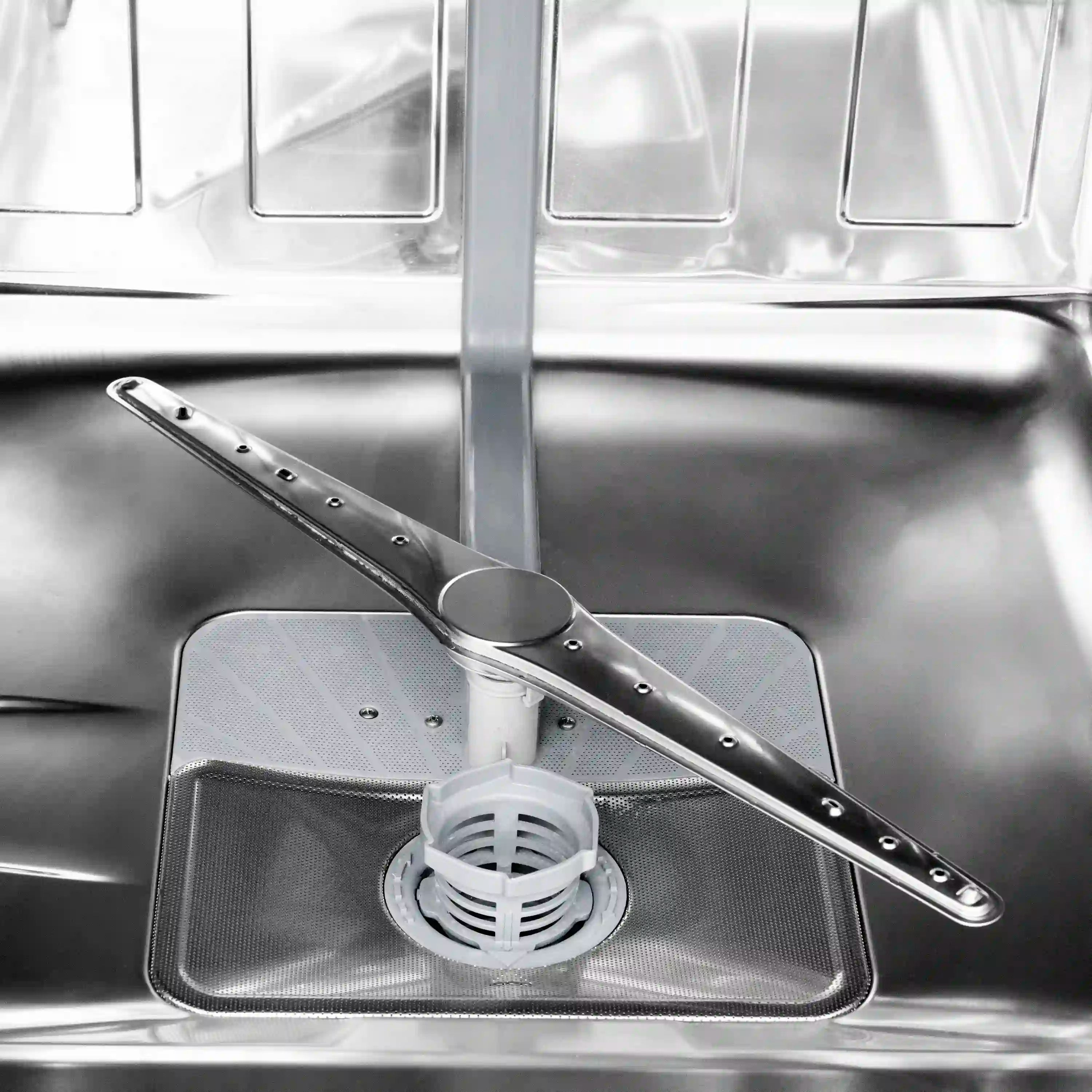

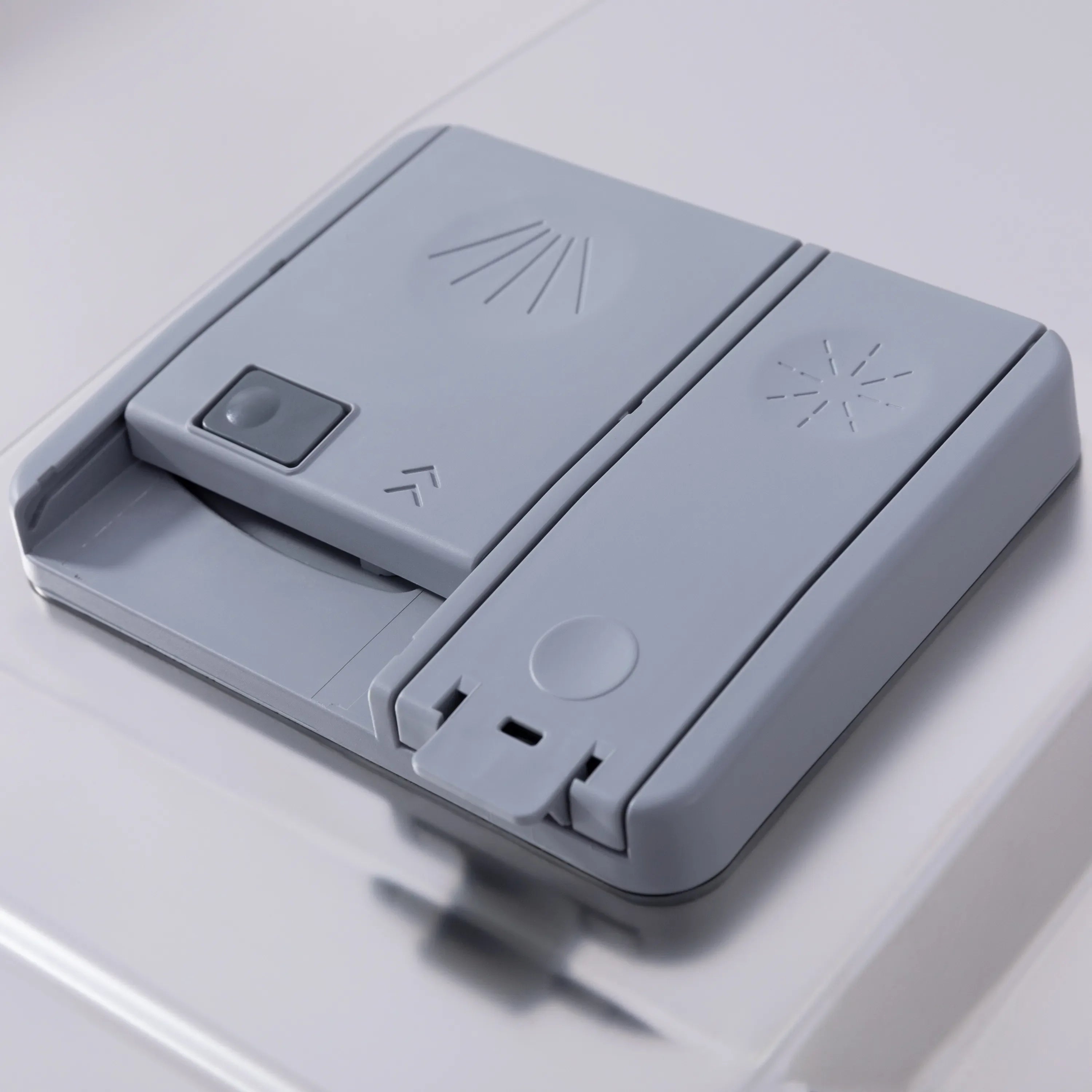

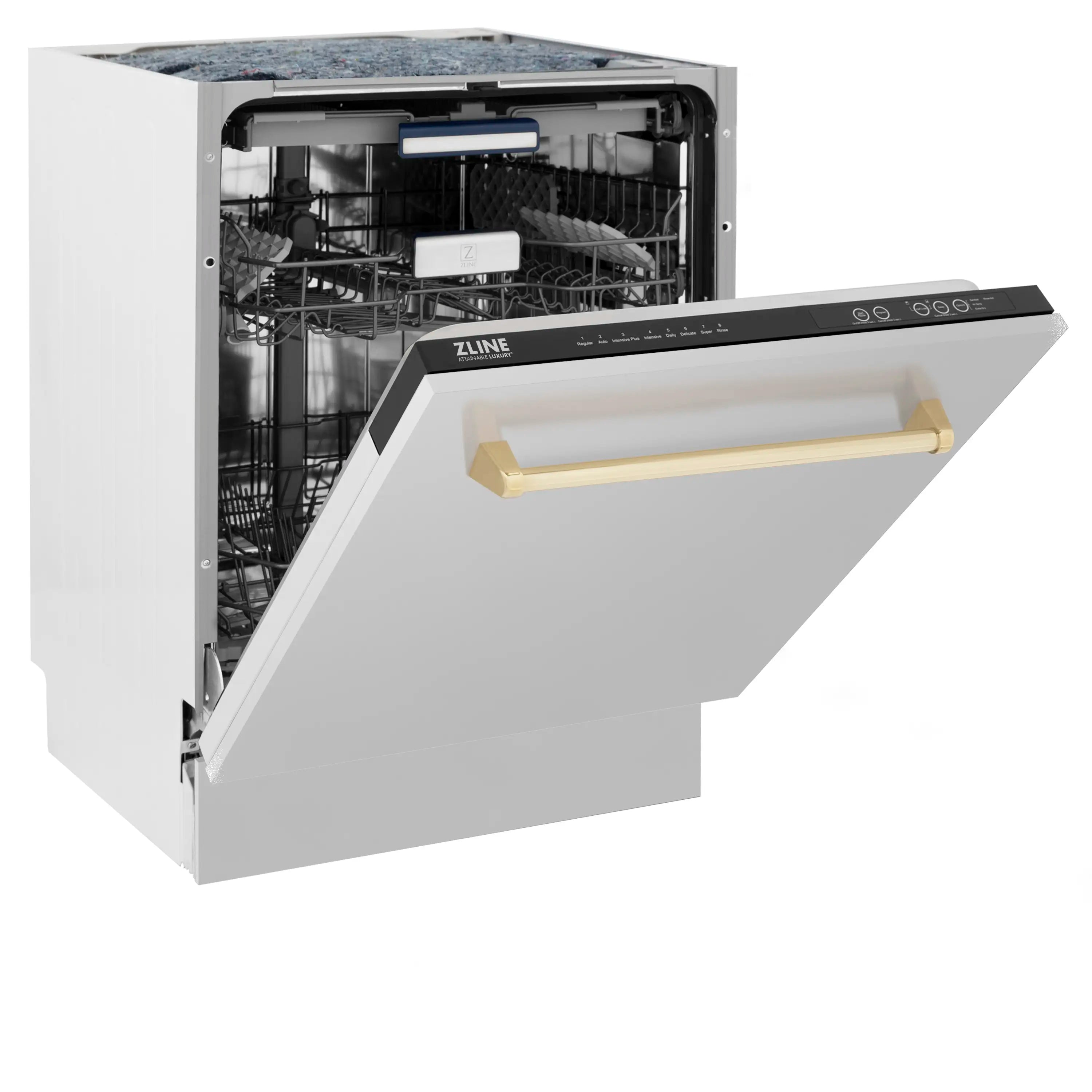

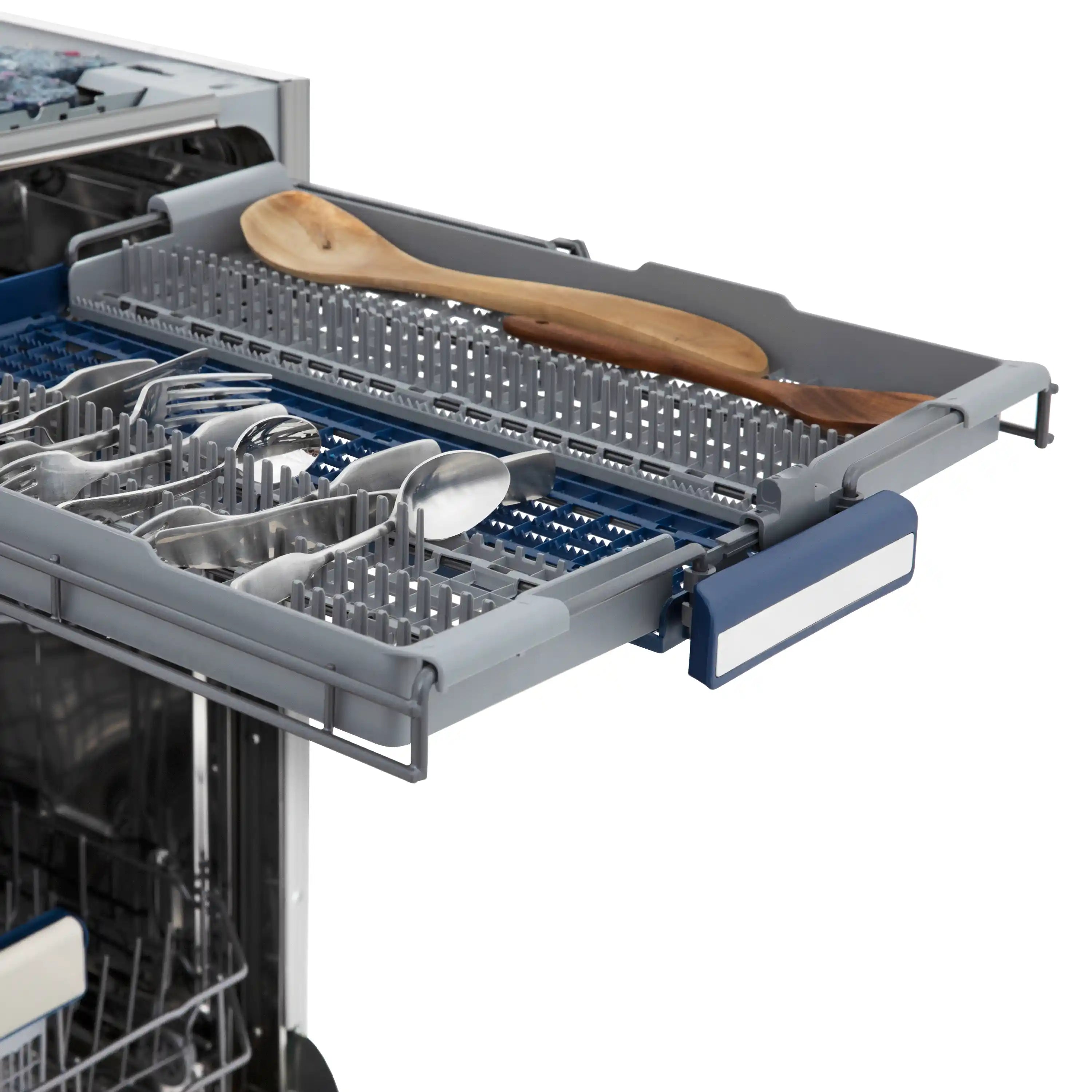

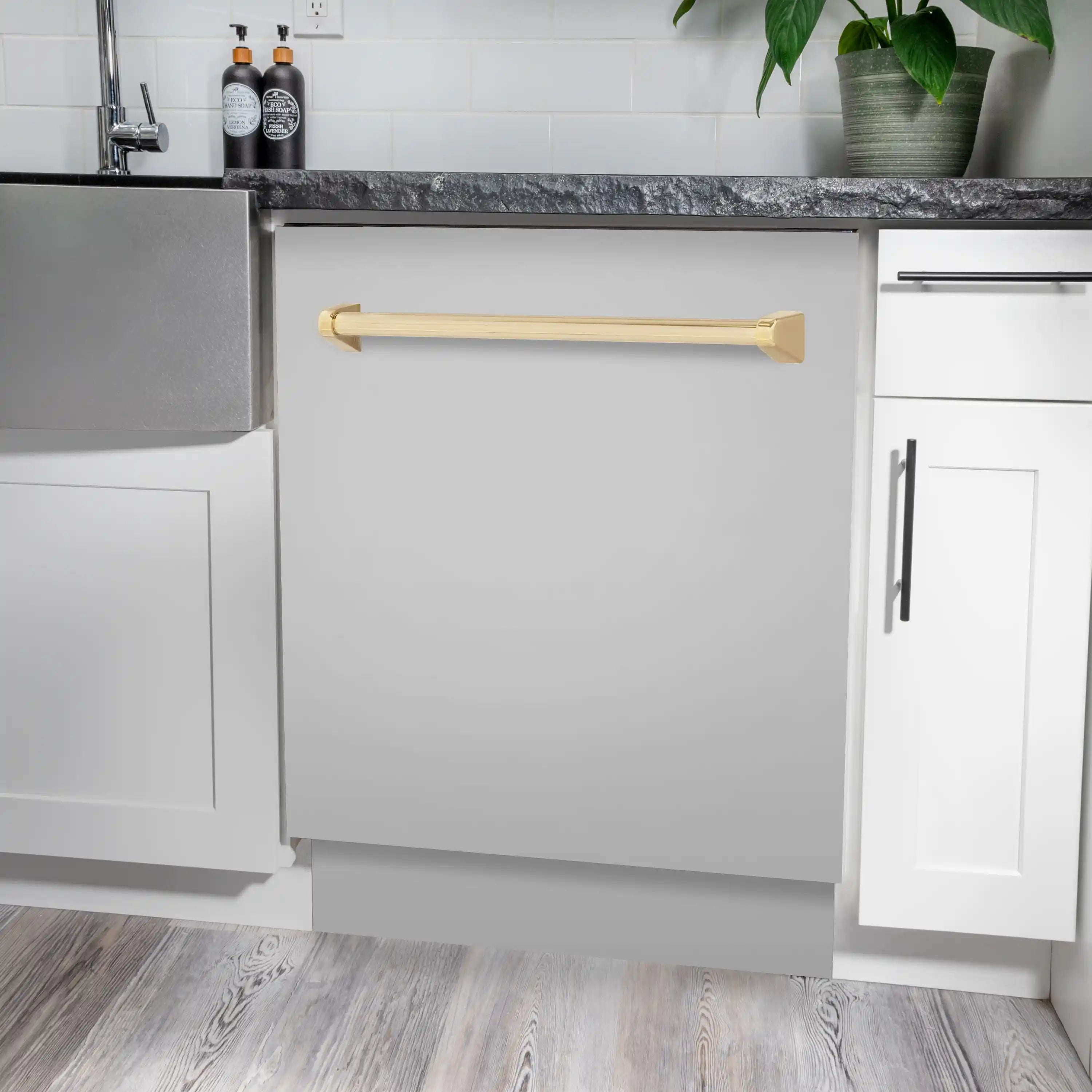

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel with Polished Gold Handle (DWVZ-304-24-G) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |

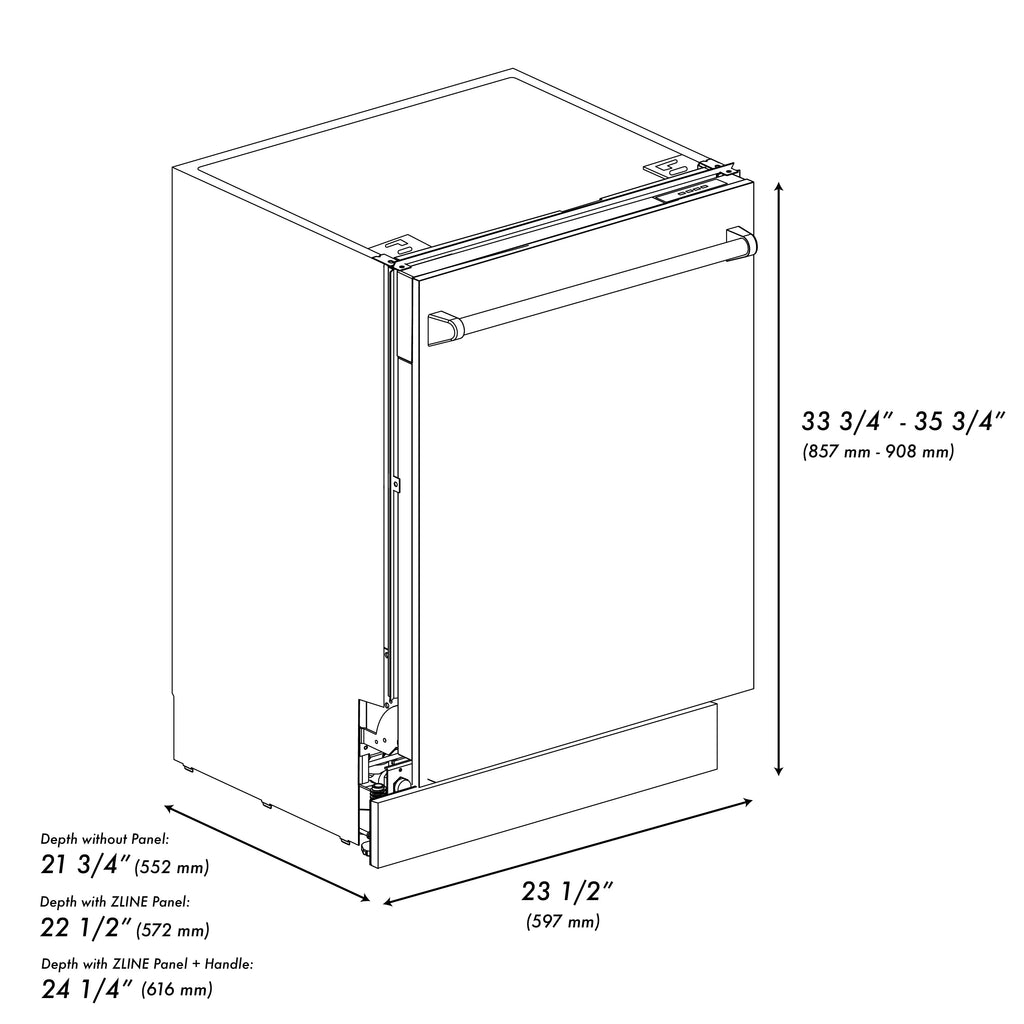

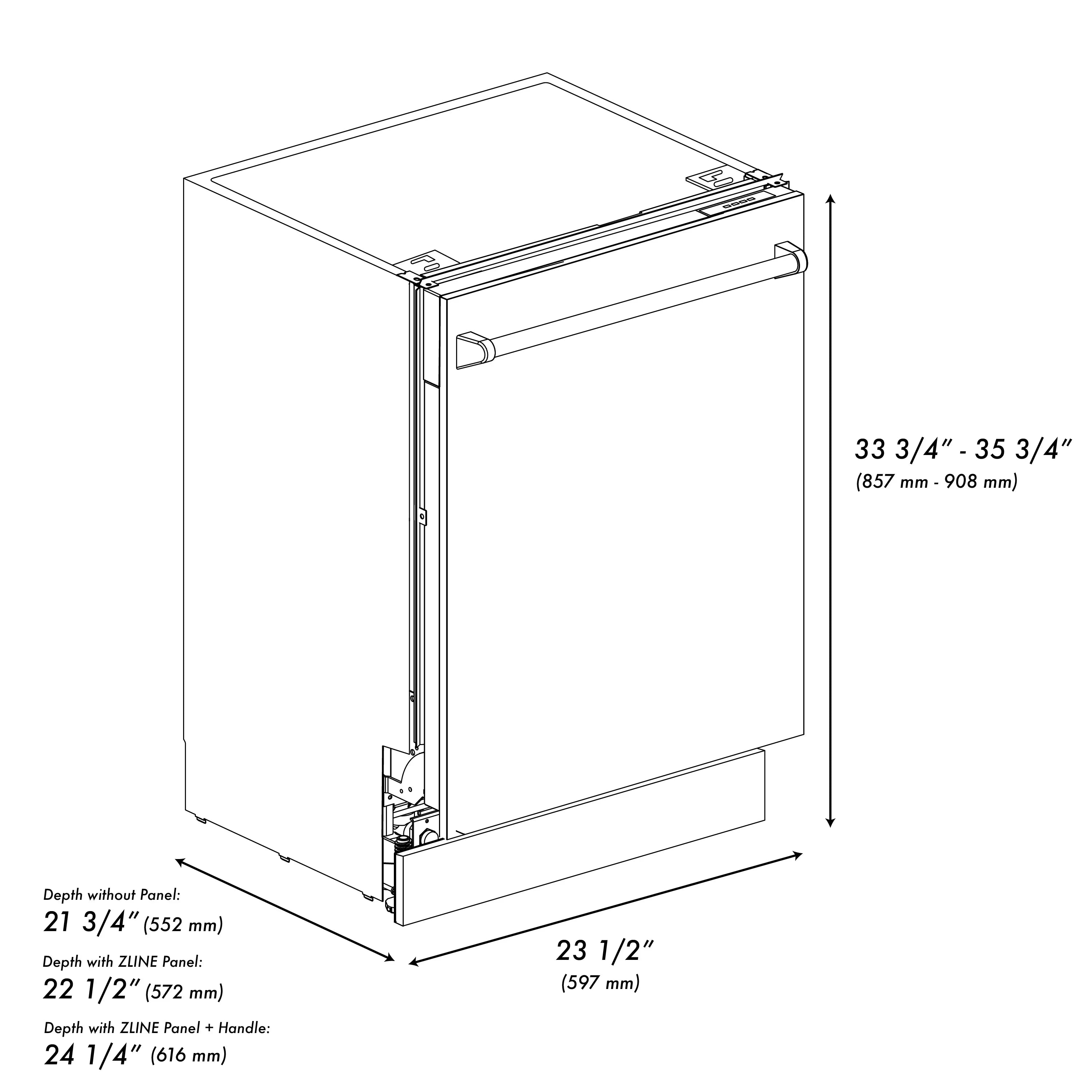

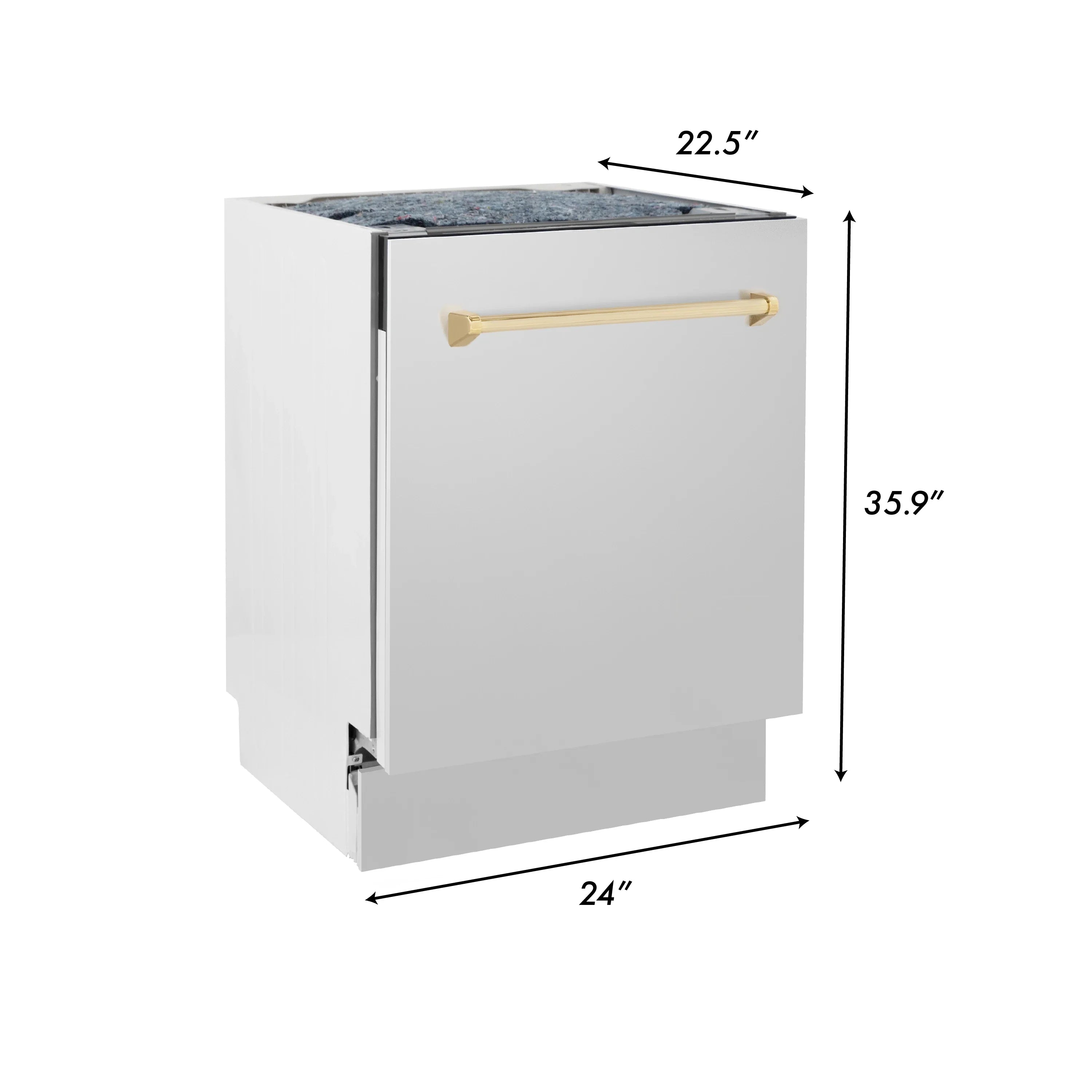

| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | 304 Grade Stainless Steel |

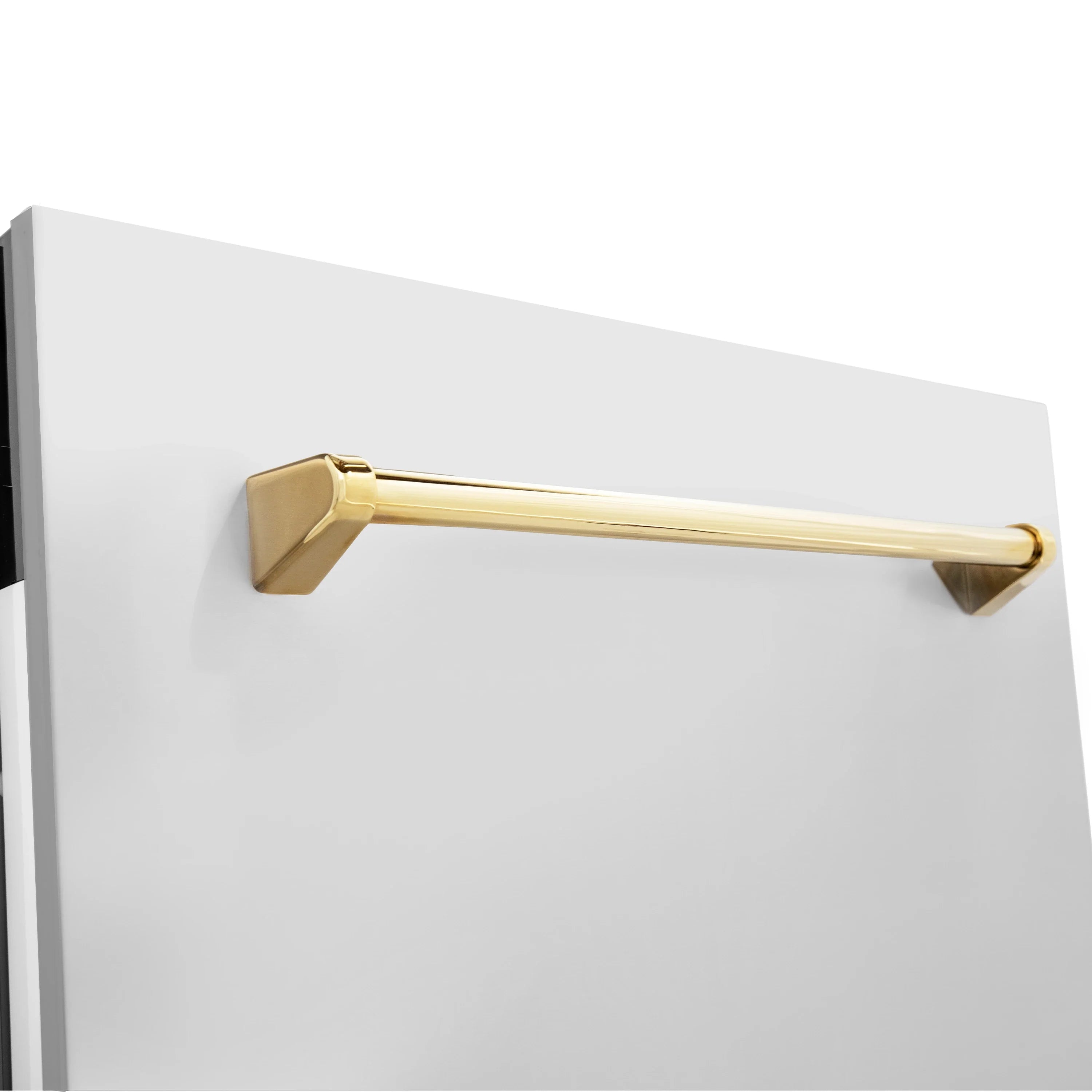

| Handle Finish | Polished Gold |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |

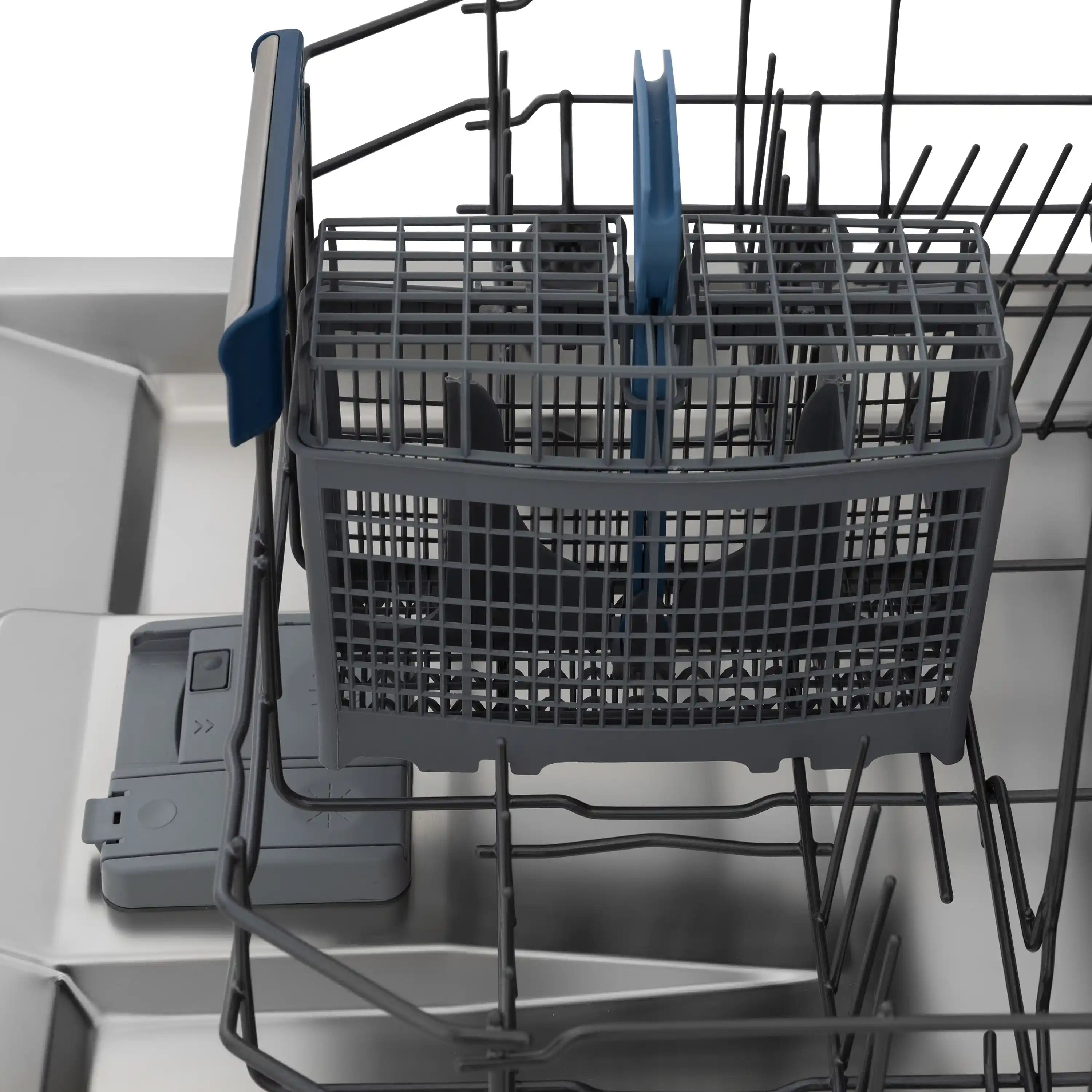

| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |

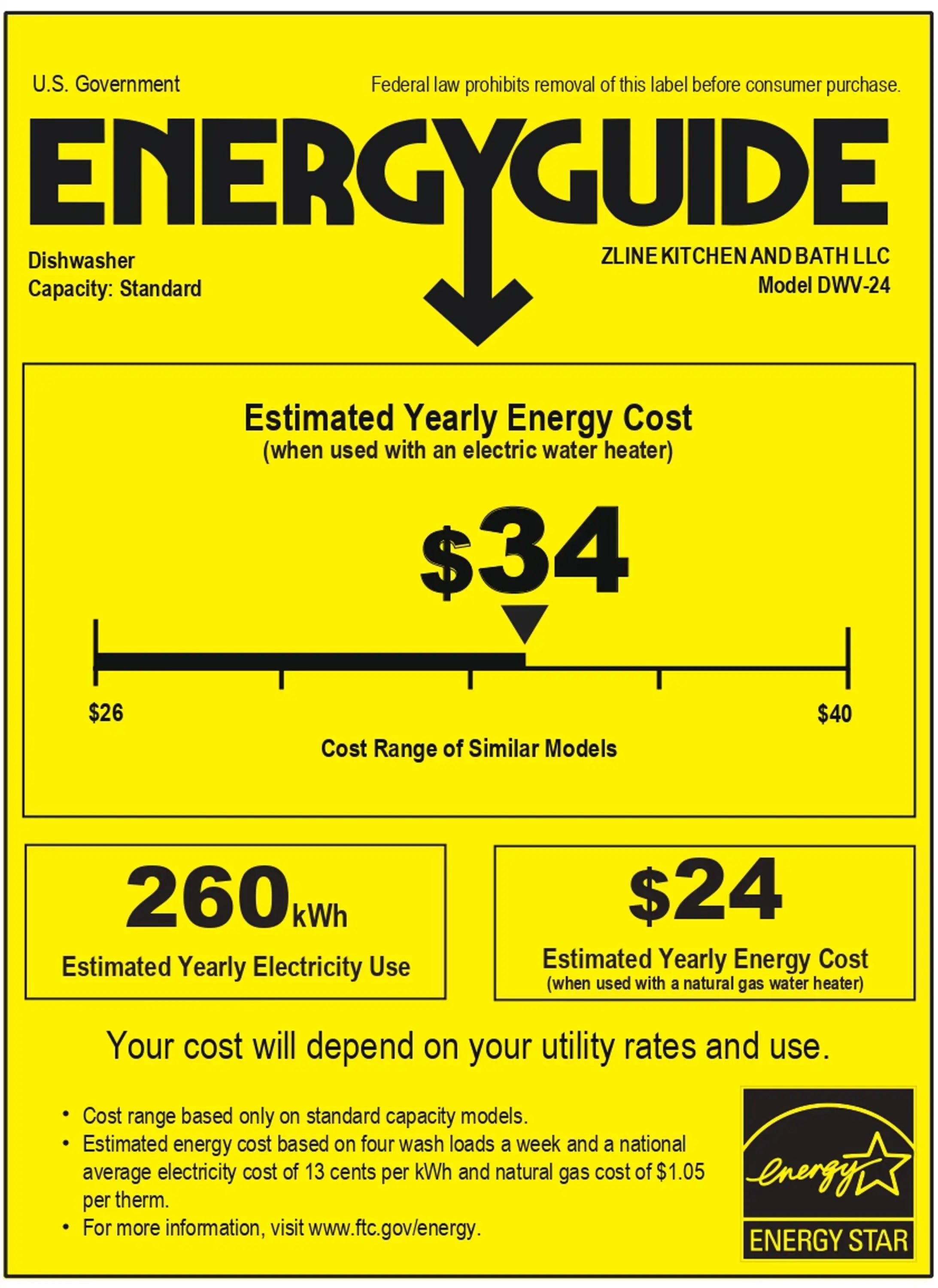

| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
