Description

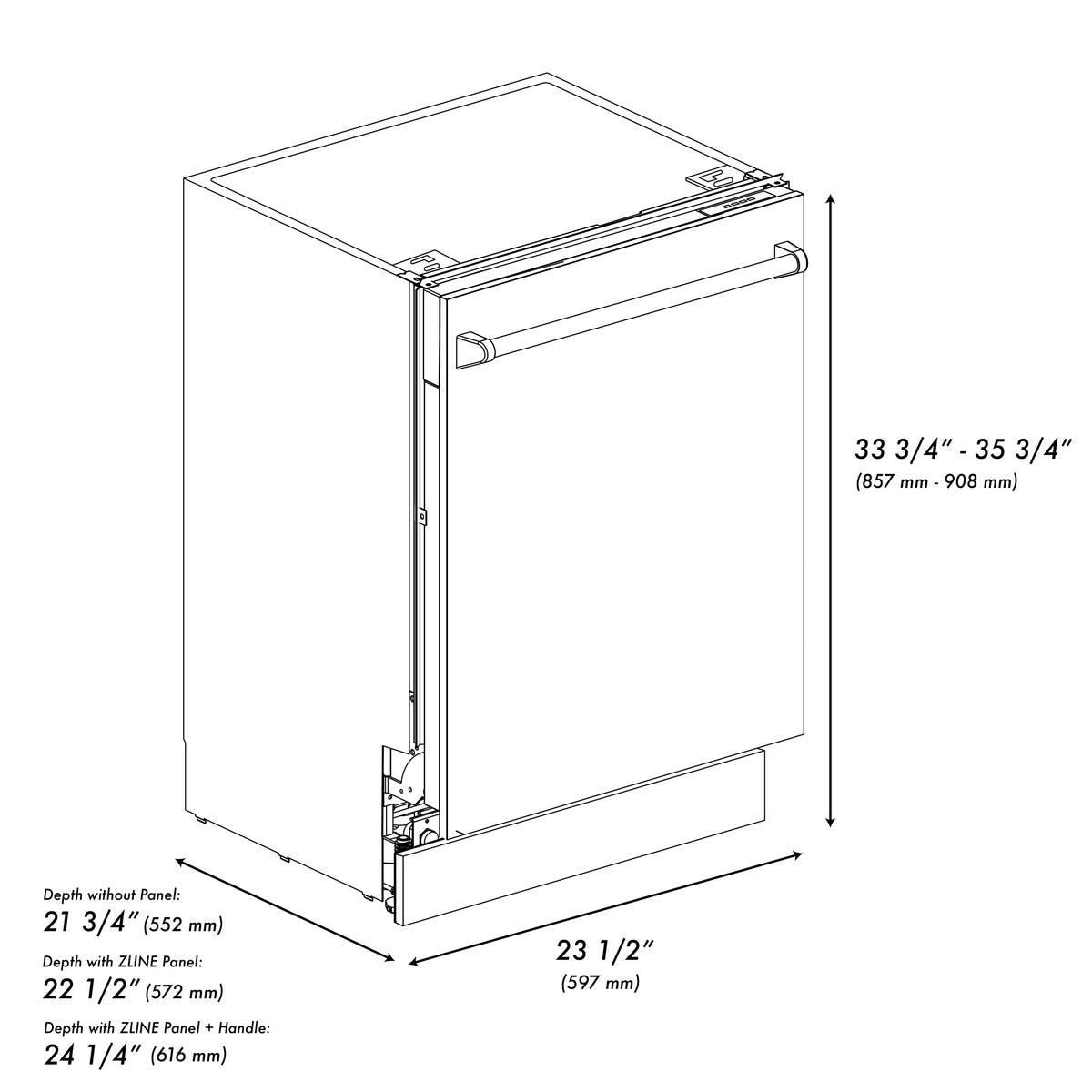

DIMENSIONS
- Product Dimensions Minimum Height
- 23.5 in. W x24.25 in. D x 33.75 in. H
- Product Dimensions Maximum Height
- 23.5 in. W x24.25 in. D x 35.75 in. H
- Suggested Cut-Out Dimensions (in.)
- 23.63 in. W x 24 in. D x 34 in. H
- Interior Dimensions (in.)
- 20.95" W x 20.5" D x 24.17"H
- Weight
- 116.4 lbs
- Max Plate Height (in.)
- 13
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Product Type

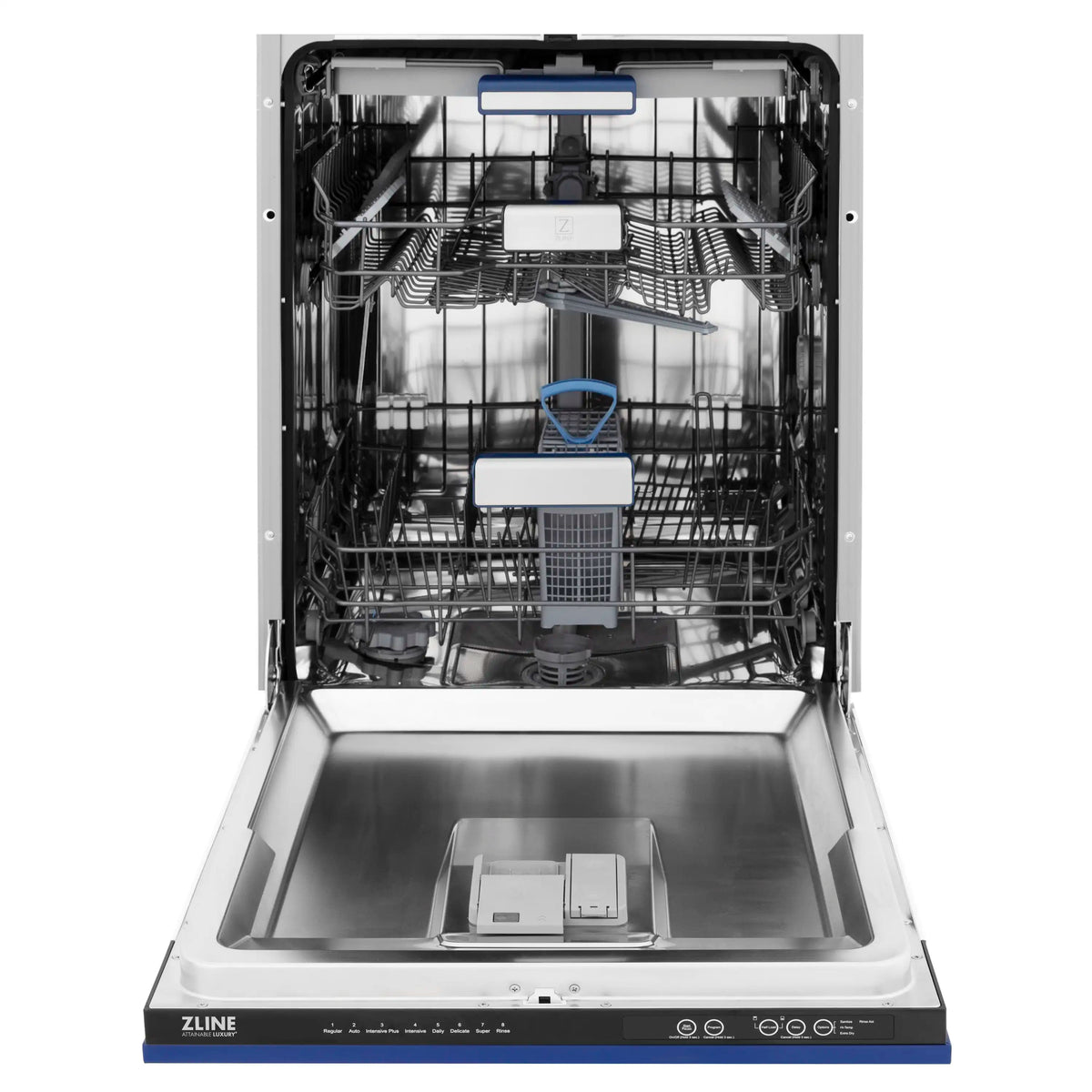

- Tall Tub Style Dishwasher
- Panel Ready? Y/N
- N
- Installation Type
- Plug In - 3 Prong - Nema5-15

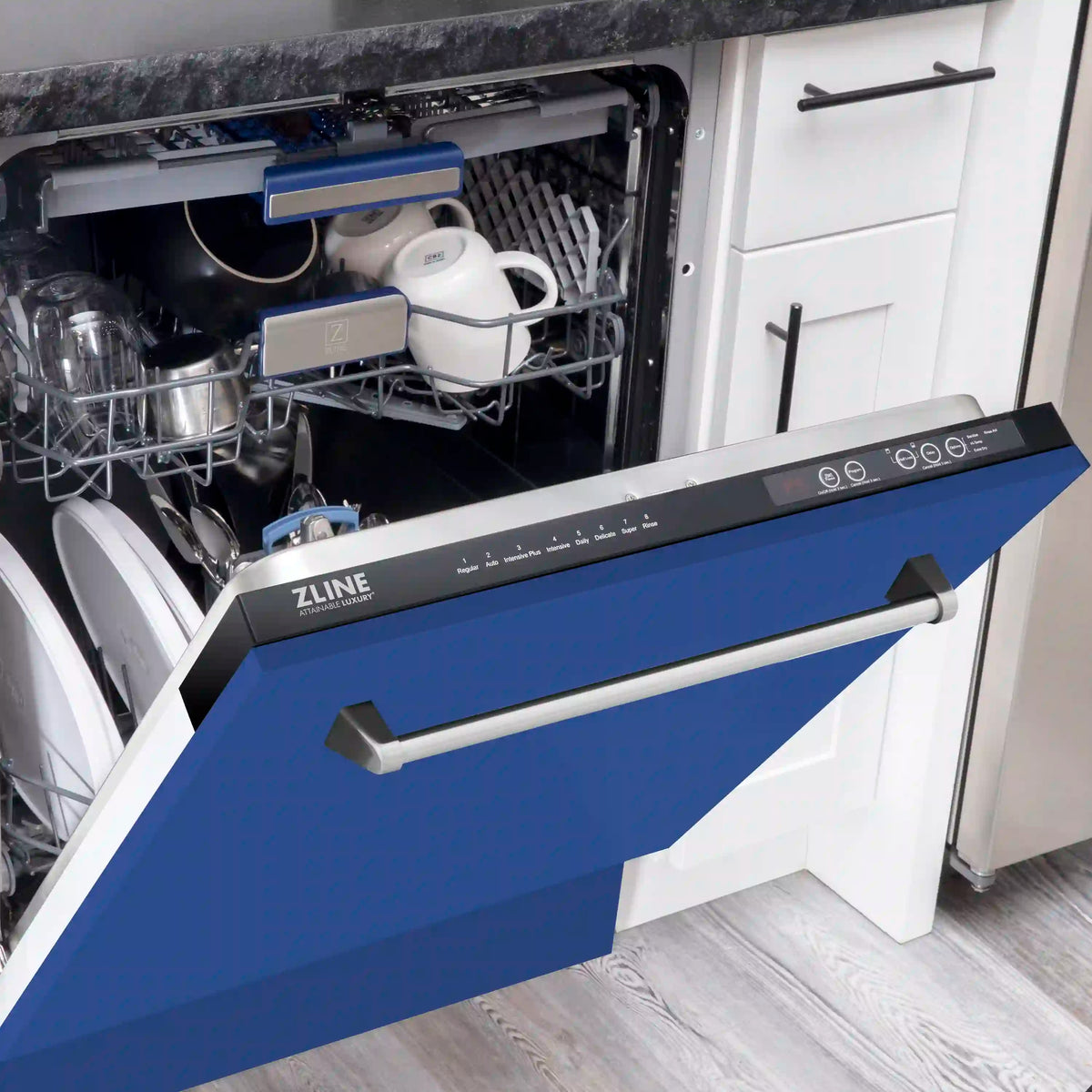

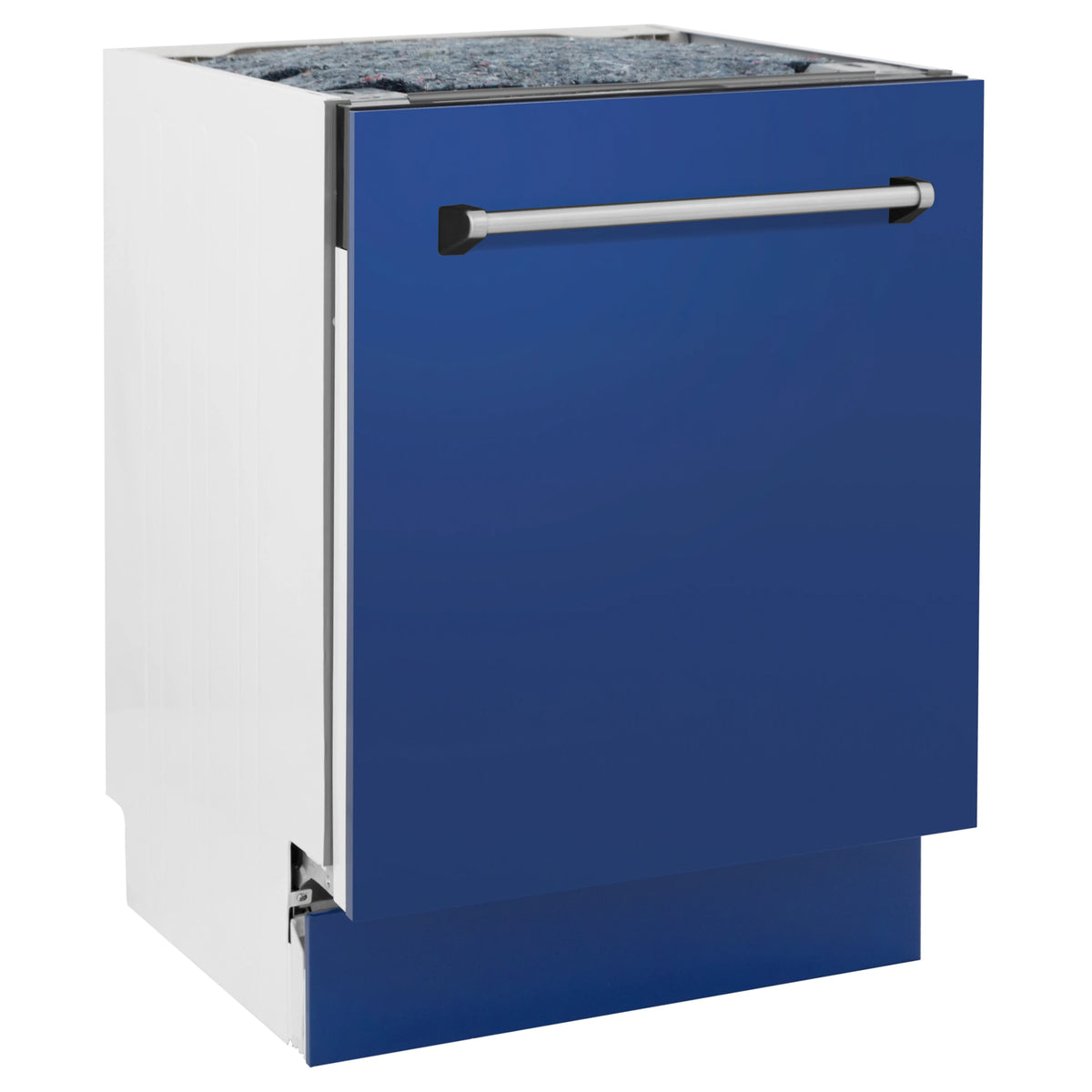

DESIGN & FINISH

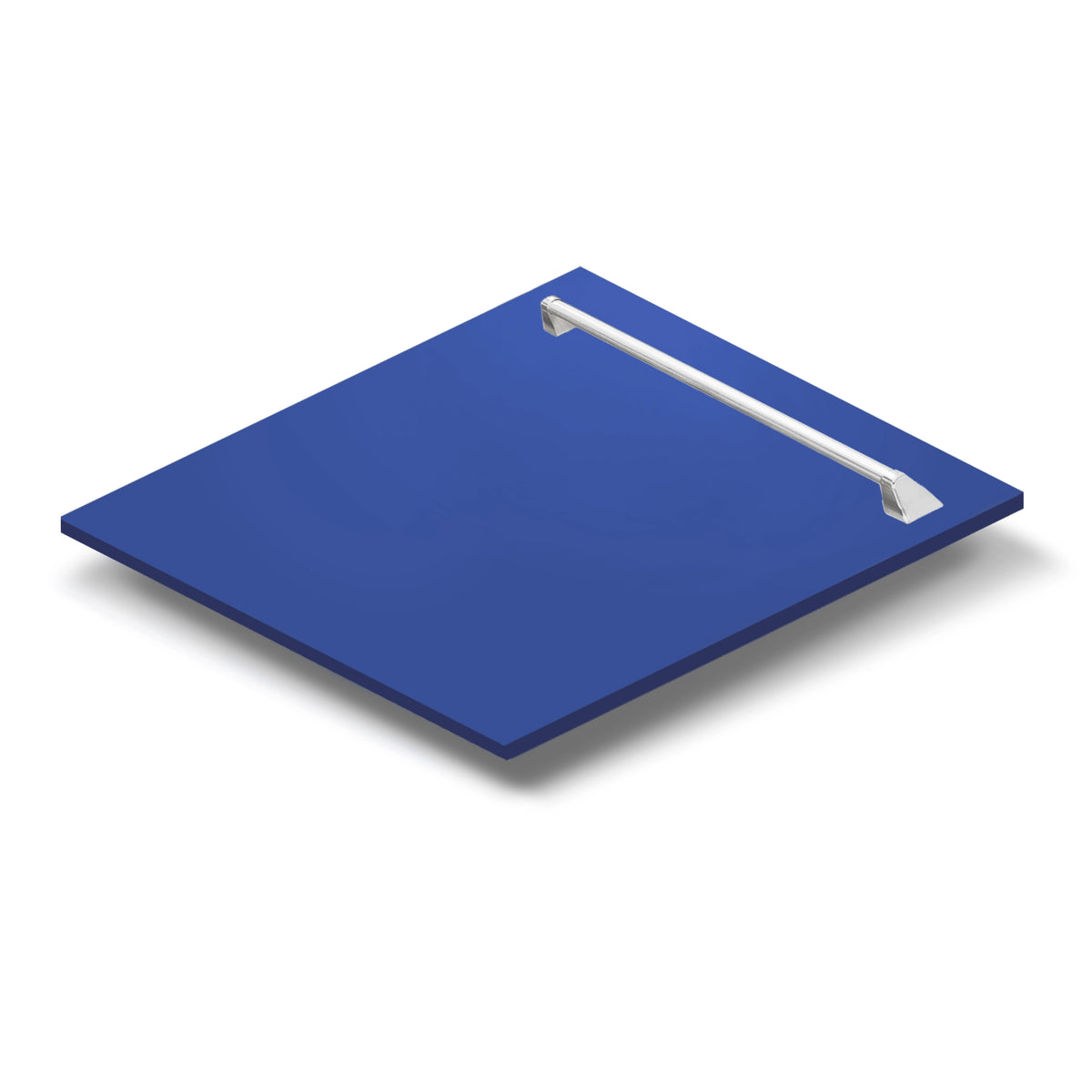

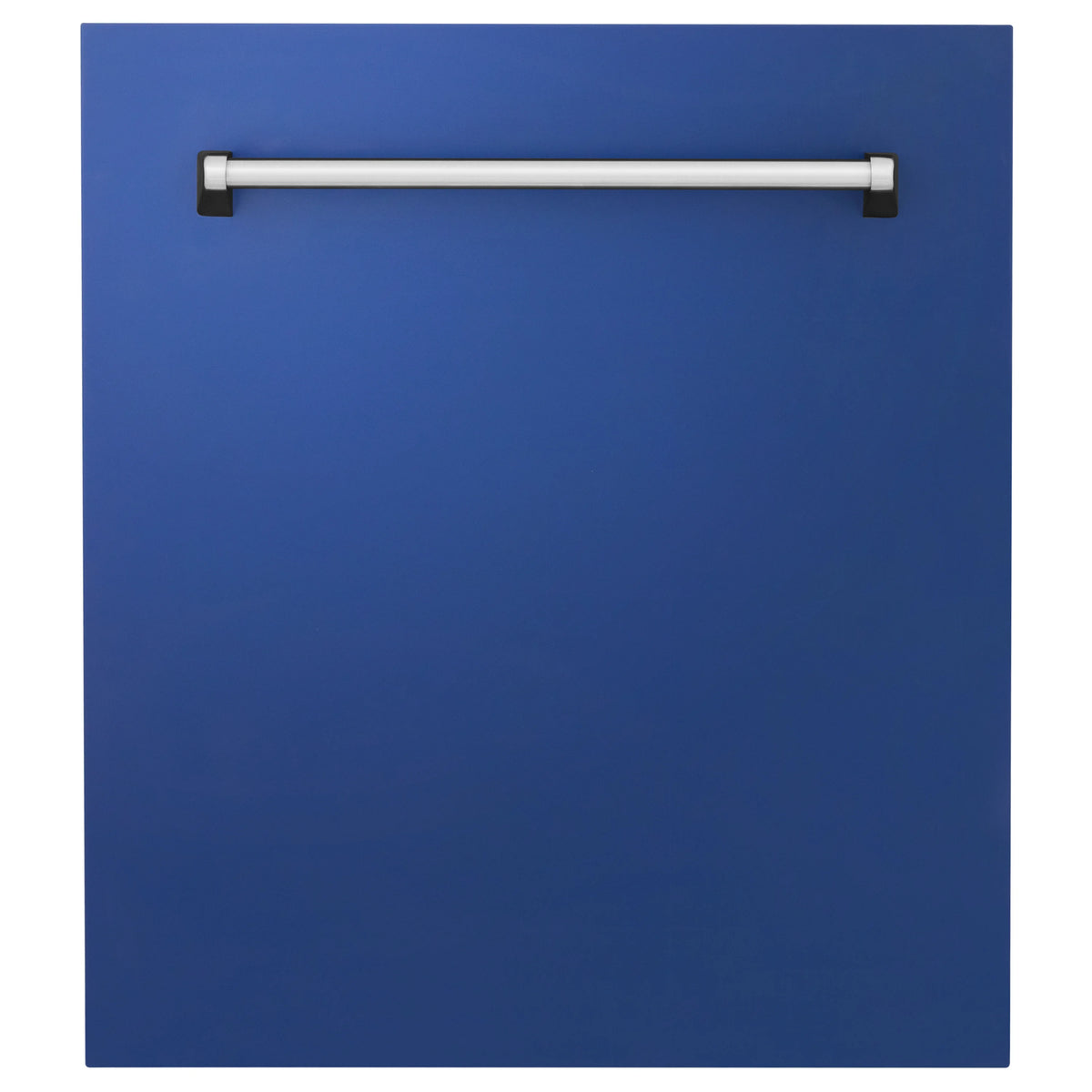

- Panel Finish
- Blue Matte

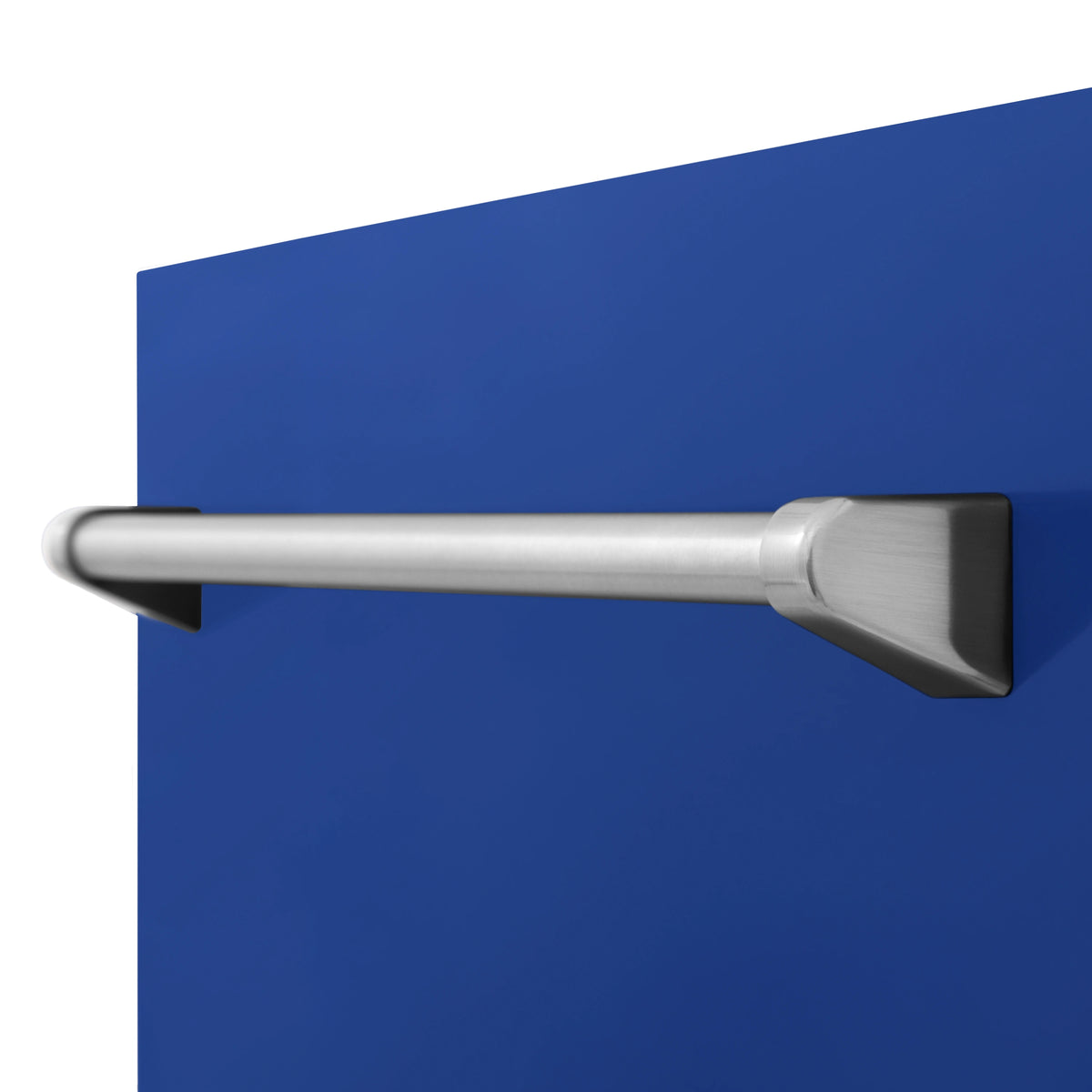

- Handle Finish
- Stainless Steel
- Control Location
- Top Control
- Control Type
- Button Control
- Handle Type
- Bar Handle- Traditional Style

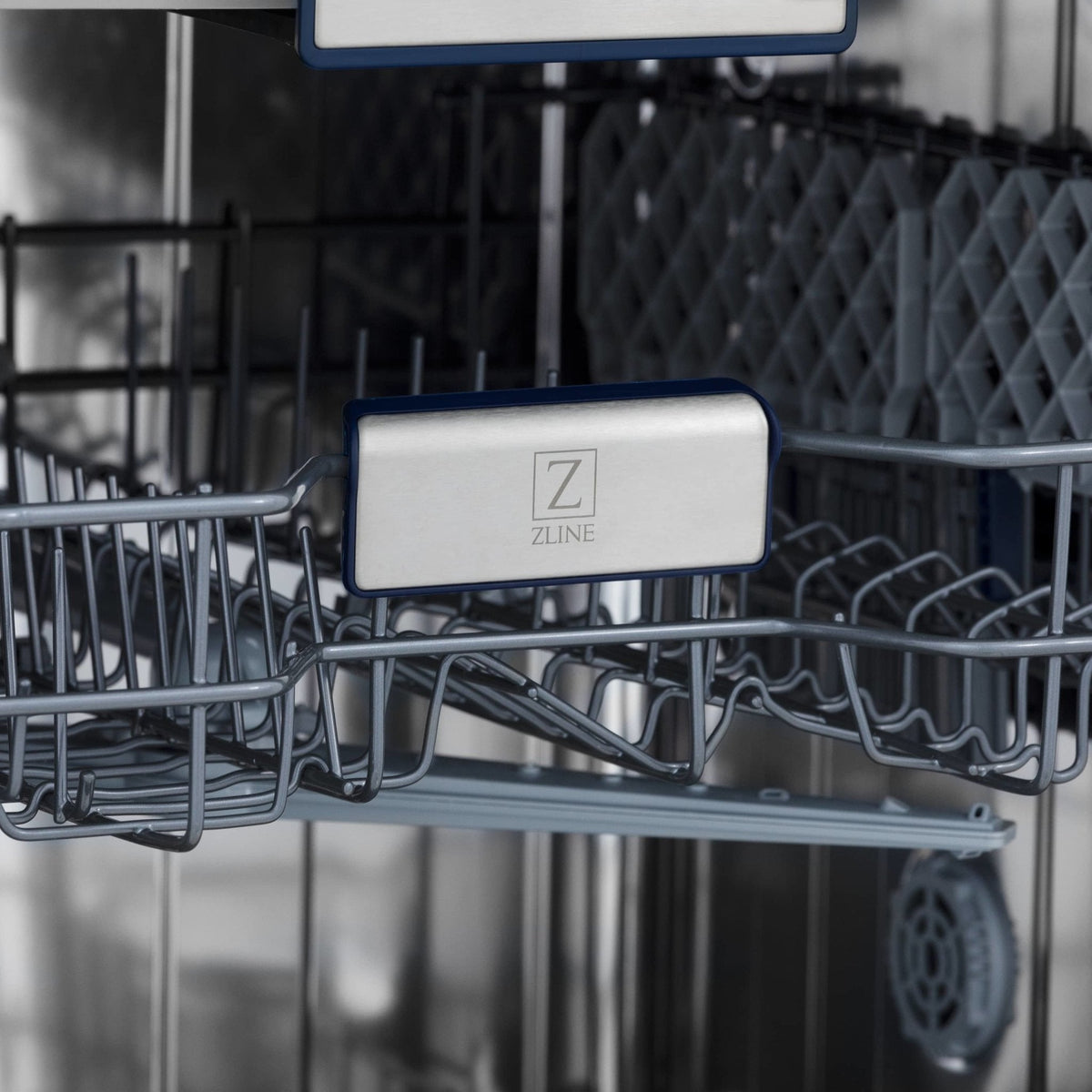

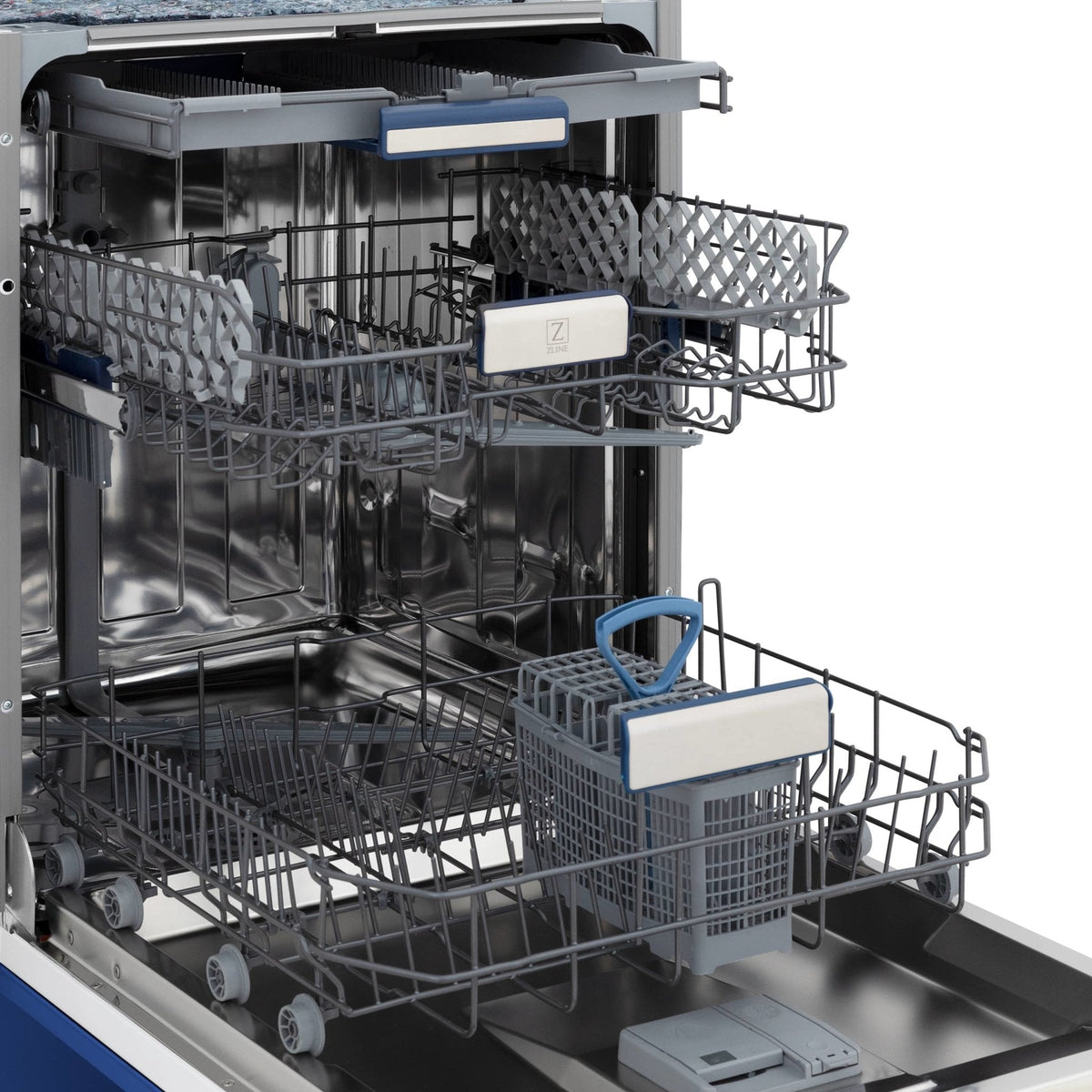

- Rack Material
- Nylon

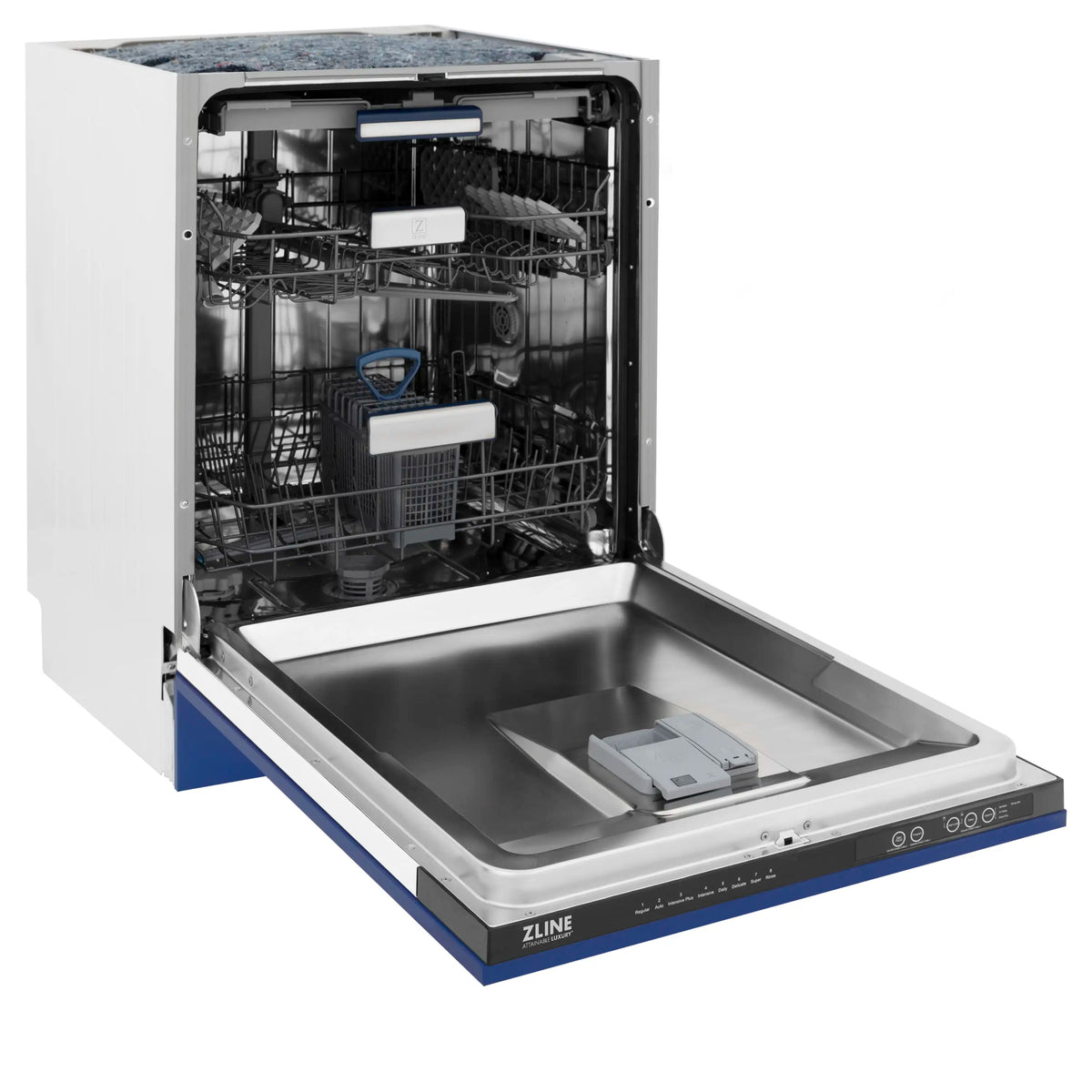

- Tub Material

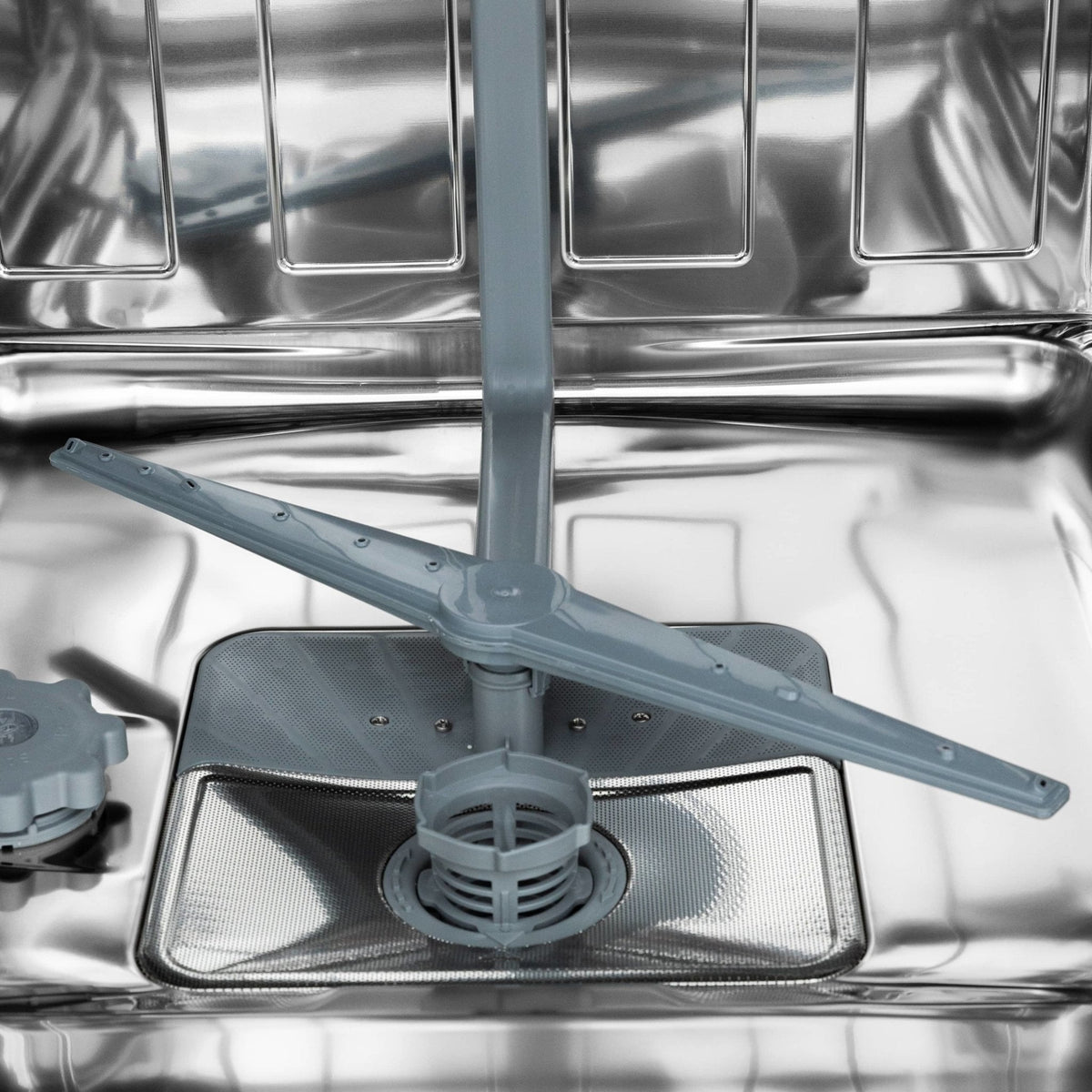

- Stainless Steel Tub
TECHNICAL DETAILS
- Voltage
- 120vac
- Frequency (Hz)
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current (Amps)
- 12A
- Motor Wattage
- 108
- Heater Wattage
- 1200
- Motor Amperage
- 0.9A
- Heater Amperage
- 10A
- Energy Consumption Per Year (kWh)
- 260
- Water Consumption Per Cycle (Liters/Cycle)
- 12.9
- Water Consumption Per Cycle (Gallons)
- 3.4
- Hose Length (in.)
- 56
- Decibels
- 51
- Power Cord
- Power Cord Included
FEATURES
- Drying System
- Turbo Fan Drying
- Number of Cycles
- 8
- Number of Place Settings
- 15

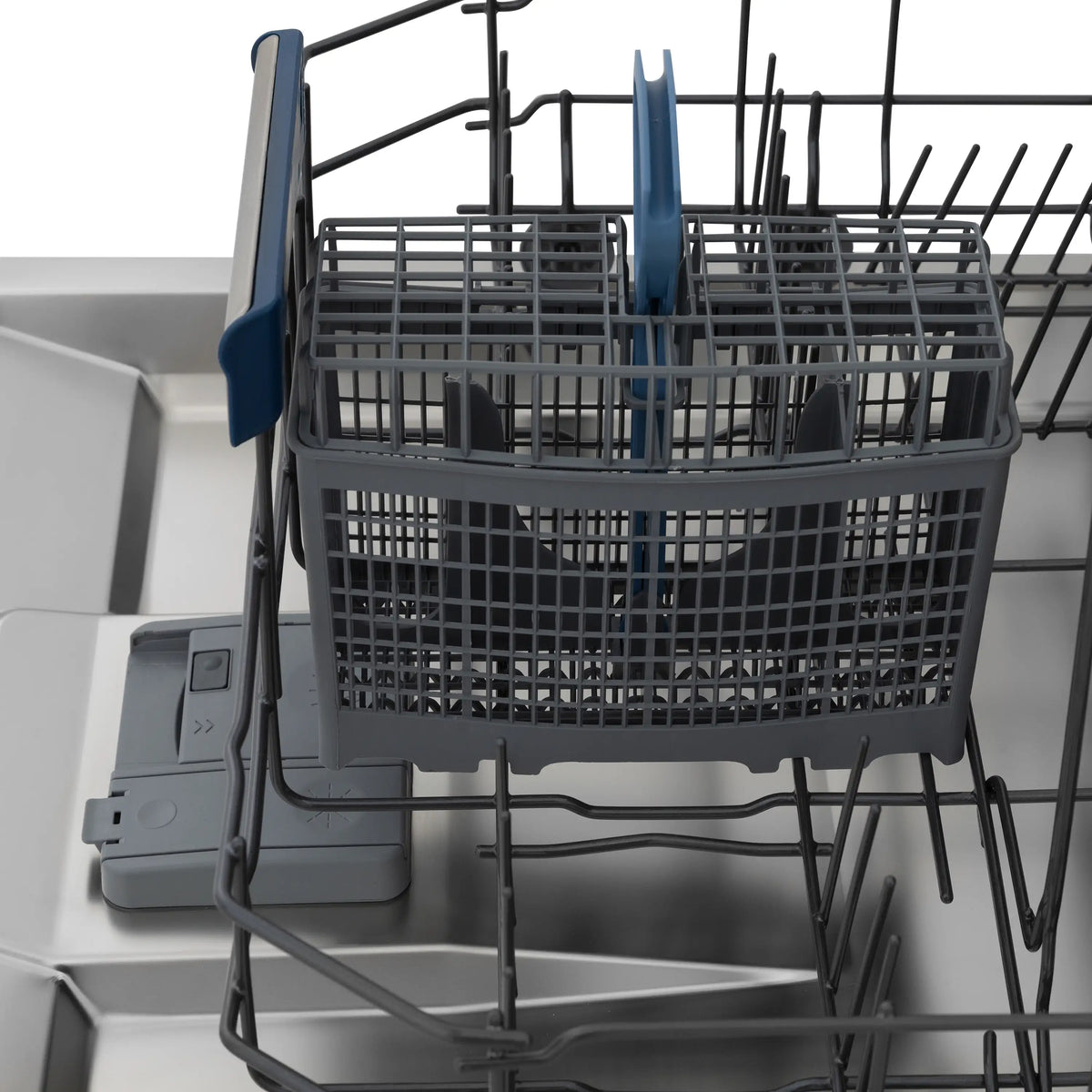

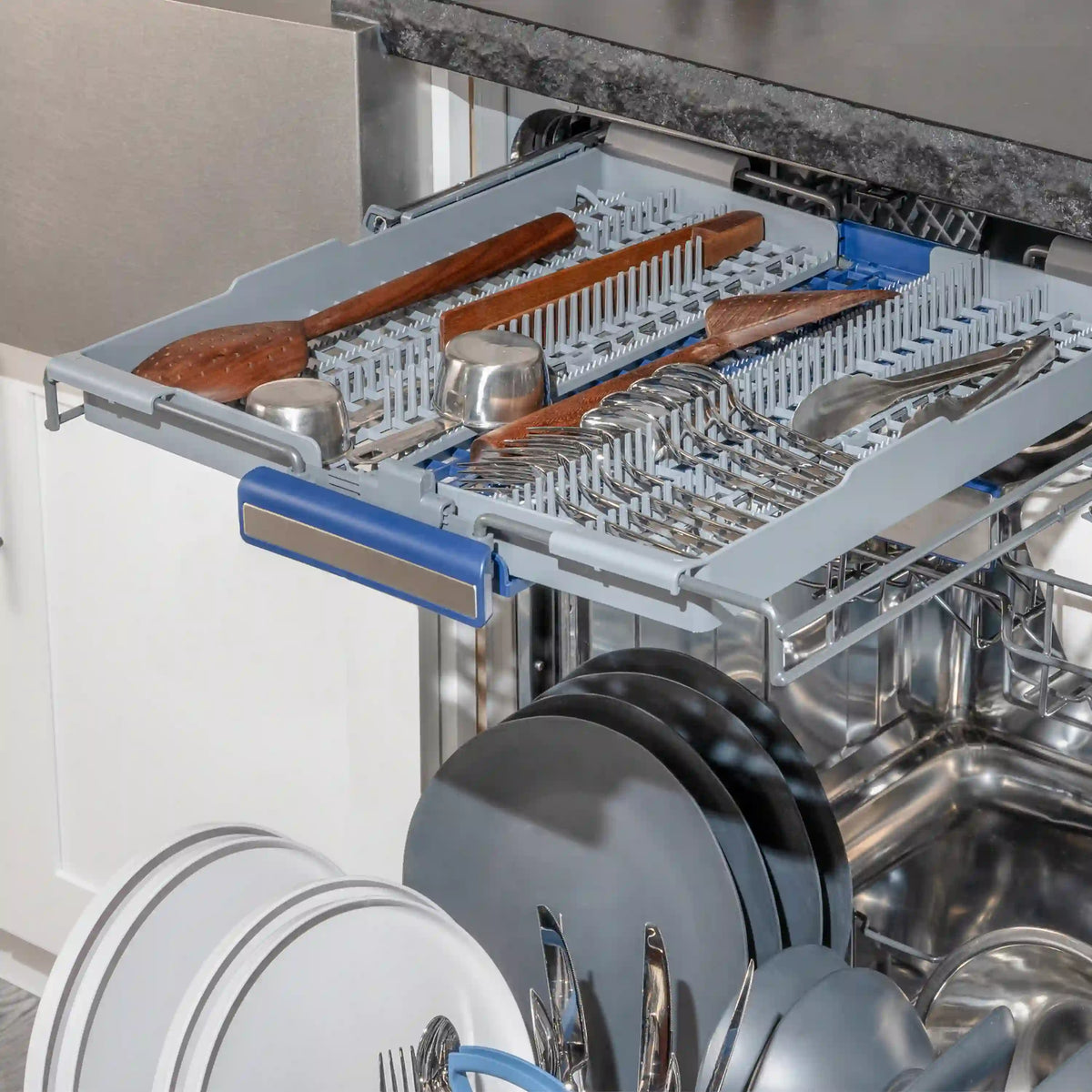

- Silverware Basket Location
- Bottom Rack Center
- Steam Function
- Without Steam
WARRANTY & CERTIFICATIONS
- Certifications
- Energy Star, CEC, UL
