Description

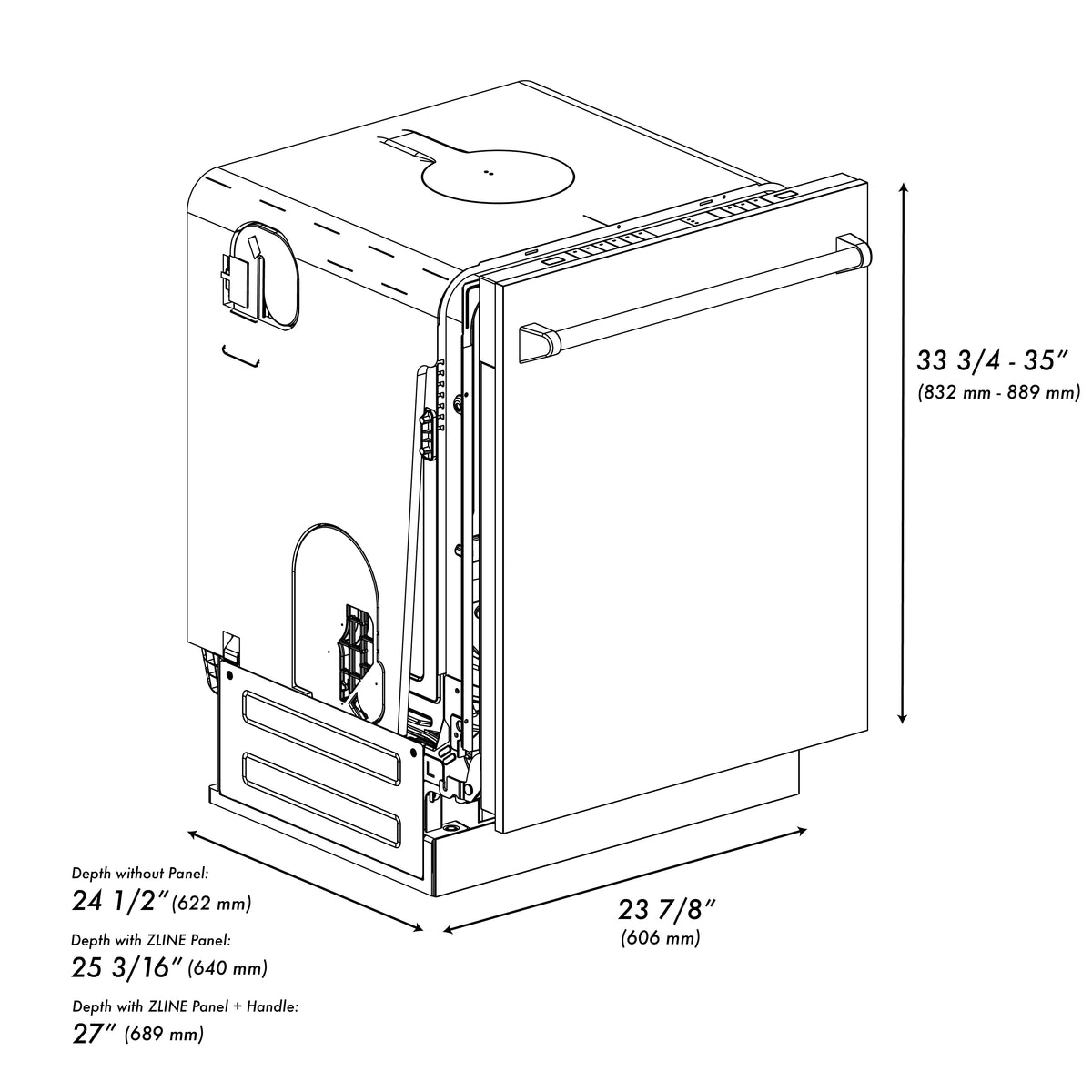

DIMENSIONS
- Product Dimensions Minimum Height
- 23.875 in. W x27 in. D x 33.75 in. H
- Product Dimensions Maximum Height
- 23.875 in. W x27 in. D x 35 in. H
- Cut Out Dimensions
- 24 in. W x 25 in. D x 34 in. H
- Weight
- 109.6 lbs
- Max Plate Height (in.)
- 13
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Product Type
- Tall Tub Style Dishwasher
- Panel Ready? Y/N
- N
- Installation Type
- Direct Wired
DESIGN & FINISH

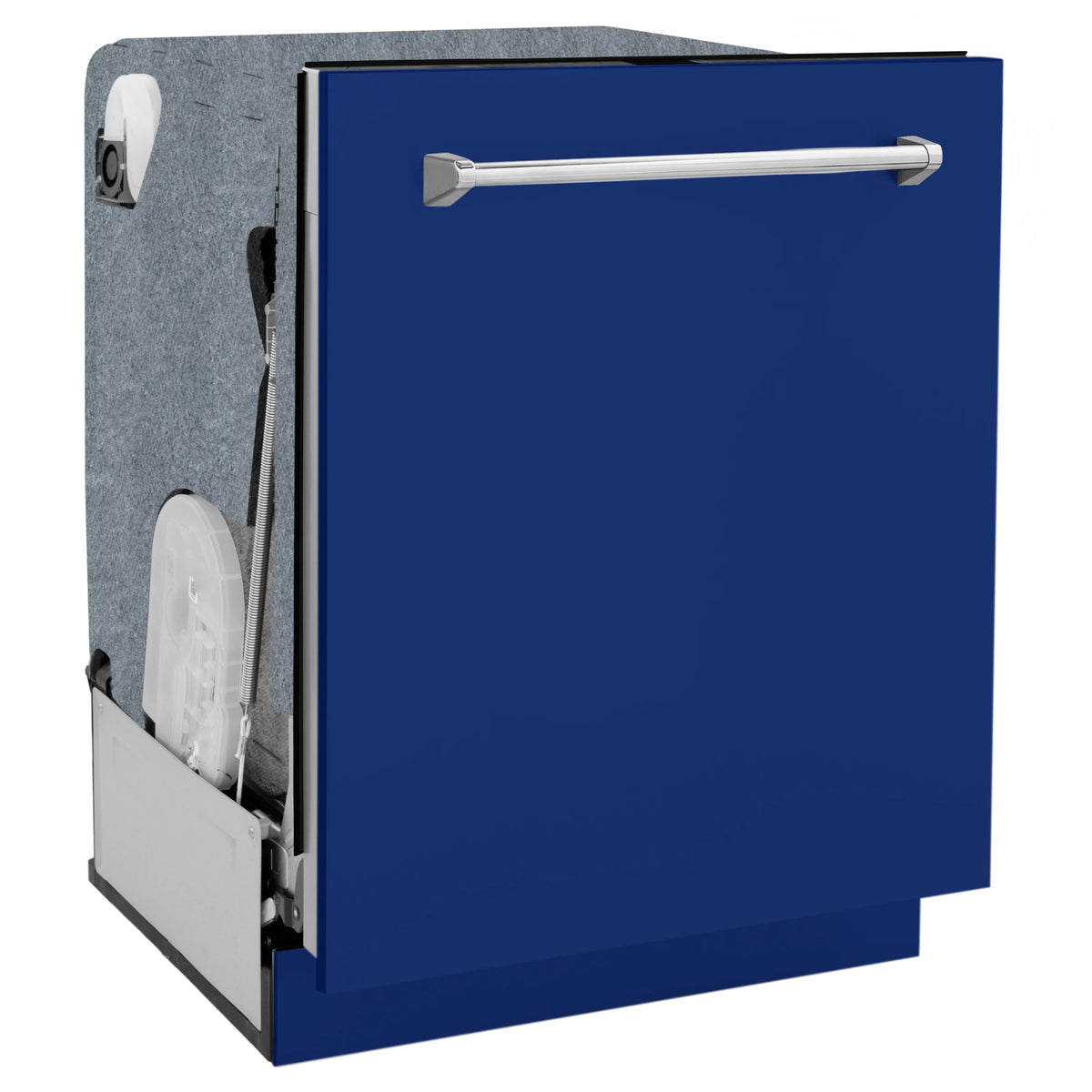

- Panel Finish
- Blue Matte
- Handle Finish
- Stainless Steel
- Control Location
- Top Control
- Control Type
- Touch Control

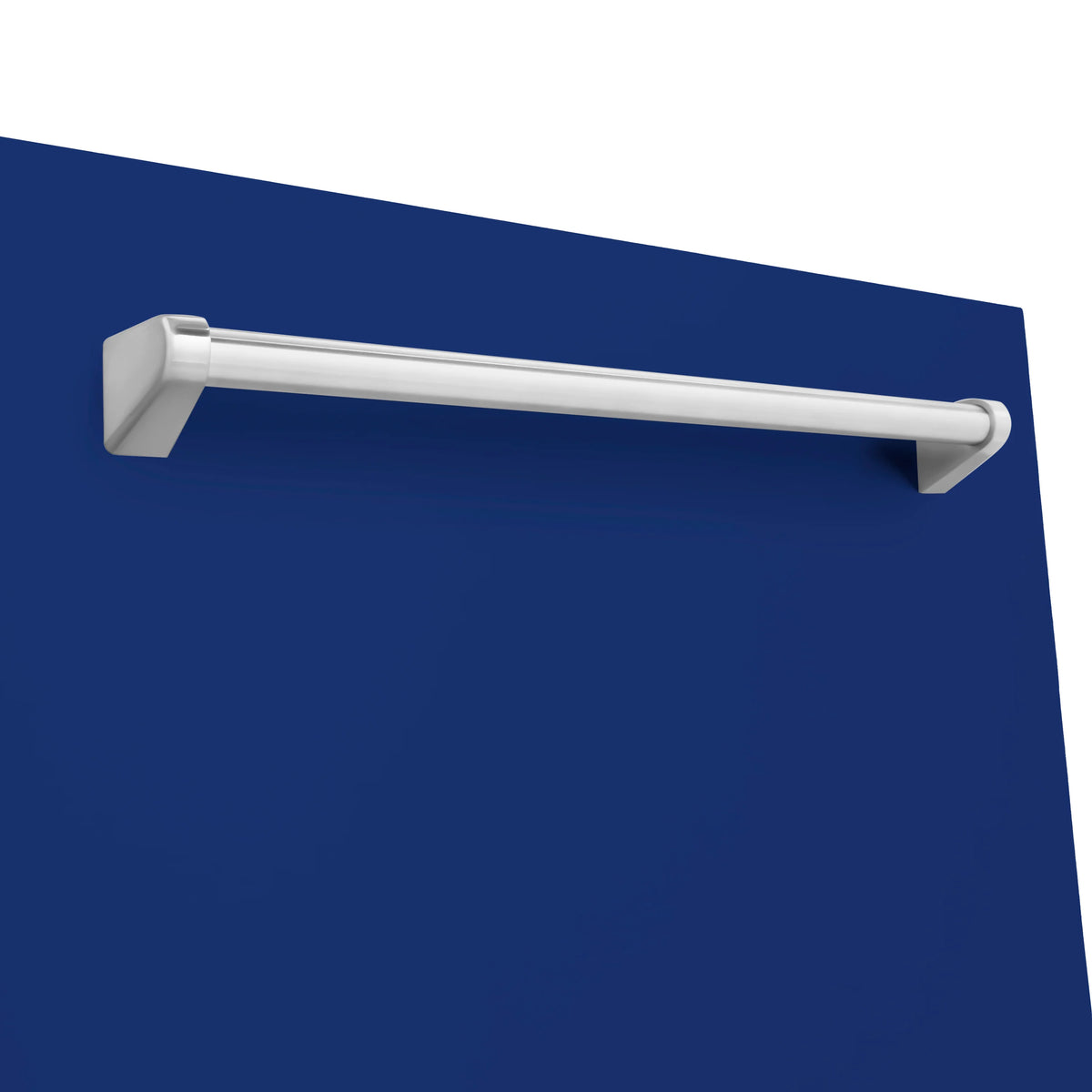

- Handle Type
- Bar Handle- Traditional Style
- Rack Material
- Polypropelyne (PP)

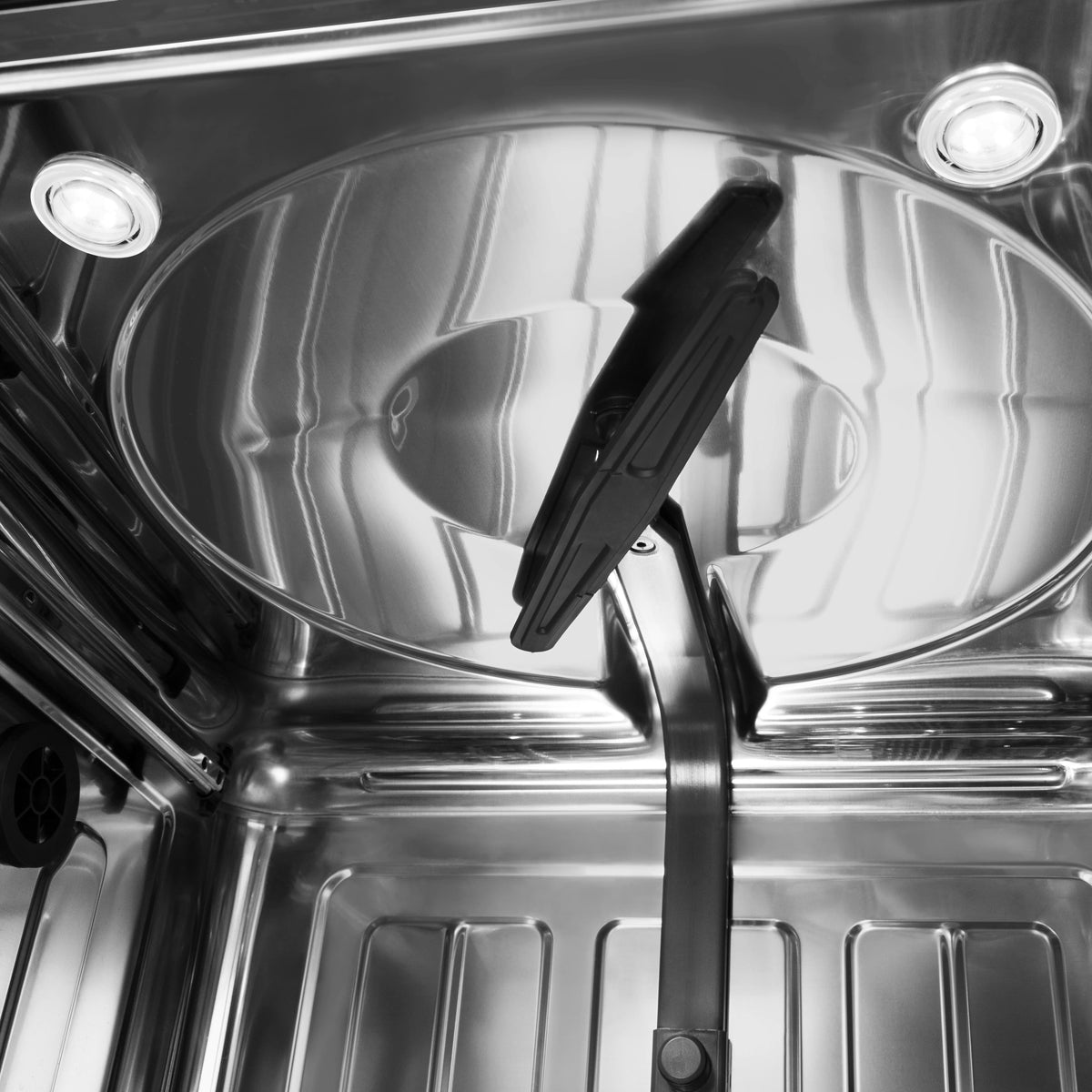

- Tub Material
- Stainless Steel Tub
TECHNICAL DETAILS
- Voltage
- 120vac
- Frequency (Hz)
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current (Amps)
- 8.4A
- Motor Wattage
- 120
- Heater Wattage
- 888
- Motor Amperage
- 1.0A
- Heater Amperage
- 7.4A

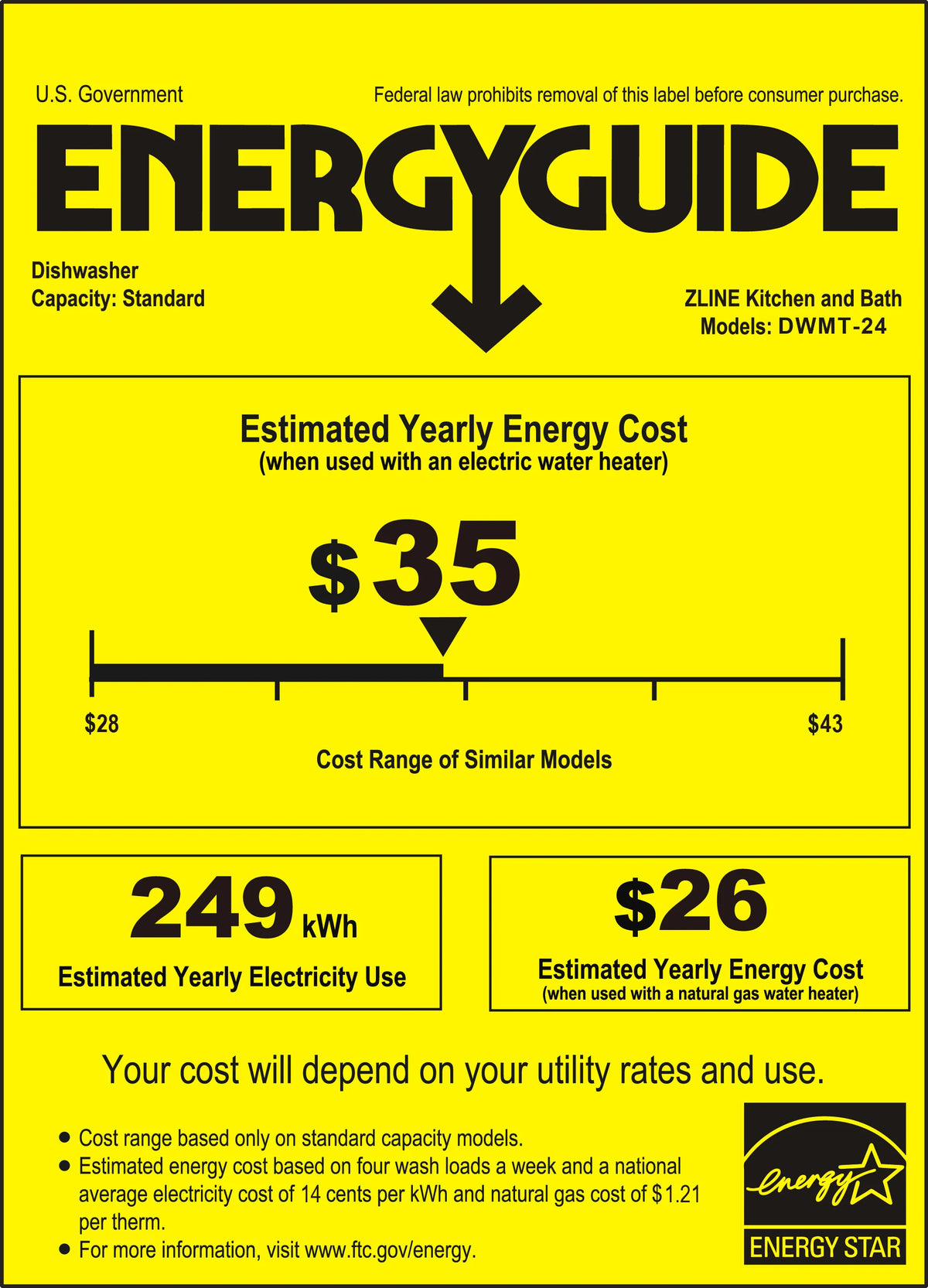

- Energy Consumption Per Year (kWh)
- 249
- Water Consumption Per Cycle (Liters/Cycle)
- 11.7
- Water Consumption Per Cycle (Gallons)
- 3.1
- Hose Length (in.)
- 56
- Decibels
- 45
- Power Cord
- Hardwired - Junction Box Included
FEATURES
- Drying System
- Residual Heat Dry
- Number of Cycles
- 6
- Number of Place Settings
- 14

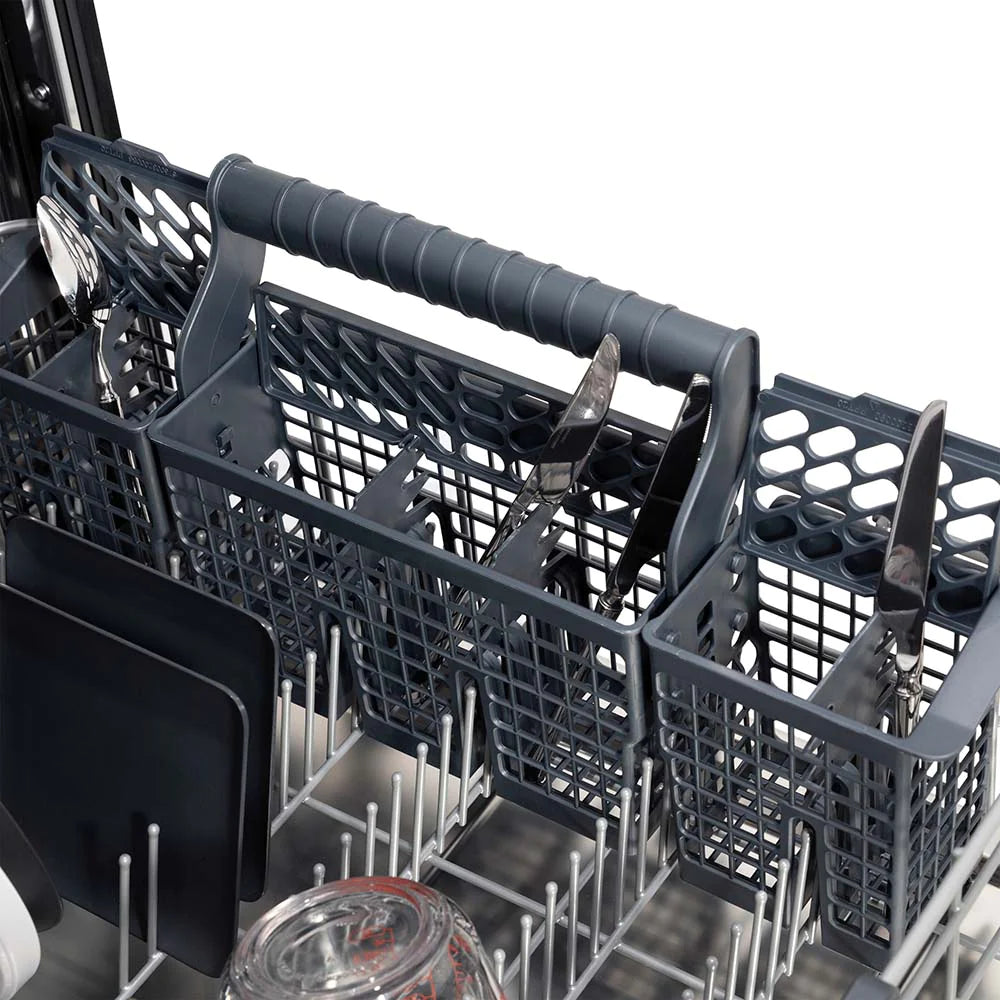

- Silverware Basket Location
- Bottom Rack Left
- Steam Function
- Without Steam
WARRANTY & CERTIFICATIONS
- Certifications
- Energy Star, CEC, UL
- Warranty
- 1 Year Parts
