What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Piece 1 of 2 — RANGE

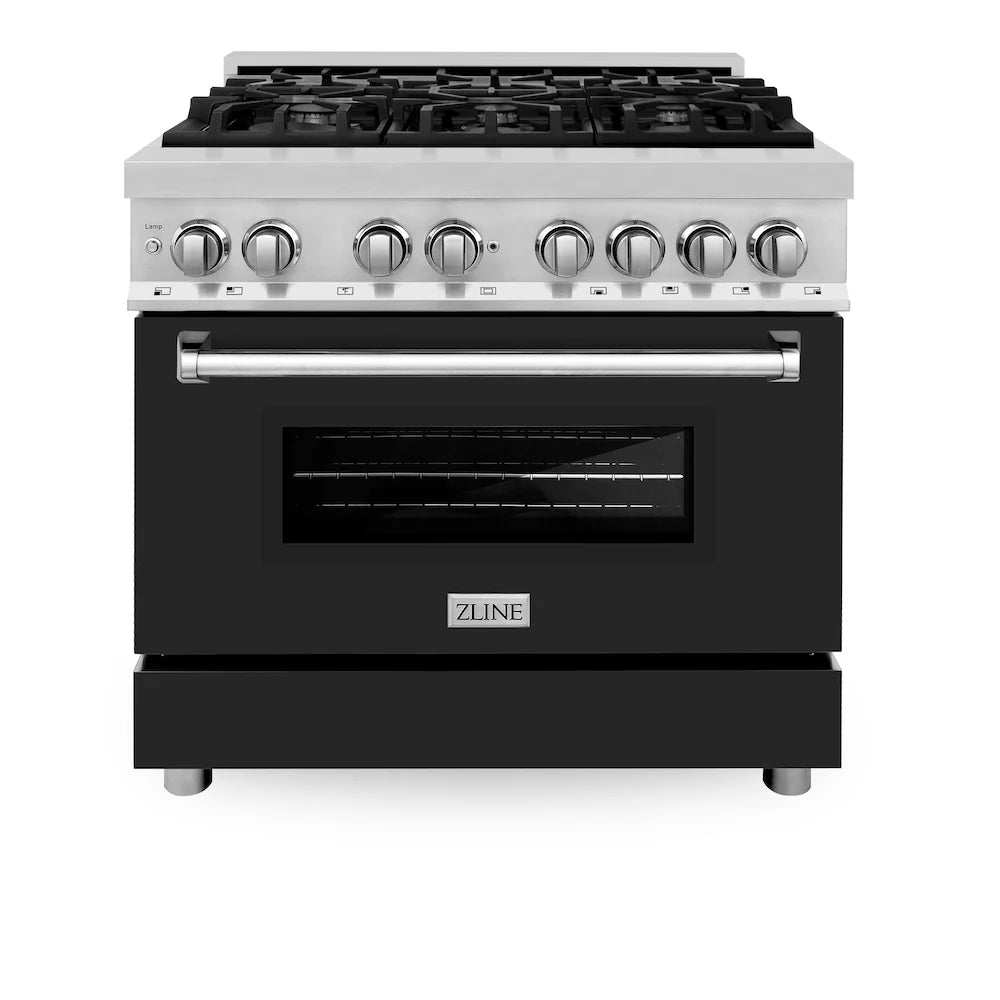

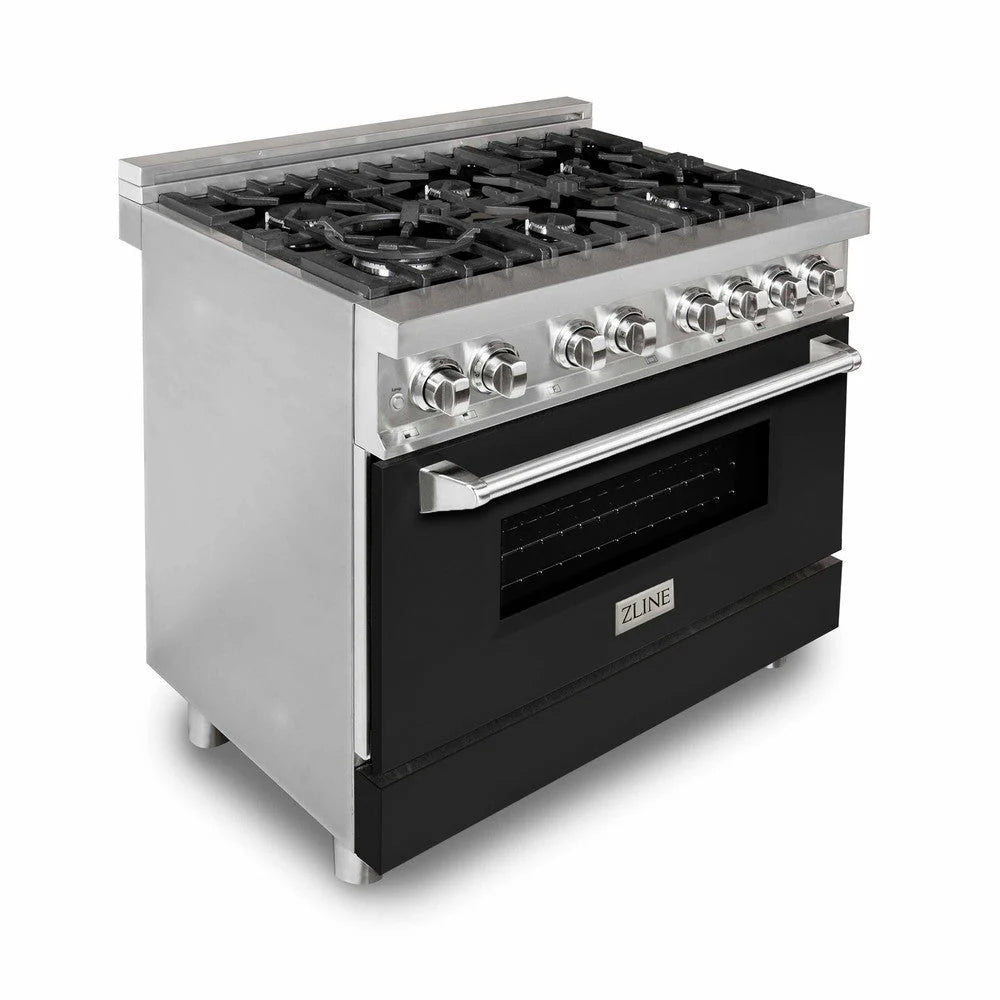

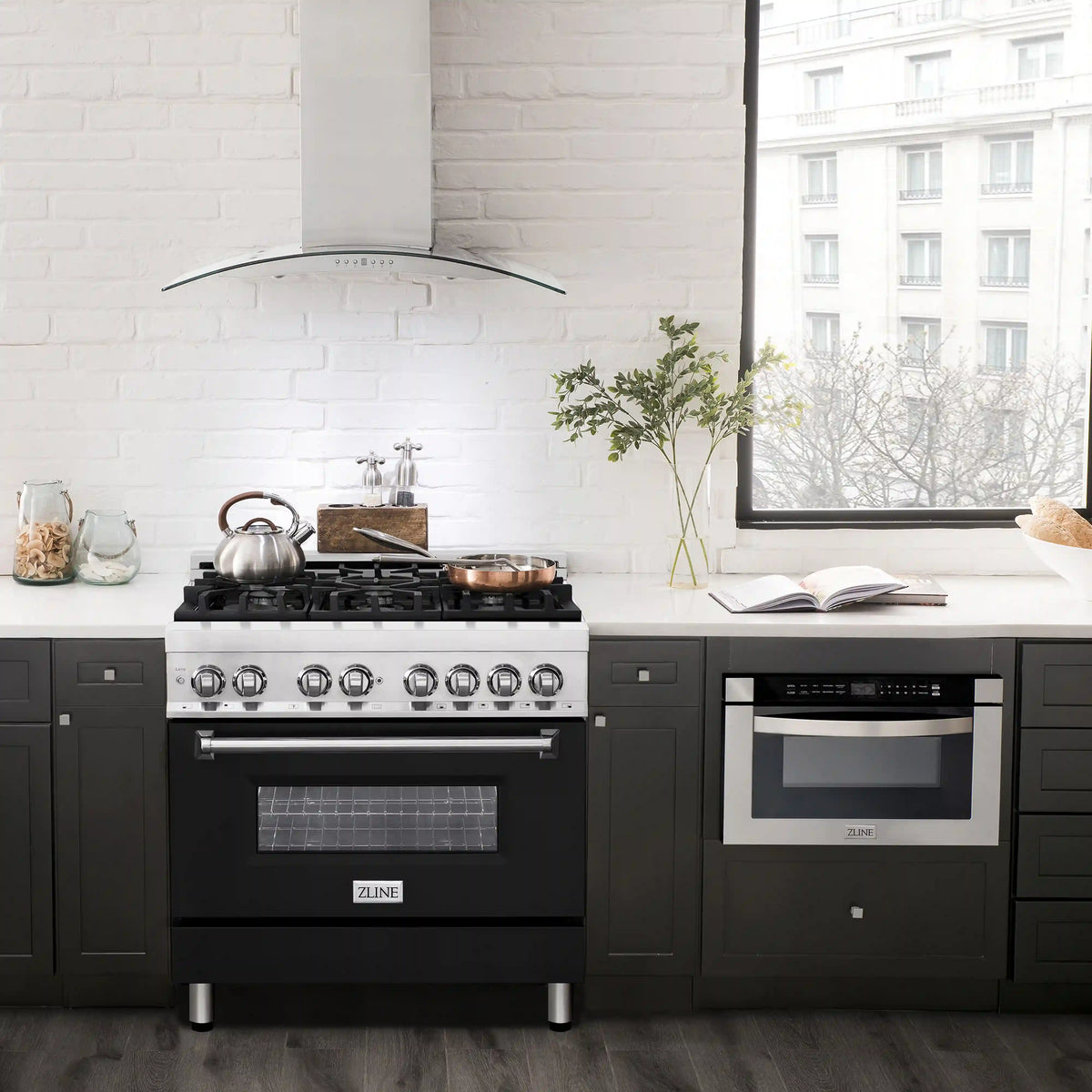

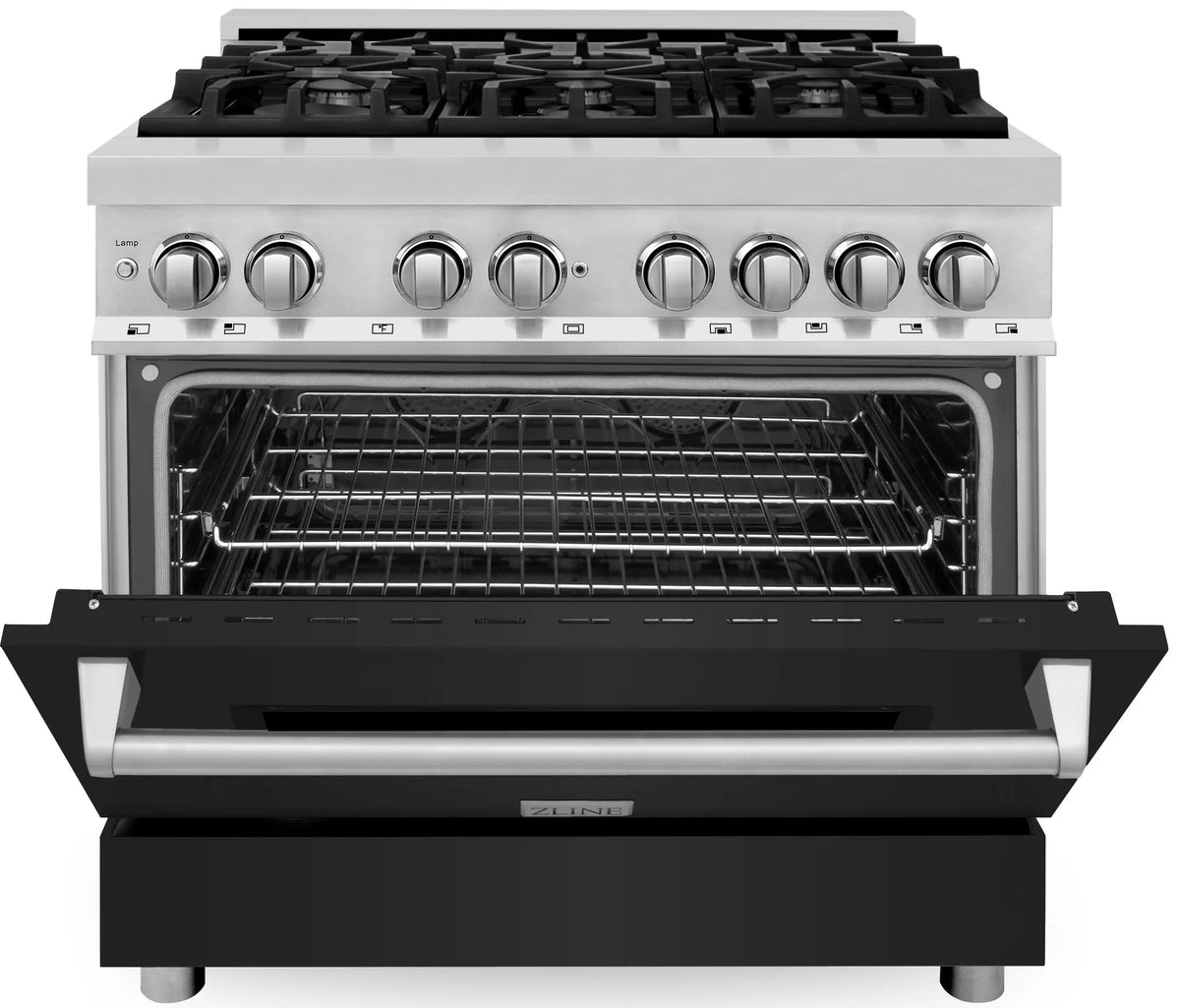

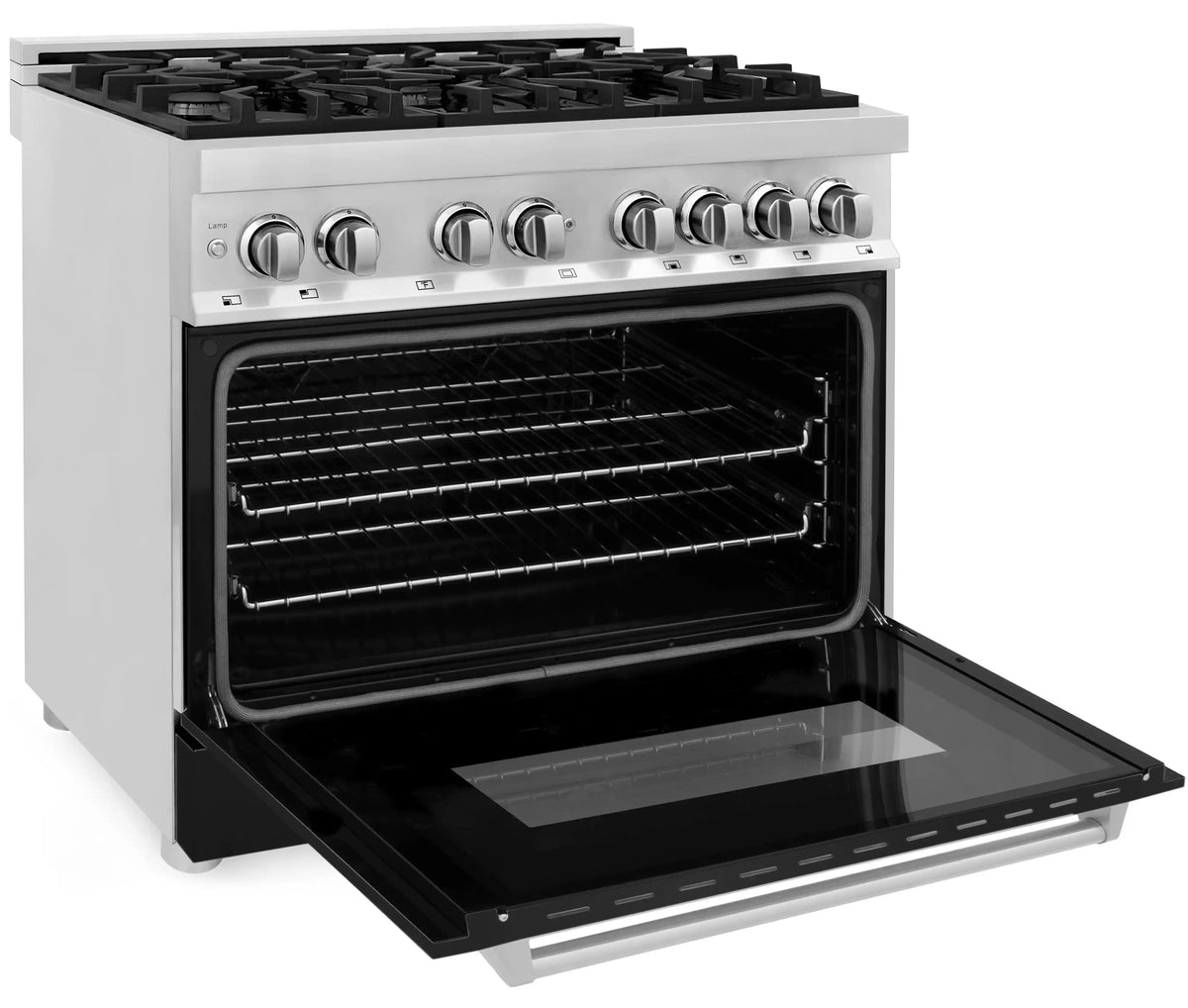

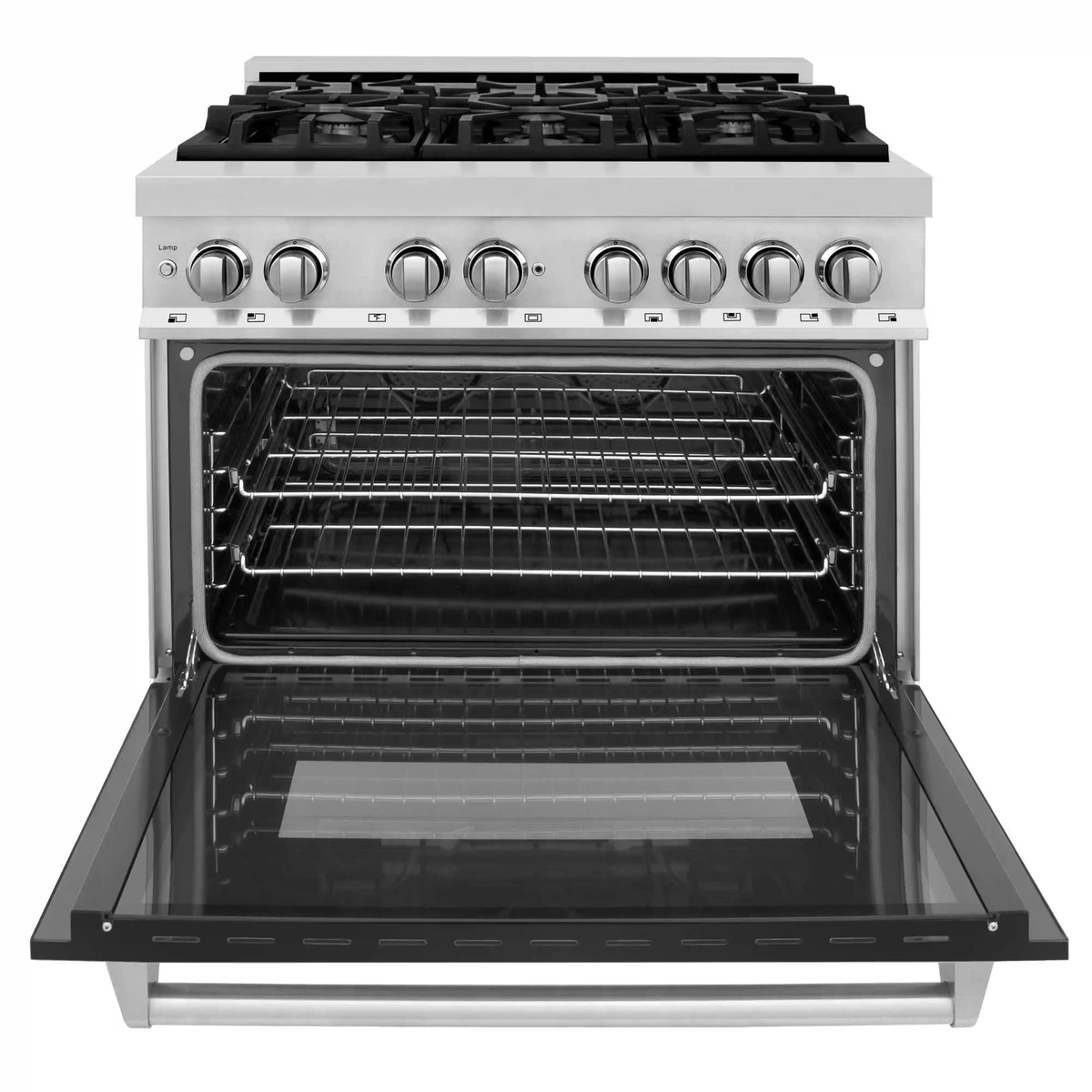

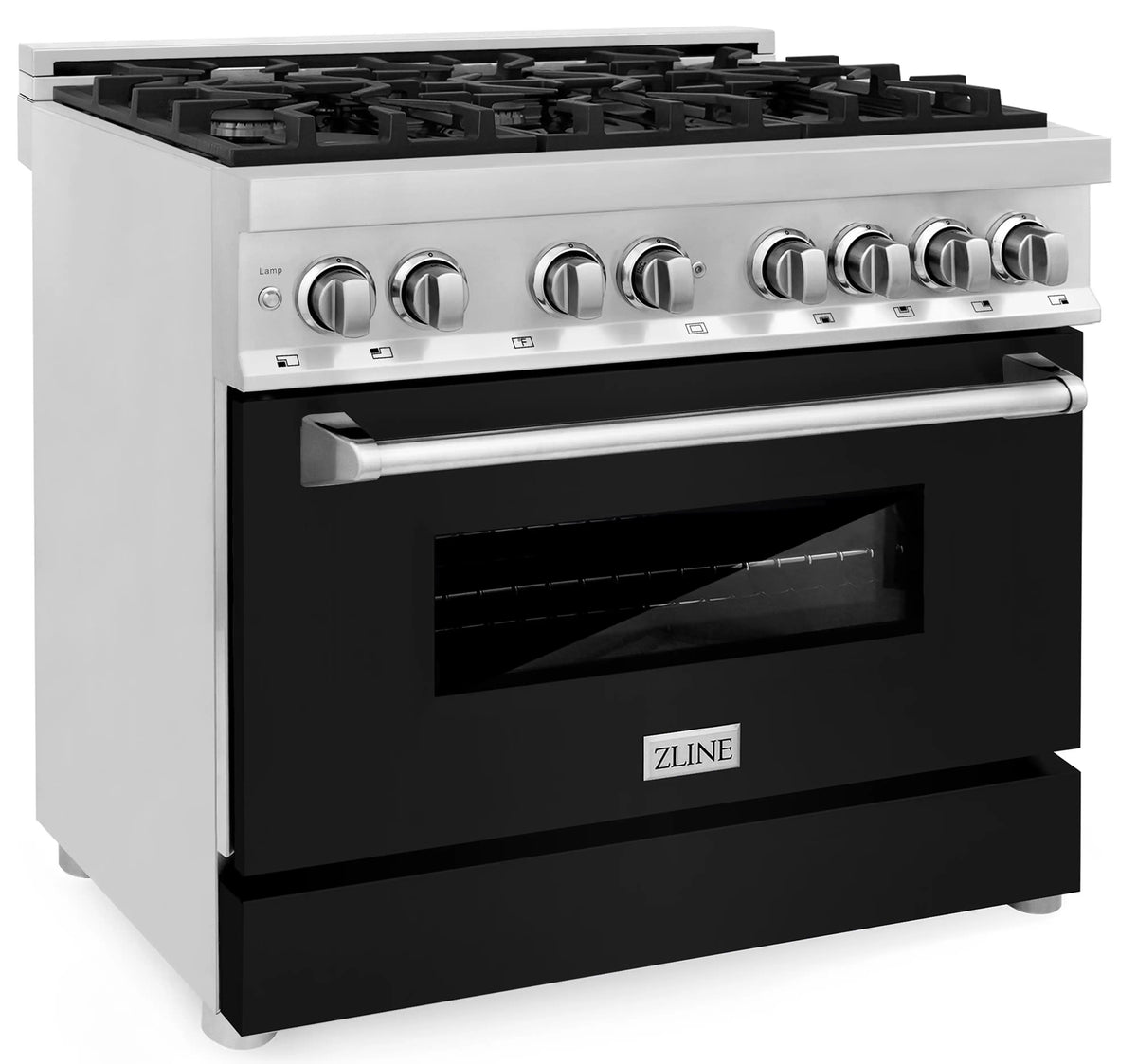

ZLINE's Professional 36" Range is complete with a 6 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 4.6 cu. ft. of deep oven capacity provides a large cooking area that’s perfect for multiple dishes at once and easily handles large baking sheets, like an 18" pizza.
*This product ships in multiple boxes and will require minimal assembly upon arrival.
Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
- Durable and effective, with a smooth action.
Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminum mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.
Enamel Cooktop
- Heavy Duty enamel one-piece cook top.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.Cast Iron Grill
Cast Iron Grill
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high-quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.

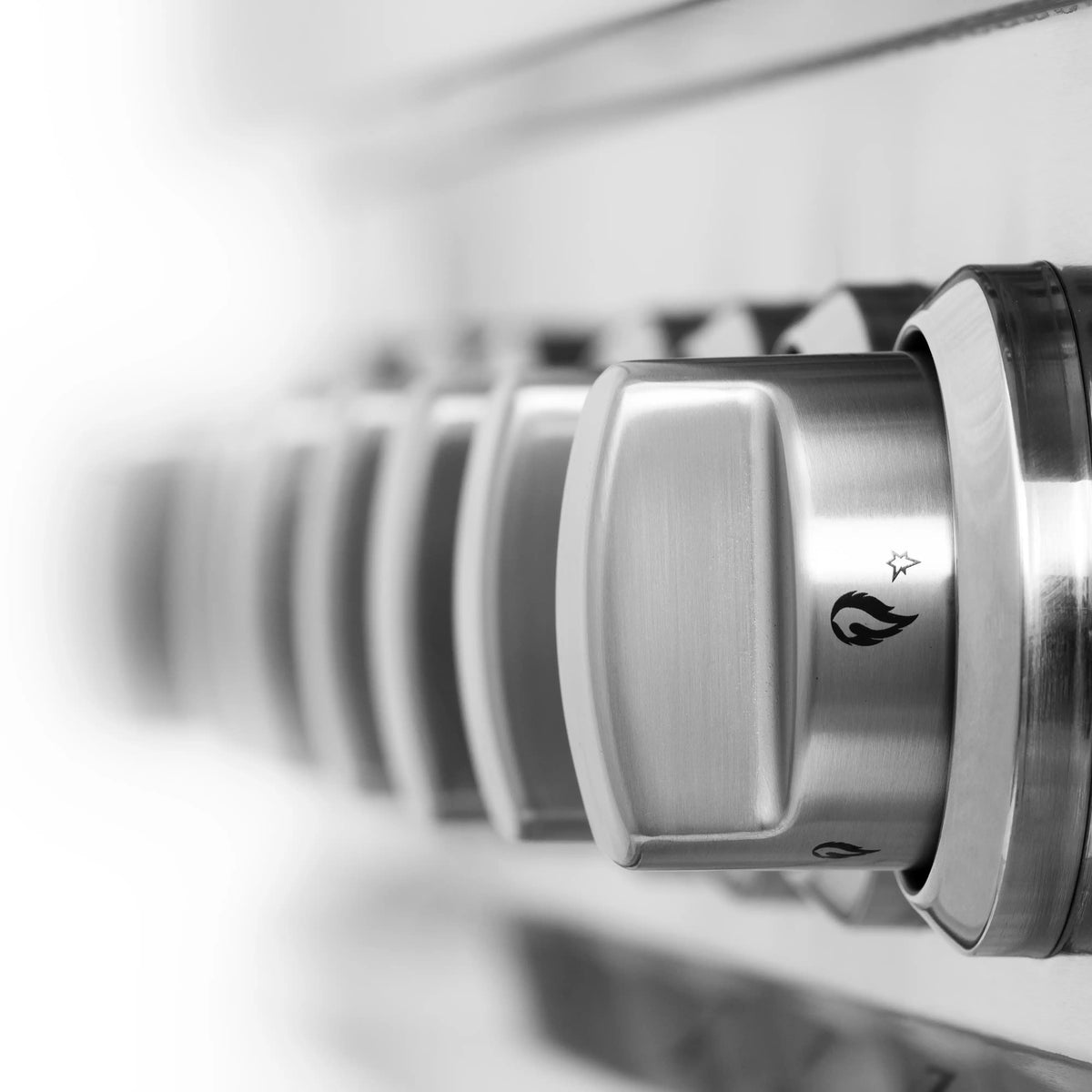

Stainless Steel Knobs
- Heavy duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5".
DIMENSIONS
- Dimensions
- 35.75 in. W x 27.50 in. D x 36.13 in. H
- Cut-Out Dimensions
- 36 in. W x 24 in. D x 36 in. H
- Adjustable Height
- 36.13 - 38.63 in. H
- Product Depth with Handle
- 29.63 in. D
- Open Door Depth
- 41.8 in. D
- Interior Oven Dimensions
- 30.709 in. W x 18.50 in. D x 13.98 in. H
- Weight
- 256 lbs
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Number of Burners
- 6
- Number of Racks
- 2
DESIGN & FINISH
- Material
- Stainless Steel with Black Matte Doors
- Lighting
- Halogen Lights
TECHNICAL DETAILS
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Electrical Requirements
- 15A/240 VAC/NEMA 14-50P (50 AMP Plug)
- Cooktop BTUs
- Back Left Burner: 13,000 BTU, Front Left Burner: 18,000 BTU, Back Right Burner: 4,200 BTU, Front Right Burner: 13,000 BTU, Back Middle Burner: 8,500 BTU, Front Middle Burner: 8,500 BTU
- Oven BTUs
- Total BTUs: 67,500 BTU
FEATURES
- Oven Capacity (cu.ft)
- 4.6 cu. ft.
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Self Clean (Y/N)
- No
- Timer (Y/N)
- No
- Additional Features

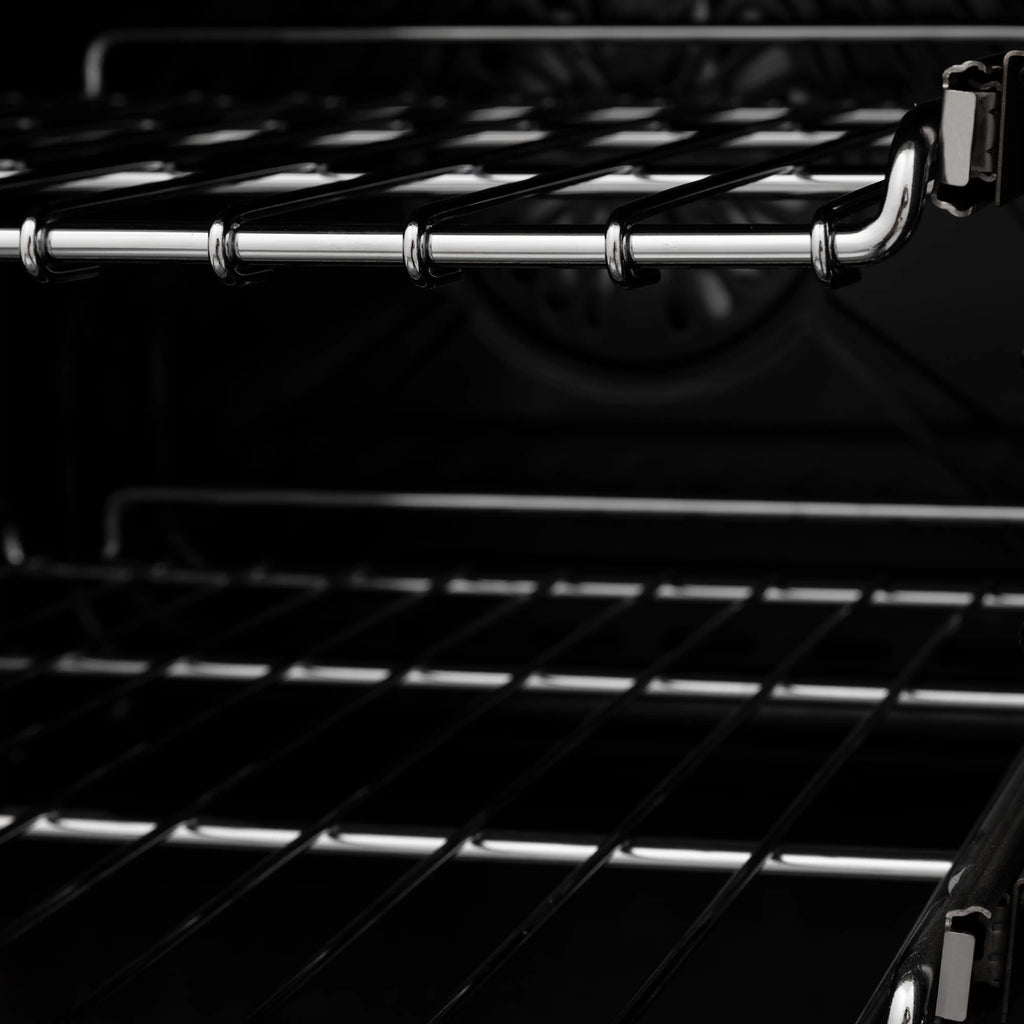

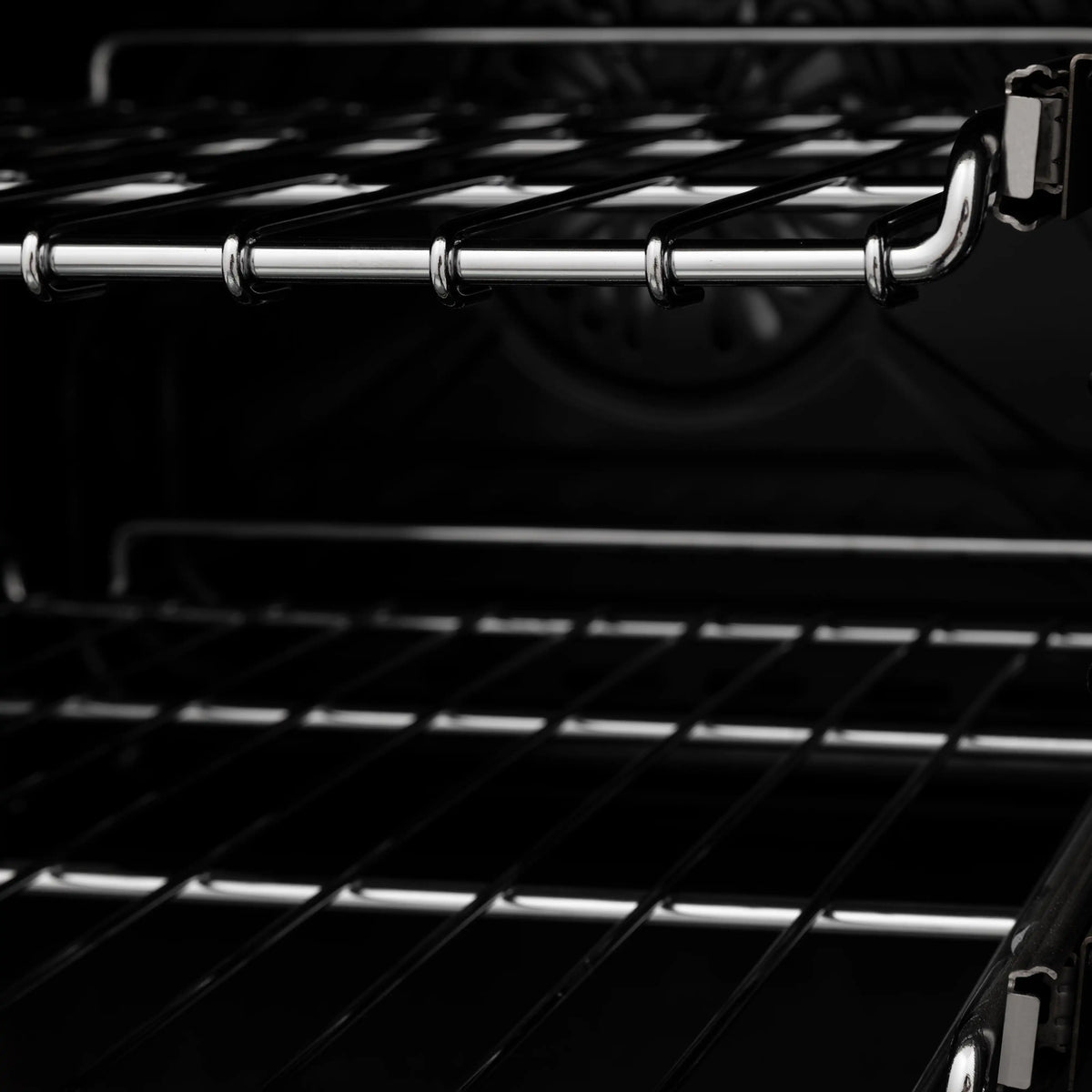

- Italian Burners: Lifetime Burner Warranty Stay-Put Hinges Full Extension Telescoping Glide Racks LED Accent Lighting 3-Layered Glass on Oven Door
WARRANTY & CERTIFICATIONS
- Certifications
- CSA Listed
- Warranty
- 1-Year Parts and Service Lifetime Burner Warranty
Piece 2 of 2 — RANGE HOOD

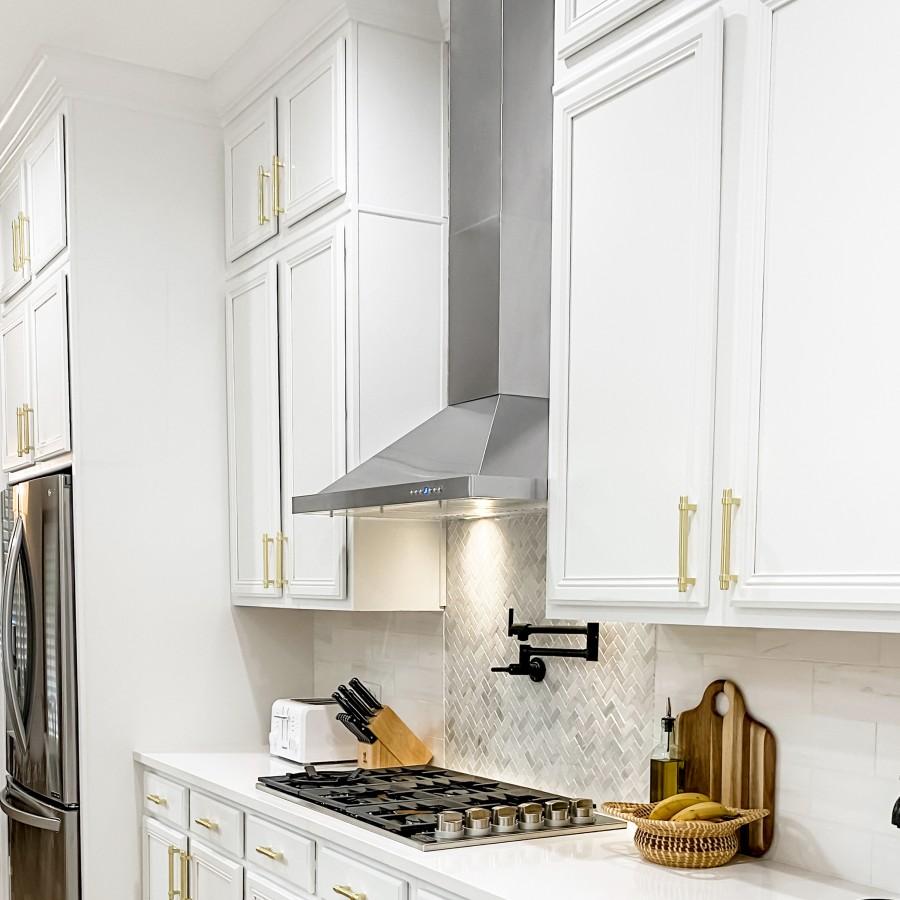

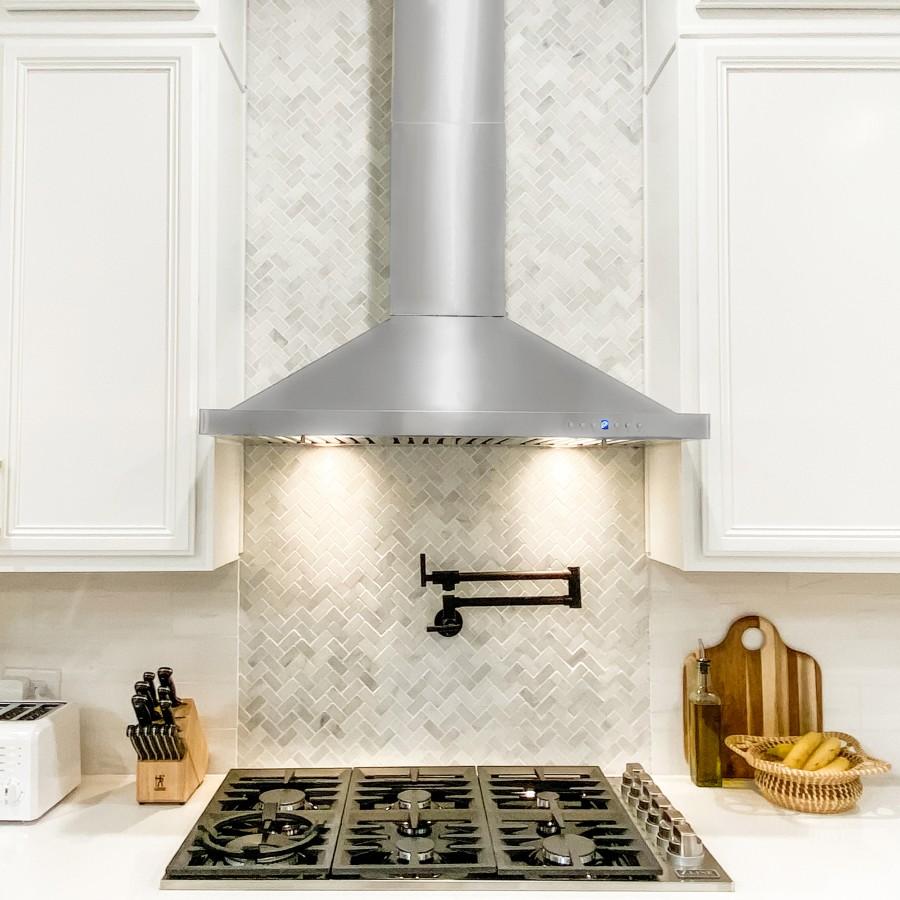

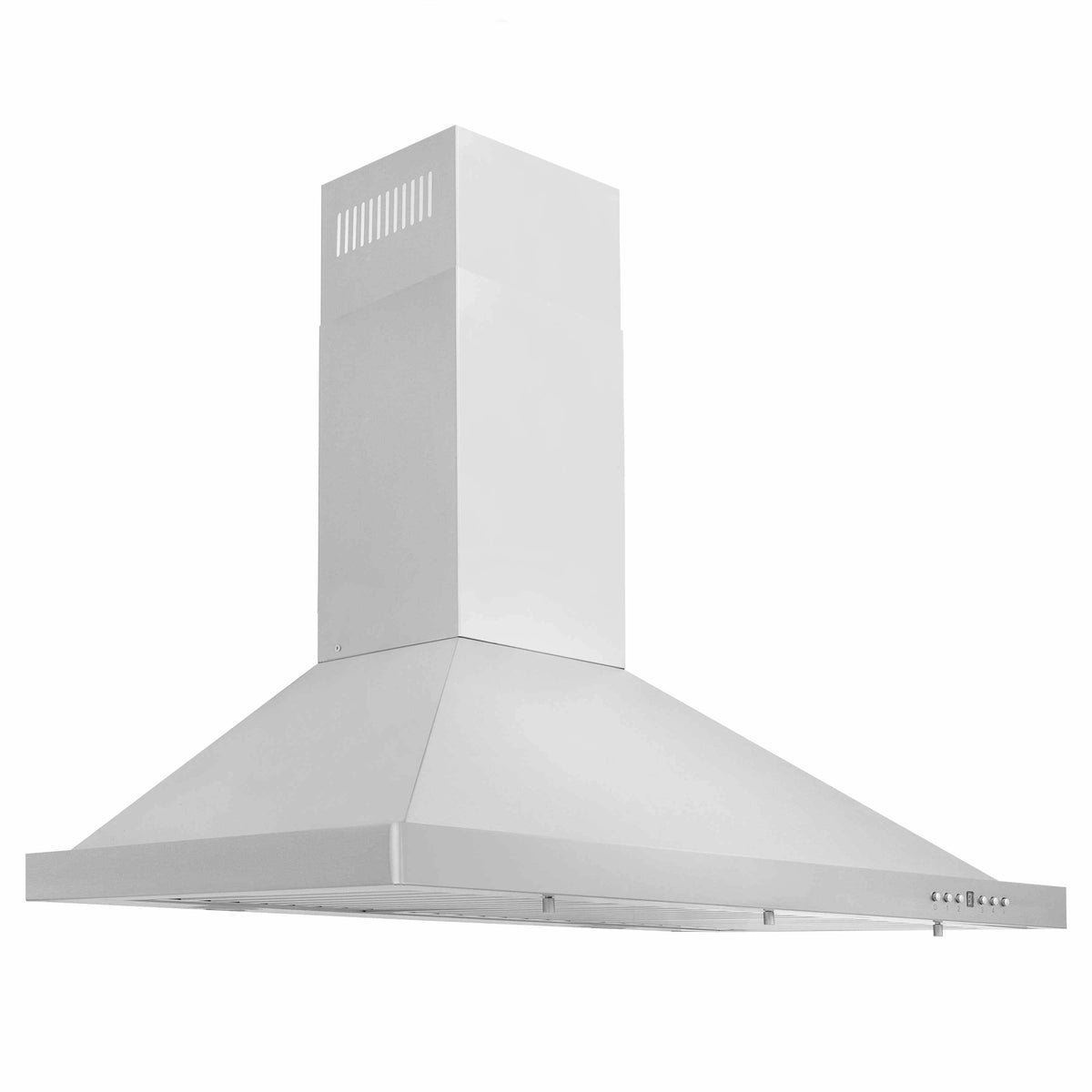

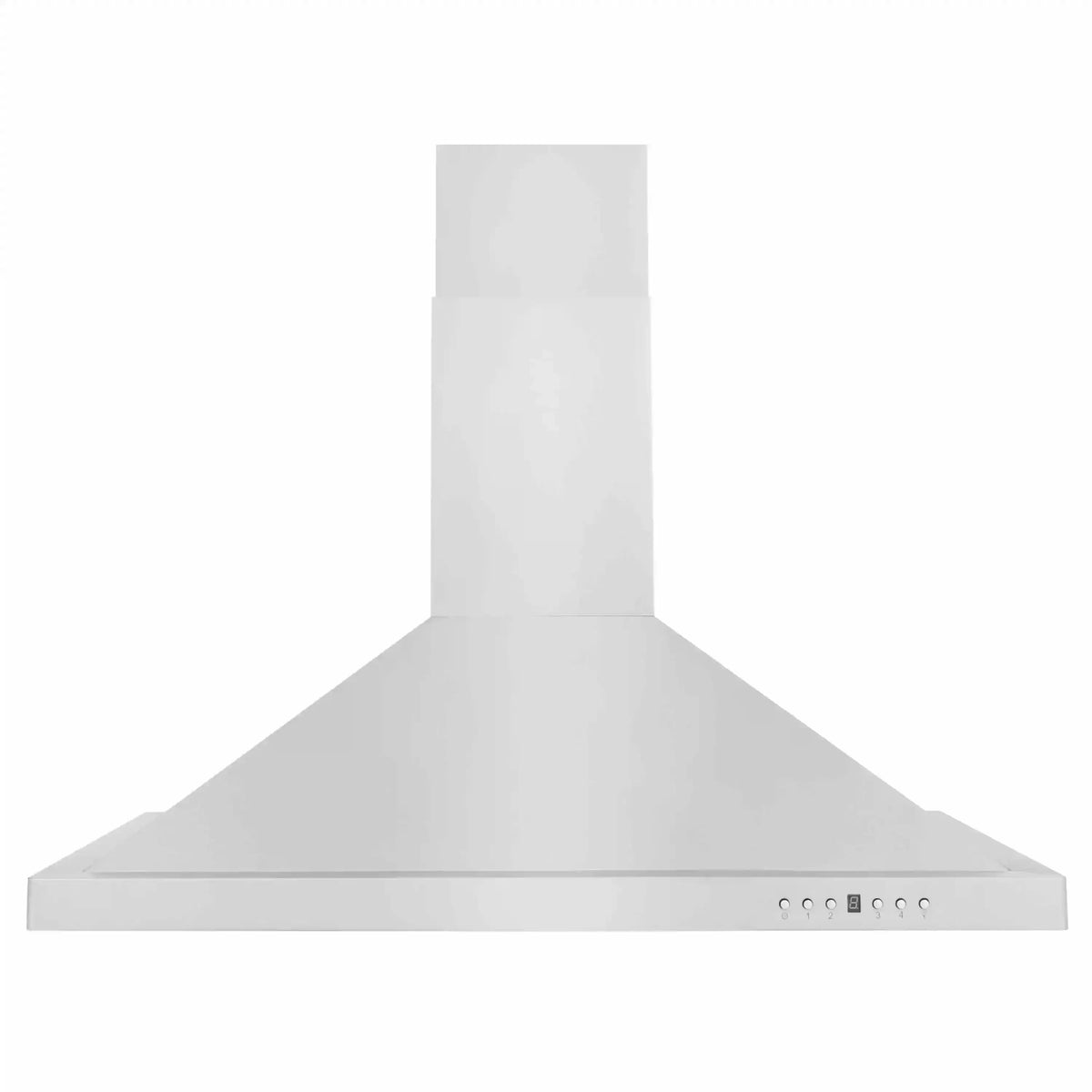

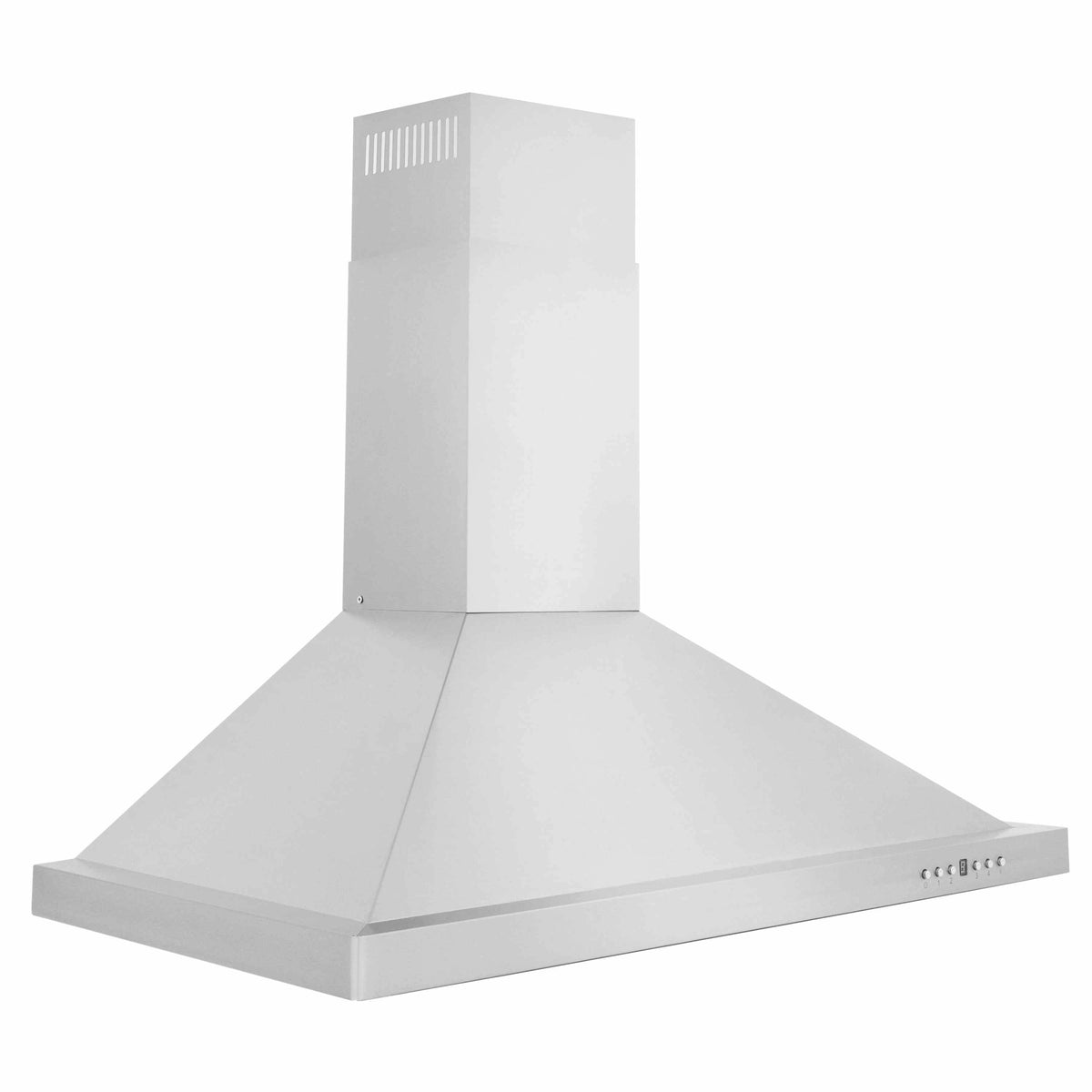

The ZLINE 36 in. Convertible Vent Wall Mount Range Hood in Stainless Steel (KB-36) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Features
- Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Stainless Steel Finish - A brushed 430 grade stainless steel exterior finish contains rust and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Convertible Range Hood - This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors

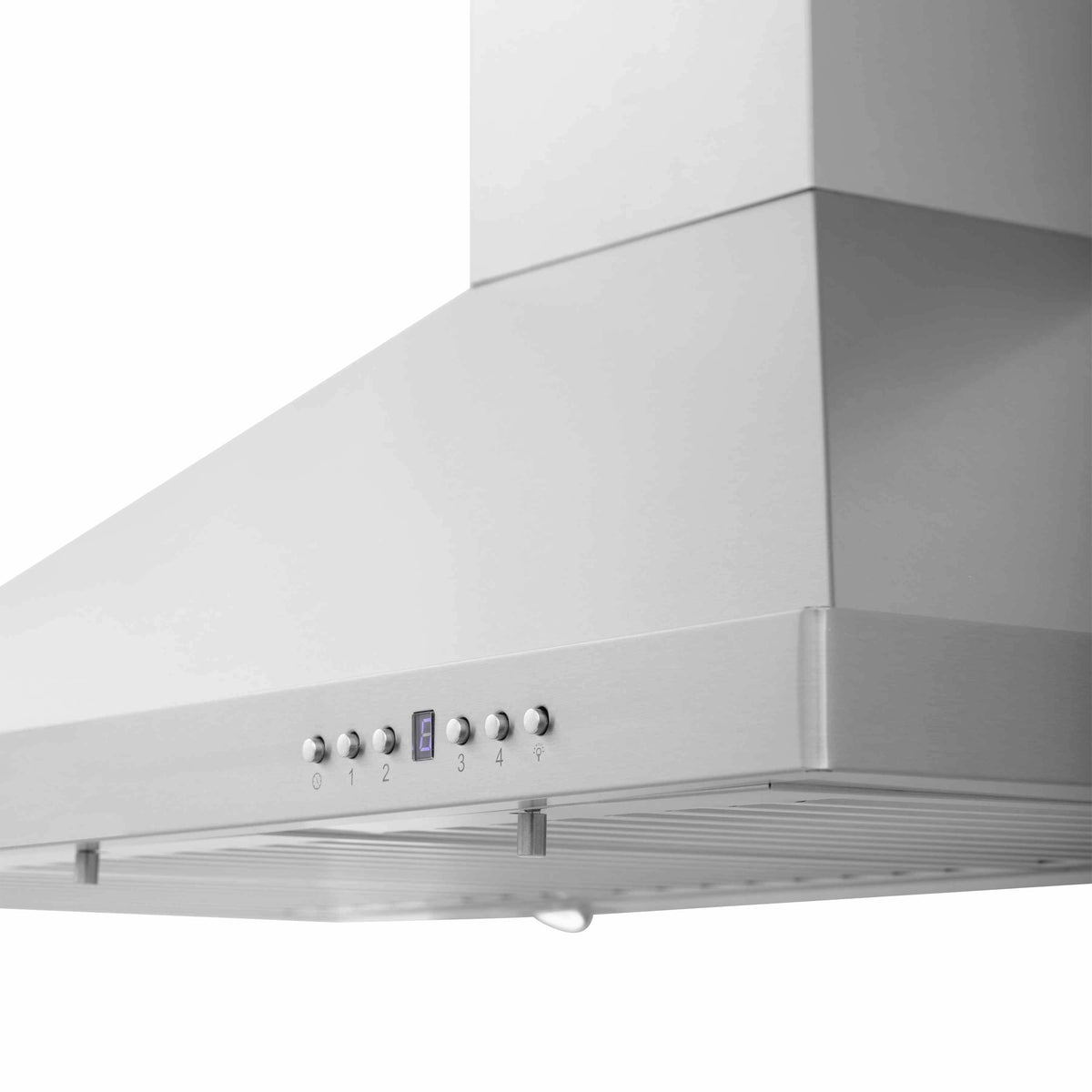

- Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
DIMENSIONS
- Dimensions
- 36" W x 19.7" D x 10.5" H
- Chimney Dimensions
- 9.2 in. W x 8 in. D x 16 H (x2) (Telescoping)
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mount
DESIGN & FINISH
- Lighting
- LED
- Material
- Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 6 in. Outlet, Charcoal filters (not included) are available for ductless/ recirculating options.
- Airflow (Q/L/M/H)
- 120/240/320/400CFM
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts and Lifetime Motor Warranty
