What's in this package
$102 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

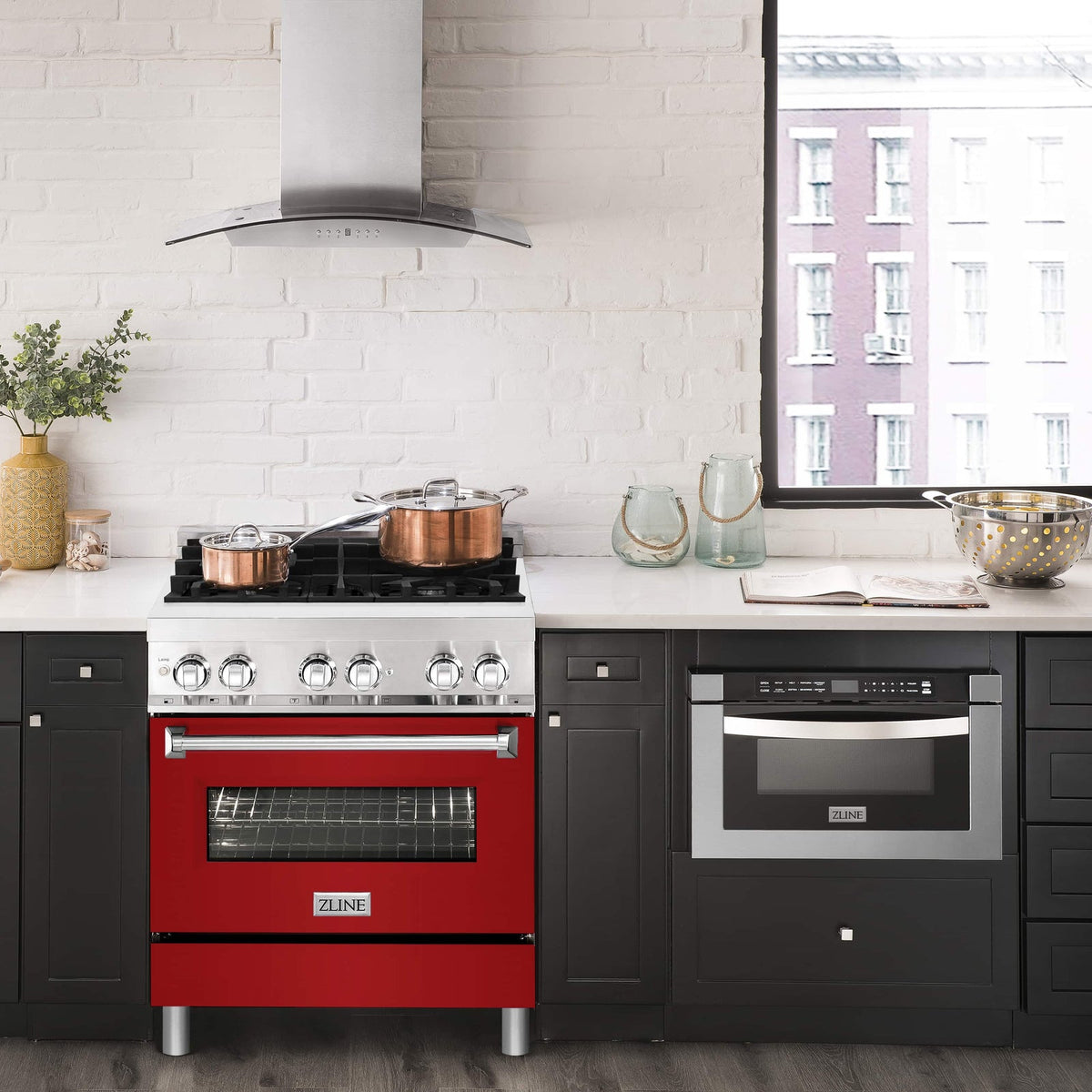

ZLINE's Professional 30 Inch Range is complete with a 4 burner gas cooktop for energy efficiency, temperature control, and even-cooking. The 4.0 cu. ft. of deep oven capacity provides a large cooking area that’s perfect for multiple dishes at once and easily handles large baking sheets, like an 18 Inch pizza.
*This product ships in multiple boxes and will require minimal assembly upon arrival.

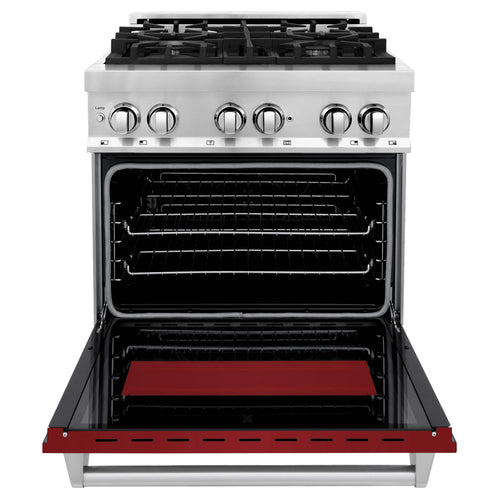

Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminium mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.

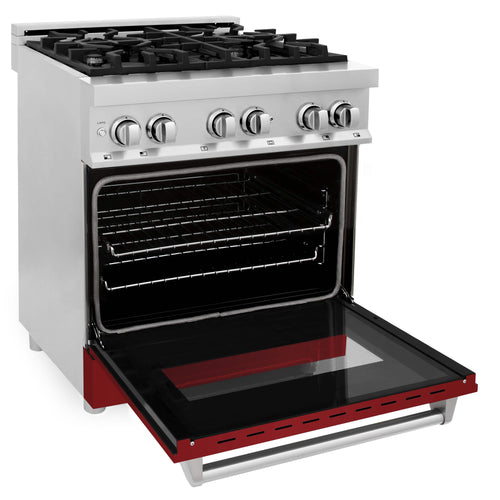

Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
-
Durable and effective, with a smooth action.

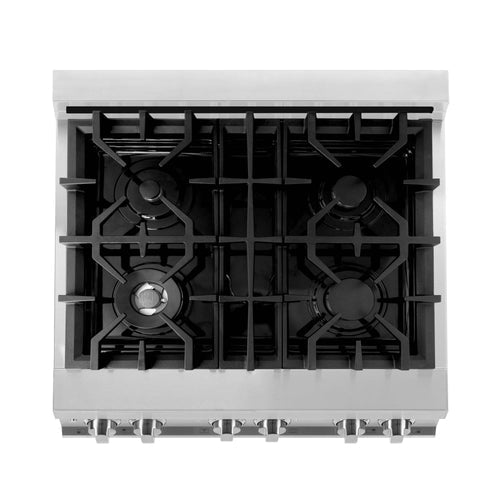

Enamel Cooktop
- Heavy Duty enamel one-piece cook top.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.
Cast Iron Grill
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.

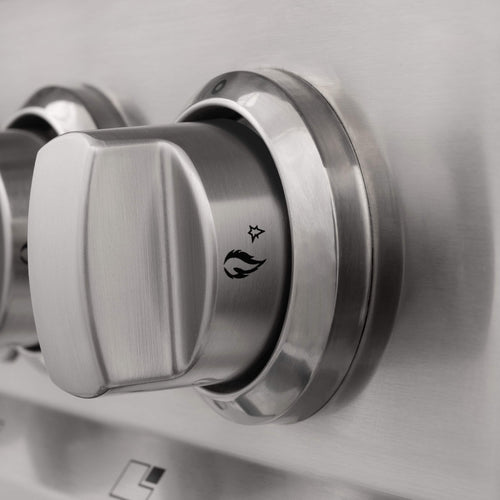

Stainless Steel Knobs
- Heavy duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5"

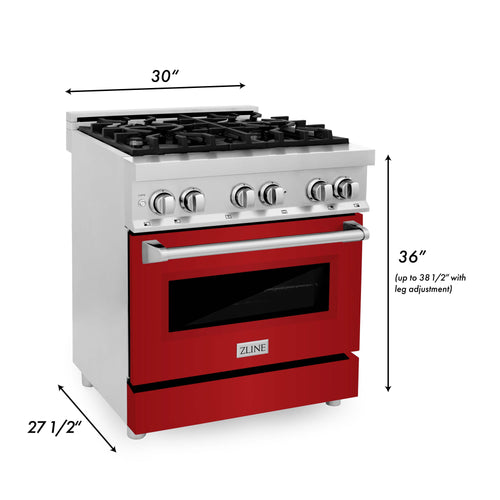

- Dimensions
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Weight
- 230 lbs
- Product Weight
- 230 lbs
- Brand
- ZLINE Kitchen and Bath
- Features
- ETL and UL Listed CSA Approved
- Color
- Red
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian-made burners
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Electric Oven
- Gas Cooktop
- Cooktop
- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner
- 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

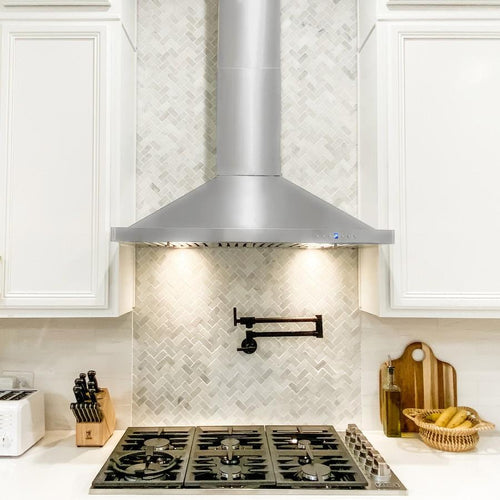

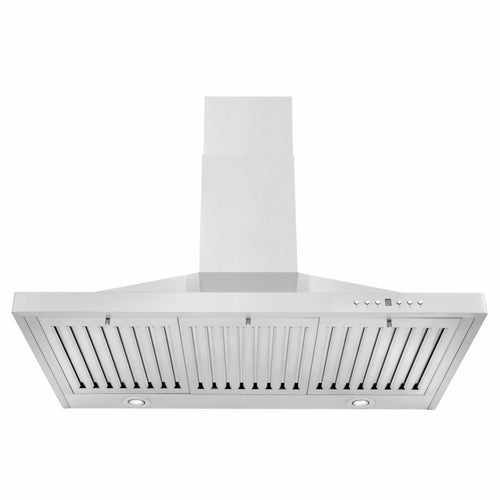

The ZLINE 30 in. Convertible Vent Wall Mount Range Hood in Stainless Steel (KB-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Features
- Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Stainless Steel Finish - A brushed 430 grade stainless steel exterior finish contains rust and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Convertible Range Hood - This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
- Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty

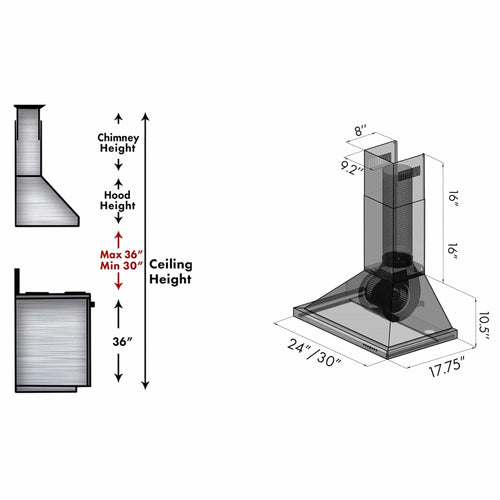

- Dimensions (W x D x H)
- 30 in. W x 18 in. D x 10.5 in. H
- Chimney
- 9.2 in. W x 8 in. D x 16 in. H (x2) (Telescoping)
- Min Ceiling Height
- 7 ft. 8.5 in.
- Max Ceiling Height
- 9 ft. 5.5 in.
- Brand
- ZLINE
- Model No.
- KB-30
- Size
- 30 in.
- Product Type
- Wall Mount Range Hood
- Collection
- Core
- Mount Type
- Wall Mount
- Remote Blower
- No
- Outdoor Approved
- No
- Recirculating
- Yes
- ADA Compliant
- No
- Color/Finish
- Brushed 430 Stainless Steel
- Material
- Brushed 430 Stainless Steel
- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
- Number of Lights
- 2
- Max CFM
- 400 CFM
- Airflow (Q/L/M/H)
- 120/240/320/400
- Motor
- High Performance 400 CFM/4-Speed Motor
- Number of Speeds
- 4
- Decibels
- 51/55/58/61
- Min Decibels
- 20
- Max Decibels
- 41
- Sones
- 0.6/1.1/1.5/2.5
- Min Sones
- 0.6
- Max Sones
- 2.5
- Duct Size
- 6 in.
- Watts
- 385W
- Voltage
- 110V
- Amps
- 3.5A
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
- Warranty
- 3-Year Parts, Lifetime Motor
- Certifications
- ETL Listed
