What's in this package
$400.04 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Experience Attainable Luxury with the ZLINE Dual Fuel Professional Range. Combining both professional aesthetics and functionality, this range provides the ultimate luxury experience for a fraction of the cost. Customize to your style with easily interchangeable colored panel range doors.
Go bold with gloss red or bullet blue, or bring a pop of elegance in the kitchen with crisp white or matte black. Achieve optimal results with cooktop cooking power from 4,200 up to 18,000 BTUs provided with sealed burners. Rely on precise and even heating for every homemade dish with an electric convection oven. Enjoy an ultra-deep oven capacity with a three-layered insulated glass oven for efficient cooking every use. With upgraded premium features such as SmoothSlide ball-bearing oven racks, dual lighting, and adjustable legs, this range is certain to wow both the chef and guests alike.
Assembled with the highest quality materials on the market, this range offers a durable, scratch-resistant porcelain cooktop and ZLINE's exclusive single piece cast iron grill. Cook with ease with StayPut hinges, providing a safe baking environment to enjoy for years to come. ZLINE stands by the longevity and durability of their professional ranges, while ensuring further protection and peace of mind with a worry-free warranty. The ZLINE Dual Fuel Range ships next business day when in stock.
*This product ships in multiple boxes and will require minimal assembly upon arrival

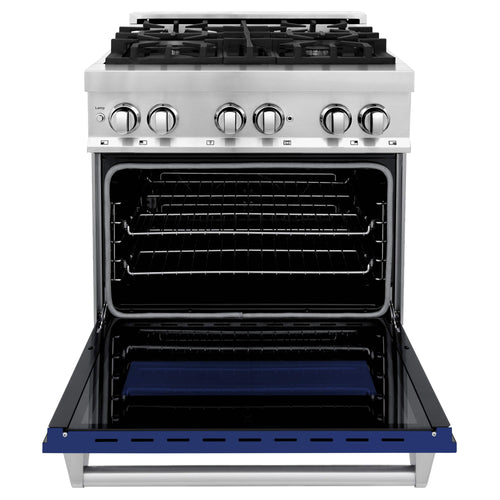

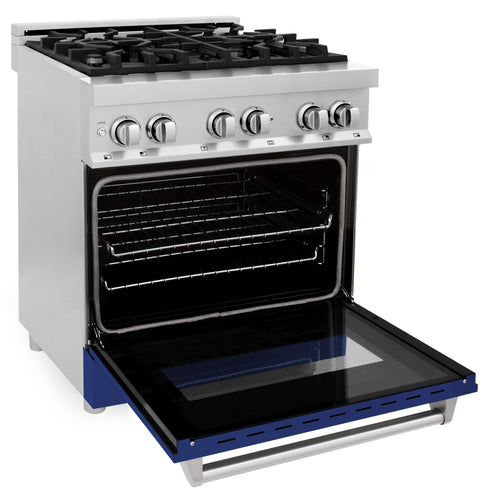

Three-Layer Glass Oven
- An oven with three layers of glass and dual lighting.
- Professional aluminum mesh seal for optimum insulation.
- Oven light controlled by light switch located on the front control panel.
- Crystal clear visibility to see inside your oven while cooking.
Stay-Put Hinges
- ZLINE's proprietary stay-put hinges.
- Designed to support full weight of oven door and stop at any place.
- Durable and effective, with a smooth action.
Enamel Cooktop
- Heavy Duty enamel one-piece cook top.
- 4 burners provide the perfect range of cooking power from 4,200 to 18,000 BTU's.
- One-piece cooktop allows for an easy to clean surface - no crevices that can hold residue.
- No-scratch enamel designed to handle every cooking environment.Cast Iron Grill
Cast Iron Grill
- Solid-piece cast iron grill - heavy duty and built to last.
- Extremely durable, with an exceptional strength-to-weight ratio.
Italian Burners
- Handcrafted, high-quality Italian Burners imported directly from Italy.
- Premium alloy to ensure efficient and clean-burning flames.
- Durable and easy to clean. Italian burners easily detach for a simple clean.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Stainless Steel Knobs
- Heavy duty stainless steel knob controls with smooth action turn.
- 5 oven settings.
Adjustable Legs
- ZLINE ranges feature stainless steel, easy-to-install, adjustable legs.
- Twist legs to adjust total range height anywhere from 36" to 38.5".

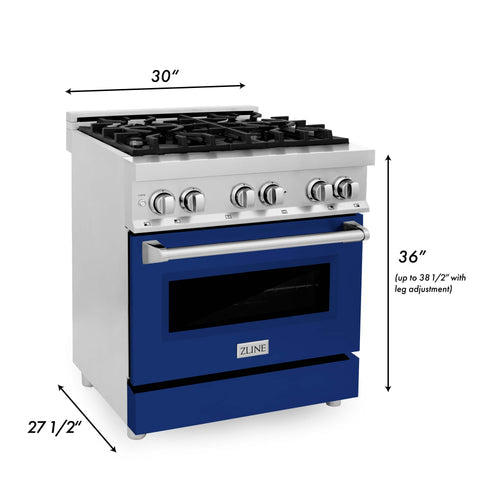

- Dimension
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- 24.88" W x 17.75" D x 16" H
- Weight
- 230 lbs
- Product Weight
- 230lbs
- Brand
- ZLINE Kitchen and Bath
- Features
- ETL and UL Listed CSA Approved
- Color
- Blue
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian-made burners
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Electric Oven - Gas Cooktop
- Cooktop
- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner - 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

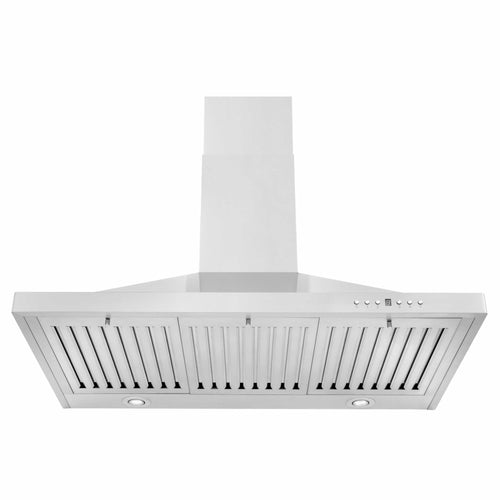

The ZLINE 30 in. Convertible Vent Wall Mount Range Hood in Stainless Steel (KB-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Features
- Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Stainless Steel Finish - A brushed 430 grade stainless steel exterior finish contains rust and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Convertible Range Hood - This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors
- Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty


- Dimensions
- 30" W x 17.7" D x 10.5" H
- Chimney Dimensions
- 9.2 in. W x 8 in. D x 16 H (x2) (Telescoping)
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mount
- Lighting
- LED
- Material
- Stainless Steel
- Venting Size
- 6 in. Outlet, Charcoal filters (not included) are available for ductless/ recirculating options.
- Airflow (Q/L/M/H)
- 120/240/320/400CFM
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts and Lifetime Motor Warranty
