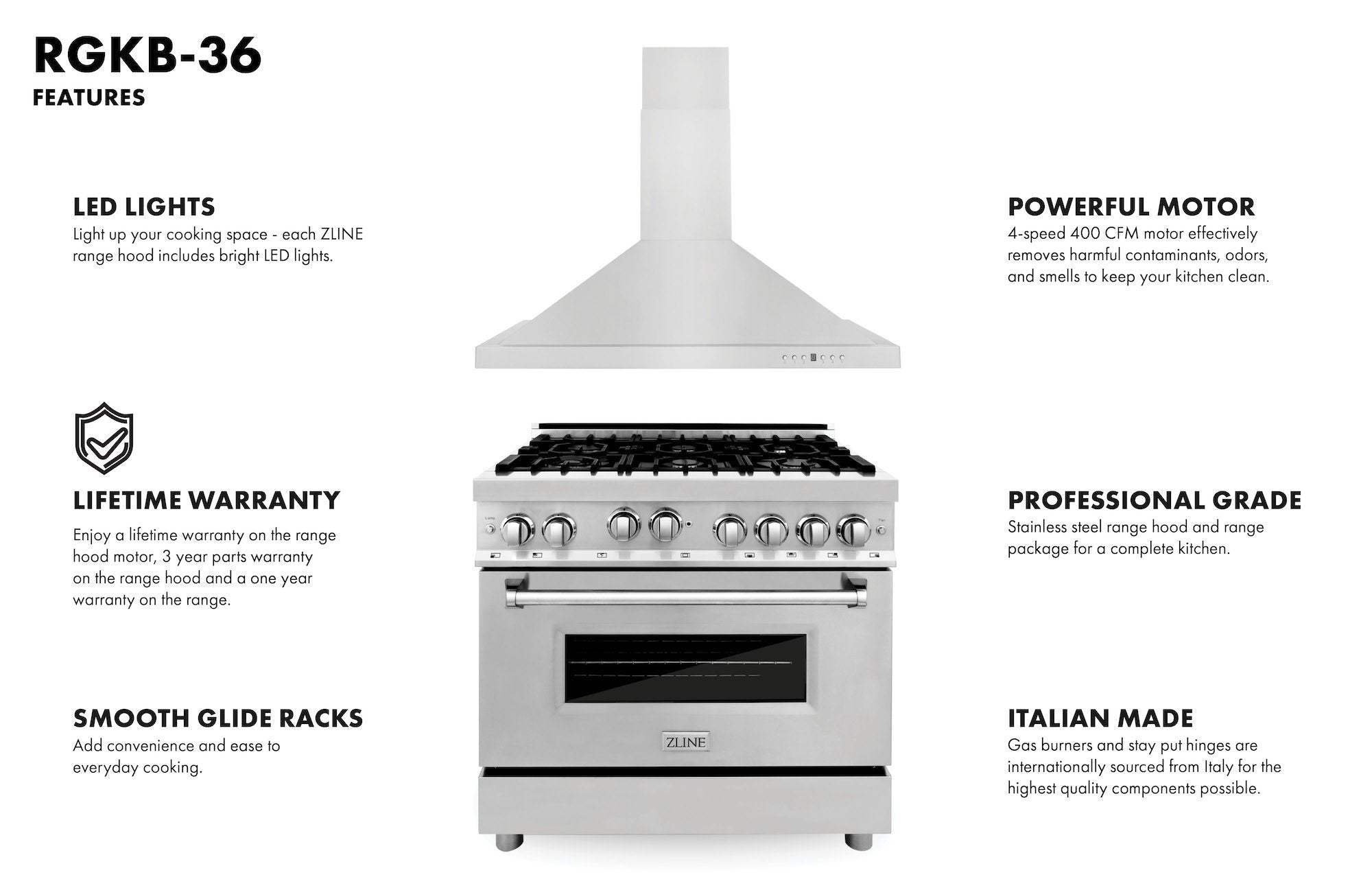

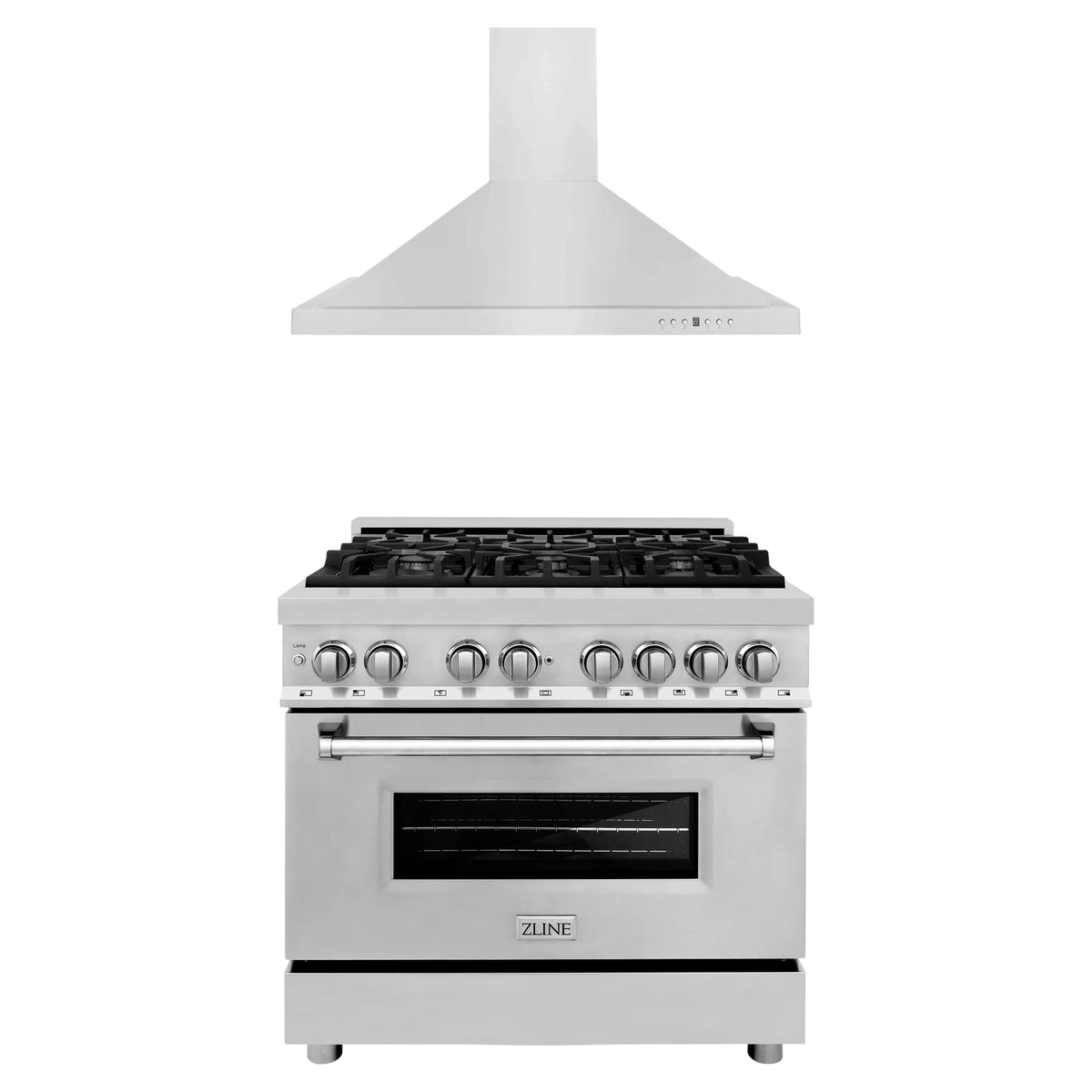

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

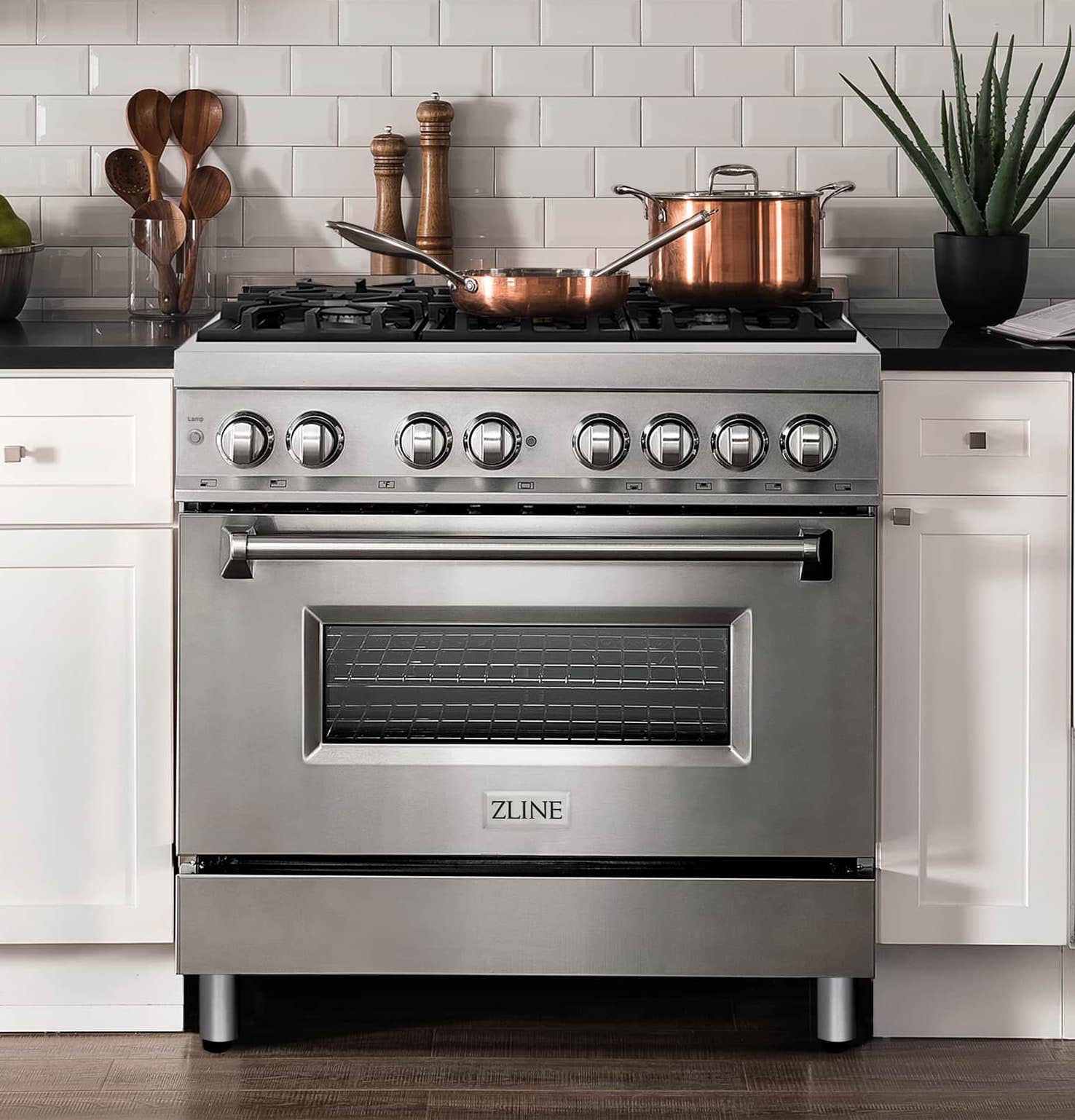

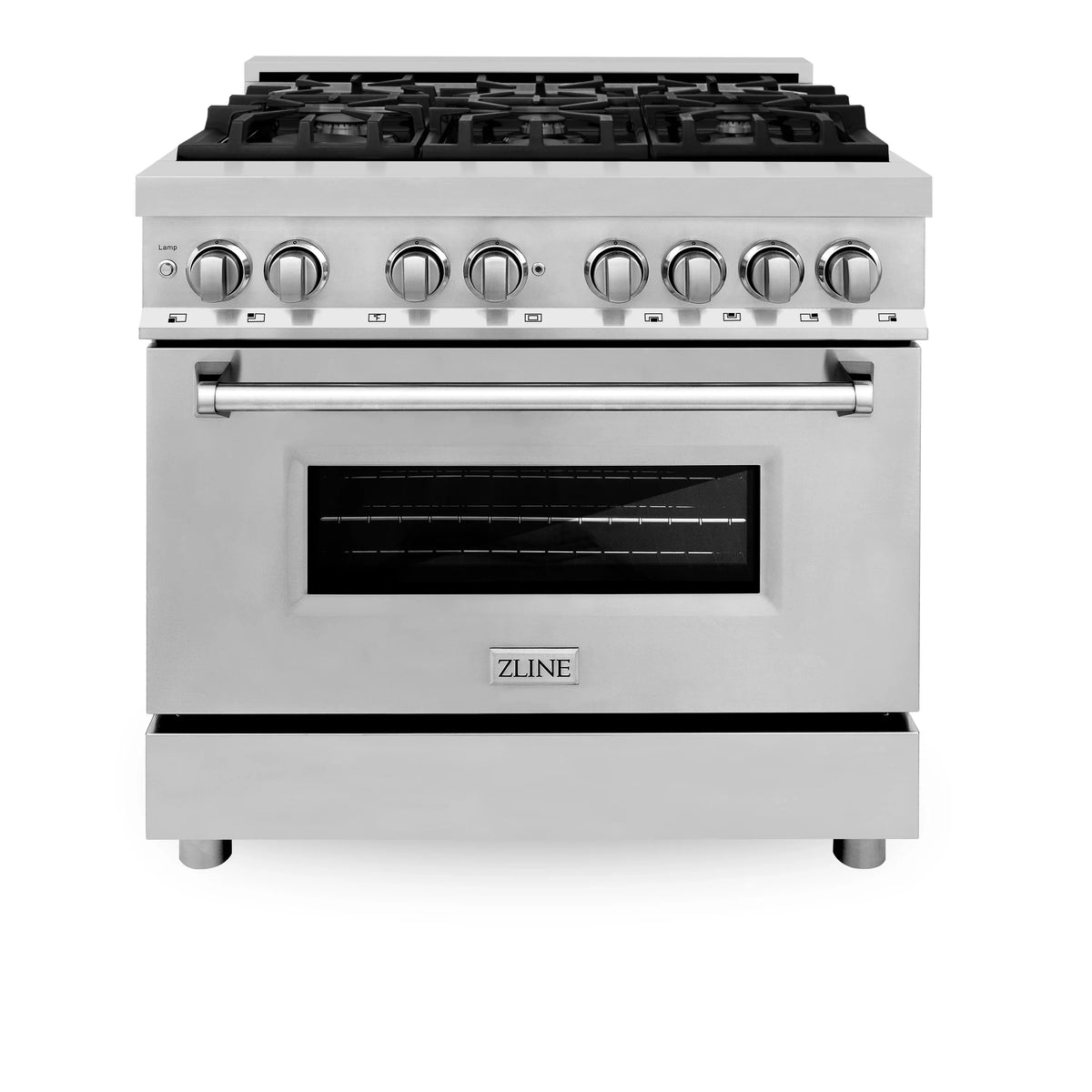

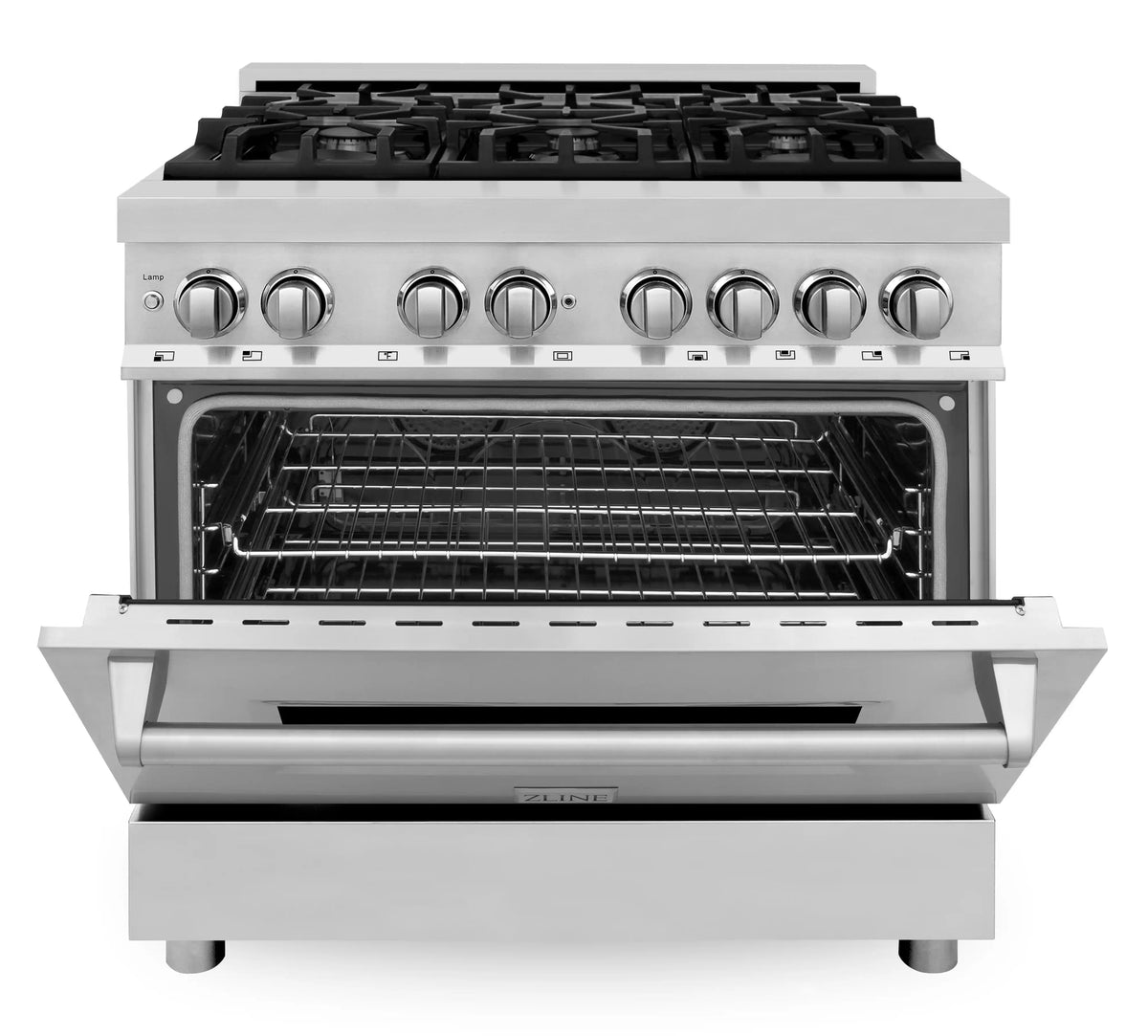

The ZLINE 36 in. 4.6 cu. ft. Legacy Dual Fuel Range with 6 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel (RA36) pairs a powerful gas cooktop with 6 Italian-crafted burners and an electric convection oven with a Landscape oven door window design. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
Features:
- ZLINE Legacy Series - The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Professional Dual Fuel Cooking - Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven
- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 6 hand-cast burners with 1,000 - 18,000 BTUs of cooking power
- Landscape Oven Window - ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity - A 4.6 cu. ft oven fits pans up to 27 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation - Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
- Adjustable Range Height - Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- Stunning Stainless Steel - Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards

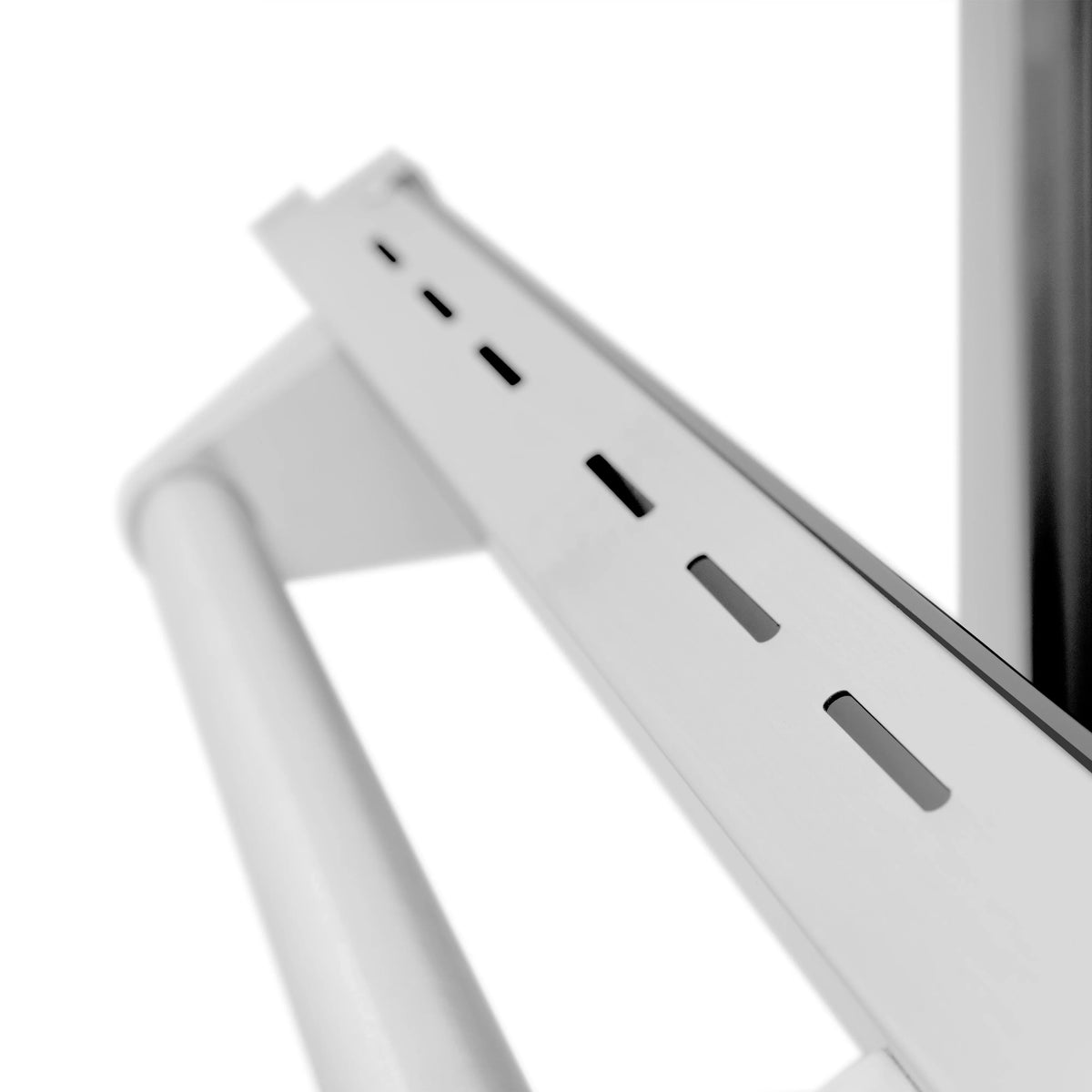

- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Electrical Requirements - Requires a dedicated 240V, 60Hz, 15-amp circuit with a NEMA 14-50 4-wire plug system

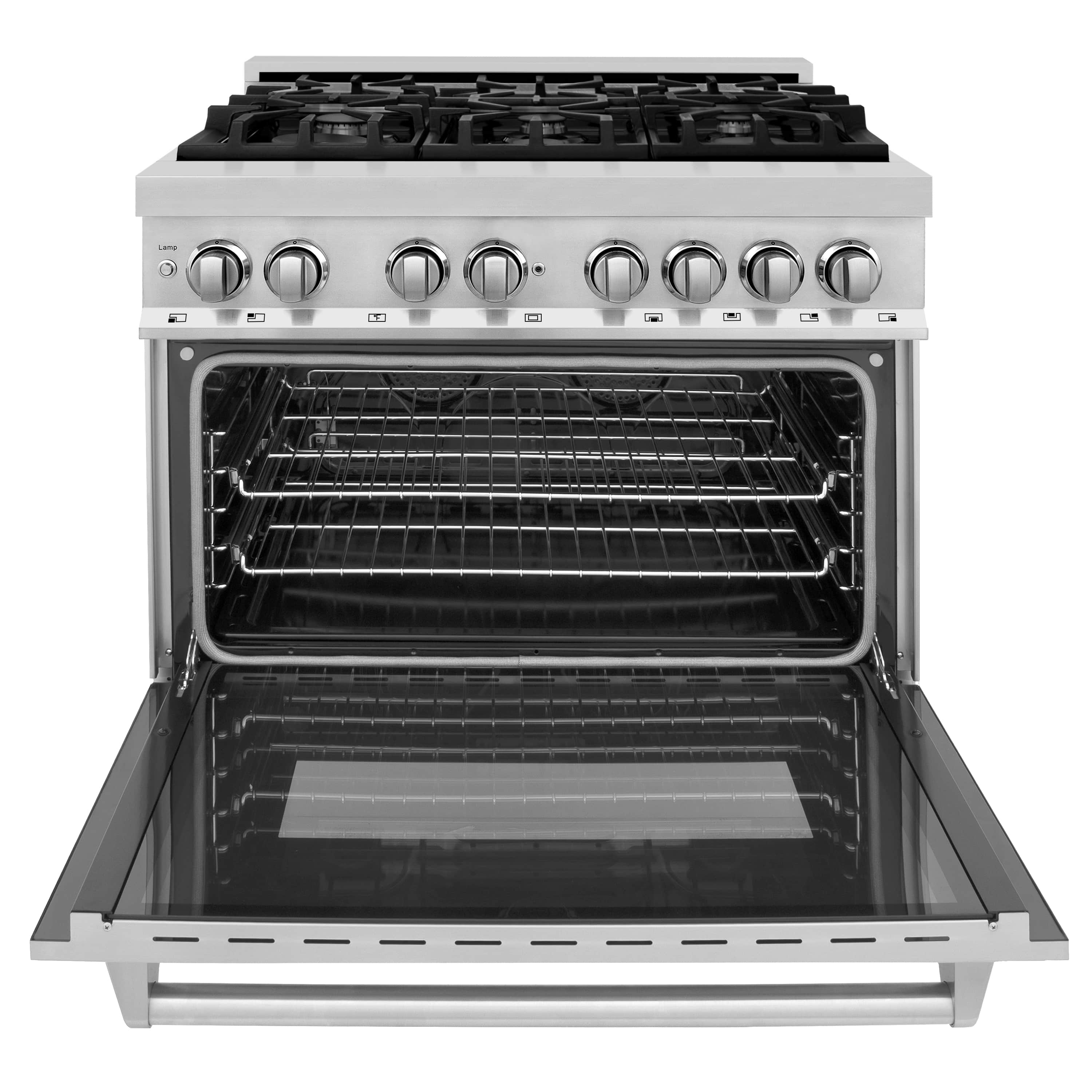

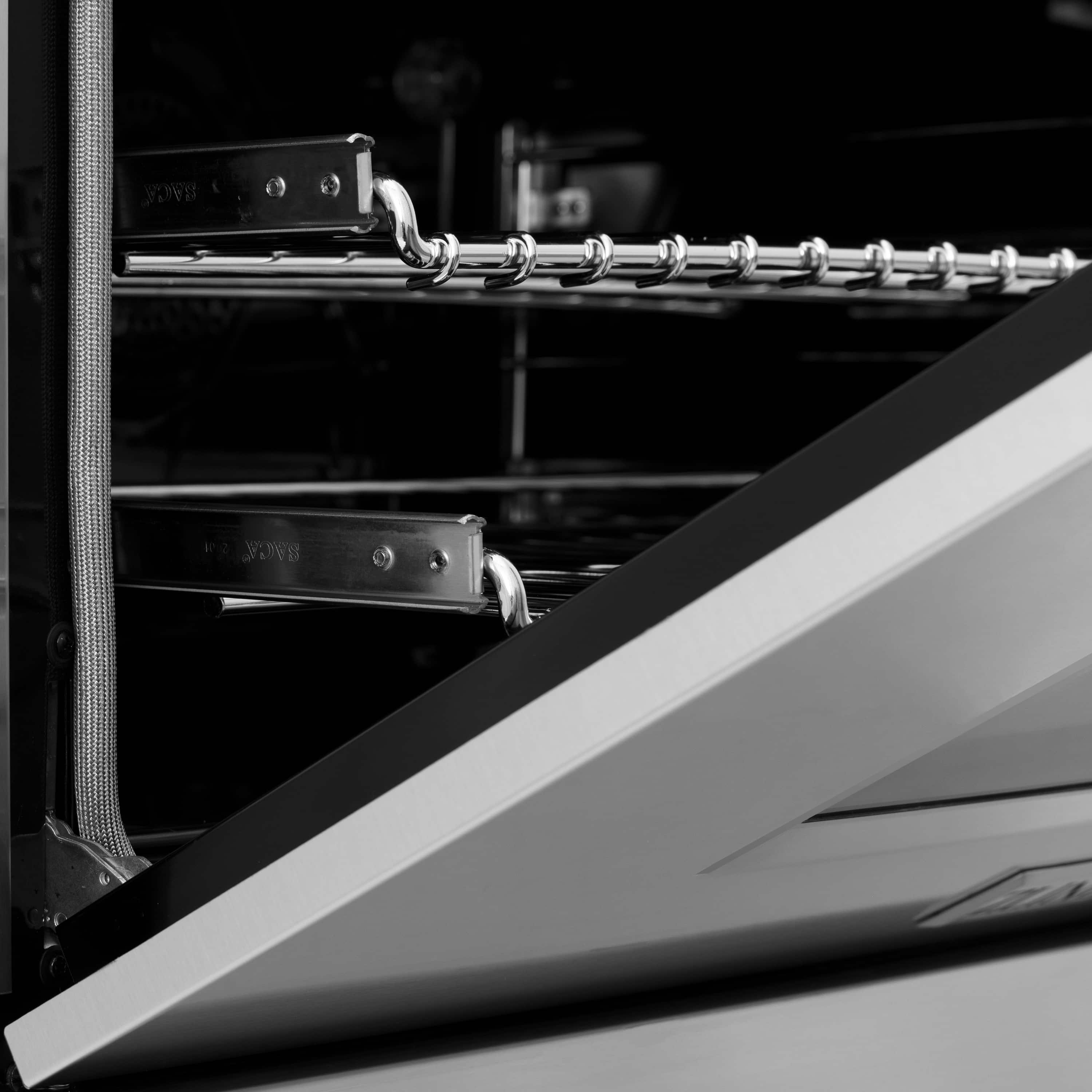

- Smooth Glide Ball-Bearing Oven Racks - 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Dual Oven Lights - Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1-year parts and service warranty

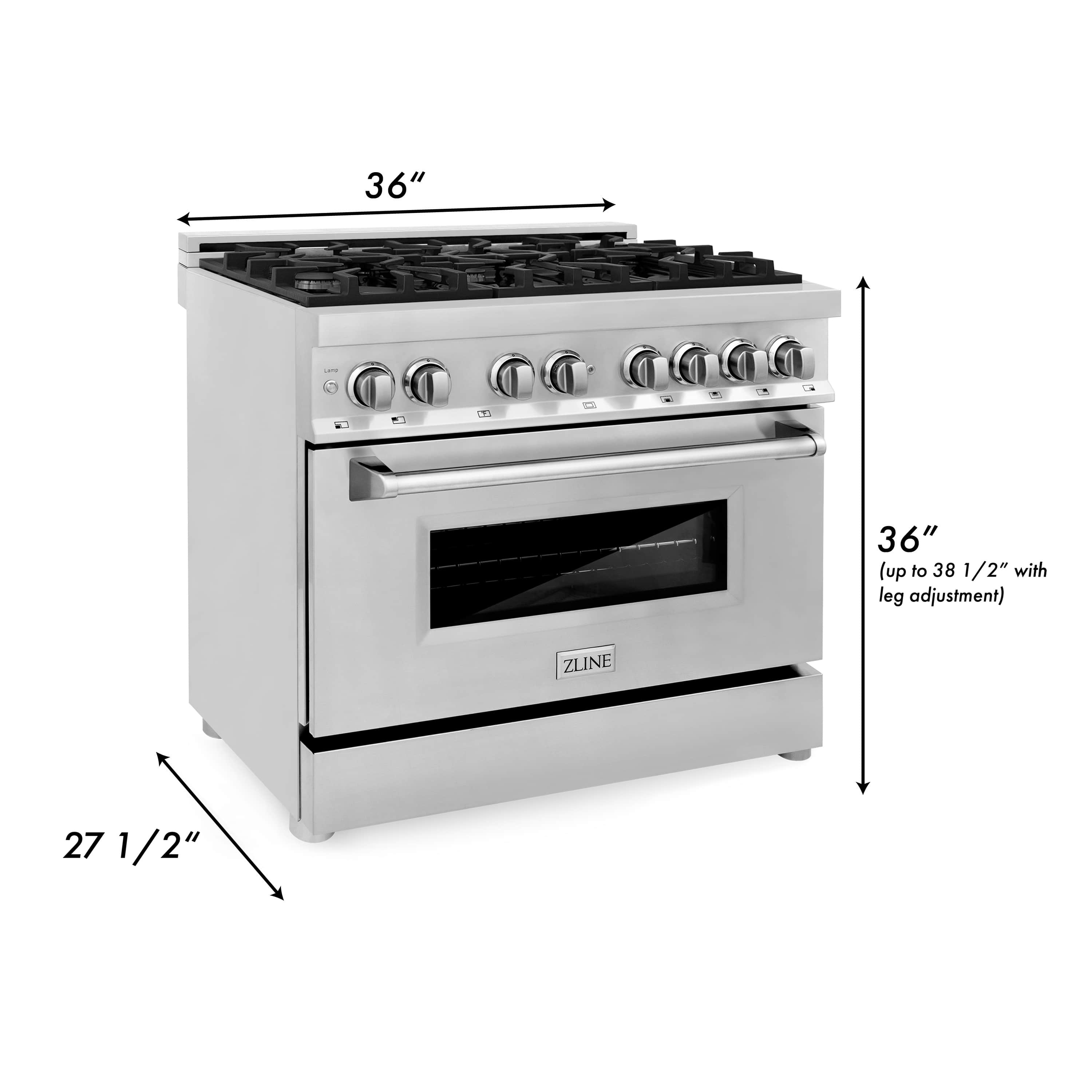

- Dimension
- 35.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 35.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Oven Dimensions
- Oven Dimensions: 30.5 in. W x 18.5 in. D x 14 in. H
- Product Weight
- 253lbs
- Features
- Manufactured by ZLINE Kitchen and Bath
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type
- Durable Front Control
- Material
- - Stainless Steel frame with Porcelain Top - Italian-made hinges and burners
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. An LP conversion kit is included - this conversion process must be done by a professional
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Fuel Type
- Electric Convection Oven - Gas Cooktop
- Cooktop

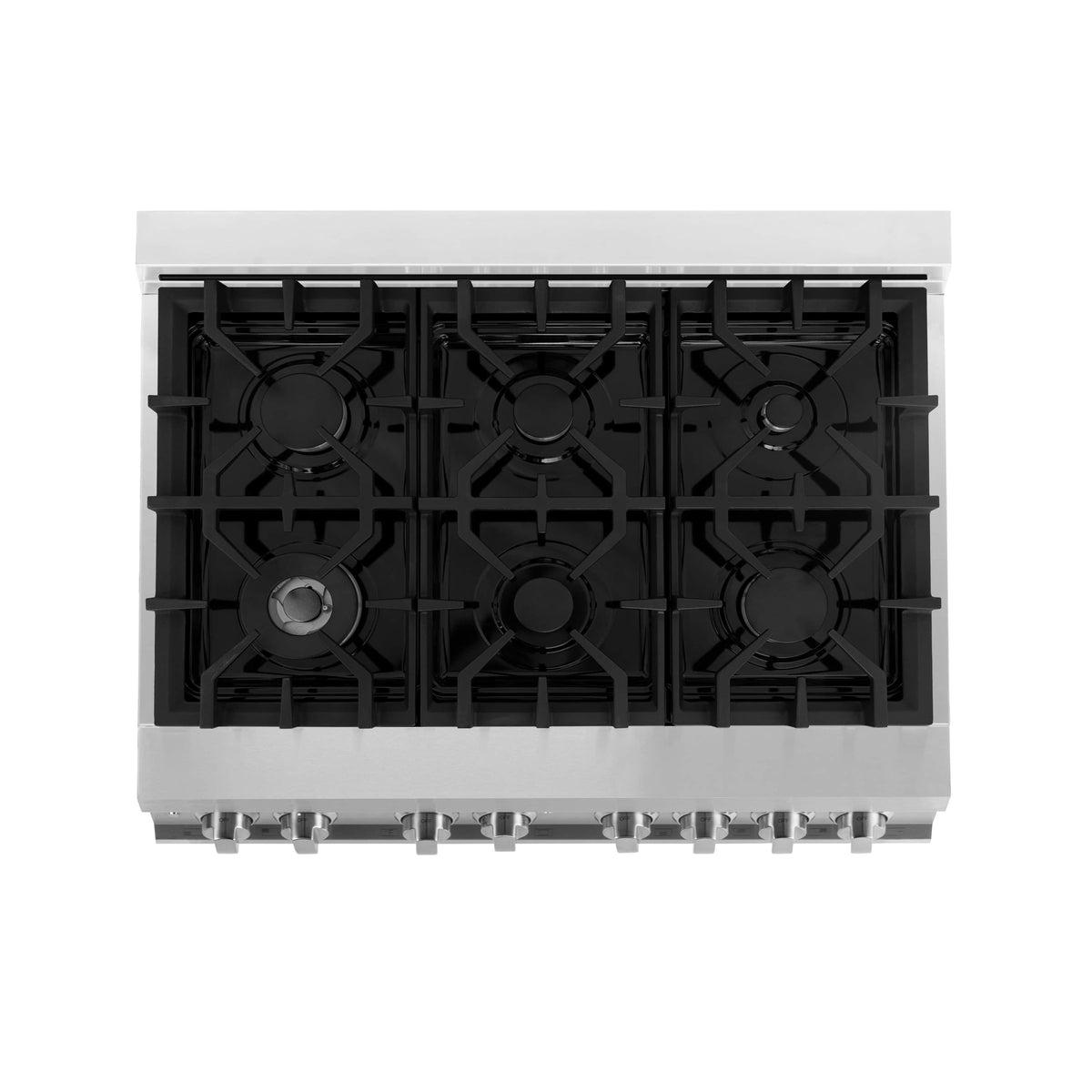

- (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner
- 18,000 BTU Rapid Burner (x2) - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU
- Oven
- Manual Clean Convection Electric 4.6 cu. ft. deep oven Triple Glass Window Dual Lighting Professional Aluminum Mesh Seal
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

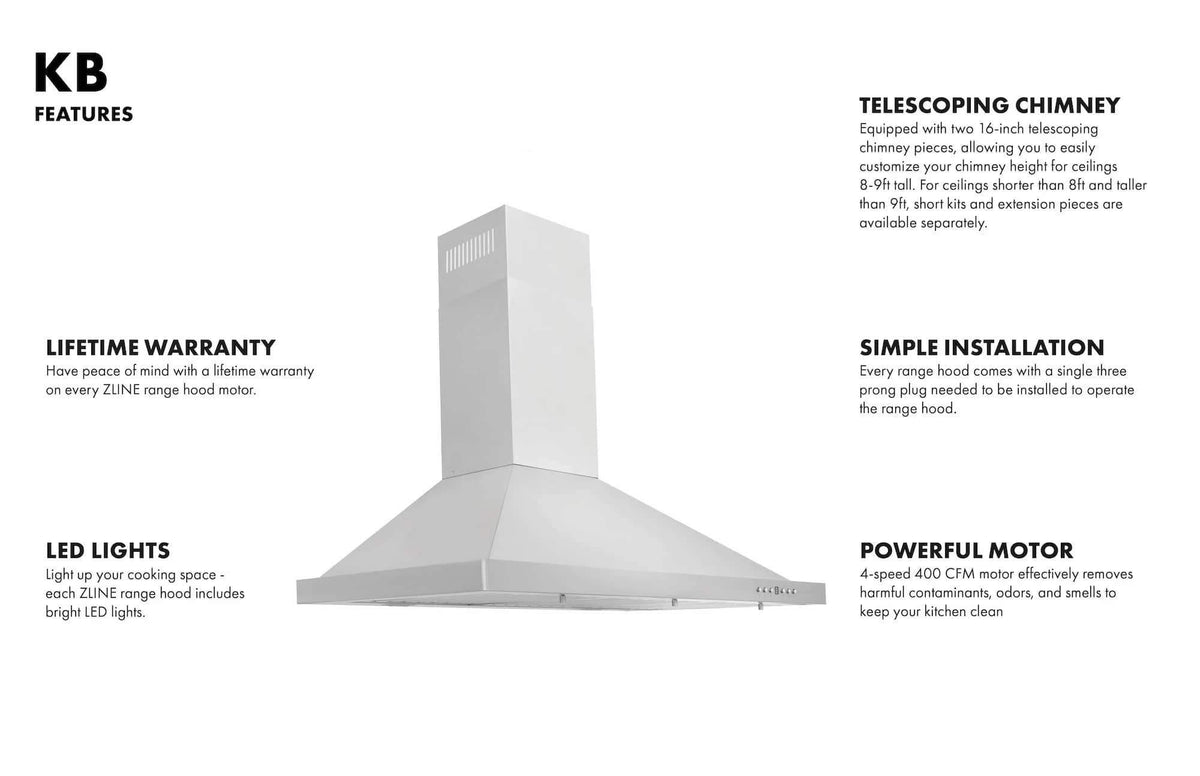

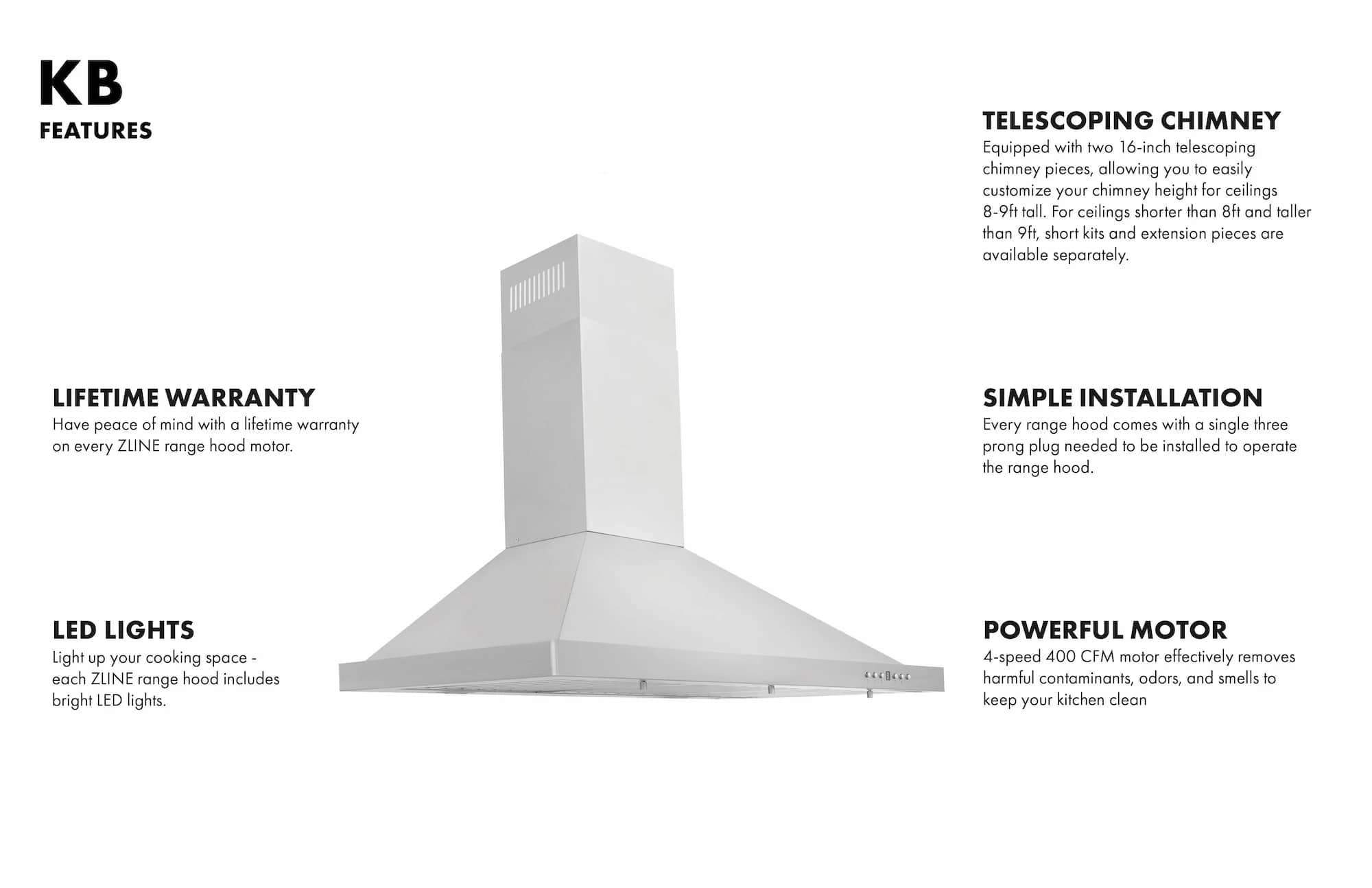

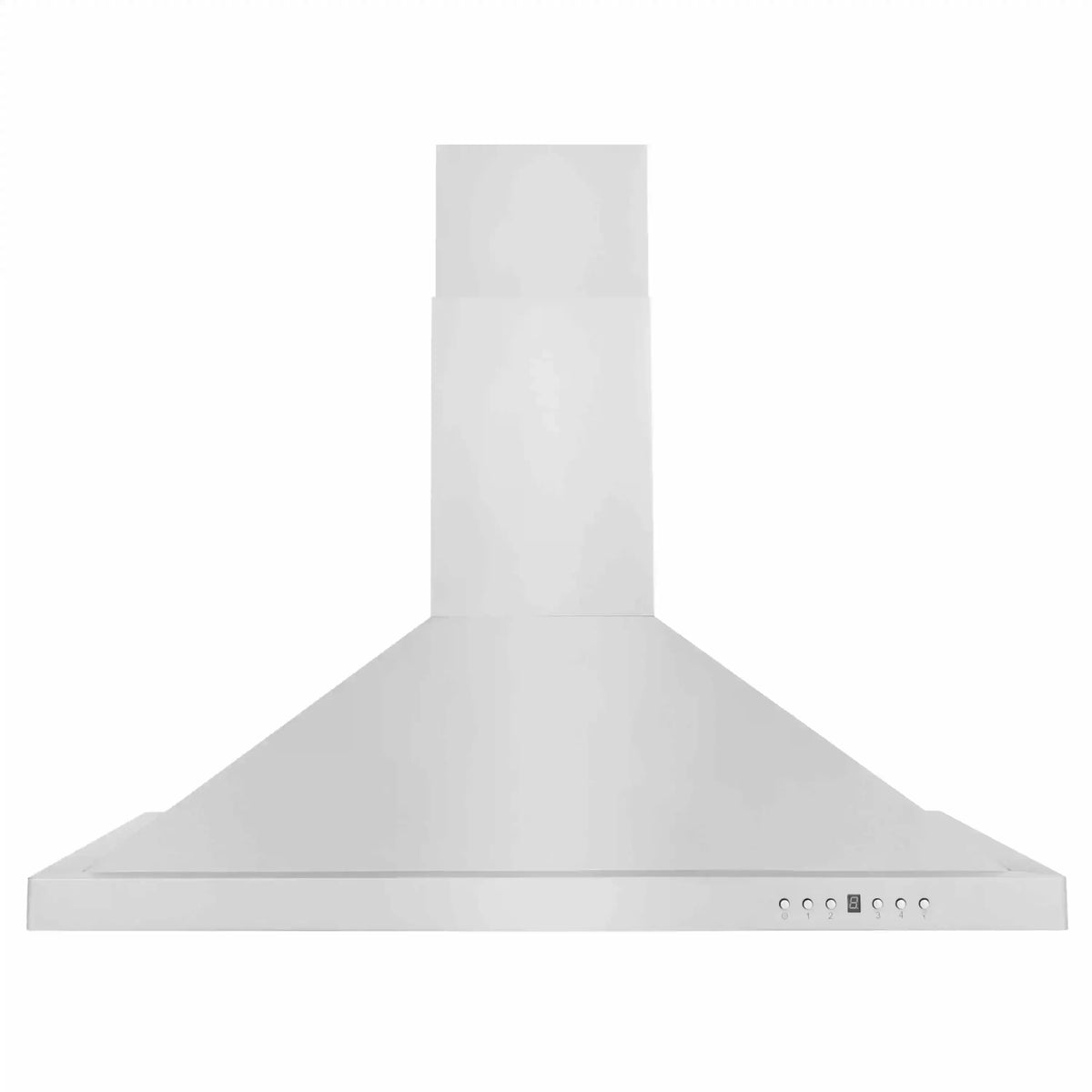

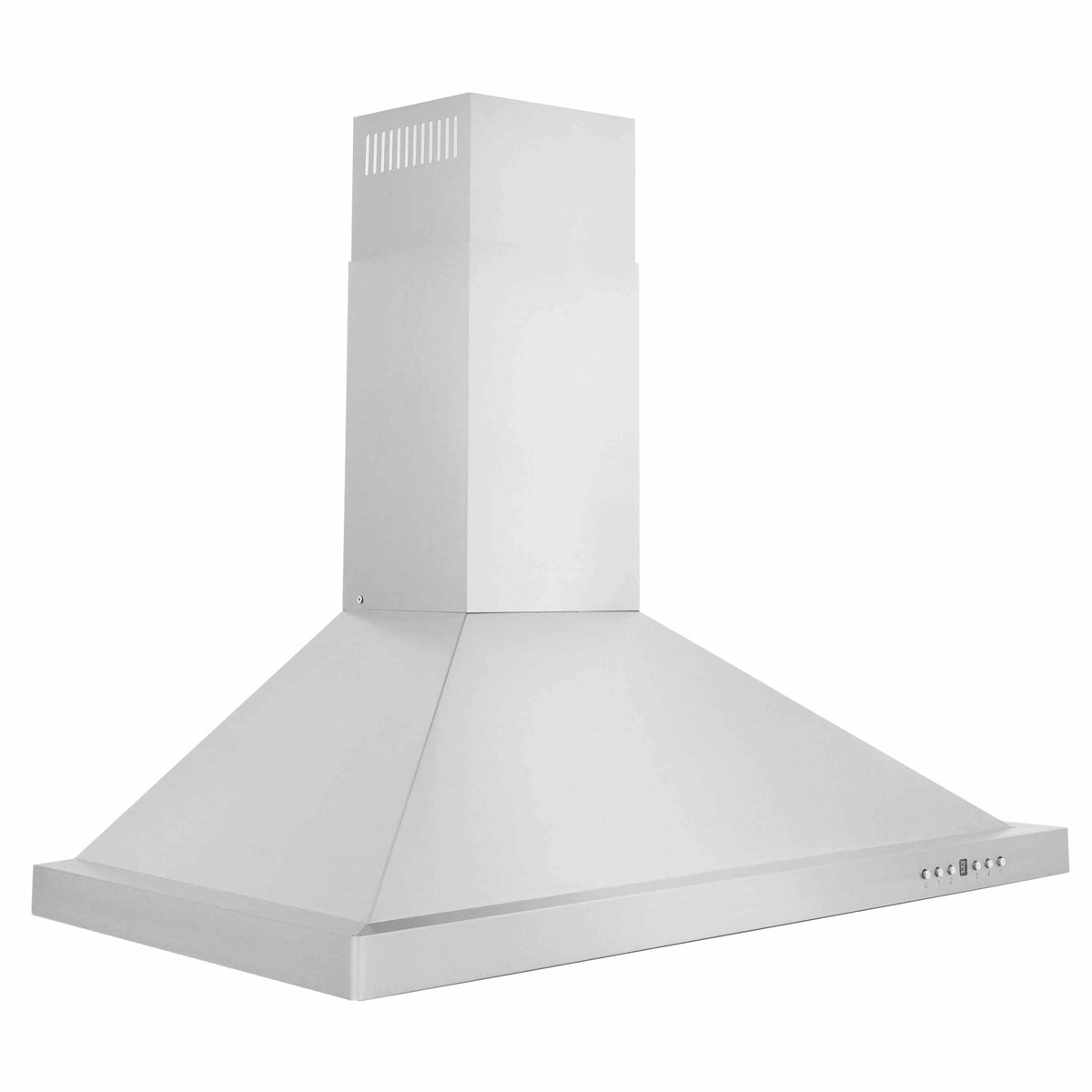

The ZLINE KB-36 is a 36-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- High performance 4-speed motor with speeds up to 400 CFM

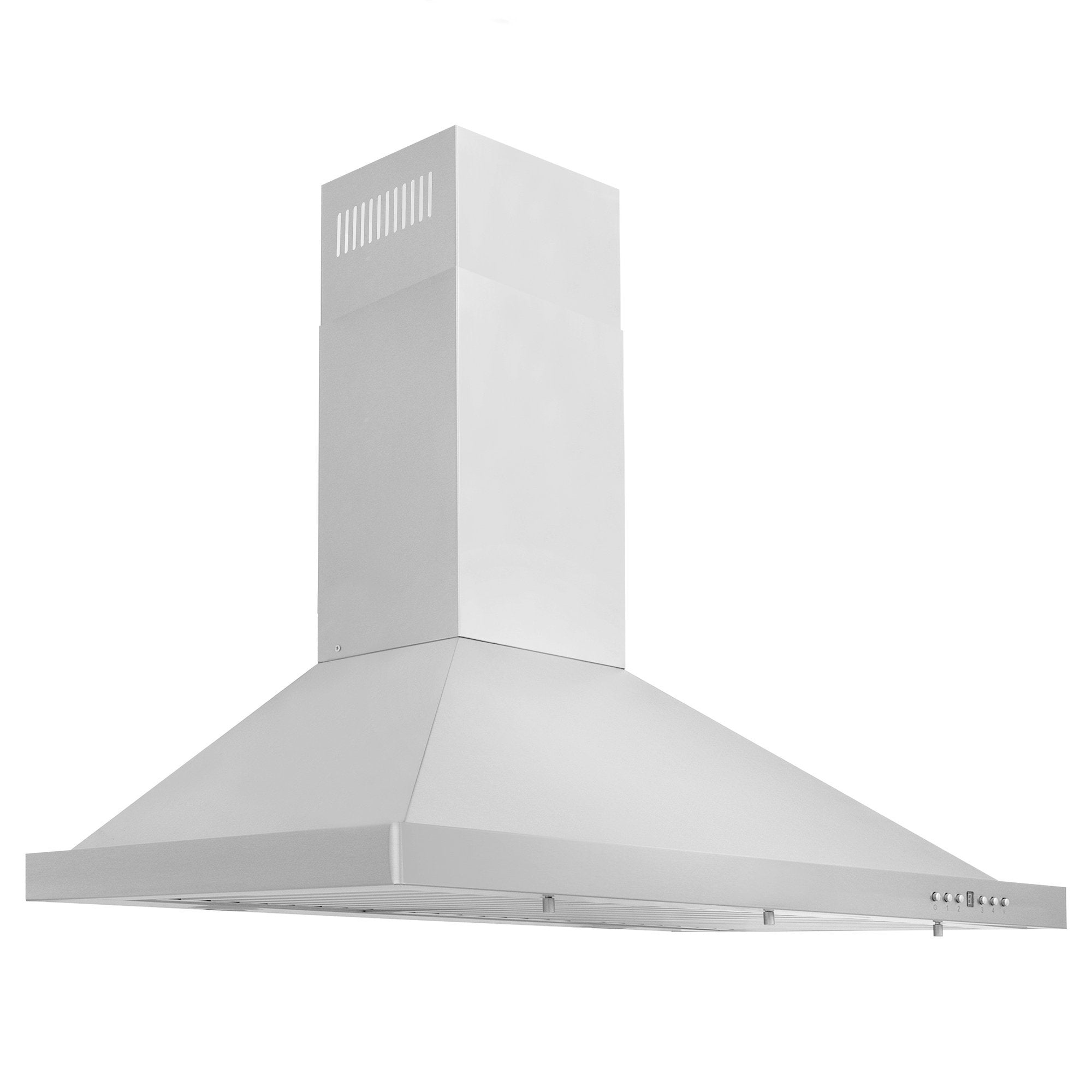

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-36 ships next business day when in stock.

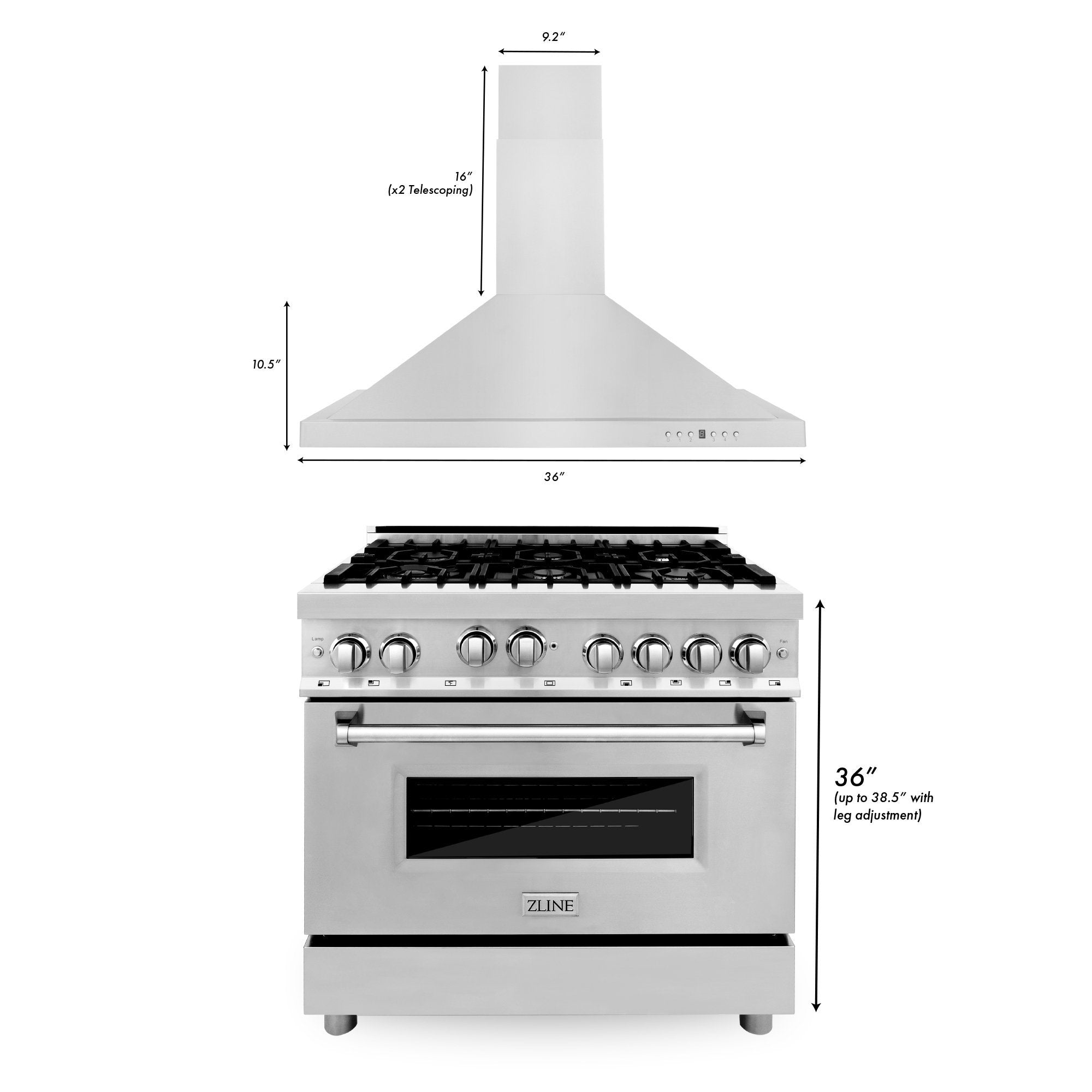

- Dimension
- 36" W x 19.7" D x 10.5" H
- Chimney (Dimension)
- 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings
- Mount Type
- Wall Mounted
- Control Type

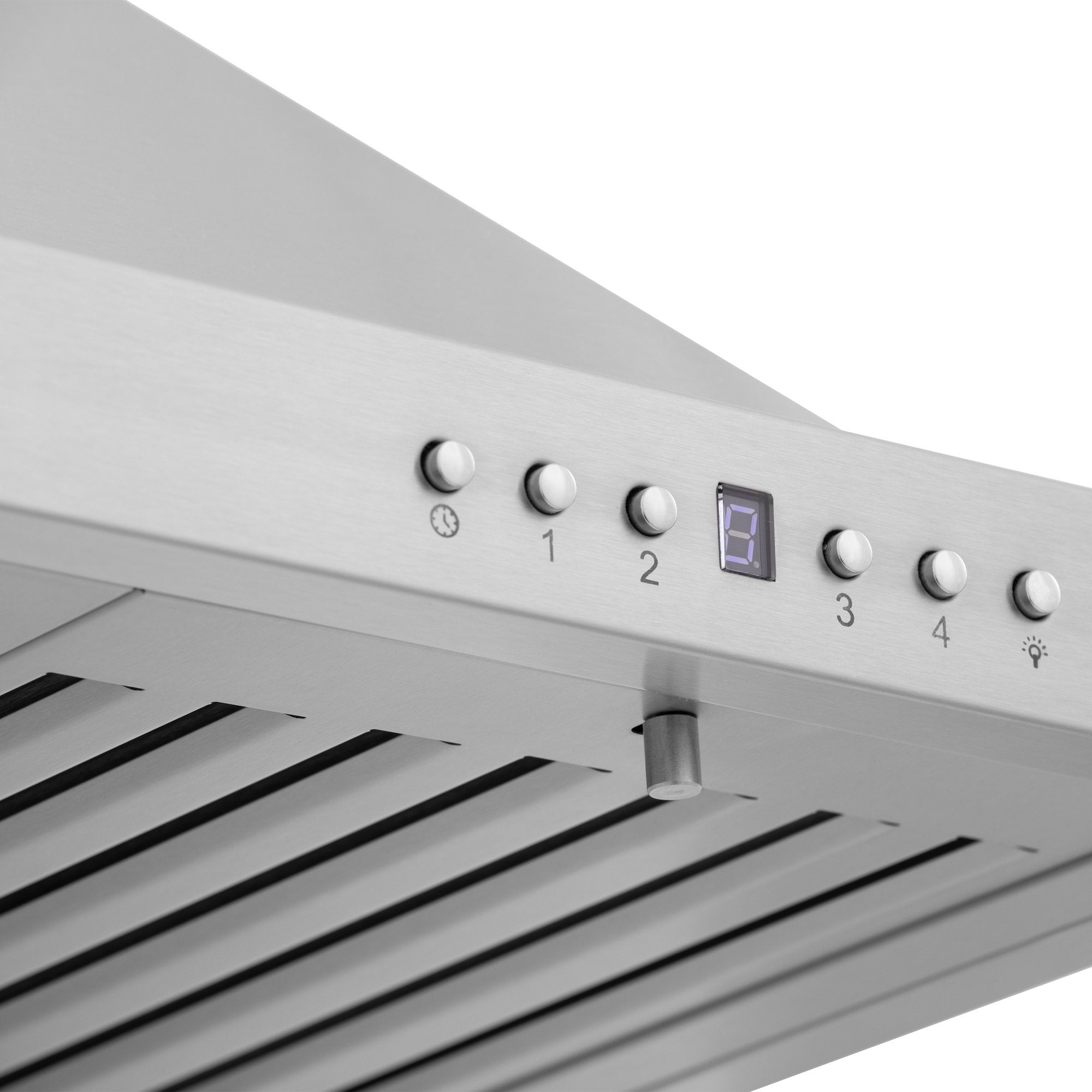

- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
- Material
- 21g #430 Stainless Steel
- Venting Size
- 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option.
- Airflow (Q/L/M/H)
- 120/240/320/400
- Noise Level
- 20/29/34/41
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4 Speeds
- Lighting

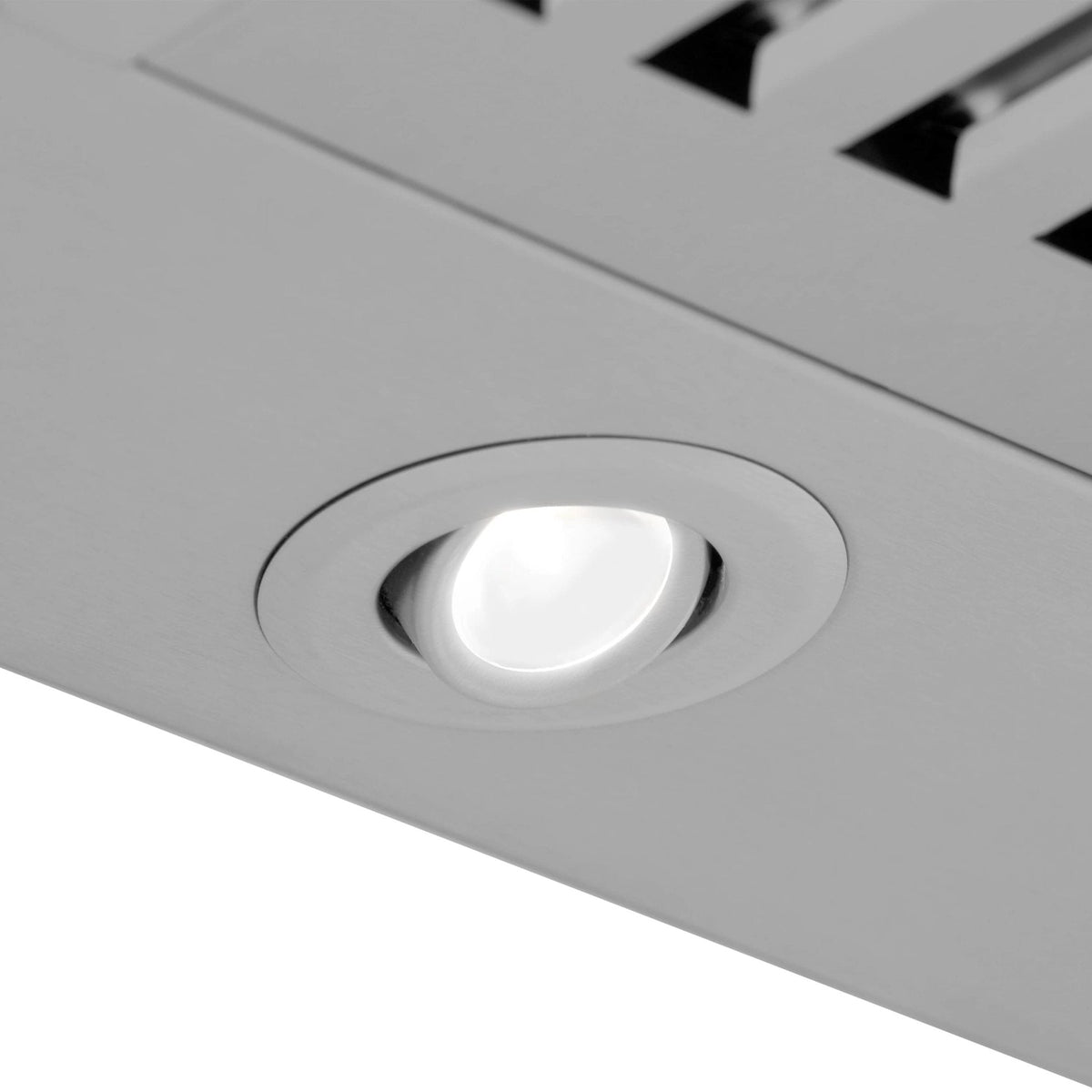

- 2 Directional LED Lights (3-Watt)
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Features
- Model No. KB-36 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL***
- Warranty
- 3 Year Parts Warranty
- Certifications
- ETL Certified
