Description

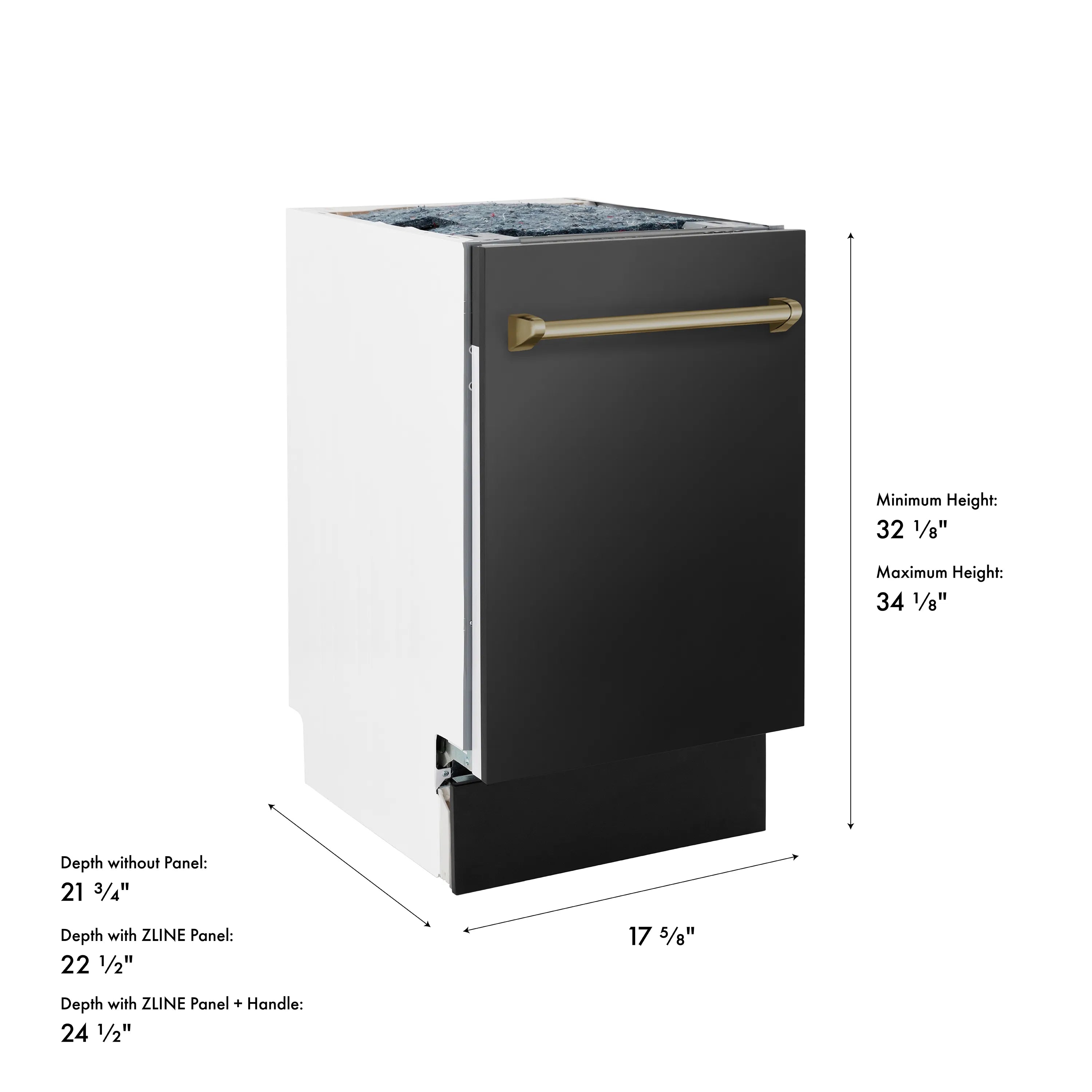

DIMENSIONS
- Size
- 18 in.
- Dimensions
- 17.6" W x 22.4" D x 32.25" H
- Product Weight
- 83.2 lbs
- Cut-Out Height
- 32.5 in.
- Cut-Out Width
- 18 in.
- Interior Dimensions
- 15.04" W x 20.5" D x 24.17"H
- Max Plate Height
- 12 in.
GENERAL INFORMATION
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
DESIGN & FINISH
- Panel Finish
- Black Stainless Steel

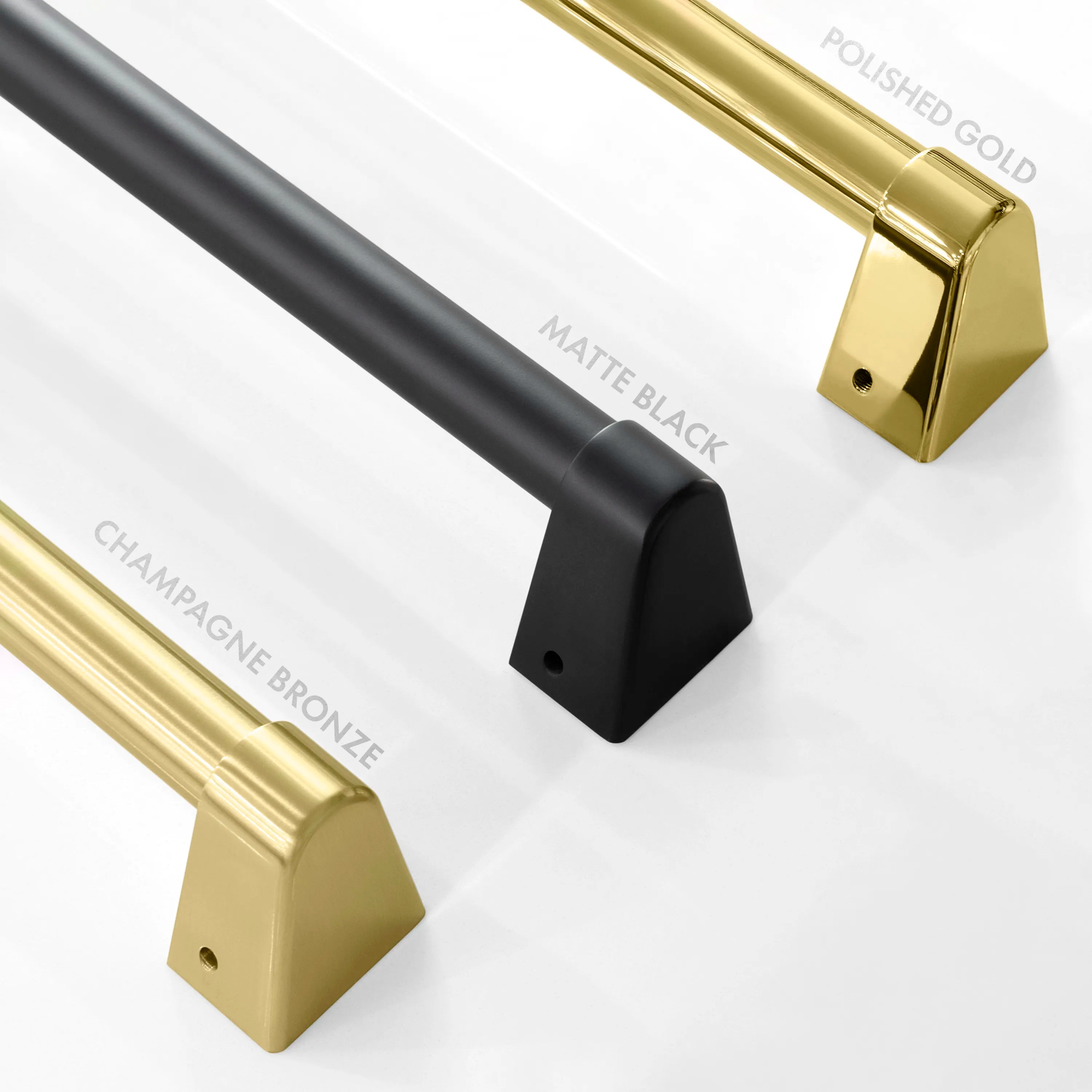

- Handle Finish
- Champagne Bronze
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
TECHNICAL DETAILS
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
FEATURES
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features

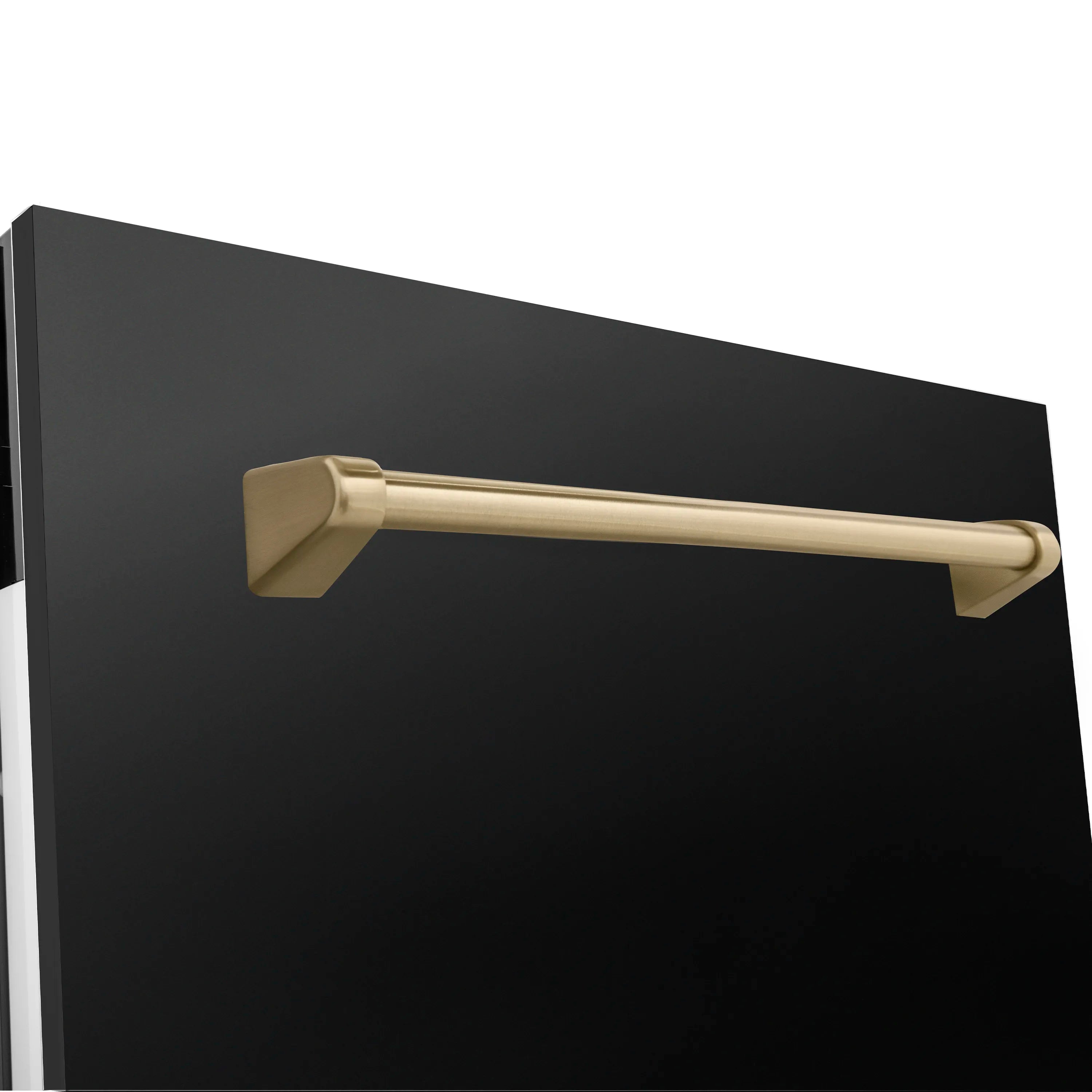

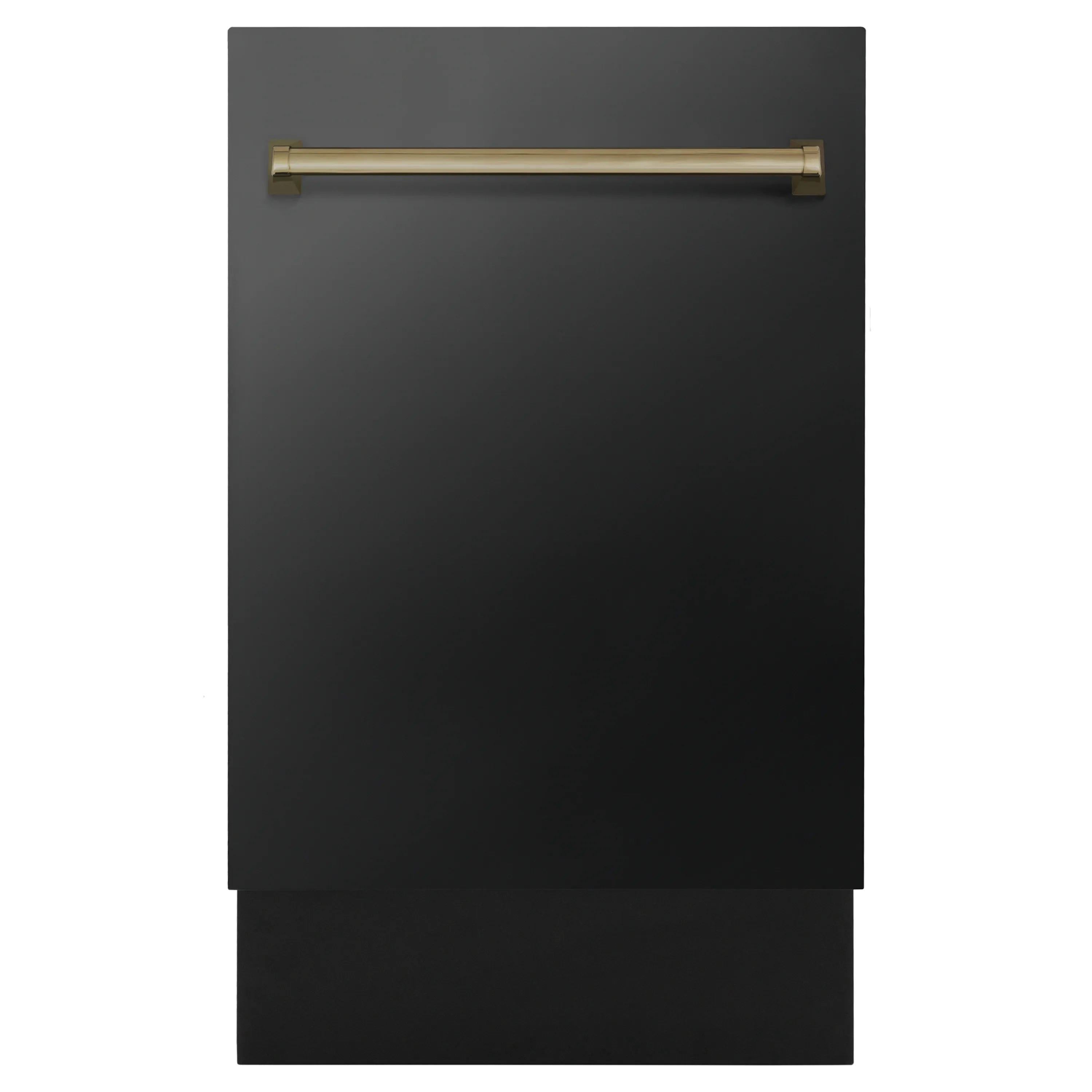

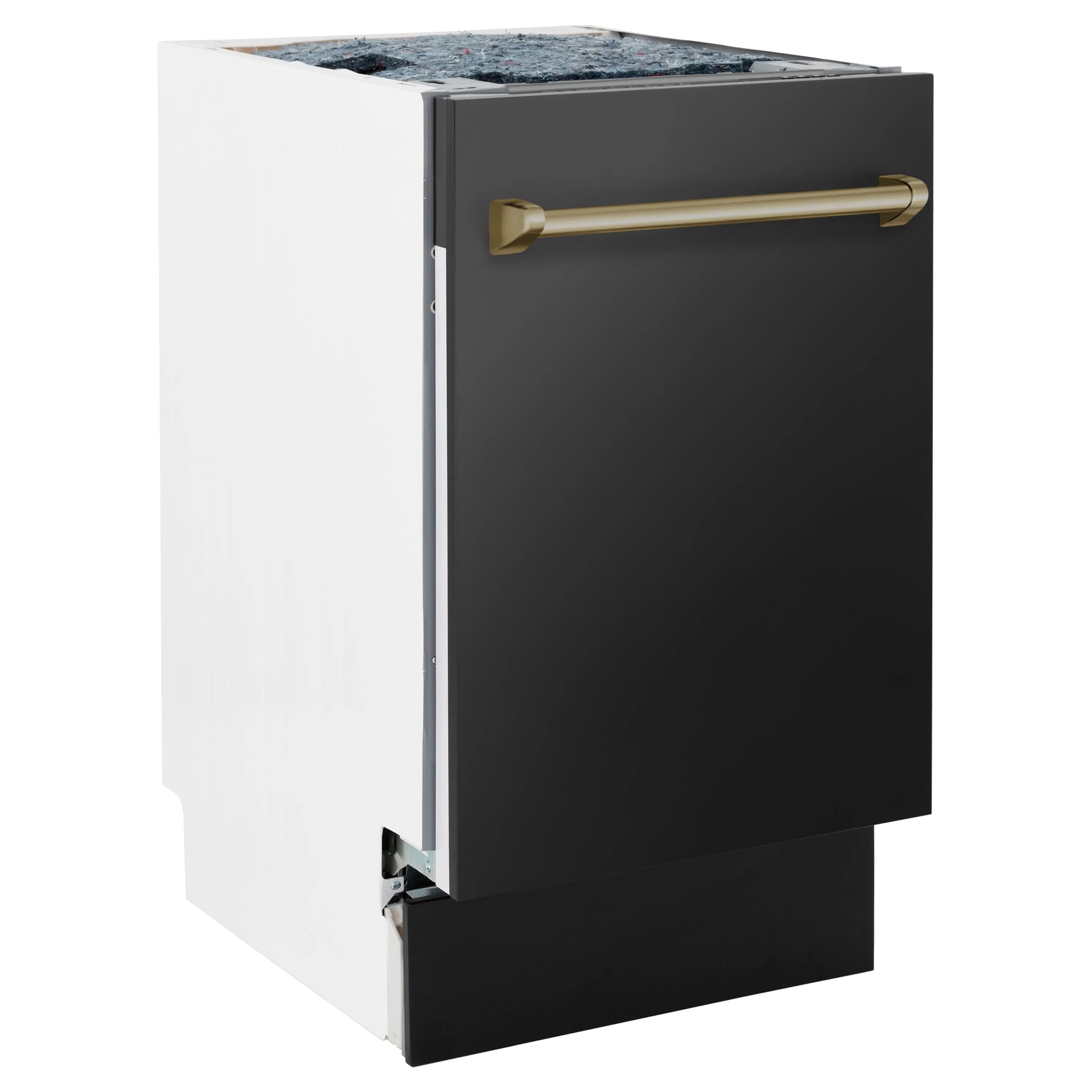

- Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Champagne Bronze handle paired with a beautiful black stainless steel door panel
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.2 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation

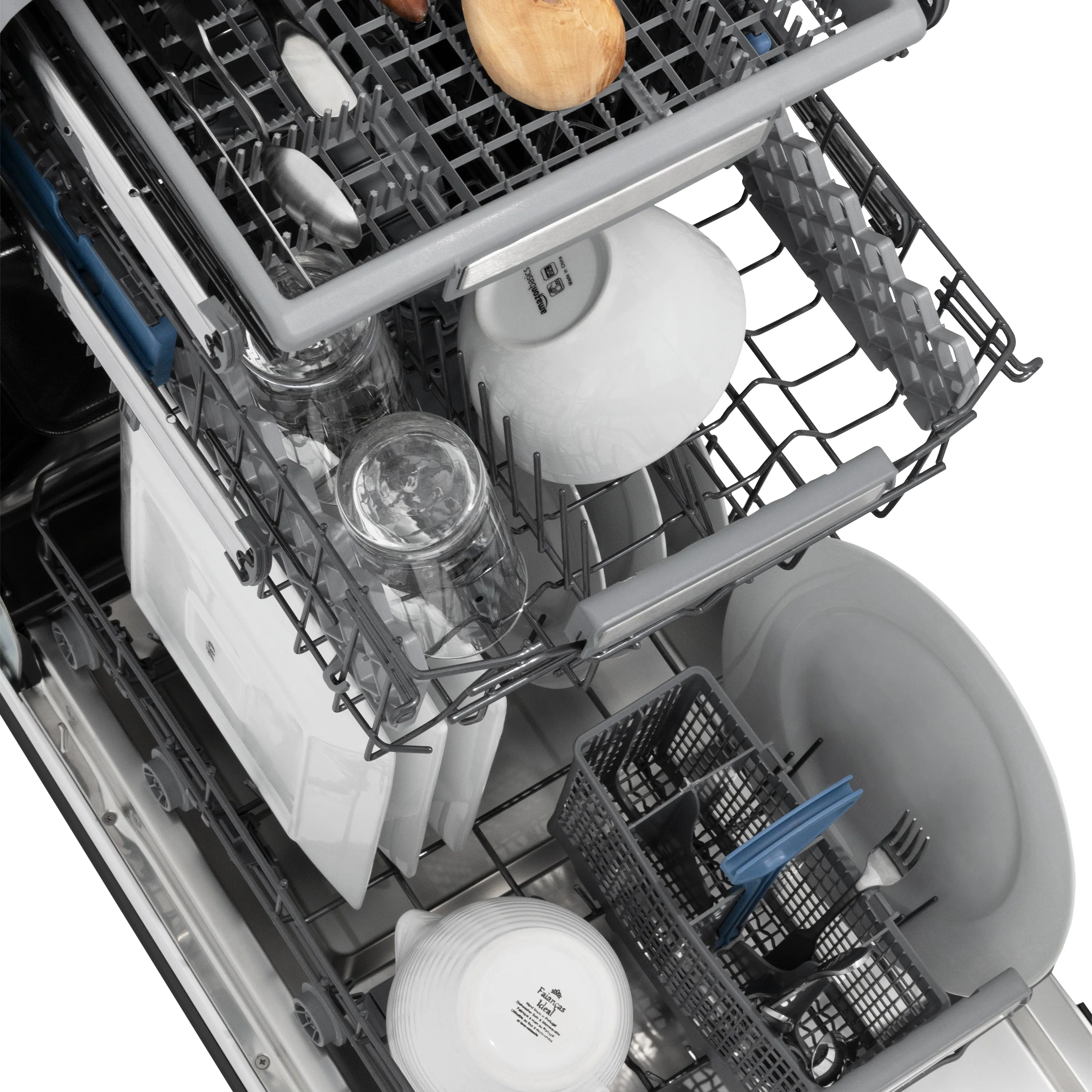

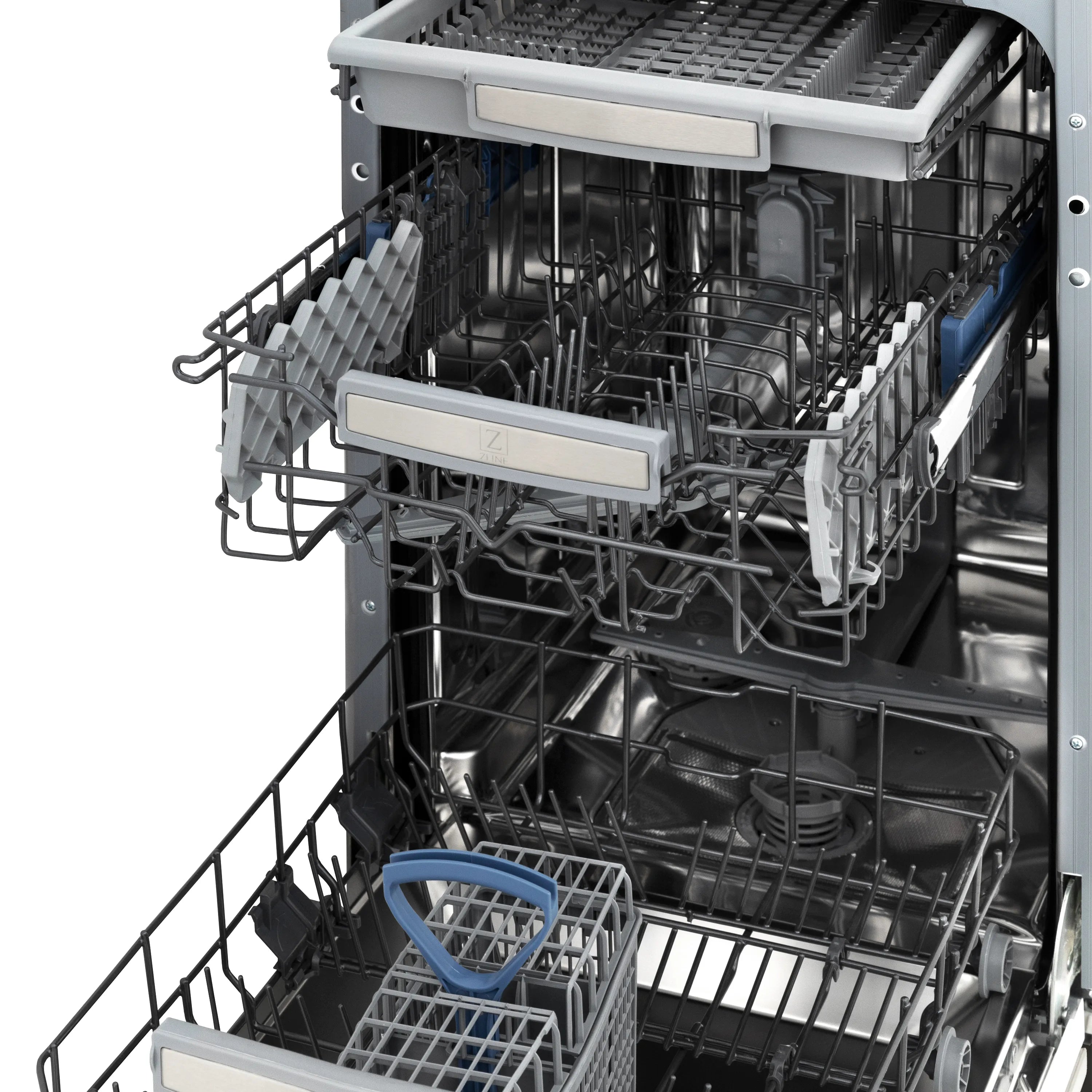

- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 12 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 10 place settings
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
WARRANTY & CERTIFICATIONS
- Certifications
- Energy Star, CEC, UL
