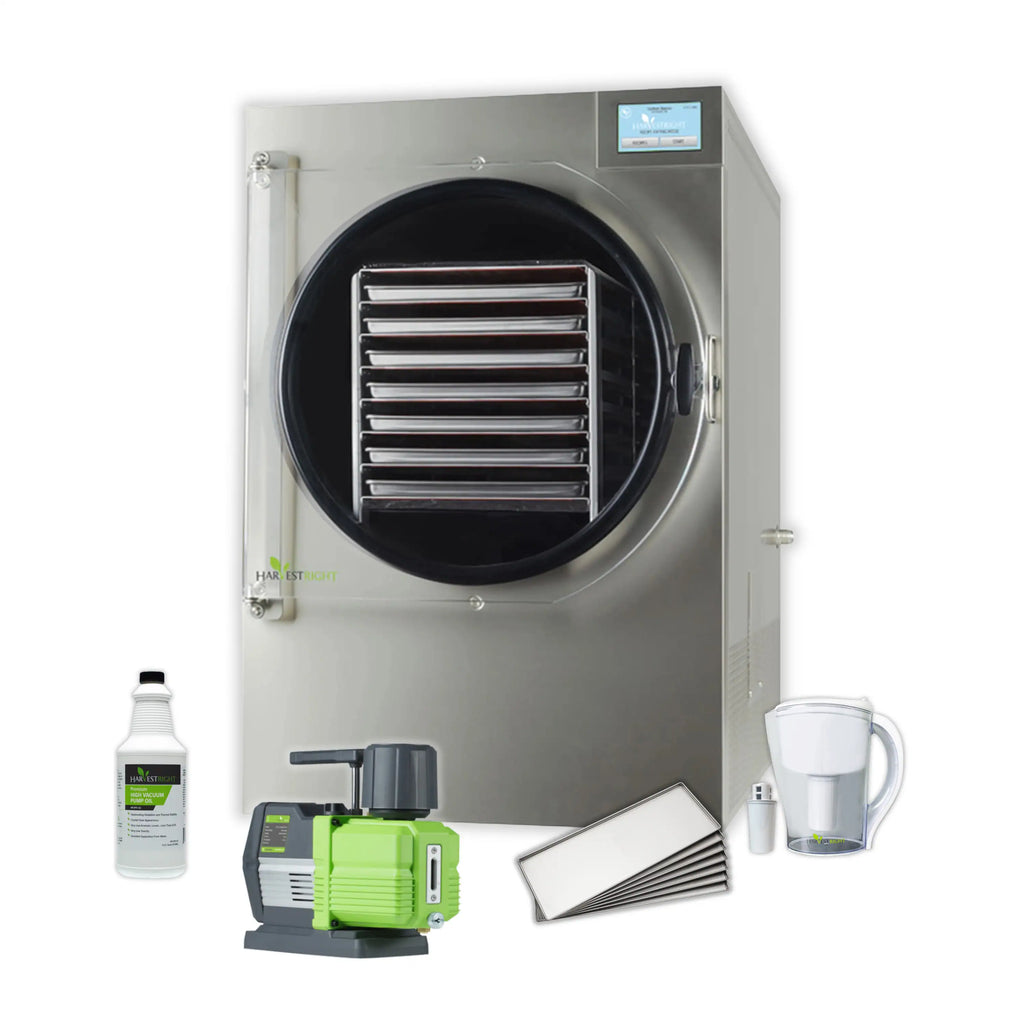

Stainless steel freeze dryer with included accessories: vacuum pump, trays, and bottles
Stainless steel freeze dryer front with circular door and visible internal heating shelves

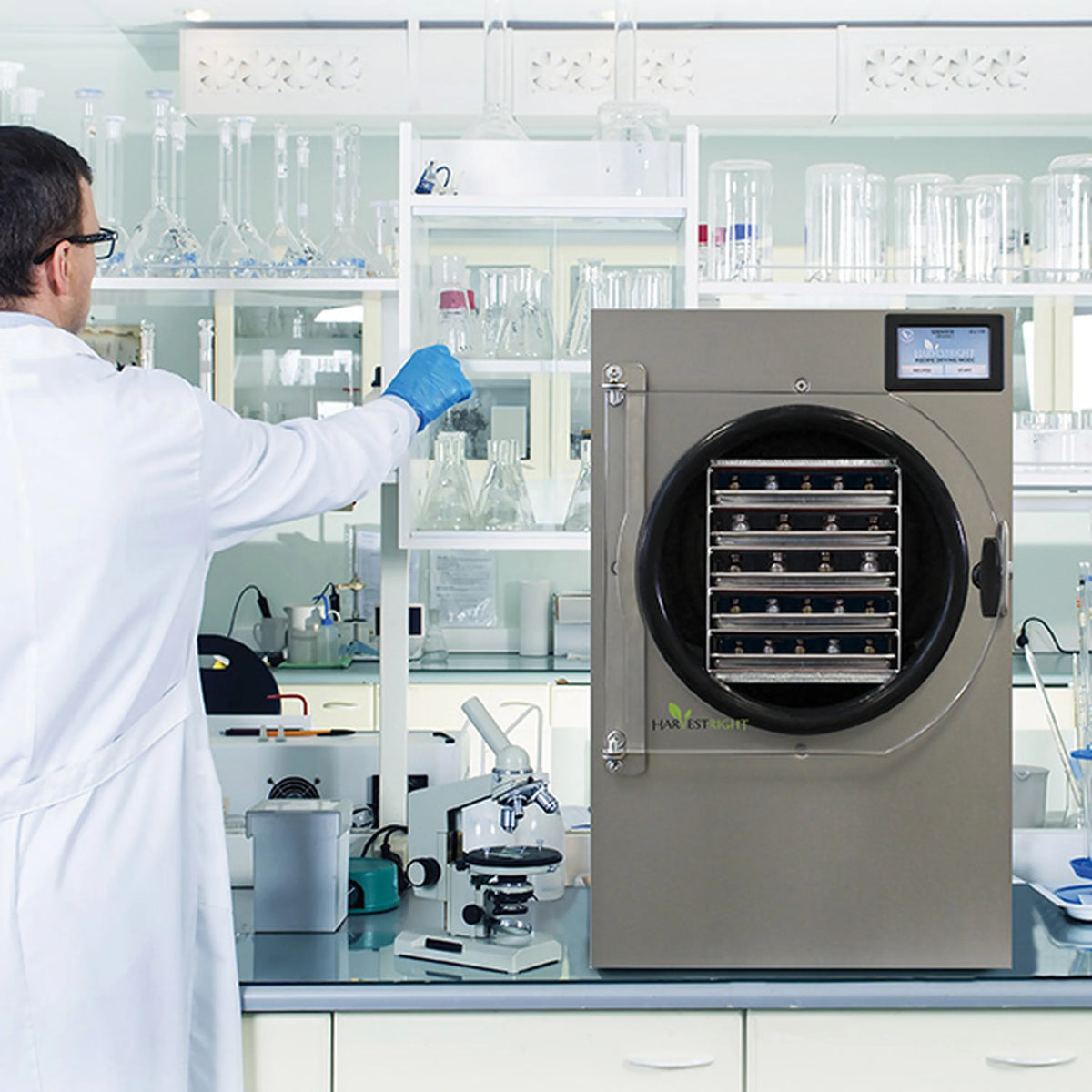

Freeze dryer in laboratory with technician operating front unit wearing blue gloves

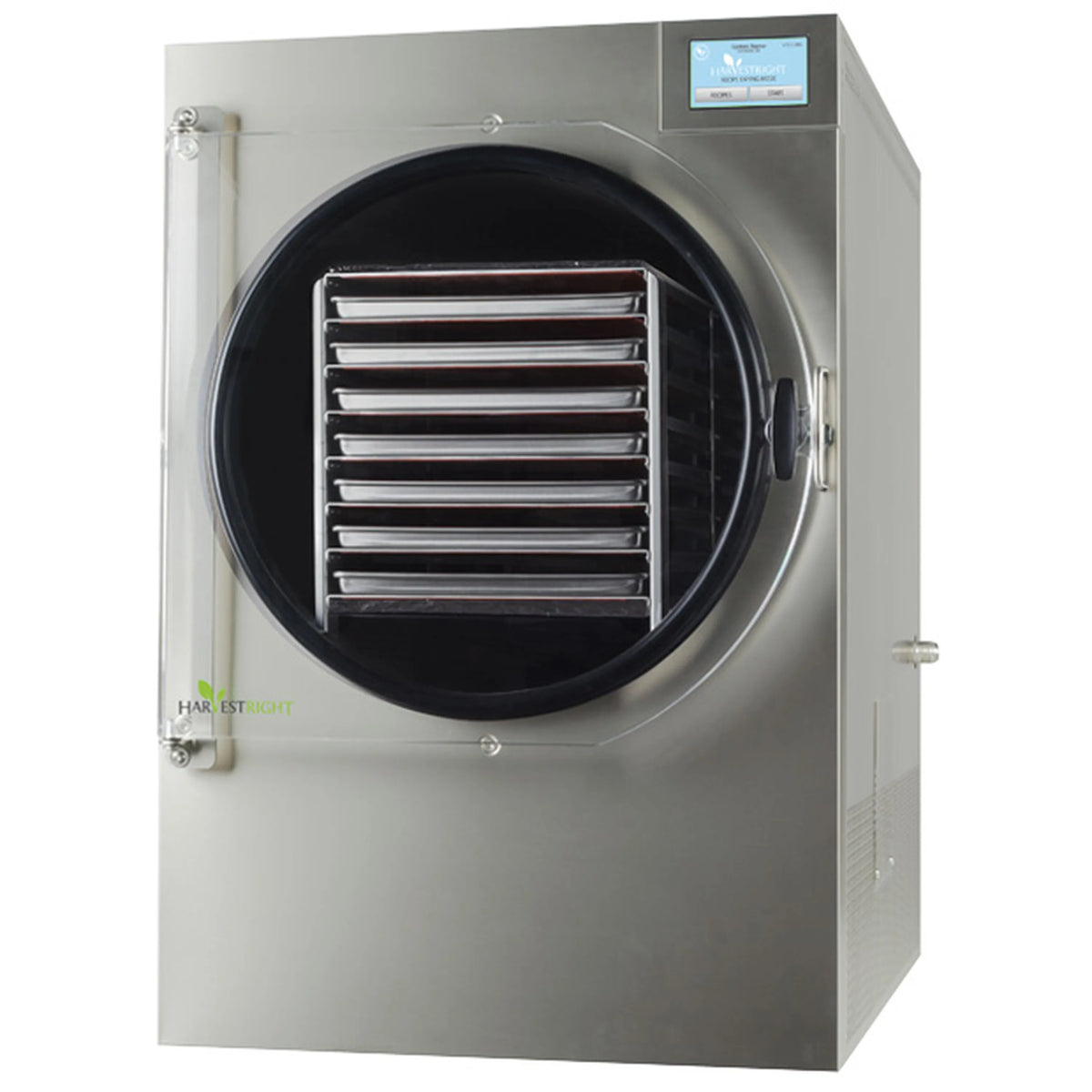

Stainless steel freeze dryer with round door, dark chamber, and internal shelf racks

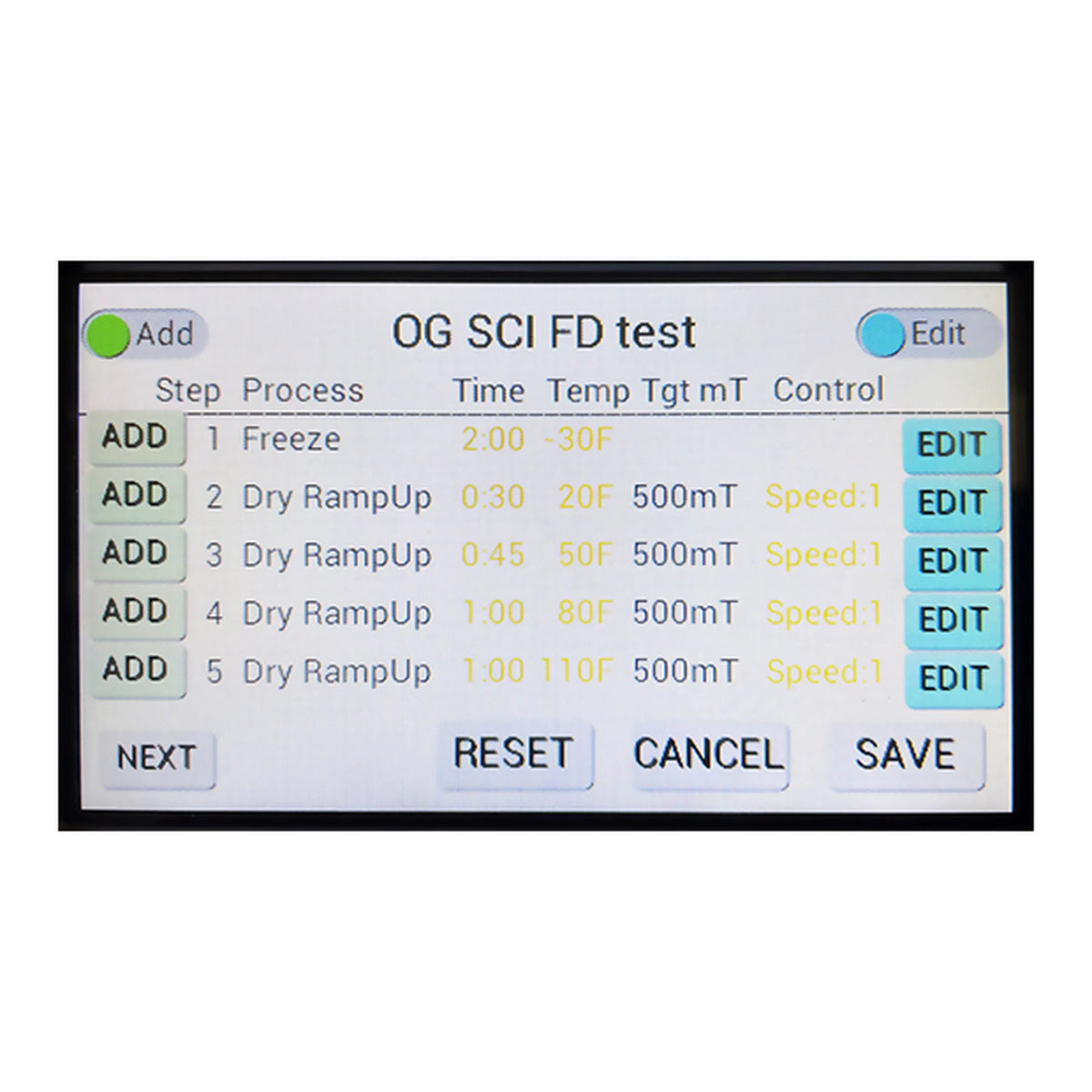

Freeze dryer control panel screen with process buttons and step list

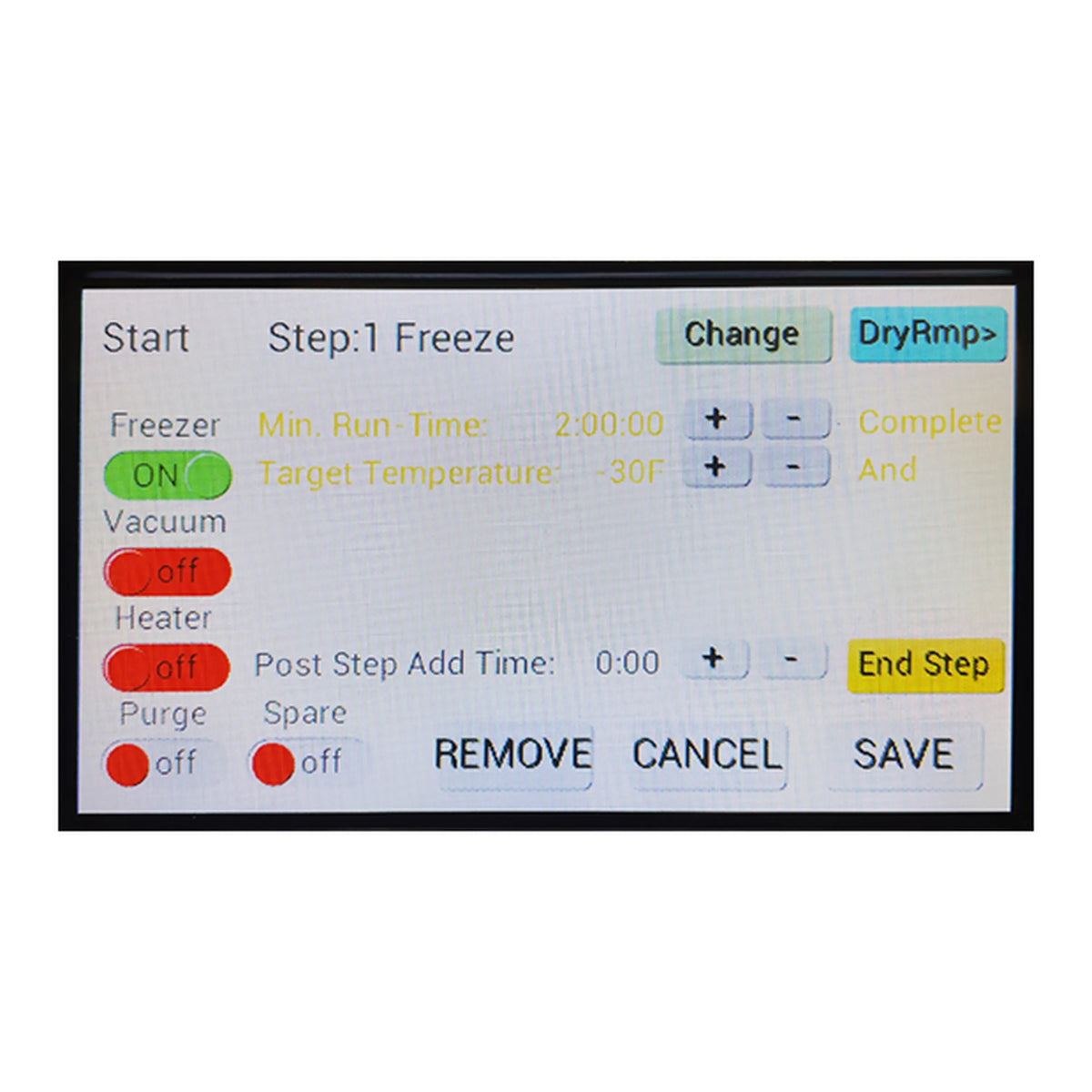

Freeze dryer control panel screen with freeze step and vacuum/heater indicators

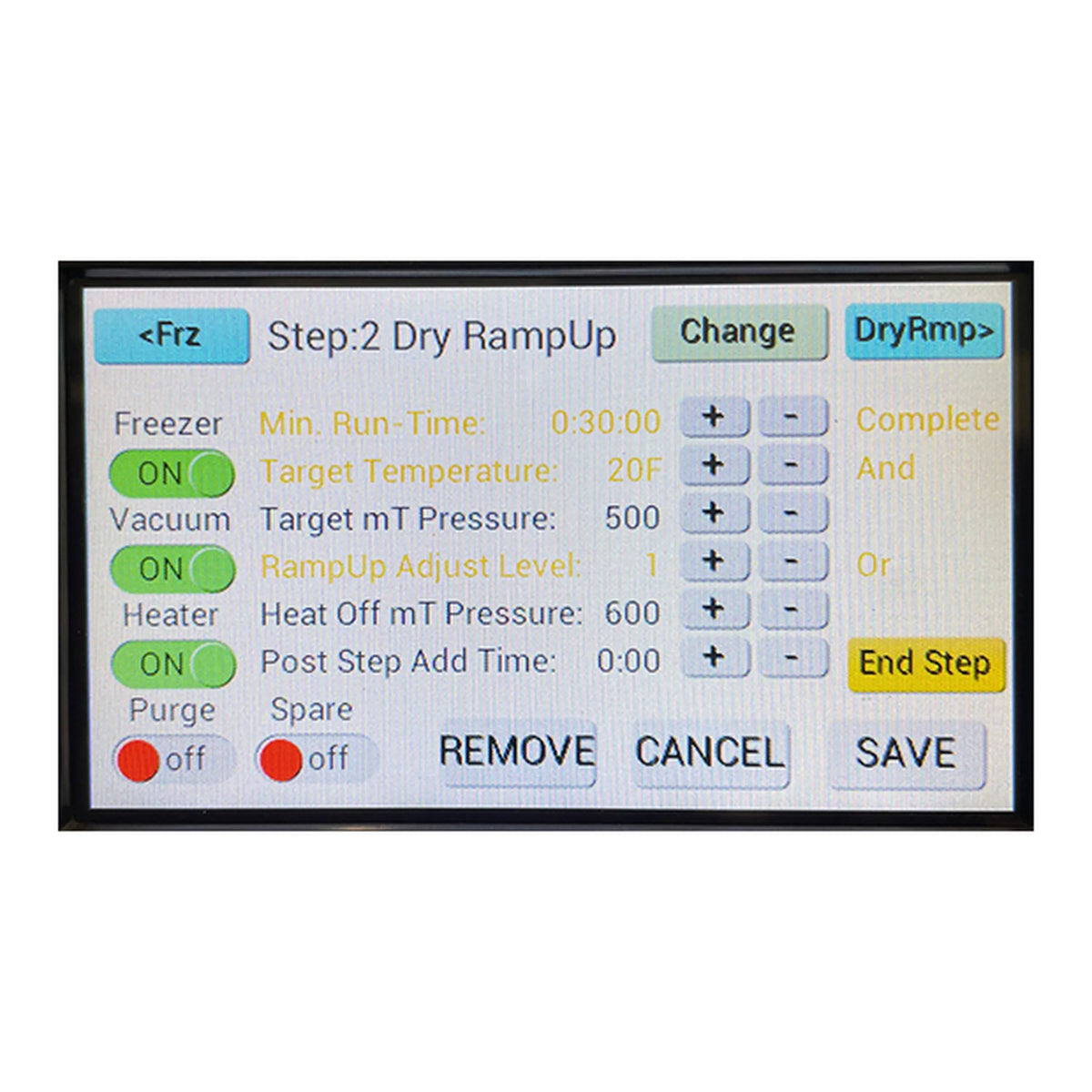

Freeze dryer control panel screen showing dry ramp-up step and vacuum settings
Green and gray industrial vacuum pump with handle and status display
Roll over image to zoom in Click on image to zoom
Stainless steel freeze dryer with included accessories: vacuum pump, trays, and bottlesStainless steel freeze dryer front with circular door and visible internal heating shelvesFreeze dryer in laboratory with technician operating front unit wearing blue glovesStainless steel freeze dryer with round door, dark chamber, and internal shelf racksFreeze dryer control panel screen with process buttons and step listFreeze dryer control panel screen with freeze step and vacuum/heater indicatorsFreeze dryer control panel screen showing dry ramp-up step and vacuum settingsGreen and gray industrial vacuum pump with handle and status display
Click on image to zoom

Harvest Right Scientific Freezer Dryer with Premier Industrial Pump in Stainless Steel, X-Large (HRFDXLSC)

Harvest RightSKU: HRFDXLSC
1 review
Price:
$5,495.00 $5,995.00SAVE 8%
Size:
In Stock
Estimated delivery: Sep 27th-Oct 11th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

Harvest Right’s lyophilizer/freeze dryer is the perfect addition to any laboratory. The scientific freeze dryer can be completely customized with your preferred processes. You can have multiple manageable profiles, each providing the ability to automatically power on and off the condensing unit and the vacuum pump in conjunction with ascending, controlled temperature and time settings

Features

  • Convenience of 7-tray dryer in a table top unit. Large capacity — capable of freeze drying as much as a 7.0 to 9.0 gallons of material.
  • Full-color, touch-screen display. 24-liter ice condensing capacity.
  • Operation allows for recipe customization (up to 10 Thermal Treatment and 12 Drying steps).
  • Control of the rate of freeze. This means that the rate of freeze can be speeded up or slowed down.
  • Control of the ultimate final freeze temperature.
  • Control of the amount of time a material is held at the ultimate freeze temperature before the drying cycle is started.
  • Control of the shelf temperature during the dry cycle. This includes setting as many as five different shelf temperatures, thus allowing the material to dry in phases, at different temperatures. For instance, you might have the material begin drying at 10ºF and increase the temperature in phases until the ultimate final dry temperature is 70ºF.
  • The shelf heaters can be set to automatically control the rate of sublimation during the primary drying cycle. Through this process, the unit has control of the attendant vacuum pressure.
  • The system records and maintains a log of the pressure and temperature during all parts of the freeze-dry cycle.
  • Provides ongoing, real-time display of pressure and temperature.
  • The unit can also connect to and communicate the freeze dryer cycle data to a nearby PC through an ethernet cable.

Includes

  • X-Large Scientific Pro Freeze Dryer
  • XL Premier Industrial Vacuum Pump
  • Vacuum Pump Oil
  • Oil Filter
  • Stainless Steel Trays (set of 7)
DIMENSIONS
Freeze dryer exterior dimensions
24.3″ W x 37.4″ D x 35.6″ H
Dimensions (without door or vacuum fitting)
23.25" W x 33.7" D x 35.6" H
Holding Capacity
24 Liters of Sublimated Ice
GENERAL INFORMATION
Item
Freeze Dryer/Lyophilizer
Min. Temp. Rating
Collector Cools to -40ºF
Drying Chamber
Included (Stainless Steel)
Purge Valve
Included
Electronics
Includes a Full Color Touch Screen (4.3″ diagonal)
Operation
Manual / Automated
Vacuum Pump
Premier Industrial Vacuum Pump
DESIGN & FINISH
Style
Bench/Table Top
Collector Material
Stainless Steel
Exterior
Stainless Steel
TECHNICAL DETAILS
Voltage
115
AMPS
AC20
REFRIGERATOR FEATURES
Shelf unit has shelves
7 trays
