Description
DIMENSIONS

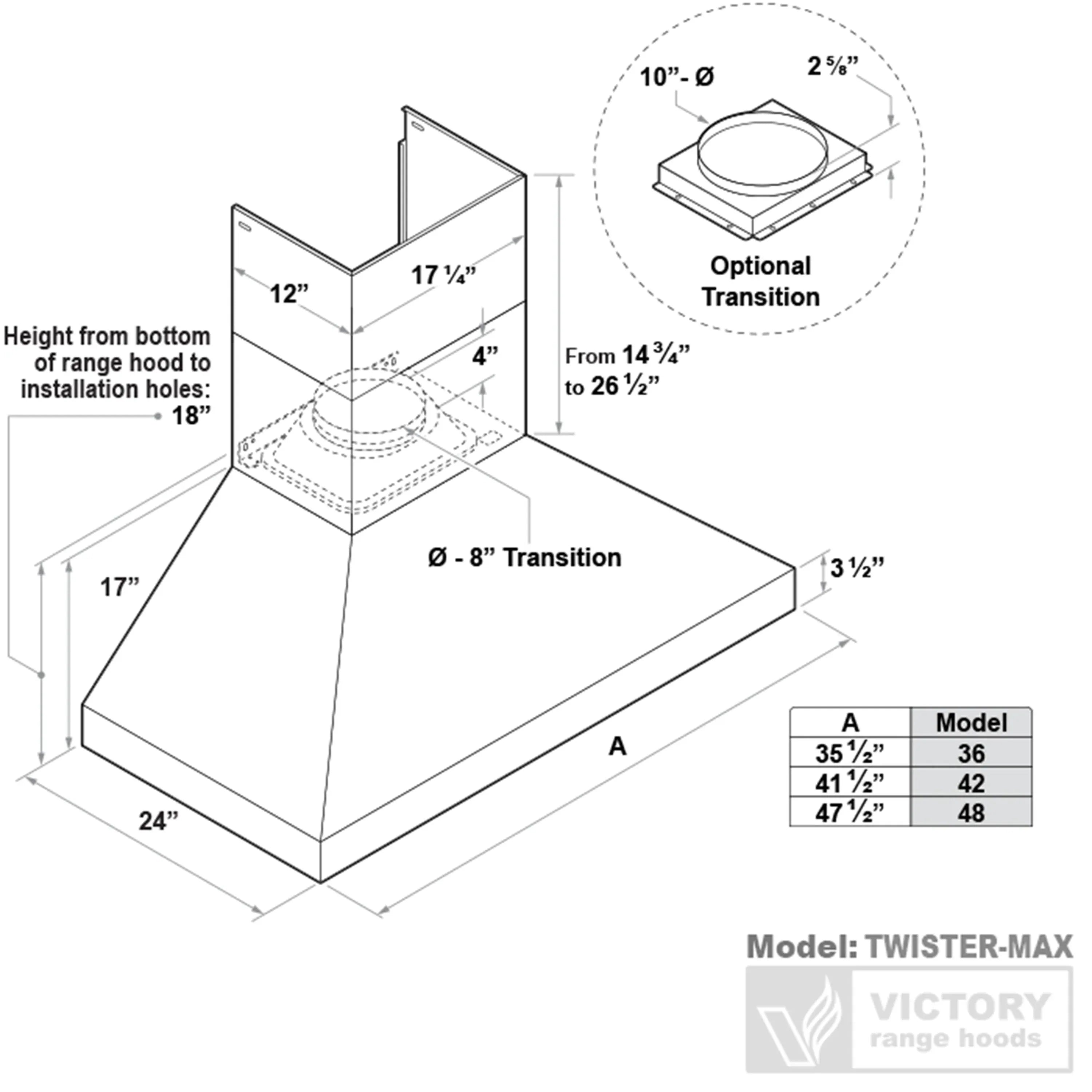

- Dimensions
- 48" W x 28" D
- Weight (fully assembled)
- 48kg
GENERAL INFORMATION
- Body
- Stainless Steel (19 gauge)
DESIGN & FINISH
- Levels Of Speed Control
- 4 Levels
- Control Type
- Rotary Mechanical Switches
TECHNICAL DETAILS
- Ducting Size
- 10”
- Maximum Airflow
- 1200 CFM (when 10” duct is used)
- Air Pressure
- 150 Pa (200 Pa Maximum)
- Noise Level (sone)
- Approximately 1.2 to 6.6 (Lowest to Highest Speed)
- Power Rating
- 120V/60Hz (USA & Canada standard)
- General Input Power
- 440 W (300W + 4x35W)
- Motor Input Power
- 300 W
- Motor Revolution
- 800 RPM (±10%) to 1300 RPM (±10%)
- Motor Type
- Double Chamber Ultra Quiet (Metal blades)

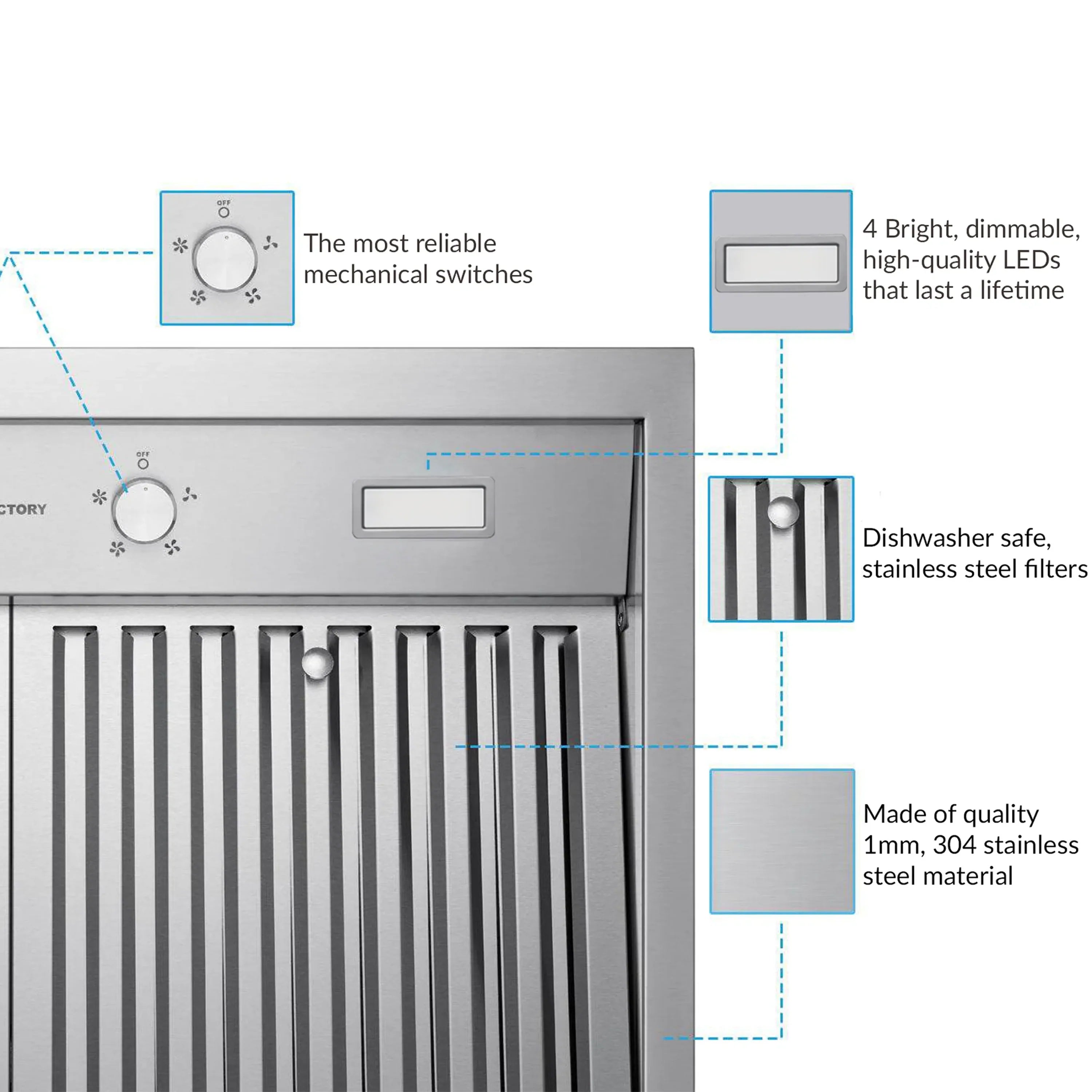

FEATURES
- Filtration Type
- Stainless Steel Baffle Filters and Grease Tunnel
- Illumination
- Dimmable LED Lights
- Light Bulb
- Integrated LED
WARRANTY & CERTIFICATIONS
- Warranty
- 5 YEARS (parts warranty)
