Description
DIMENSIONS
- Width
- 34 3/4″
- Depth
- 19 15/16″
- Height
- 21 11/16″
- Net Weight (approx.)
- 56.9 lbs.
- Gross Weight (approx.)
- 75 lbs.
- Cut-Out Width
- 33 11/16″
- Cut-Out Depth
- 18 15/16″
- Cut-Out Corner Radius
- R 7/16″
- Cabinet Inner Width
- ≥33 7/8″
- Cabinet Inner Depth
- ≥20 1/2″
- Cabinet Inner Height
- ≥35 7/16″
- Height of Door When Fully Open
- 17 1/2″
GENERAL INFORMATION
- Brand
- FOTILE

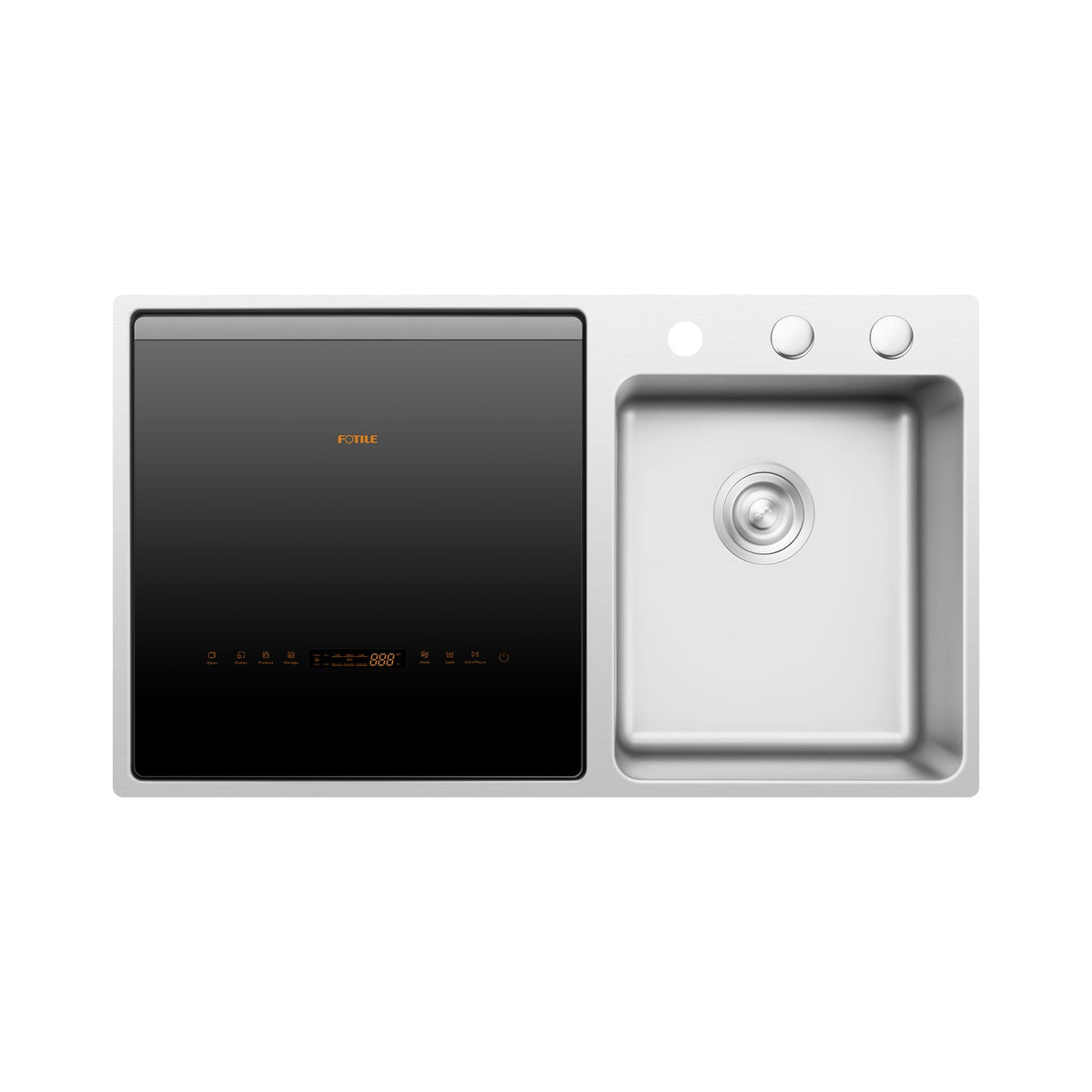

- Model
- SD2F-P5L
- Series
- 3-in-1 In-Sink Dishwasher

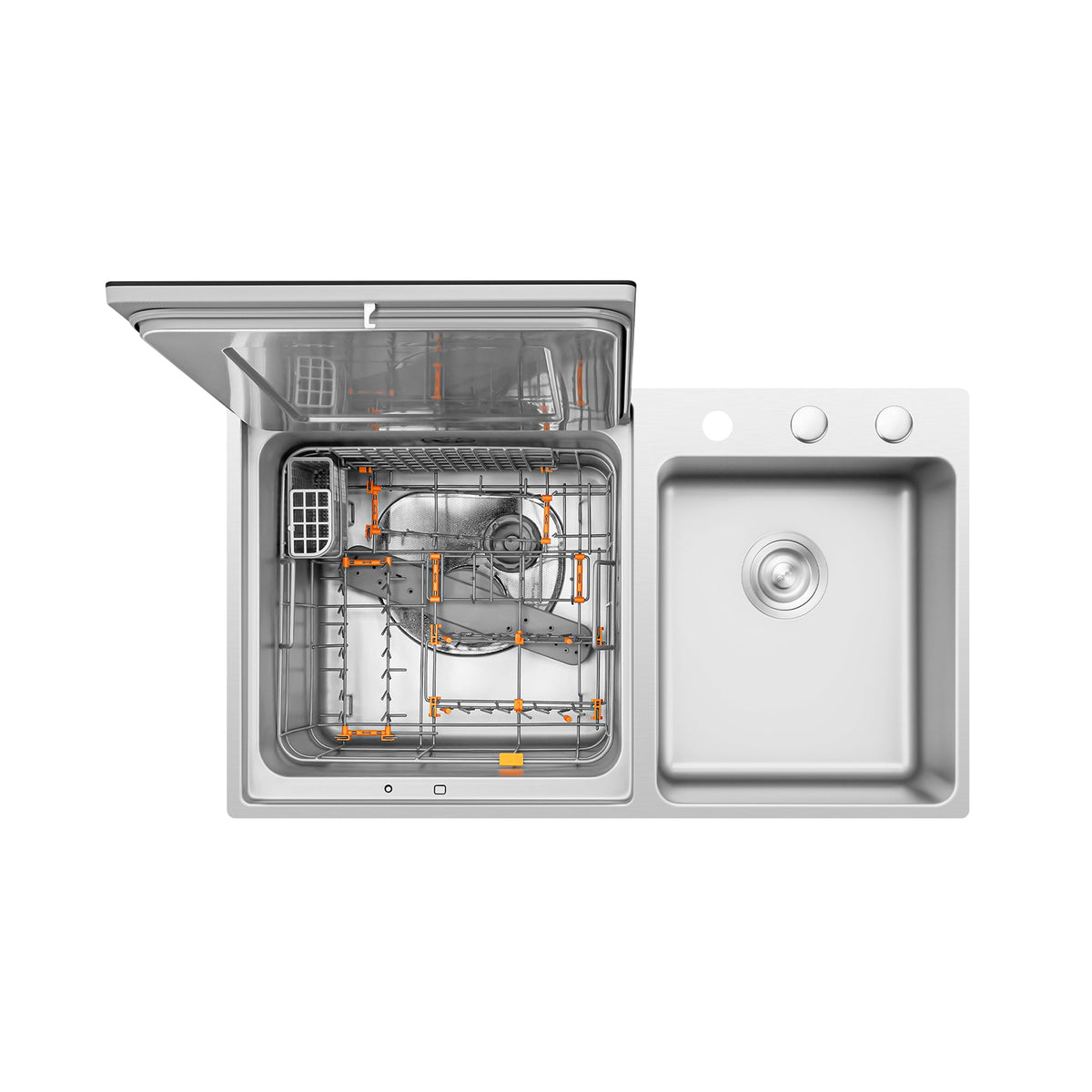

- Configuration
- 3-in-1 (Sink, Dishwasher, Produce Cleaner)
- Dishwasher Placement
- Left Side
- Installation
- Top Mount / Built-In
DISH WASHING PERFORMANCE
- Delicate
- 140°F · 15 min · 1.85 gal/cycle · 3 wash cycles
- Normal
- 140°F · 60 min · 2.0 gal/cycle · 3 wash cycles
- Intensive
- 167°F · 80 min · 3.0 gal/cycle · 5 wash cycles
- ECO
- 126°F · 180 min · 1.6 gal/cycle · 3 wash cycles
PRODUCE WASHING PERFORMANCE
- Delicate
- 7 min · 4.2 gal/cycle (medium load) · 1 cycle
- Normal
- 12 min · 5.2 gal/cycle (medium load) · 2 cycles
- Intensive
- 15 min · 5.8 gal/cycle (medium load) · 3 cycles
STYLE & DESIGN
- Dishwasher Placement
- Left Side
- Tub Material
- Stainless Steel
- Material of Washing Basket
- Nylon Coating

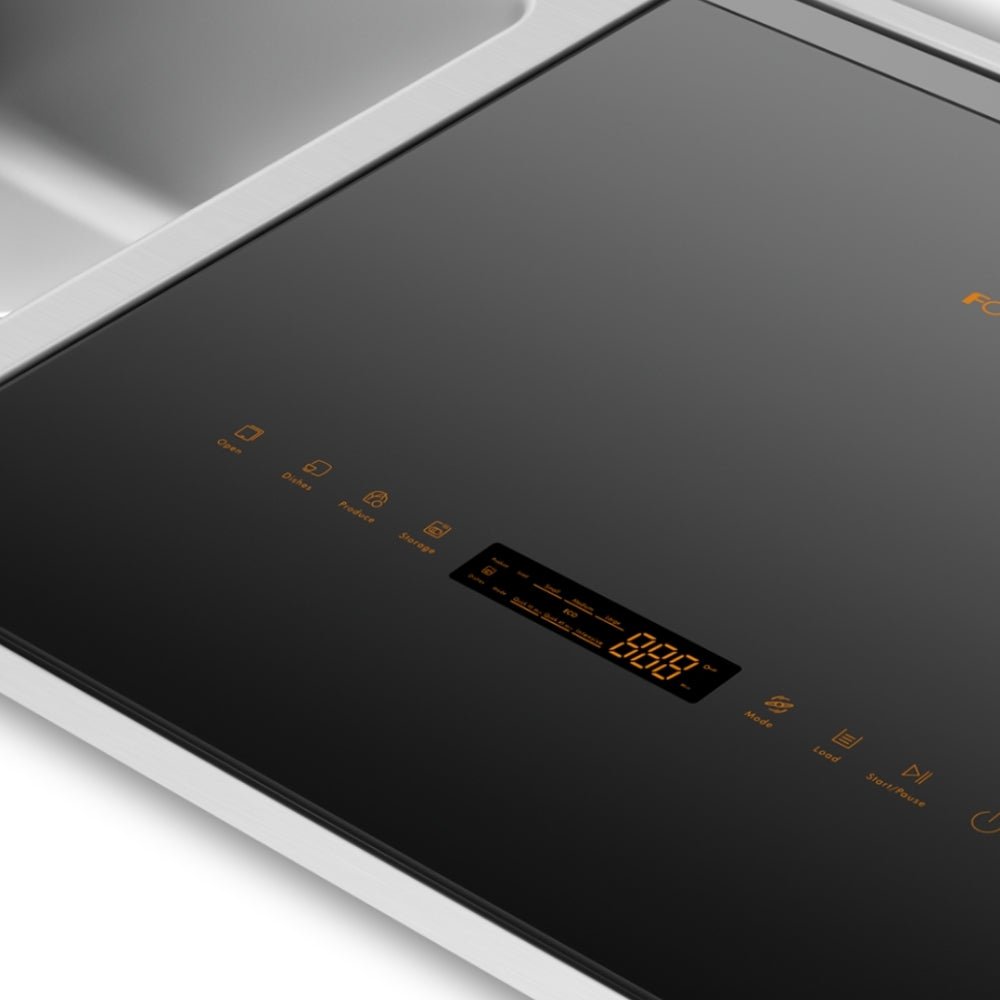

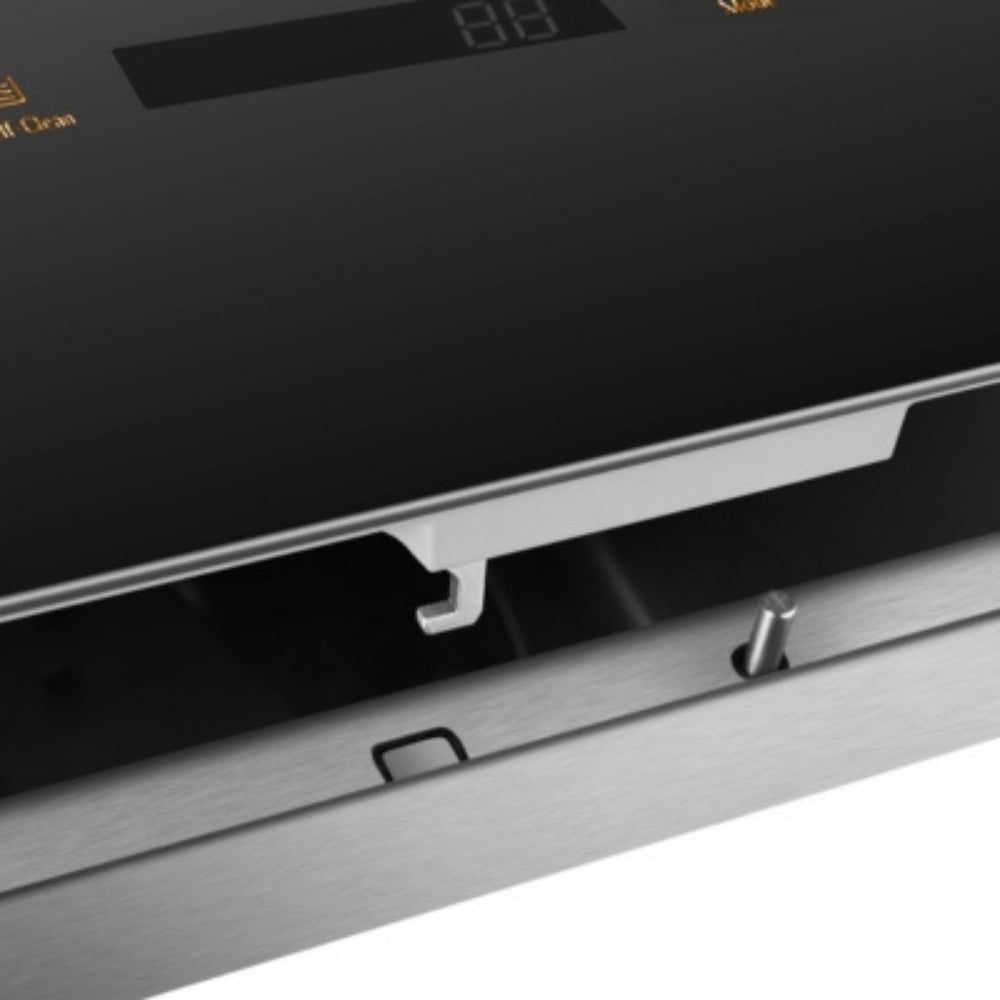

- Operation Panel
- Micro-pressure Waterproof Touchscreen

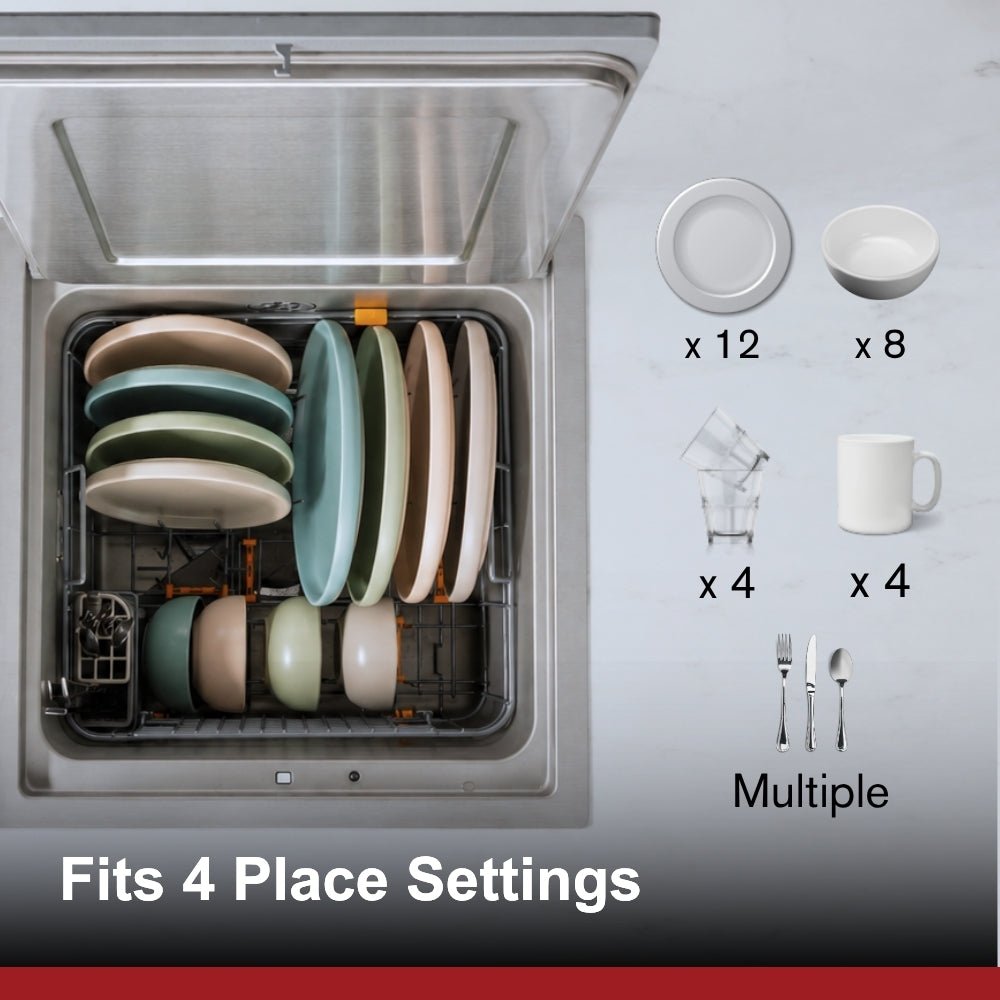

- Place Setting
- 4 Sets
- Accommodates Plates Up To
- 10 inch
- Variable Dish Rack
- Yes
- PTC Hot Air Drying
- Yes
- Hidden Heating Plate
- Yes

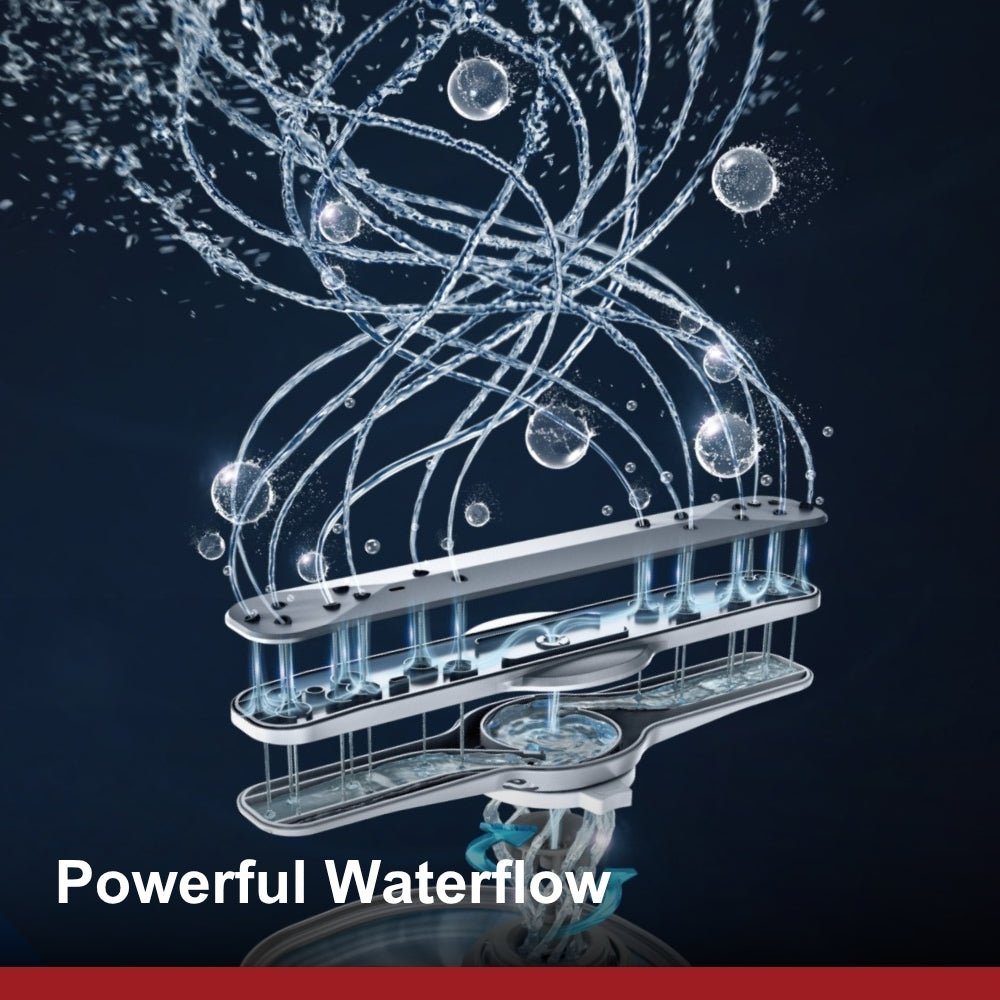

- Number of Spray Arms
- 1
- Dishwasher Air Gap Applicable
- Yes
TECHNICAL SPECS
- Wattage / Current
- 1500W / 13A
- Voltage / Frequency
- 120V / 60Hz
- Water Pressure Range
- 20.3 - 145.04 psi
- Noise Level
- 53.5 dB
PROTECTIONS
- Protections
- Child Lock, Water Leak Protection
WARRANTY
- Labor
- 2 Years
- Parts
- 5 Years (Limited)
