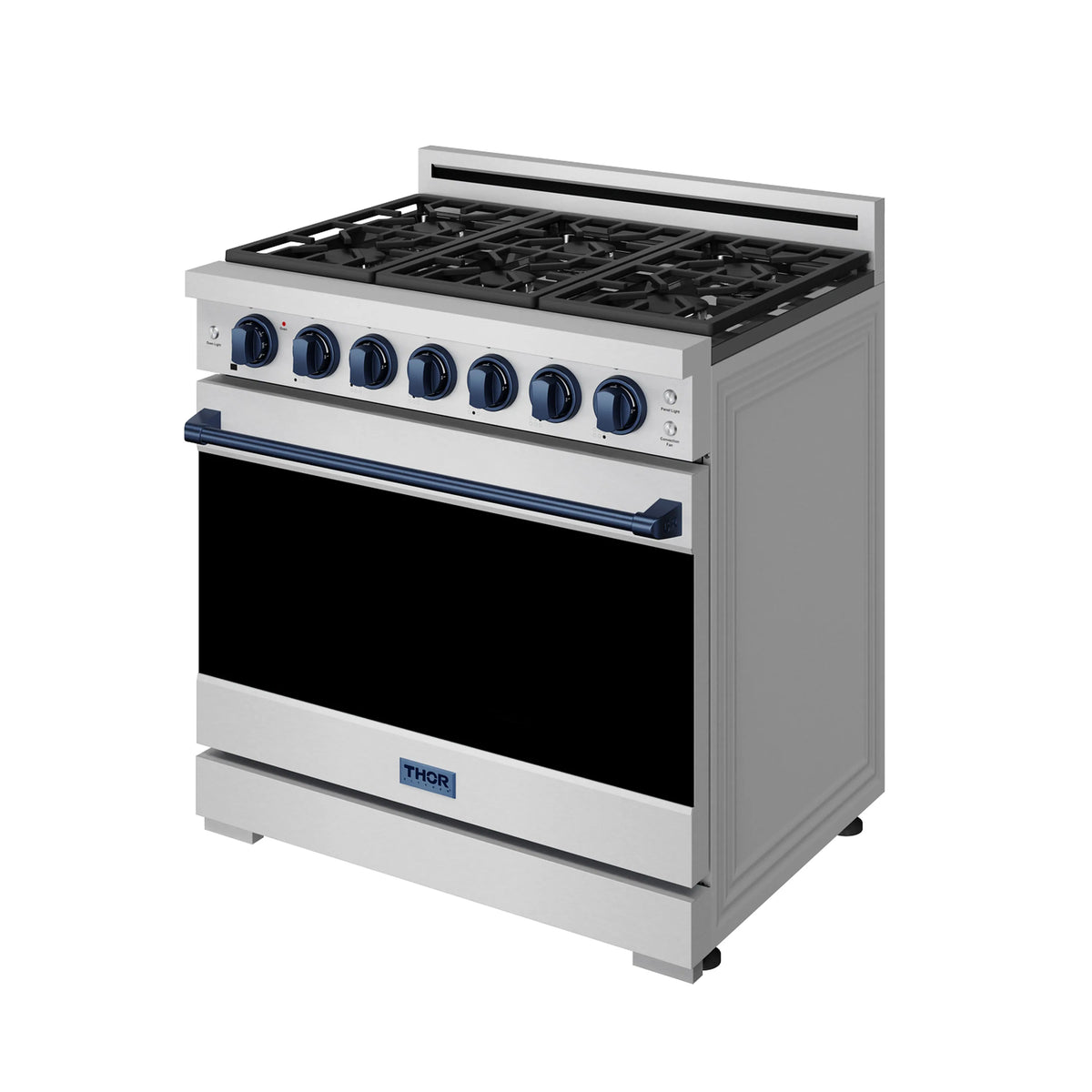

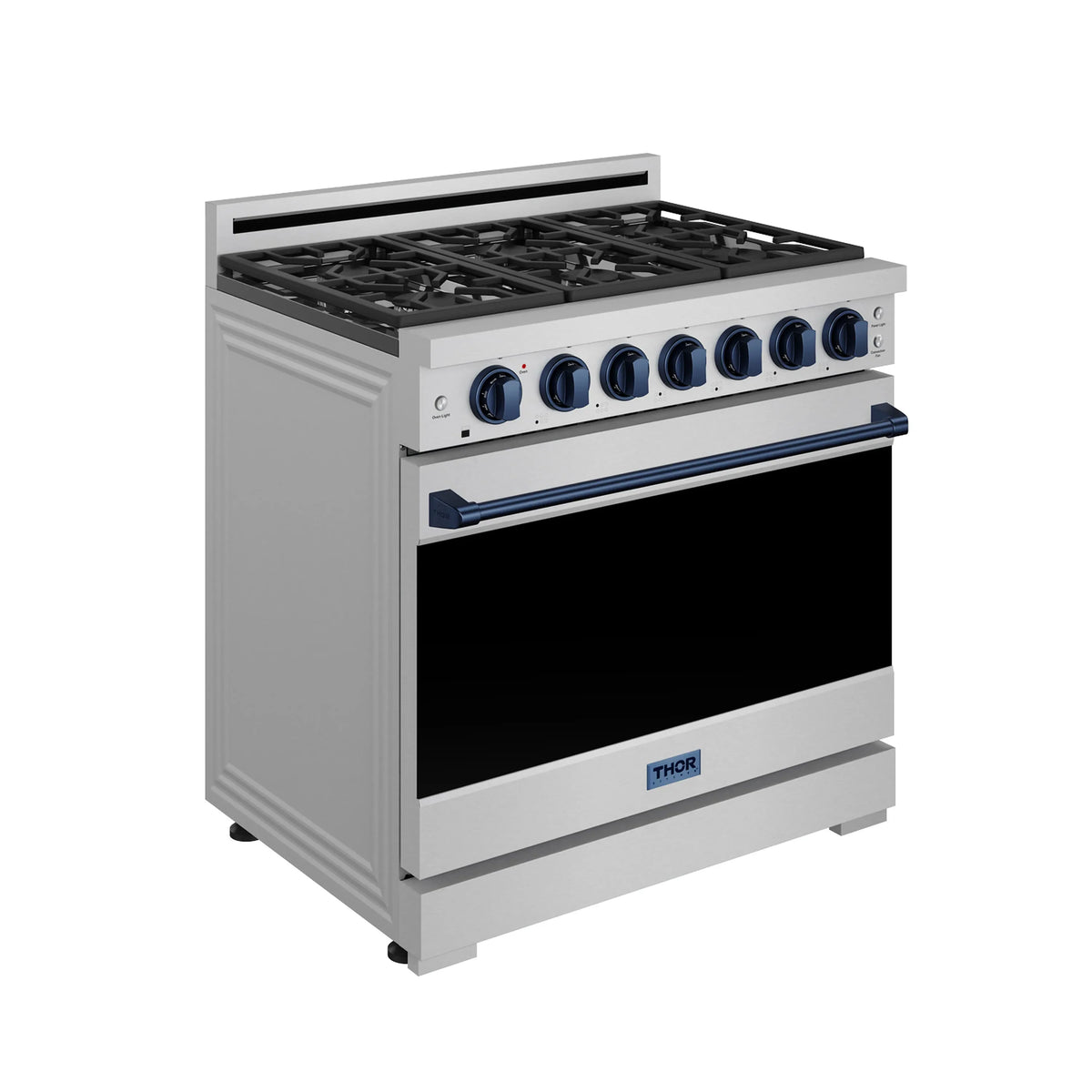

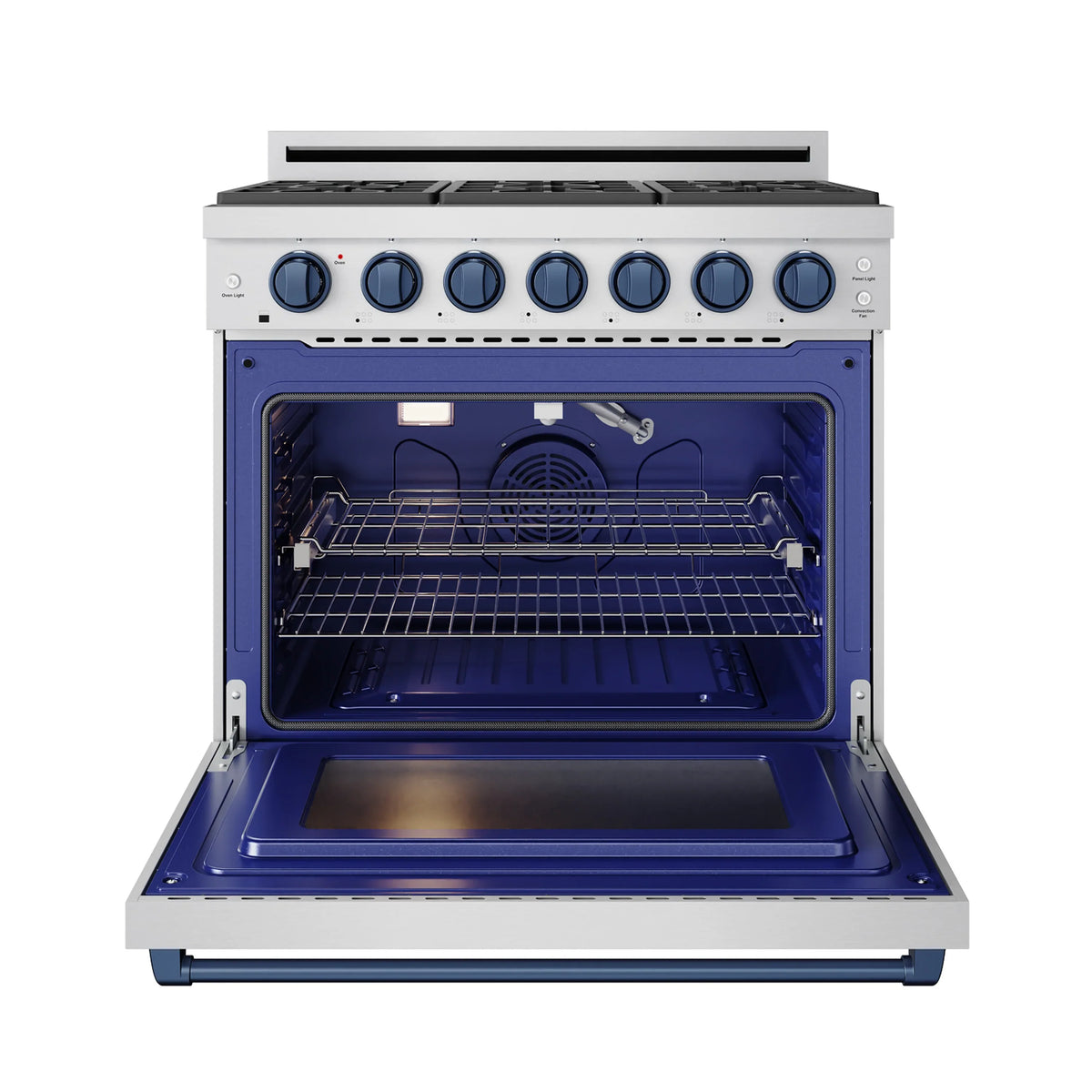

| DIMENSIONS | |
|---|---|
| Product Dimensions (HxWxD) (in.) | 36x35 7/8x24 1/4 |
| Product Height (from bottom to top of back splash) (in.) | 39 7/8 |
| Product Height (from bottom to top of side panel) (in.) | 33 3/8 |
| Product Depth (from back panel to bullnose) (in.) | 27 3/8 |
| Product Depth (from back panel to control panel) (in.) | 26 1/4 |
| Product Depth (from back panel to side panel front) (in.) | 24 |
| Adjustable Leg Sizes | 1'' |
| Net Weight (lbs.) | 235 |
| Gross Weight (lbs.) | 277 |
| Package Dimensions (HxWxD) (in.) | 46 1/2x39x30 1/8 |
| Power Cord Length (in.) | 59in |
| Oven Internal (W x D x H) | 29-3/4'' x 19-1/2'' x 18'' |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits Standard Three-Quarter Sheet Pan |
| Accessories Included |
|
| Accessories (Required) (Sold separately) | / |
| Accessories (Optional) |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Knob |
| TECHNICAL DETAILS | |
| Fuel Type | Natural gas |
| Installation Type | Freestanding |
| Required Circuit | 15 Amps |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Plug Type | NEMA 5-15P / US 3-prong |

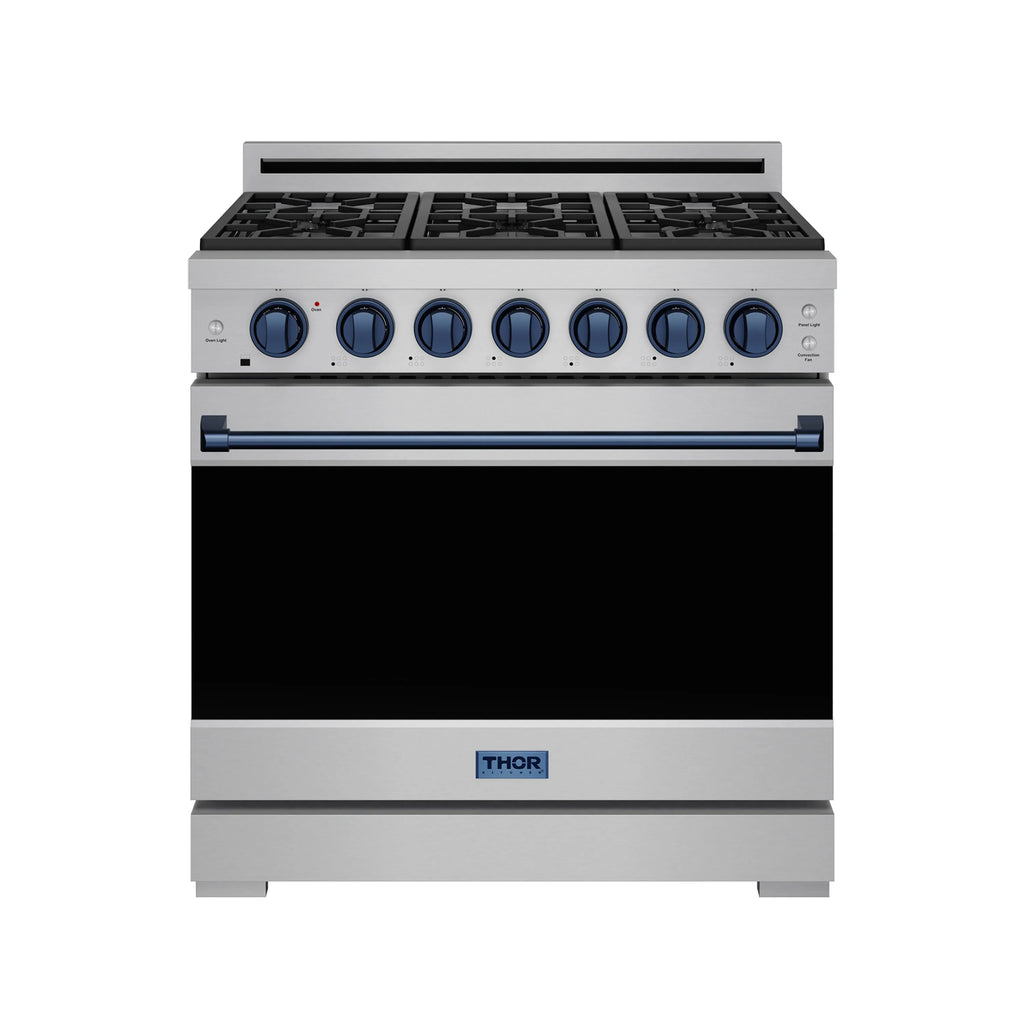

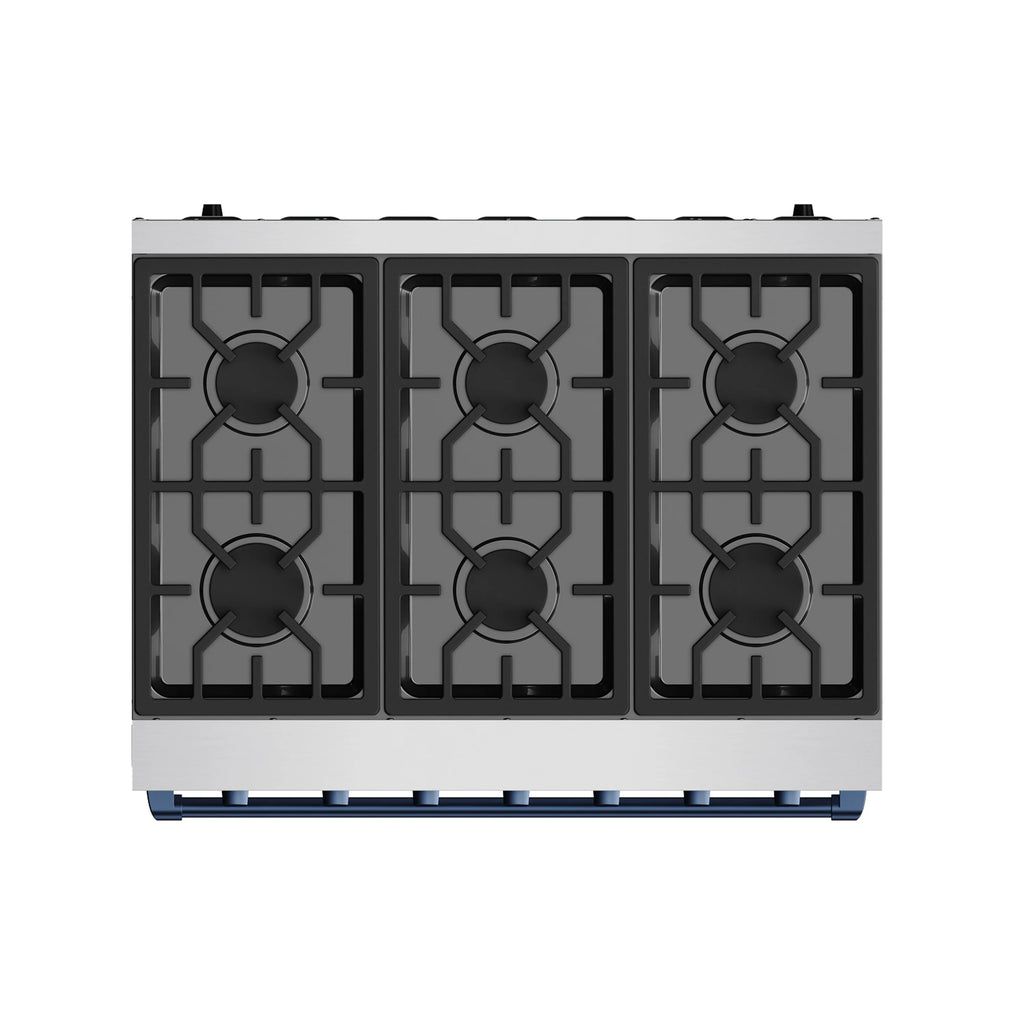

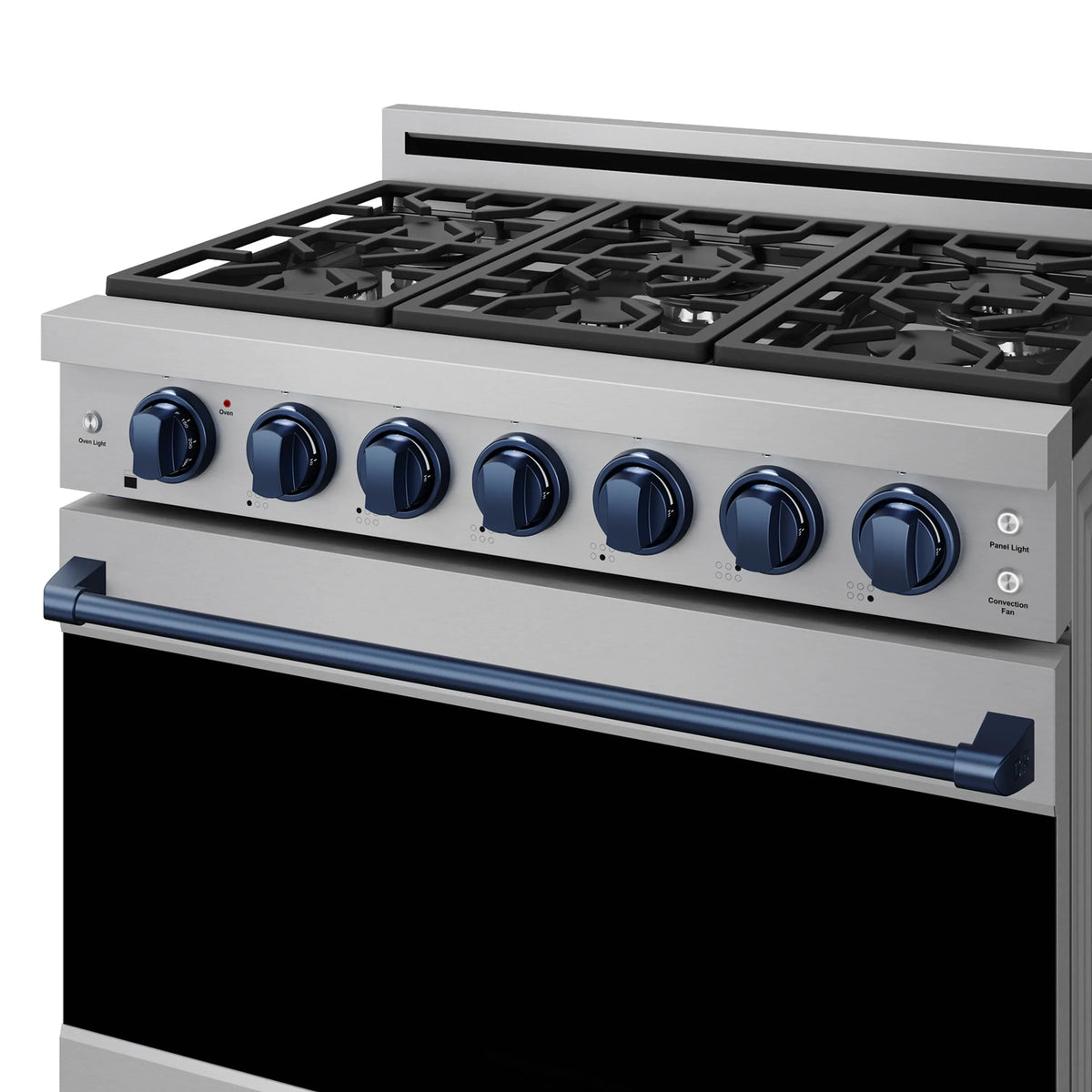

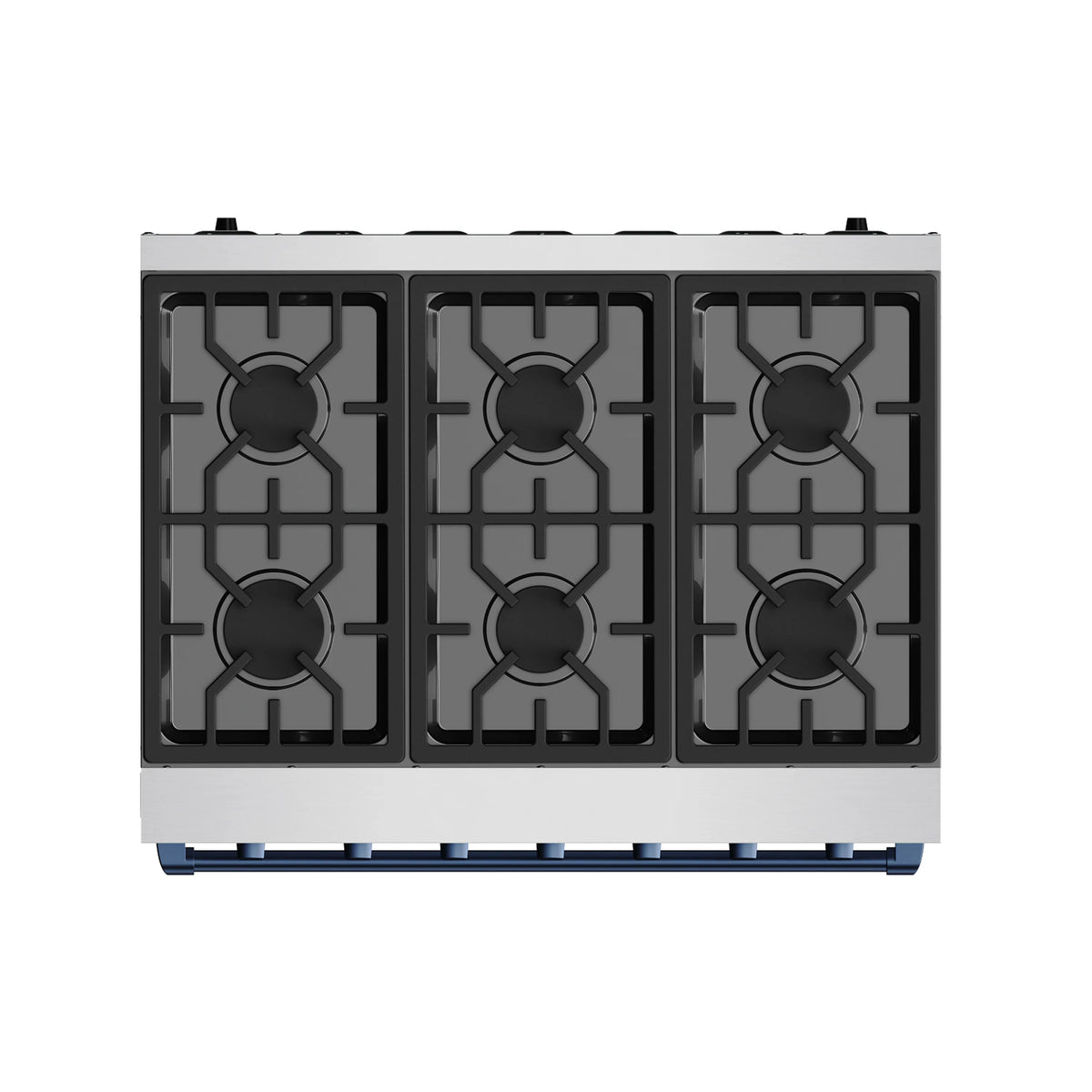

| COOKTOP FEATURES | |
| Burner Type | Sealed burners |
| Type of grate | Continuous |
| Total Number Of Cooktop Burners | 6 |
| Front Left Burner | 18000 BTU (Single) |
| Rear Left Burner | 9000 BTU (Single) |
| Center Burner | / |
| Front Center Burner | 12000 BTU (Single) |
| Rear Center Burner | 12000 BTU (Single) |
| Front Right Burner | 18000 BTU (Single) |
| Rear Right Burner | 9000 BTU (Single) |
| Front Right Center Burner | / |
| Rear Right Center Burner | / |
| Bake Burner Power | 18500BTU |
| Broil Burner Power | 10000BTU |

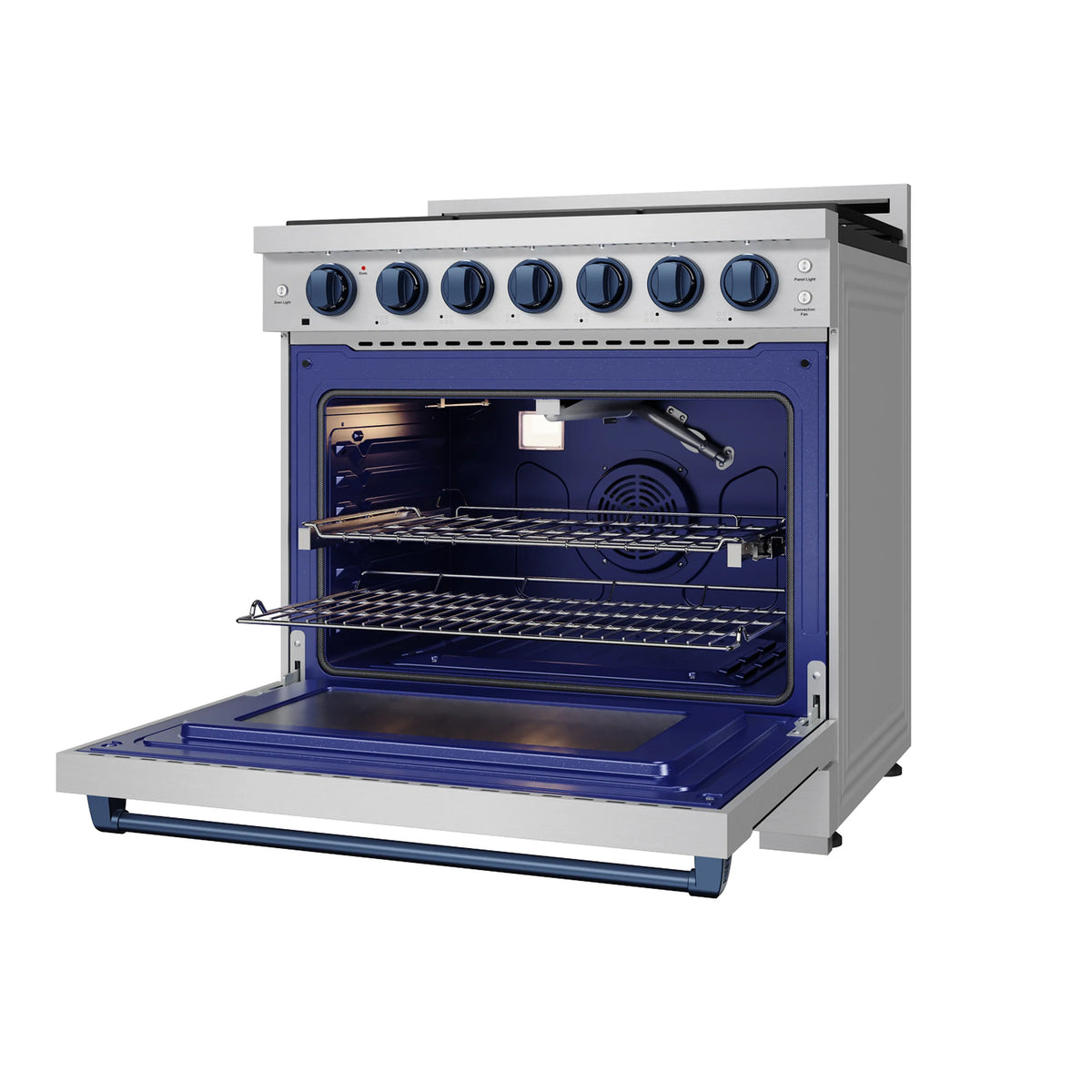

| OVEN FEATURES | |
| Oven Capacity (cu. Ft.) | 6.0 cu ft |
| Oven Control Features |
|
| Cooking Modes | Bake, Broil |
| Convection | Standard |
| Oven Lights | YES |
| Oven Racks (Standard) | 1 |
| Oven Racks (telescopic) | 1 |
| Oven Rack Material | Chrome Plated |
| Self Clean (Y/N) | NO |
| WARRANTY & CERTIFICATIONS | |
| Certification | CSA |

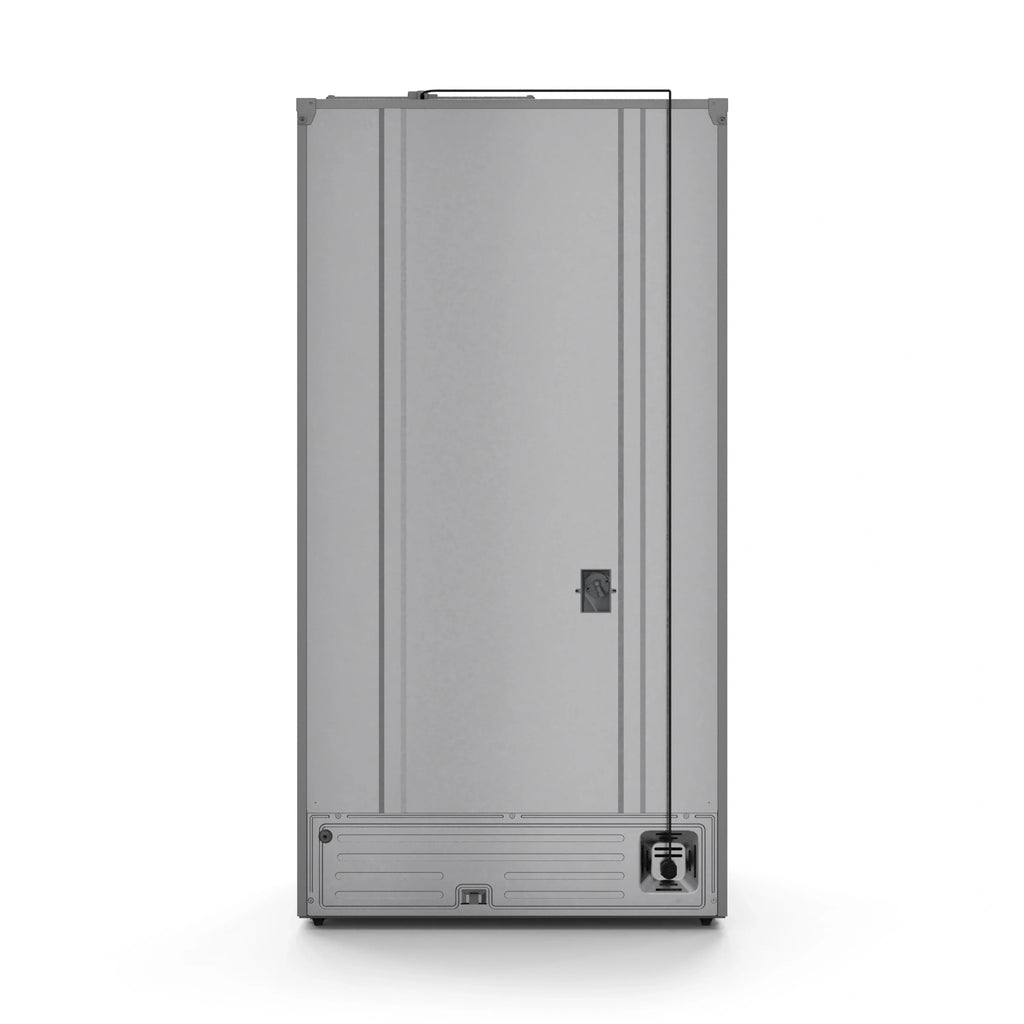

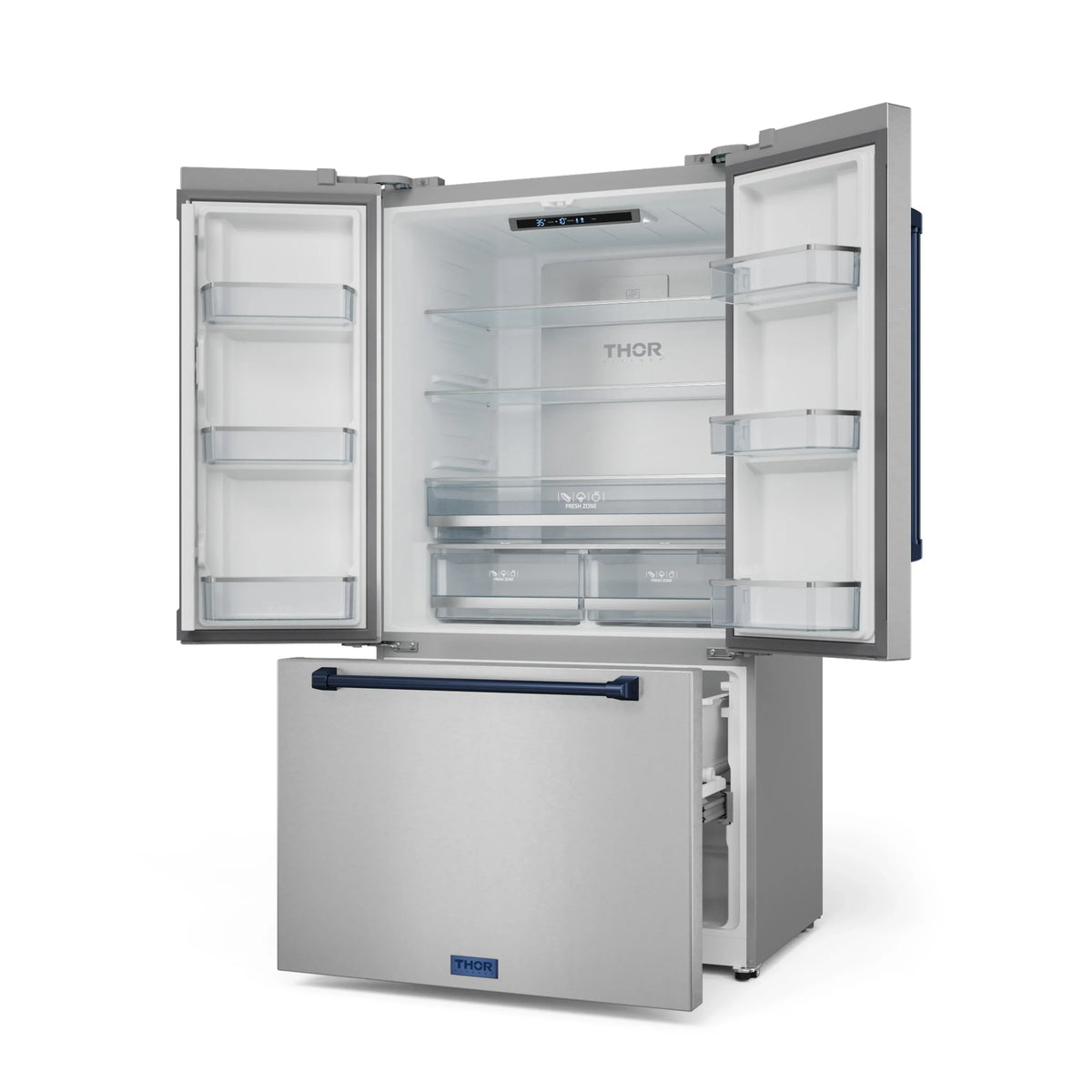

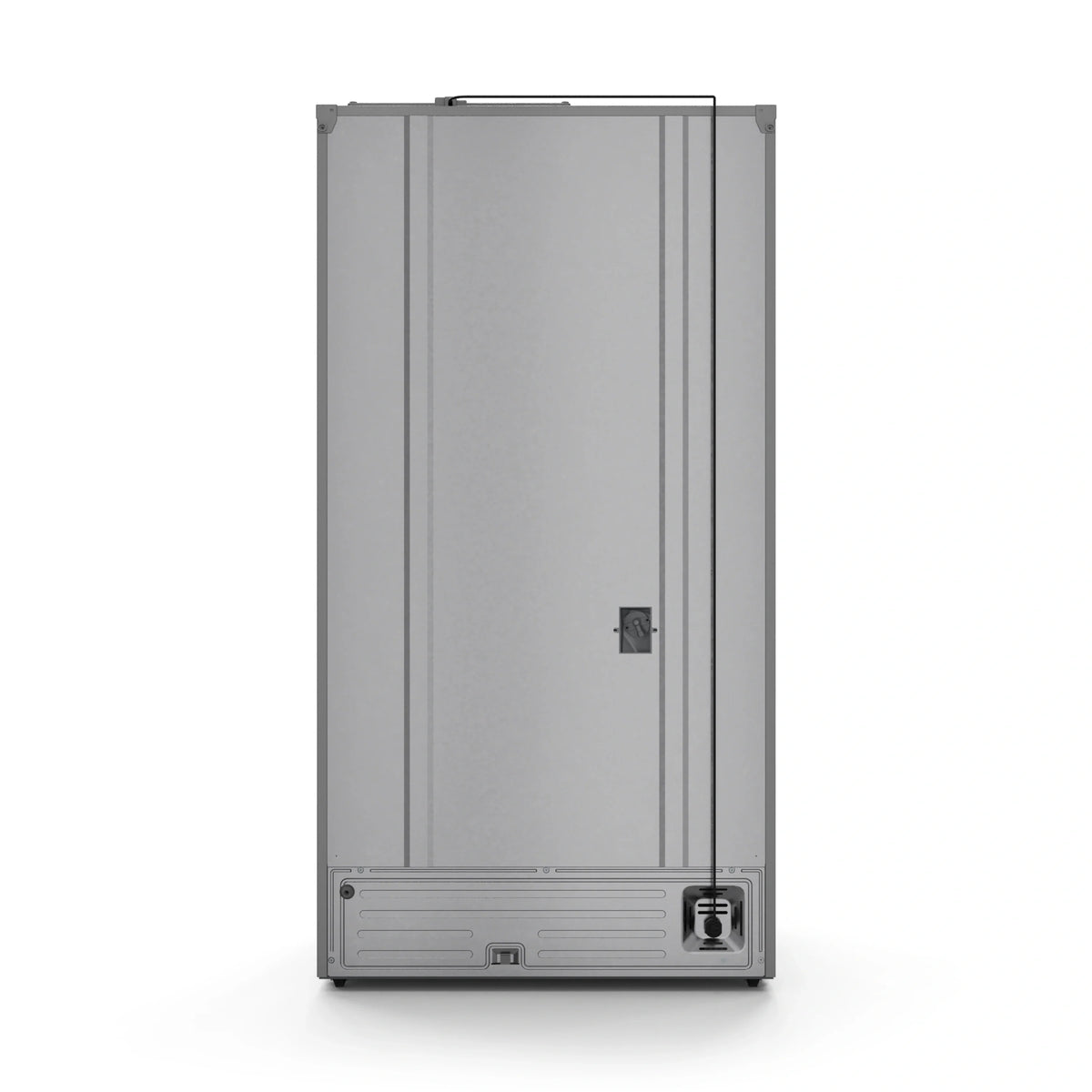

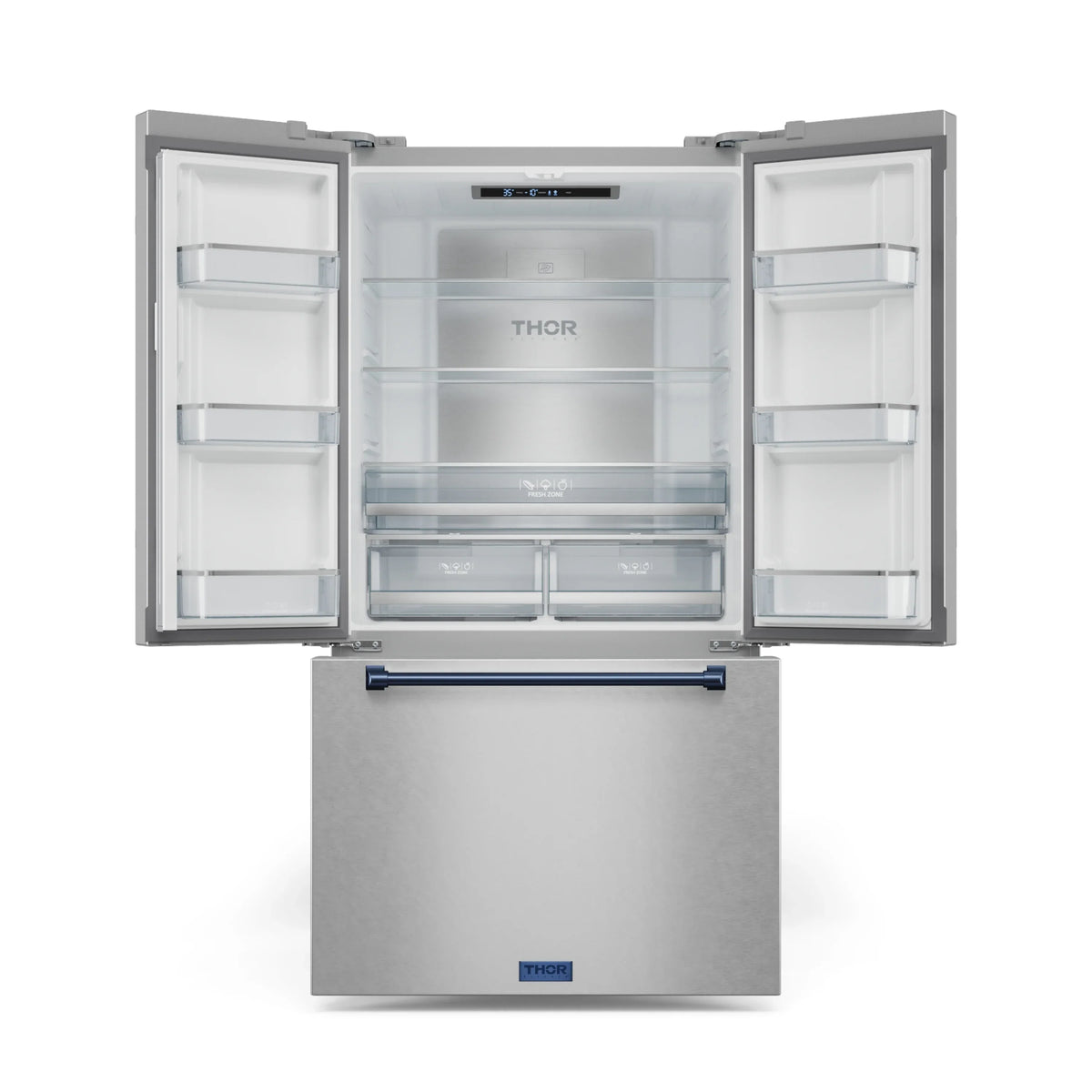

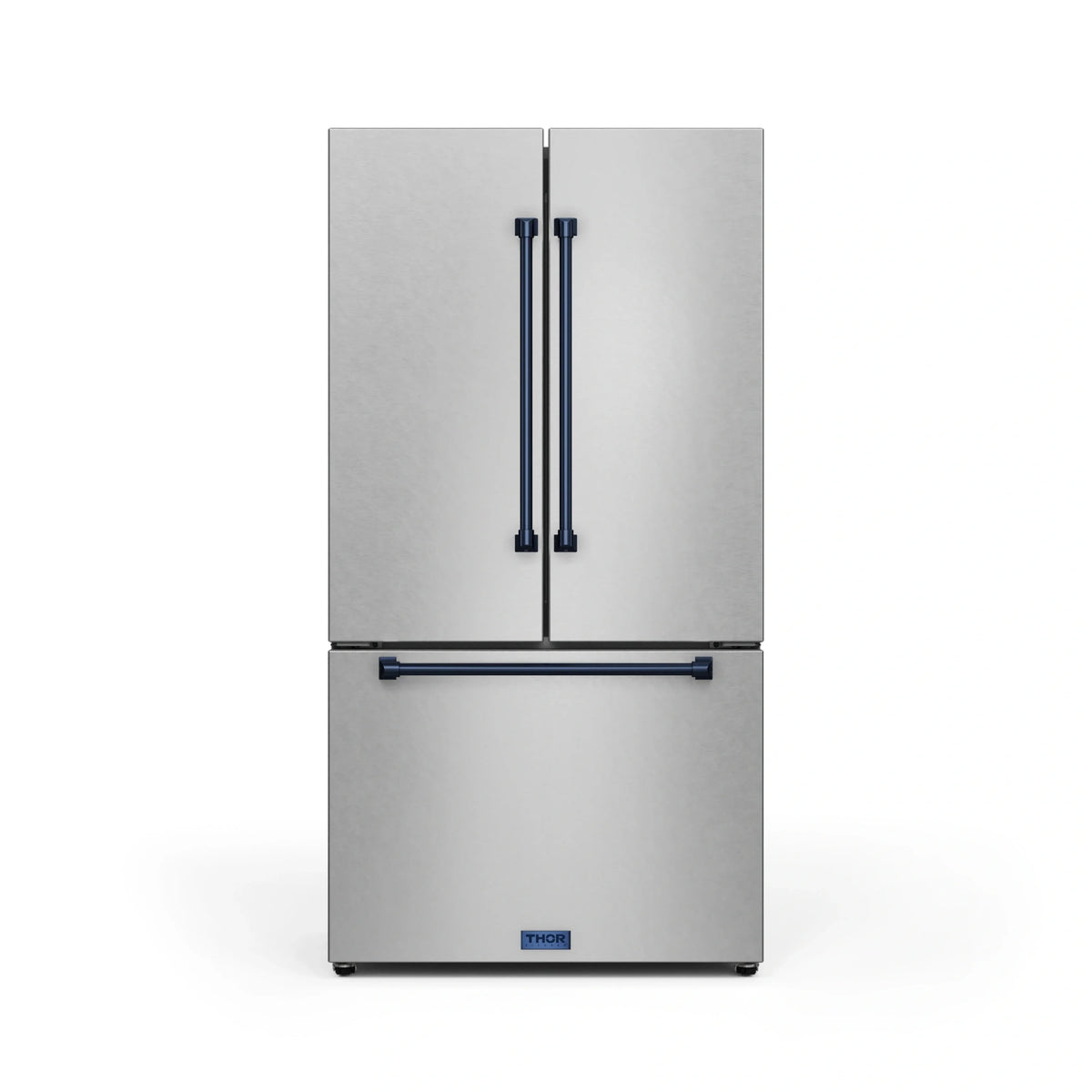

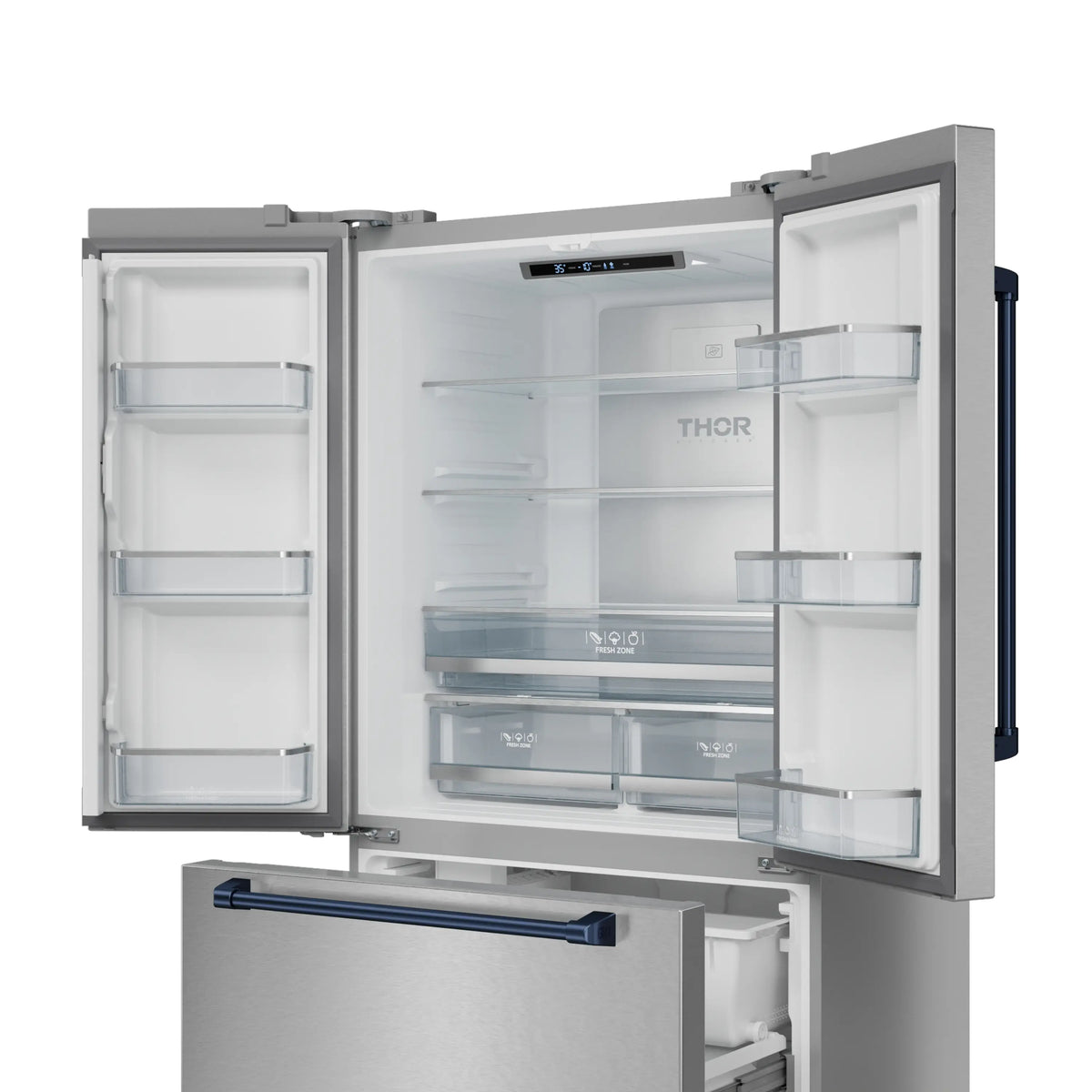

Experience superior freshness with the 36 Inch 20.3 cu ft French Door Counter Depth Refrigerator in Stainless Steel/Navy Blue. With advanced cooling technology, spacious interiors, and customizable features, this refrigerator ensures your ingredients stay at peak freshness. Designed for durability and efficiency, it brings top-tier performance and style to your kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 36” x 30 1/8” x 70” |
| Product Depth Excluding Handles | 27 5/8” |
| Product Depth Including Handles | 30 1/8” |
| Product Depth Excluding Door | 24 5/8” |
| Product Depth With Door Open 90 Degrees | 43 1/4” |
| Product Height To Top Of Door Hinge | 70” |
| Product Height To Top Of Refrigerator | 68” |
| Cutout Dimensions (WxDxH) | 39 7/8” x 26” x 72” |
| Net Weight | 231 lbs |
| Package Dimensions (WxDxH) | 38 1/8” x 29 1/2” x 73 7/8” |
| Package Weight | 255 lbs |
| Total Capacity | 20.3 cu. ft. |
| GENERAL INFORMATION | |
| Installation Type | Freestanding |
| Accessories Included | Water Pipe Ice Scoop Ice Storage Box |
| DESIGN & FINISH | |
| Shelf Material | Glass With Stainless Steel Trim |
| Lighting | LED |
| TECHNICAL DETAILS | |
| Watts | 190W |
| Circuit Breaker Amperage | 15A |
| Volts | 115V |
| Frequency | 60Hz |
| Plug Type | 3-Prong Plug |
| Power Cord Length | 94” |
| REFRIGERATOR FEATURES | |
| Refrigerator Capacity | 14.2 cu. ft. |
| Number Of Door Bins | 6 |
| Number Of Shelves | 3 |
| Refrigerator Features | 6 pcs Gallon Bottle Storage Child Lock / Energy Saving & Vacation Mode/ Fast Cooling Humidity Controlled Crispers Fridge Temperature Range: 35~46°F (2~8°C) |

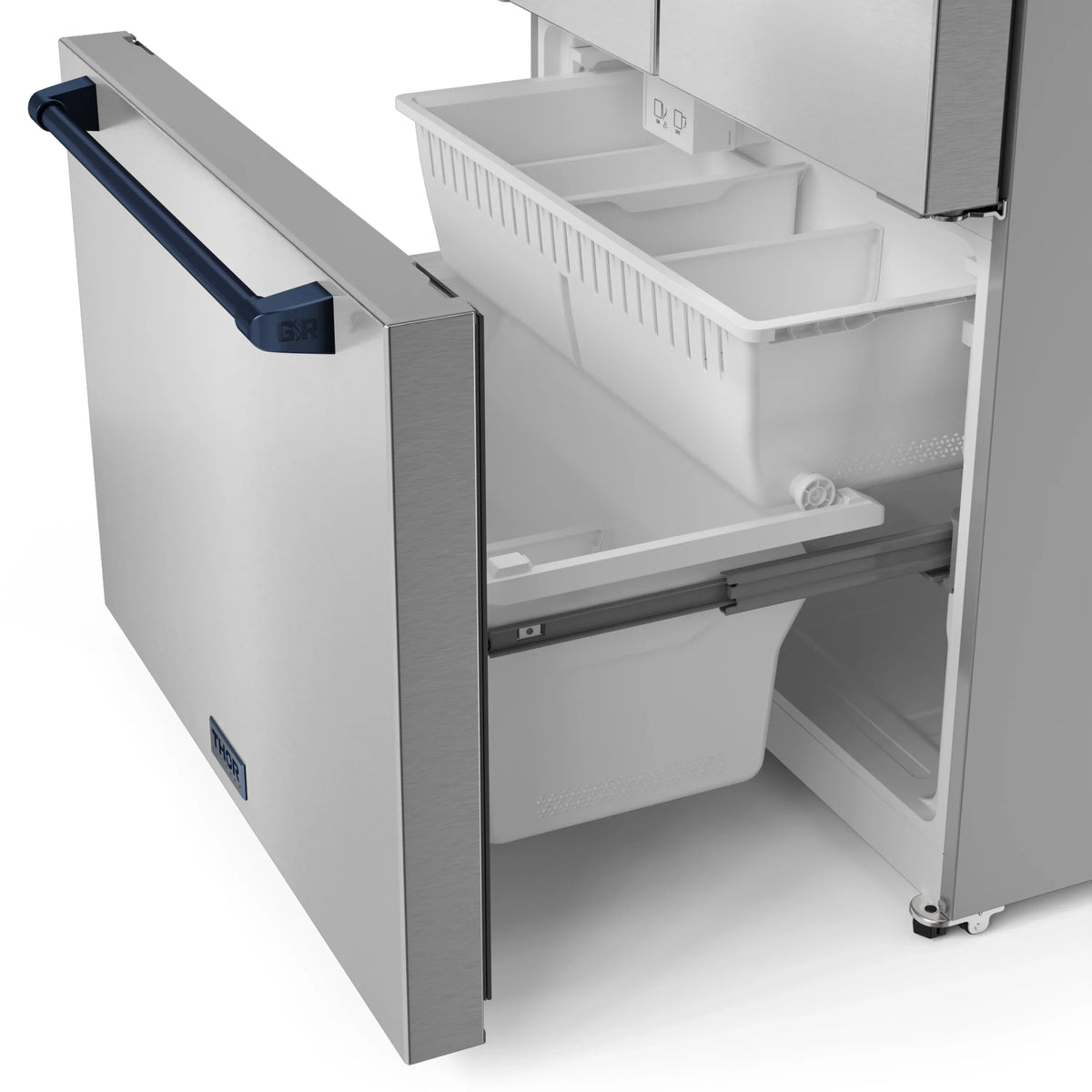

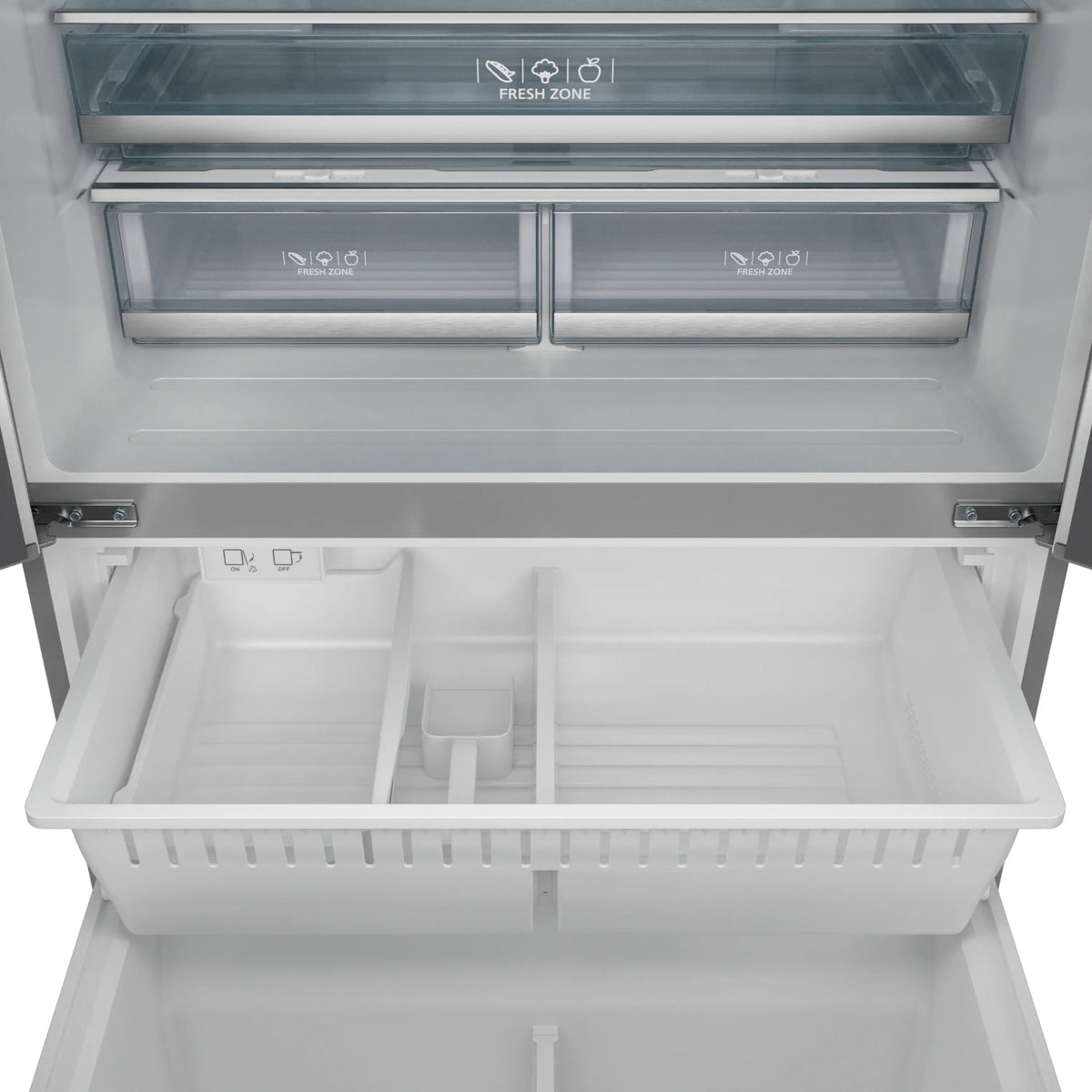

| FREEZER FEATURES | |
| Freezer Capacity | 6.1 cu. ft |
| Number Of Freezer Baskets | 1 |
| Freezer Features | LED Lightening Fast Freezing Freezer Temperature Range: -10~5°F ( -23~ -15°C) No Frost Design |

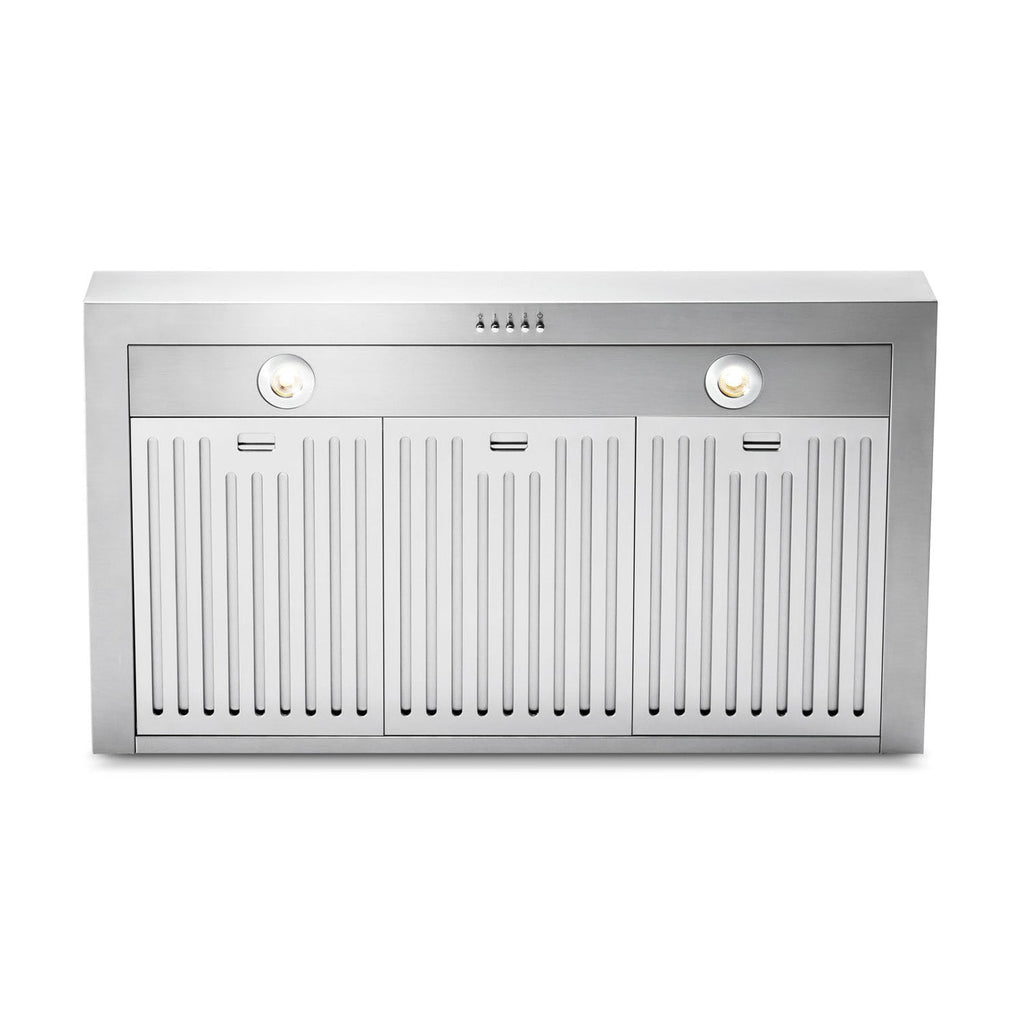

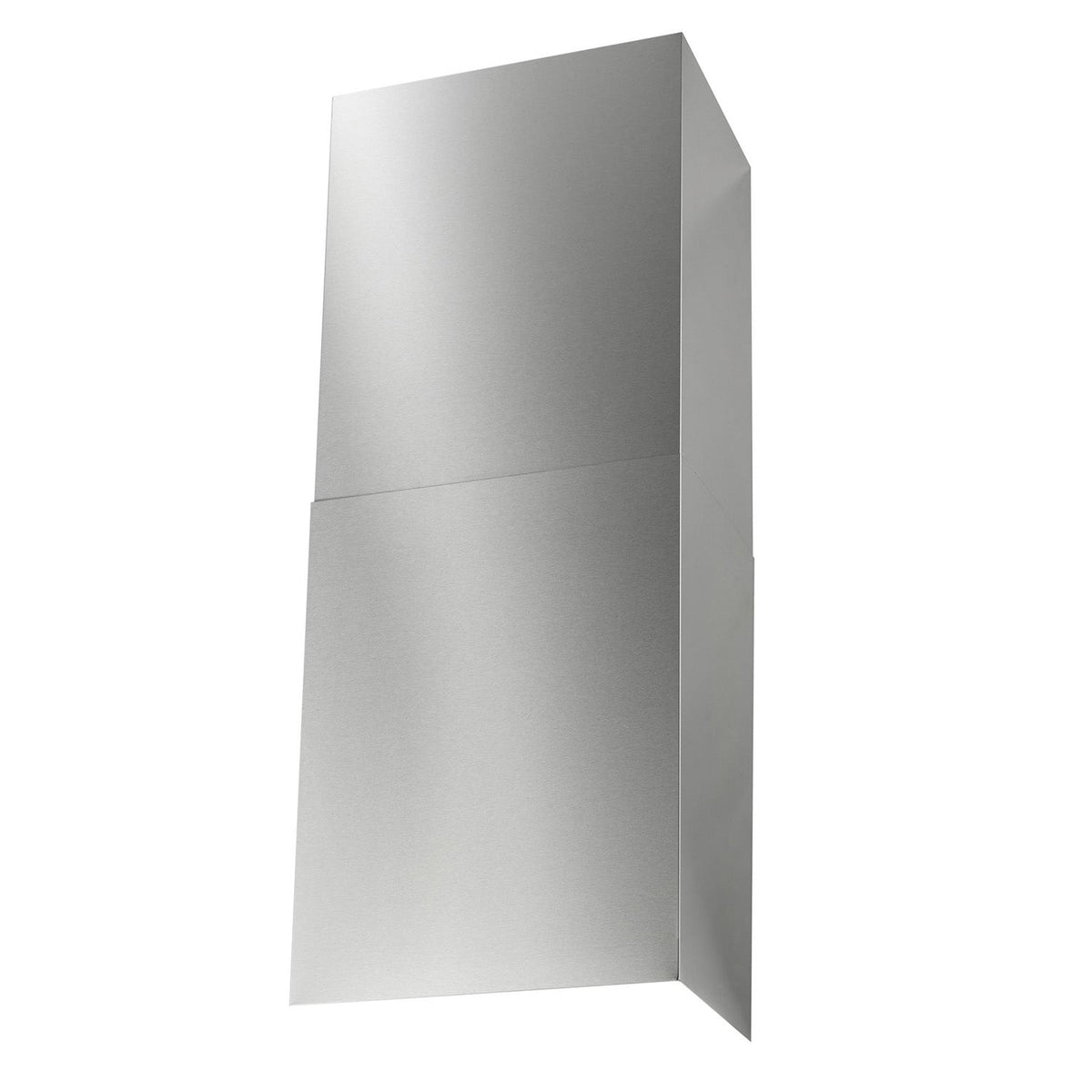

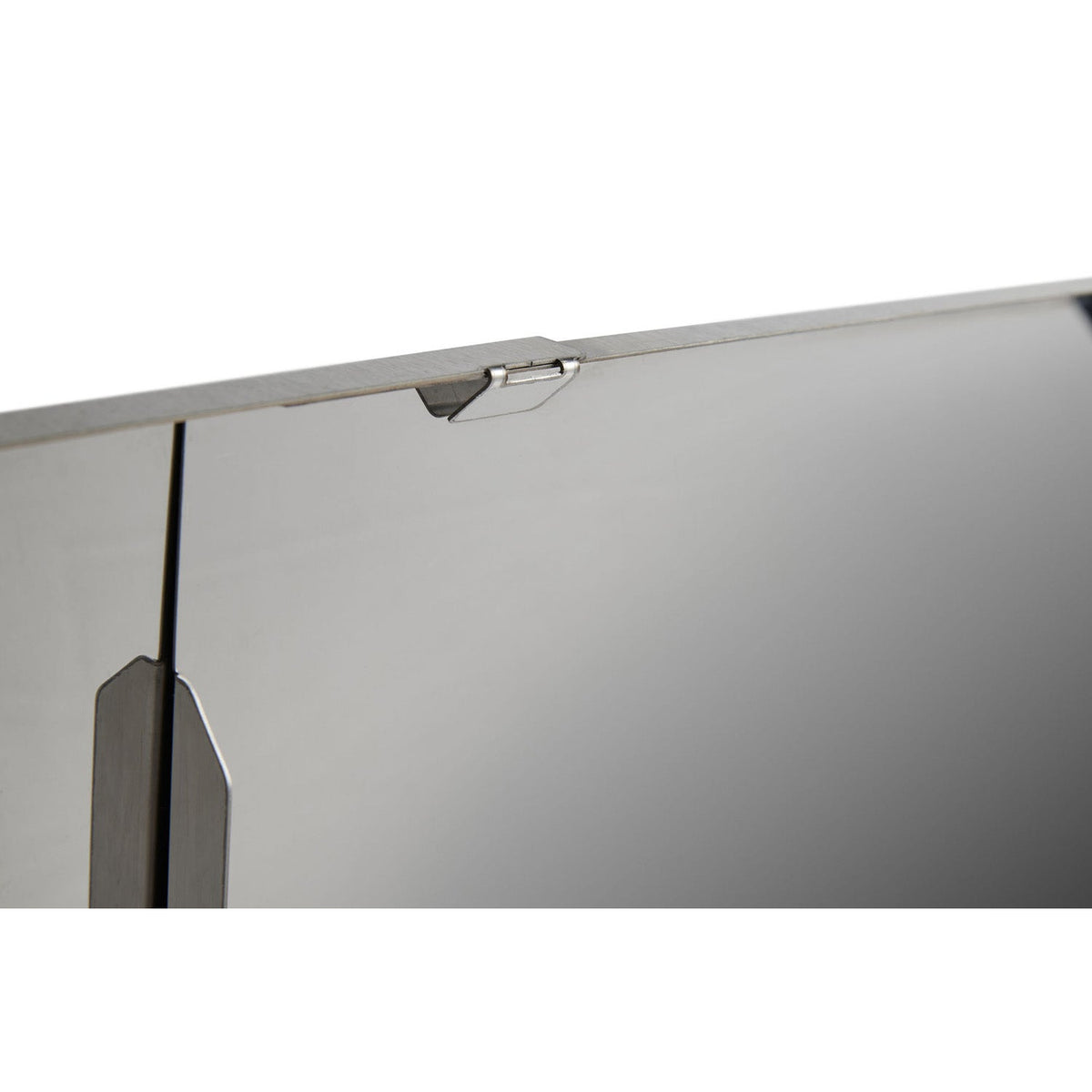

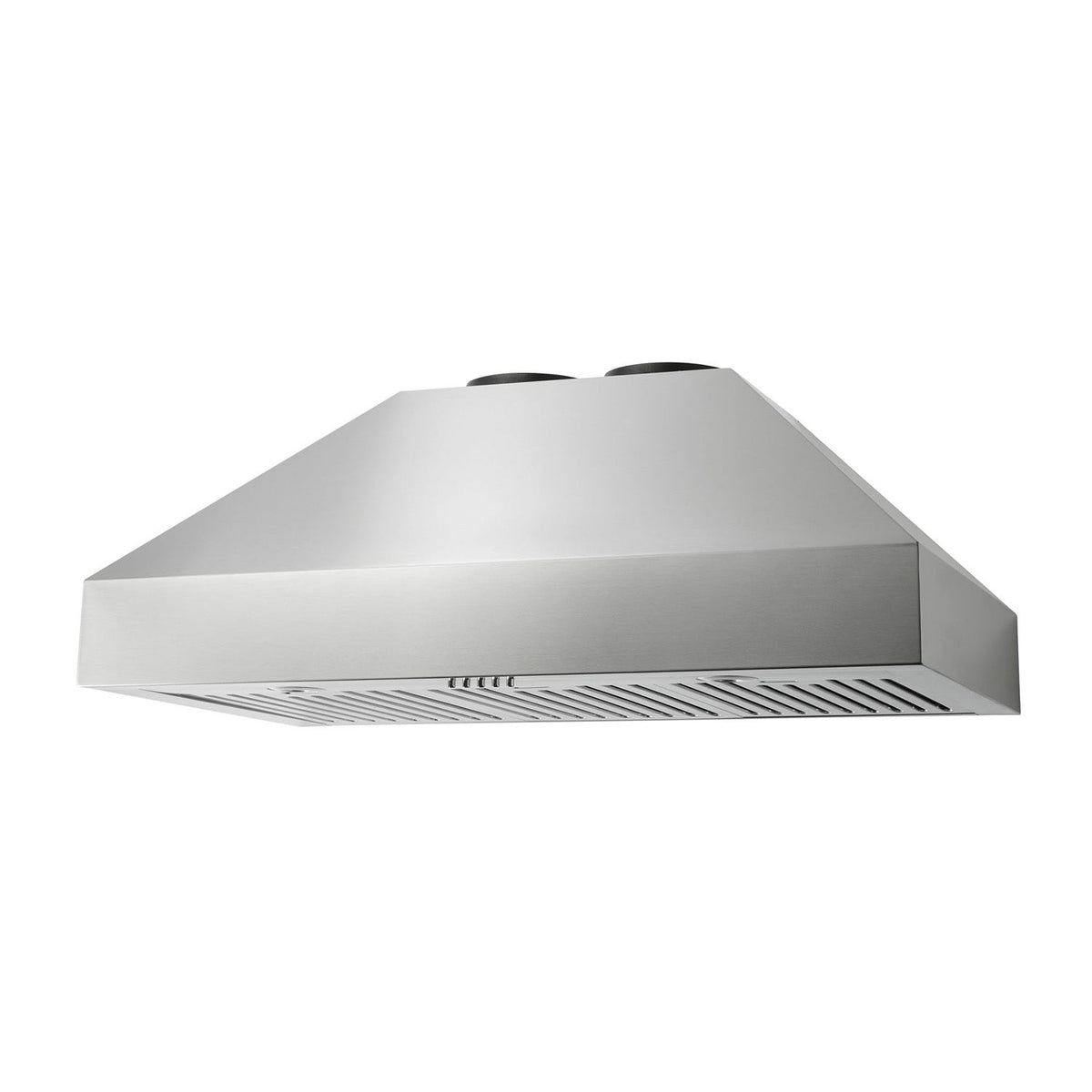

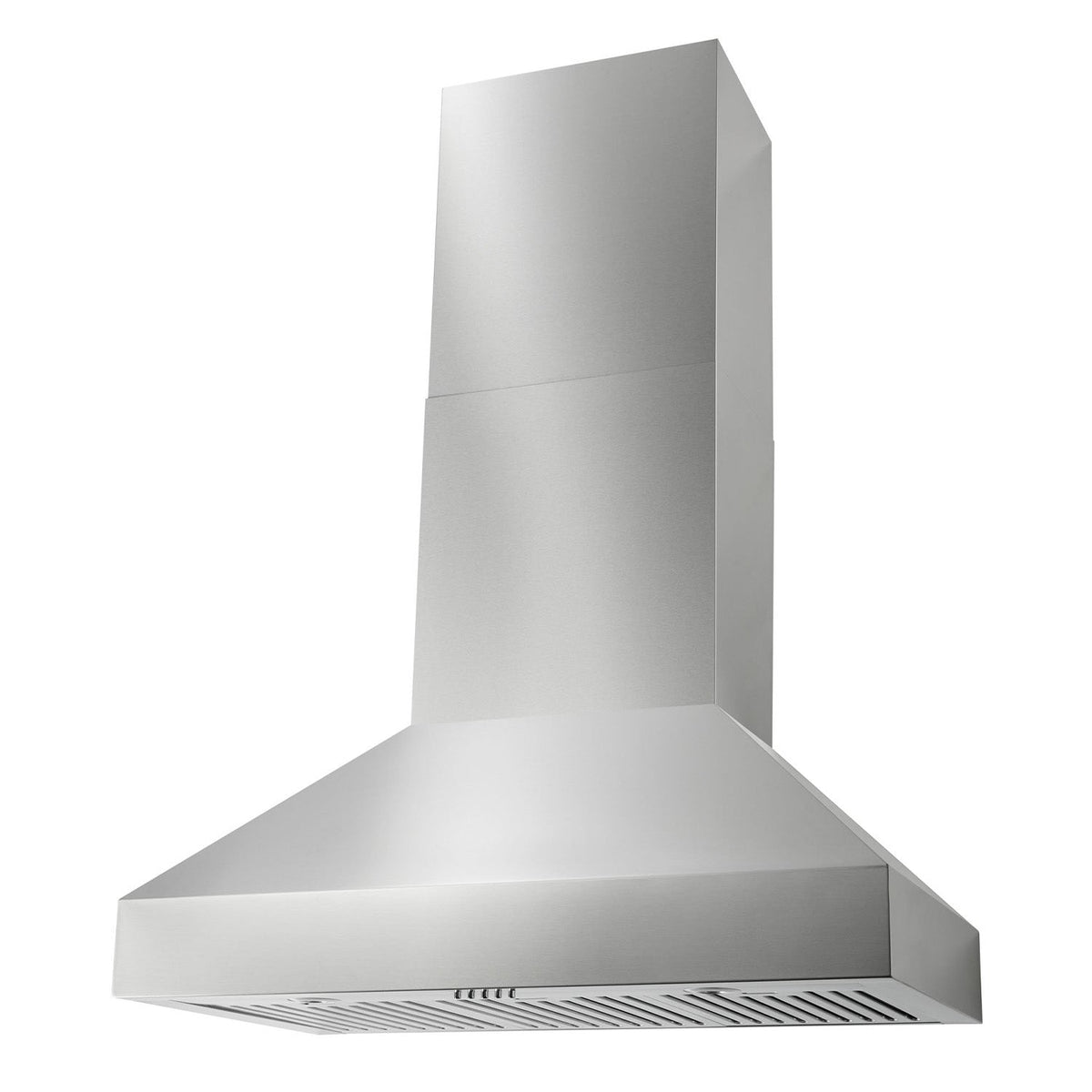

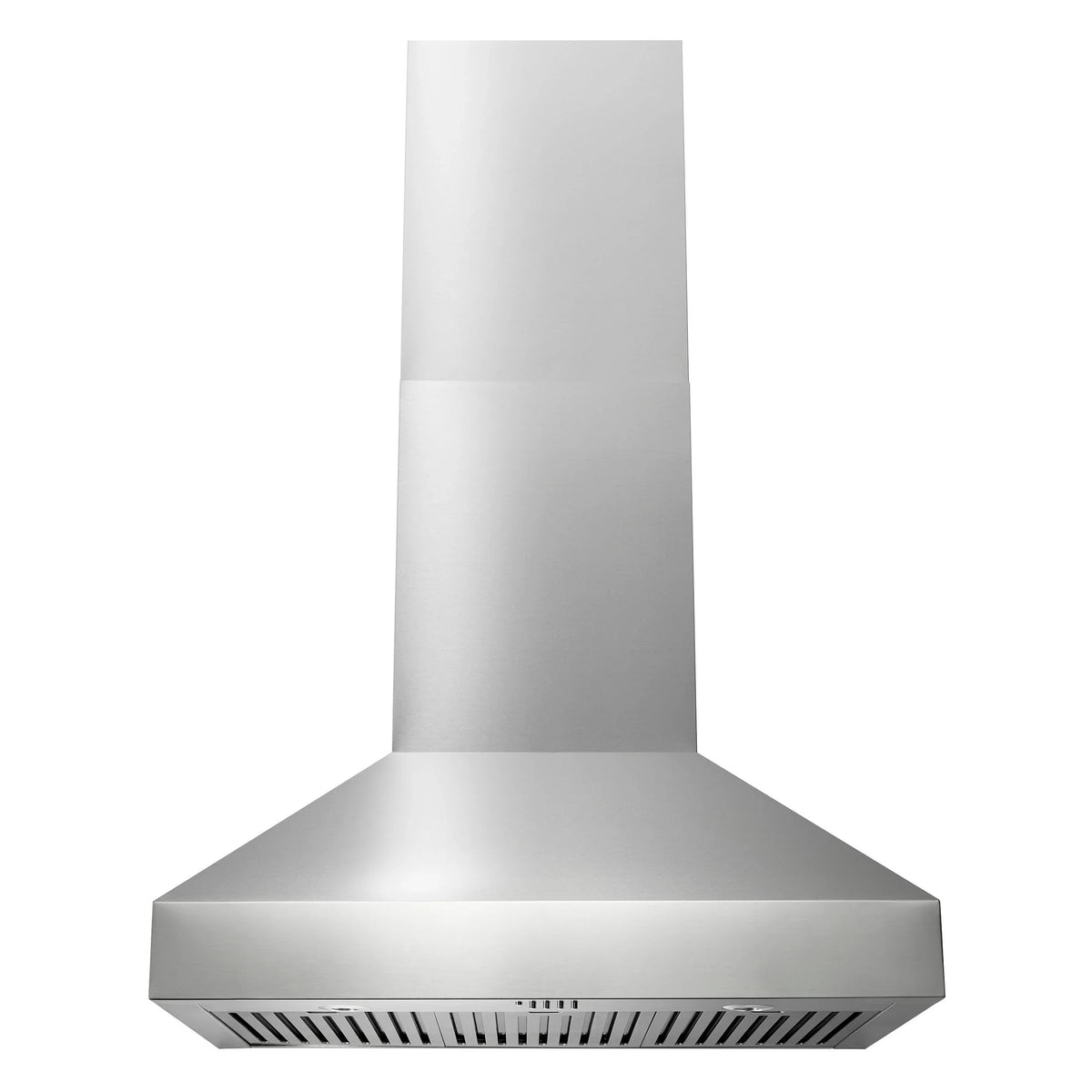

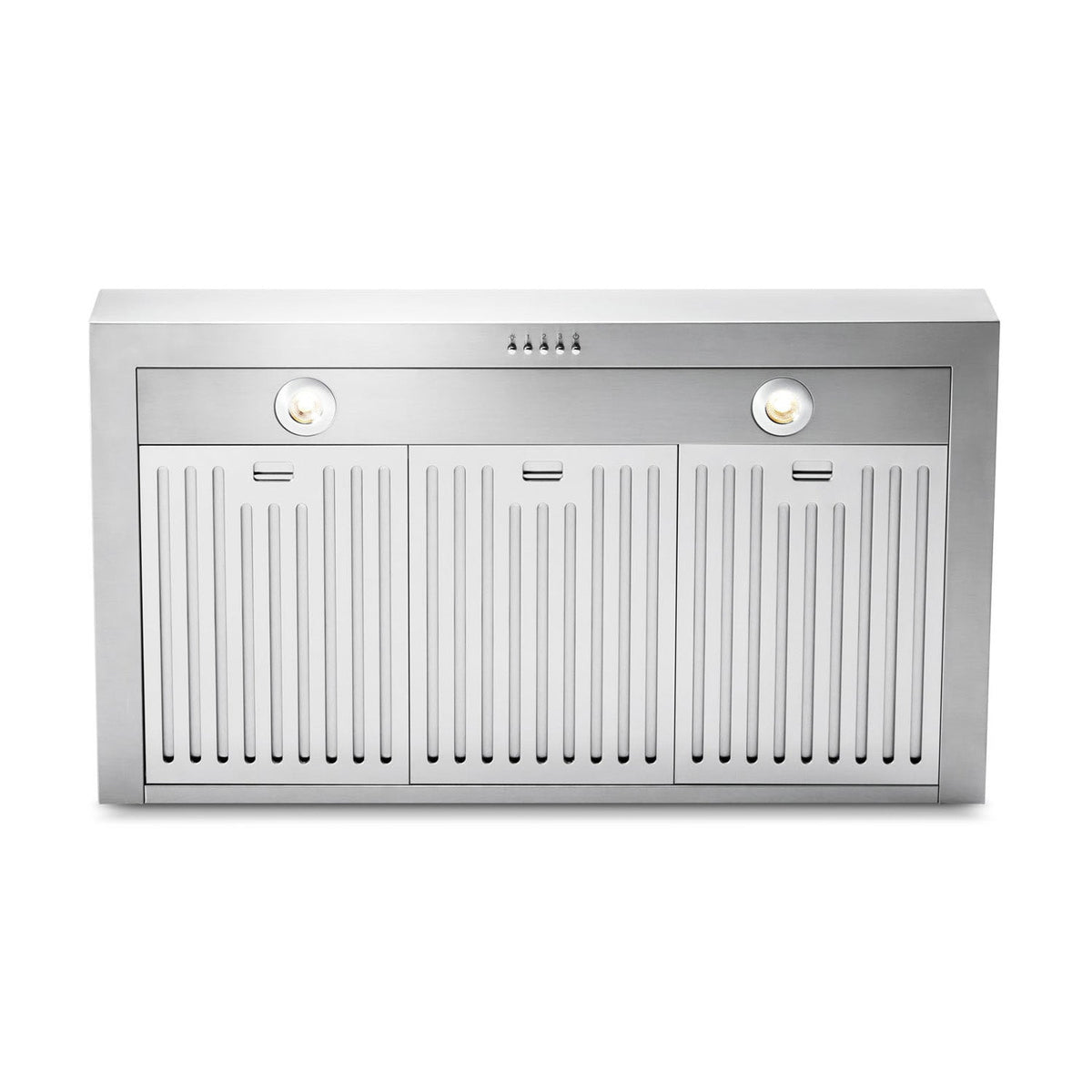

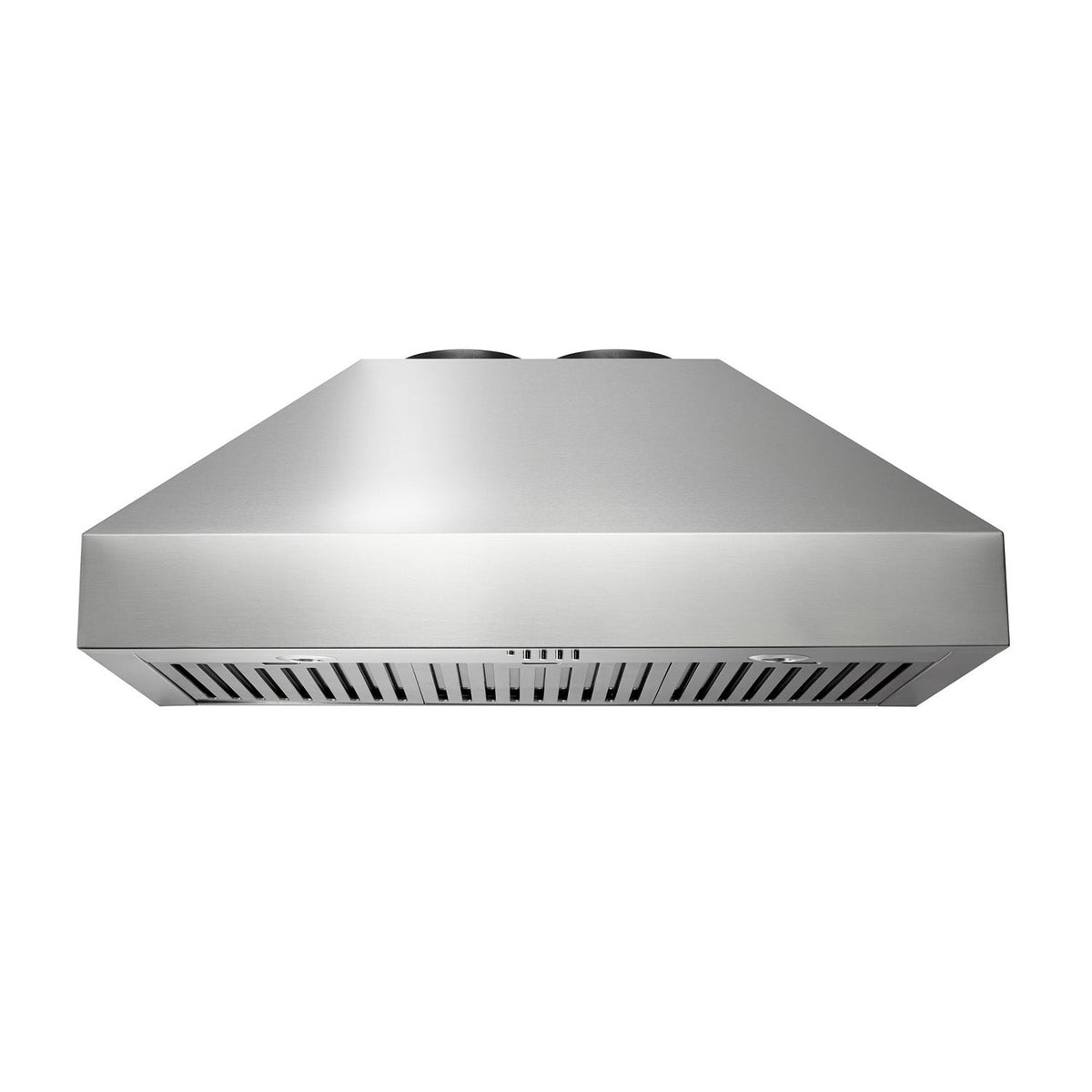

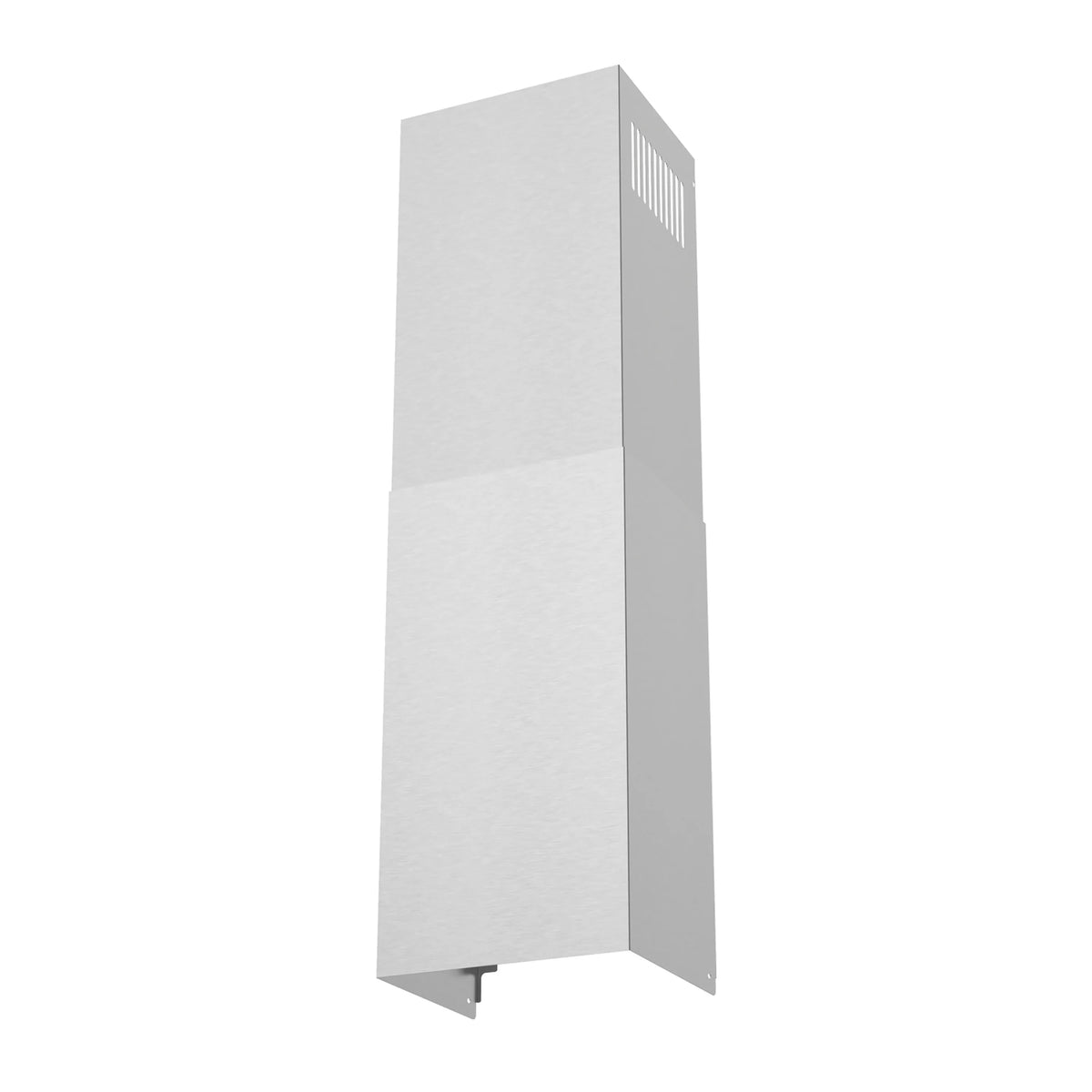

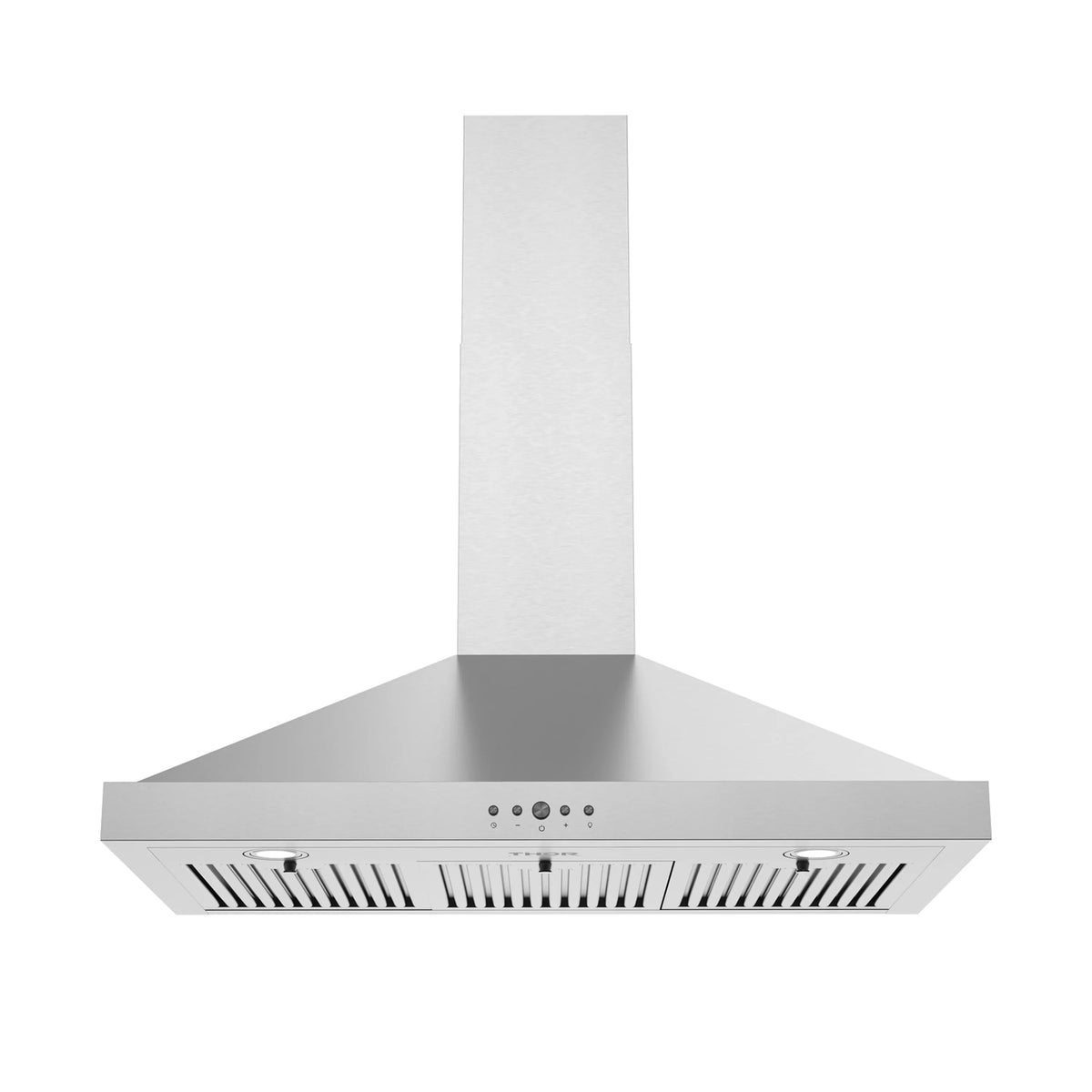

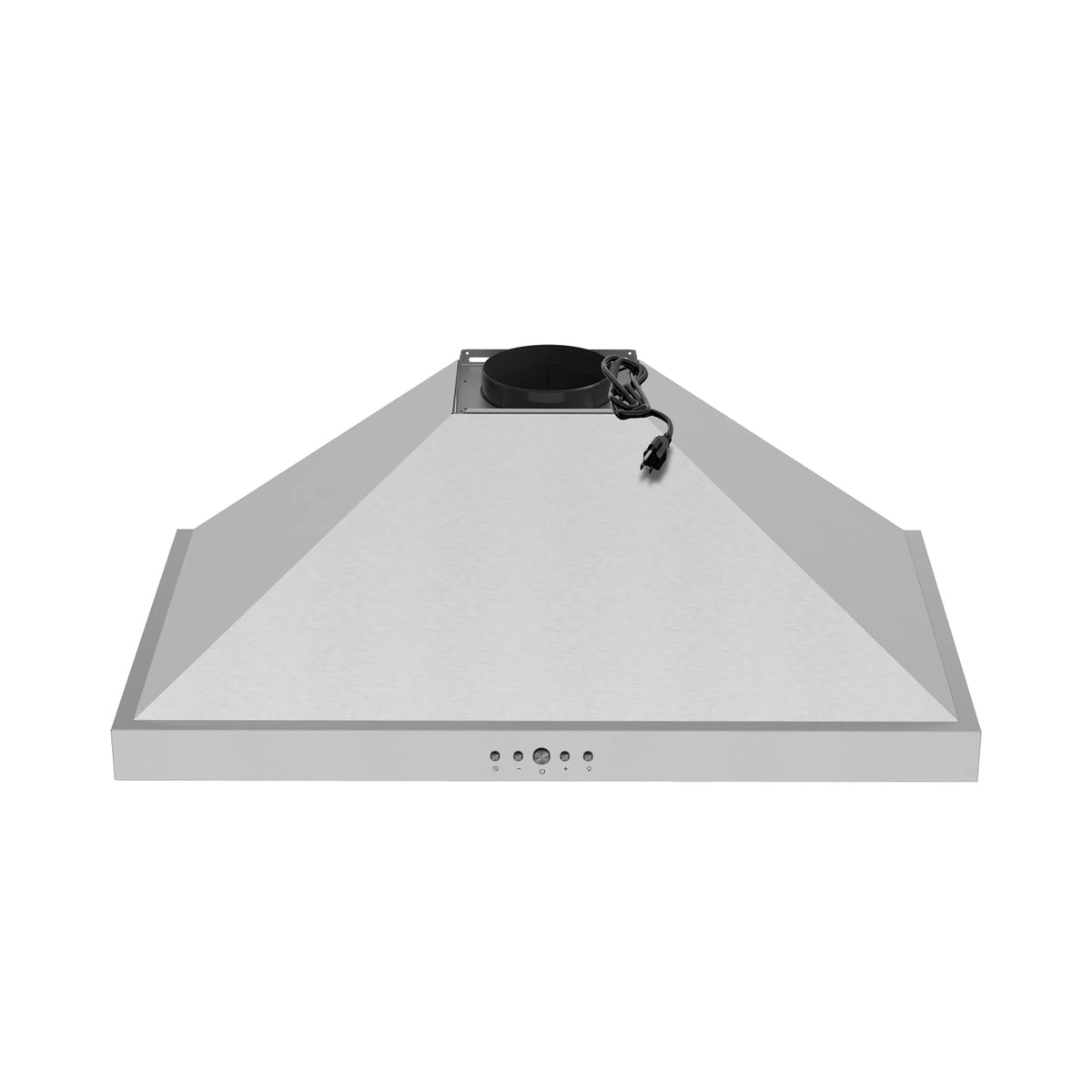

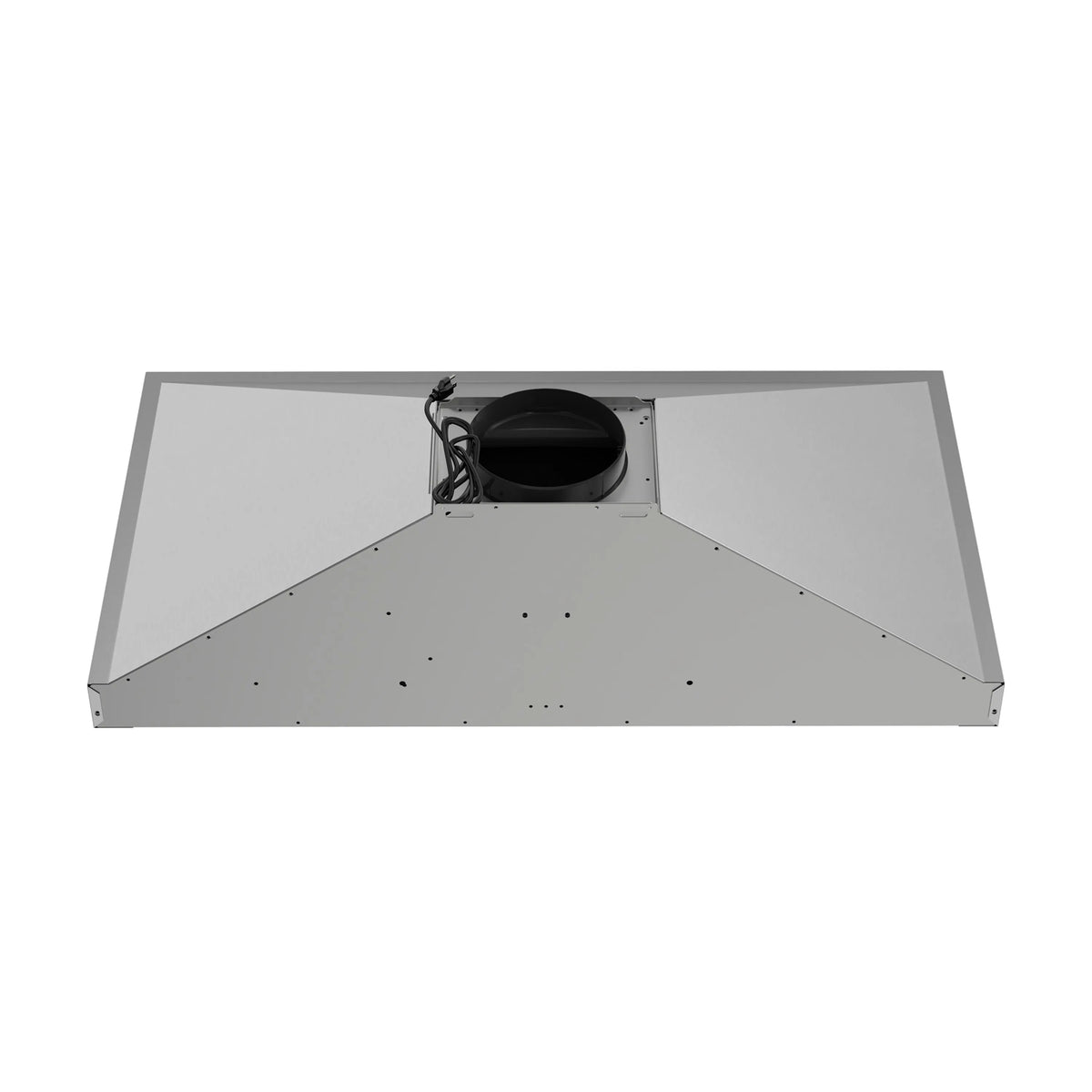

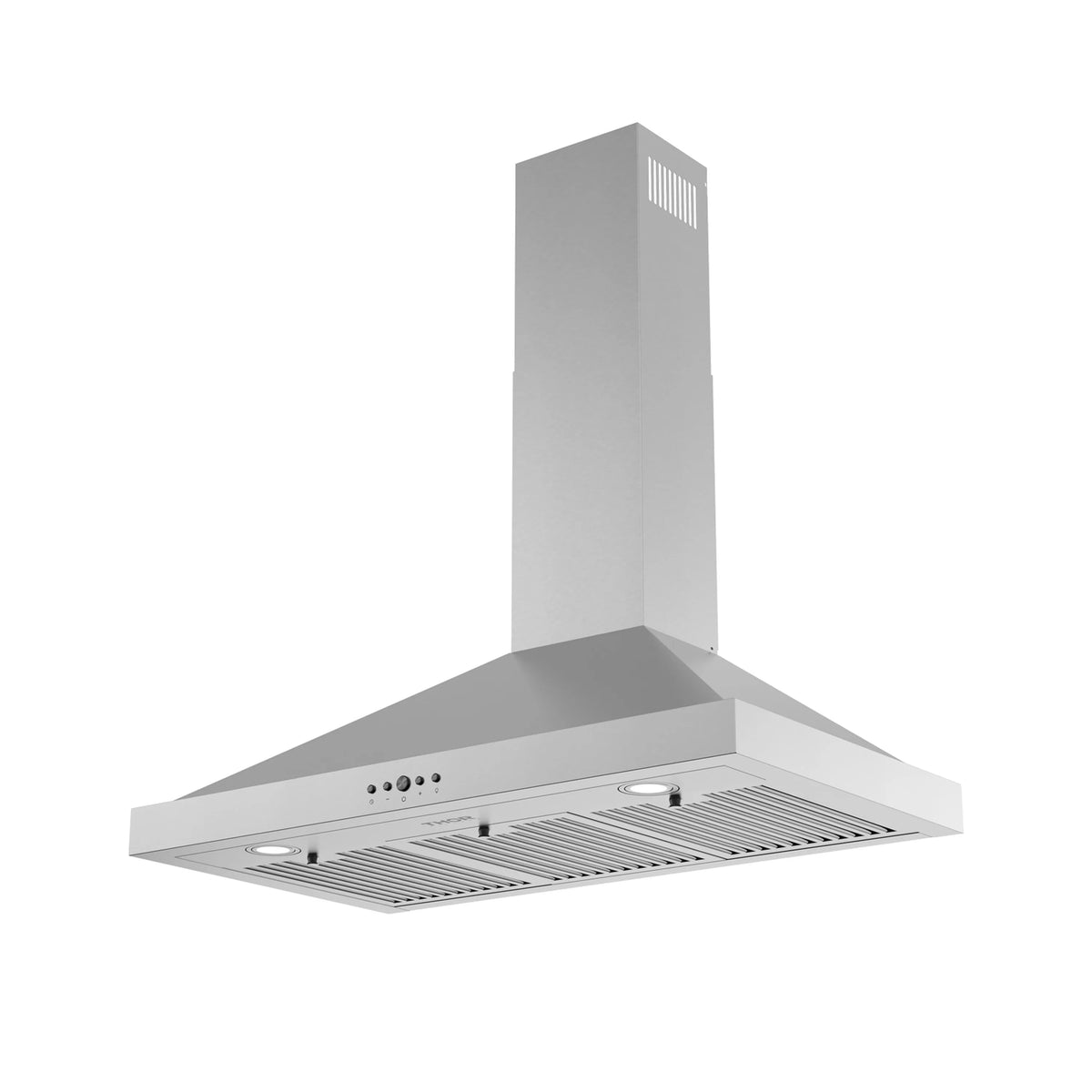

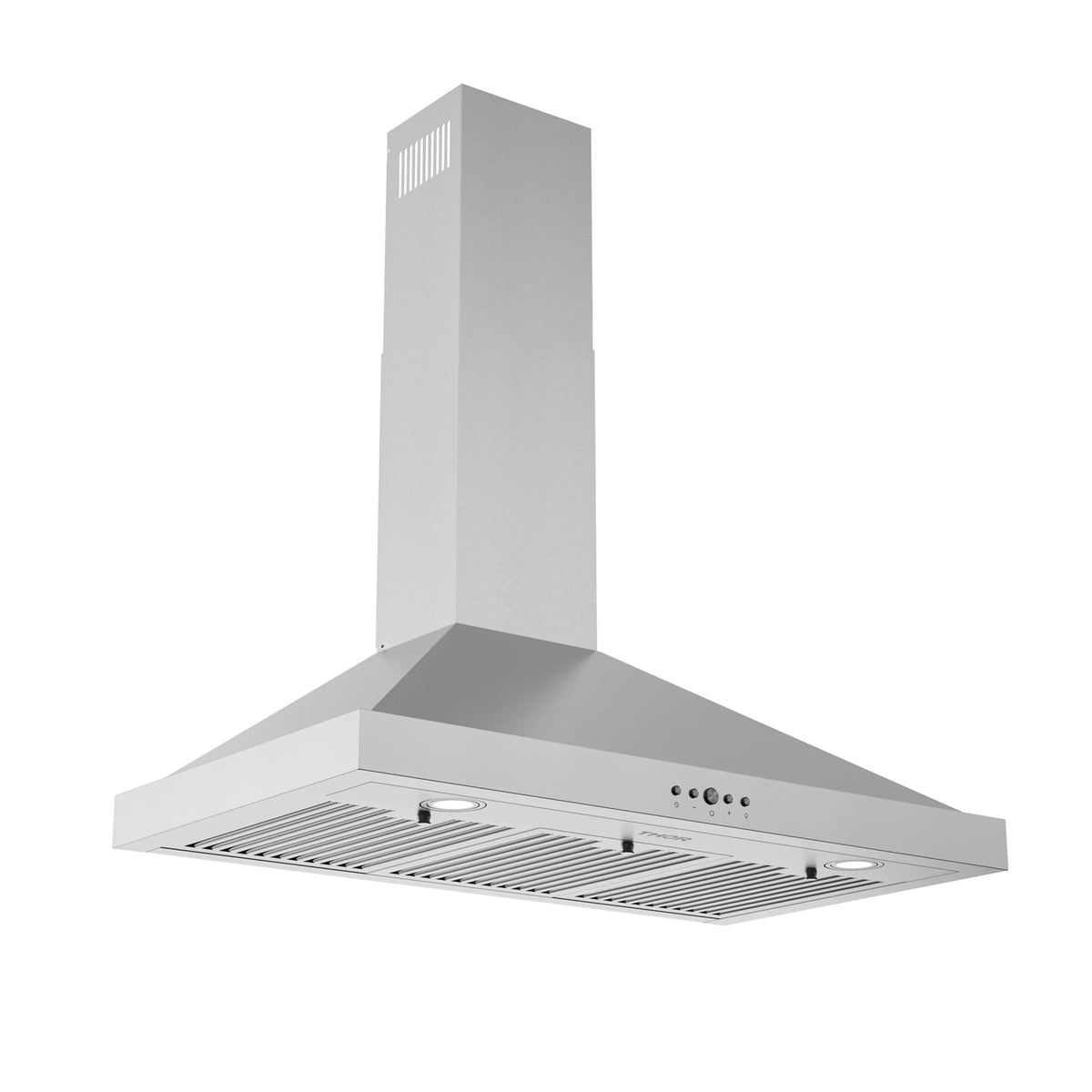

TRH36P THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The 36 Inch Professional Wall Mount Range Hood in Stainless Steel adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod
Options & Accessories (Sold Separately):
| DIMENSIONS | |
|---|---|

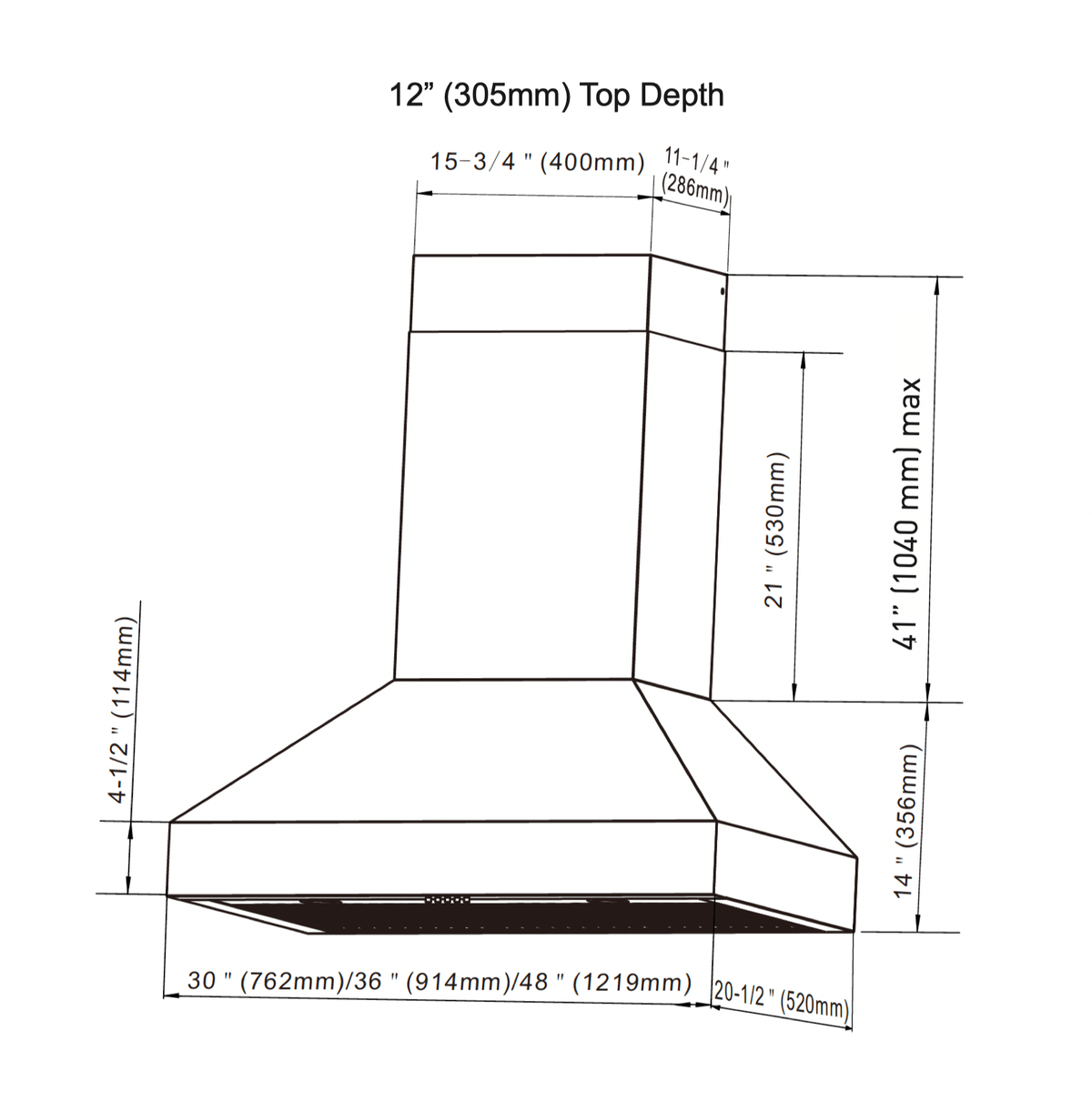

| Dimensions | 36” W x 14” H x 20 1/2” D |
| Gross Weight | 65 lb. |
| Duct Width | 8" |
| GENERAL INFORMATION | |
| Installation Type | Wall Mount |
| DESIGN & FINISH | |

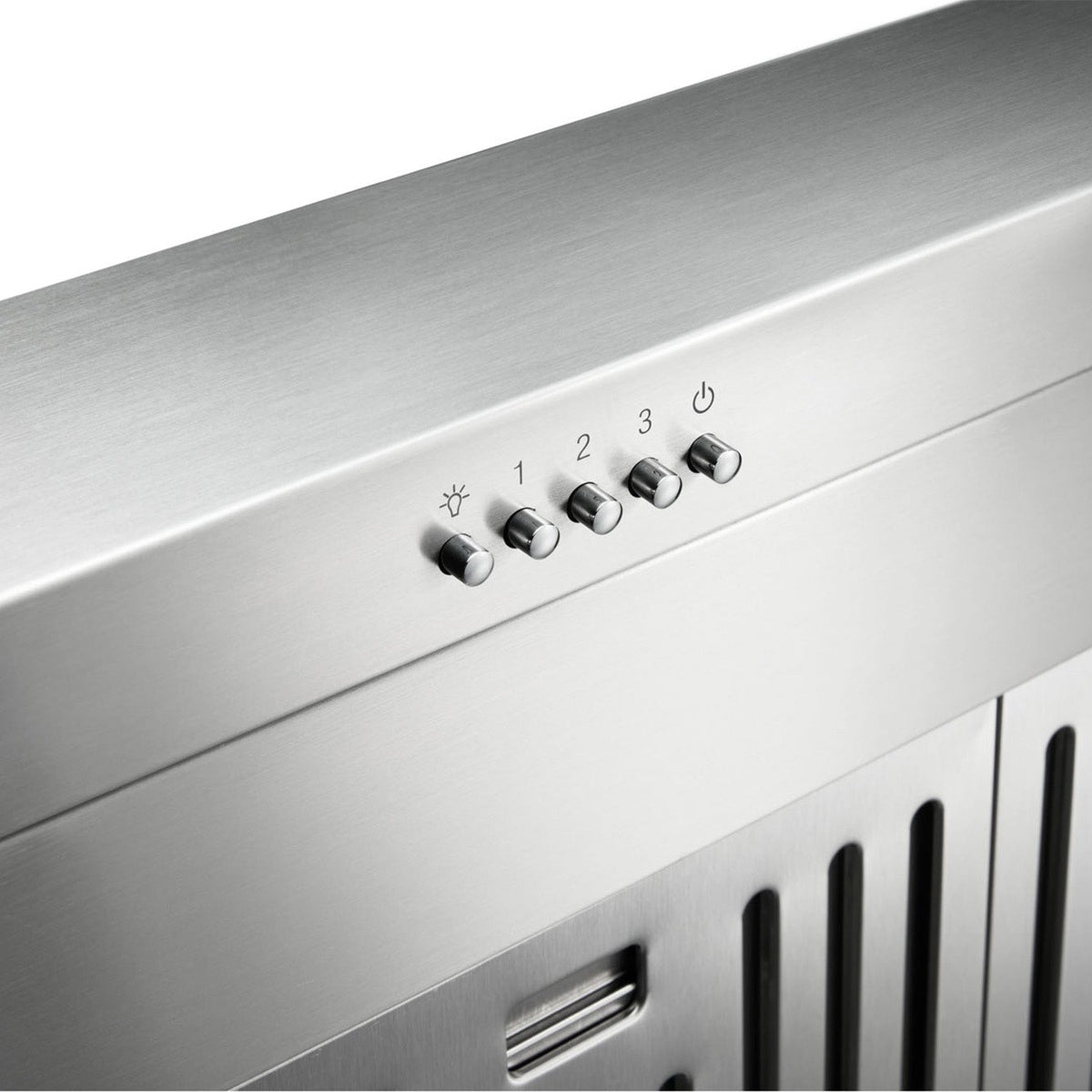

| Control type | Button, no auto shut off No delayed shut off |
| Color/Finish | Stainless Steel |
| TECHNICAL DETAILS | |
| Duct Length | 55" Fully Extended |
| Duct Diameter | 7" |
| Power | 110V |
| Amperage | 3A |
| Duct Shape | Round |
| Frequency | 60 Hz |
| Blower type | Internal |
| Blower Ratings CFM |
|
| Blower Ratings dBA |
|
| FEATURES | |

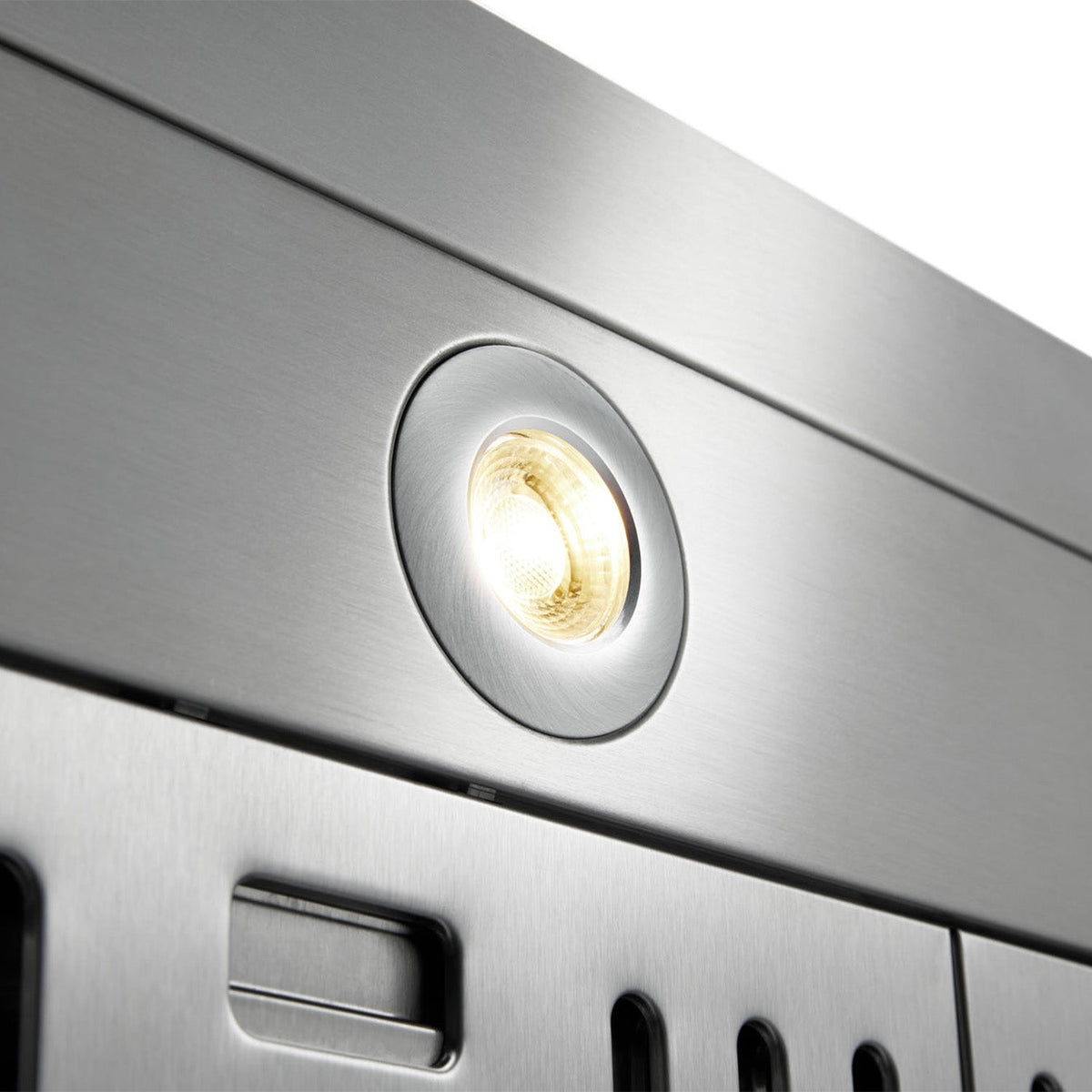

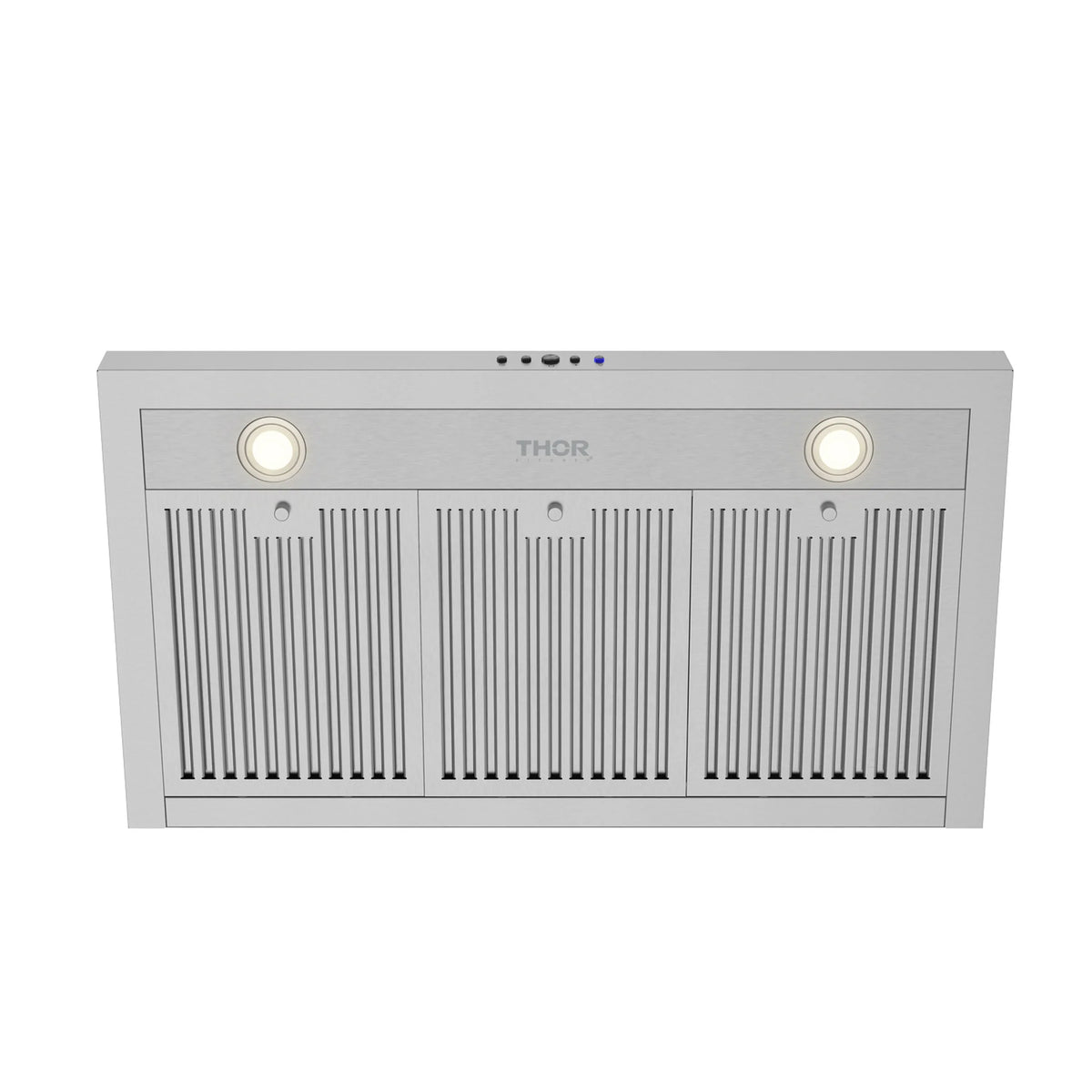

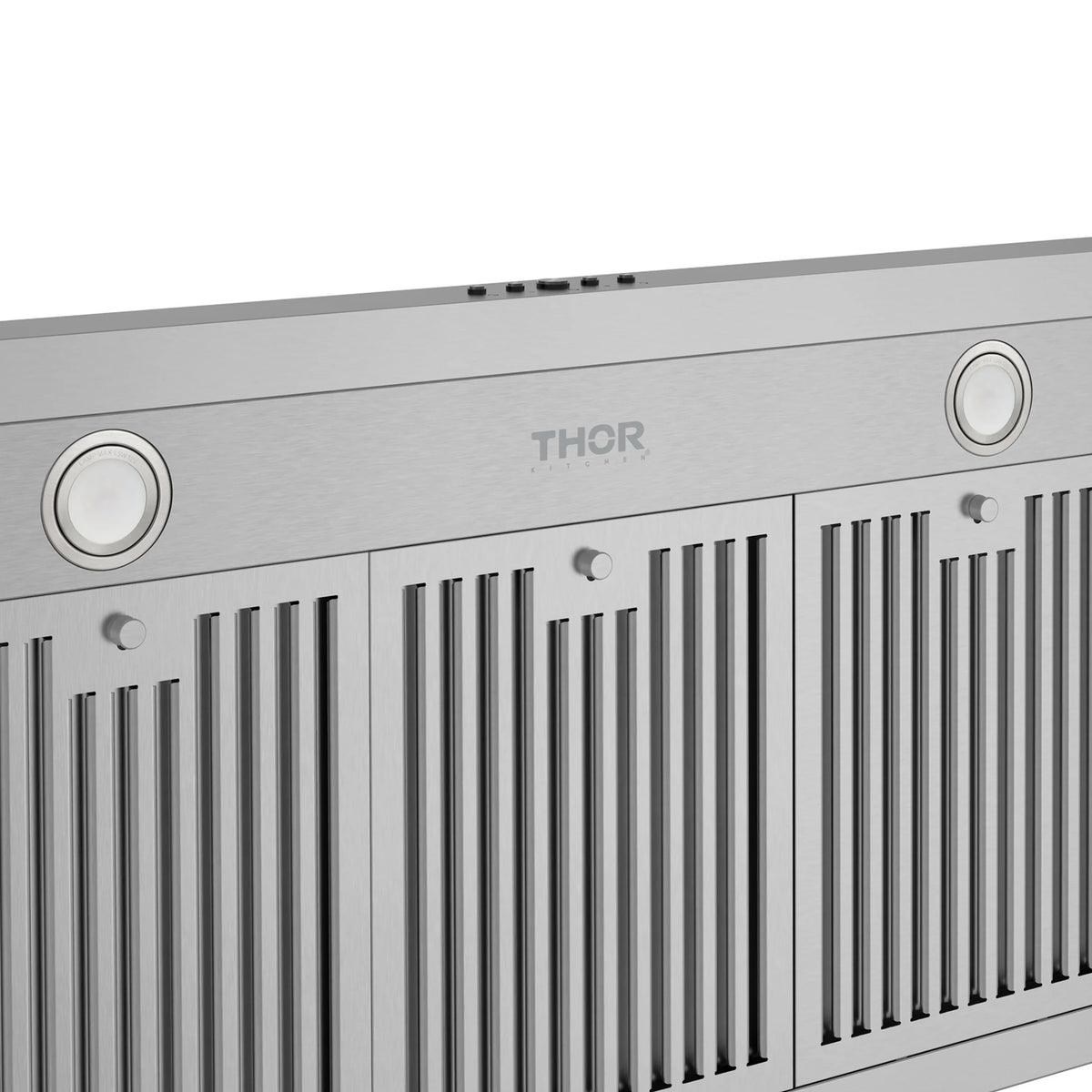

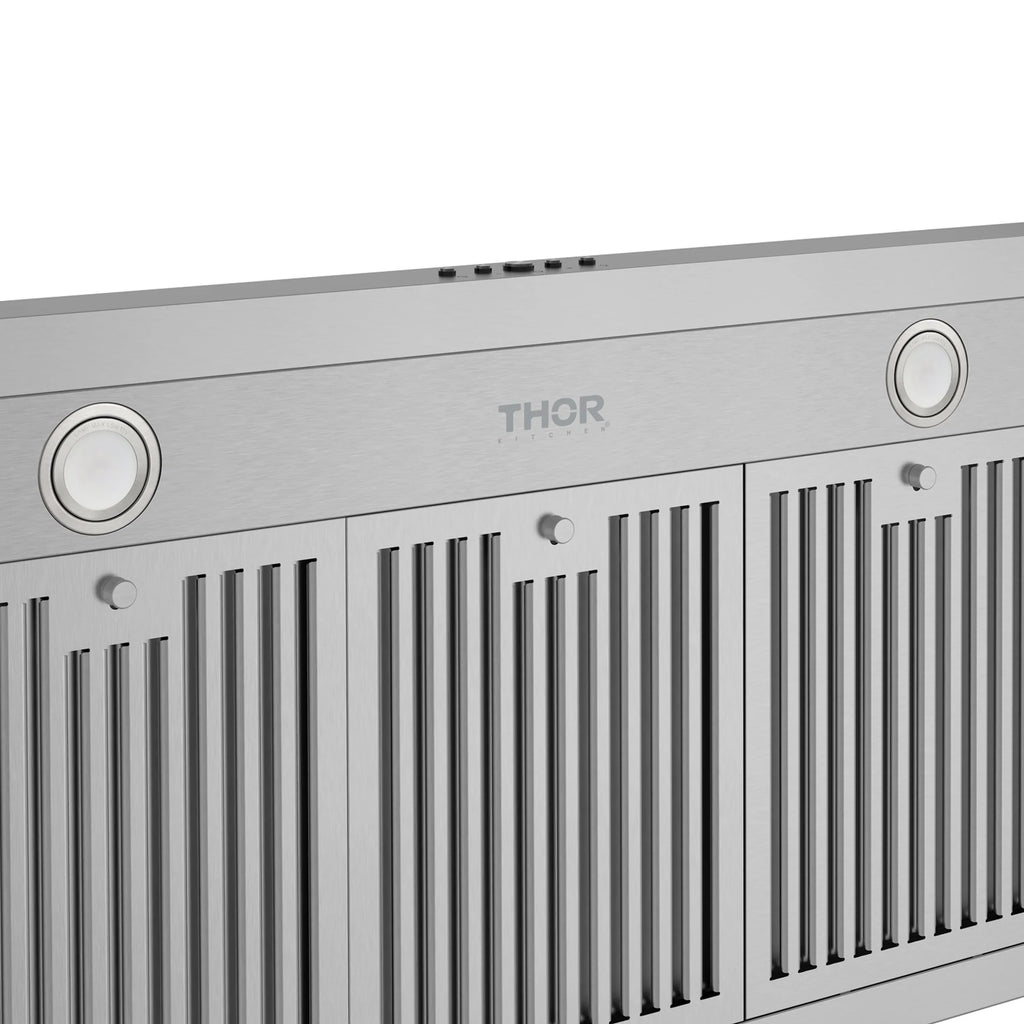

| Lighting | LED light x 2 |

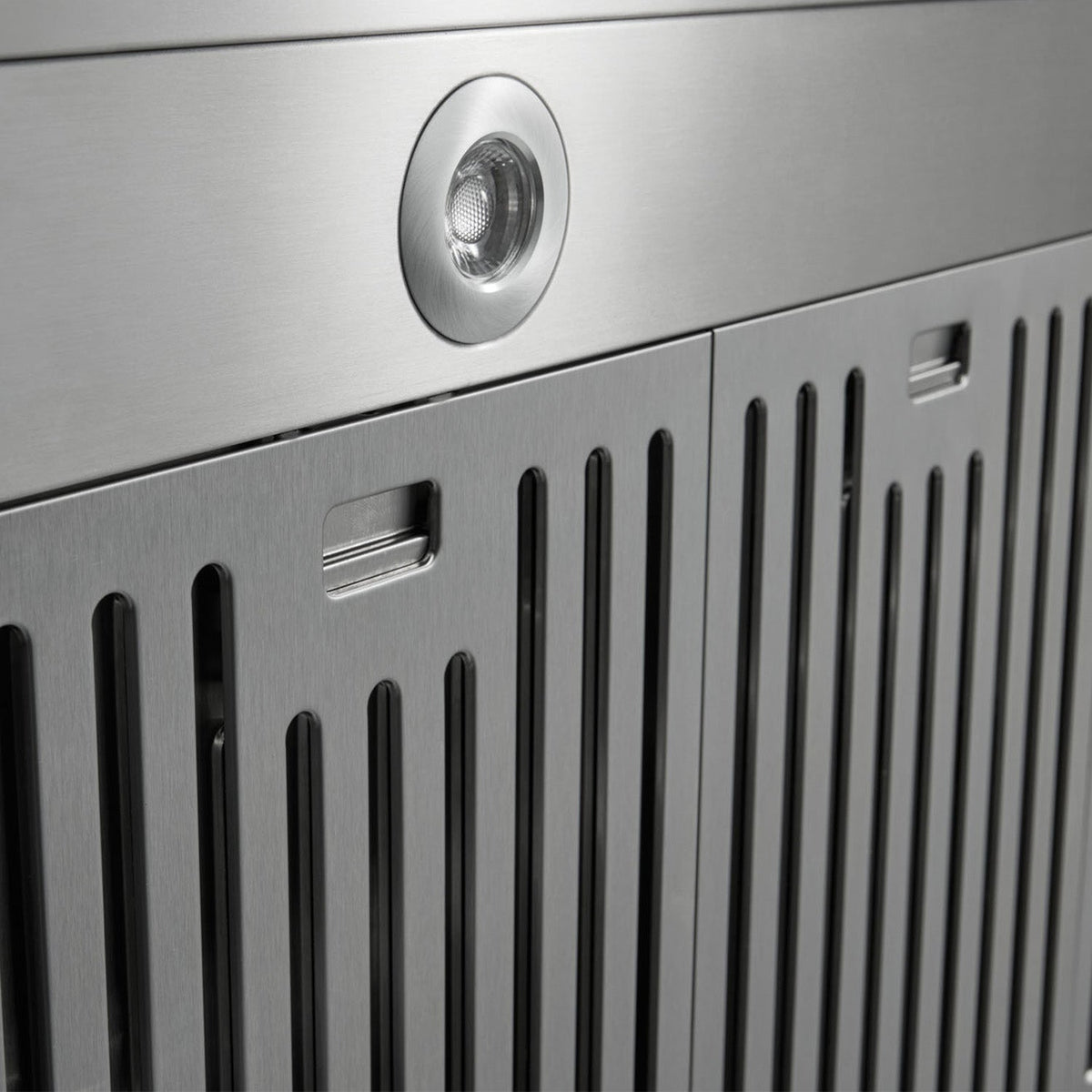

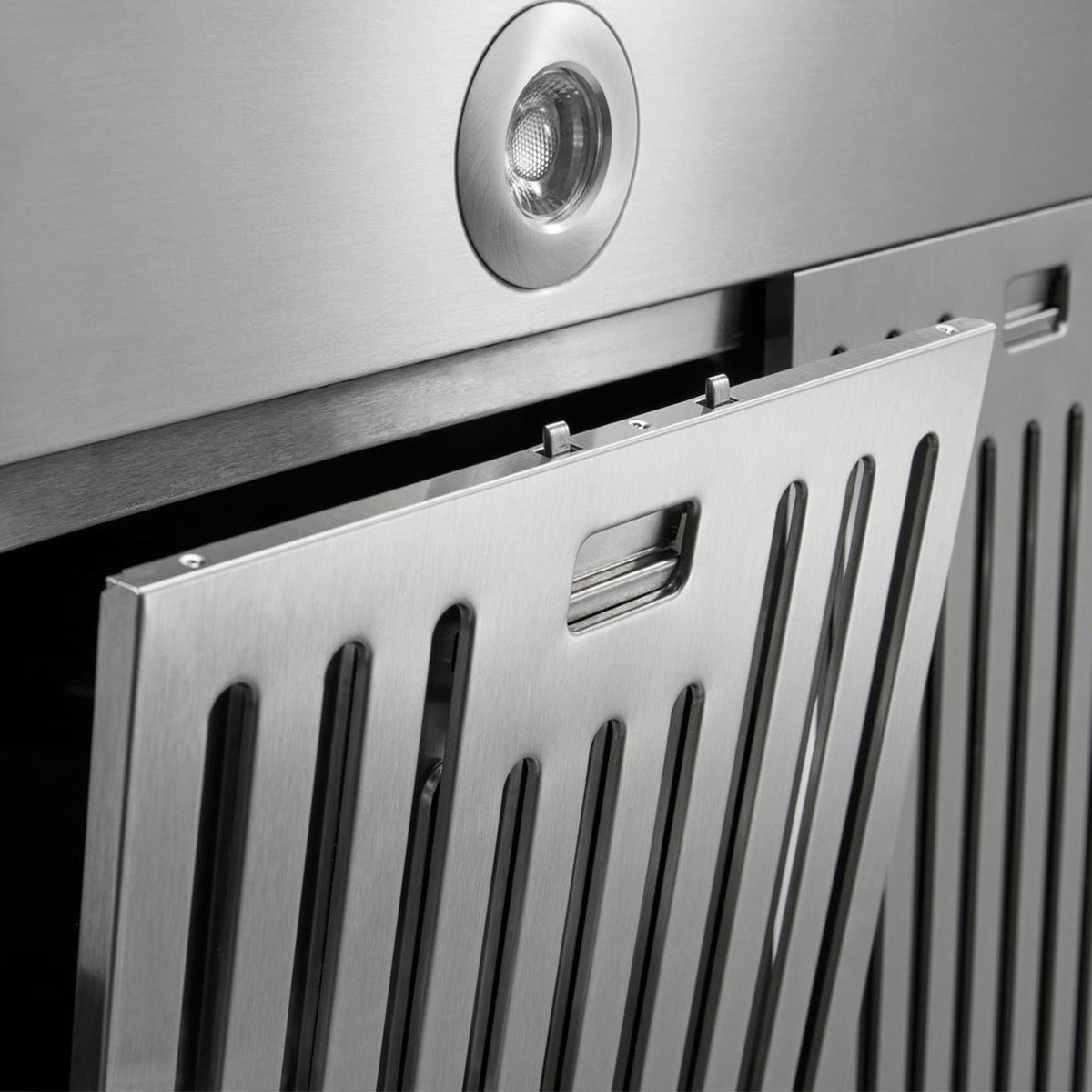

| Filter type | 430SS Baffle filter x 3 |
| Available Accessories | Charcoal Filter FT05 (Not included) |

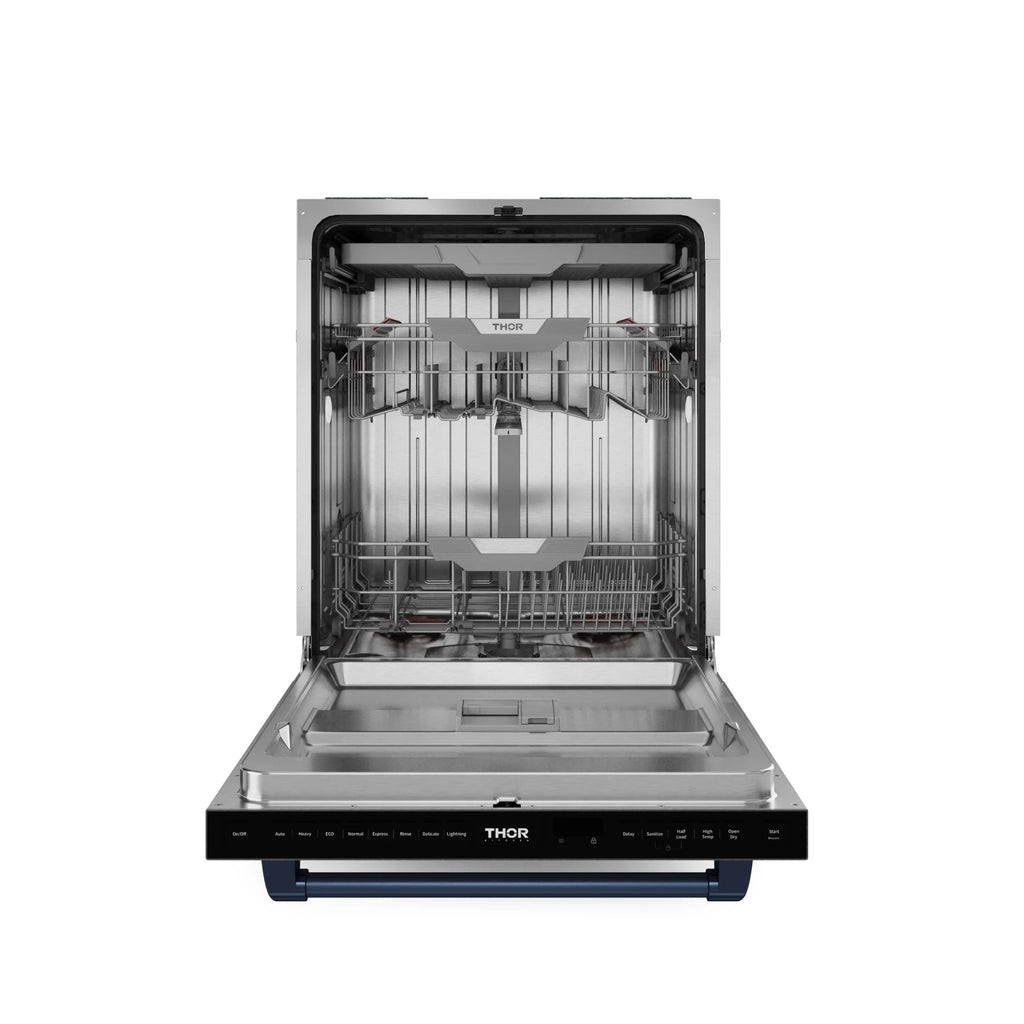

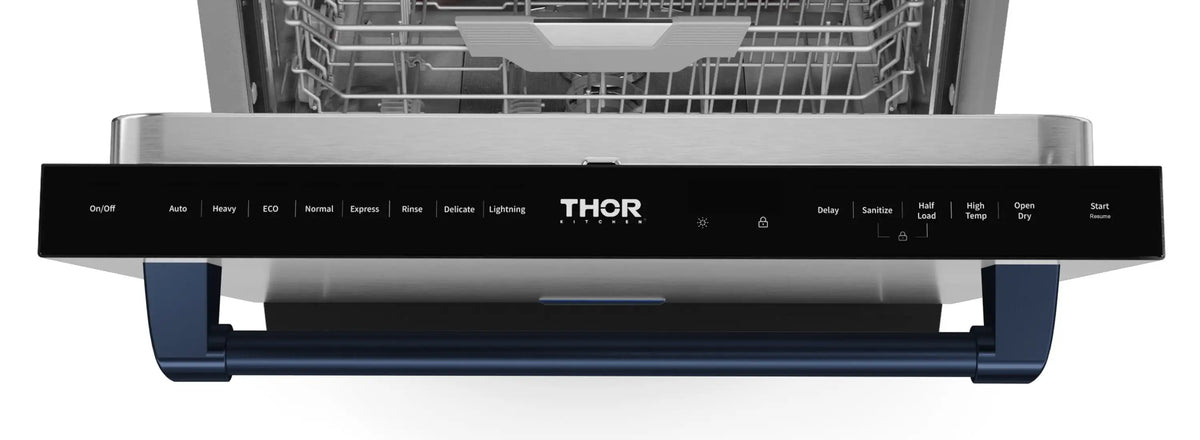

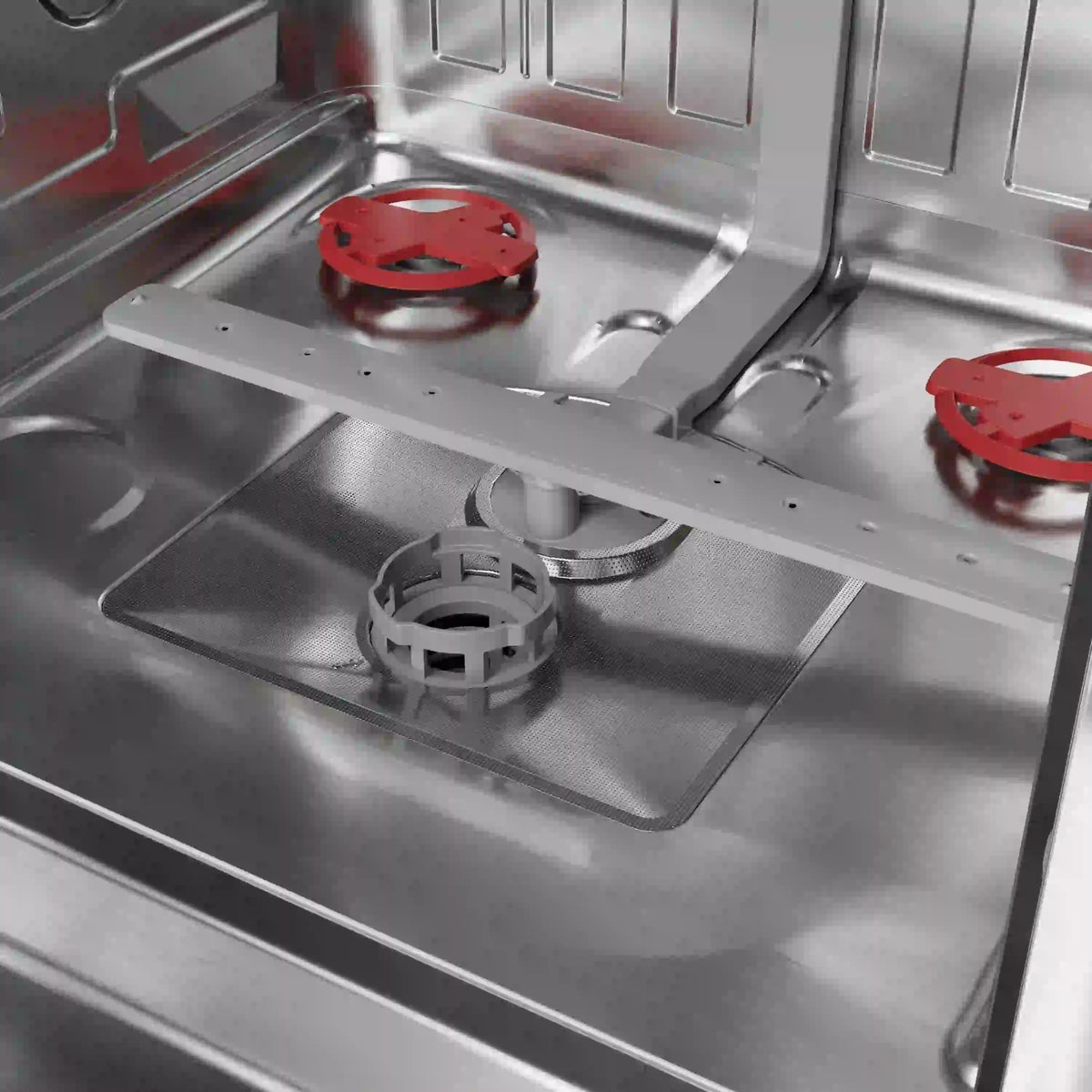

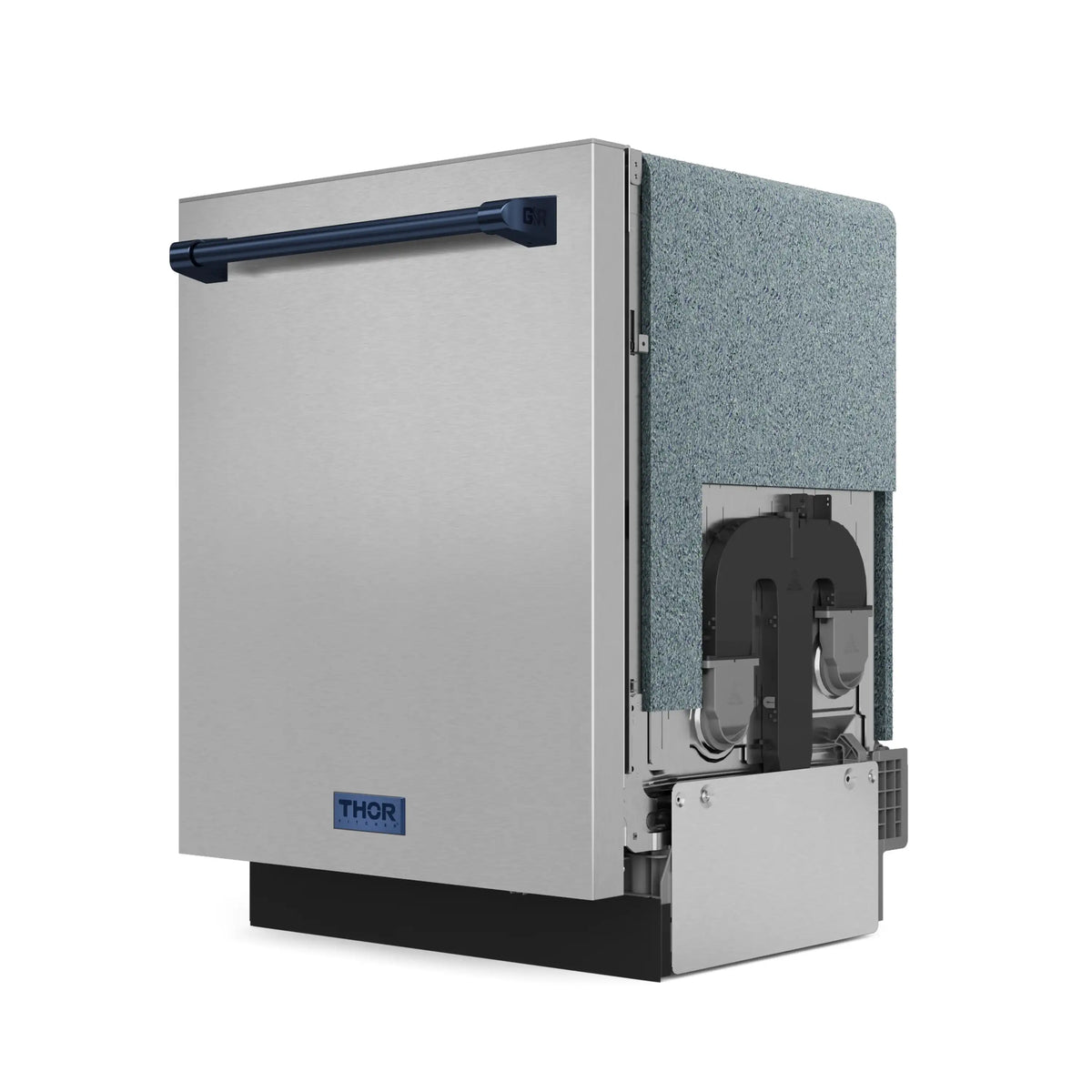

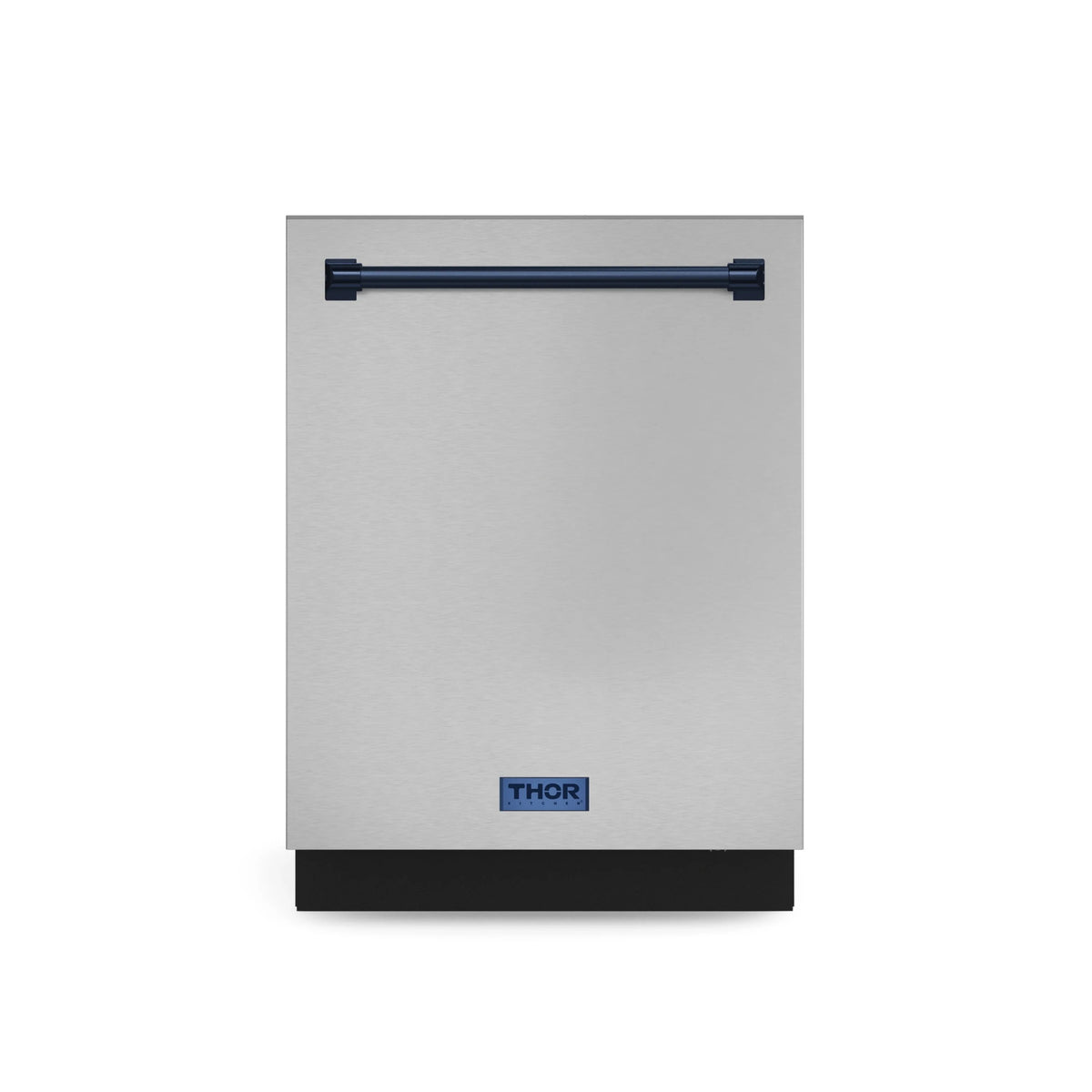

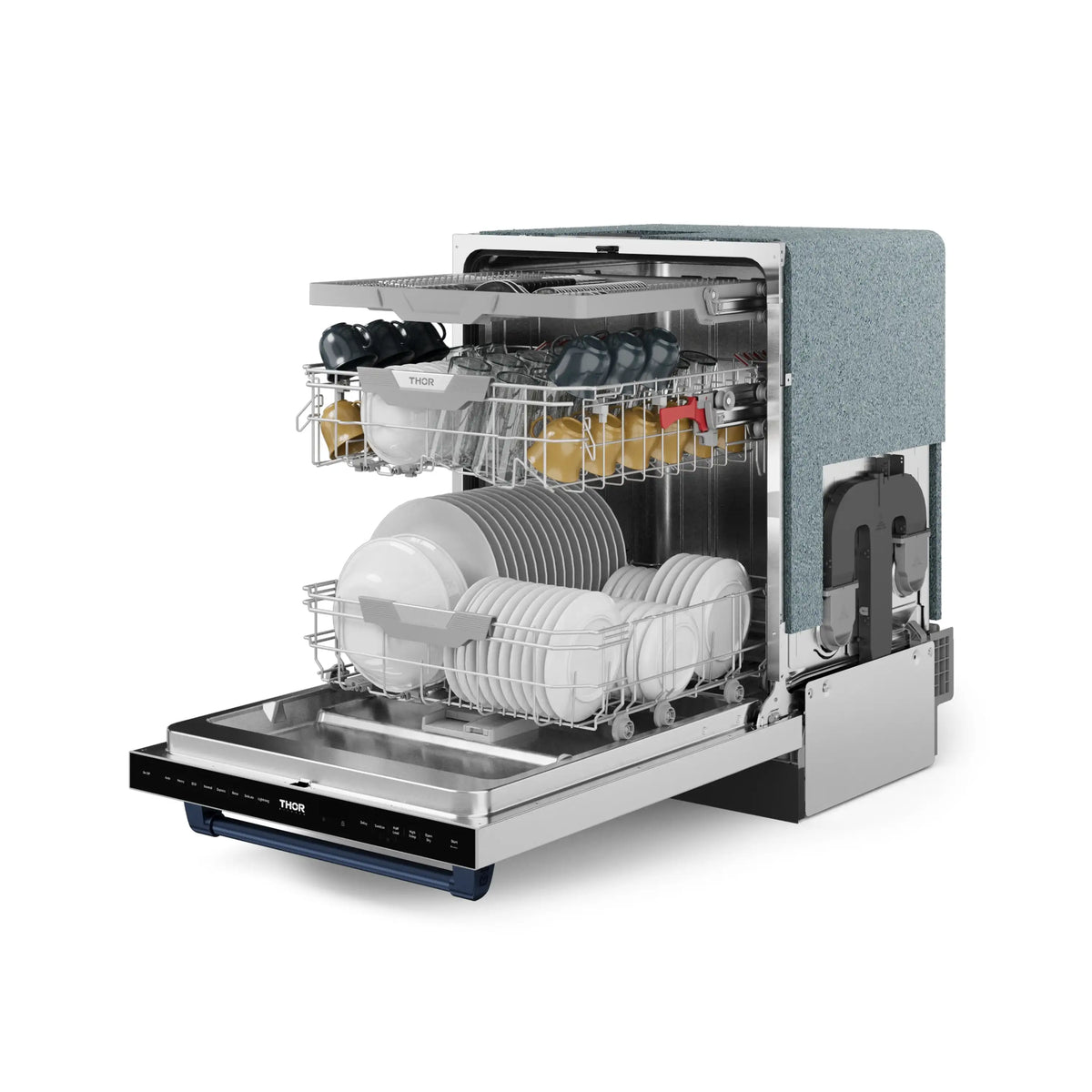

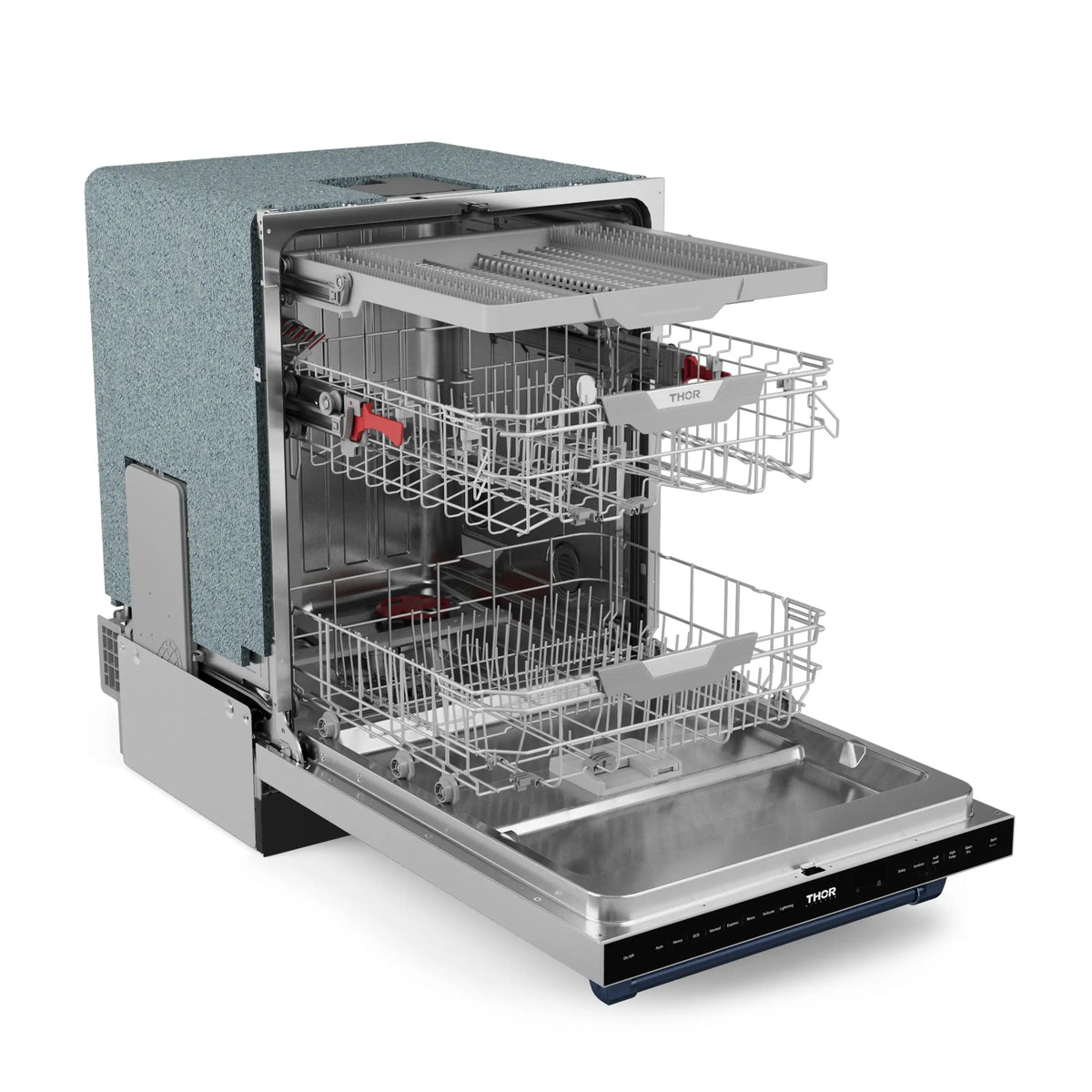

Discover effortless cleaning with our professional dishwashers, designed for efficiency and reliability. Featuring powerful jets, adjustable racks, and advanced drying technology, the 24 Inch Dishwasher in Stainless Steel/Navy Blue ensures a thorough clean with every cycle. Built for durability and ease of use, it makes post-meal cleanup seamless, enhancing your kitchen’s functionality and style.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 23 7/8’’ x 22 5/8’’ x 33 7/8’’ |
| Product Depth With Handles | 25 1/8’’ |
| Cutout Dimensions (WxDxH) | 24’’ x 22 7/8’’-23 5/8’’ x 34’’-35 1/2’’ |
| Net Weight | 82.7 lbs |
| Package Dimensions (WxDxH) | 28-3/4” x 28-3/4” x 35-1/16” |
| Package Weight | 100 lbs |
| DESIGN & FINISH | |
| Tub Material | Stainless Steel |
| Control Type | Touch |
| TECHNICAL DETAILS | |
| Amperage | 15 Amps, Dedicated circuit required |
| Volts | 120V |
| Frequency | 60Hz |
| Noise Level | 49 dBa |
| Power Cord Length | No Power Cord Included |
| Water Feed Pressure | 20-120psi |
| Inlet Water Temperature | 120ºF (49ºC) |
| Inlet Hose Length | 59”/ 1500mm |
| Outlet Hose Length | 59”/ 1500mm |
| Water Consumption | 3.2 Gal |
| FEATURES | |
| Rated Power Usage | 220kWh/per year |
| Load Capacity (Place Settings) | 15 |
| Number Of Wash Cycles | 8 |
| Number Of Racks | 3 |
| Rack Adjustability | Height Adjustable Upper Rack |
| Water Softener | No |
| Childlock | Yes |
| Status Indicator | Yes (Red) |
| Tub Light | Yes (Led, 2) |
| Hidden Heating Element | Yes |
| Wine Glass Bracket | Yes |
| Third Layer Cutlery Basket | Yes |
| Basket Handles /Outdoor Handles | Yes |
| Accessories Included | Drain Hose |
| Accessories Not Included | Power Cord |
