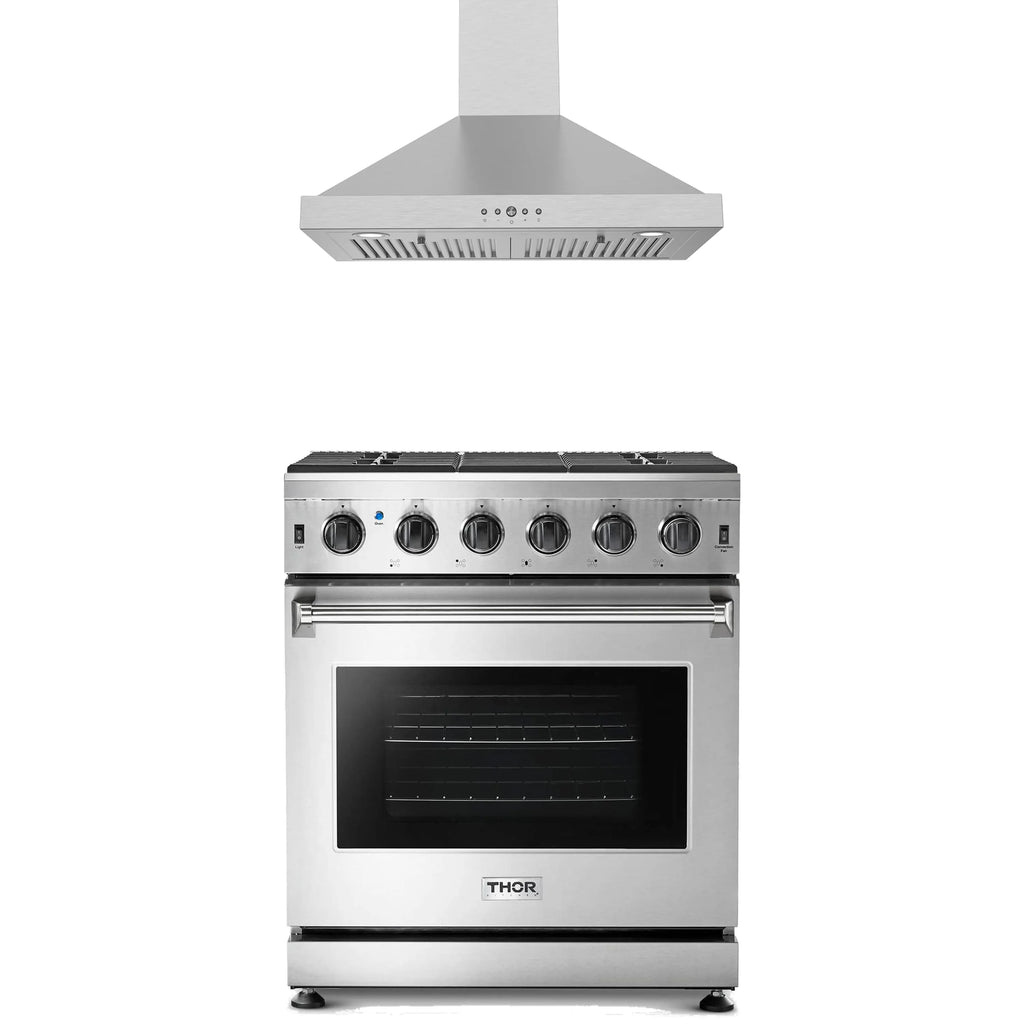

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

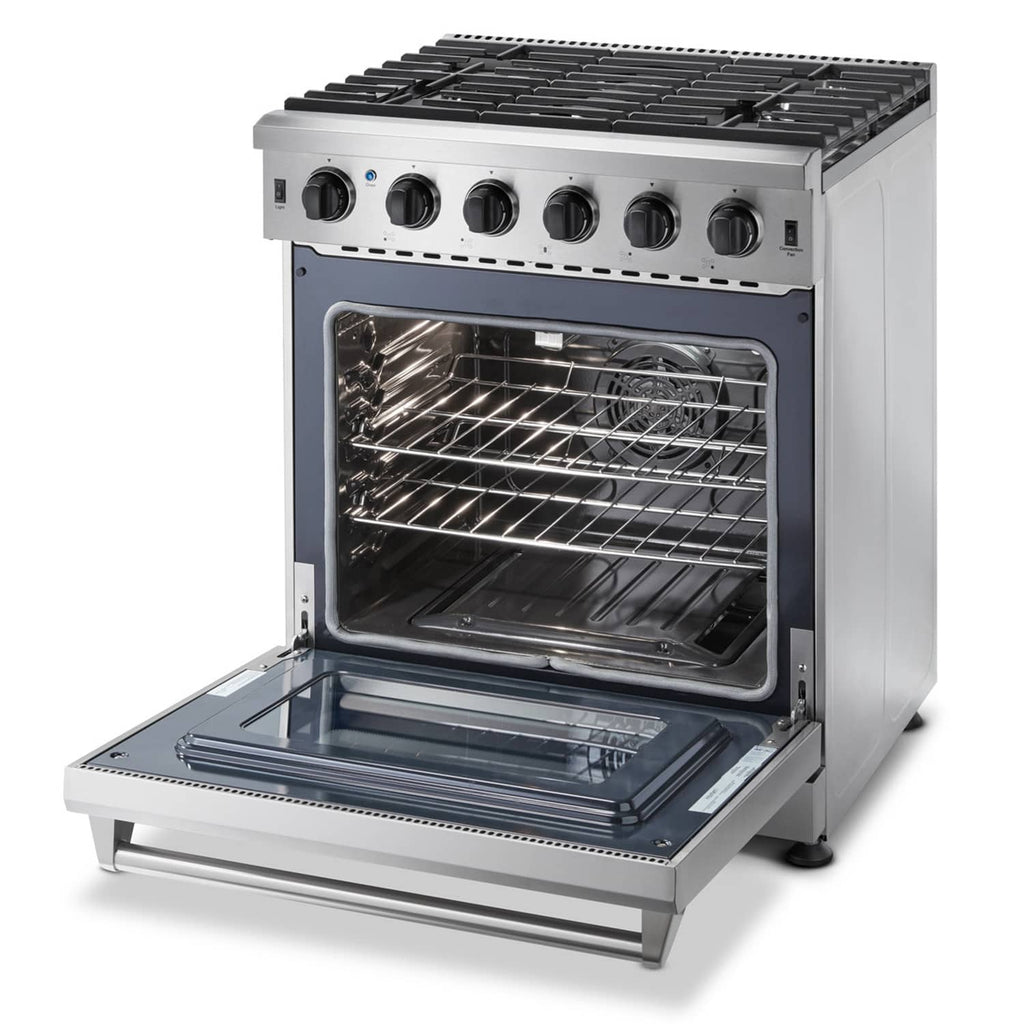

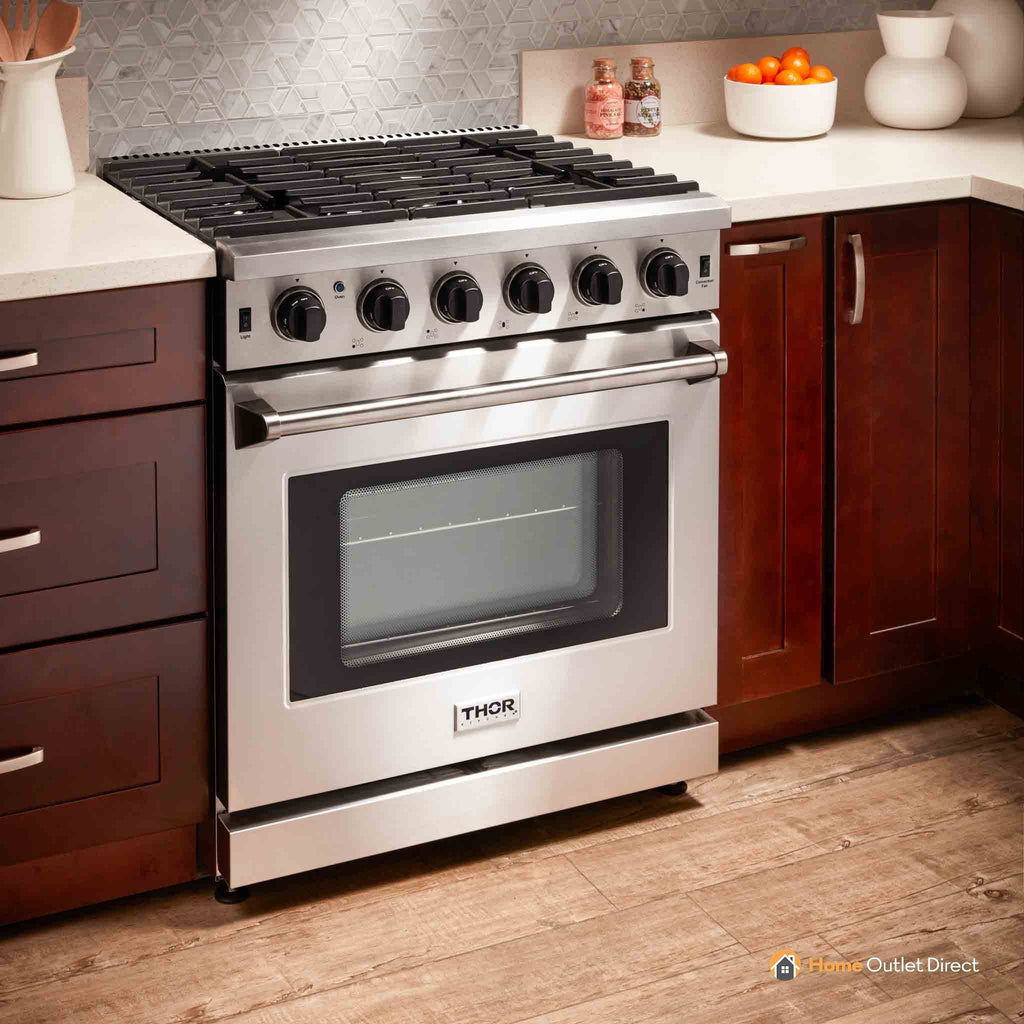

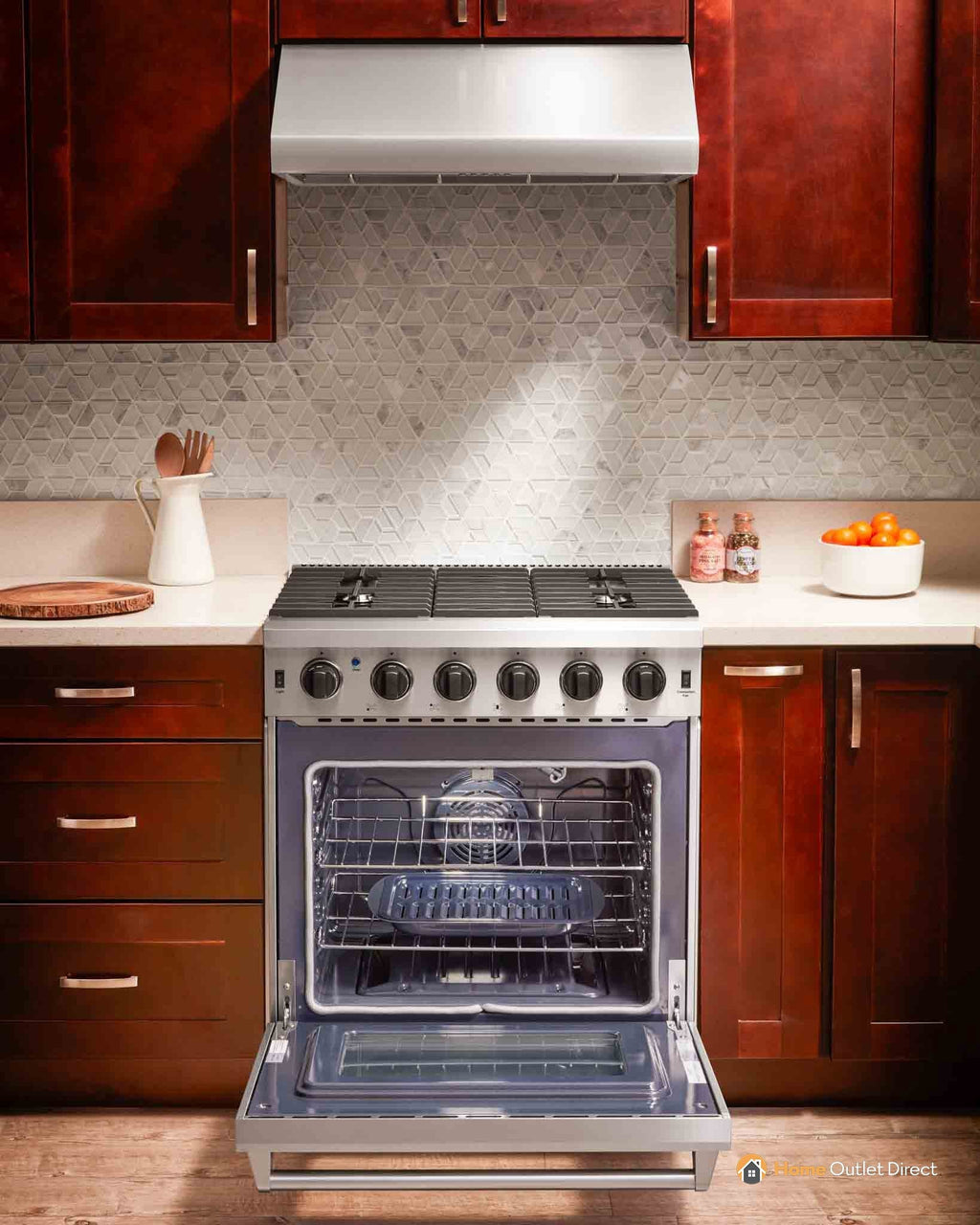

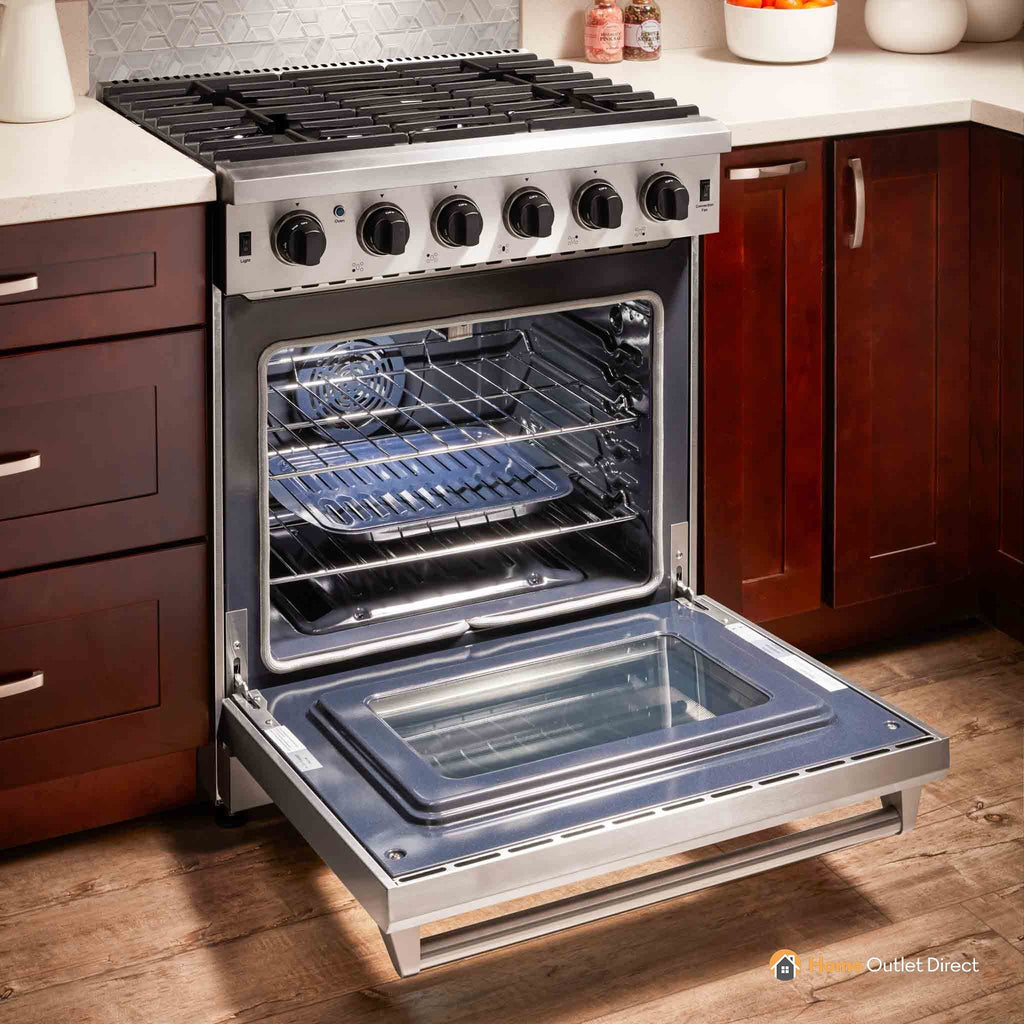

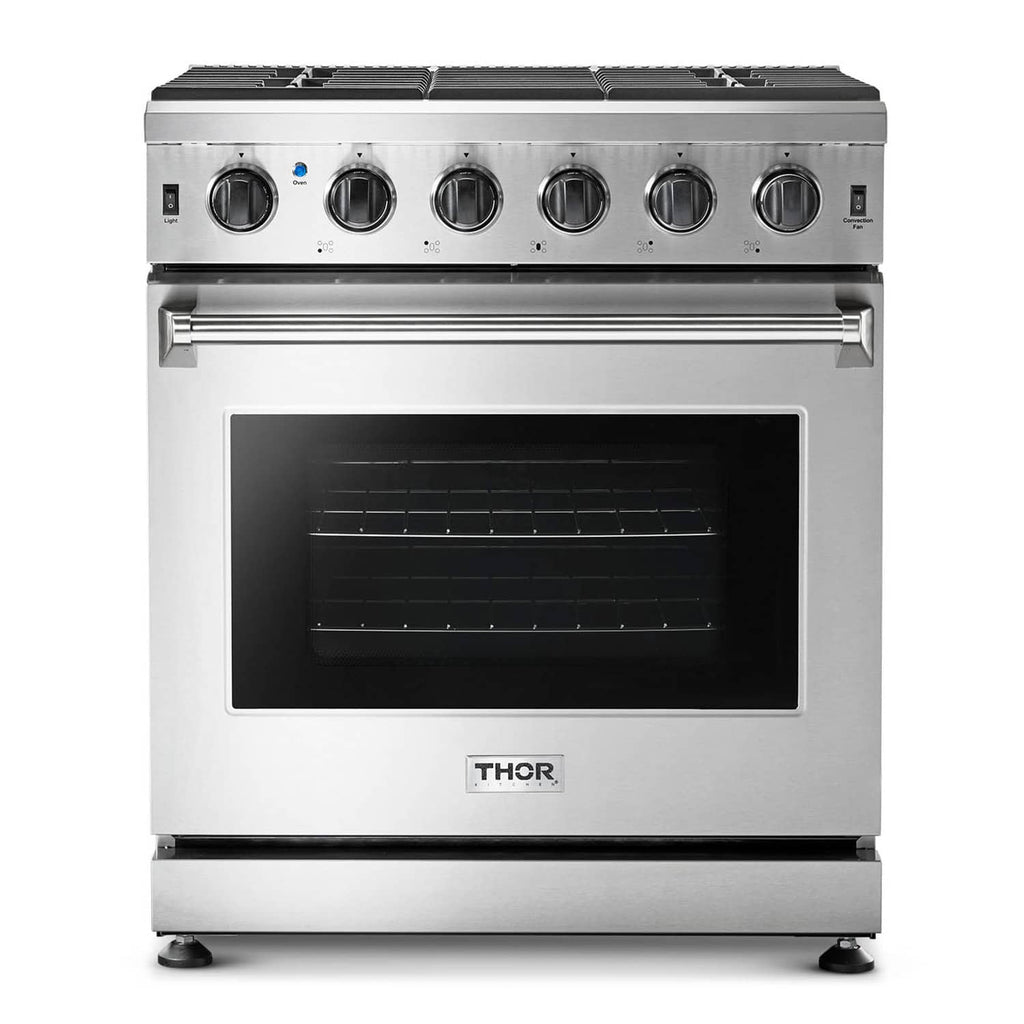

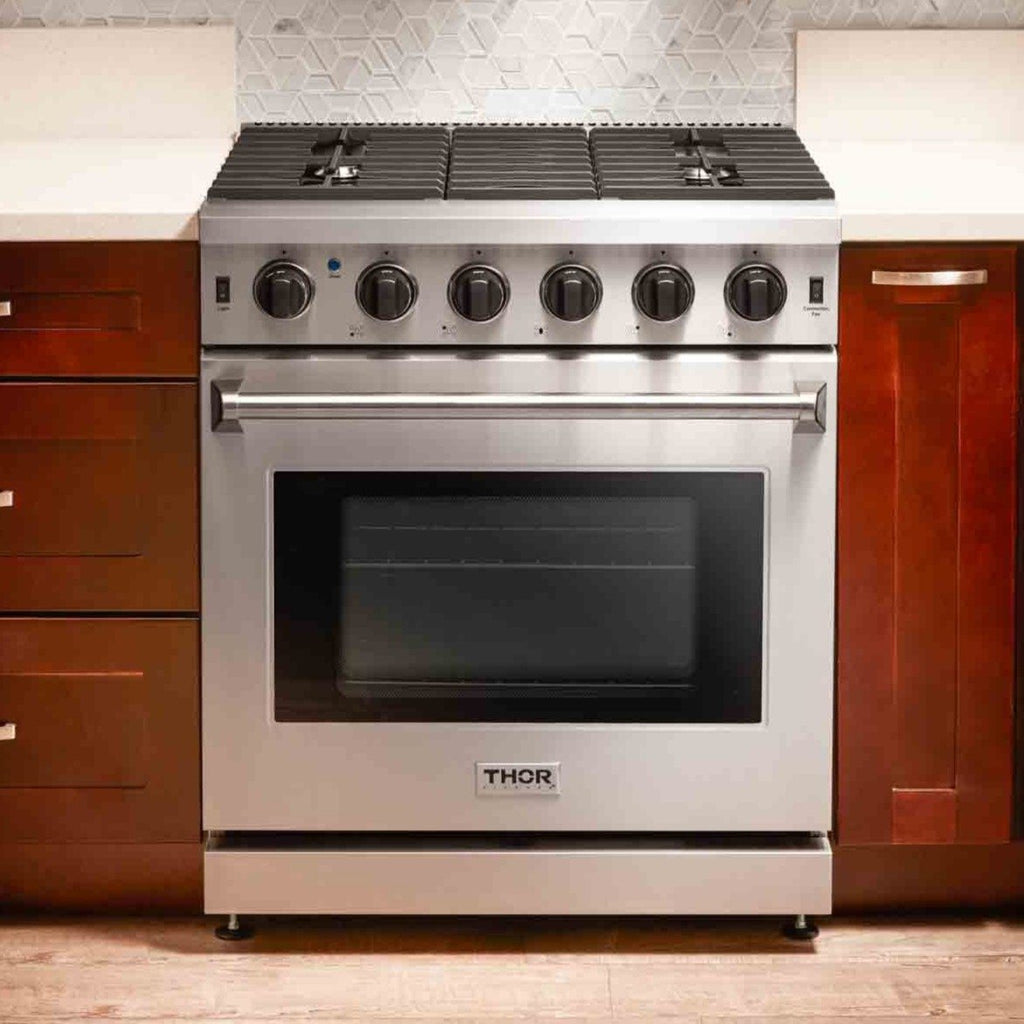

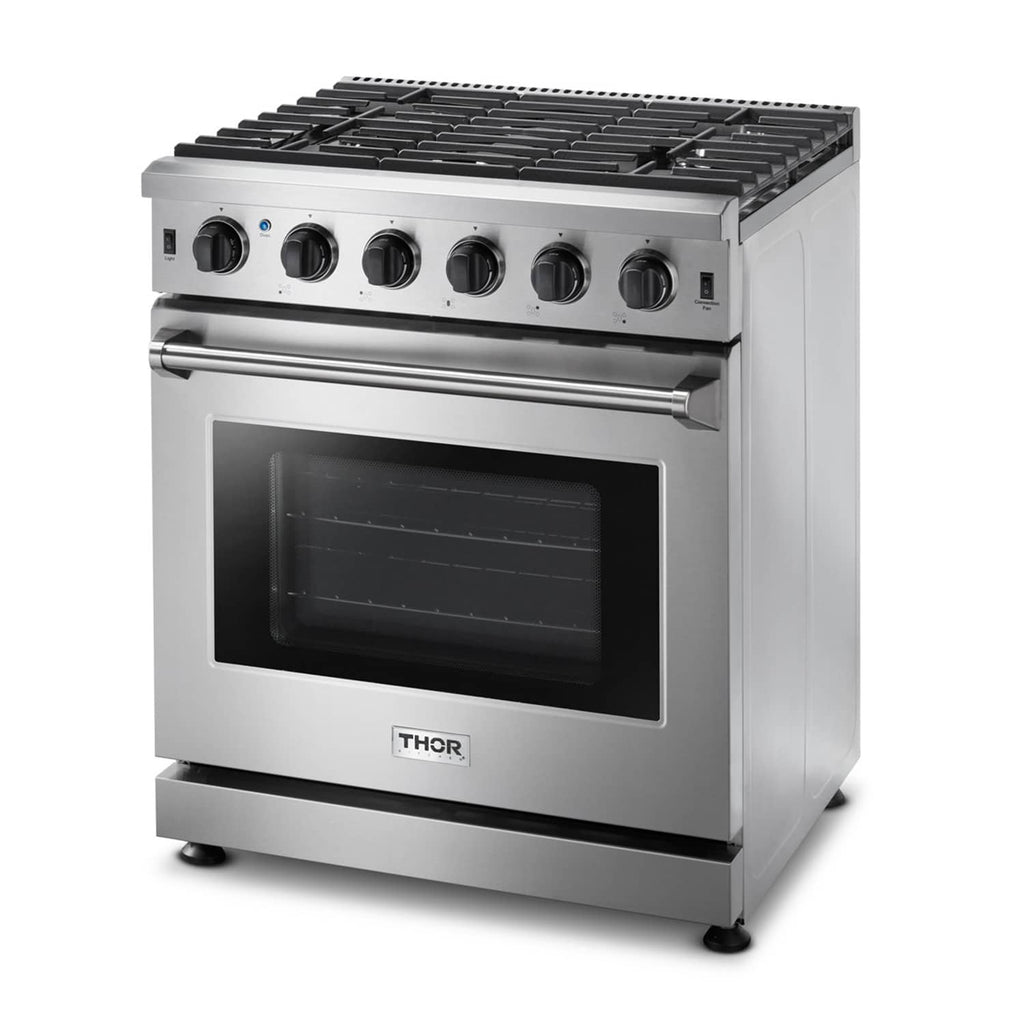

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 30 Inch Gas Range is a stainless steel machine designed with professional features and functionality. With powerful burners, continuous grates and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level. #IgniteYourCulinaryCreativity
Features

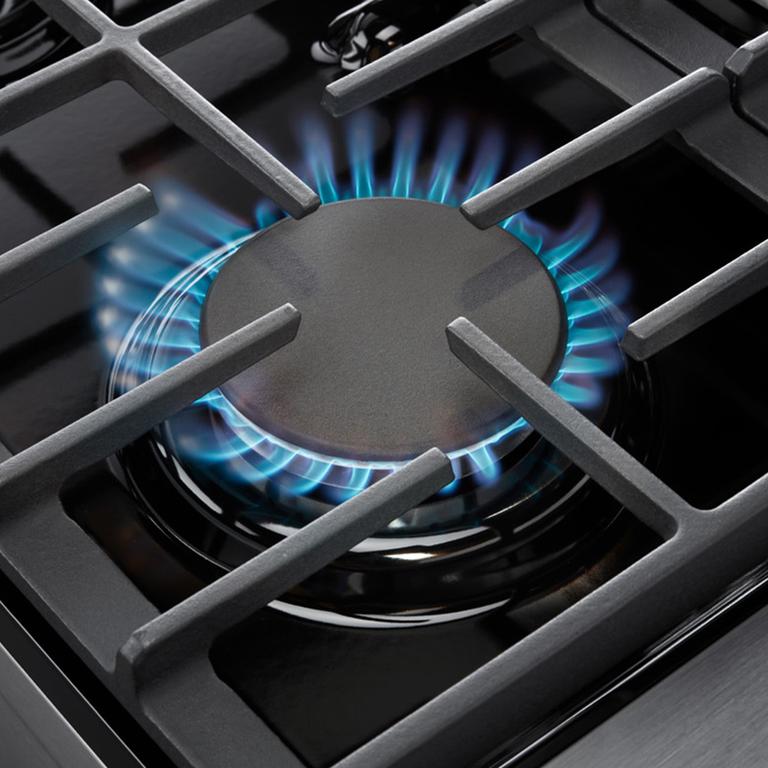

- High-Powered BTU Burners: The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes.
- Large Oven Capacity: 4.55 cu. ft. oven capacity can accommodate multiple dishes at a time.

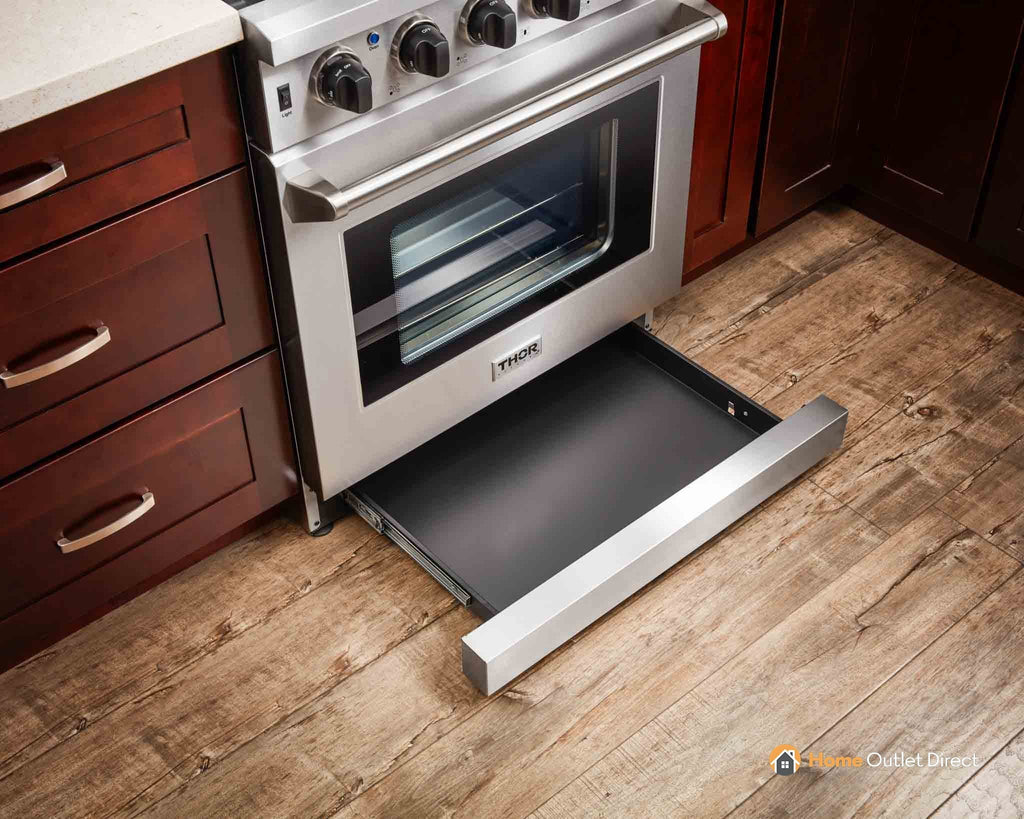

- Storage Space: Storage drawer provides additional storage space for cooking trays and other kitchen utensils.

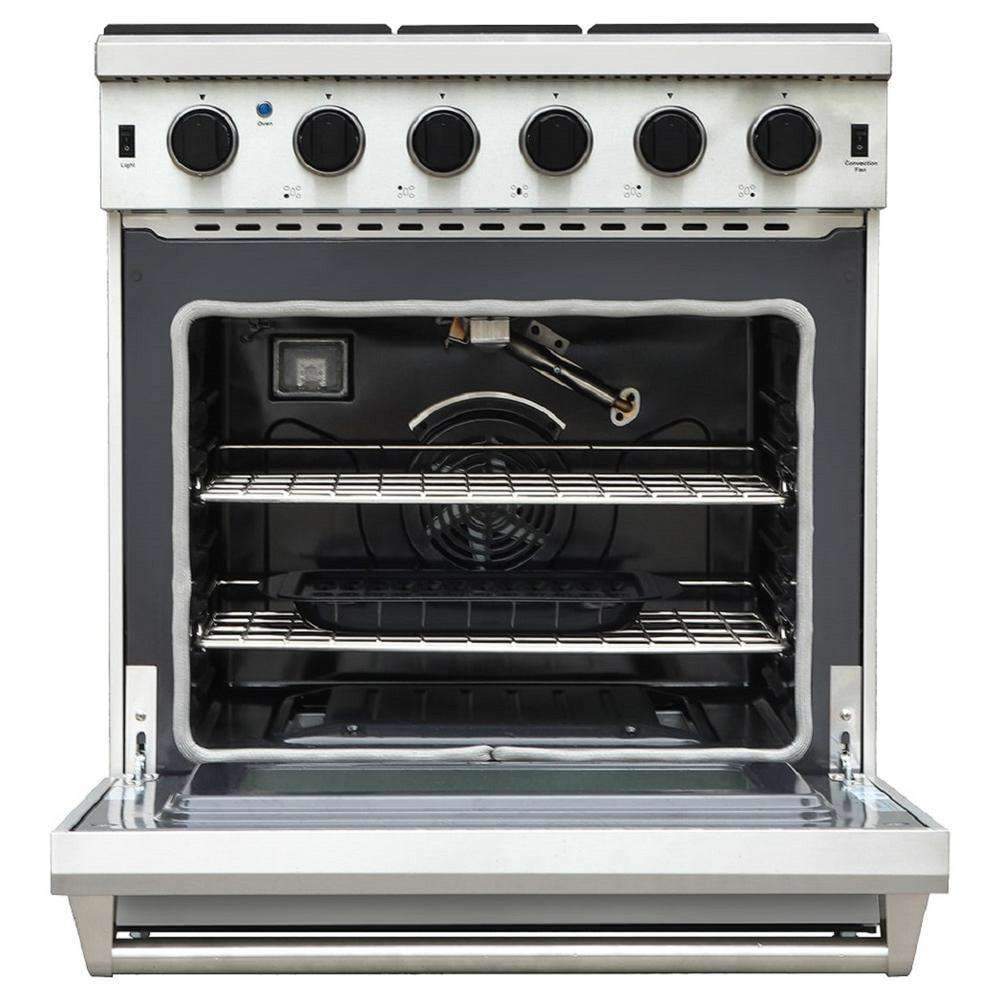

- Convection Fan: Commercial convection fan provides controlled heat distribution for fast and efficient cooking.
- Even Heat Broiler: Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices.

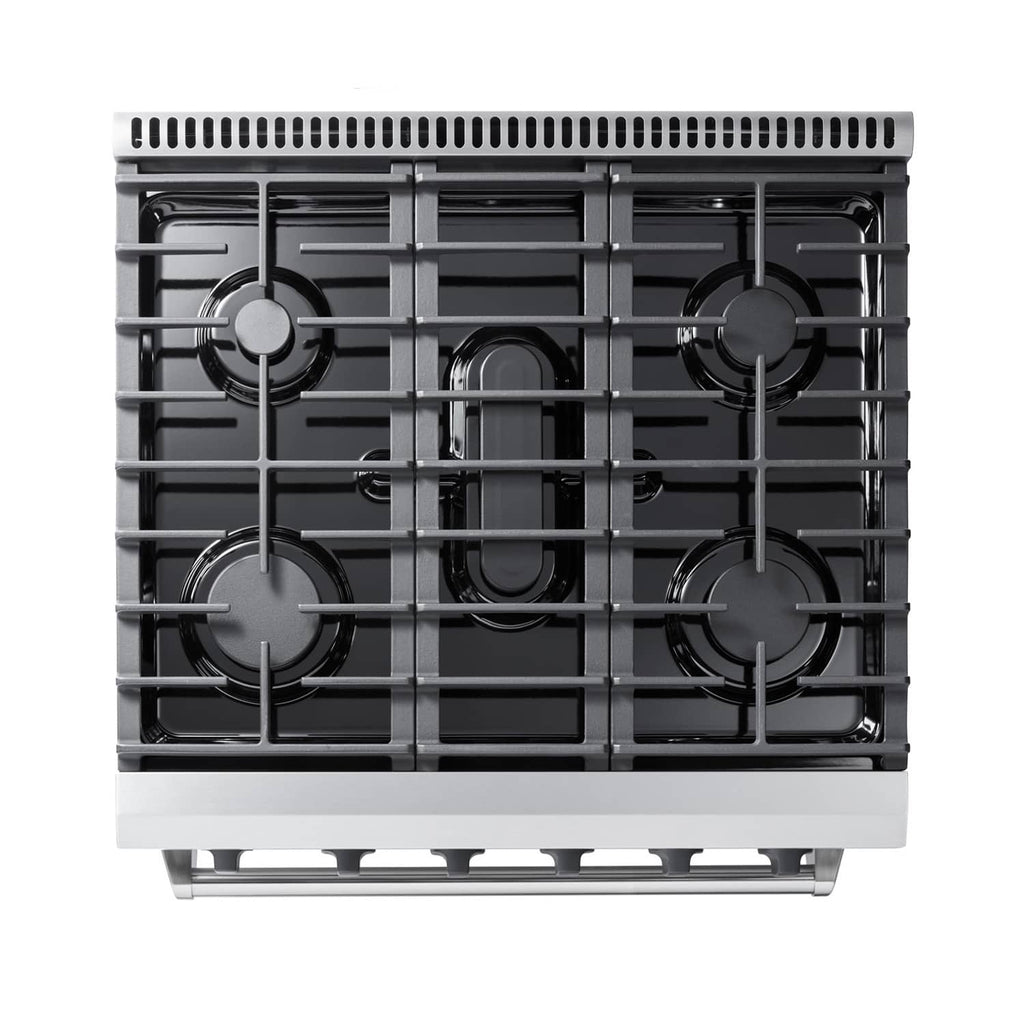

- Continuous Cast-Iron Grates: Heavy-duty continuous cast-iron cooking grates that can handle any size cookware.

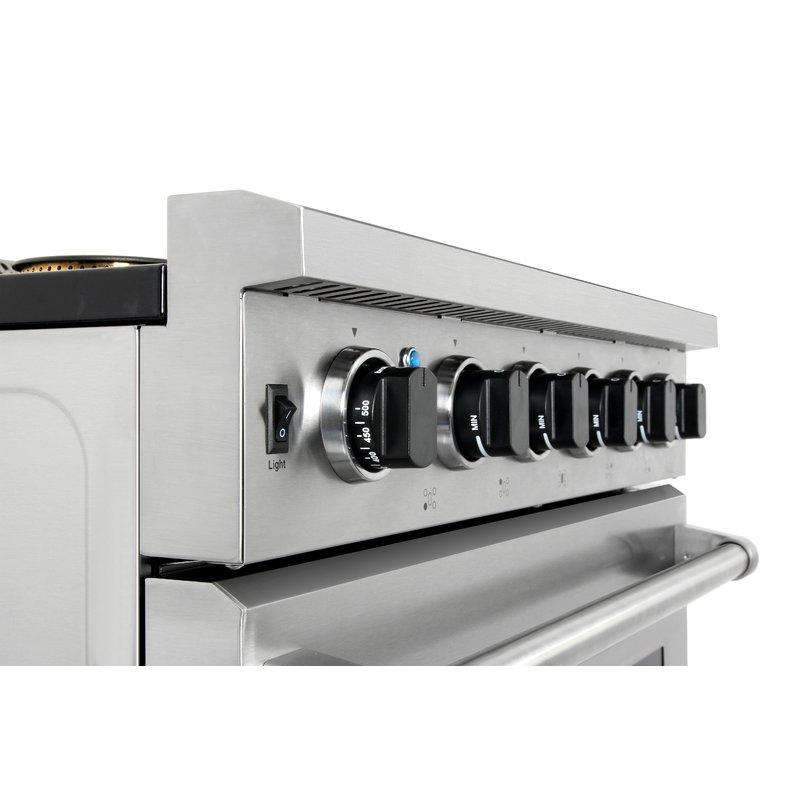

- Professional Knobs: Black burner control knobs add style to the bold range design.
- Porcelain Spill Tray: Single-piece black porcelain spill tray catches the mess and makes cleanup easy.
- Porcelain Interiors: The gray porcelain oven interior adds a stylish touch and is easy to clean.
DIMENSIONS & WEIGHT
- Product Width
- 30"
- Product Height (to back splash)
- 36-5/8" – 37-5/8"
- Product Height (to side panel)
- 36-1/8" – 37-1/8"
- Product Depth (to bullnose)
- 27-1/2"
- Product Depth (to control board)
- 27-3/4"
- Product Depth (to side panel front)
- 24-3/4"
- Control Panel Depth (min / bullnose)
- 2-1/4" / 3-9/16"
- Adjustable Legs
- Not to Exceed 1"
- Required Cutout Size (W x D x H)
- 30-1/8" x 24-3/4" x 35-5/8" (+1")
GENERAL INFORMATION
- Brand
- Thor Kitchen
- Model Number
- LRG3001U / LRG3001ULP
- Appliance Type
- Gas Range
- Fuel Type
- Natural Gas / LP Convertible
- Installation Type
- Freestanding
- Size
- 30"
- Color
- Stainless Steel
CONTROLS & ELECTRICAL
- Electrical Requirements
- 120V
- Circuit Breaker
- 20A
- Frequency
- 60Hz
- Gas Regulator Size
- 1/2"
- NG Pressure (Input / Output)
- 7" / 5"
- LP Pressure (Input / Output)
- 11" / 10"
COOKTOP PERFORMANCE
- Total Burners
- 5
- Grate Type
- Continuous Cast Iron
- Front Left Burner
- 18,000 BTU (Single)
- Front Right Burner
- 8,000 BTU (Single)
- Rear Left Burner
- 4,000 BTU (Single)
- Rear Right Burner
- 6,000 BTU (Single)

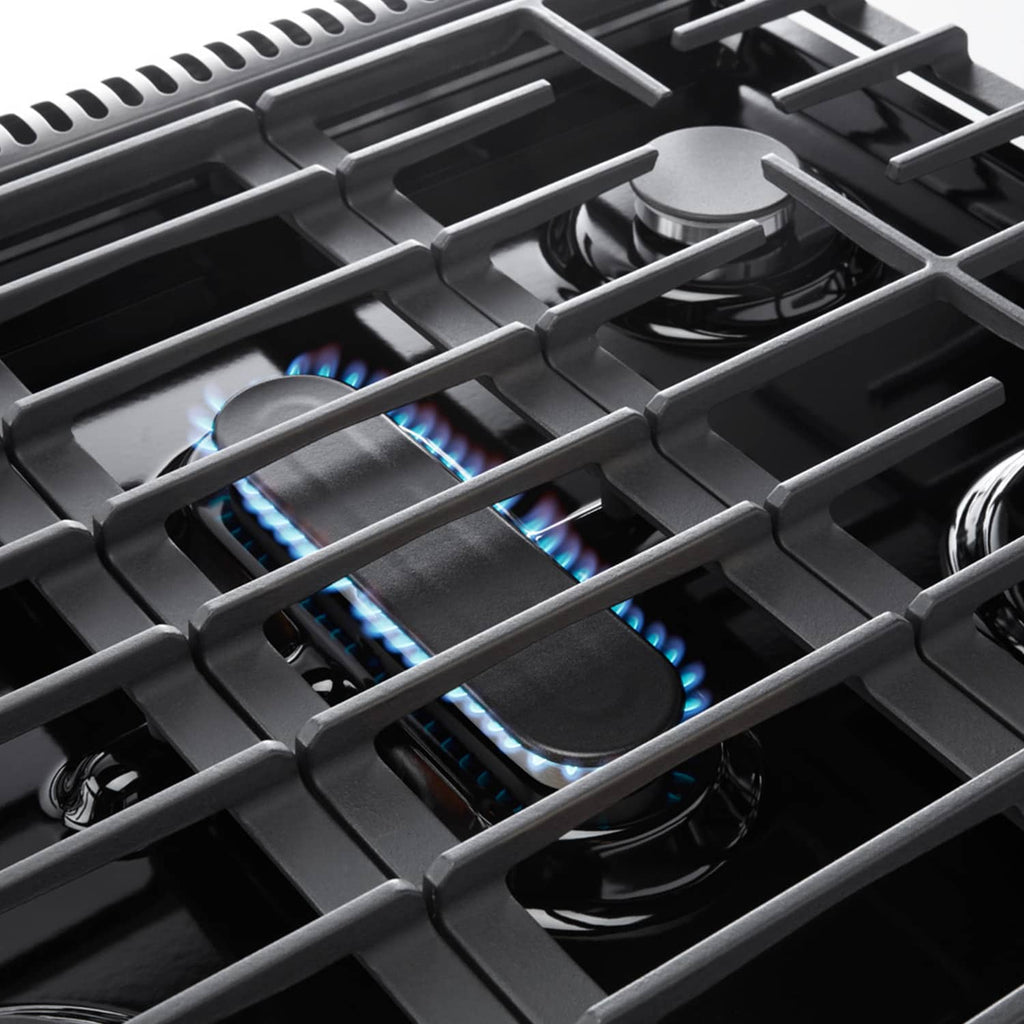

- Middle Burner (Oval)
- 9,000 BTU
- Spill Tray
- Single-Piece Black Porcelain
OVEN PERFORMANCE
- Oven Capacity
- 4.55 cu. ft.
- Oven Color
- Grey Porcelain Interior
- Bake Burner Power (U-Shape)
- 18,500 BTU
- Broil Burner Power (Tube)
- 10,000 BTU
- Convection
- Commercial Convection Fan
- Storage Drawer
- Yes
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years Parts and Labor
- Certifications
- CSA Listed

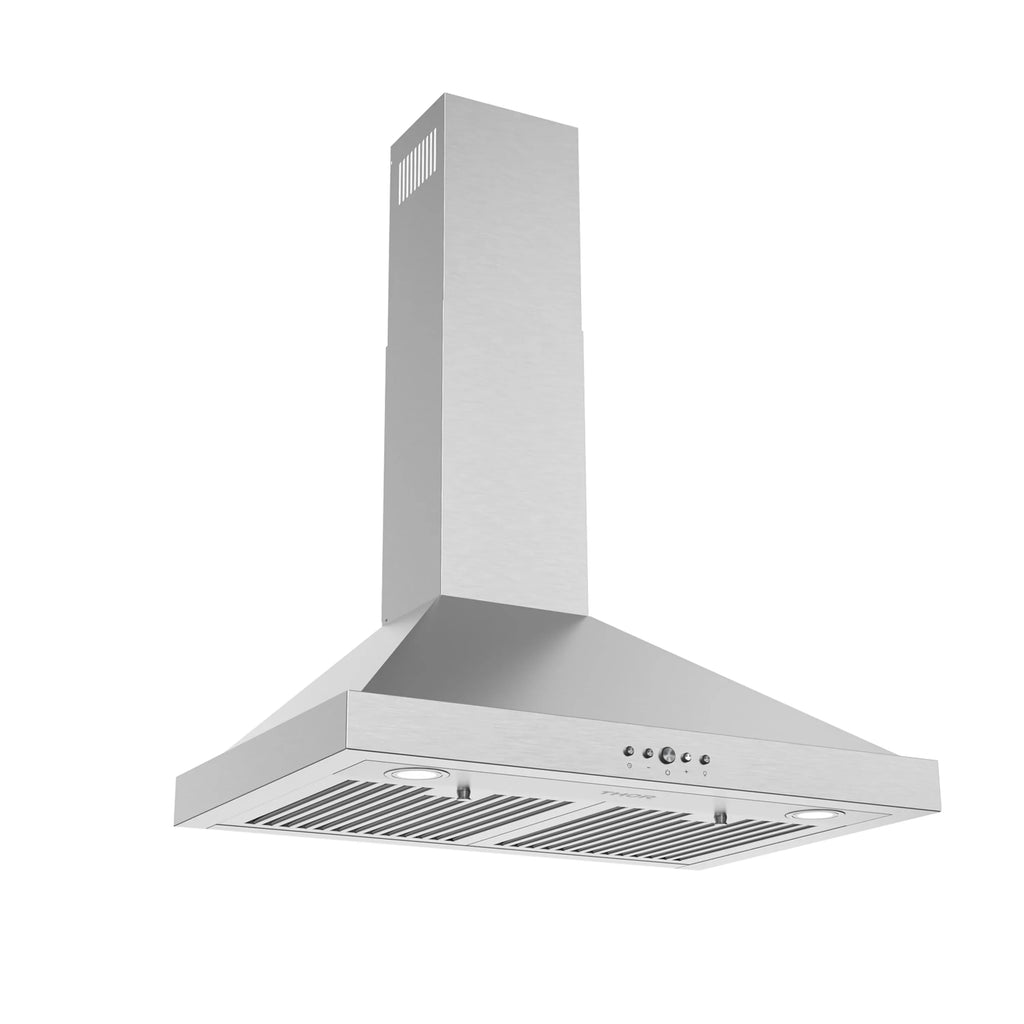

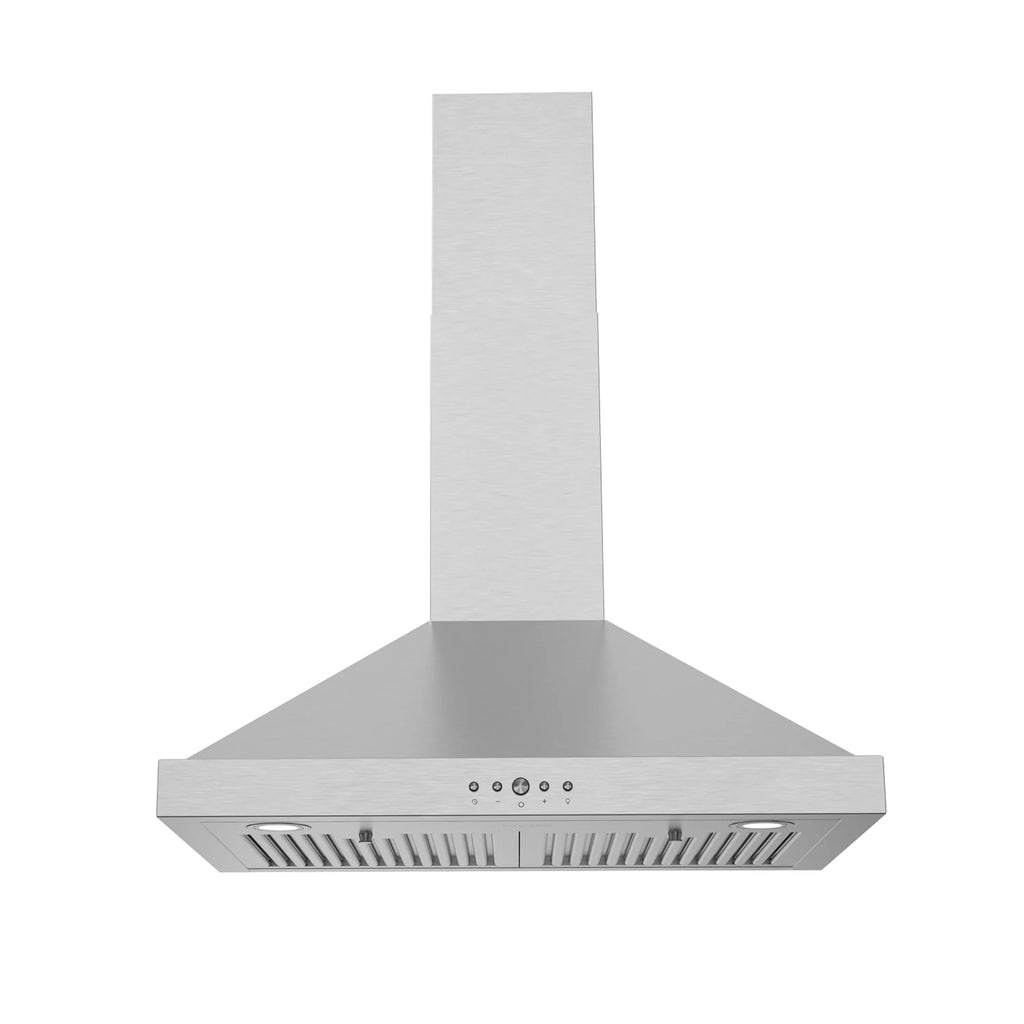

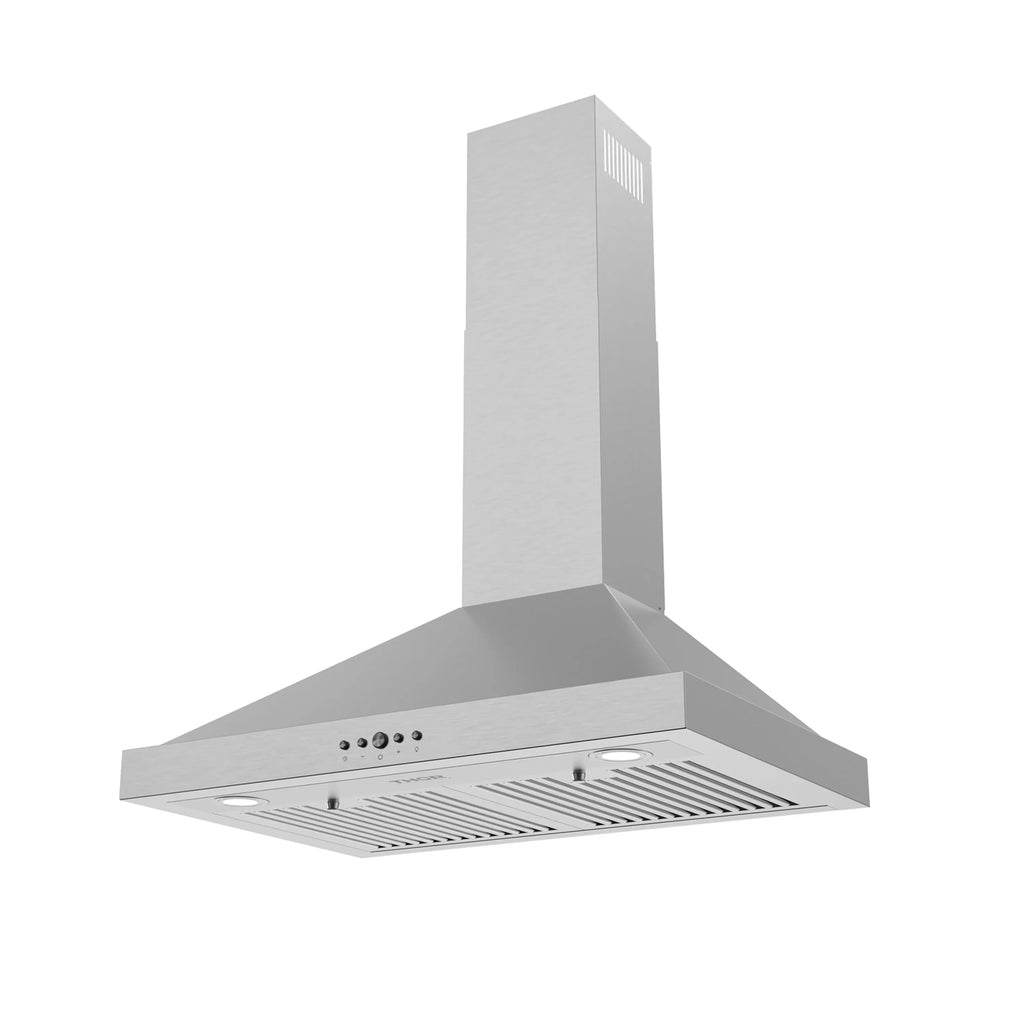

Piece 2 of 2 — RANGE HOOD
DIMENSIONS
- Product Dimensions (W x D x H)
- 29-5/16" x 19-11/16" x 26-7/16" – 40-3/16"

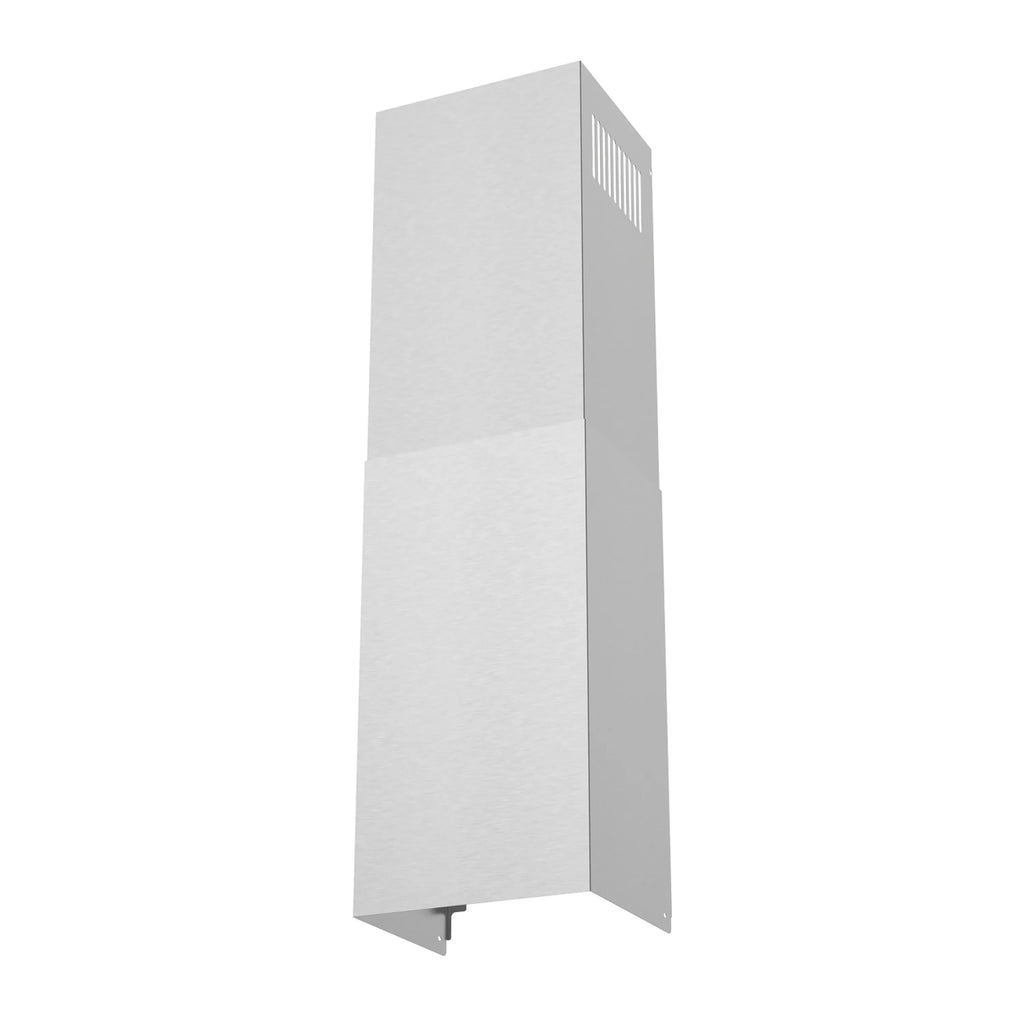

- Height of the Chimney
- 26-7/16" – 40-3/16"
- Accommodates Ceiling Heights
- Up to 9 Feet
- Net Weight (lbs.)
- 24
- Gross Weight (lbs.)
- 29.4
- Package Dimensions (W x D x H)
- 31-5/16" x 13-9/16" x 22-1/6"
GENERAL INFORMATION
- Model Number
- TRH3035
DESIGN & FINISH
- Control Type
- Button
TECHNICAL DETAILS
- Product

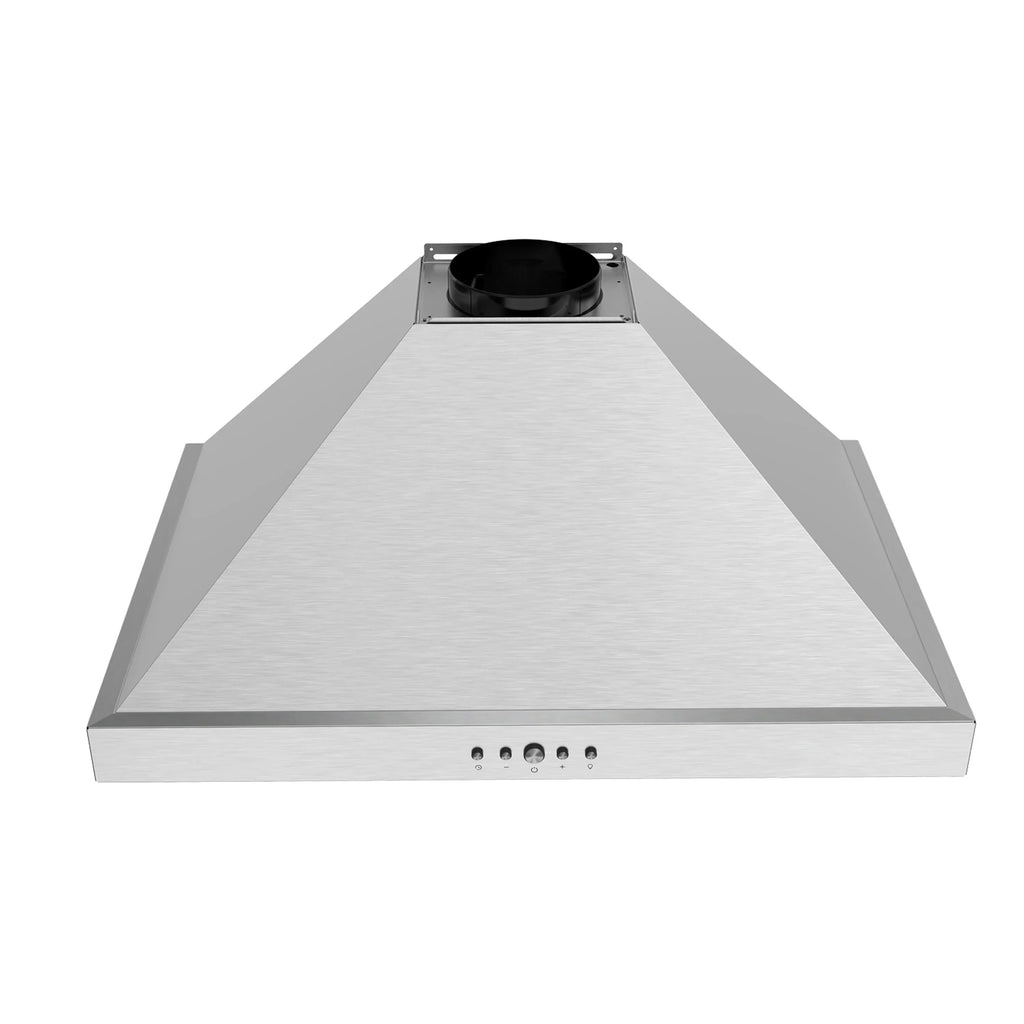

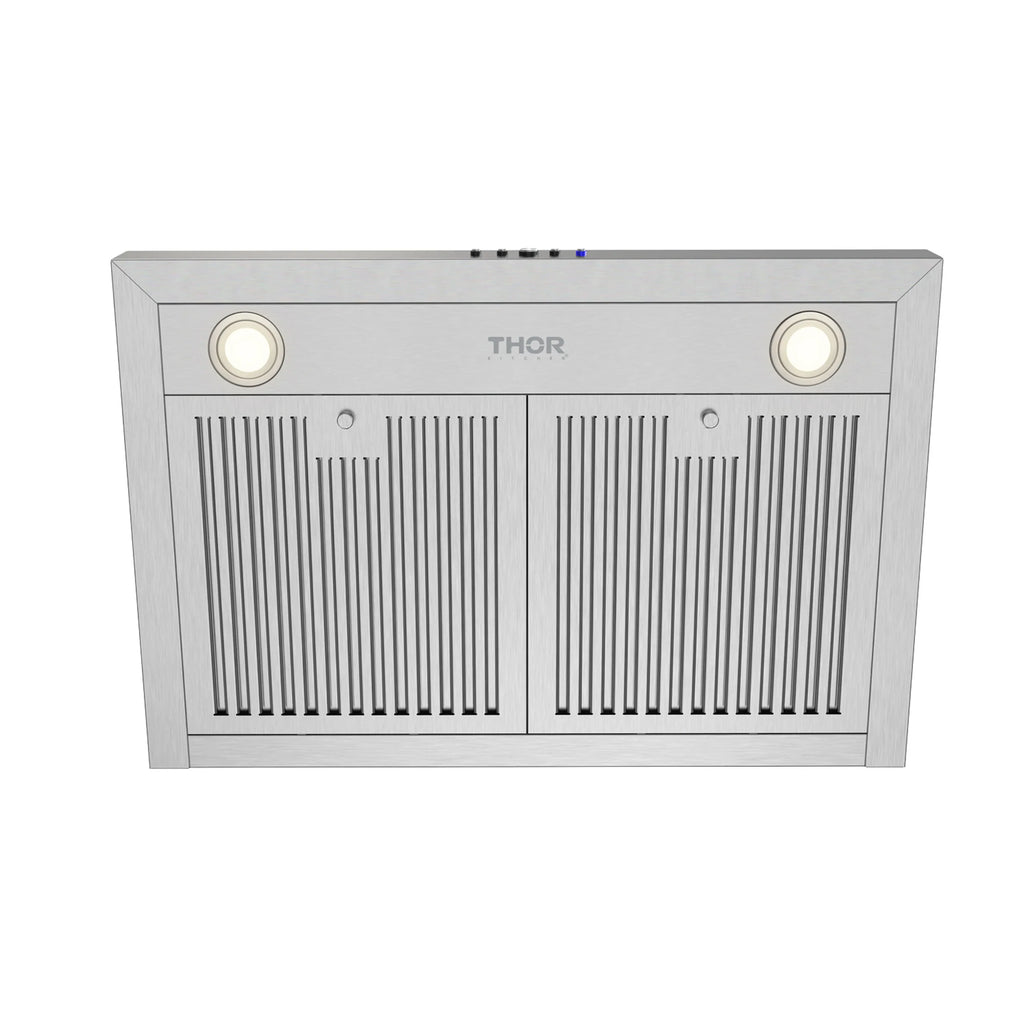

- 30 Inch Wall Mounted Chimney Range Hood with 350 CFM
- Number of Speeds
- 3
- CFM at Low / Medium / High
- 190 / 286 / 350
- Noise Level
- 3
- Noise Rating at Low / Medium / High
- 46 / 55 / 61 dB
- Ducted / Recirculating Convertible
- Yes
- Duct Size
- 5-7/8"
- Duct Type
- Round
- Shape / Style
- Chimney
- Mounting Type
- Wall Mounted
- Watts (W)
- 193W
- Amperage (Dedicated)
- 15A
- Volts (V)
- 120V
- Frequency (Hz)
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
FEATURES
- Filter Type

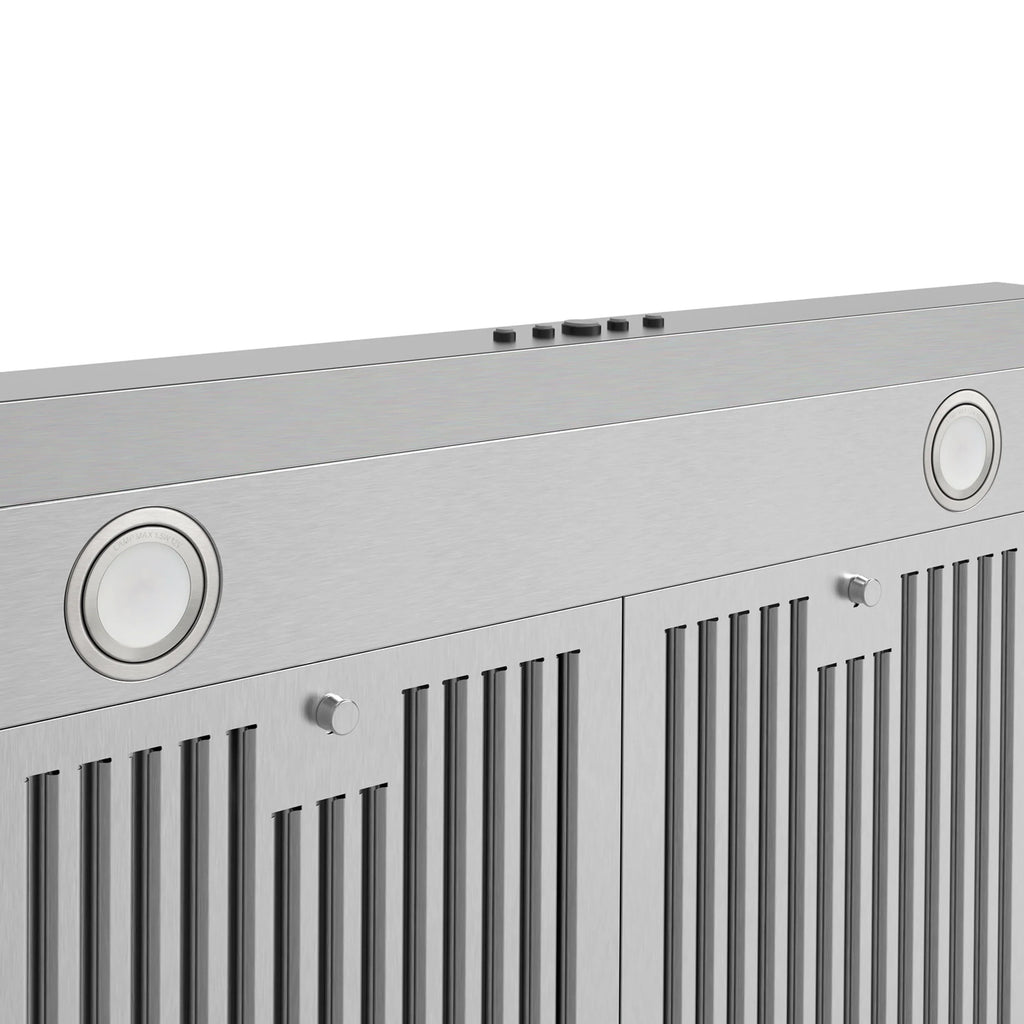

- Baffle Filter
- Filter Qty
- 2
- Lighting
- 2 × 1.5W Warm White LED
- Delay Function
- Yes (5 mins)
- Minimum Distance Above Gas / Electric
- 30"
- 28"
