Senville Mini Split - 6-Zone 48,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-48HF-S)

SenvilleSKU: SENA-48HF-S999999
4 reviews
Price:
$5,199.99 $6,759.99SAVE 23%
Zones:
In Stock
Estimated delivery: Nov 19th-Dec 3rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The 30-second rundown
47,000 BTUCooling 47,000 BTU · Heating 49,000 BTU
Professional RequiredInstallation
23 SEER2Efficiency
2,500 Sq. Ft.Coverage (estimate)
6-Zone
208/230VPower
Energy Star Certified

Senville SENA-48HF/S is a high-efficiency 48,000 BTU six-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. One outdoor condenser runs up to six indoor units at 23 SEER2, and the system is recommended for 2,000–2,500 sq. ft., making it a strong fit for multiple zones or large spaces.

It provides reliable heating and cooling performance even in extreme climates, maintaining heat output down to -22°F (-30°C), and is ideal for larger multi-room applications. Alexa app and voice control, built-in diagnostics with leak detection, and a 10-year compressor / 5-year parts warranty with support across North America round out the system.

Features

  • 23 SEER2 ENERGY STAR - Save on heating and cooling bills year-round with an ENERGY STAR rated system that maximizes efficiency while reducing your carbon footprint.
  • Heating down to -30°C (-22°F) - Cold climate optimized performance that maintains heating at -22°F (-30°C) with a high-efficiency compressor and inverter technology.
  • Smart Control with Alexa - App and voice control with automation; connect to Alexa or use the app to set schedules and manage comfort from anywhere.
  • Whisper-Quiet Operation - Perfect for bedrooms, offices, and common areas.
  • Recommended for 2000–2500 sq. ft. - Great for multiple zones or large spaces.
  • Diagnostics & Leak Detection - Built-in smart monitoring alerts you of any system issues including refrigerant leaks.
  • 10-Year Warranty - Includes a 10-year compressor warranty and 5-year parts warranty with support across North America.

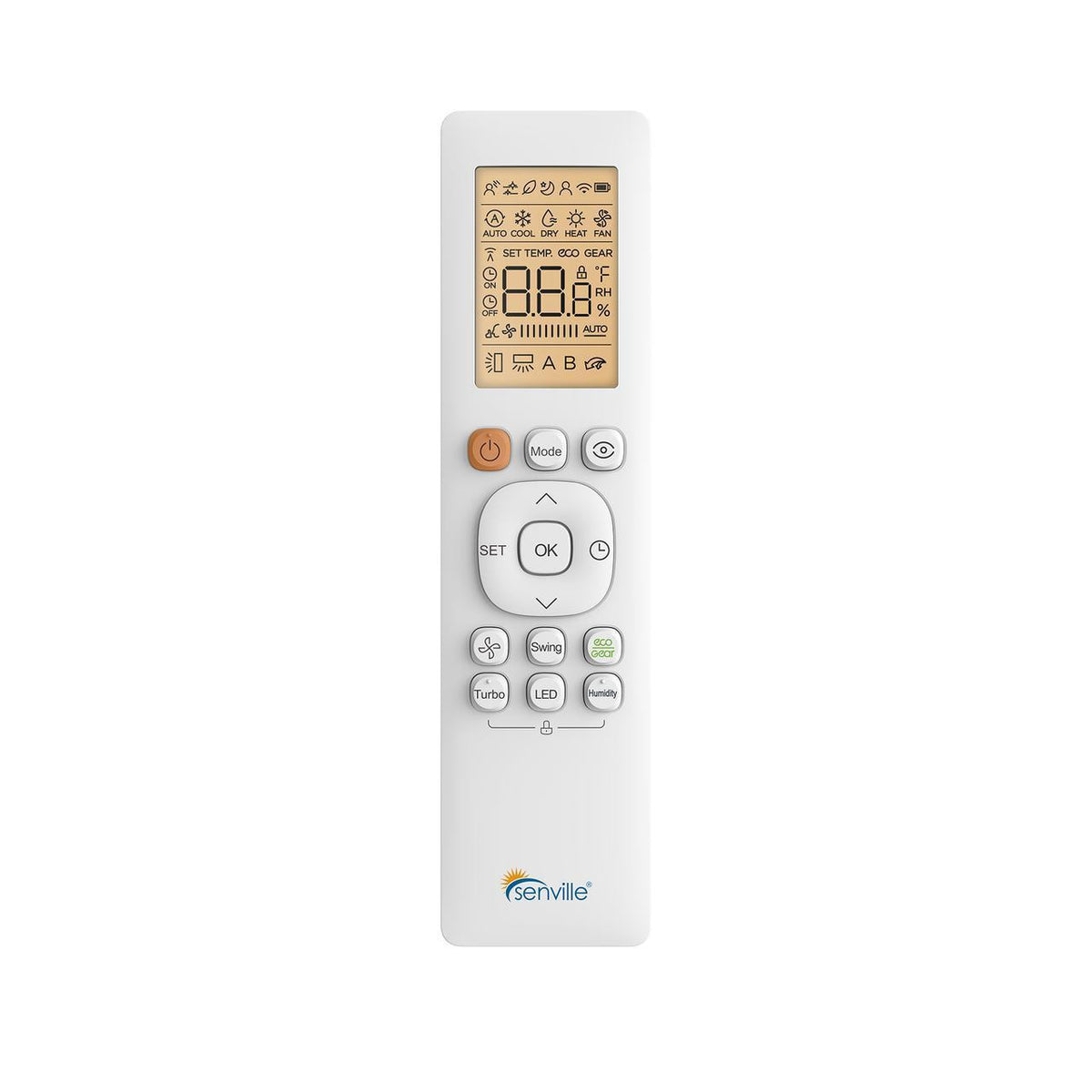

  • Installation Kits + Accessories Included - Ships with six complimentary 16 ft. installation kits, wireless remote controls, and an Alexa USB Kit, and the system is pre-charged with R454B refrigerant for up to 150 ft.
  • UL Certified - The system carries UL certification.

Please Note

  • Professional installation is required to maintain warranty coverage and optimal performance.

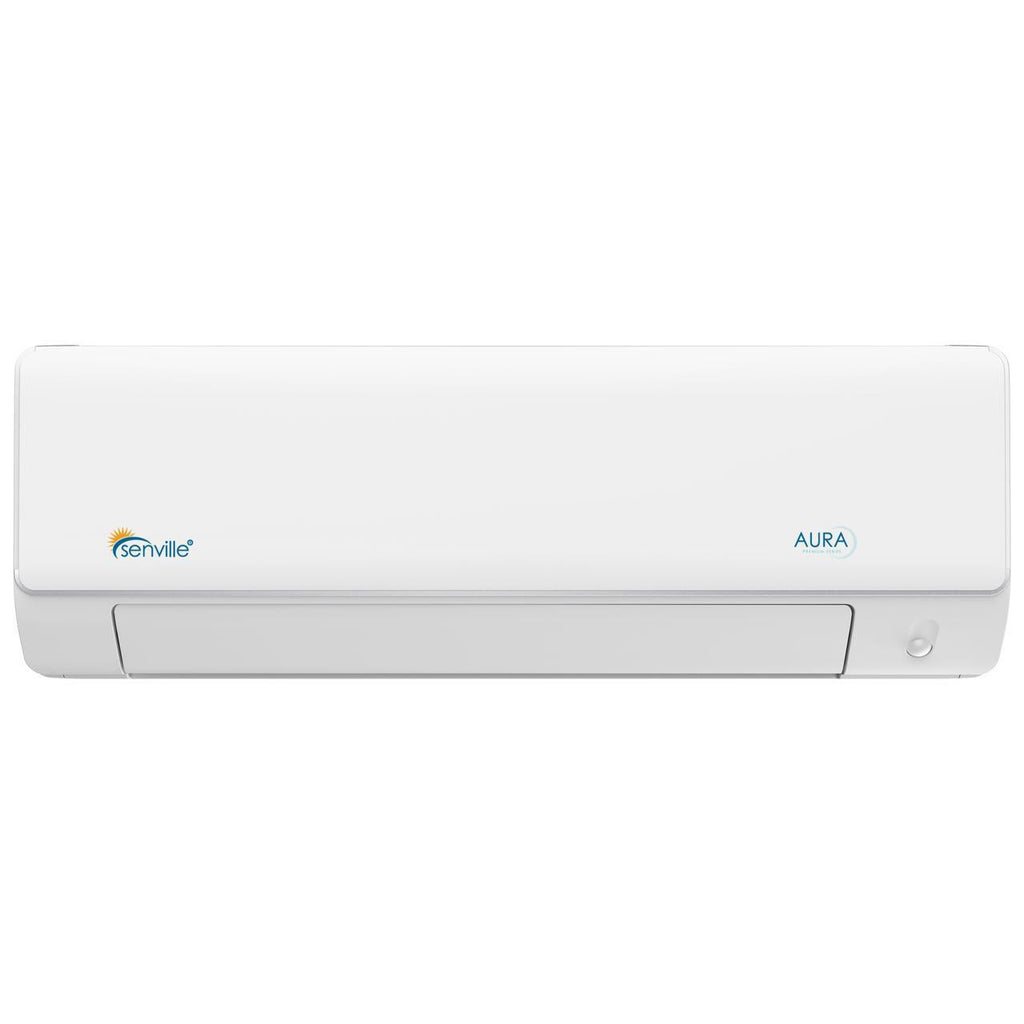

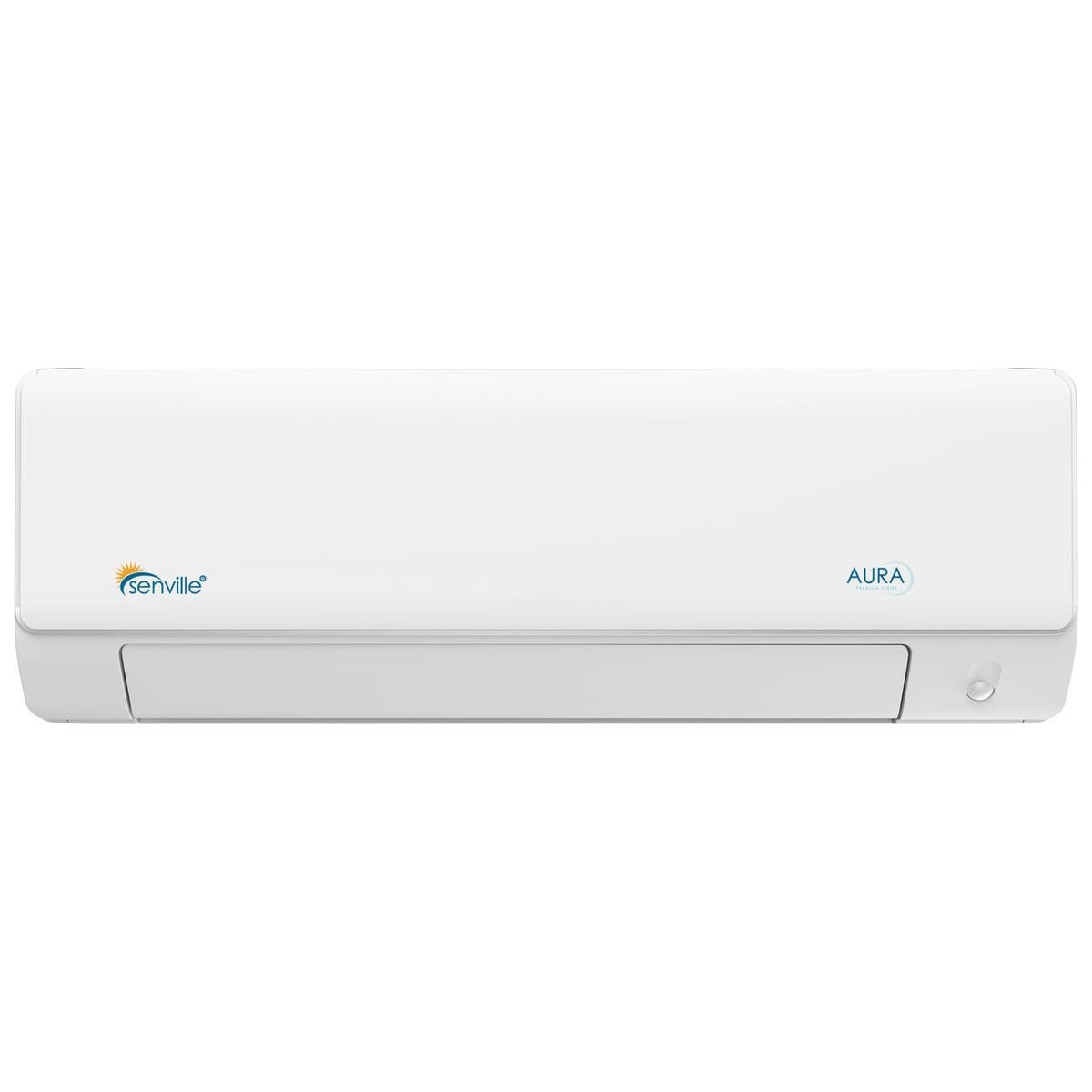

  • Air Handlers - The Air Handlers option selects the indoor-unit combination of wall mount air handlers: 6K + 6K + 6K + 6K + 6K + 6K, 6K + 6K + 6K + 6K + 6K + 9K, 6K + 6K + 6K + 6K + 6K + 12K, 6K + 6K + 6K + 6K + 6K + 18K, 6K + 6K + 6K + 6K + 6K + 24K, 9K + 9K + 9K + 9K + 9K + 9K, 9K + 9K + 9K + 9K + 9K + 12K, 9K + 9K + 9K + 9K + 9K + 18K, 9K + 9K + 9K + 9K + 9K + 24K or 12K + 12K + 12K + 12K + 12K + 12K.
  • Six 16 Ft. installation kits are included. The Line Set Length option selects how many of those kits are upgraded to 25 Ft. or 50 Ft. (from 1 kit up to all 6), and it is available for every indoor-unit combination. The system is pre-charged with R454B refrigerant (151.68 oz) for up to 150 Ft.
  • Power supply is 208/230V, 1Ph, 60Hz (voltage range 187–253). Minimum Circuit Ampacity is 37 A and Max. Fuse is 40 A; confirm circuit sizing with your installer.

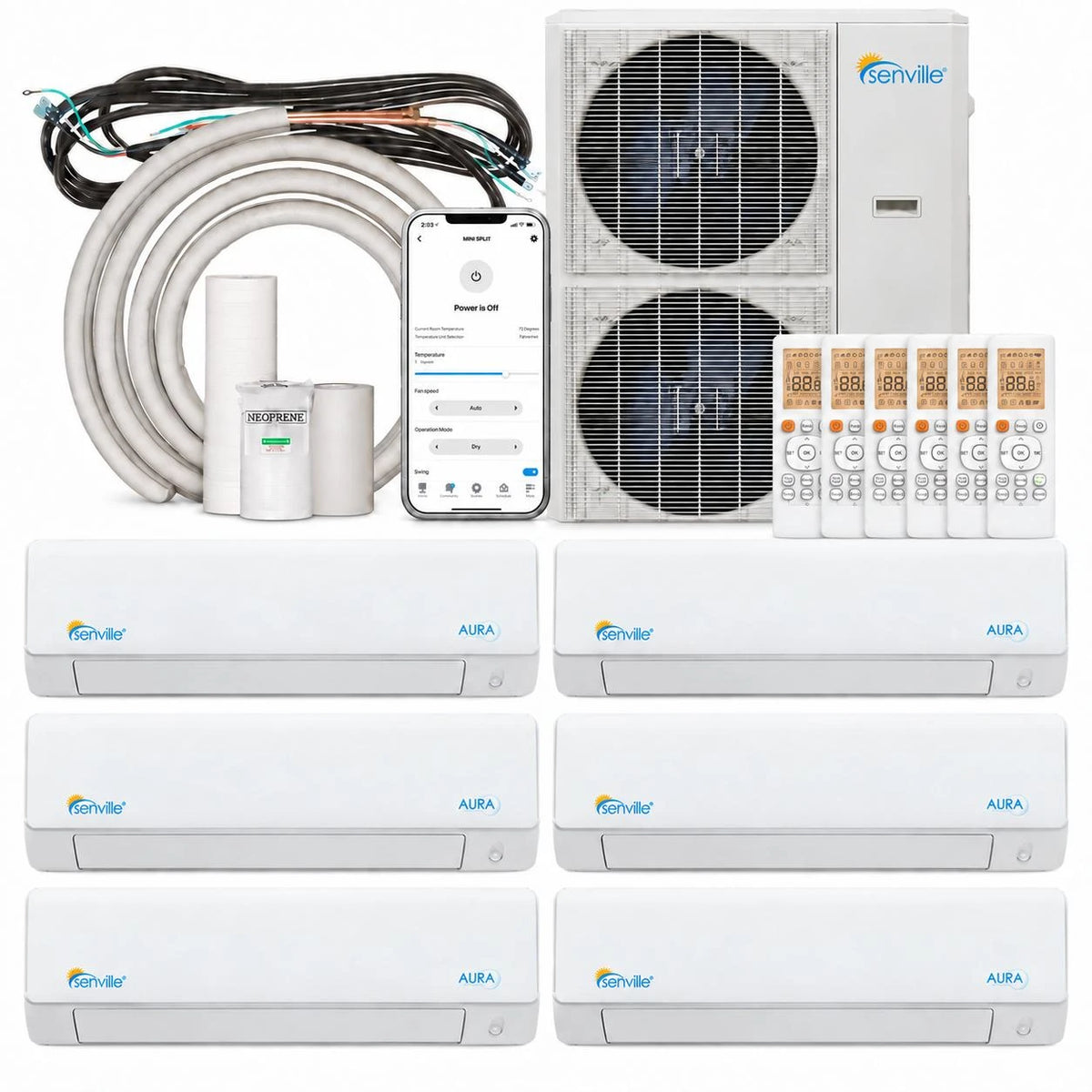

  • Package includes 6 indoor units (per the selected combination), the outdoor unit, wireless remote controls, Alexa USB Kit, 16 ft. installation kits (x6) or the upgraded kits selected under Line Set Length, indoor-outdoor wiring harness, installation manual, user's manual, and 10-year manufacturer warranty documentation.
  • Nominal system capacity is 48,000 BTU; rated cooling capacity is 47,000 BTU and rated heating capacity is 49,000 BTU.
DIMENSIONS & WEIGHT
Outdoor Dimensions (WxDxH) (in.)
37.48 x 16.34 x 52.48
Outdoor Weight
246.47 Lbs
GENERAL INFORMATION
Model Number
SENA-48HF/S
Style
Ductless Mini Split AC With Heat Pump
Number of Zones
2-6
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Max. Fuse (A)
40
CAPACITY & PERFORMANCE
Outdoor Air Flow (Max) CFM
4502.8
SEER2
23
EER2
12
Cooling Capacity (BTU)
47000
Cooling Range (BTU)
12000~57000
Cooling Input Range (W)
800~5400
Cooling Current Range (A)
7~24
Heating Capacity
49000
Heating Range (BTU)
13000~57000
Heating Input Range (W)
800~5200
Heating Current Range (A)
7~23
HSPF2-4
11
HSPF2-5
9
COP W/W
3.7
Minimum Outdoor Heating Temperature
-22°F / -30°C
NOISE LEVELS
Outdoor Noise Level dB
65
ELECTRICAL REQUIREMENTS
Voltage Range
187–253
Minimum Circuit Ampacity (A)
37
REFRIGERANT & PIPING
Refrigerant Type / Charge
R454B / 151.68 oz
Refrigerant Pre-charge
150 Ft.
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts

Senville AURA Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU up to 250 sq ft · Small bedroom, office
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
15K BTU up to 800 sq ft · Living room
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1350 sq ft · Open living area
33K BTU up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
