Senville Mini Split - 4-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-30HF-Q)

SenvilleSKU: SENA-30HF-Q9999
Price:
$3,199.99 $4,159.99SAVE 23%
Air Handlers: 9K + 9K + 9K + 9K
BTU:
Zones:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Senville SENA-30HF/Q is a high-efficiency 28,000 BTU quad-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications.

Rated at 23 SEER2, the AURA series condenser pairs with four wall mount air handlers and maintains heating down to -22°F (-30°C), and is recommended for 1300–1500 sq. ft. of living space. Smart control through the Alexa app, whisper-quiet operation and built-in diagnostics with refrigerant leak detection round out a system that ships with a complimentary installation kit and a 5-year parts warranty.

Features

  • 23 SEER2 ENERGY STAR - Save on heating and cooling bills year-round.
  • ENERGY STAR Certified - Maximize efficiency while reducing your carbon footprint with this ENERGY STAR rated system.
  • Covers 1300–1500 sq. ft. - Recommended for multiple zones or large spaces.
  • Cold Climate Ready - Maintains heating down to -22°F (-30°C) with a high-efficiency compressor and inverter technology.
  • Smart Control with Alexa - Connect to Alexa or use the app for voice control, schedules and automation from anywhere.
  • Whisper-Quiet Operation - Perfect for bedrooms, offices, and common areas.
  • Diagnostics & Leak Detection - Built-in smart monitoring alerts you of any system issues including refrigerant leaks.
  • 10-Year Warranty - Includes a 10-year compressor warranty and 5-year parts warranty with support across North America.
  • Installation Kit + Accessories Included - Includes a complimentary installation kit, and the system is pre-charged with R454B refrigerant for up to 100 ft.

Please Note

  • Professional Installation - Professional installation is required to maintain warranty coverage and optimal performance.

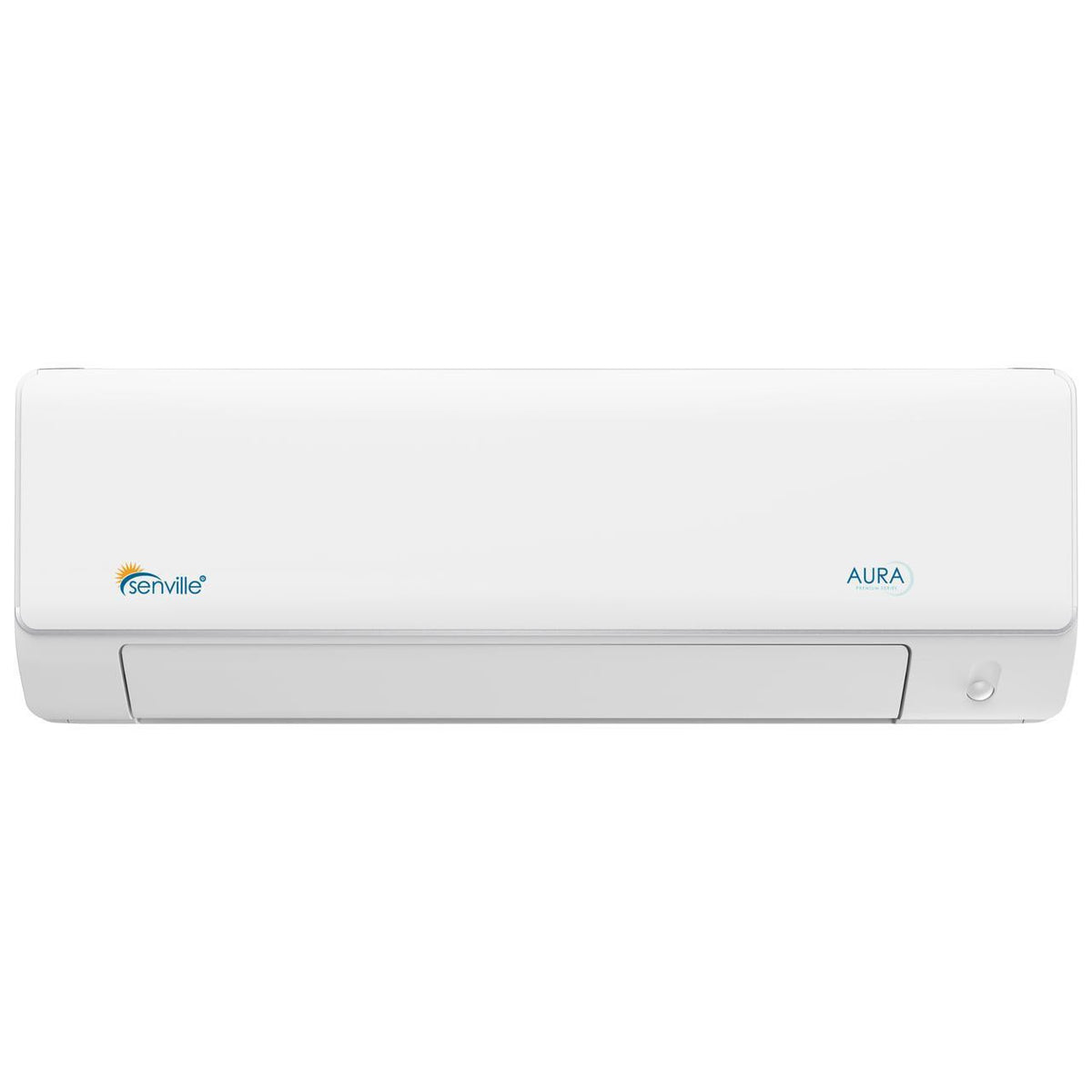

  • Air Handlers - The Air Handlers option selects the indoor-unit combination of wall mount air handlers: 6K + 6K + 6K + 6K, 6K + 6K + 6K + 9K, 6K + 6K + 6K + 12K, 6K + 6K + 6K + 18K, 6K + 6K + 6K + 24K, 9K + 9K + 9K + 9K, 9K + 9K + 9K + 12K, 9K + 9K + 9K + 18K or 12K + 12K + 12K + 12K.

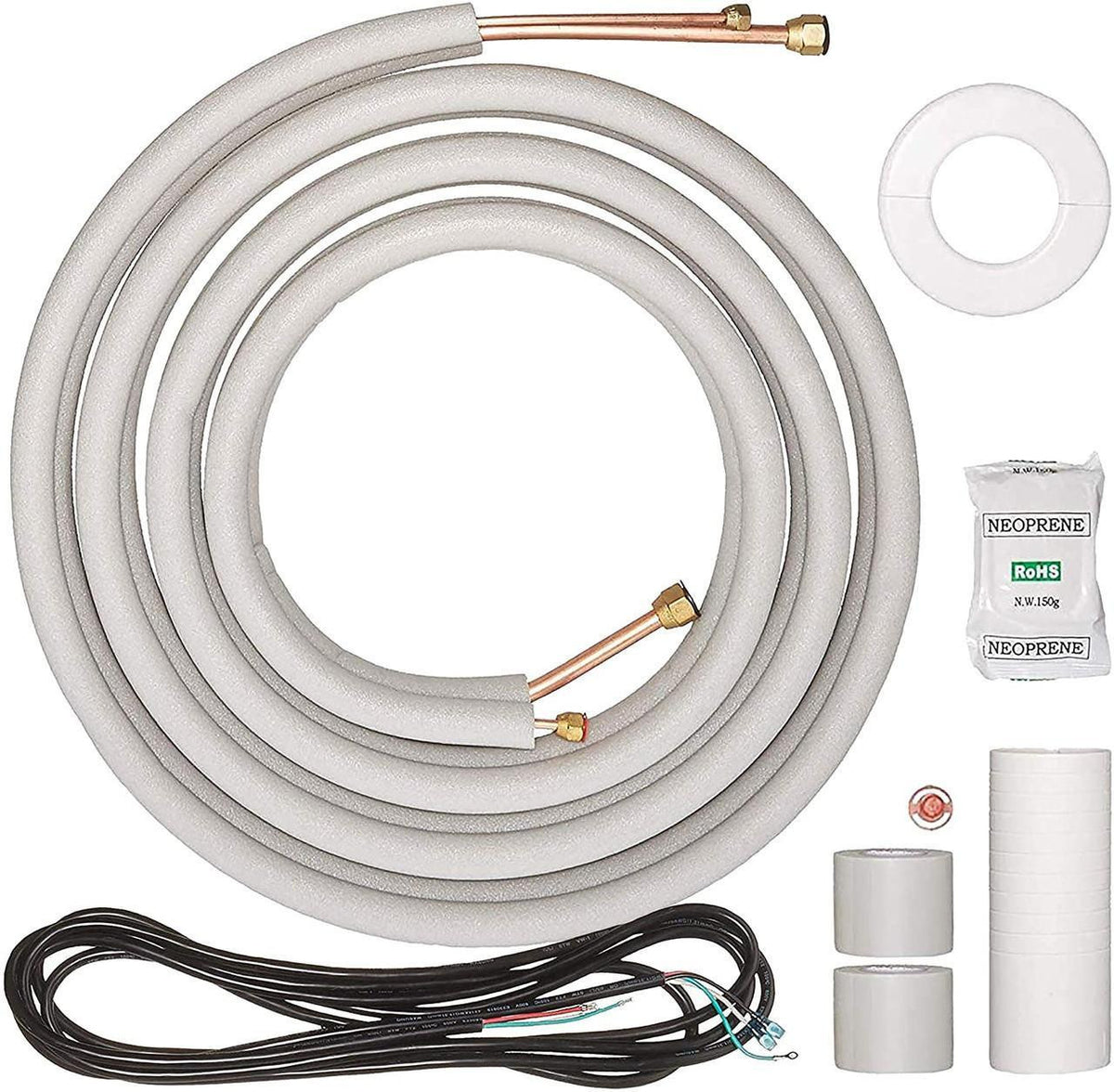

  • Line Set Length - Four 16 Ft. installation kits are included. The Line Set Length option selects how many of the four included 16 Ft. kits are upgraded to 25 Ft. or 50 Ft. (upgrade 1, 2, 3 or 4 kits).
  • Voltage - Requires a 208/230V, 1Ph, 60Hz power supply with a minimum circuit ampacity of 30 A and a maximum fuse of 35 A.

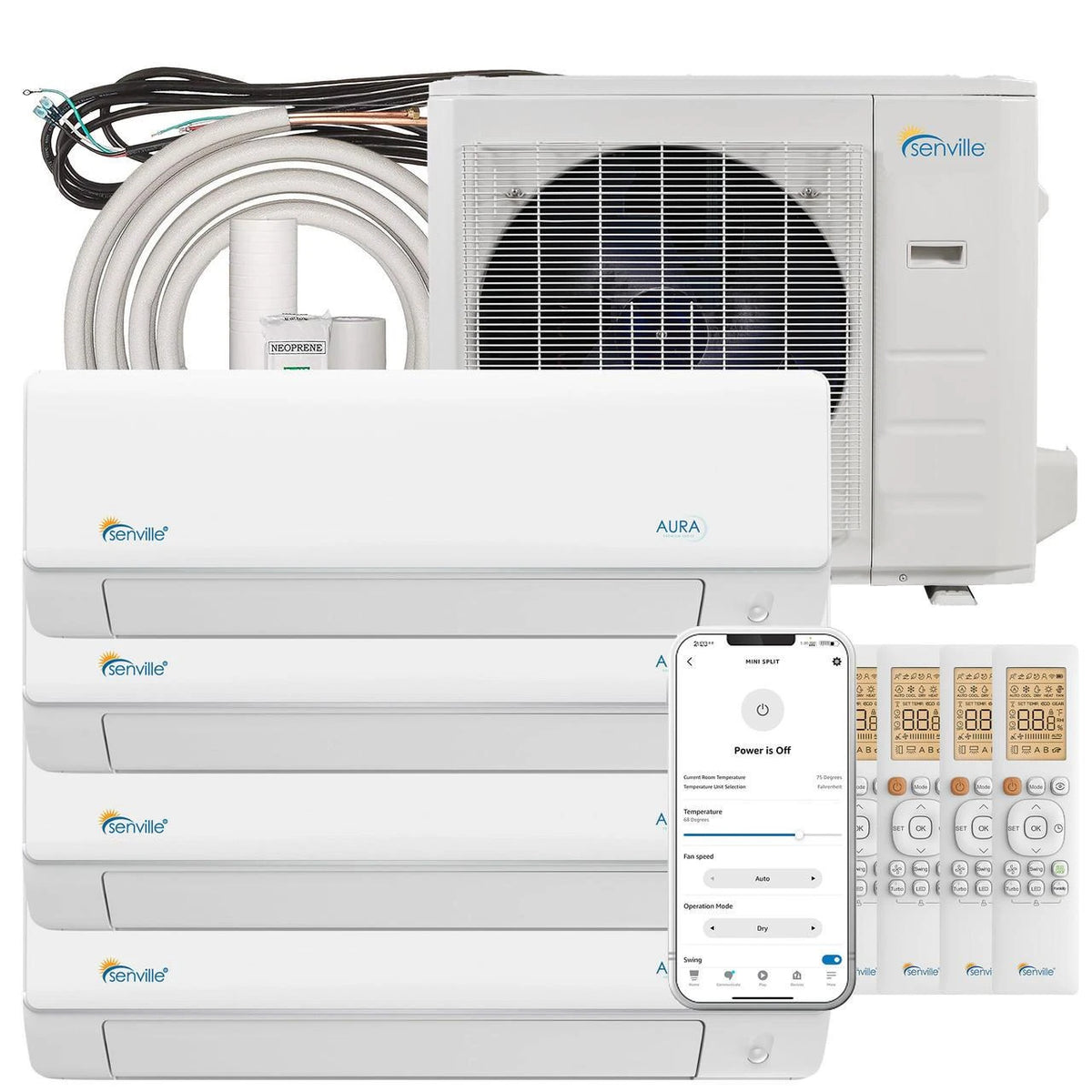

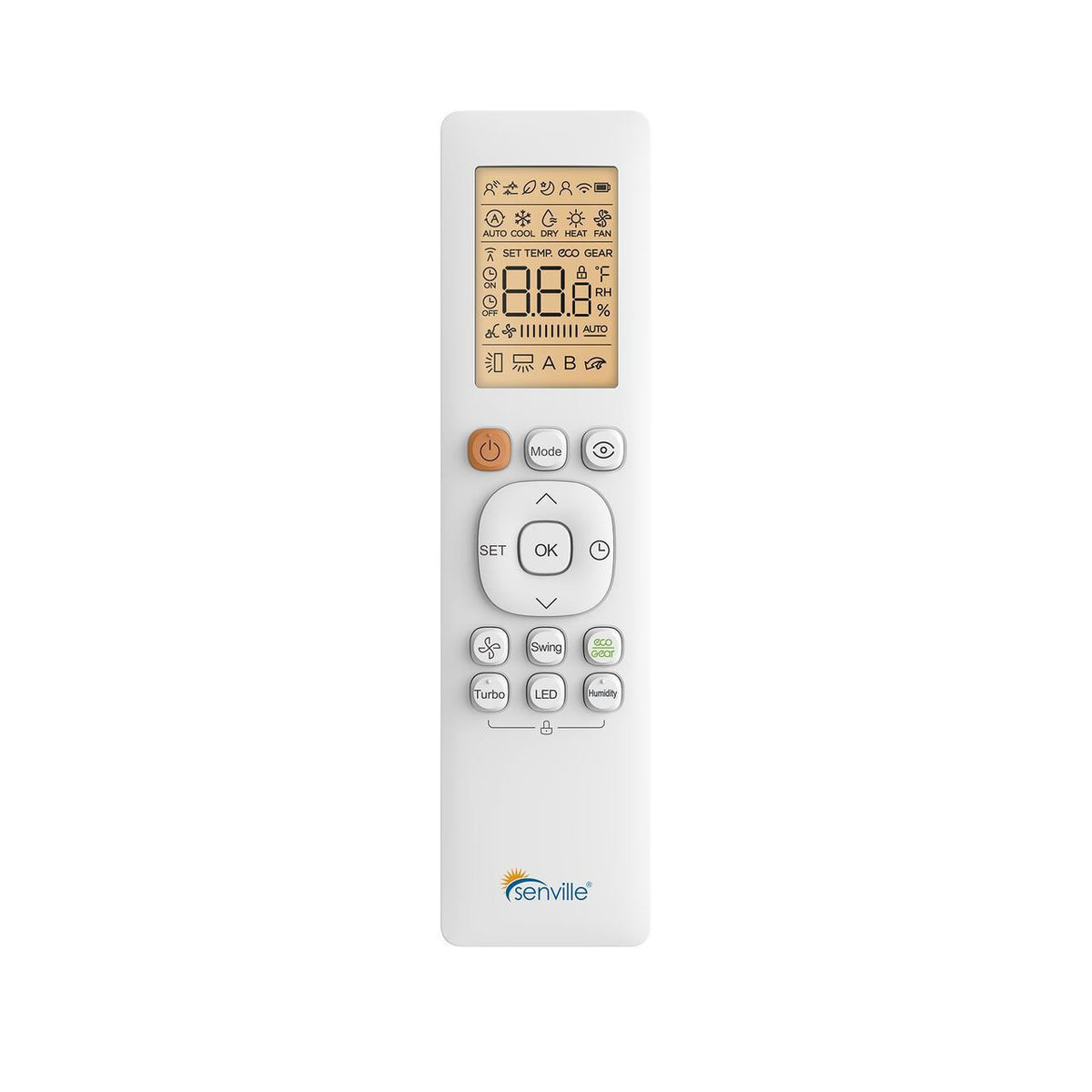

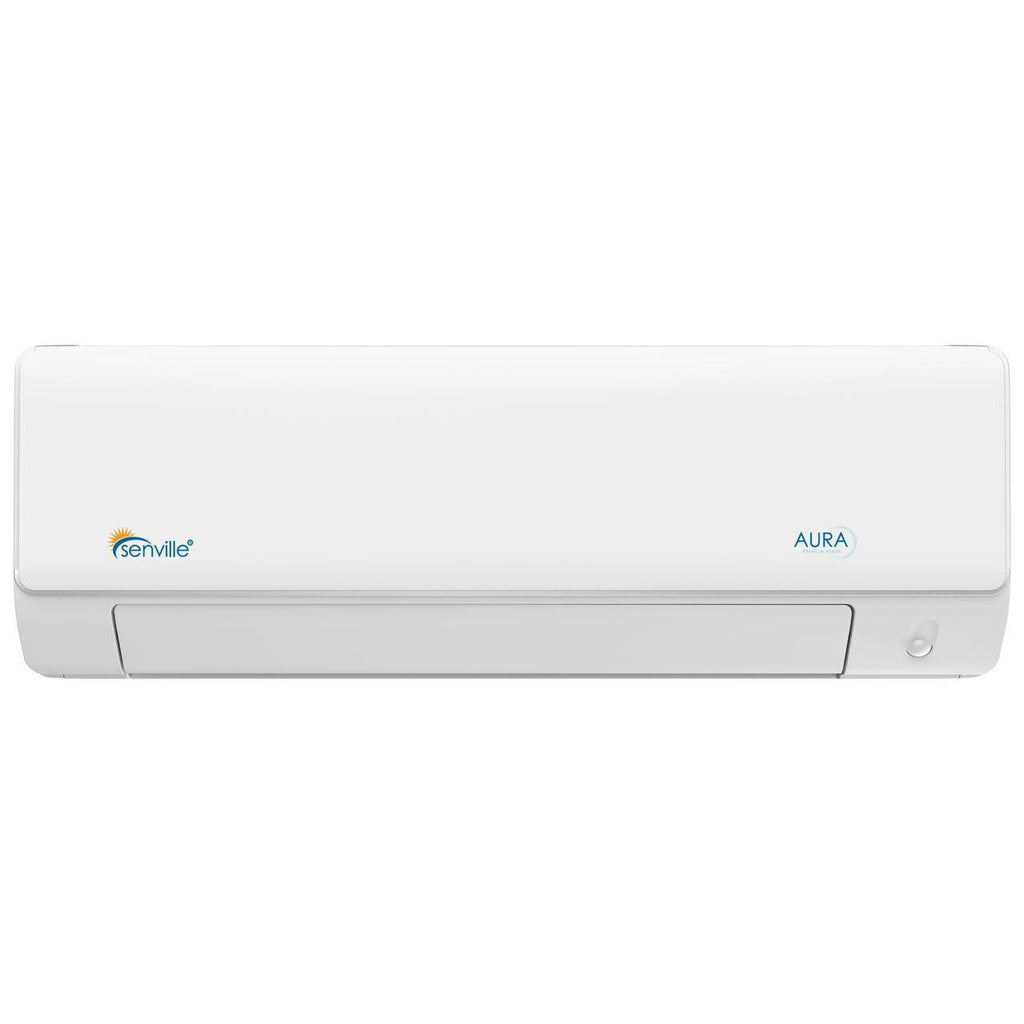

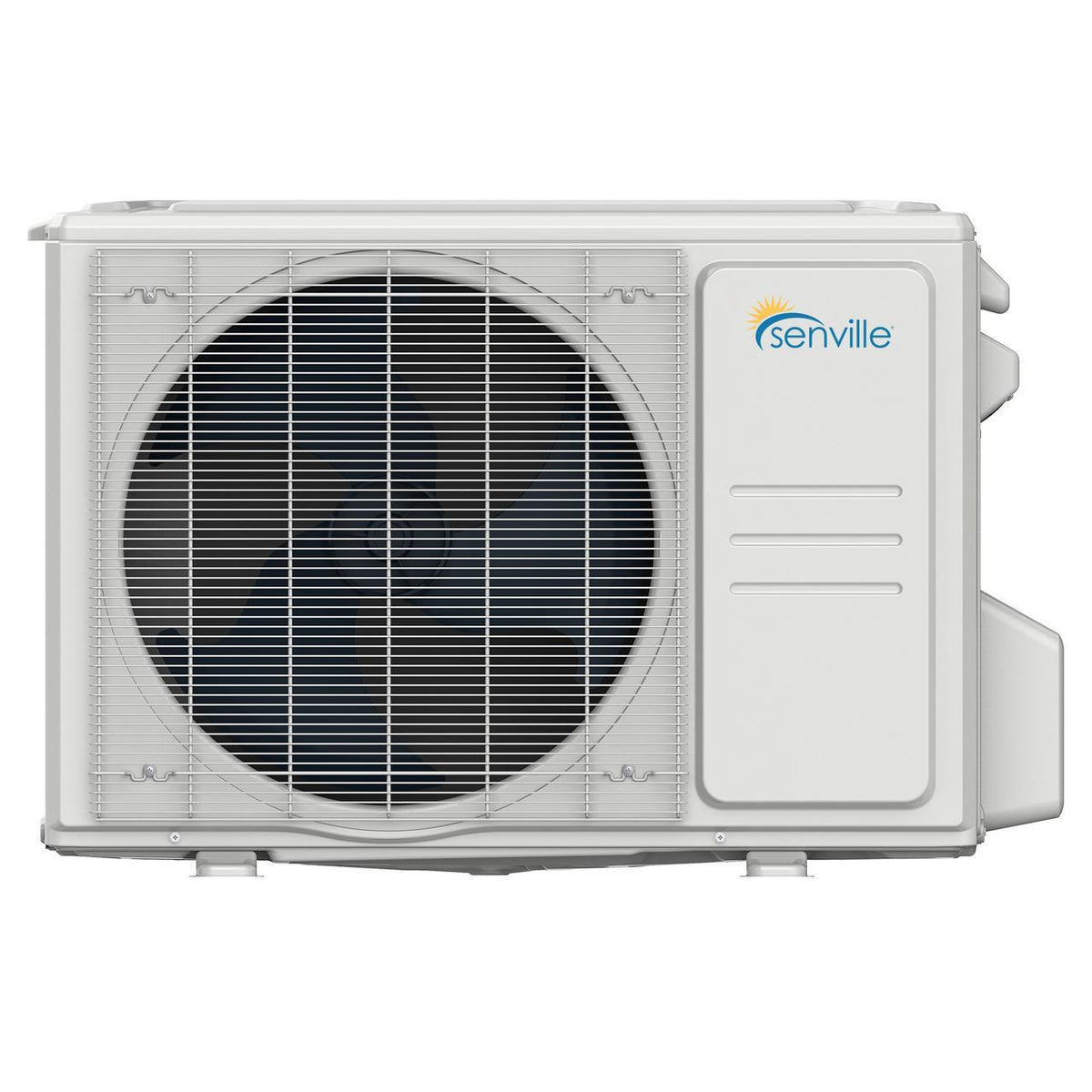

  • What's Included - Outdoor unit, 4 wall mount indoor units (per the selected combination), wireless remote controls, Alexa USB kit, 16 ft. installation kits (x4), indoor-outdoor wiring harness, installation manual and user's manual.
DIMENSIONS & WEIGHT
Outdoor Dimensions (WxDxH) (in.)
37.24 x 16.14 x 31.89
Outdoor Weight
168.43 Lbs
GENERAL INFORMATION
Model Number
SENA-30HF/Q
Style
Ductless Mini Split AC With Heat Pump
Number of Zones
2-4
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Max. Fuse (A)
35
CAPACITY & PERFORMANCE
Outdoor Air Flow (Max) CFM
2148.4
SEER2
23
EER2
12.5
Cooling Capacity (BTU)
27000
Cooling Range (BTU)
7200~37000
Cooling Input Range (W)
500~3620
Cooling Current Range (A)
4~16
Heating Capacity
27000
Heating Range (BTU)
8400~36000
Heating Input Range (W)
500~3400
Heating Current Range (A)
4~15
HSPF2-4
10.5
HSPF2-5
8.5
COP W/W
3.8
Minimum Outdoor Heating Temperature
-22°F / -30°C
NOISE LEVELS
Outdoor Noise Level dB
61
ELECTRICAL REQUIREMENTS
Voltage Range
187–253
Minimum Circuit Ampacity (A)
30
REFRIGERANT & PIPING
Refrigerant Type / Charge
R454B / 120.61 oz
Refrigerant Pre-charge
100 Ft.
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
