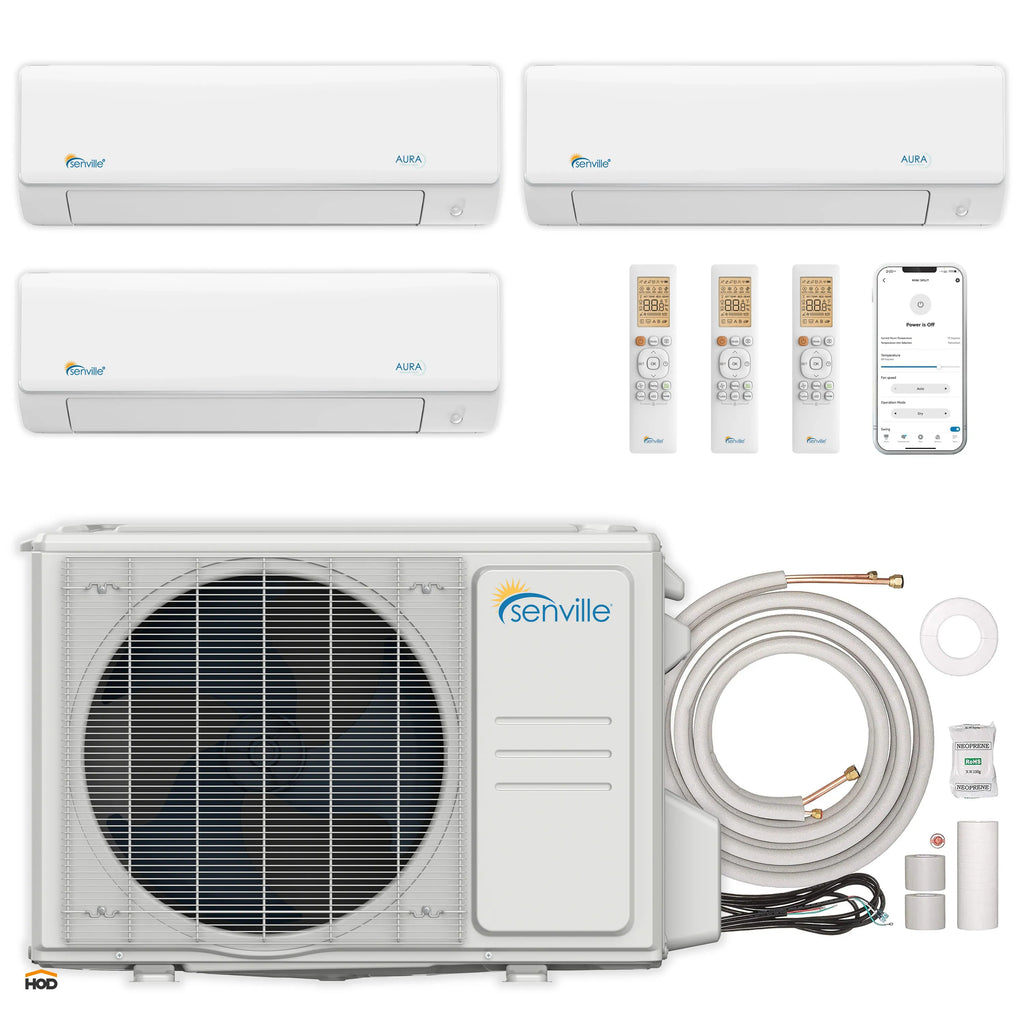

Ductless mini-split system bundle: 3 indoor units, remote, outdoor condenser, and line set

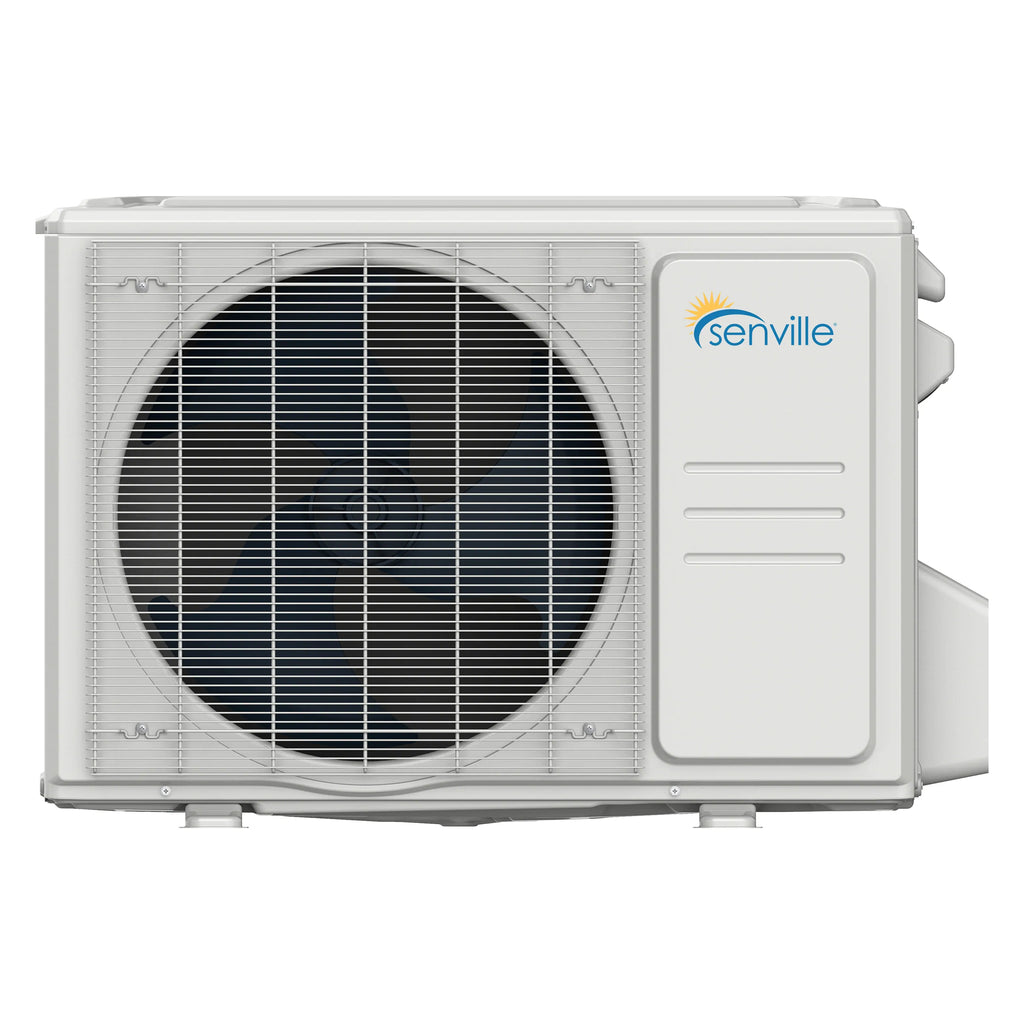

Outdoor ductless mini-split condenser unit with grille and fan

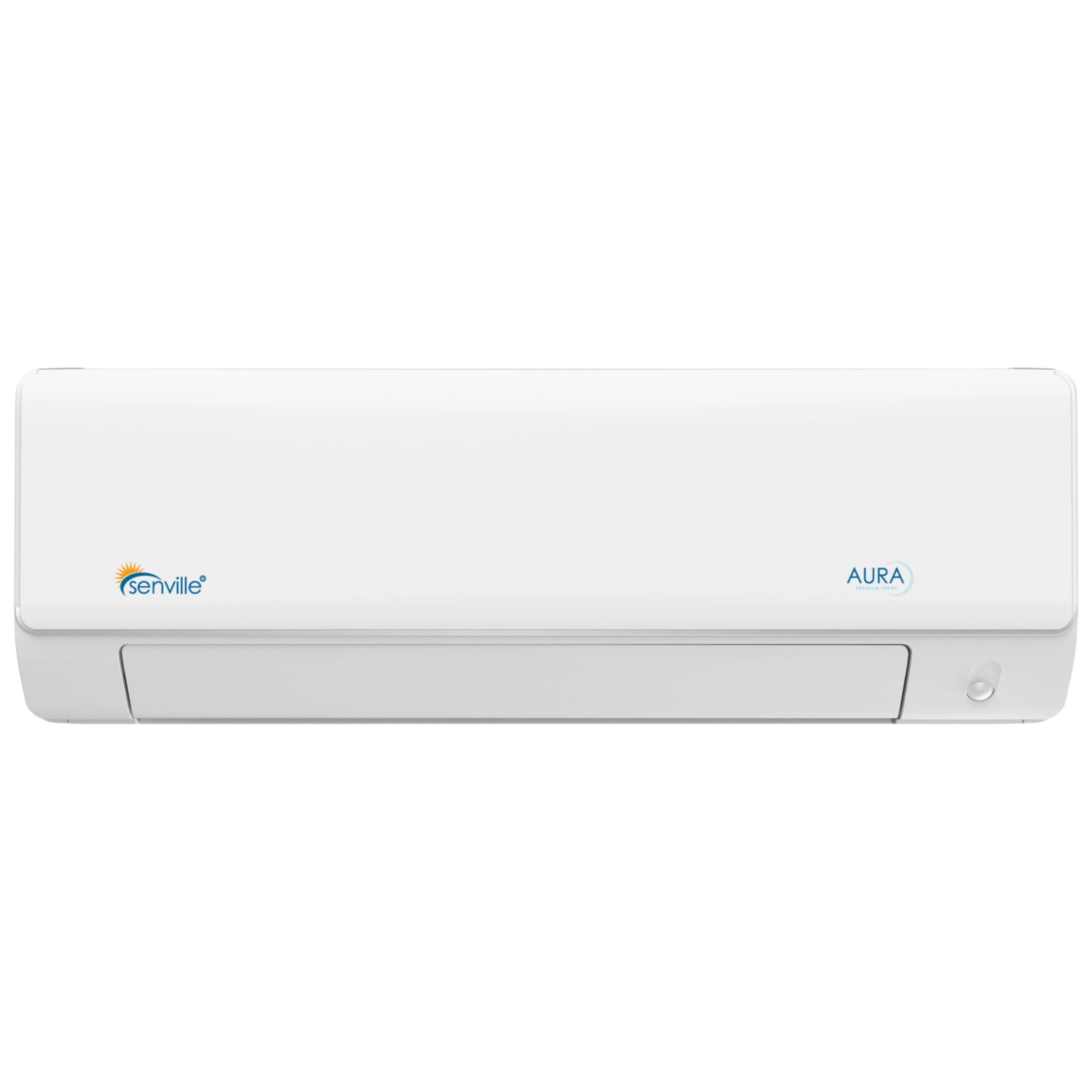

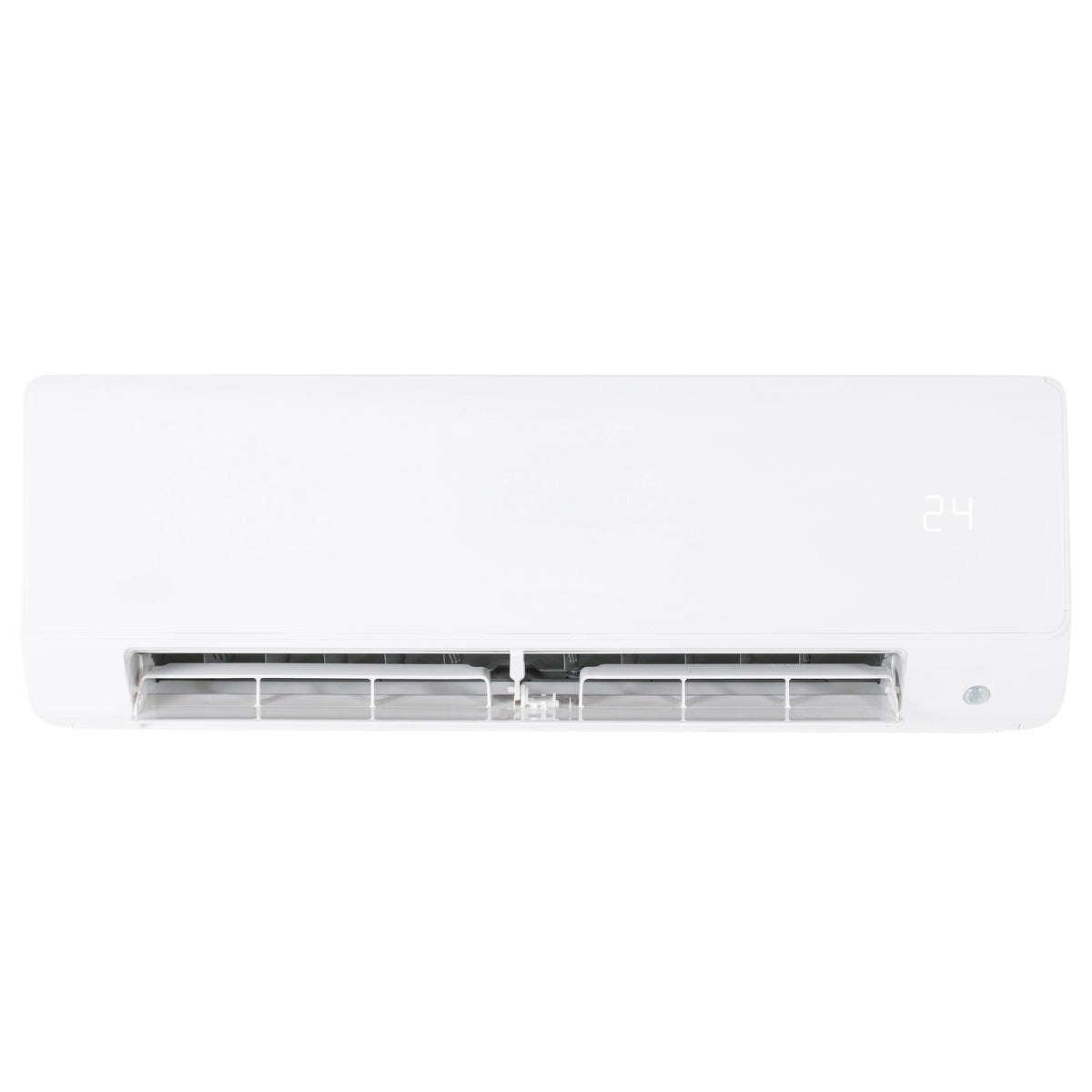

Wall-mounted ductless air handler, white indoor unit with vents and temperature display

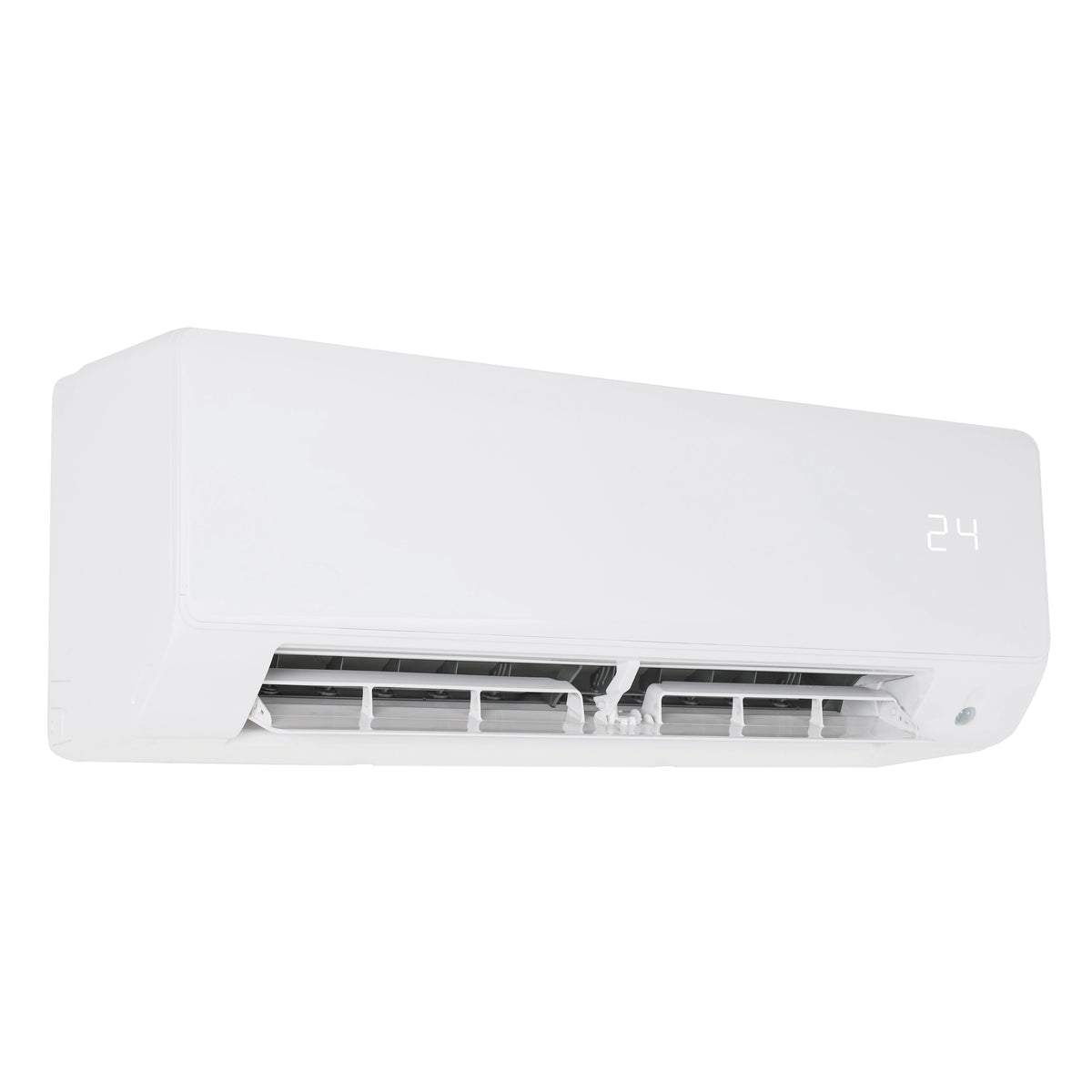

Wall-mounted ductless air handler, white indoor unit with vents and digital display

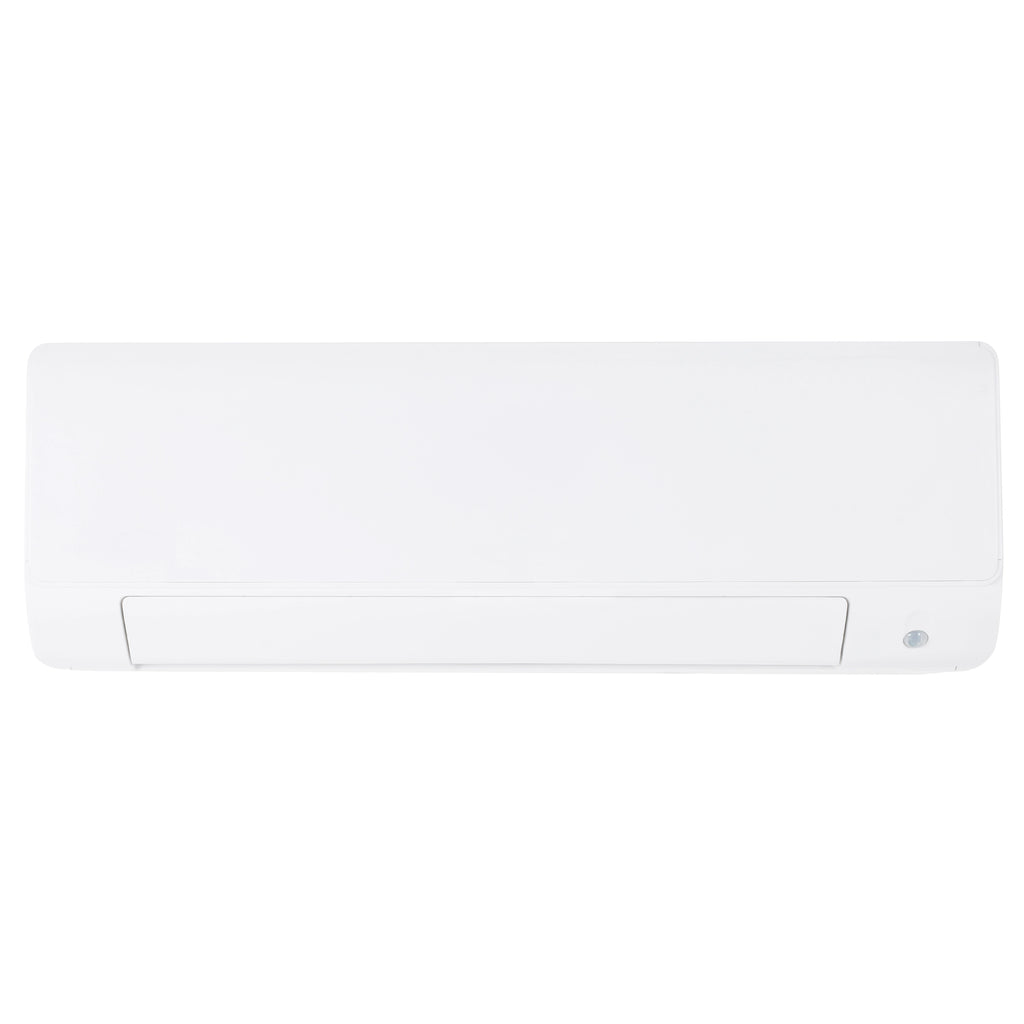

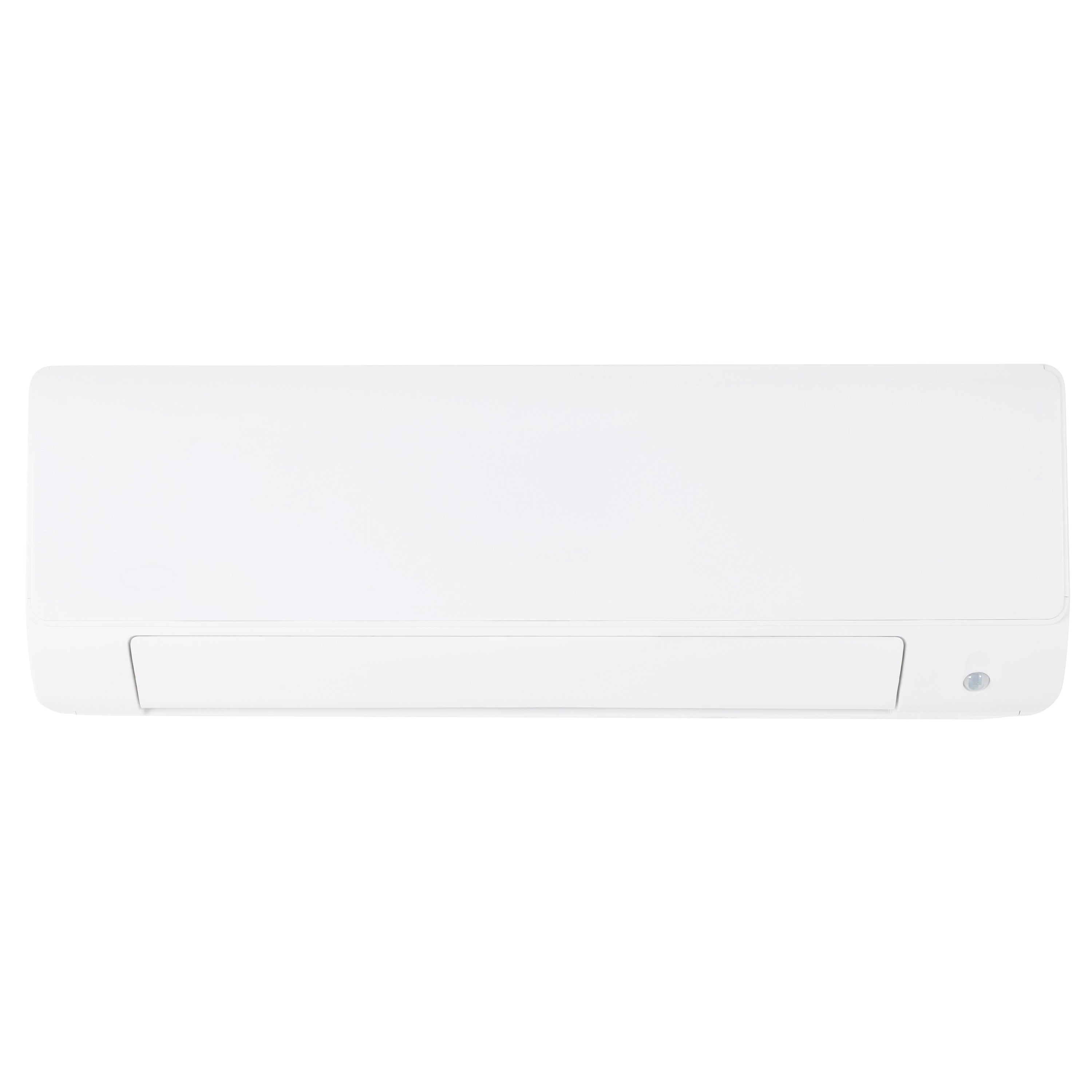

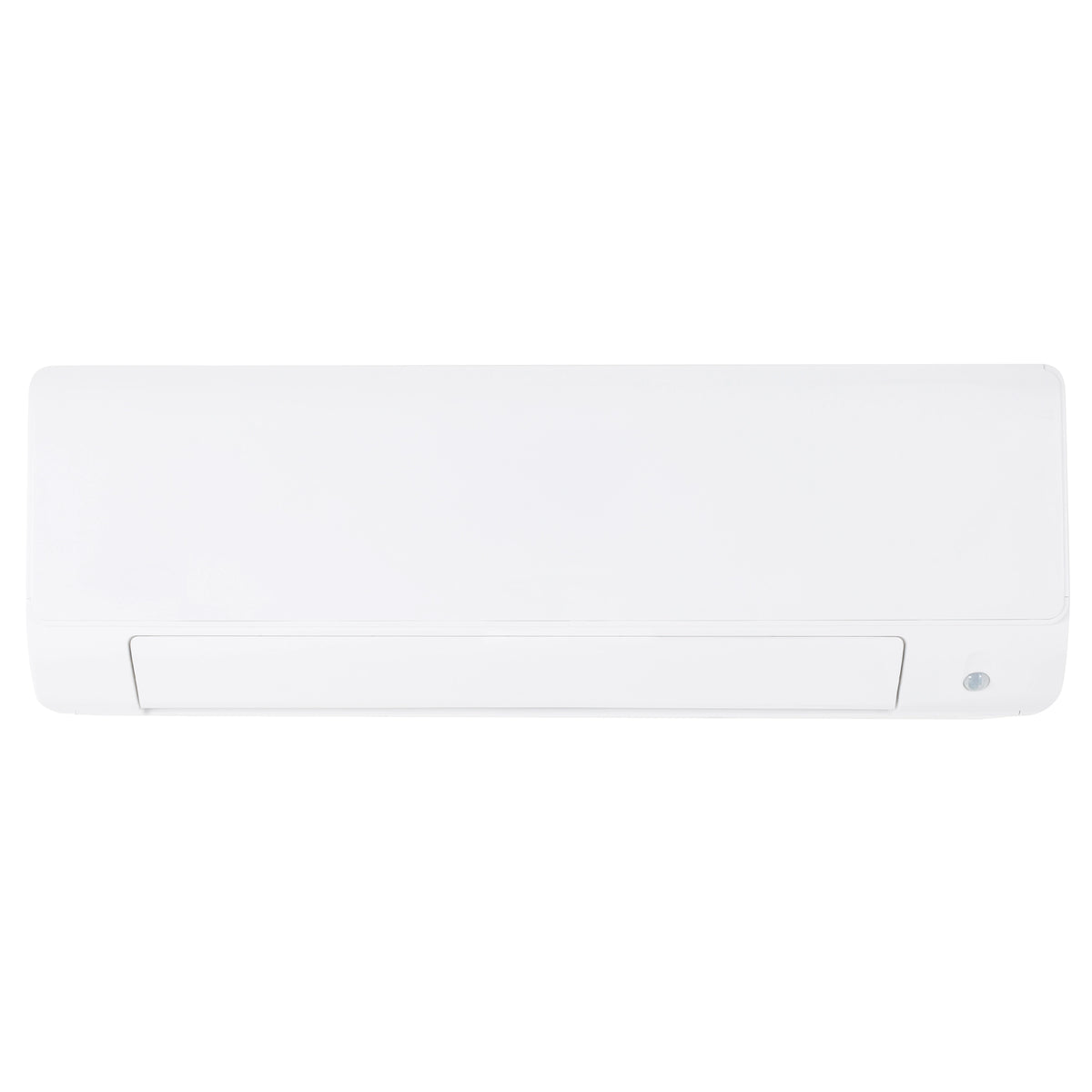

Wall-mounted ductless air handler, white indoor unit with front intake grille

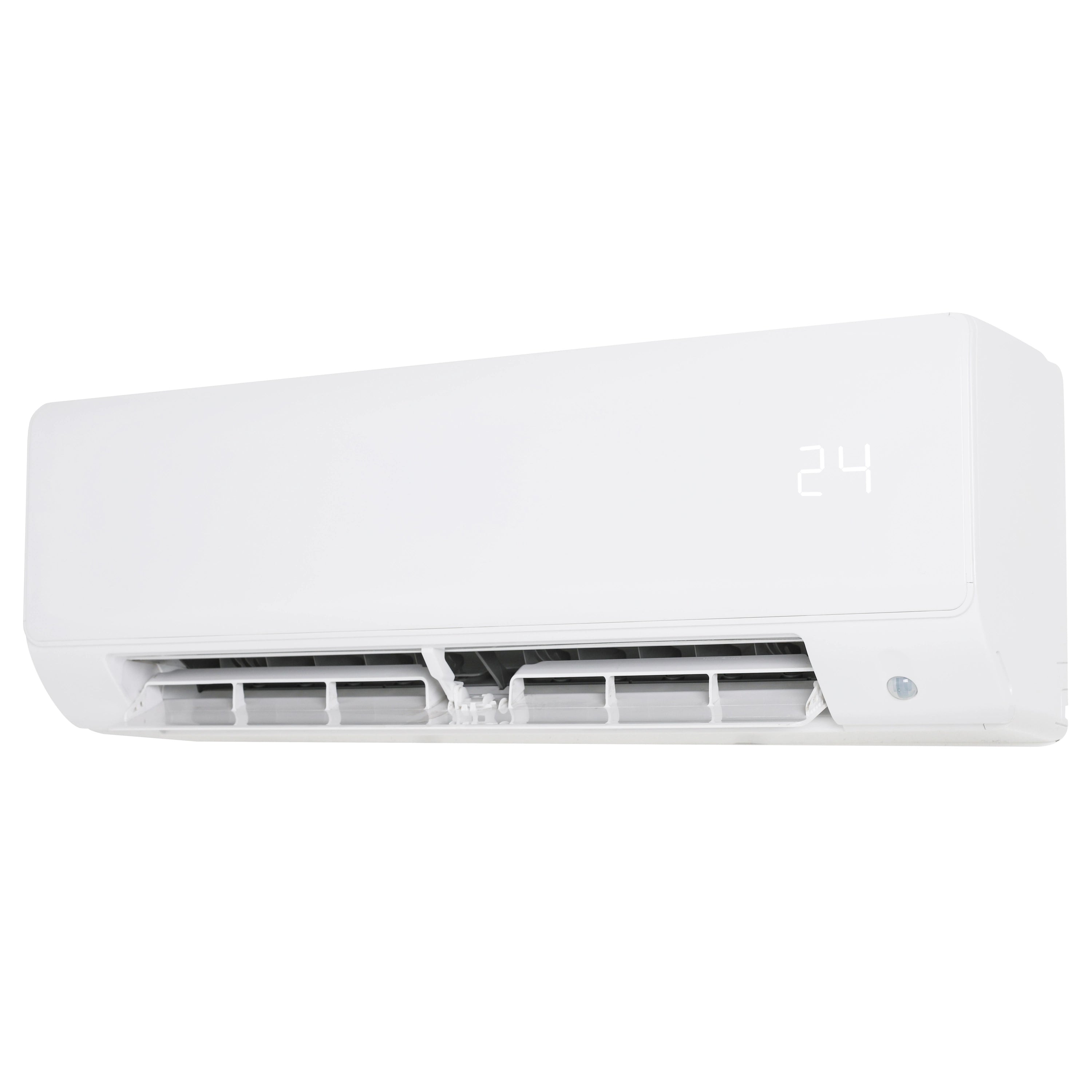

Wall-mounted ductless air handler, white indoor unit with open airflow louvers

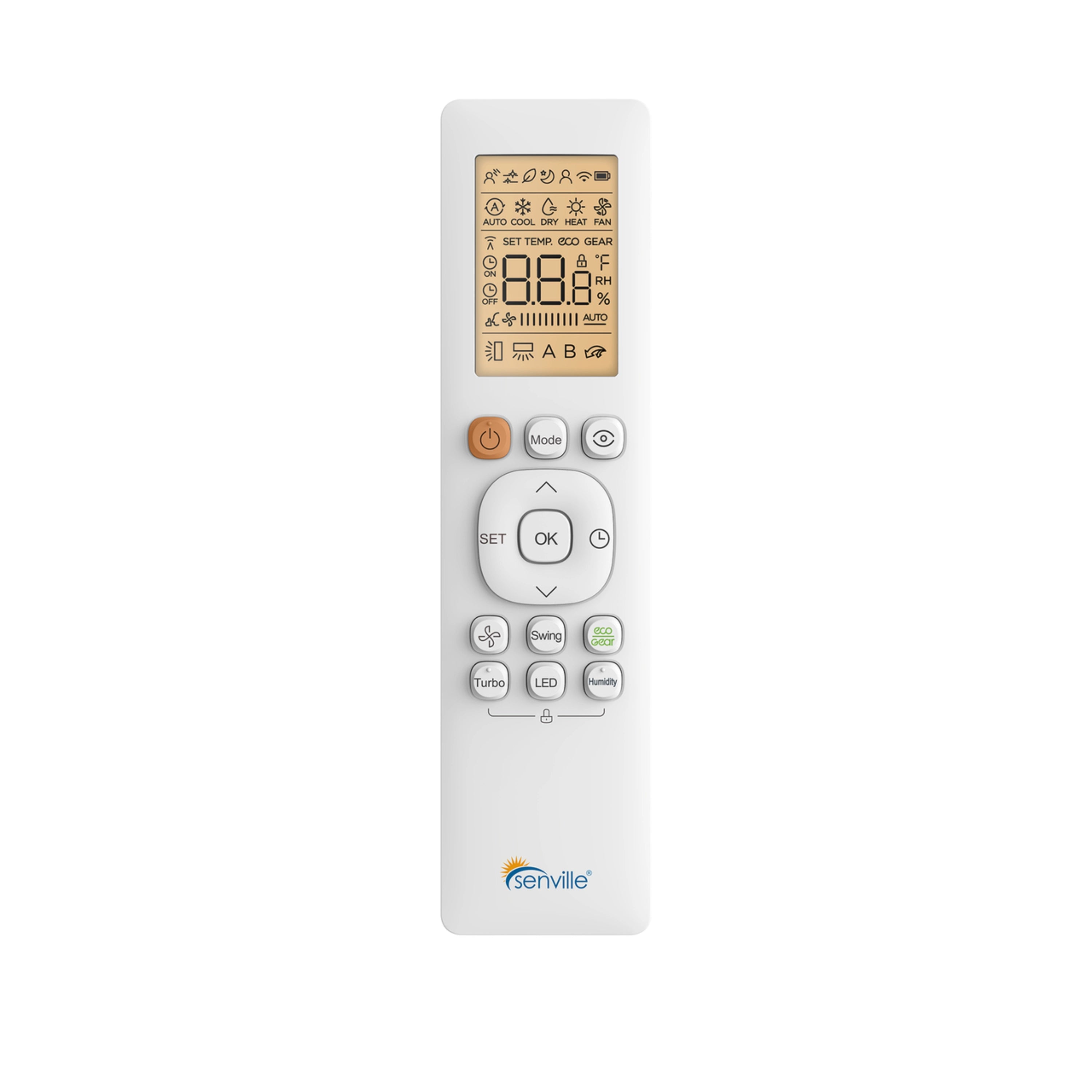

Ductless mini-split remote control with backlit display and buttons

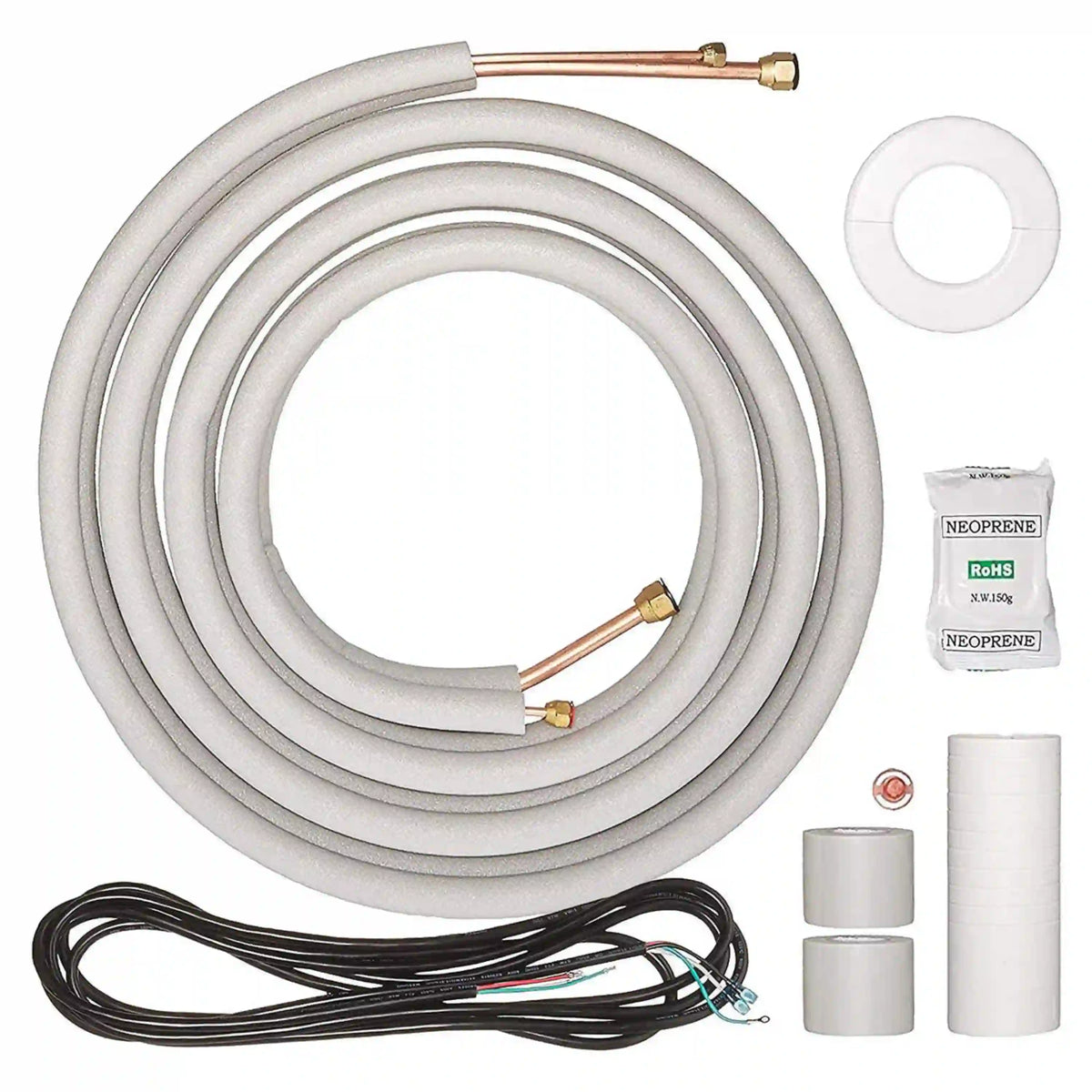

Ductless mini-split line set kit with copper lines, insulation, and mounting accessories

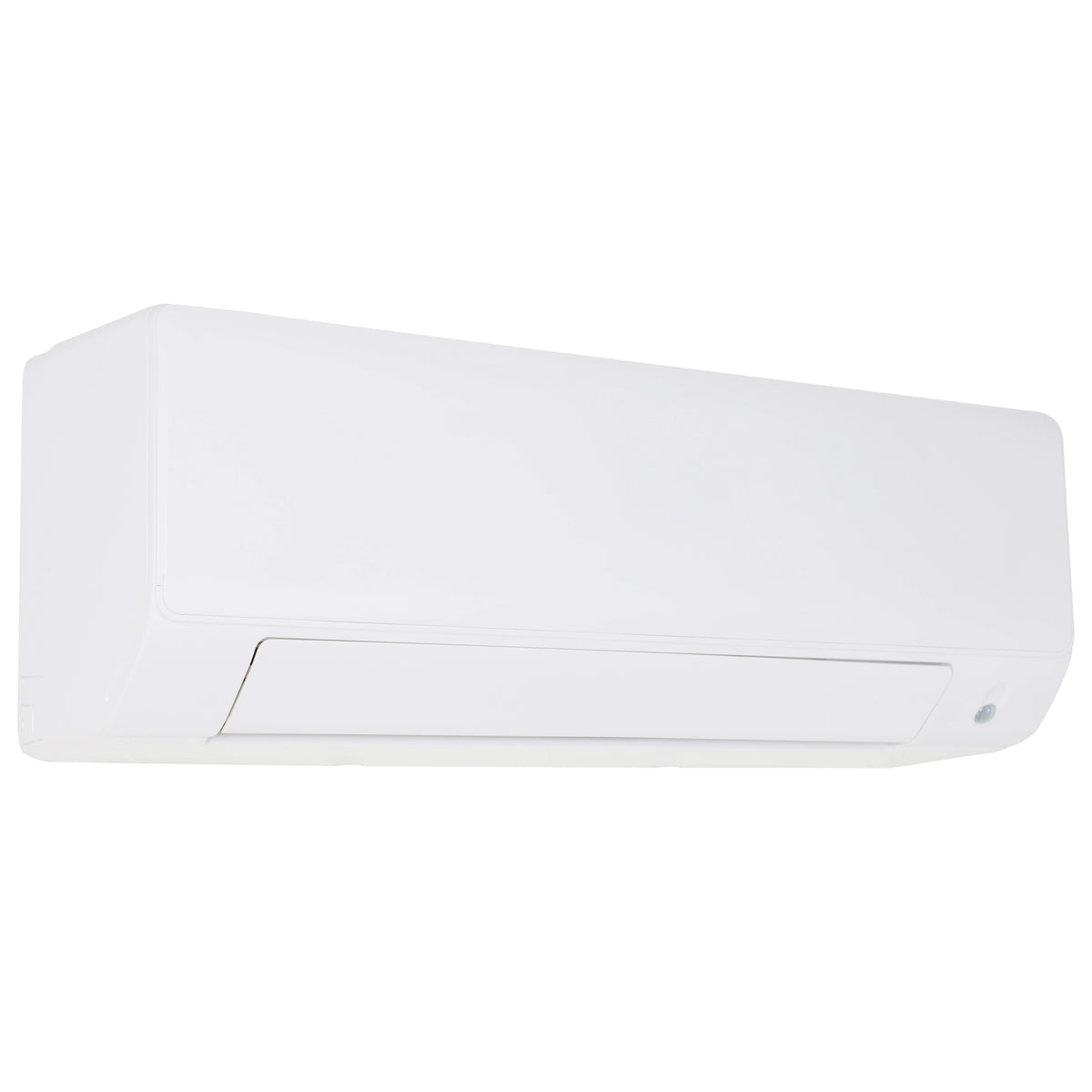

Wall-mounted ductless air handler, white indoor unit front view with air outlet

Roll over image to zoom in Click on image to zoom

Click on image to zoom

Senville Mini Split - 3-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-30HF/T)

Name: Senville Mini Split - 3-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-30HF/T)
Brand: Senville
SKU: SENA-30HF-T999
Price: 2699.99 USD
Availability: InStock
Rating: 4.75 (4 reviews)

SenvilleSKU: SENA-30HF-T999

4 reviews

Price:

$2,699.99 $3,509.99SAVE 23%

Air Handlers: 9K + 9K + 9K

Line Set Length: 16 Ft. + 16 Ft. + 16 Ft.

BTU:

18K 18K
30K 30K
36K 36K

Zones:

2-Zone 2-Zone
3-Zone 3-Zone
4-Zone 4-Zone

In Stock

Estimated delivery: Nov 11th-25th

Free Curbside Delivery — carrier calls to schedule

In-Home Protection Plan

No plan 2-Year $349.99 5-Year $814.99

The 30-second rundown

28,000 BTUHeating + Cooling

Professional RequiredInstallation

23 SEER2Efficiency

1,200 Sq. Ft.Coverage (estimate)

3-Zone

208/230VPower

Energy Star Certified

Senville · AURA Series

SENA-30HF/T Tri-Zone Mini Split and Heat Pump
28,000 BTU of independent comfort across three zones.

ENERGY STAR certified cooling and heating with three indoor units providing independently controlled comfort, selectable capacities and cold-climate heating down to -30 °C.

Performance at a Glance

23 SEER2 — ENERGY STAR certified efficiency
10.5 HSPF2-4
12.5 EER2
Down to -30 °C (-22 °F) — Cold-weather heating
Three zones — Independent comfort
Recommended coverage: 1,300–1,500 sq. ft.
R454B — Refrigerant

Heating Down to -30 °C

The AURA cold-climate heat pump is designed to continue providing heat at outdoor temperatures down to -30 °C (-22 °F).

Why Choose the SENA-30HF/T?

Independent three-zone comfort — Three indoor units connect to one outdoor unit, allowing settings to be adjusted separately for each served area.
Selectable indoor-unit combinations — Choose the available three-unit combination, then have a professional confirm the capacity required for each zone.
Efficient cold-climate operation — The 23 SEER2 system is ENERGY STAR certified, provides heating at -30 °C (-22 °F) with up to 75% efficiency and can reduce annual energy costs by up to 50%.

Everything You Need to Get Started

Outdoor unit — SENA-28HF-MOA
Three indoor units — Selected capacity combination
Remote controls and Alexa kit — Wireless remotes plus USB kit
Three installation kits — 16 ft. each
Wiring harness — Indoor-to-outdoor connection

Buy with Confidence

Manufacturer warranty: 10 years on the compressor · 5 years on parts. Coverage is subject to Senville’s warranty terms.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. Have the installer confirm line routing, drainage and electrical requirements for all three zones.

DIMENSIONS

Outdoor Dimensions (WxDxH): 37.24 x 16.14 x 31.89 in
Outdoor Weight: 168.43 lbs

GENERAL INFORMATION

Brand Name: Senville
Series: AURA
Outdoor Model Number: SENA-28HF-MOA
Style: Ductless Mini Split AC With Heat Pump
Number of Zones: 3 (Tri-Zone)
Recommended Coverage: 1,300-1,500 sq. ft.
Indoor Combinations: 9,000/9,000/9,000, 9,000/9,000/12,000, 12,000/12,000/12,000 BTU
Thermostat Type: Remote Control
Alexa: Enabled

COOLING PERFORMANCE

Cooling Capacity: 27,000 BTU
Cooling Range: 7,200~37,000 BTU
SEER2: 23
EER2: 12.5
Cooling Input Range: 500~3,620 W
Cooling Current Range: 4~16 A

HEATING PERFORMANCE

Heating Capacity: 27,000 BTU
Heating Range: 8,400~36,000 BTU
HSPF2-4: 10.5
HSPF2-5: 8.5
COP (W/W): 3.8
Heating Input Range: 500~3,400 W
Heating Current Range: 4~15 A
Minimum Outdoor Heating Temperature: -22°F / -30°C

TECHNICAL DETAILS

Power Supply: 208/230V, 1Ph, 60Hz
Voltage Range: 187-253
Minimum Circuit Ampacity: 30 A
Max. Fuse: 35 A
Refrigerant Type / Charge: R454B / 120.61 oz
Refrigerant Pre-charge: 100 ft
Outdoor Air Flow (Max): 2148.4 CFM
Outdoor Noise Level: 61 dB

WARRANTY & CERTIFICATIONS

Warranty: 10 Years Compressor / 5 Years Parts
Certifications: ENERGY STAR, UL

Senville Catalogue PDF

33K BTU

24K BTU

18K BTU

15K BTU

12K BTU

9K BTU

6K BTU

6K BTU up to 250 sq ft · Small bedroom, office

9K BTU up to 450 sq ft · Bedroom, home office

12K BTU up to 750 sq ft · Large bedroom, den

15K BTU up to 800 sq ft · Living room

18K BTU up to 1000 sq ft · Living room, master suite

24K BTU up to 1350 sq ft · Open living area

33K BTU up to 1750 sq ft · Great room, small home

Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
