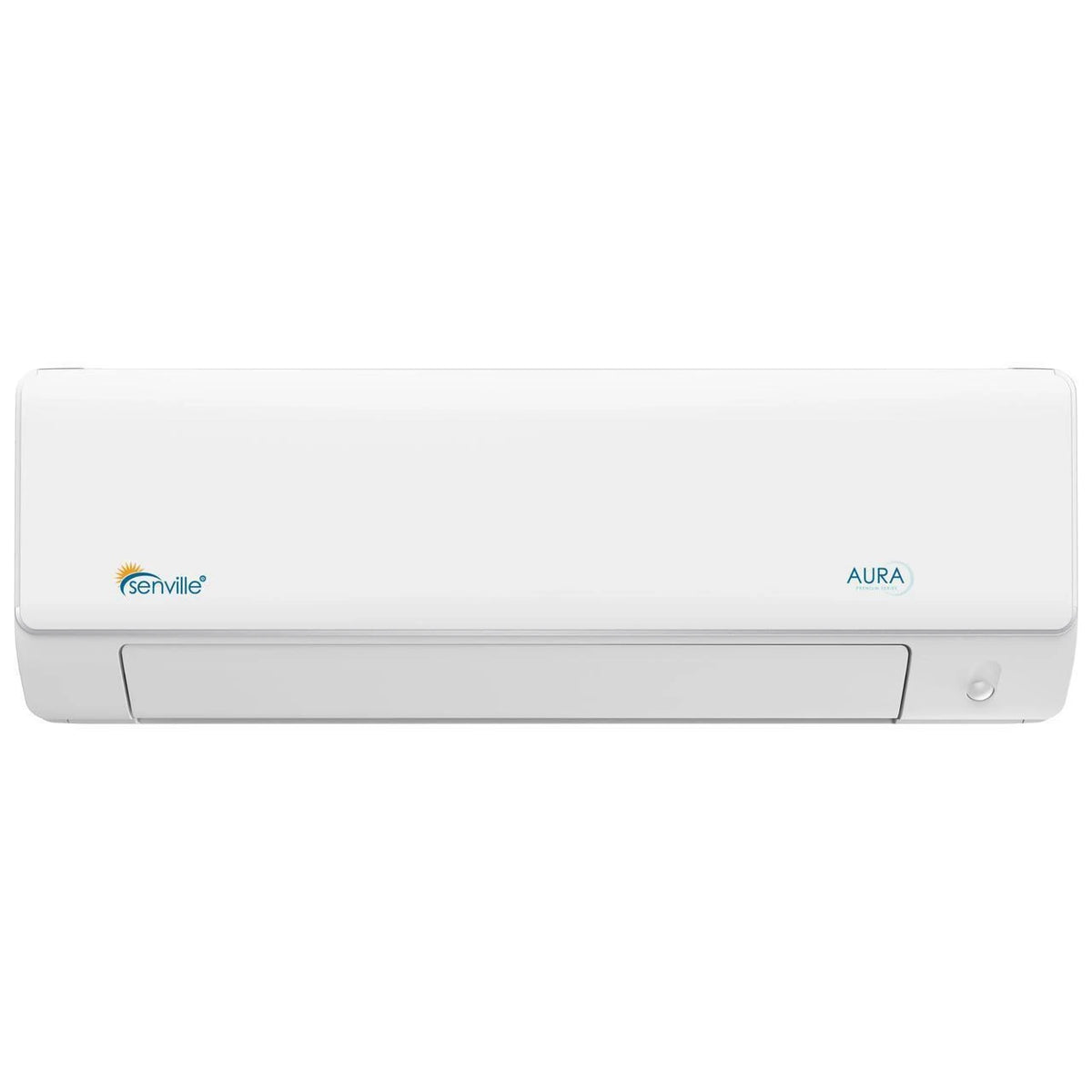

Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Roll over image to zoom in Click on image to zoom
Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)
Click on image to zoom

Senville Mini Split - 3-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-T)

SenvilleSKU: SENA-18HF-T999
Price:
$2,499.99 $3,249.99SAVE 23%
Air Handlers: 9K + 9K + 9K
BTU:
Zones:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Senville SENA-18HF/T is a high-efficiency 18,000 BTU tri-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications.

Rated at 23 SEER2 and recommended for 750–1250 sq. ft., this 3-zone system pairs a single outdoor heat pump condenser with up to three wall mount indoor air handlers, so you can heat and cool multiple rooms from one outdoor unit while keeping heating performance down to -22°F (-30°C).

Features

  • 23 SEER2 ENERGY STAR - Save on heating and cooling bills year-round with this ENERGY STAR rated system.
  • Smart Home Integration with Alexa - Connect to Alexa or use the app for complete control, set schedules and manage comfort from anywhere.
  • Recommended for 750–1250 sq. ft. - Great for multiple zones or large spaces.
  • Cold Climate Ready - Maintains heating at -22°F (-30°C) with high-efficiency compressor and inverter technology.
  • Whisper-Quiet Operation - Perfect for bedrooms, offices, and common areas.
  • Diagnostics & Leak Detection - Built-in smart monitoring alerts you of any system issues including refrigerant leaks.
  • Installation Kit + Accessories Included - Includes complimentary installation kits, and the system is pre-charged with R454B refrigerant for up to 75 ft.
  • 10-Year Warranty - Includes a 10-year compressor warranty and 5-year parts warranty with support across North America.
  • UL Certified - Independently safety certified for residential installation.

Please Note

  • Professional Installation - Professional installation is required to maintain warranty coverage and optimal performance.
  • Air Handlers - The Air Handlers option selects the indoor-unit combination of wall mount air handlers: 6K + 6K + 6K, 6K + 6K + 9K, 6K + 6K + 12K, 6K + 6K + 18K, 9K + 9K + 9K, 9K + 9K + 12K, 9K + 9K + 18K or 12K + 12K + 12K.
  • Line Set Length - Three 16 Ft. installation kits are included. The Line Set Length option selects how many of the included 16 Ft. kits (1, 2 or 3) are upgraded to 25 Ft. or 50 Ft.
  • Voltage - Requires a 208/230V, 1Ph, 60Hz power supply.

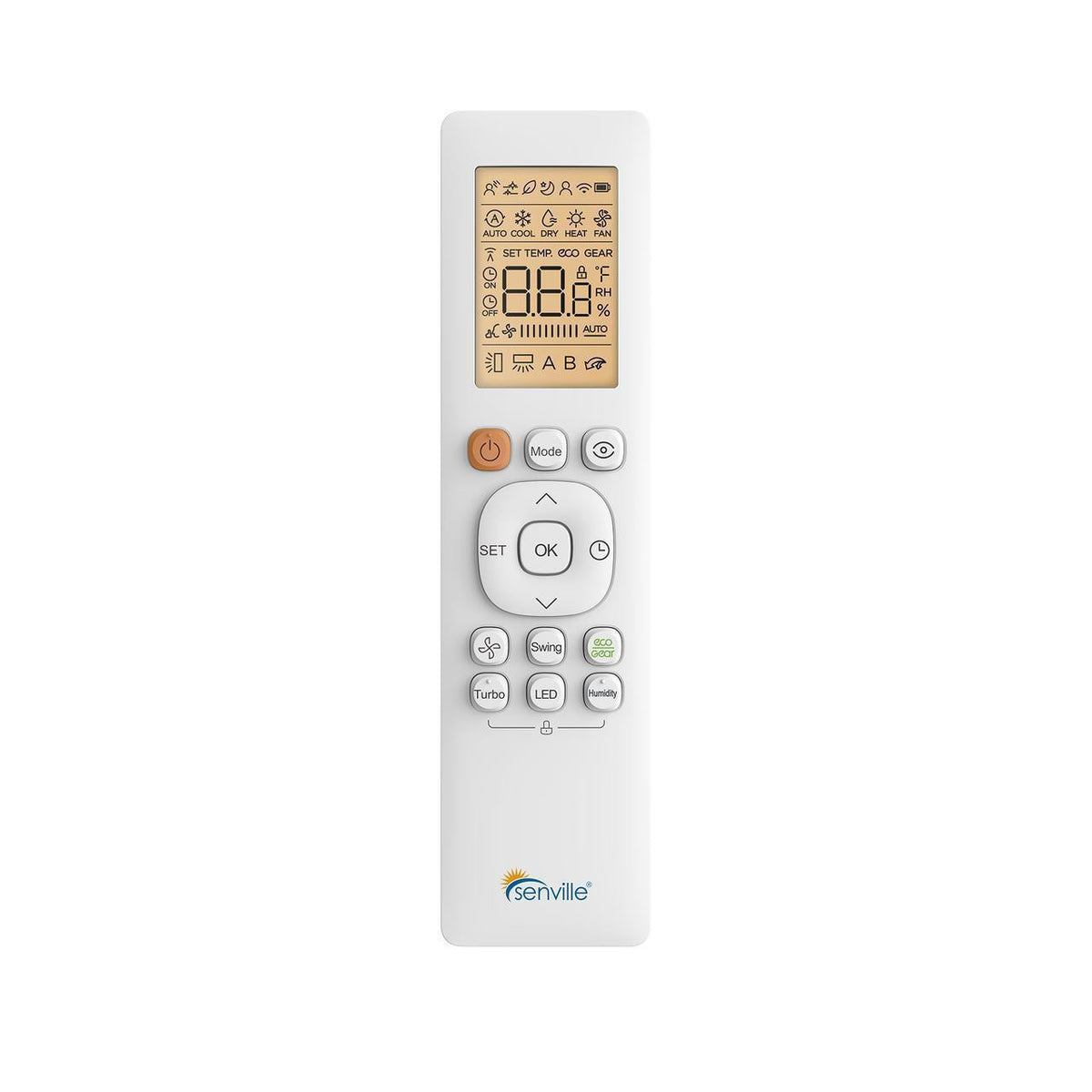

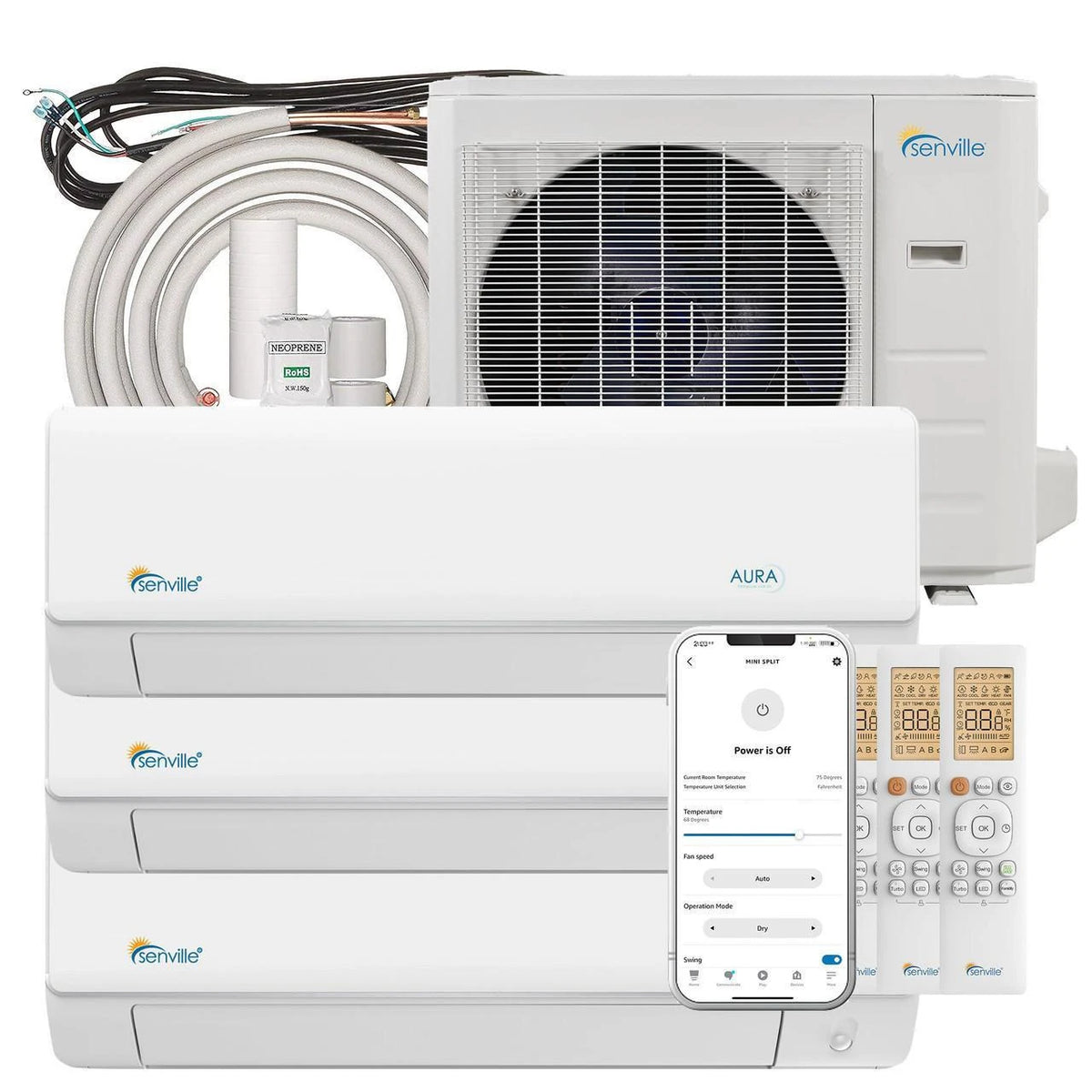

  • What's Included - 3 Indoor Units (various BTU combinations), Outdoor Unit, Wireless Remote Controls, Alexa USB Kit, 16 ft. Installation Kits (x3), Indoor-Outdoor Wiring Harness, Installation Manual and User's Manual.
DIMENSIONS & WEIGHT
Outdoor Dimensions (WxDxH) (in.)
37.24 x 16.14 x 31.89
Outdoor Weight
137.35 Lbs
GENERAL INFORMATION
Model Number
SENA-18HF-MOA
Style
Ductless Mini Split AC With Heat Pump
Number of Zones
2-3
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Max. Fuse (A)
20
CAPACITY & PERFORMANCE
Outdoor Air Flow (Max) CFM
2130.7
SEER2
23
EER2
13
Cooling Capacity (BTU)
18000
Cooling Range (BTU)
5400~28000
Cooling Input Range (W)
400~2250
Cooling Current Range (A)
3.5~10.0
Heating Capacity
18000
Heating Range (BTU)
5700~27000
Heating Input Range (W)
350~2300
Heating Current Range (A)
1.5~5.9
HSPF2-4
10.4
HSPF2-5
8.5
COP W/W
4
Minimum Outdoor Heating Temperature
-22°F / -30°C
NOISE LEVELS
Outdoor Noise Level dB
61.5
ELECTRICAL REQUIREMENTS
Voltage Range
187–253
Minimum Circuit Ampacity (A)
17.5
REFRIGERANT & PIPING
Refrigerant Type / Charge
R454B / 78.31 oz
Refrigerant Pre-charge
75 Ft.
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
