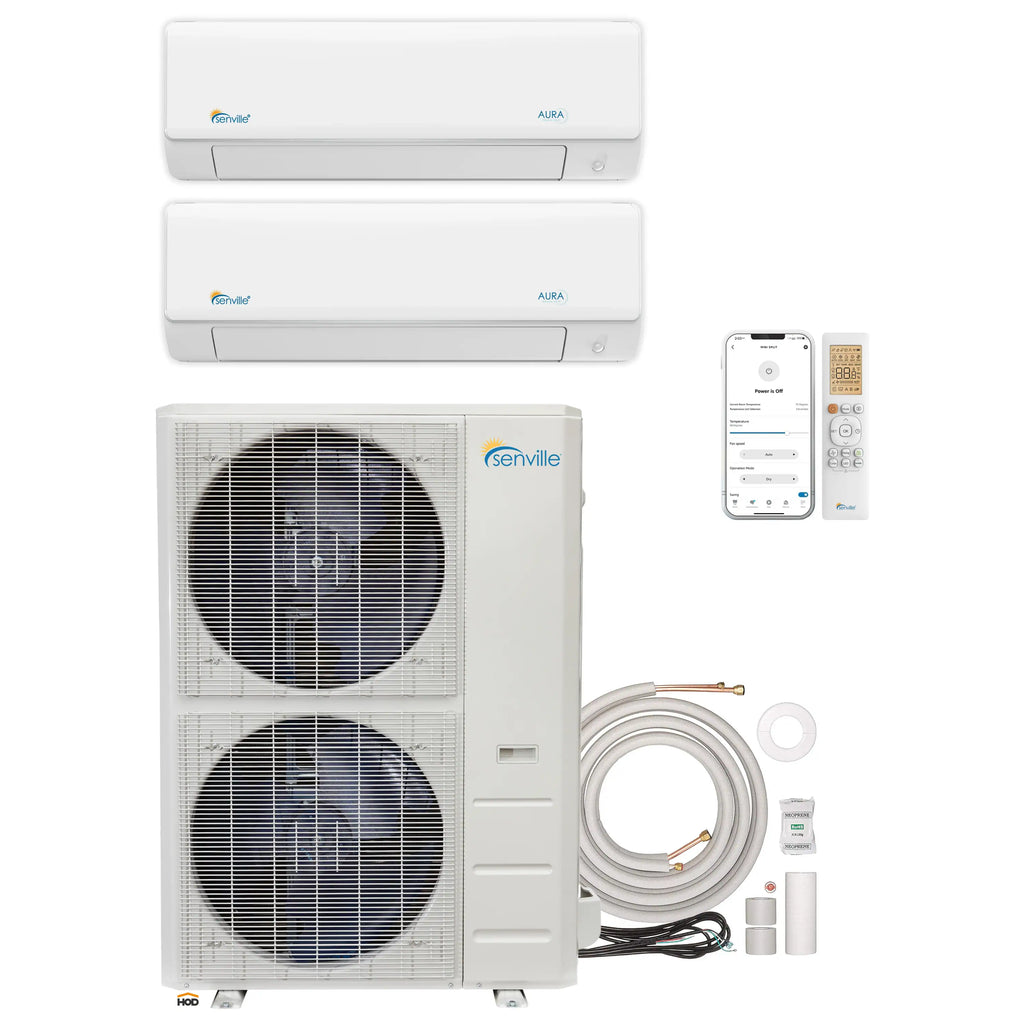

Senville SENA-48HF/D is a high-efficiency 48000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

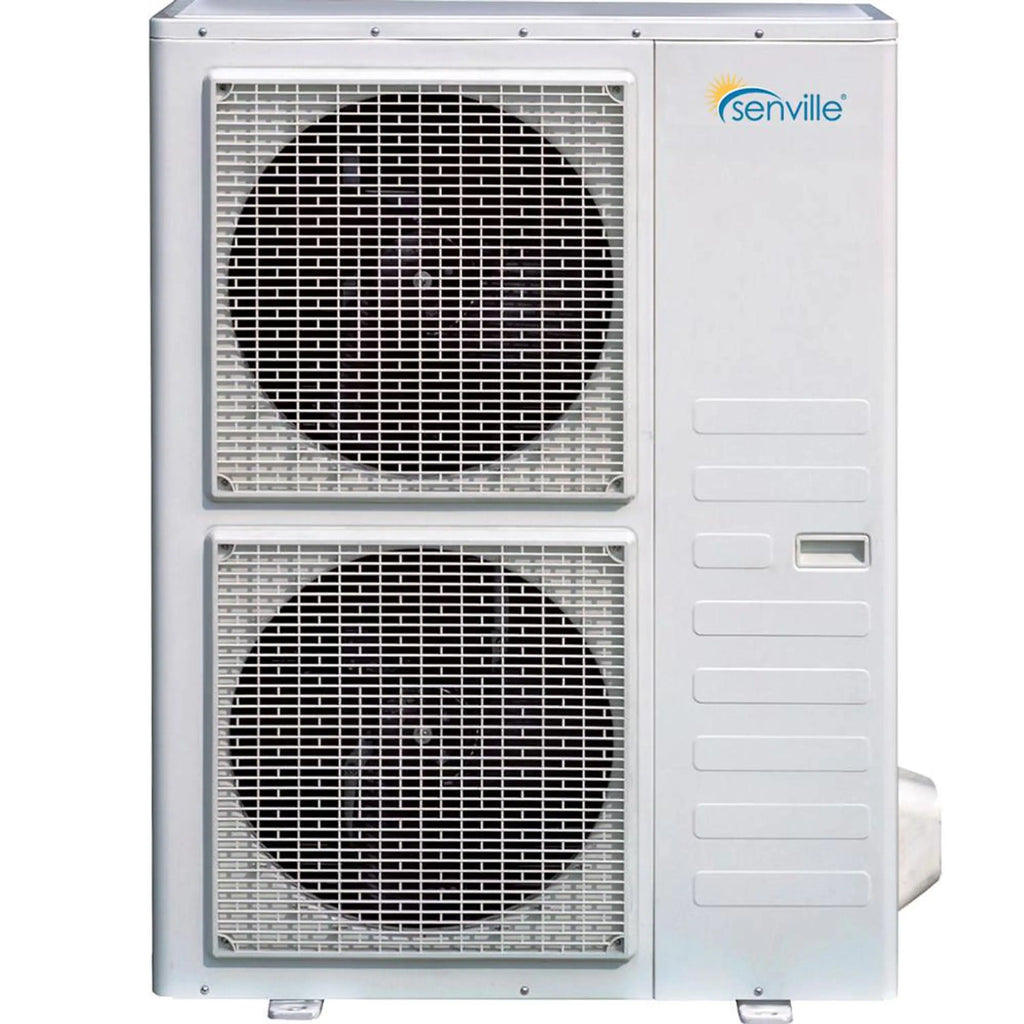

| Condenser | |
| Dimensions (WxDxH) (in.) | 37.48 x 16.34 x 52.48 |
| Weight | 246.47 LbsLbs |
| Air Flow (Max) CFM | 4502.8 |
| Noise Level dB | 65 |
| Technical Specification | |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2-5 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 47000 |
| Cooling Range (BTU) | 12000~57000 |
| Cooling Input Range (W) | 800~5400 |
| Cooling Current Range (A) | 7~24 |
| Heating Capacity (BTU) | 49000 |
| Heating Range (BTU) | 13000~57000 |
| Heating Input Range (W) | 800~5200 |
| Heating Current Range (A) | 7~23 |
| HSPF2-4 | 11 |
| HSPF2-5 | 9 |
| COP W/W | 3.7 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 151.68 |
| Refrigerant Pre-charge | 125 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
