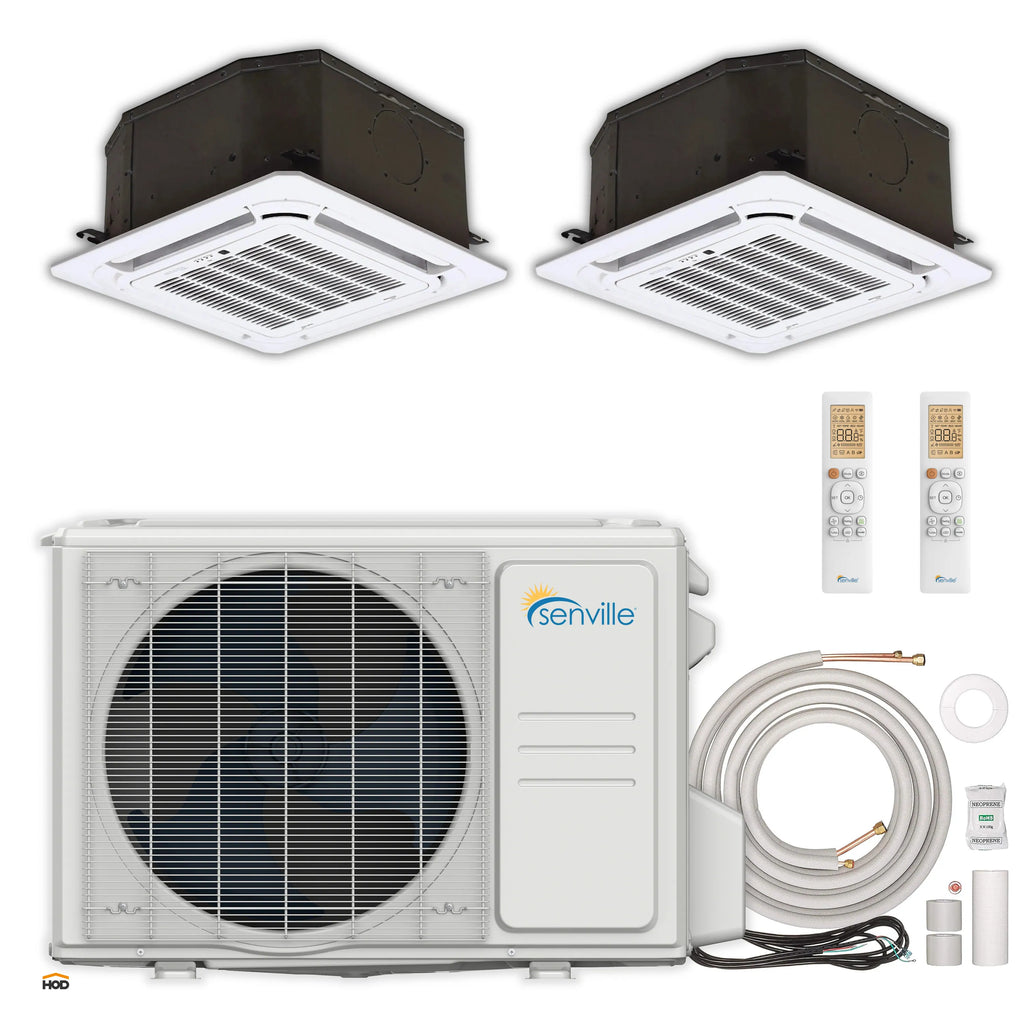

Mini split system kit with two ceiling cassette air handlers, condenser, and line set
White outdoor mini split condenser with large fan grille and senville control panel

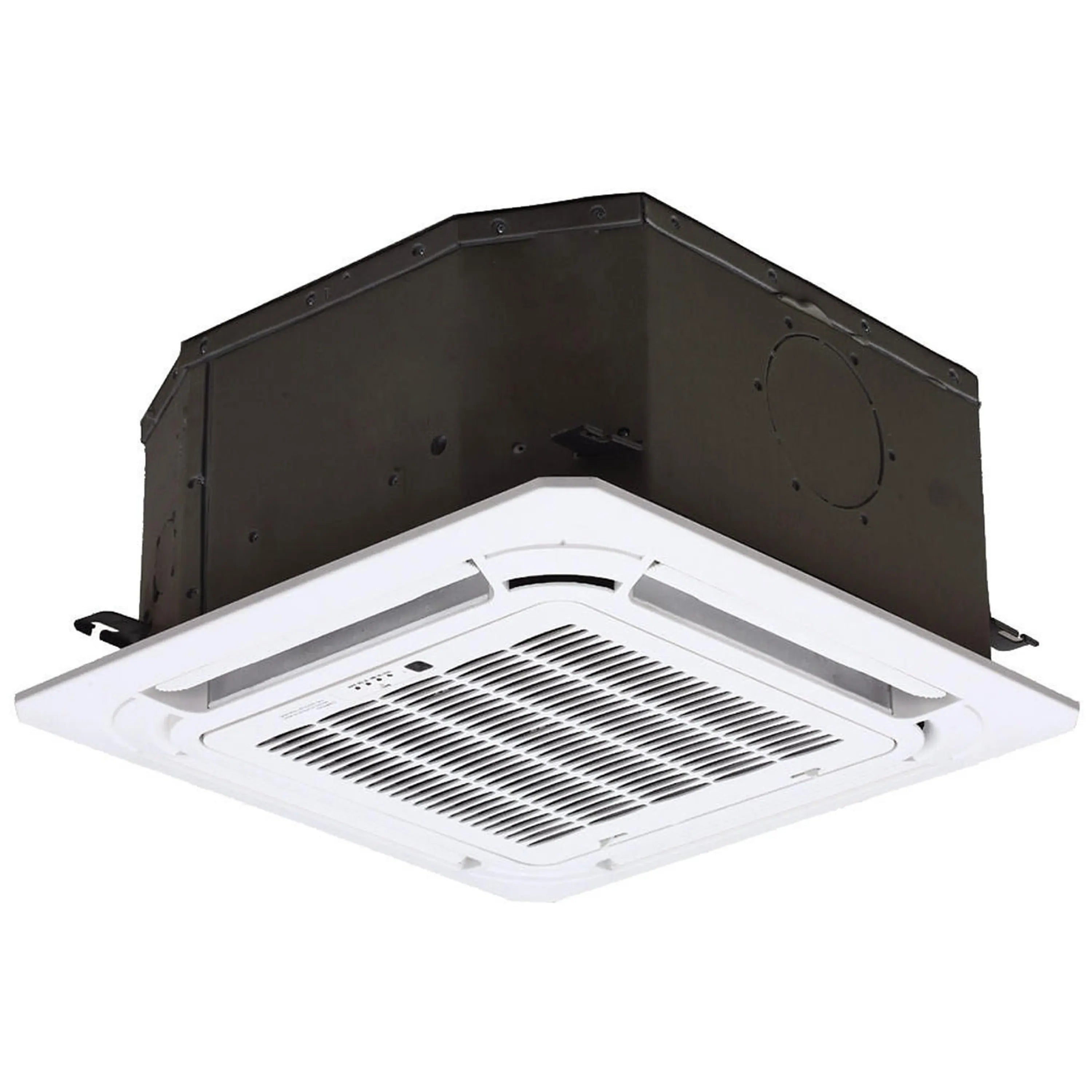

White ceiling cassette air handler with vent grille and dark discharge panel

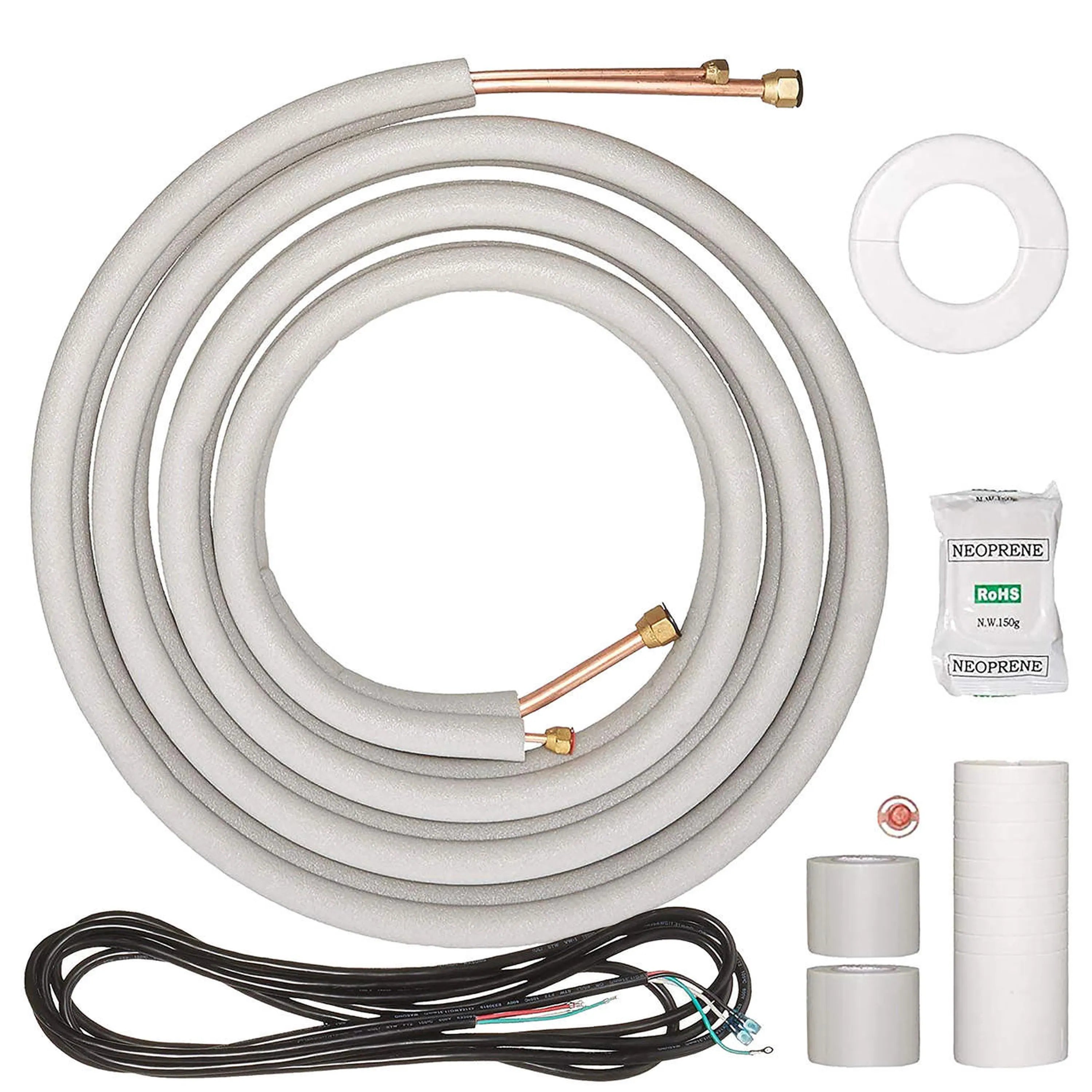

Insulated refrigerant line set with copper fittings, tubing, and accessory items
Roll over image to zoom in Click on image to zoom
Mini split system kit with two ceiling cassette air handlers, condenser, and line setWhite outdoor mini split condenser with large fan grille and senville control panelWhite ceiling cassette air handler with vent grille and dark discharge panelInsulated refrigerant line set with copper fittings, tubing, and accessory items
Click on image to zoom

Senville Mini Split - 2-Zone 36,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Ceiling Casette Air Handlers (SENA-36HF-DIC)

SenvilleSKU: SENA-36HF-DIC1818
4 reviews
Price:
$2,999.99 $3,899.99SAVE 23%
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The 30-second rundown
36,000 BTUHeating + Cooling
Professional RequiredInstallation
23 SEER2Efficiency
2,000 Sq. Ft.Coverage (estimate)
2-Zone
208/230VPower
Energy Star Certified

Senville · AURA Series

SENA-36HF/DIC Dual-Zone Ceiling Cassette Mini Split and Heat Pump
36,000 BTU of ceiling-mounted comfort across two zones.

Cold-climate cooling and heating for two independently controlled areas using four-way ceiling-cassette indoor units. Select the indoor-unit combination, then have a professional confirm sizing for both zones.

Performance at a Glance

  • 23 SEER2 — Rated efficiency
  • 10.7 HSPF2-4
  • 13 EER2
  • Down to -30 °C (-22 °F) — Cold-weather heating
  • Two zones — Independent comfort
  • R454B — Refrigerant

Heating Down to -30 °C

The AURA cold-climate heat pump is designed to continue providing heat at outdoor temperatures down to -30 °C (-22 °F).

Why Choose the SENA-36HF/DIC?

  • Ceiling-integrated comfort — Four-way ceiling-cassette indoor units deliver conditioned air across the served areas.
  • Independent two-zone comfort — Two indoor units connect to one outdoor unit, allowing settings to be adjusted separately for each served area.
  • Efficient cold-climate operation — The 23 SEER2 system provides heating at -30 °C (-22 °F) with up to 75% efficiency.

Everything You Need to Get Started

  • Outdoor unit — SENA-36HF-MOA cold-climate inverter condenser
  • Two ceiling-cassette indoor units — 18,000 BTU each
  • Remote and controls — Supplied with the system
  • Two installation kits — 16 ft. each
  • Wiring harness — Indoor-to-outdoor connection

Buy with Confidence

Manufacturer warranty: 10 years on the compressor · 5 years on parts. Coverage is subject to Senville’s warranty terms.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. Have the installer confirm placement, line routing, drainage and electrical requirements for both zones.

DIMENSIONS
Outdoor Dimensions (WxDxH)
38.58 x 16.34 x 38.39 in
Outdoor Weight
211.86 lbs
GENERAL INFORMATION
Brand Name
Senville
Series
AURA
Outdoor Model Number
SENA-36HF-MOA
Style
Ductless Mini Split AC With Heat Pump
Indoor Unit Type
Four-Way Ceiling Cassette
Number of Zones
2 (Dual-Zone)
Indoor Combination
18,000/18,000 BTU
COOLING PERFORMANCE
Cooling Capacity
36,000 BTU
Cooling Range
9,000~43,000 BTU
SEER2
23
EER2
13
Cooling Input Range
600~4000 W
Cooling Current Range
5.2~17.8 A
HEATING PERFORMANCE
Heating Capacity
36,000 BTU
Heating Range
10,000~44,000 BTU
HSPF2-4
10.7
HSPF2-5
8.5
COP (W/W)
4
Heating Input Range
600~3750 W
Heating Current Range
5.2~16.6 A
Minimum Outdoor Heating Temperature
-22°F / -30°C
TECHNICAL DETAILS
Power Supply
208/230V, 1Ph, 60Hz
Voltage Range
187-253
Minimum Circuit Ampacity
37 A
Max. Fuse
40 A
Refrigerant Type / Charge
R454B / 134.04 oz
Refrigerant Pre-charge
100 ft
Outdoor Air Flow (Max)
3037.2 CFM
Outdoor Noise Level
65 dB
WARRANTY & CERTIFICATIONS
Warranty
10 Years Compressor / 5 Years Parts

Senville AURA Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU up to 250 sq ft · Small bedroom, office
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
15K BTU up to 800 sq ft · Living room
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1350 sq ft · Open living area
33K BTU up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
