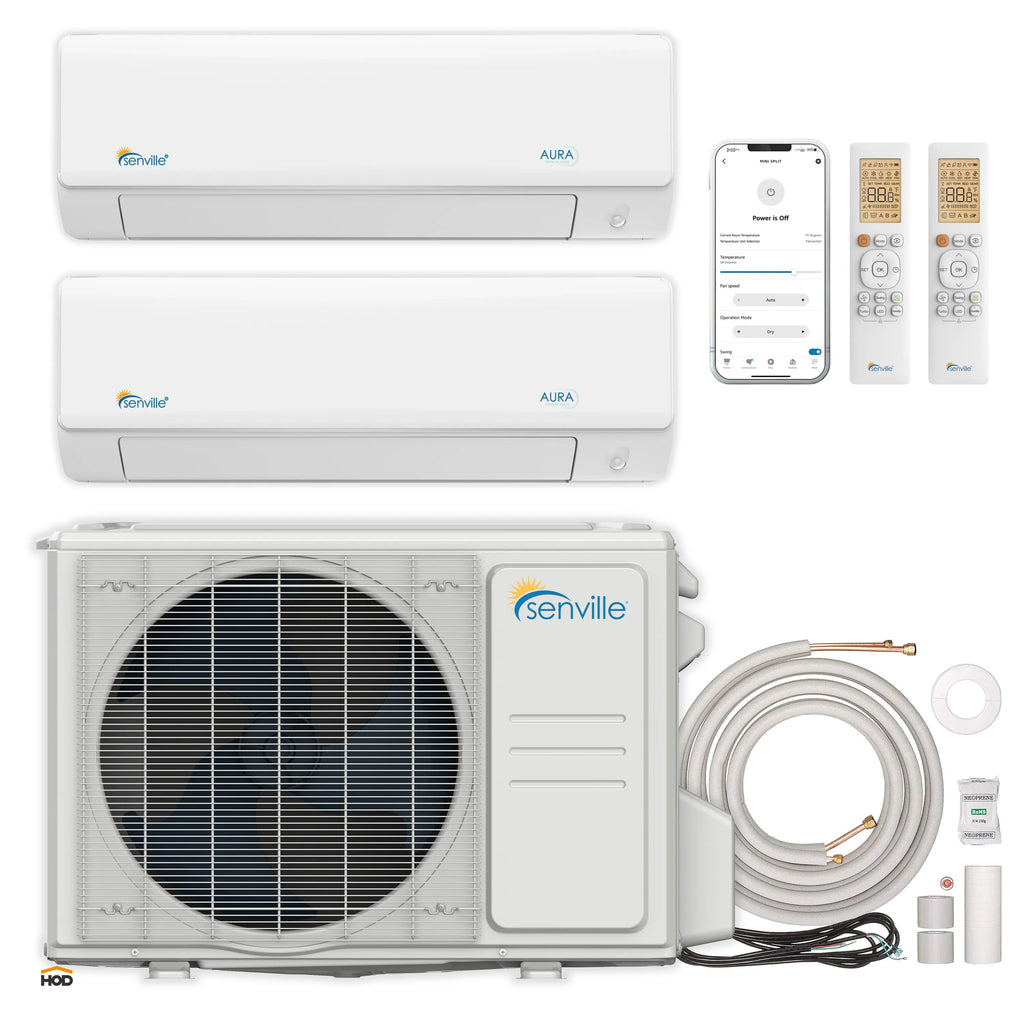

Senville SENA-30HF/D is a high-efficiency 28000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

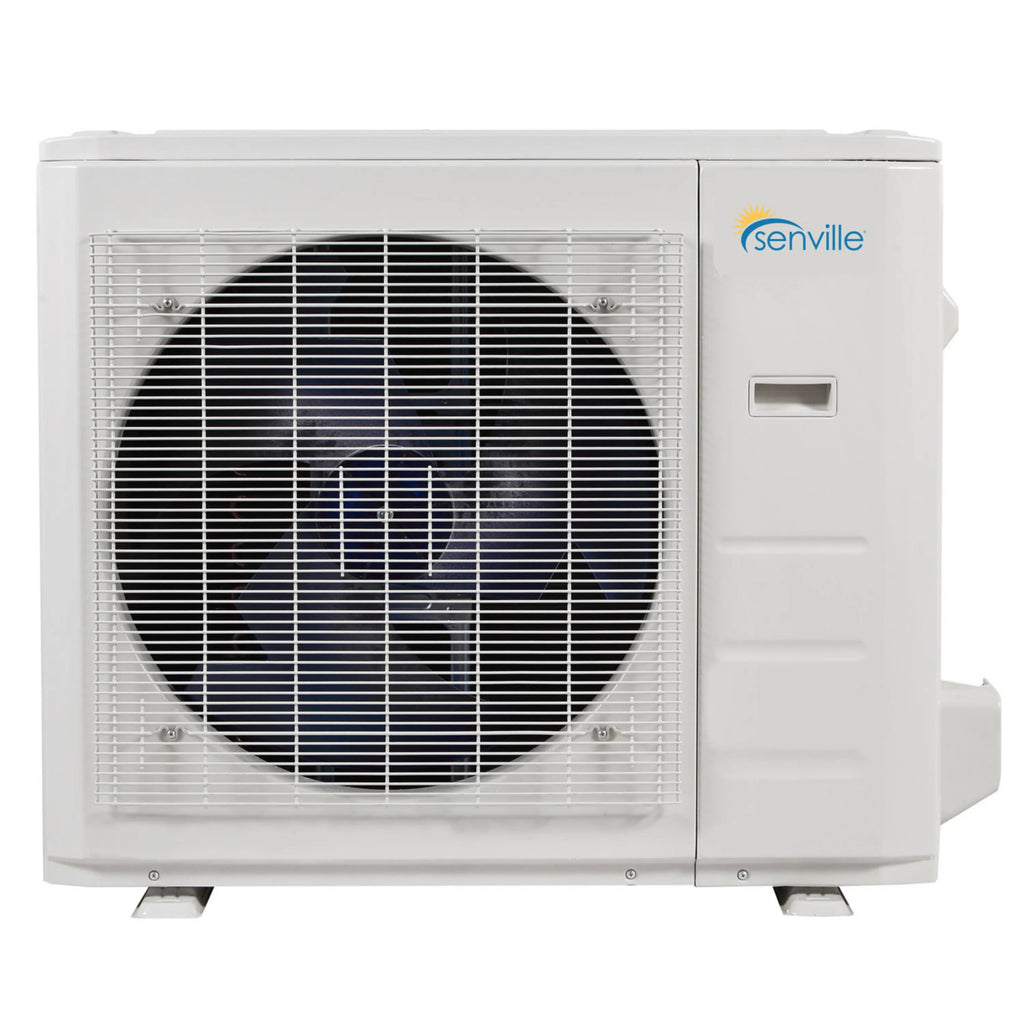

| Condenser | |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 168.43 Lbs |
| Outdoor Air Flow (Max) CFM | 2148.4 |
| Outdoor Noise Level dB | 61 |
| Technical Specifications | |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2–3 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 23 |
| EER2 | 12.5 |
| Cooling Capacity (BTU) | 27000 |
| Cooling Range (BTU) | 7200~37000 |
| Cooling Input Range (W) | 500~3620 |
| Cooling Current Range (A) | 4~16 |
| Heating Capacity (BTU) | 27000 |
| Heating Range (BTU) | 8400~36000 |
| Heating Input Range (W) | 500~3400 |
| Heating Current Range (A) | 4~15 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP W/W | 3.8 |
| Minimum Circuit Ampacity (A) | 30 |
| Max. Fuse (A) | 35 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 120.61 oz |
| Refrigerant Pre-charge | 75 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |

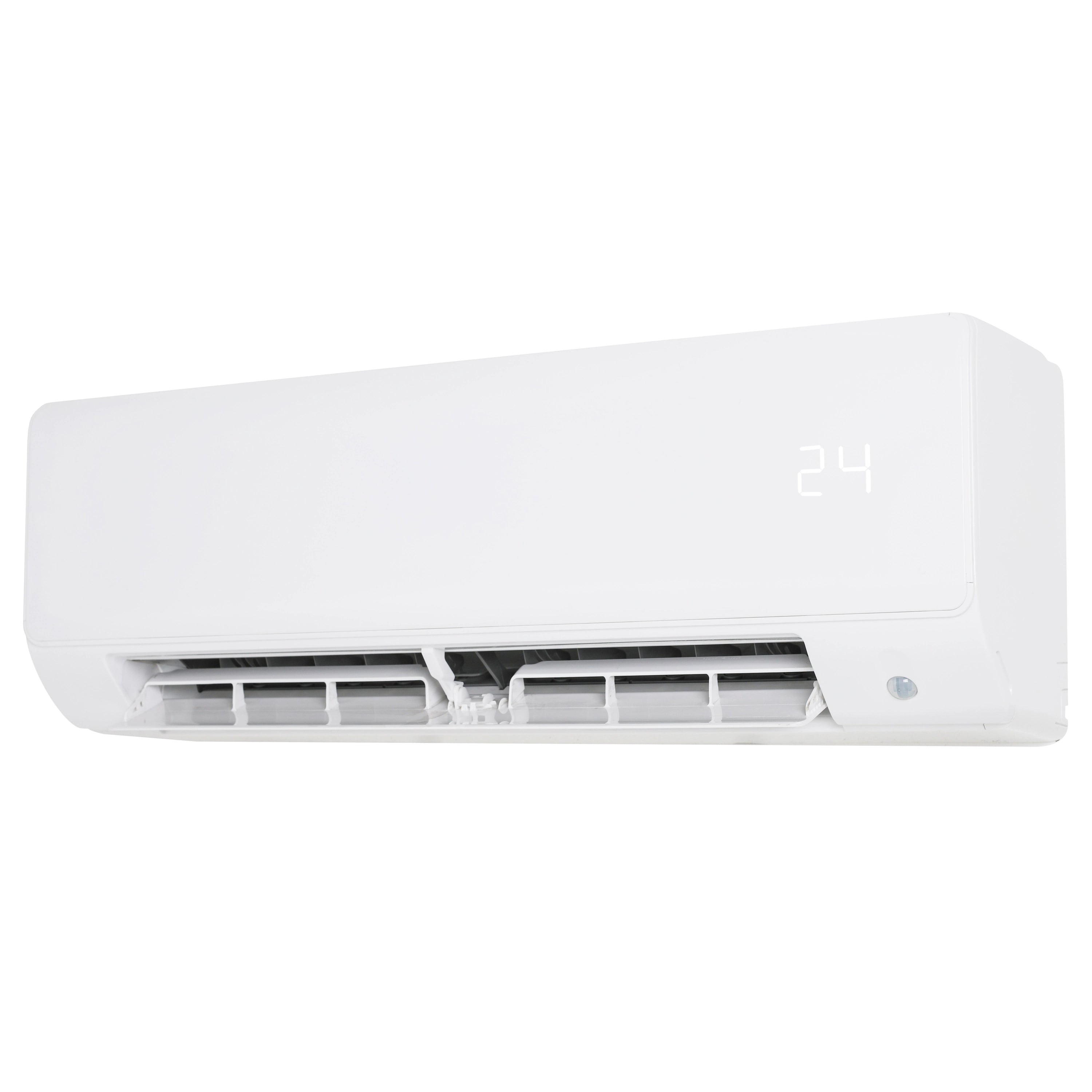

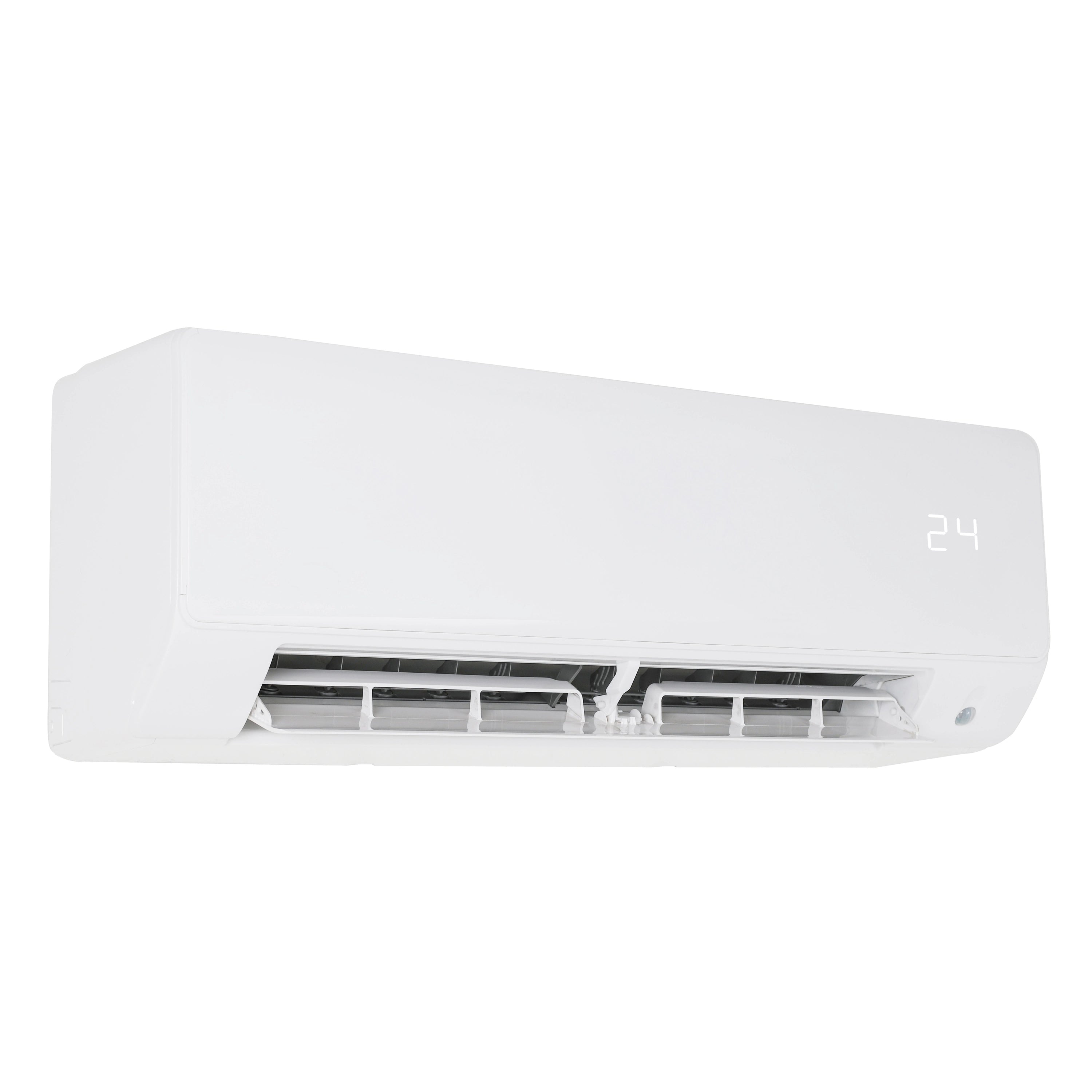

What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
