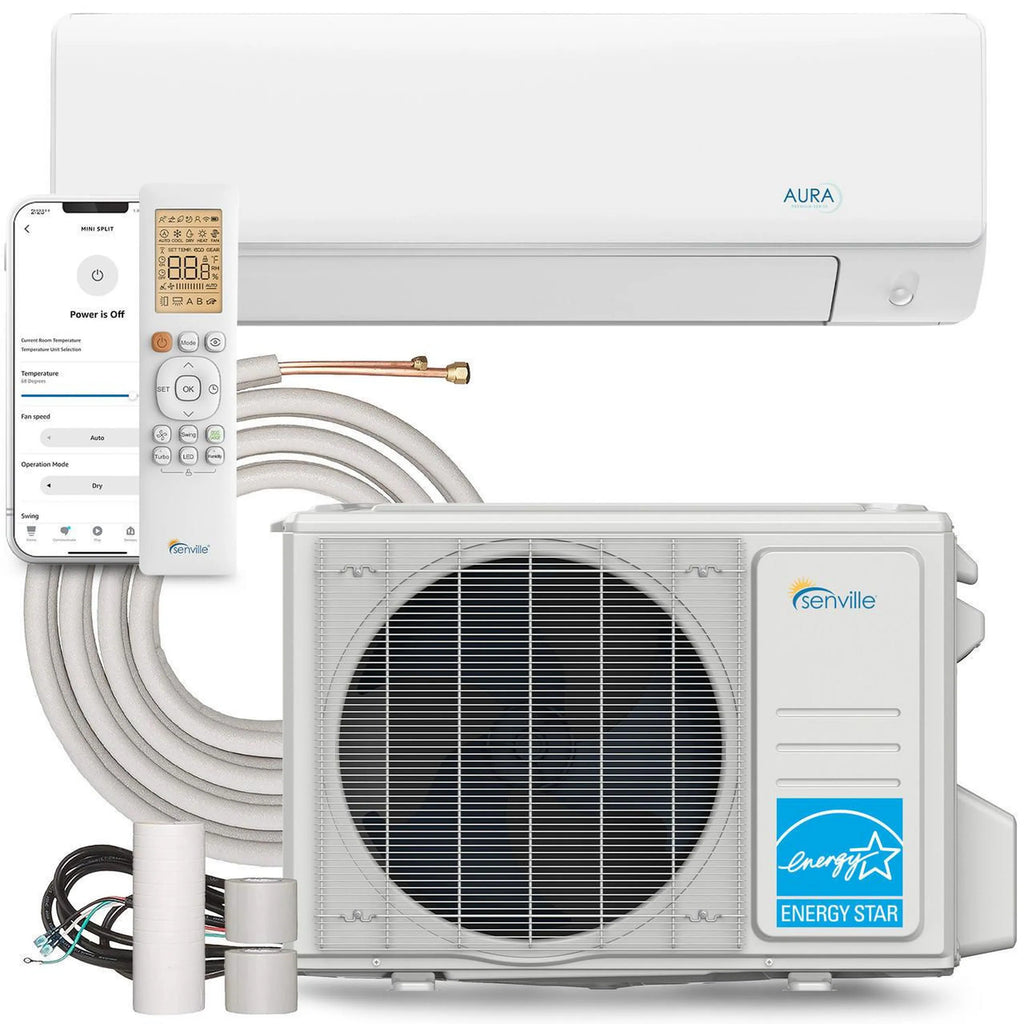

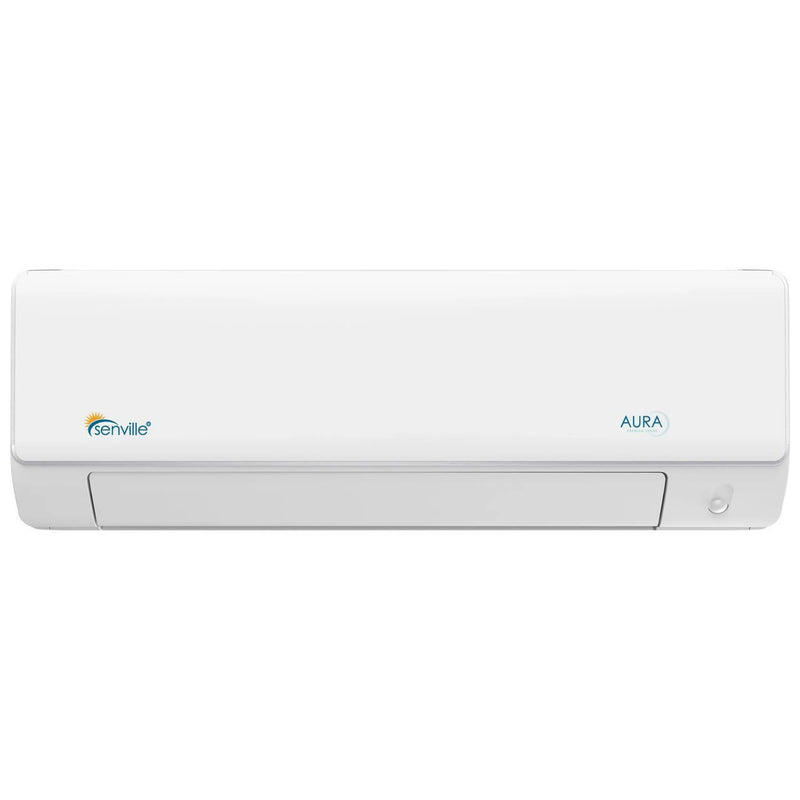

Senville SENA-15HF is a high-efficiency 15000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23.5 |
| EER2 | 11.7 |
| Cooling Capacity (BTU) | 15000 |
| Cooling Range (BTU) | 9800~20200 |
| Cooling Input Range (W) | 690~1800 |
| Cooling Current Range (A) | 3.2~8.5 |
| Heating Capacity (BTU) | 21000 |
| Heating Range (BTU) | 800~15200 |
| Heating Input Range (W) | 205~1,375 |
| Heating Current Range (A) | 1.1~6.1 |
| HSPF2-4 | 9.9 |
| HSPF2-5 | 7.5 |
| COP W/W | 3.3 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 15 |
| Indoor Air Flow (Turbo/H/M/L) CFM |
450.3 / 323.7 / 229.6 / 176.6 / 147.2 |
| Indoor Noise Level (Turbo/H/M/L) dB | 58.5 / 36.5 / 32.5 / 21.0 / 18.0 |
| Indoor Dimensions (WxDxH) | 33.39 x 9.17 x 11.81 in |
| Indoor Weight | 22.93 / 29.32 lbs |
| Moisture Removal (L/H) | 1,7 |
| Outdoor Air Flow (Max) CFM | 1,235.3 |
| Outdoor Noise Level dB | 57 |
| Outdoor Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 in |
| Outdoor Weight | 62.17 / 67.68 lbs |
| Minimum Outdoor Heating Temperature | -13°F / -25°C |
| Refrigerant Type / Charge | R454B / 35.27 oz |
| Refrigerant Pre-charge | 24.6 ft (7.5 m) |
| Connection Wiring | 14*4 AWG |

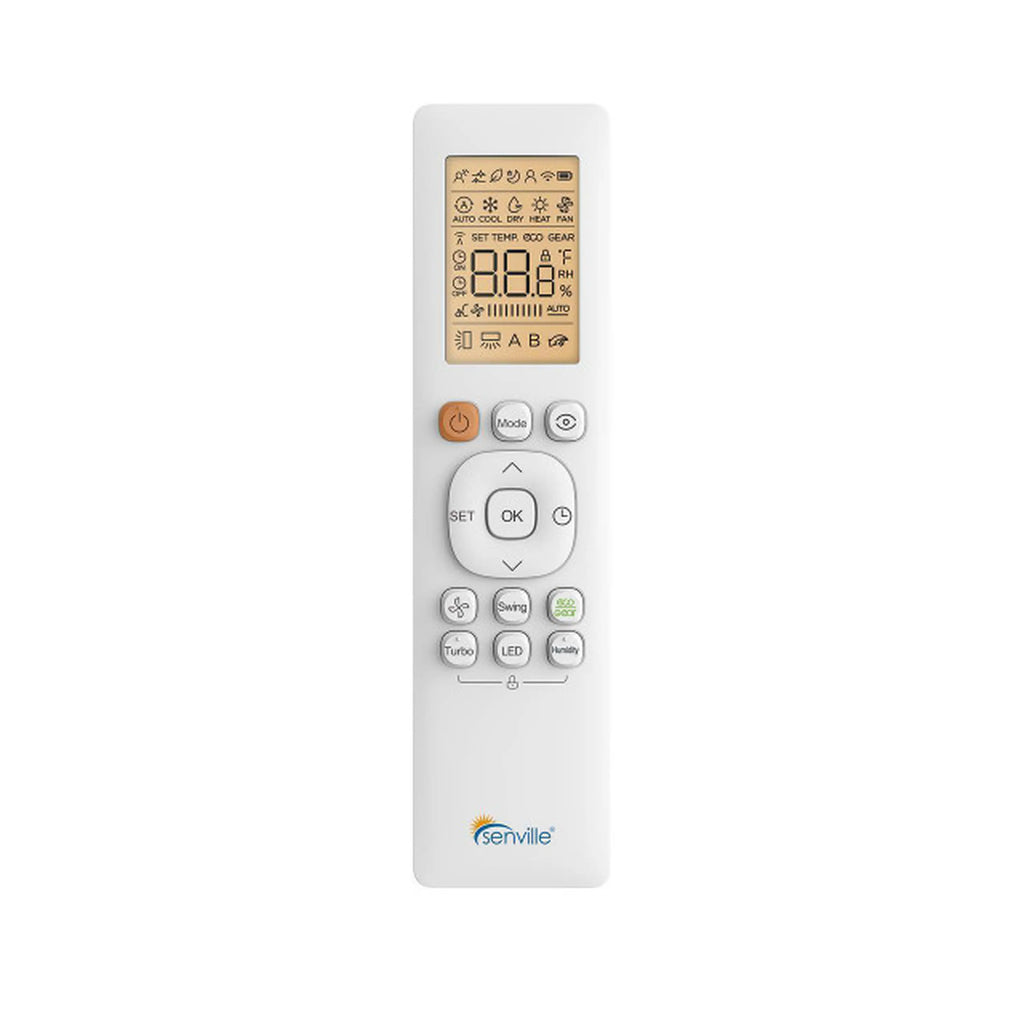

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
