SKU: SENL-09CD-16NB
$699.99 $909.99

Line Set Length: 16 Ft.
In Stock Estimated delivery: Jun 18th-2nd
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

Senville SENL-09CD is a high-efficiency 9000 BTU mini split air conditioner and heat pump designed to deliver affordable, year-round comfort for small rooms and spaces. Enjoy whisper-quiet operation, reliable cooling, and heating—even in colder climates.

Features

  • 21.5 SEER2 High Efficiency
  • Heating down to -15°C (5°F)
  • DC Inverter Technology
    Reduces energy consumption by up to 48% yearly.
  • Ideal for 100–450 sq. ft.
  • Dehumidifier, Fan & Turbo
  • Licensed professional installation required.
  • Smart Home Integration with Alexa - Easily control your Senville 9000 BTU mini split air conditioner with Alexa voice or app control. Turn it on/off, adjust temperatures, or set schedules from anywhere with WiFi-enabled control.
  • Energy-Saving Inverter Technology - Enjoy significant energy savings with Senville’s advanced DC Inverter system. This ductless heat pump automatically adjusts power for better efficiency—saving up to 48% annually.
  • Quiet Operation & Sleep Mode - The SENL-09CD-Y offers whisper-quiet operation (as low as 22 dB) for peaceful living. Use Sleep Mode for gradual overnight adjustments—improving energy savings and comfort.
  • 5-Year Manufacturer’s Warranty - Every SENL-09CD-Y comes with a 5-year compressor and parts warranty. Backed by North American support for fast, reliable service.

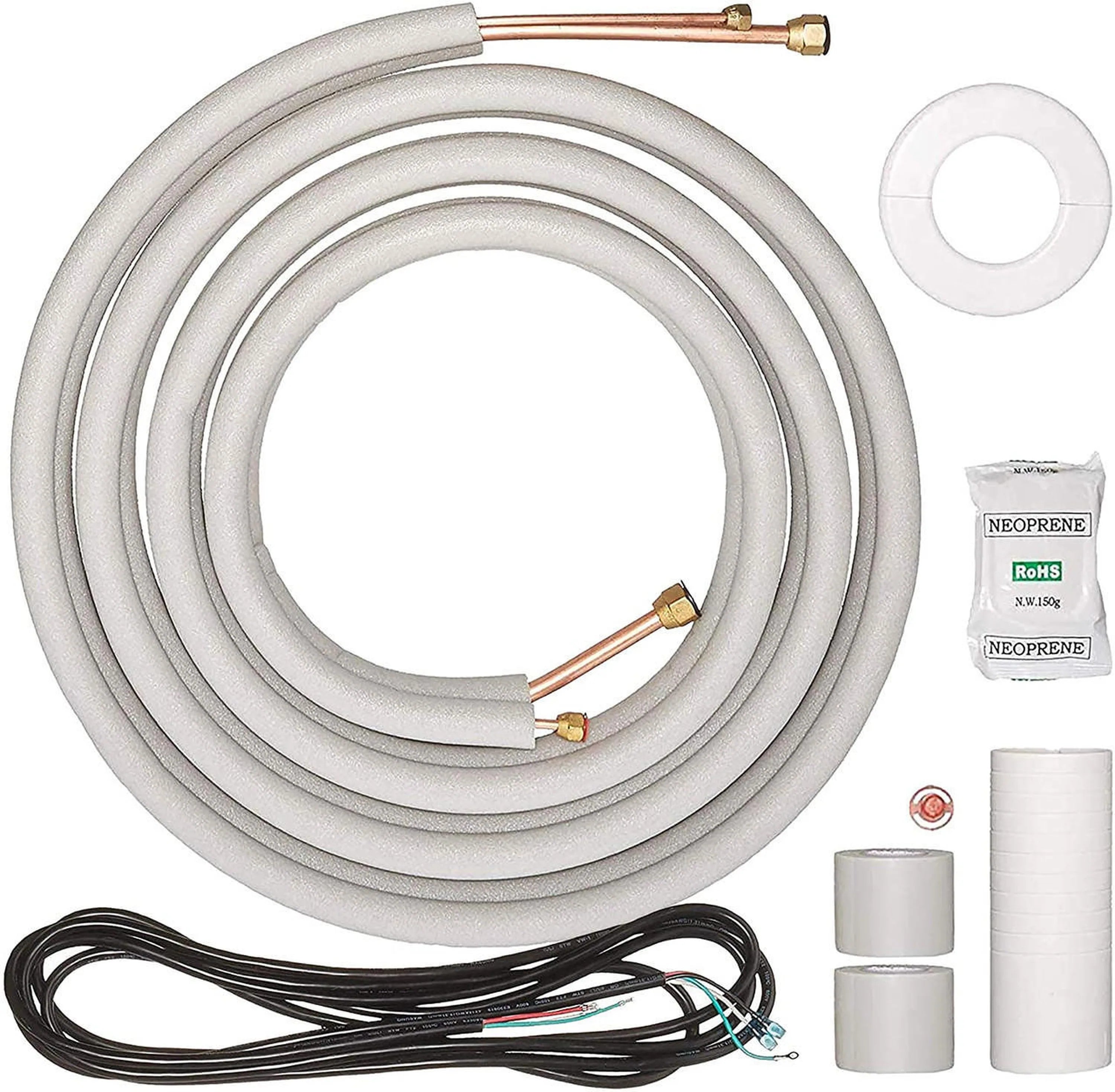

  • R454B Refrigerant - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

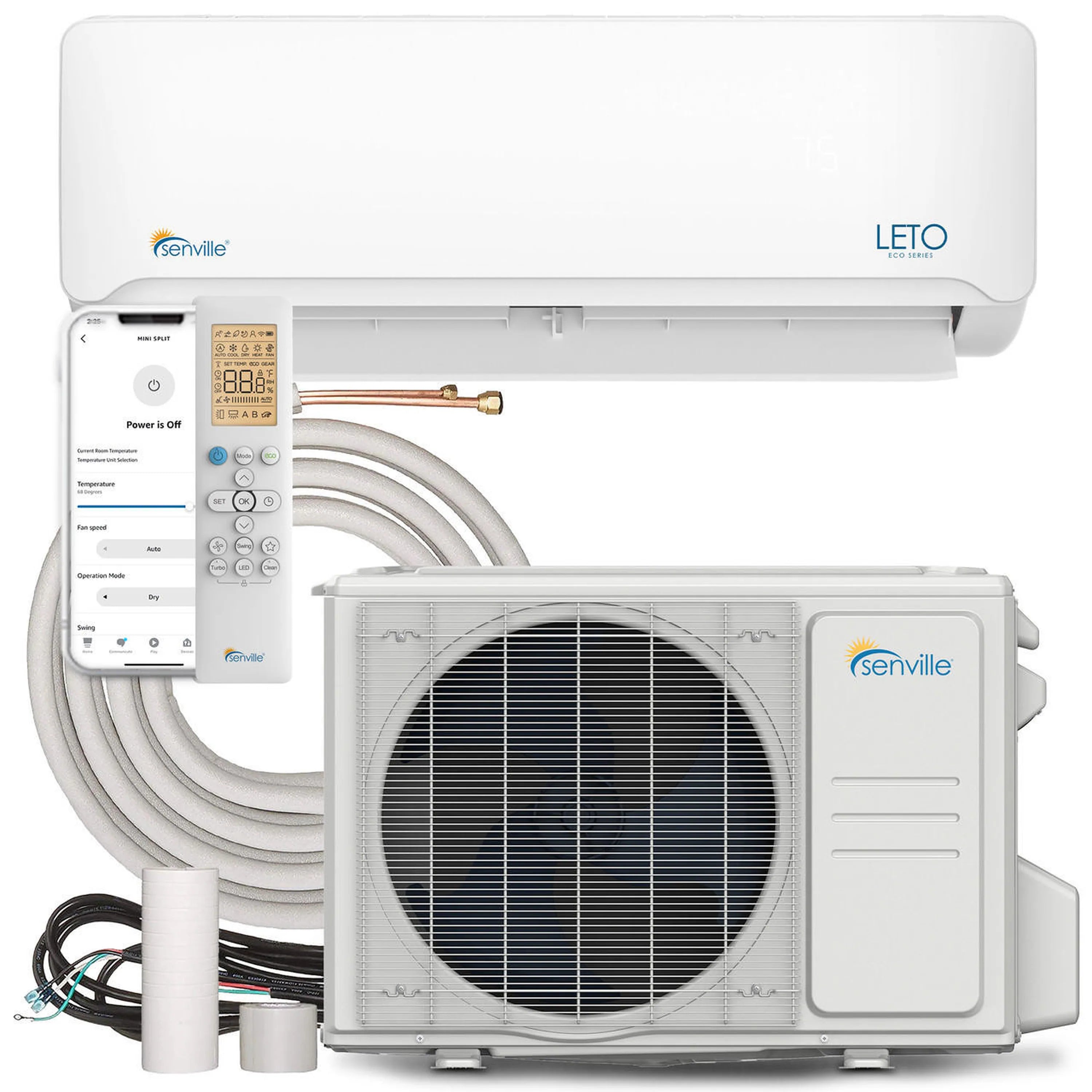

What's Included

  • Indoor Unit
  • Outdoor Unit

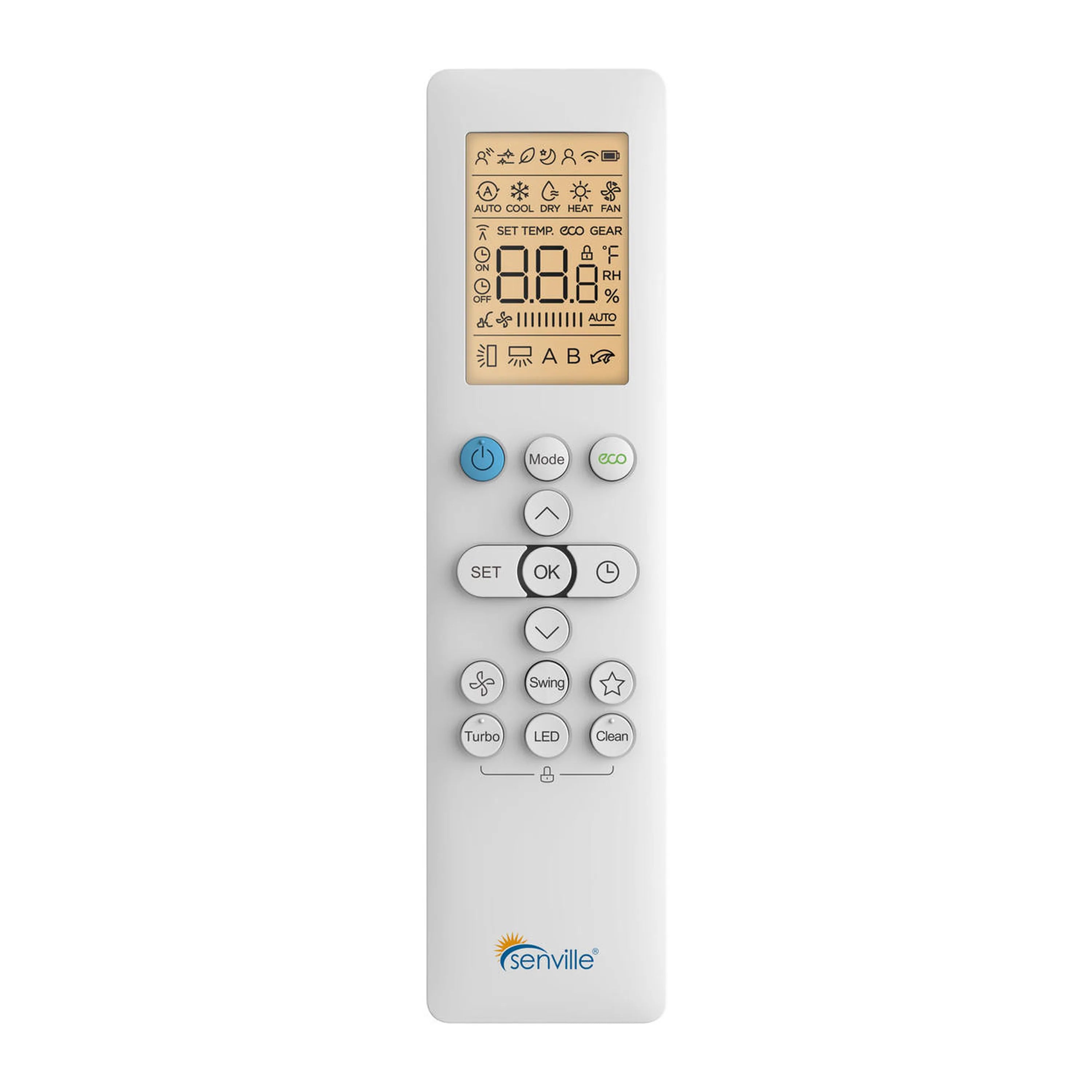

  • Wireless Remote Control
  • Installation Kit
  • Indoor to Outdoor Wiring Harness
  • Alexa USB Kit
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
General Information
Brand Senville
Model Number SENL-09CD-OL
Style Ductless Mini Split AC With Heat Pump
Application Area (8 ft Ceilings) 400 sq. ft.
Electrical
Power Supply (V-Ph-Hz) 115V, 1Ph, 60Hz
Voltage Range 103.5-126.5V
Efficiency
SEER2 21.5
EER2 12.5
HSPF4 10
HSPF5 7.8
COP (W/W) 2.93
Cooling
Cooling Capacity Range (BTU) 2650~10300
Cooling Input (W) 720
Cooling Rated Current (A) 6.26
Heating
Heating Capacity Range (BTU) 2700~10500
Heating Input (W) 1000
Heating Rated Current (A) 8.7
Electrical Requirements
Minimum Circuit Ampacity (A) 18
Max. Fuse (A) 20

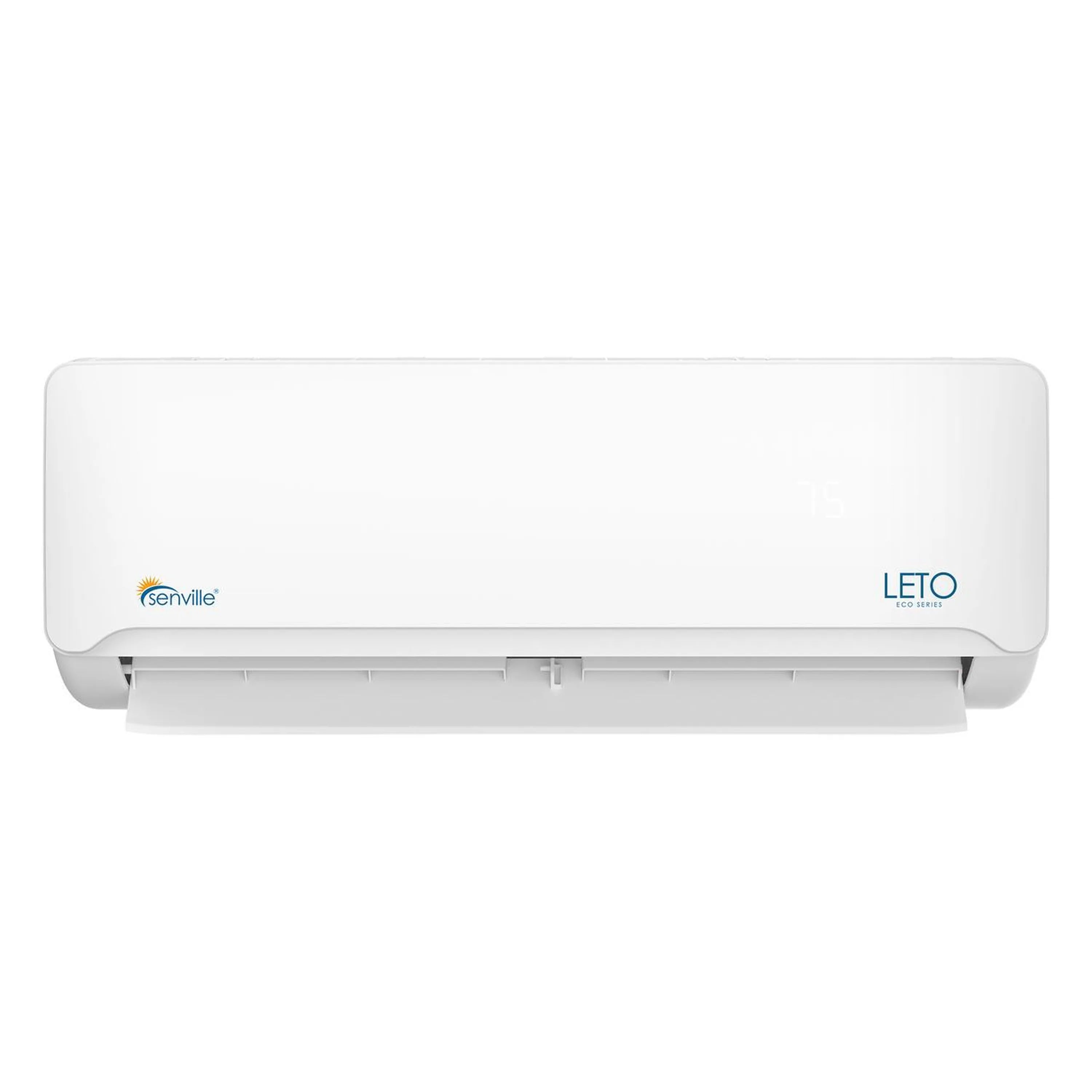

Indoor Unit
Dimensions (WxDxH) (in.) 28.43 x 7.36 x 11.42
Air Flow (H/M/L) CFM 247.06 / 182.35 / 129.41
Noise Level (H/M/L) dB 36.5 / 31.0 / 22.0

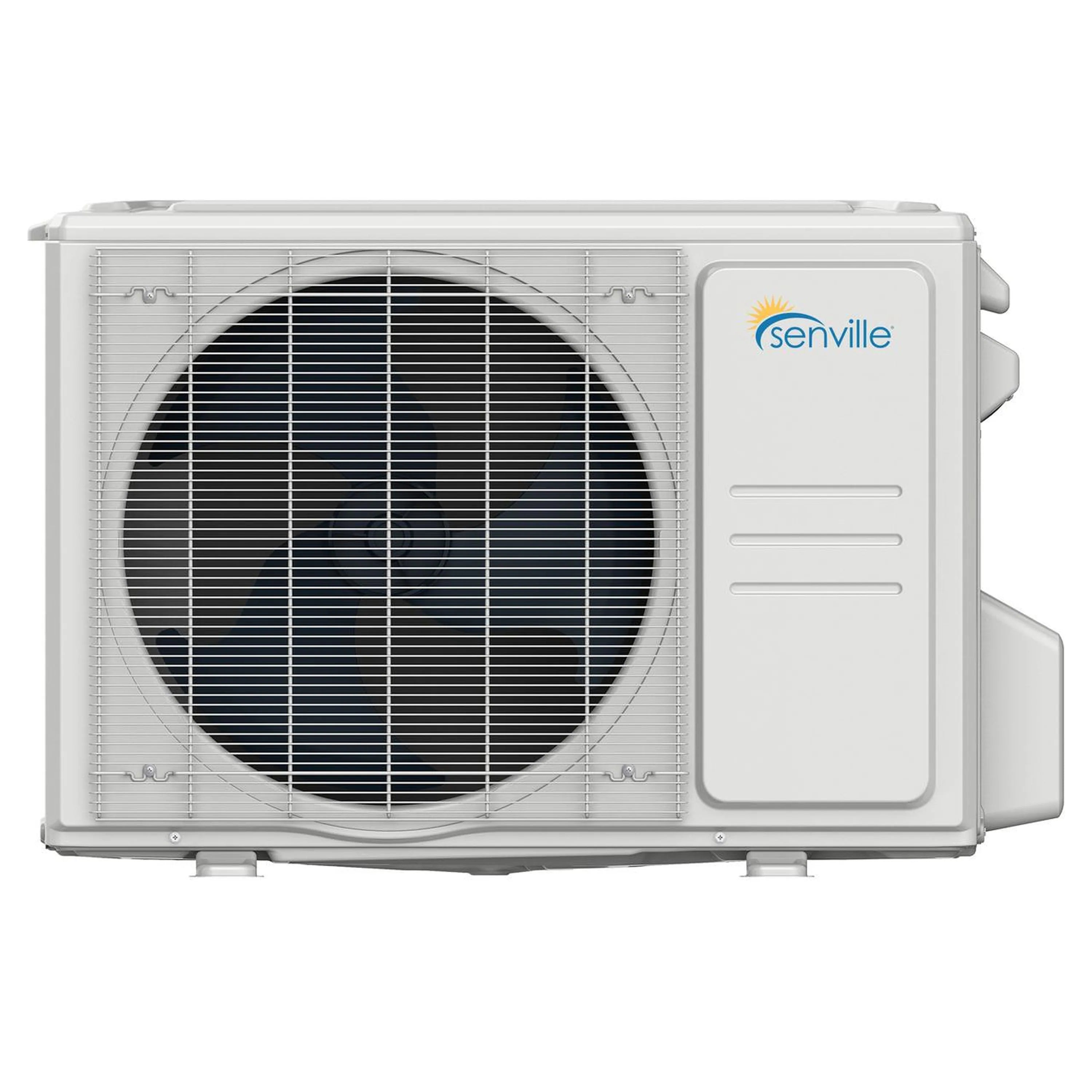

Outdoor Unit
Dimensions (WxDxH) (in.) 30.12 x 11.93 x 21.85
Noise Level (dB) 55
Air Flow (Max) CFM 1235.29
Refrigerant
Refrigerant Type R454B
Refrigerant Charge (oz) 25.4
Refrigerant Pre-charge 25 ft
Connections
Connection Wiring 14*4 AWG
Thermostat Type Remote Control
Smart Features
Works with Alexa Alexa Enabled
Warranty
Warranty 5 Years Compressor / 5 Years Parts

Mini Split FAQ



What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq. Ft.)*
6K
Up to 200 Sq. Ft.
9K
Up to 375 Sq. Ft.
12K Up to 500 Sq. Ft.
18K Up to 750 Sq. Ft.
24k Up to 1,000 Sq. Ft.
36k Up to 1,500 Sq. Ft.



*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
