Senville ELITE 24K BTU Mini Split Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENE-24EL)

SenvilleSKU: SENE-24EL-16
4 reviews
Price:
$1,999.99 $2,599.99SAVE 23%
BTU:
In Stock
Estimated delivery: Nov 19th-Dec 3rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The 30-second rundown
24,000 BTUHeating + Cooling
Professional RequiredInstallation
25 SEER2Efficiency
1,500 Sq. Ft.Coverage (estimate)
1-Zone
240VPower
Energy Star Certified

Senville · Elite Series

SENE-24EL Mini Split Air Conditioner and Heat Pump
24,000 BTU of high-efficiency, cold-climate comfort.

ENERGY STAR certified cooling, heating, dehumidification and fan operation for larger rooms. The cold-climate heat pump is designed to provide heating down to -30 °C.

Performance at a Glance

  • 25.0 SEER2 — ENERGY STAR certified efficiency
  • 15 HSPF2-4
  • 11.0 EER2
  • Down to -30 °C (-22 °F) — Cold-weather heating
  • As low as 30 dB — Low indoor setting
  • Recommended coverage: 1,000–1,500 sq. ft.
  • R454B — Refrigerant

Heating Down to -30 °C

The SENE-24EL heat pump is designed to continue providing heat at outdoor temperatures down to -30 °C (-22 °F).

Why Choose the SENE-24EL?

  • Cold-climate heating — Designed to provide heating at -30 °C (-22 °F) with up to 75% efficiency while also cooling, dehumidifying and circulating air.
  • ENERGY STAR efficiency — The 25.0 SEER2 system is ENERGY STAR certified and can reduce annual energy costs by up to 56%.
  • Smart control and diagnostics — Use the included remote, voice control or the Alexa app with the included USB kit. Built-in self-diagnostics and refrigerant leak detection assist with system monitoring.

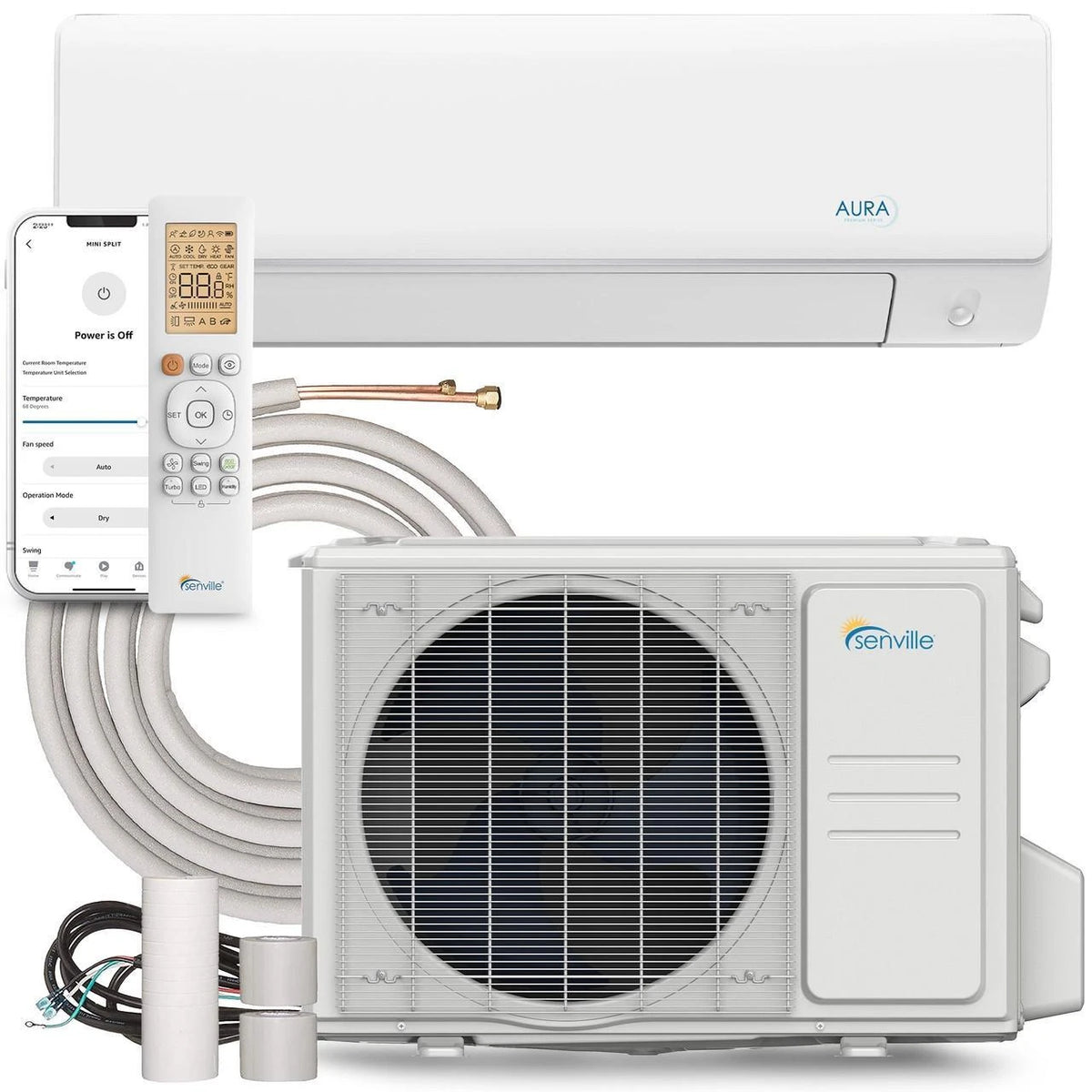

Everything You Need to Get Started

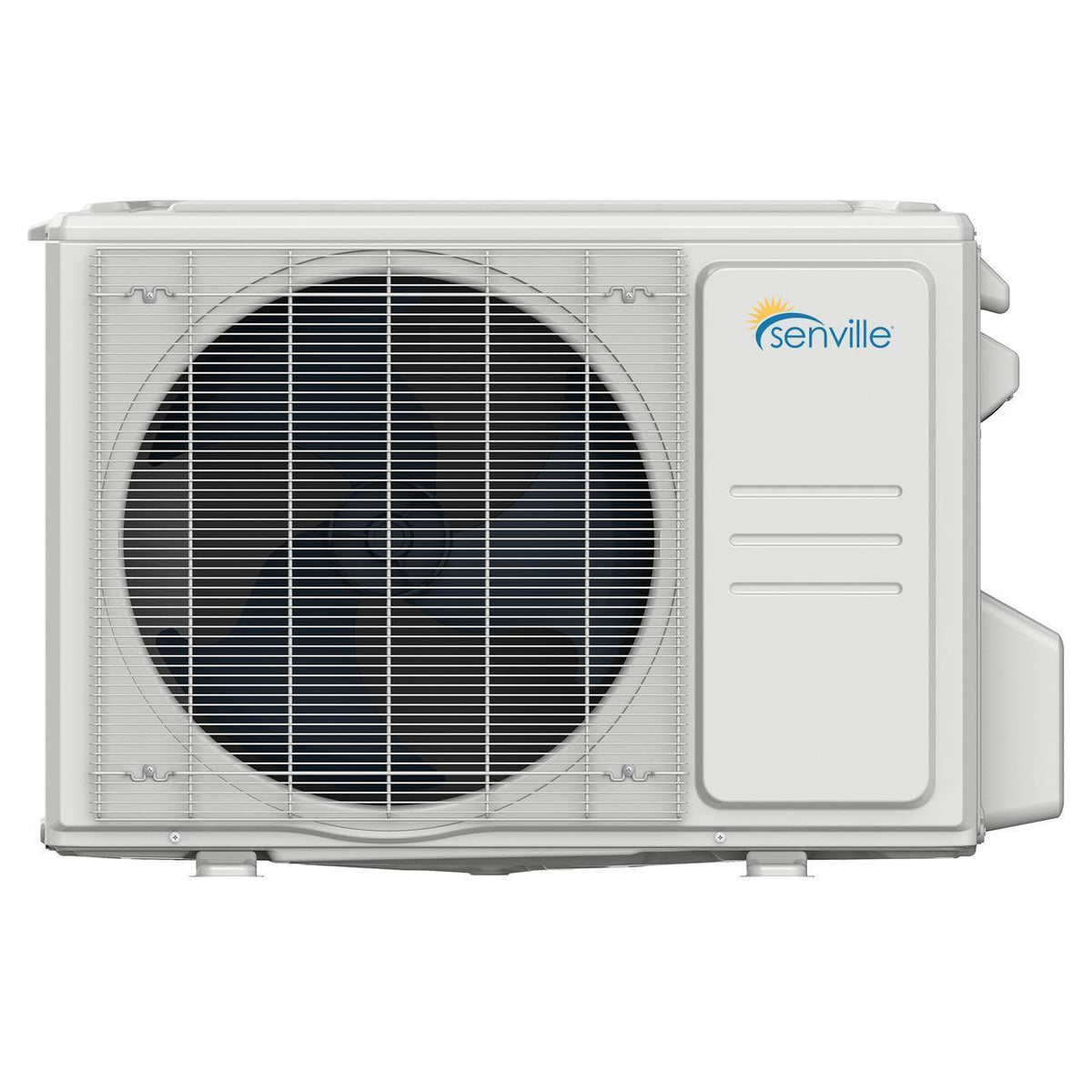

  • Outdoor unit — Cold-climate inverter condenser

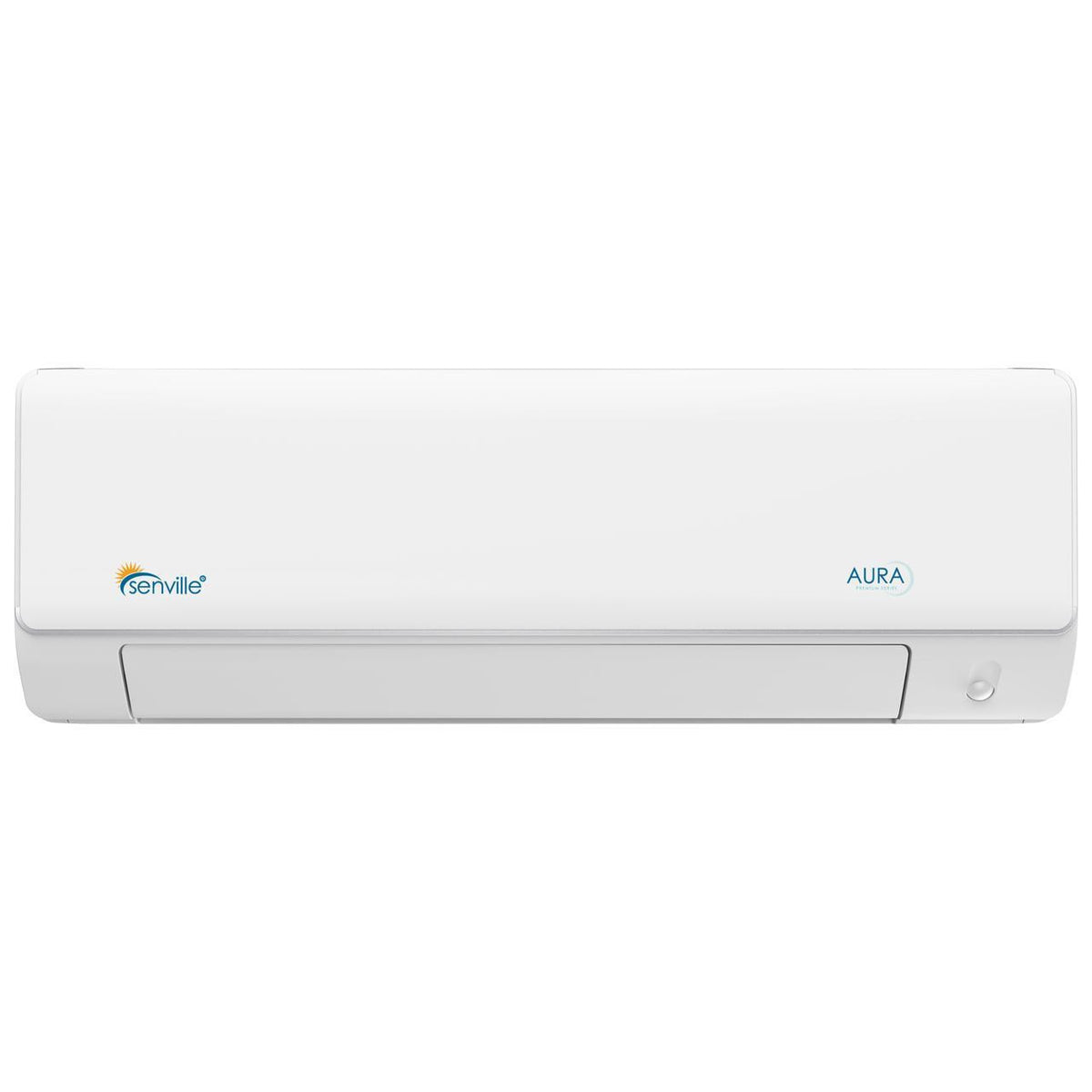

  • Indoor unit — Wall-mounted air handler

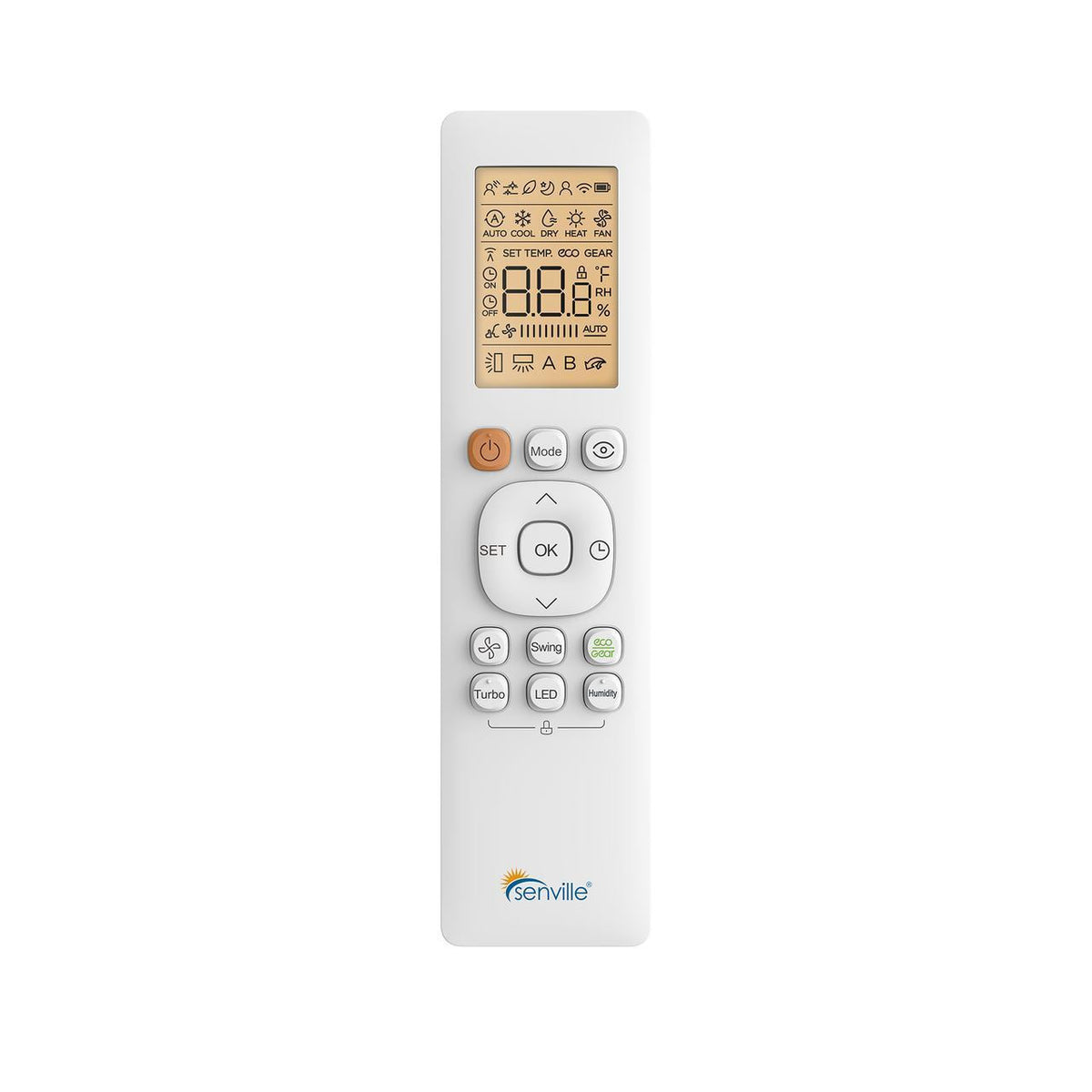

  • Remote and Alexa kit — Wireless remote plus USB kit
  • Installation kit — 16, 25 or 50 ft. (per selection)
  • Wiring harness — Indoor-to-outdoor connection

Buy with Confidence

Manufacturer warranty: 10 years on the compressor · 10 years on parts. Coverage is subject to Senville’s warranty terms.

Professional installation required. The R454B system must be installed and commissioned by a professional with the qualifications required in the installation jurisdiction. The system is pre-charged for up to 25 ft.; the 50 ft. installation kit requires additional refrigerant to be added on-site by the installer.

DIMENSIONS
Indoor Dimensions (WxDxH)
46.85 x 11.20 x 14.59 in
Indoor Weight
64.2 lbs
Outdoor Dimensions (WxDxH)
37.24 x 16.14 x 31.89 in
Outdoor Weight
130.29 lbs
GENERAL INFORMATION
Brand Name
Senville
Series
Elite
Model Number
SENE-24EL
Style
Ductless Mini Split AC With Heat Pump
Recommended Coverage
1,000-1,500 sq. ft.
Thermostat Type
Remote Control
Alexa
Enabled
Connection Wiring
14×4 AWG
COOLING PERFORMANCE
Cooling Capacity
24,000 BTU
Cooling Range
7,300~26,000 BTU
SEER2
25.0
EER2
11.0
Cooling Input Range
140~2,100 W
Cooling Current Range
1.1~9.5 A
HEATING PERFORMANCE
Heating Capacity
24,000 BTU
Heating Range
7,300~25,000 BTU
HSPF2-4
15
HSPF2-5
12.4
COP (W/W)
4.10
Heating Input Range
380~1,980 W
Heating Current Range
2.1~8.8 A
Minimum Outdoor Heating Temperature
-22°F / -30°C
TECHNICAL DETAILS
Power Supply
208/230V, 1Ph, 60Hz
Voltage Range
187-253
Minimum Circuit Ampacity
24.0 A
Max. Fuse
25 A
Indoor Air Flow (Turbo/H/M/L)
912.3 / 618.0 / 412.0 / 317.8 CFM
Indoor Noise Level
56 / 47 / 41 / 33 / 30 dB
Moisture Removal
1.2 L/H
Outdoor Air Flow (Max)
2235 CFM
Outdoor Noise Level
62.0 dB
Refrigerant Type / Charge
R454B / 63.49 oz
Refrigerant Pre-charge
25 ft
WARRANTY & CERTIFICATIONS
Warranty
10 Years Compressor / 10 Years Parts
Certifications
ENERGY STAR, UL

Senville ELITE Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1500 sq ft · Open living area
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
