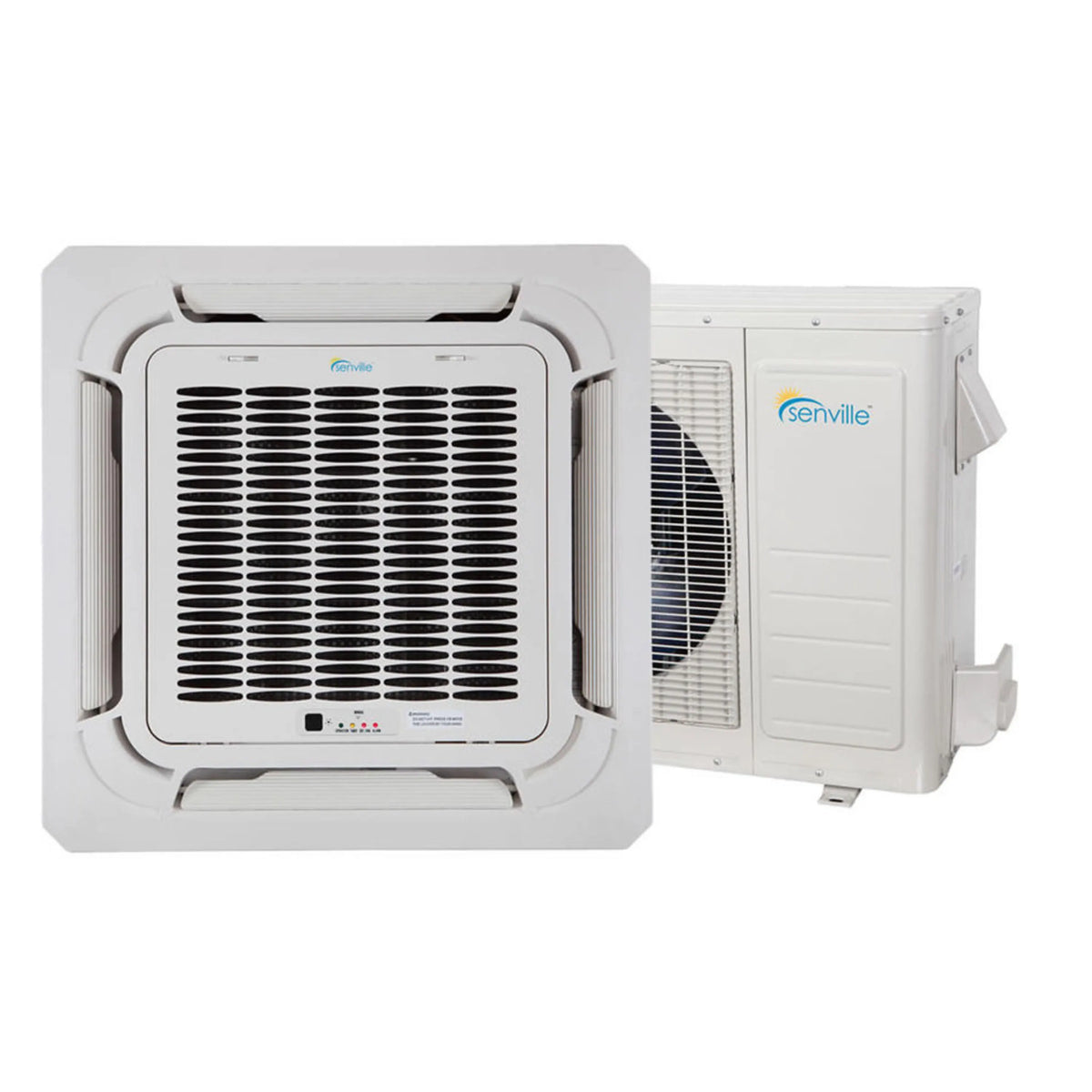

Senville SENA-09HF/IC is a high-efficiency 9000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

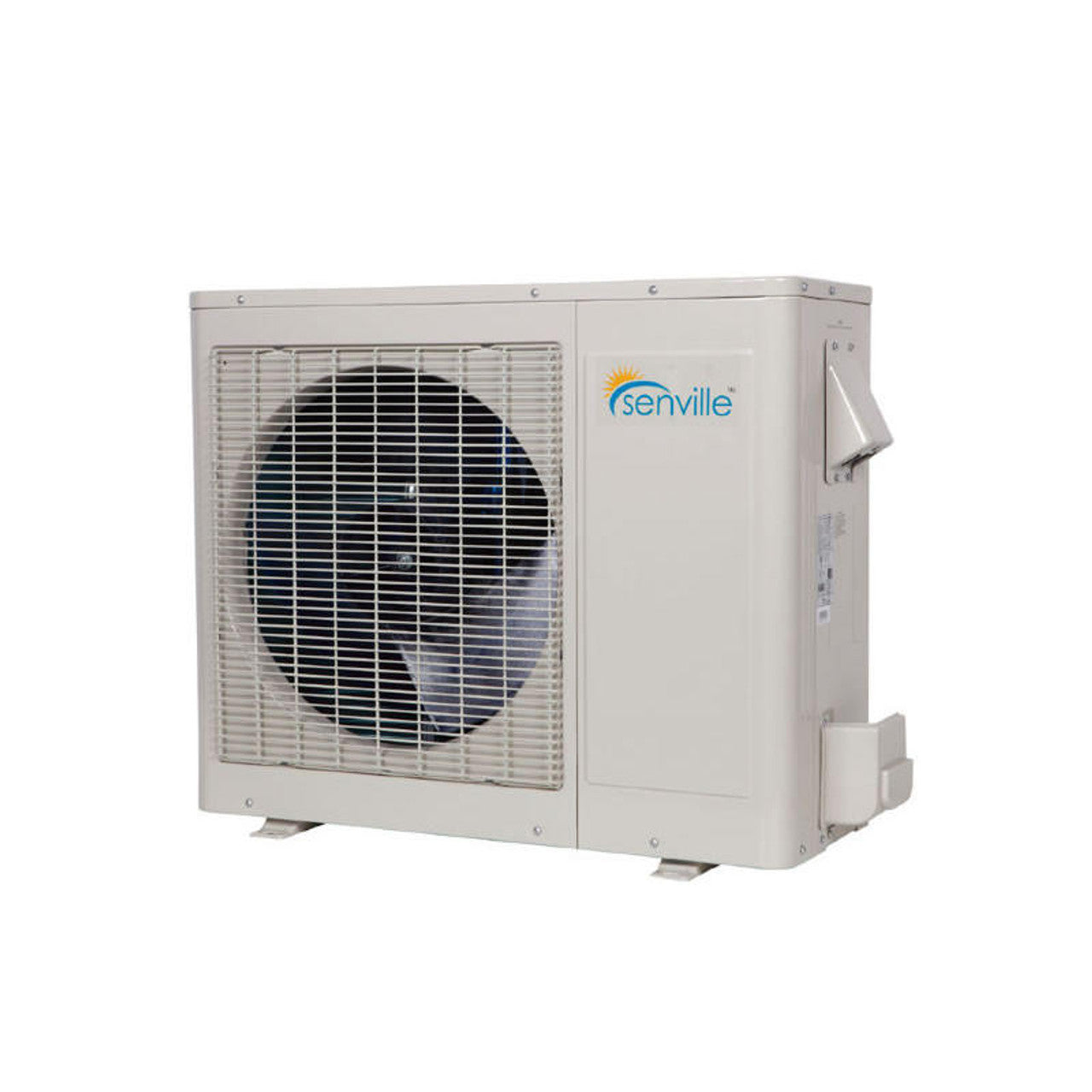

| Condenser | |
| Dimensions (WxDxH) (in.) | 31.69 x 12.99 x 21.81 |
| Weight | 72.75 Lbs |
| Air Flow (Max) CFM | 1471.5 |
| Noise Level dB | 55 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |

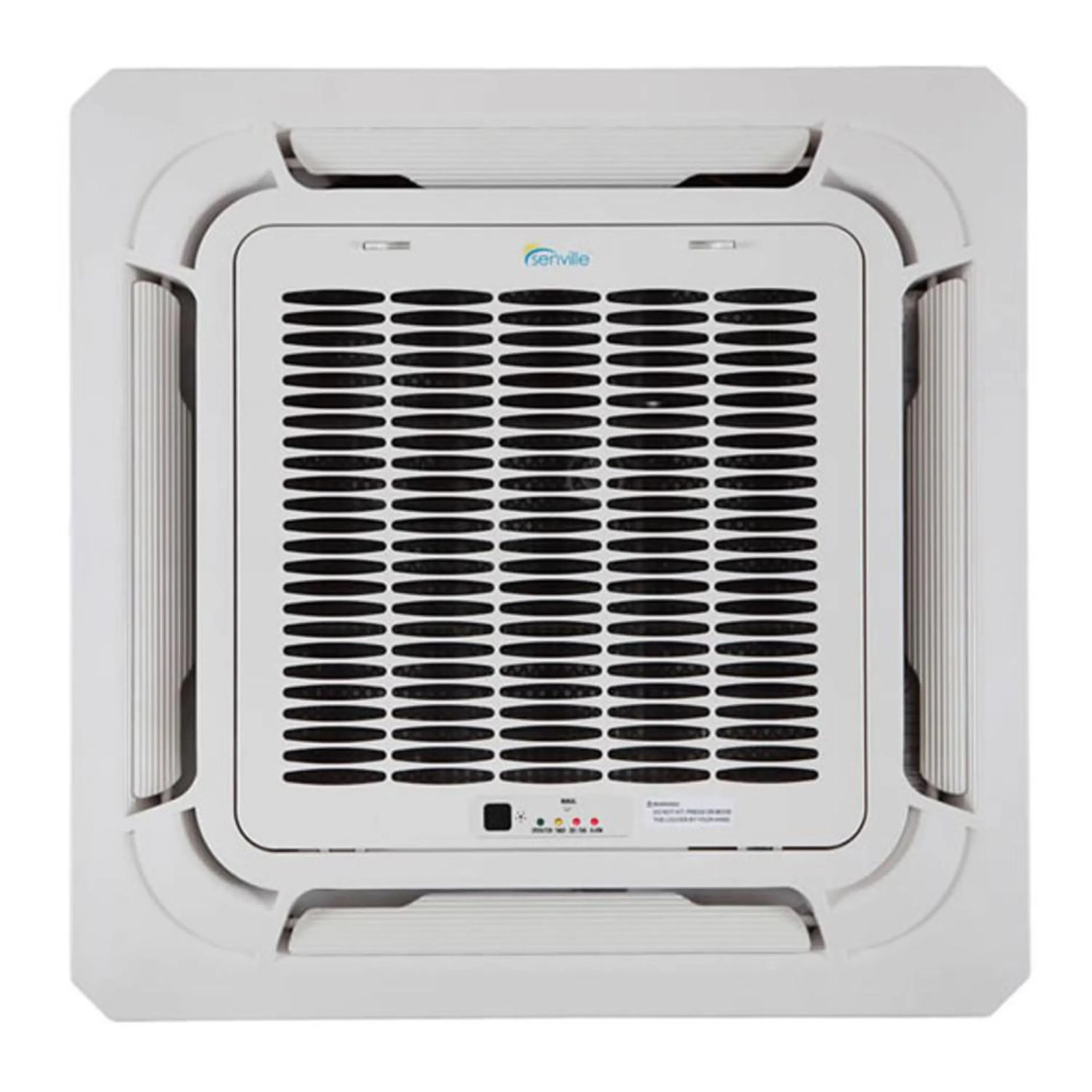

| Air Handler | |
| Dimensions (WxDxH) (in.) | 22.44 x 22.44 x 9.65 |
| Weight | 35.27 Lbs. |
| Air Flow (Turbo/H/M/L) CFM | 353.2 / 312.0 / 264.9 / 182.5 |
| Noise Level (Turbo/H/M/L) dB | 42.5 / 40.0 / 37.5 / 26.0 |
| Technical Specifications | |
| Style | Ceiling Cassette Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 22.6 |
| EER2 | 14 |
| Cooling Capacity (BTU) | 9000 |
| Cooling Range (BTU) | 3700~13600 |
| Cooling Input Range (W) | 200~1150 |
| Cooling Current Range (A) | 1.6~5.1 |
| Heating Capacity (BTU) | 10000 |
| Heating Range (BTU) | 5100~15700 |
| Heating Input Range (W) | 285~1330 |
| Heating Current Range (A) | 1.5~5.9 |
| HSPF2-4 | 12.1 |
| HSPF2-5 | 9.3 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 15 |
| Moisture Removal (L/H) | 0.88 |
| Refrigerant Type / Charge oz | R454B |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |

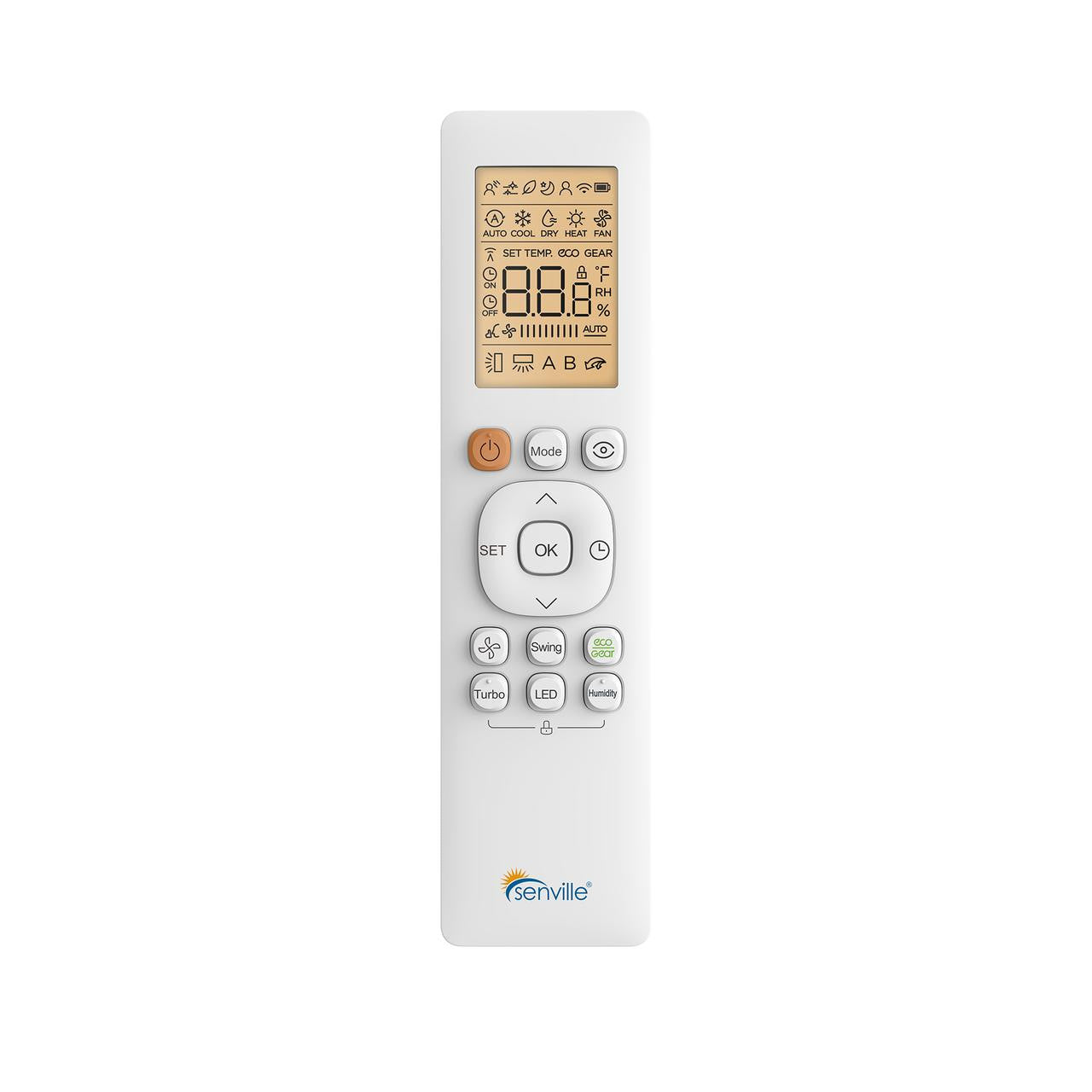

| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
