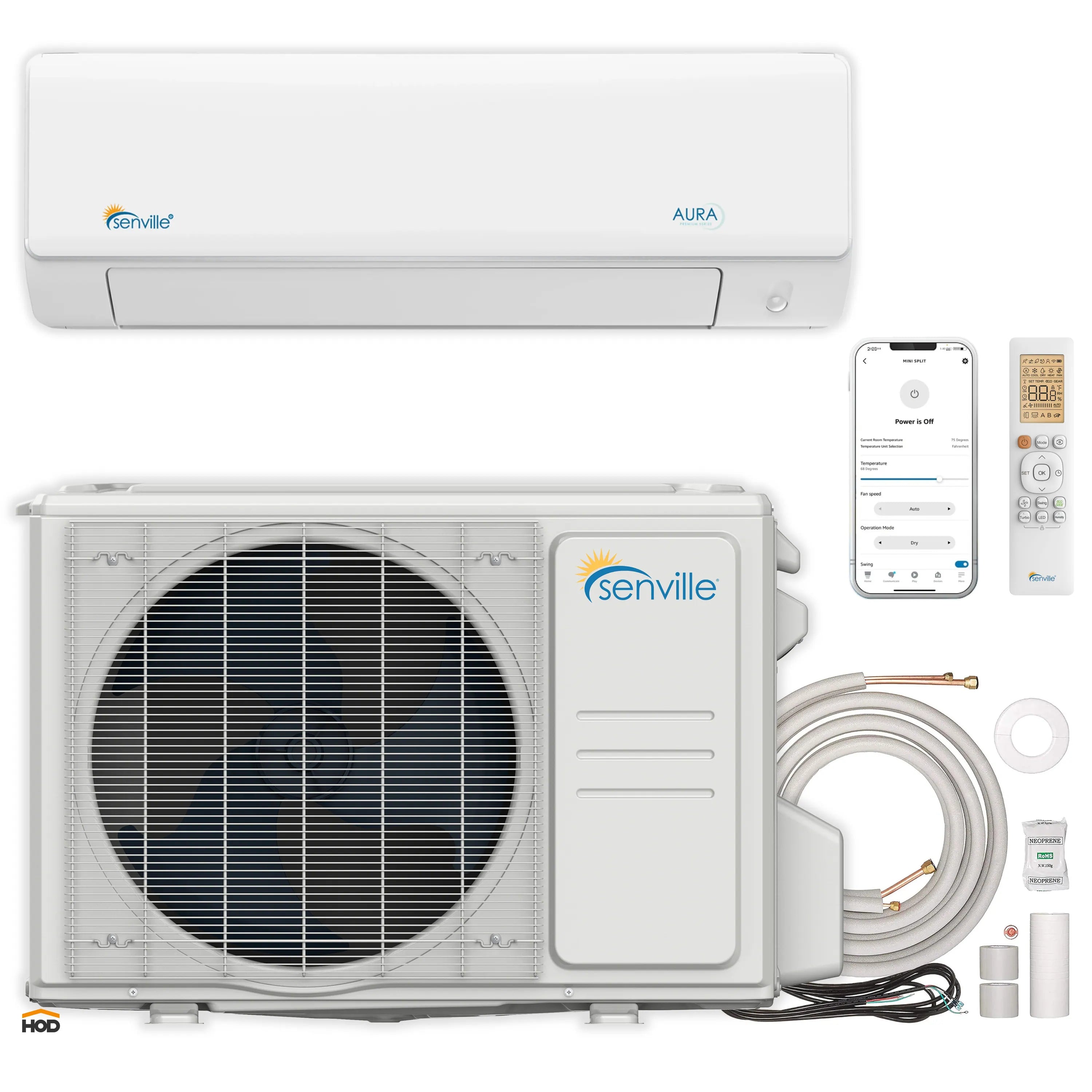

Senville SENA-09HF is a high-efficiency 9000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

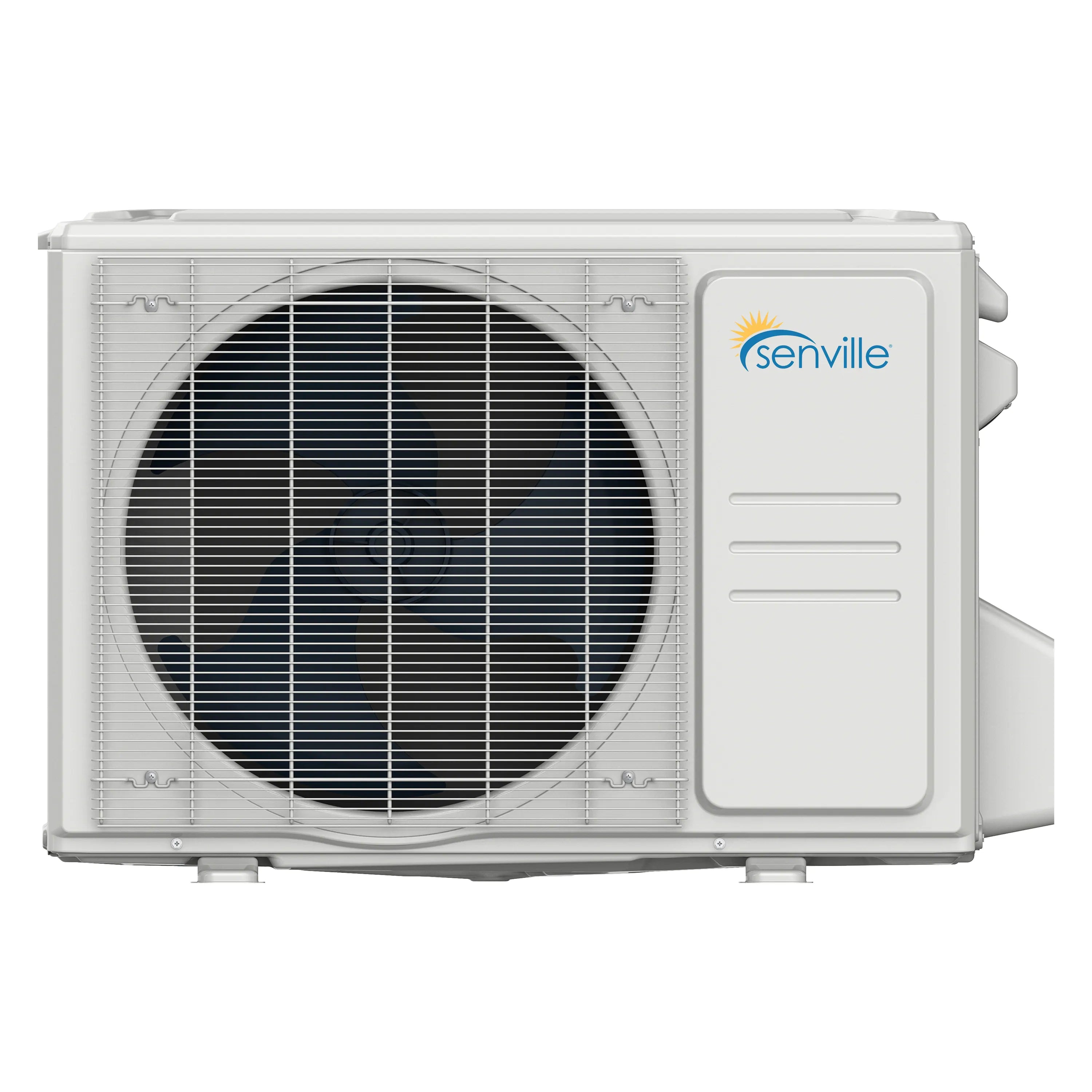

| Condenser | |
| Dimensions (WxDxH) | 28.74 x 11.02 x 19.49 in |
| Weight | 66.14 lbs |
| Air Flow (Max) CFM | 1100 |
| Noise Level dB | 56 |

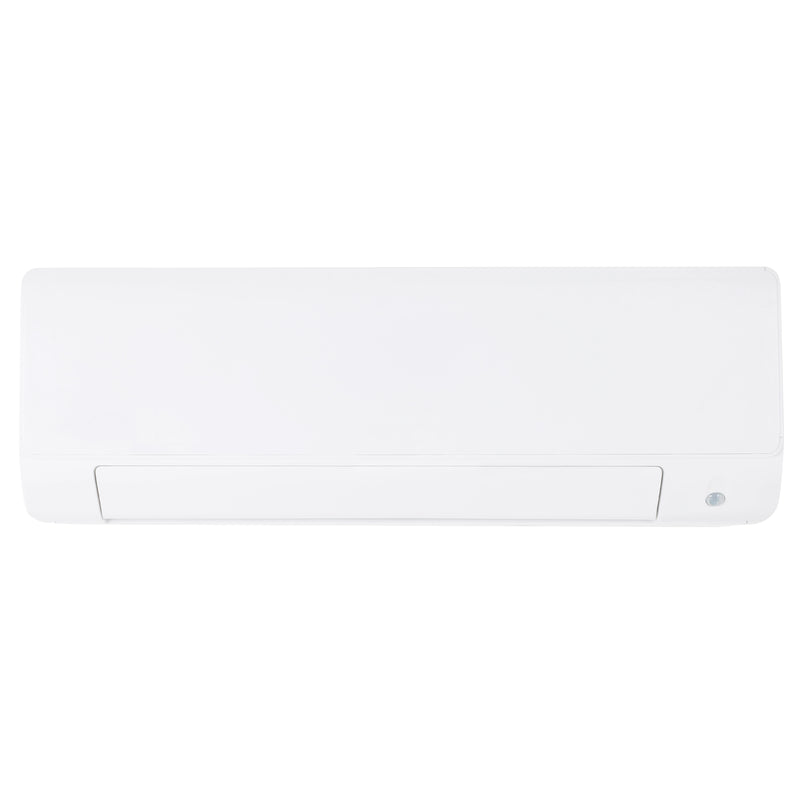

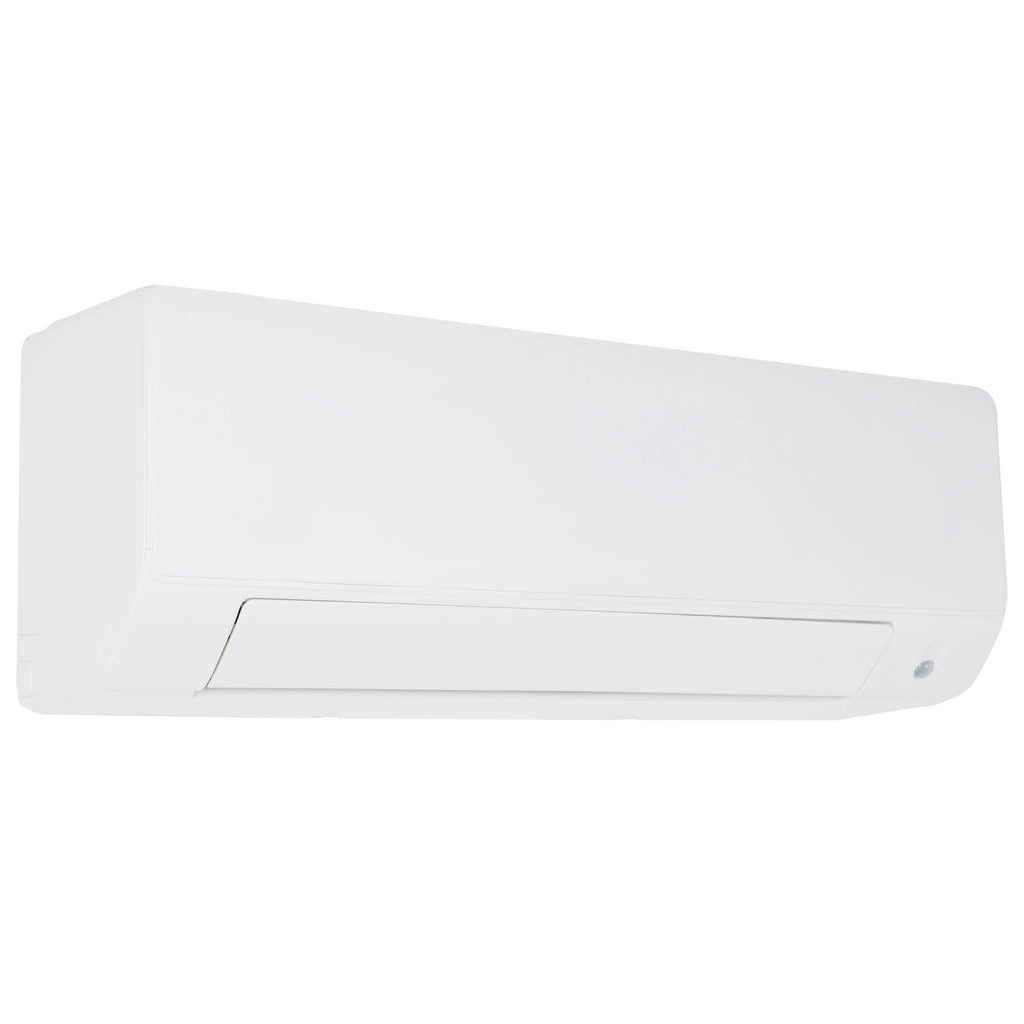

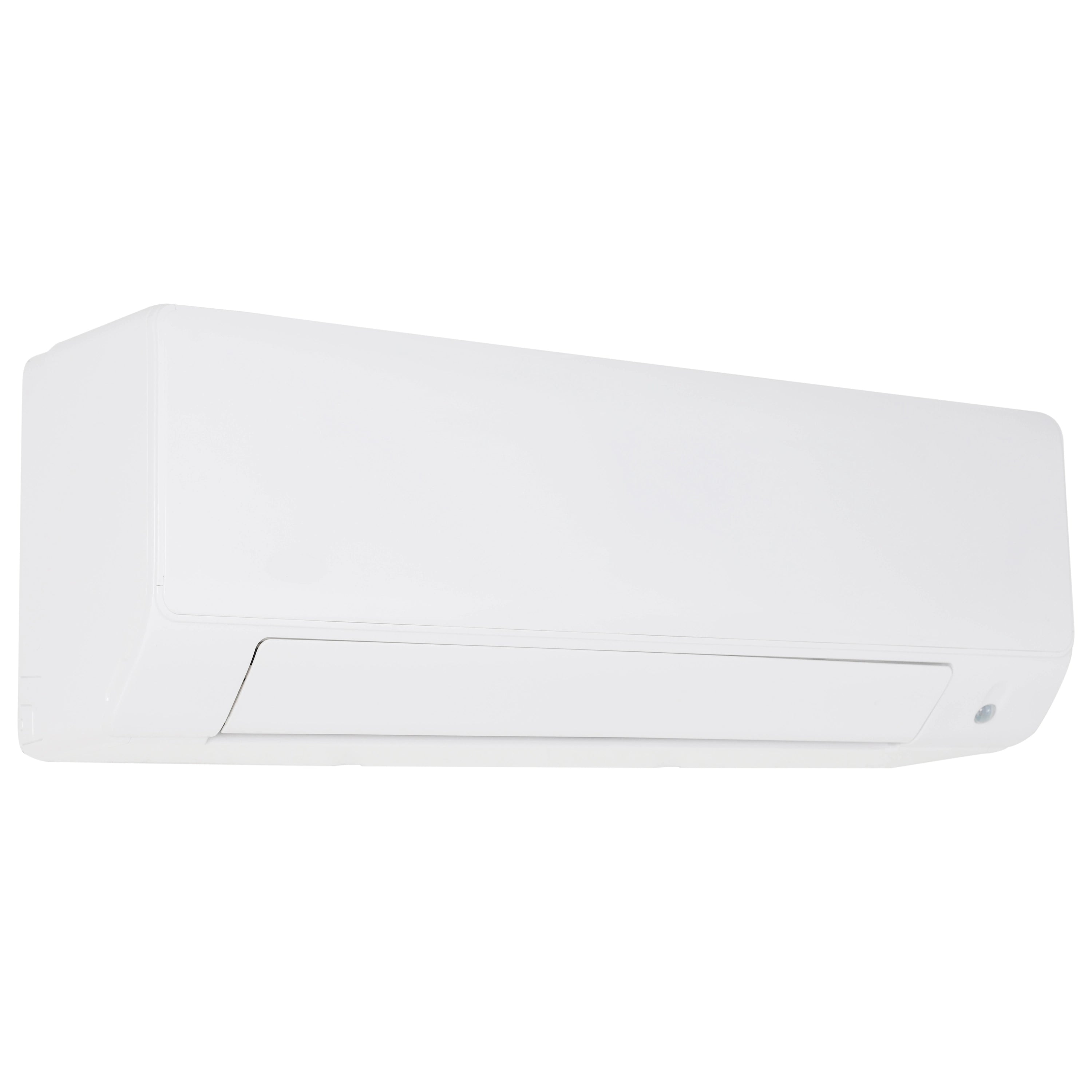

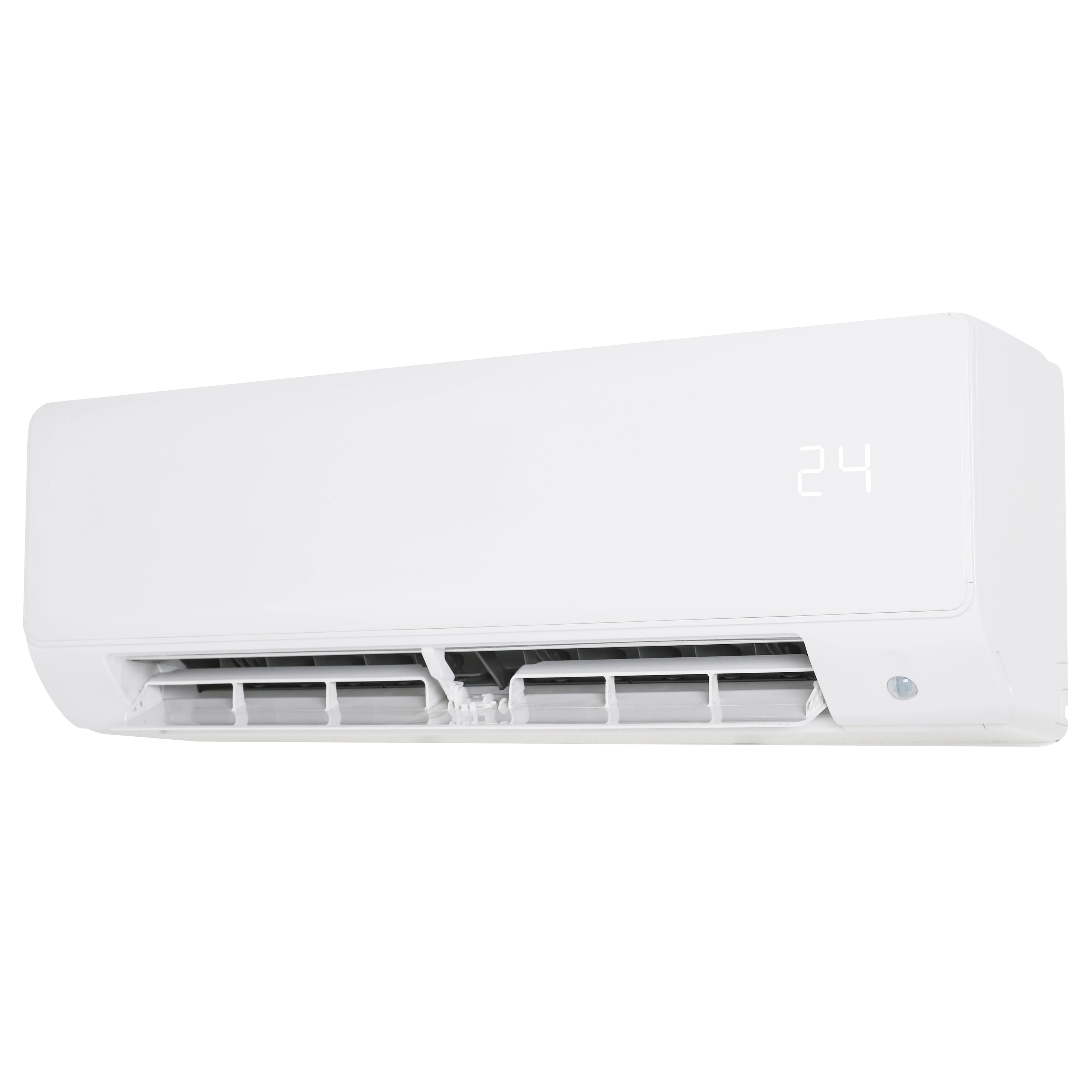

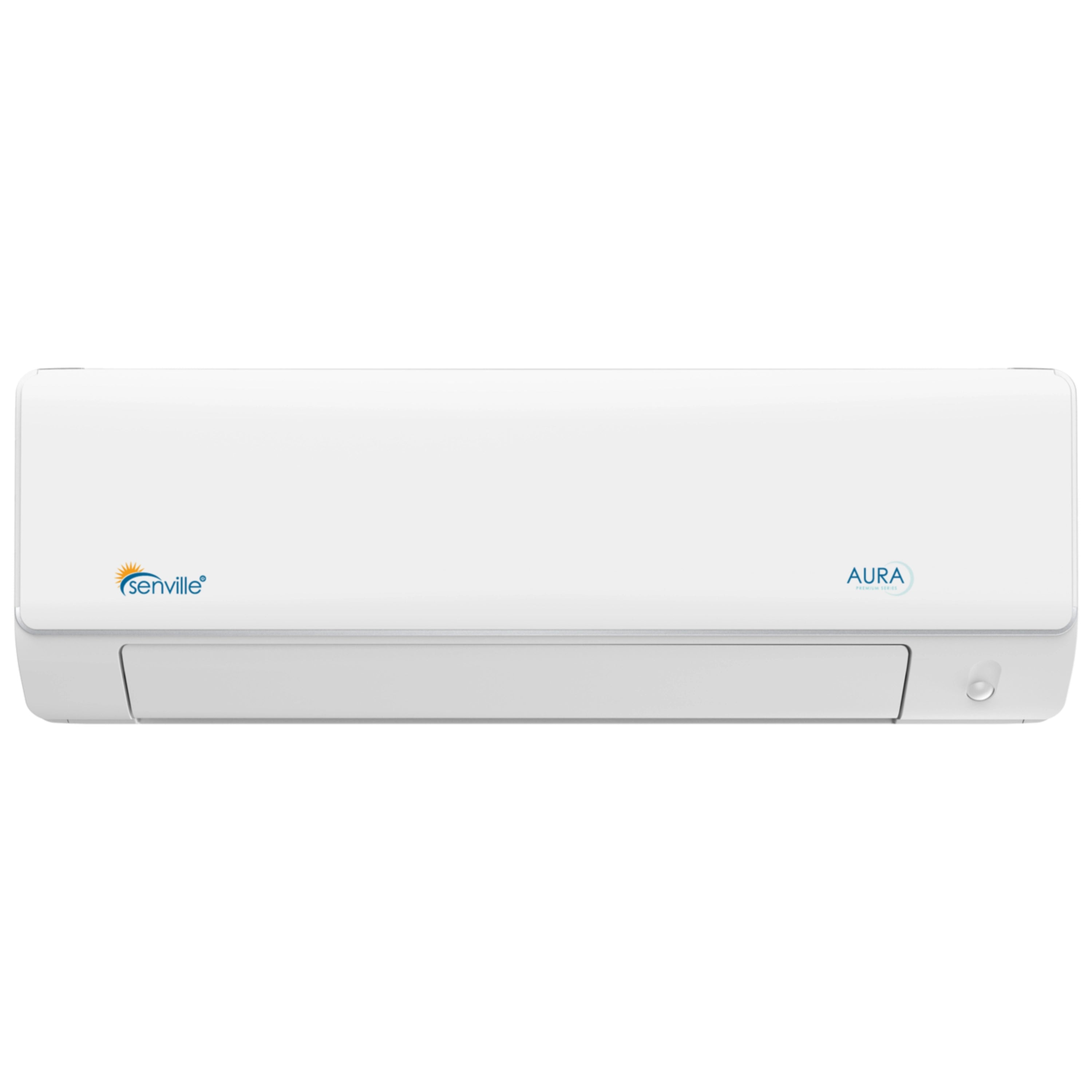

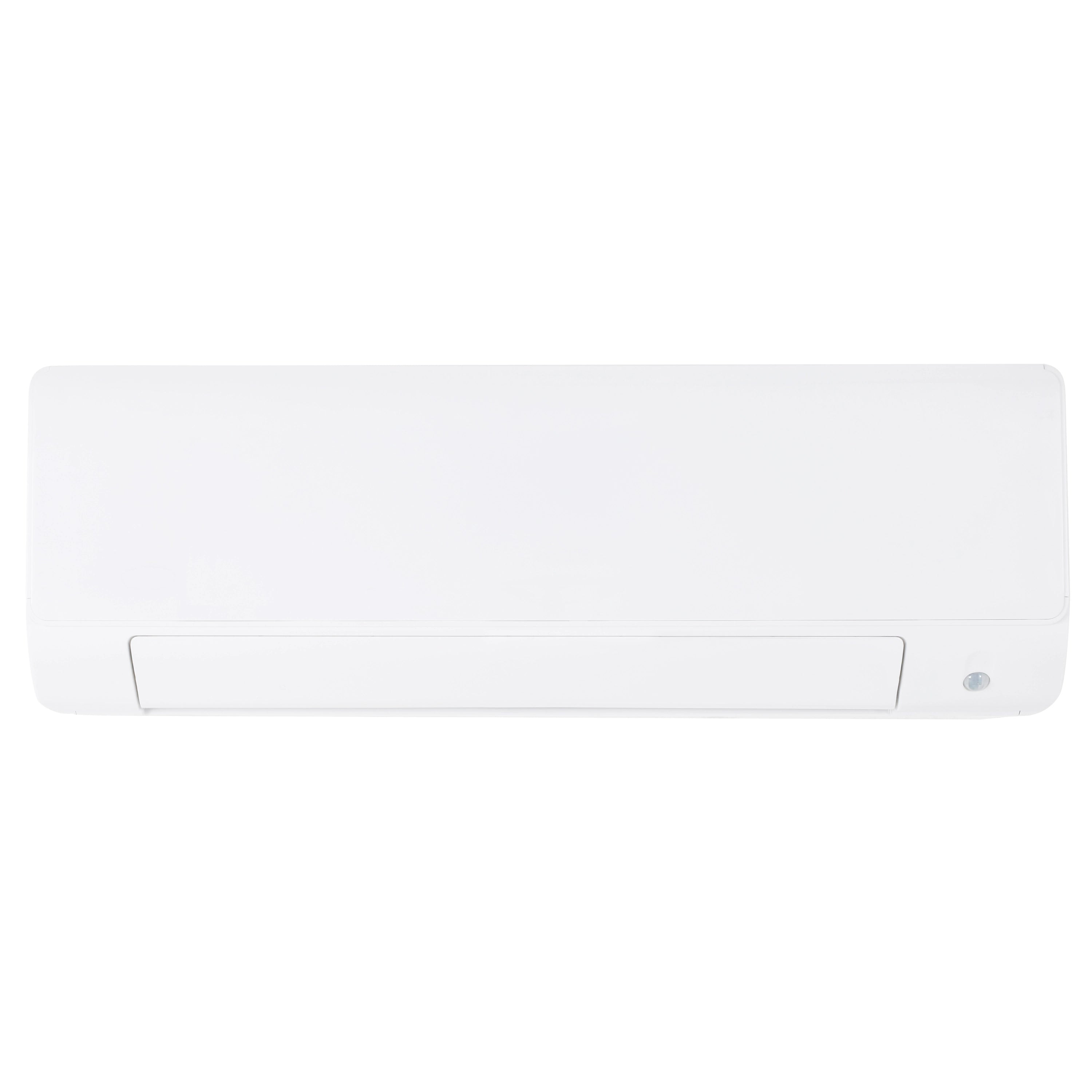

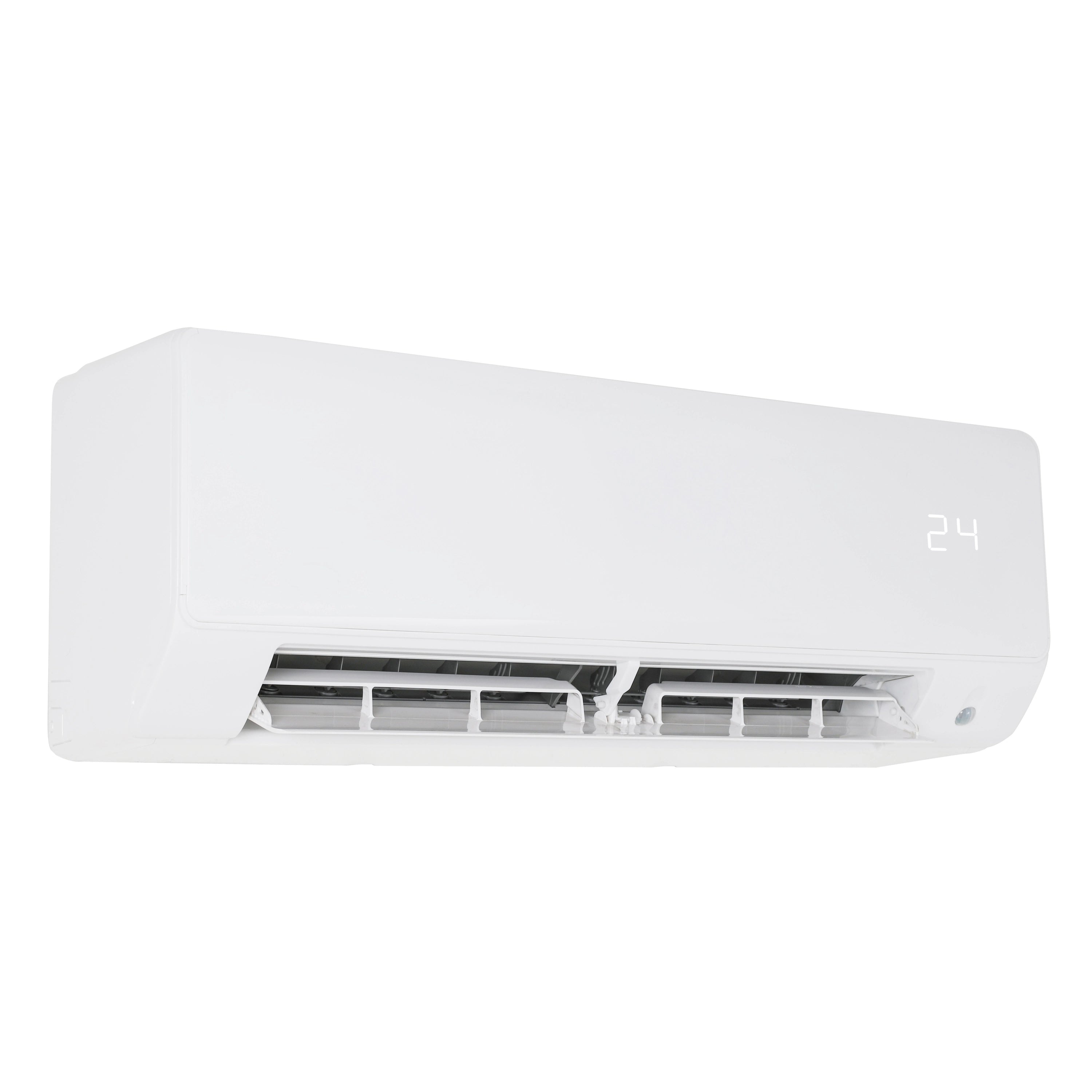

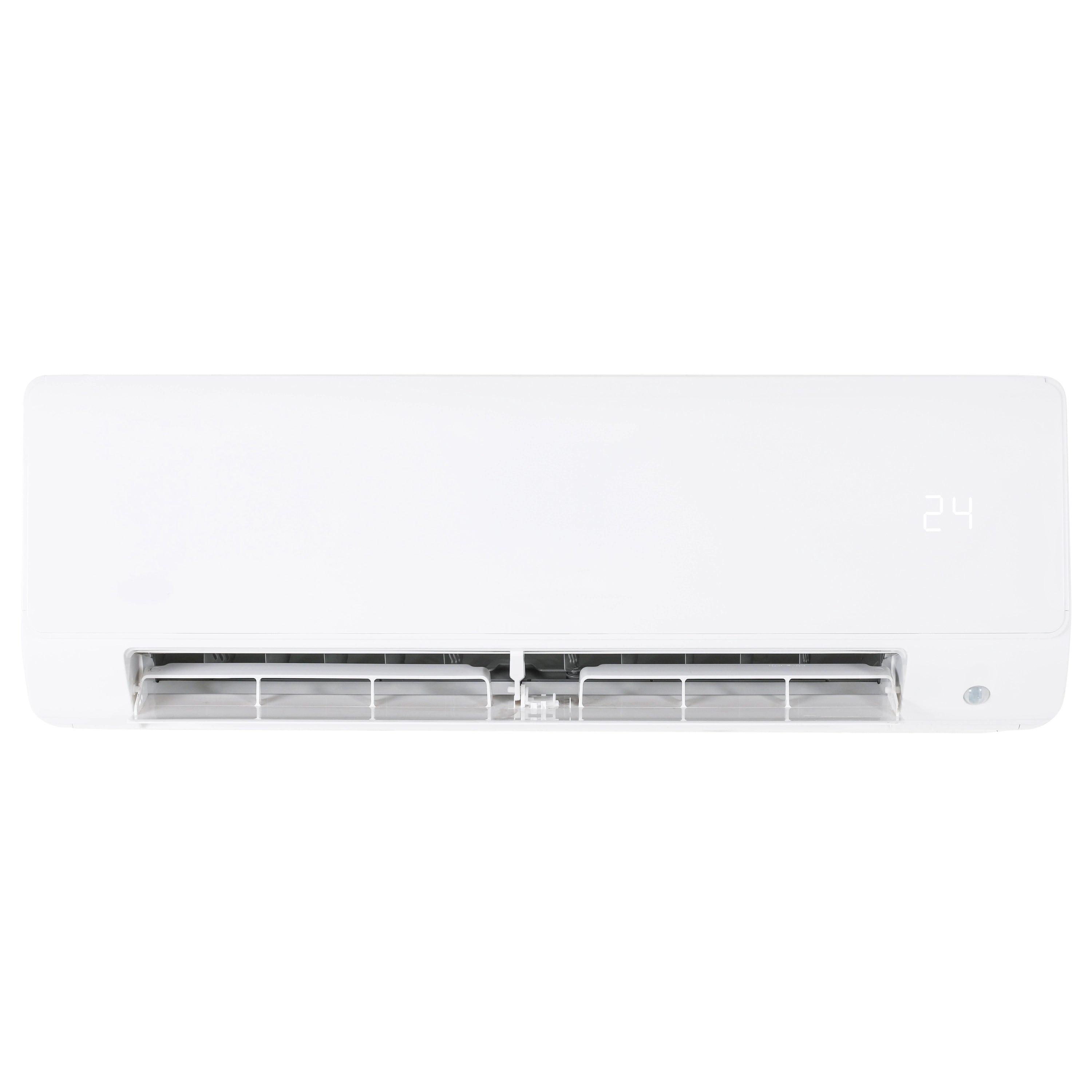

| Air Handler | |
| Dimensions (WxDxH) | 33.40 x 9.18 x 11.76 in |
| Weight | 22.05 lbs |
| Air Flow (Turbo/H/M/L) CFM | 425 / 340 / 260 / 200 |
| Noise Level (Turbo/H/M/L) dB | 45 / 37 / 31 / 23 |
| Technical Specification | |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 27.4 |
| EER2 | 14.5 |
| Cooling Capacity (BTU) | 9000 |
| Cooling Range (BTU) | 3000~10500 |
| Cooling Input Range (W) | 320~950 |
| Cooling Current Range (A) | 1.5~4.8 |
| Heating Capacity (BTU) | 9800 |
| Heating Range (BTU) | 3100~11000 |
| Heating Input Range (W) | 330~1050 |
| Heating Current Range (A) | 1.6~5.1 |
| HSPF2-4 | 13.9 |
| HSPF2-5 | 9.8 |
| COP W/W | 3.55 |
| Minimum Circuit Ampacity (A) | 10 |
| Max. Fuse (A) | 15 |
| Moisture Removal (L/H) | 1.0 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 37.15 oz |
| Refrigerant Pre-charge | 25 ft |
| Connection Wiring | 14*4 AWG |

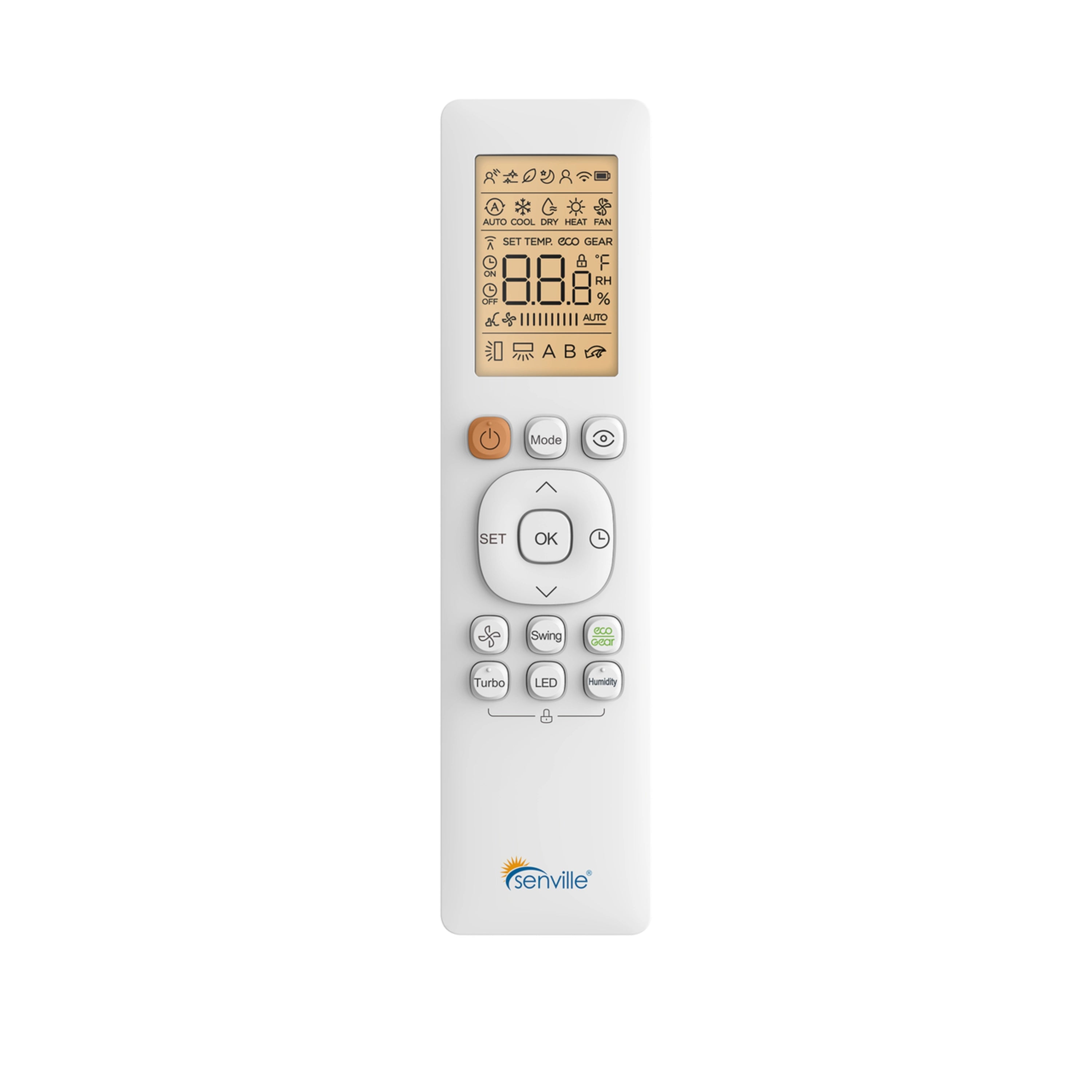

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
