Description

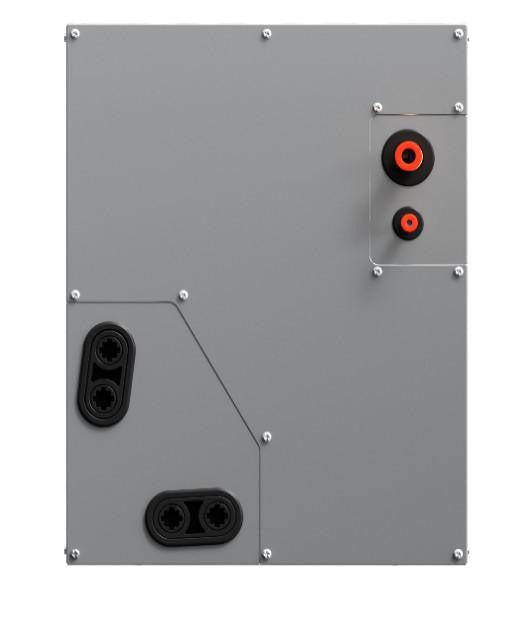

The Senville SENDC-60CO-C is a 60,000 BTU indoor evaporator A-coil built for Senville central split systems. It installs in either a horizontal or vertical position, uses a durable aluminum coil, and includes an R454B refrigerant sensor. Matched with the Senville SENDC-60HF-OG outdoor unit, the system is rated at 16.0 SEER2, 10.0 EER2, and 8.3 HSPF2-4, and is listed in the AHRI directory.

The coil is designed for easy maintenance and gives you flexible control options. It works with a WiFi-enabled wired controller or with third-party 24V thermostats, and it runs on a standard 24V, 1Ph, 60Hz indoor power supply.

Features

  • Multi-Position Installation - Installs horizontally or vertically to fit the available space and ductwork layout.
  • Aluminum Coil - Durable aluminum coil construction for long service life.
  • R454B Refrigerant - Designed for R454B refrigerant and equipped with a refrigerant sensor.
  • Matched System Ratings - Paired with the SENDC-60HF-OG outdoor unit, the system delivers 16.0 SEER2, 10.0 EER2, 8.3 HSPF2-4, and 2.8 COP.
  • AHRI Certified - The matched system is listed in the AHRI directory with an EnergyGuide label.
  • Flexible Controls - Compatible with a WiFi-enabled wired controller or third-party 24V thermostats.
  • Easy Maintenance - Designed for straightforward service and upkeep.
  • Low-Voltage Indoor Power - Indoor power supply is 24V, 1Ph, 60Hz.

Please Note

  • Professional installation by a licensed HVAC technician is required.
  • This listing is for the indoor evaporator A-coil only. The outdoor condensing unit, line set, and thermostat or wired controller are sold separately.
  • Designed to pair with the Senville SENDC-60HF-OG outdoor unit. The SEER2, EER2, HSPF2-4, and COP ratings apply to the matched system, not to the coil on its own.
  • Outdoor unit specifications shown (dimensions, weight, airflow, sound level, 208/230V power supply, 40A MCA/MOP) describe the matched SENDC-60HF-OG condenser and are provided for reference.
  • The indoor coil requires a 24V, 1Ph, 60Hz power supply. The matched outdoor unit requires 208/230V, 1Ph, 60Hz.
  • Supports a WiFi-enabled wired controller or a third-party 24V thermostat; confirm your control option before installation.
GENERAL INFORMATION
Model Number
SENDC-60CO-C
Compatible Outdoor Unit Model
SENDC-60HF-OG
Installation Position
Multi-position (horizontal or vertical)
Coil Material
Aluminum
Compressor Type
Twin Rotary (ETPQ480D66UMU1)
CAPACITY & PERFORMANCE
Capacity
60,000 BTU
Outdoor Airflow (Max)
2,649 CFM
EFFICIENCY RATINGS
SEER2
16.0
EER2
10.0
HSPF2-4
8.3
COP
2.8
NOISE LEVELS
Outdoor Sound Level
64 dBA
DIMENSIONS & WEIGHT
Indoor Dimensions (W×D×H)
21-5/8 × 21-1/2 × 27-3/4 in
Indoor Package Dimensions (W×D×H)
31-1/8 × 25 × 25-5/8 in
Indoor Net/Gross Weight
97 / 115 lbs
Outdoor Dimensions (W×D×H)
37-1/2 × 16-3/8 × 52-1/2 in
Outdoor Package Dimensions (W×D×H)
43-1/8 × 19-1/2 × 58-1/4 in
Outdoor Net/Gross Weight
242 / 275 lbs
ELECTRICAL REQUIREMENTS
Indoor Power Supply
24V, 1Ph, 60Hz
Outdoor Power Supply
208/230V, 1Ph, 60Hz
Outdoor MCA
40A
Outdoor MOP
40A
REFRIGERANT & PIPING
Refrigerant
R454B
CONTROLS & CONNECTIVITY
Control Options
WiFi-enabled wired controller or third-party 24V thermostats
