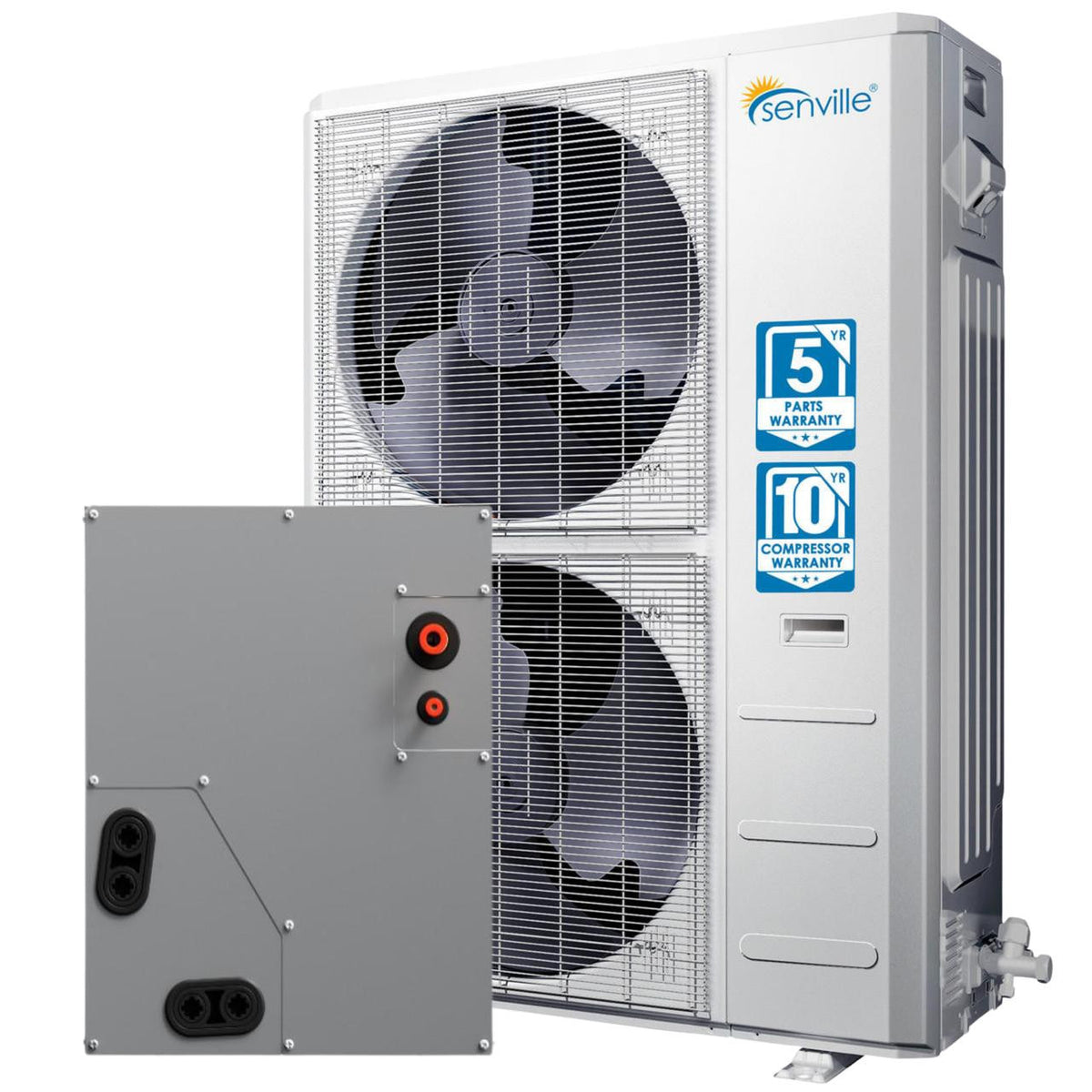

Senville 60K BTU Central Split System with 16 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-60CO)

The Senville SENDC-60CO is a 5-ton, 60,000 BTU central split heat pump system for homes that already have a forced-air furnace. It pairs the SENDC-60HF-OG outdoor heat pump condenser with the SENDC-60CO-C indoor evaporator A-coil. The A-coil mounts on your existing furnace and uses the furnace blower to move conditioned air through your ductwork, so you can add central cooling and heat pump heating without replacing the furnace or adding an air handler.

The outdoor unit runs a variable-speed twin rotary compressor powered by Inverter Technology, keeps heating down to -22°F (-30°C), and is sized for larger spaces up to 2,000 square feet. As a matched pairing, the system is AHRI-rated at 16 SEER2, 10 EER2 and 8.3 HSPF2-4 on R454B refrigerant, and the condenser moves up to 2,649 CFM at a 64 dBA sound level. The multi-position A-coil installs horizontally or vertically, uses a durable aluminum coil, includes an R454B refrigerant sensor, and works with a WiFi-enabled wired controller or a compatible third-party 24V thermostat.

Features

• 5-Ton Matched System - The SENDC-60HF-OG condenser and SENDC-60CO-C A-coil are a matched 60,000 BTU pairing designed for larger spaces and demanding cooling needs, cooling areas up to 2,000 square feet.
• Variable-Speed Inverter Compressor - The outdoor unit's twin rotary compressor (ETPQ480D66UMU1) is a variable-speed design powered by Inverter Technology for efficient, consistent heating and cooling.
• AHRI-Certified Ratings - Rated at 16 SEER2, 10 EER2, 8.3 HSPF2-4 and 2.8 COP as a matched condenser and coil pairing.
• Heating Down to -22°F - Inverter heat pump technology keeps delivering heat in freezing weather, with operation down to -22°F (-30°C).
• Multi-Position A-Coil - The SENDC-60CO-C A-coil installs horizontally or vertically on your existing furnace.
• Durable Aluminum Coil - The A-coil is built with a durable aluminum coil and is designed for easy maintenance.
• R454B Refrigerant with Sensor - The system runs on R454B refrigerant, and the A-coil includes an R454B refrigerant sensor.
• Flexible Controls - Operates with a WiFi-enabled wired controller or a compatible third-party 24V thermostat.
• 10-Year Compressor Warranty - Backed by a 10-year warranty on the compressor and a 5-year warranty on parts.

Please Note

• Professional installation is required. This system is recommended for installation by a licensed HVAC professional only.
• Package includes the SENDC-60HF-OG outdoor heat pump condenser and the SENDC-60CO-C indoor evaporator A-coil. An existing furnace with a working blower is required and is not included; no air handler is included or needed, because the A-coil relies on the furnace blower to move air.
• Line Set Length option: choose a 16 Ft., 25 Ft. or 50 Ft. installation kit (line set) to match the distance between the outdoor unit and the coil, or select No Line Set if you are sourcing your own line set.
• Electrical: the outdoor unit requires a 208/230V, 1Ph, 60Hz circuit (187-253 voltage range) with 40A minimum circuit ampacity (MCA) and 40A maximum overcurrent protection (MOP). The coil controls run on 24V, 1Ph, 60Hz.
• Controls: the system is compatible with a WiFi-enabled wired controller or a third-party 24V thermostat. Confirm your controller or thermostat selection with your installer.
• Efficiency ratings (16 SEER2, 10 EER2, 8.3 HSPF2-4) are AHRI-certified for this specific condenser and coil pairing. Have your installer confirm that your existing furnace blower provides suitable airflow for a 5-ton coil.
