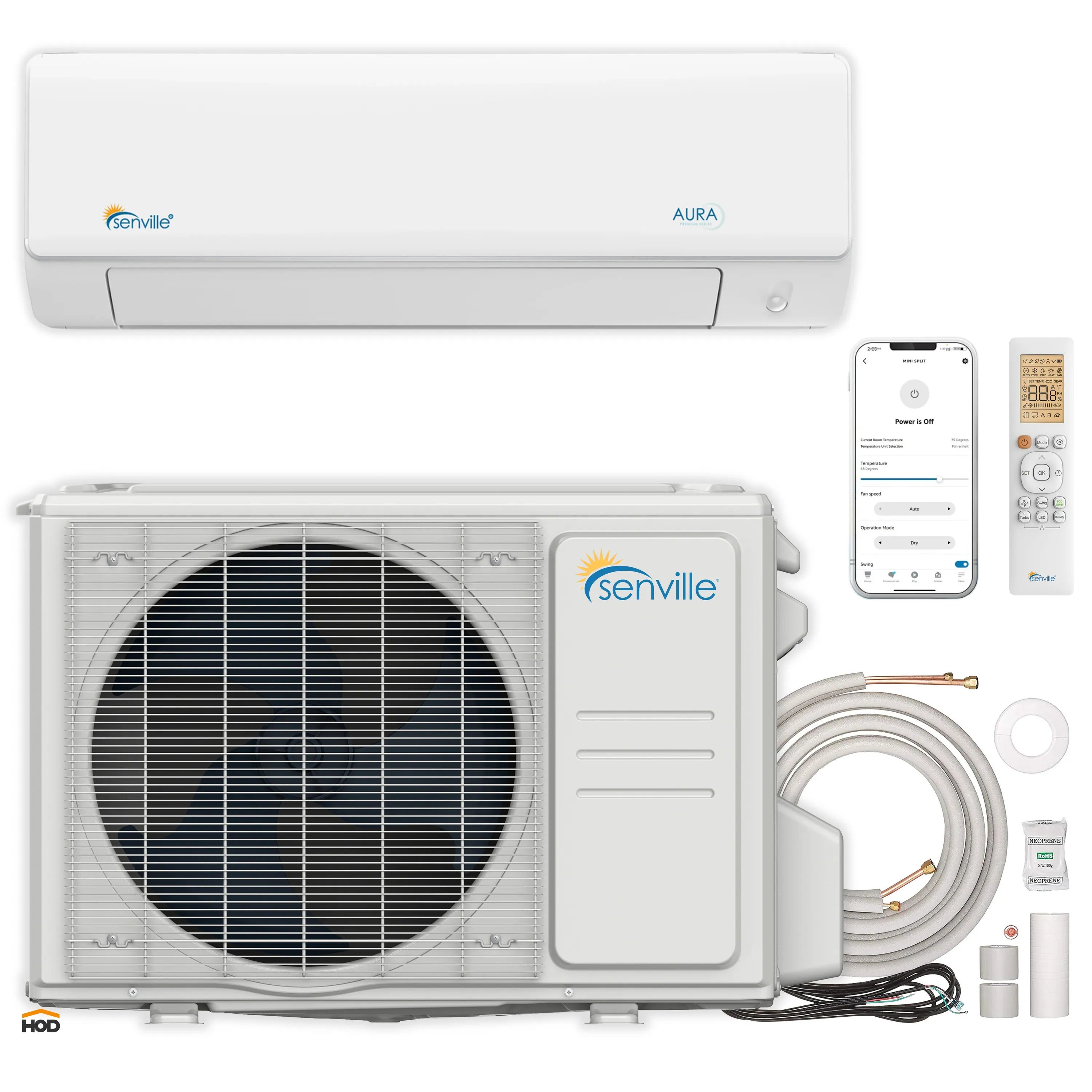

The Senville SENA-06HF-16 is a 6000 BTU ductless mini split air conditioner and heat pump, that is ENERGY STAR Certified. It is backed by a 10 Year Manufacturer Warranty

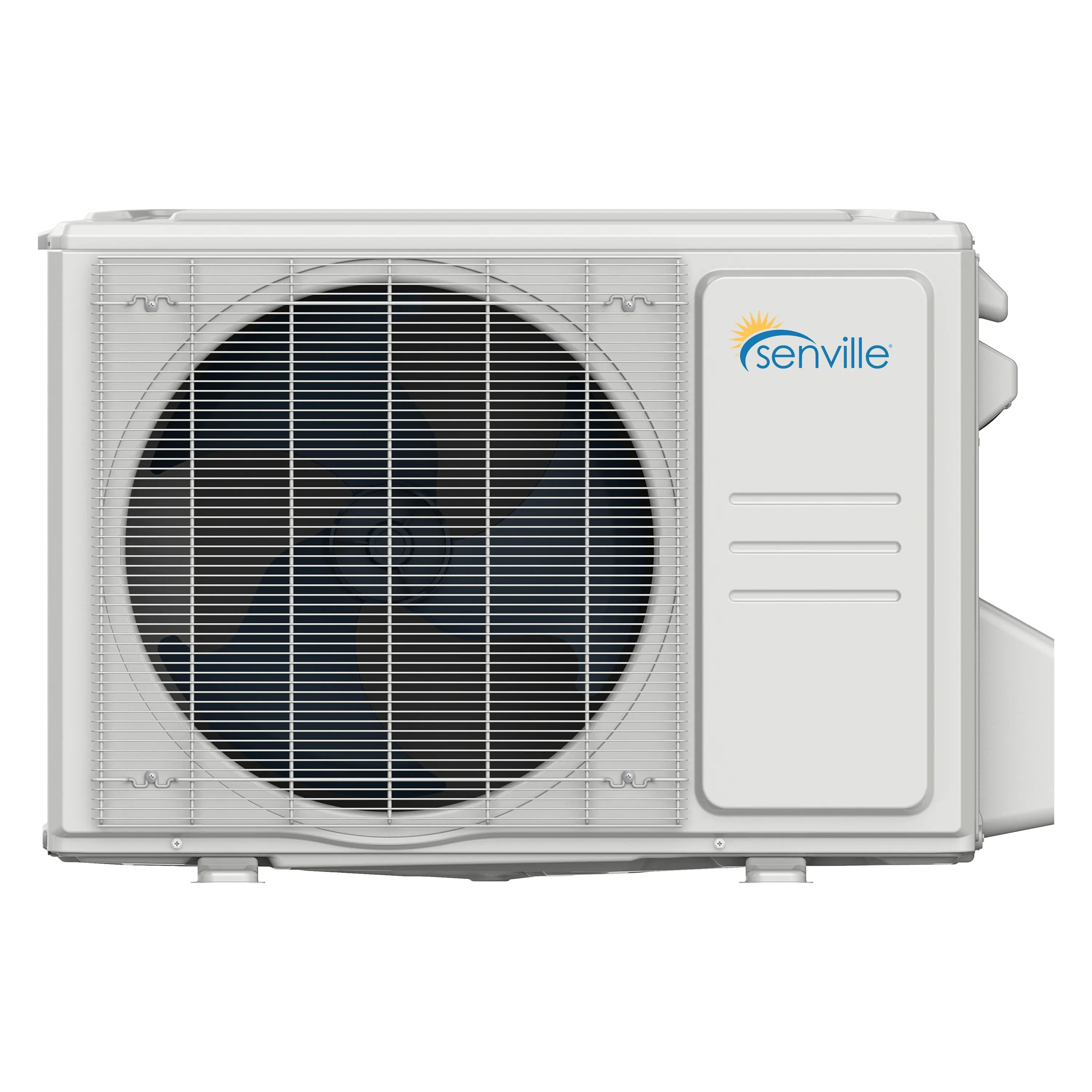

Condenser | |
Outdoor Dimensions (WxDxH) (in.) | 30.12 x 11.93 x 21.85 |
Outdoor Weight | 62.17 Lbs |
Outdoor Air Flow (Max) CFM | 1235.3 |
Outdoor Noise Level dB | 53 |

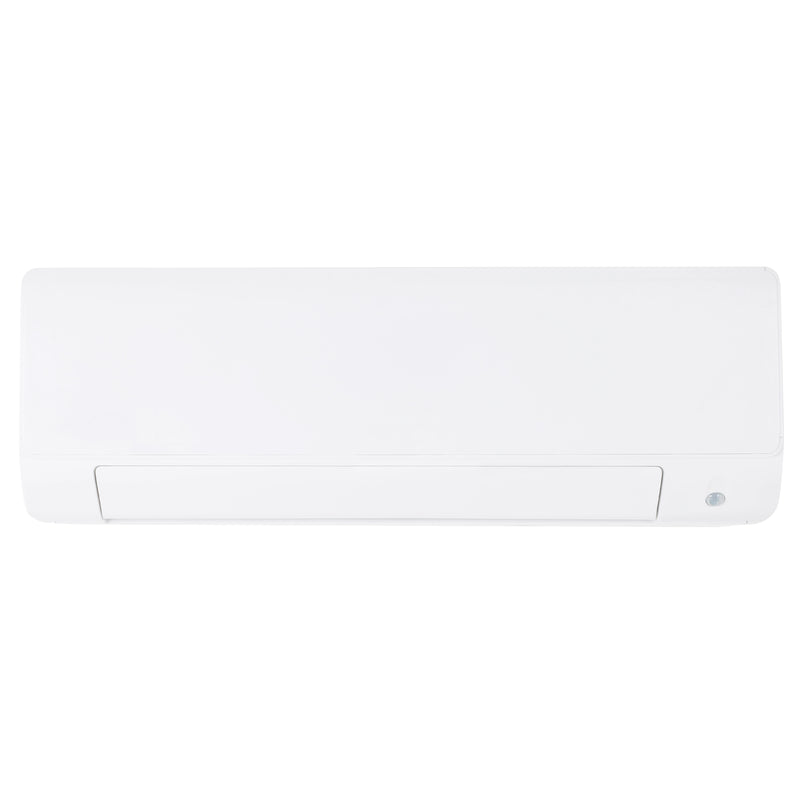

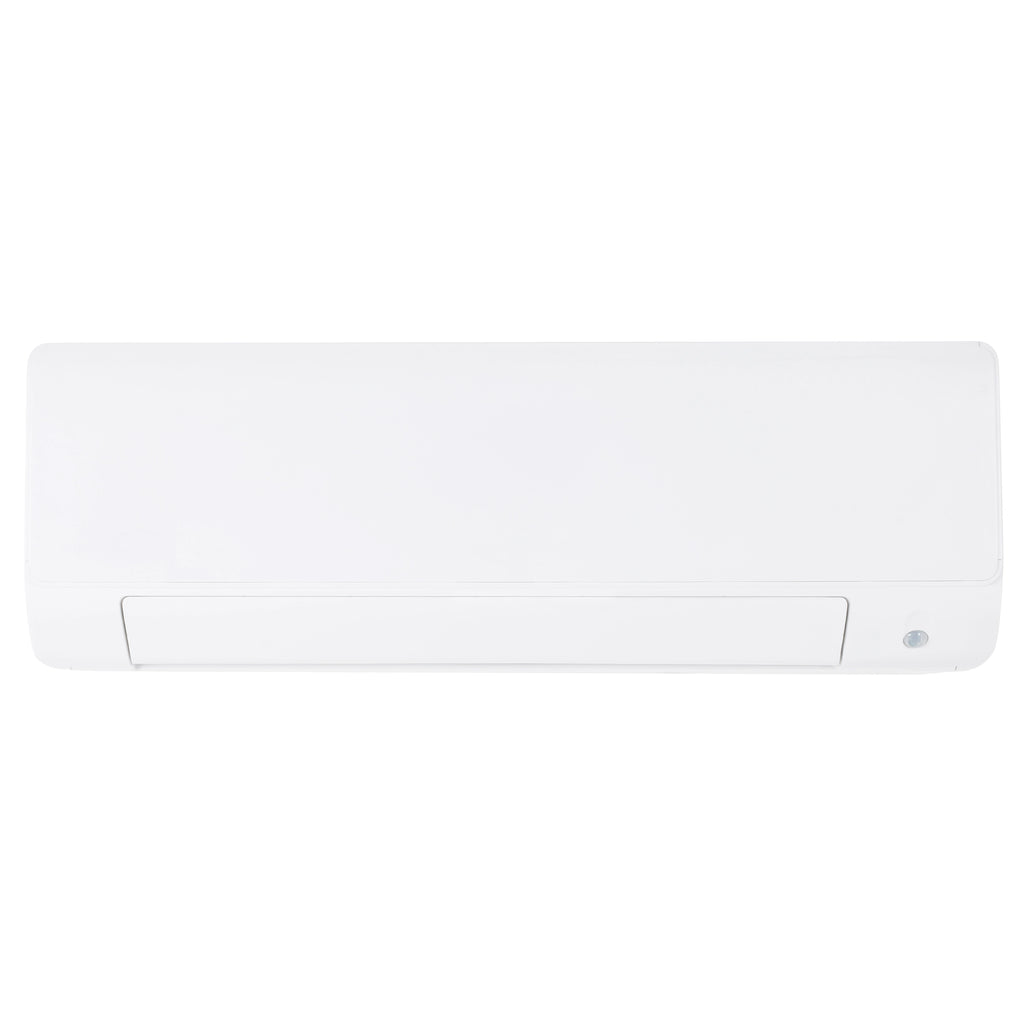

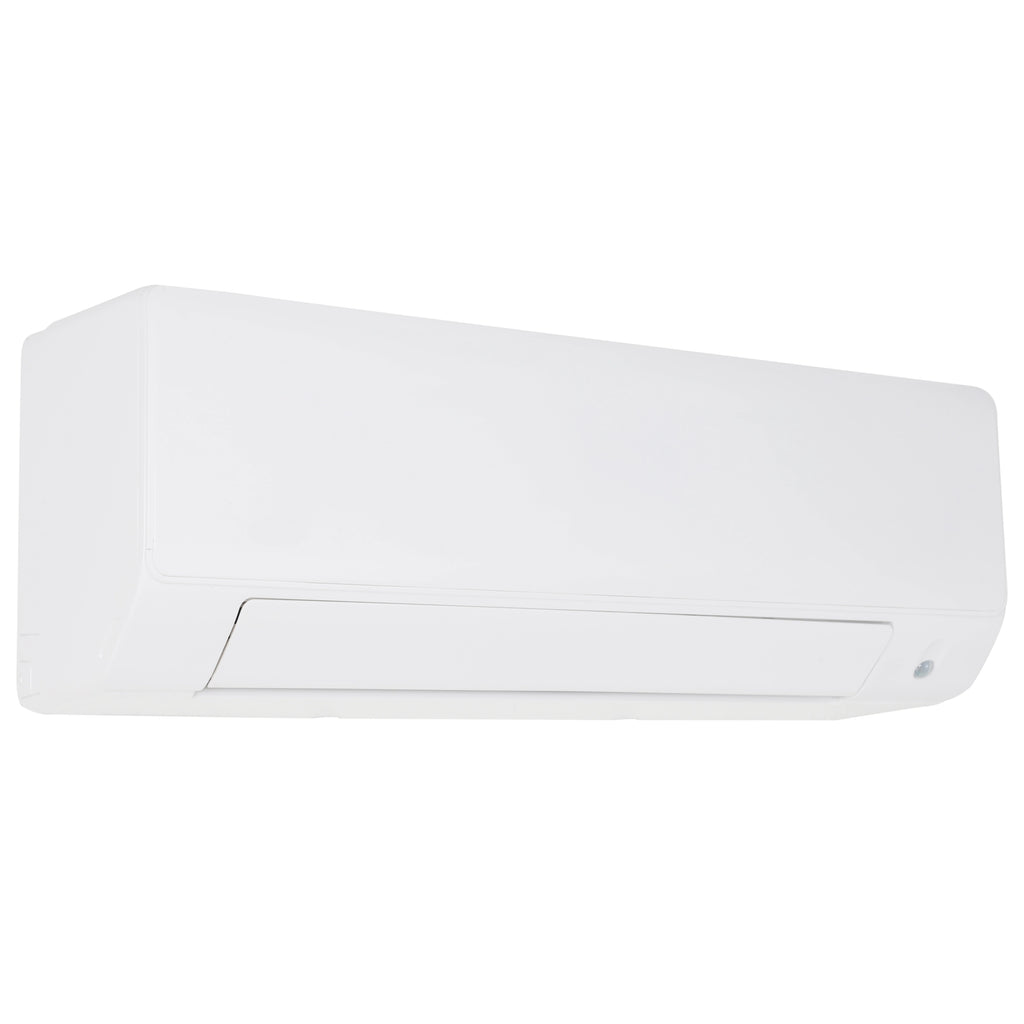

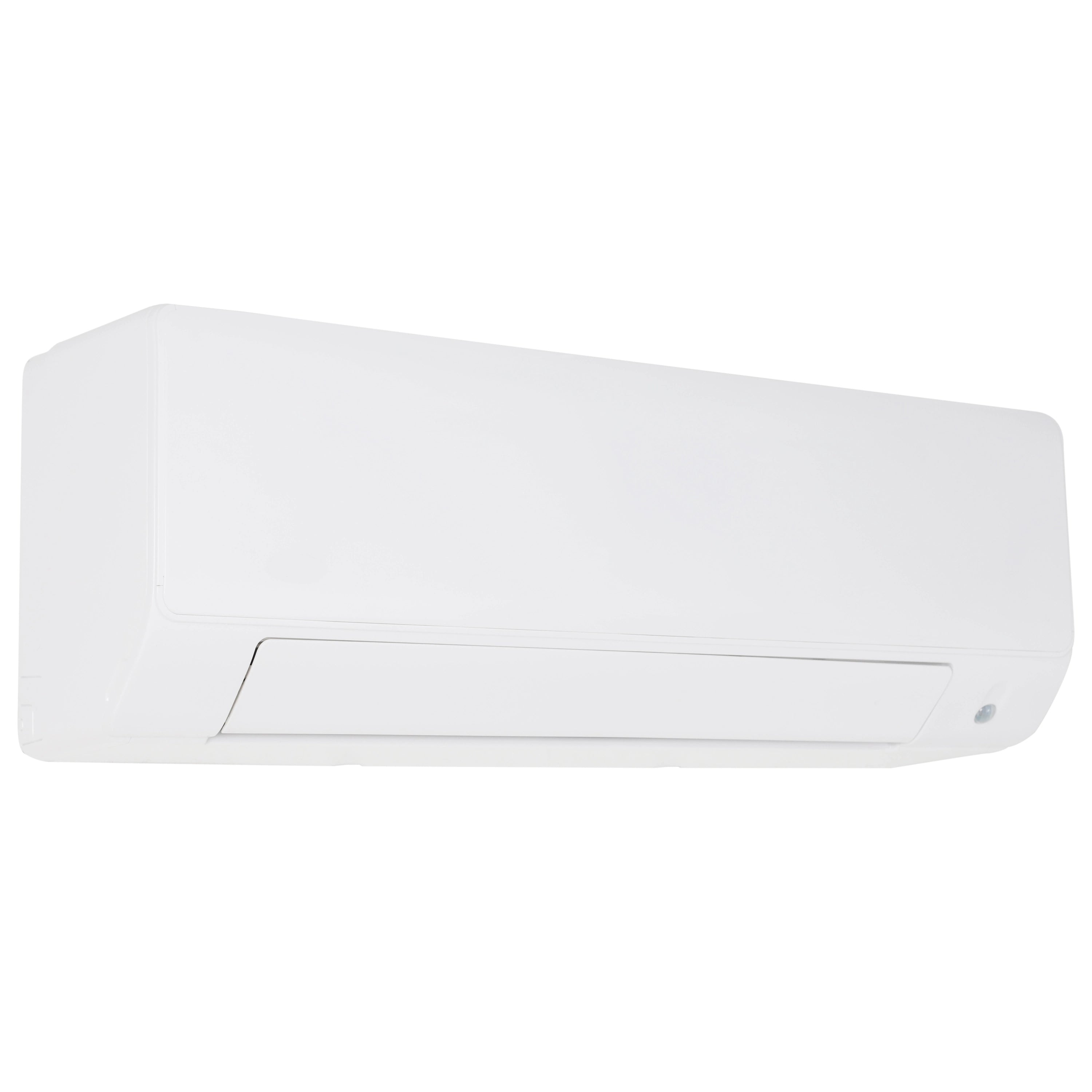

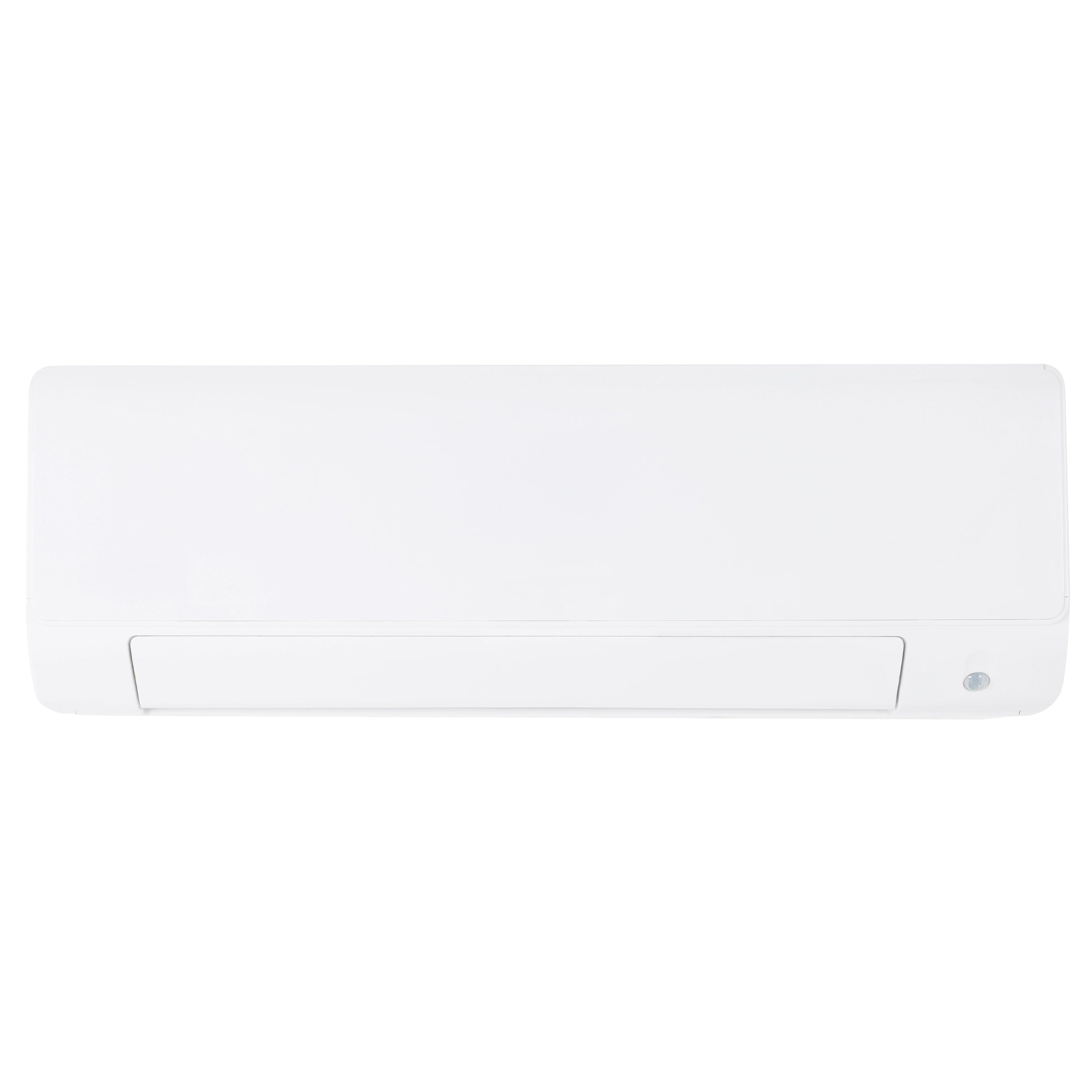

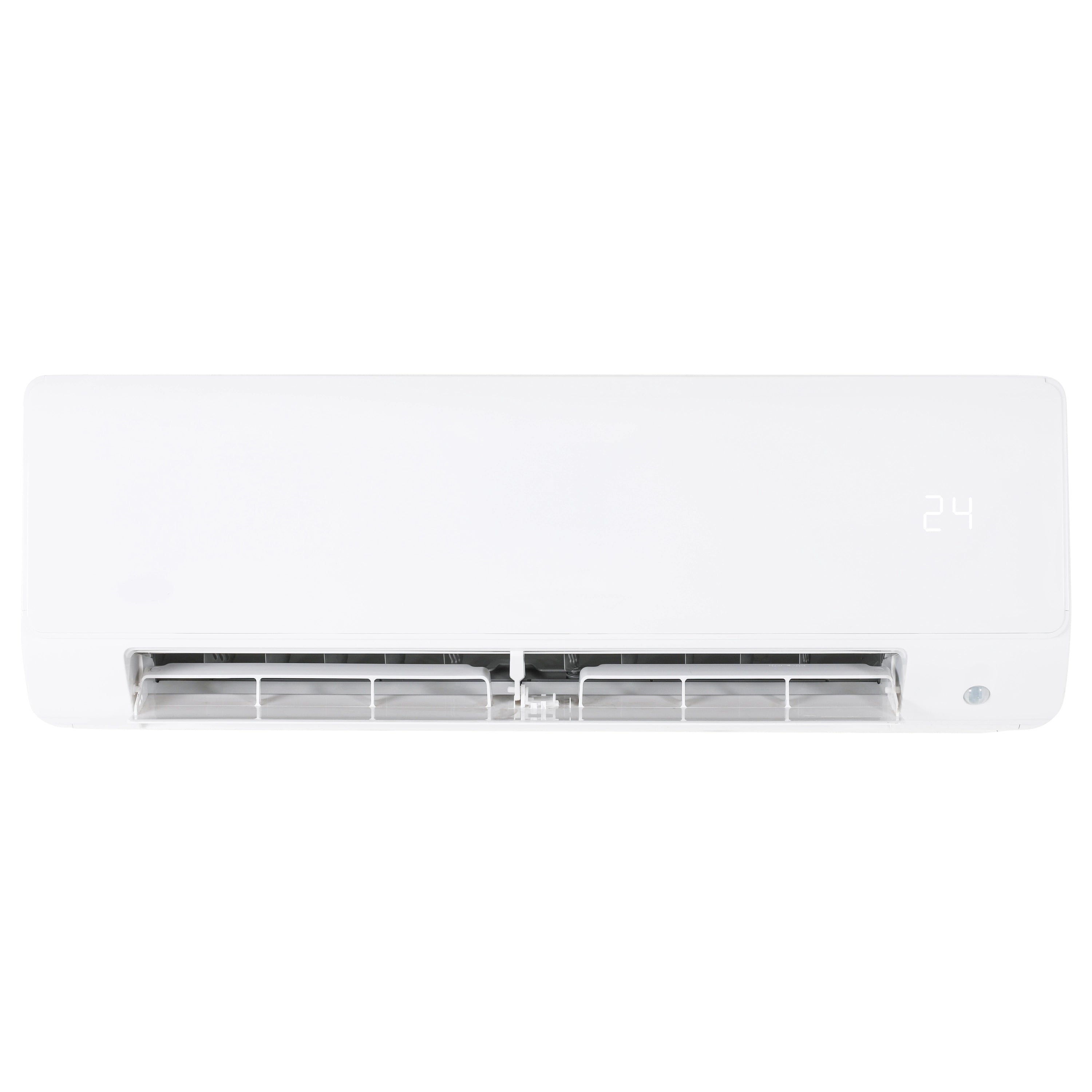

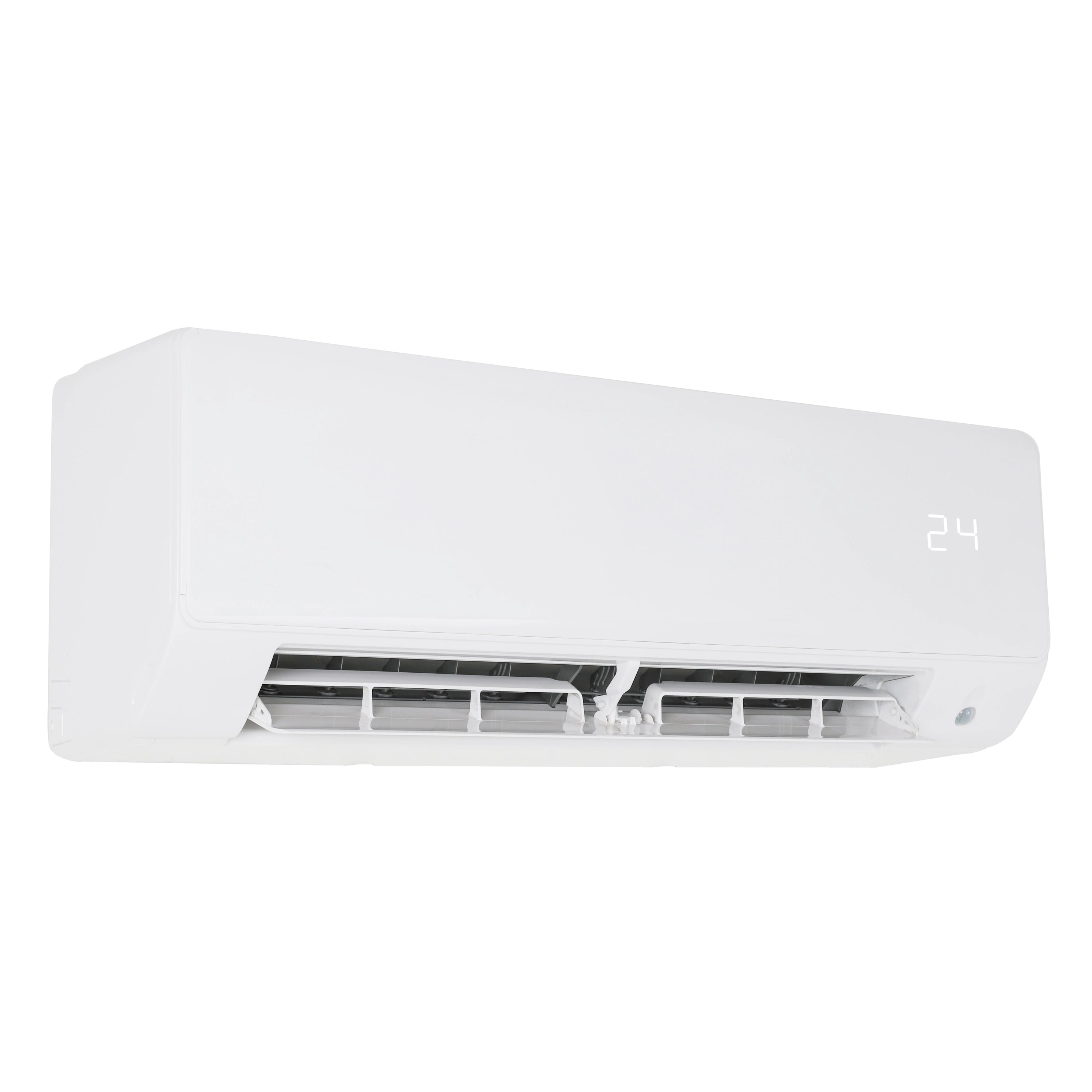

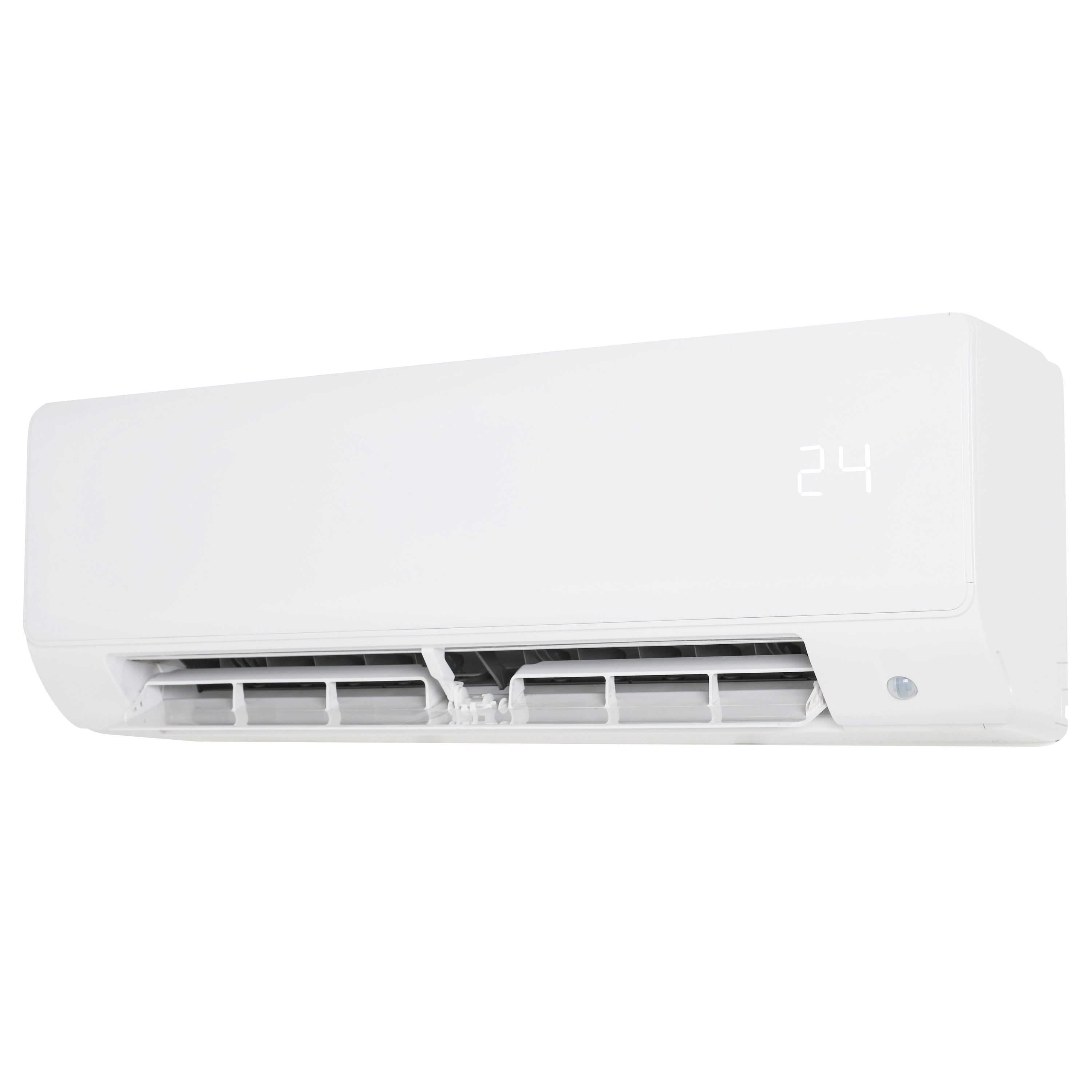

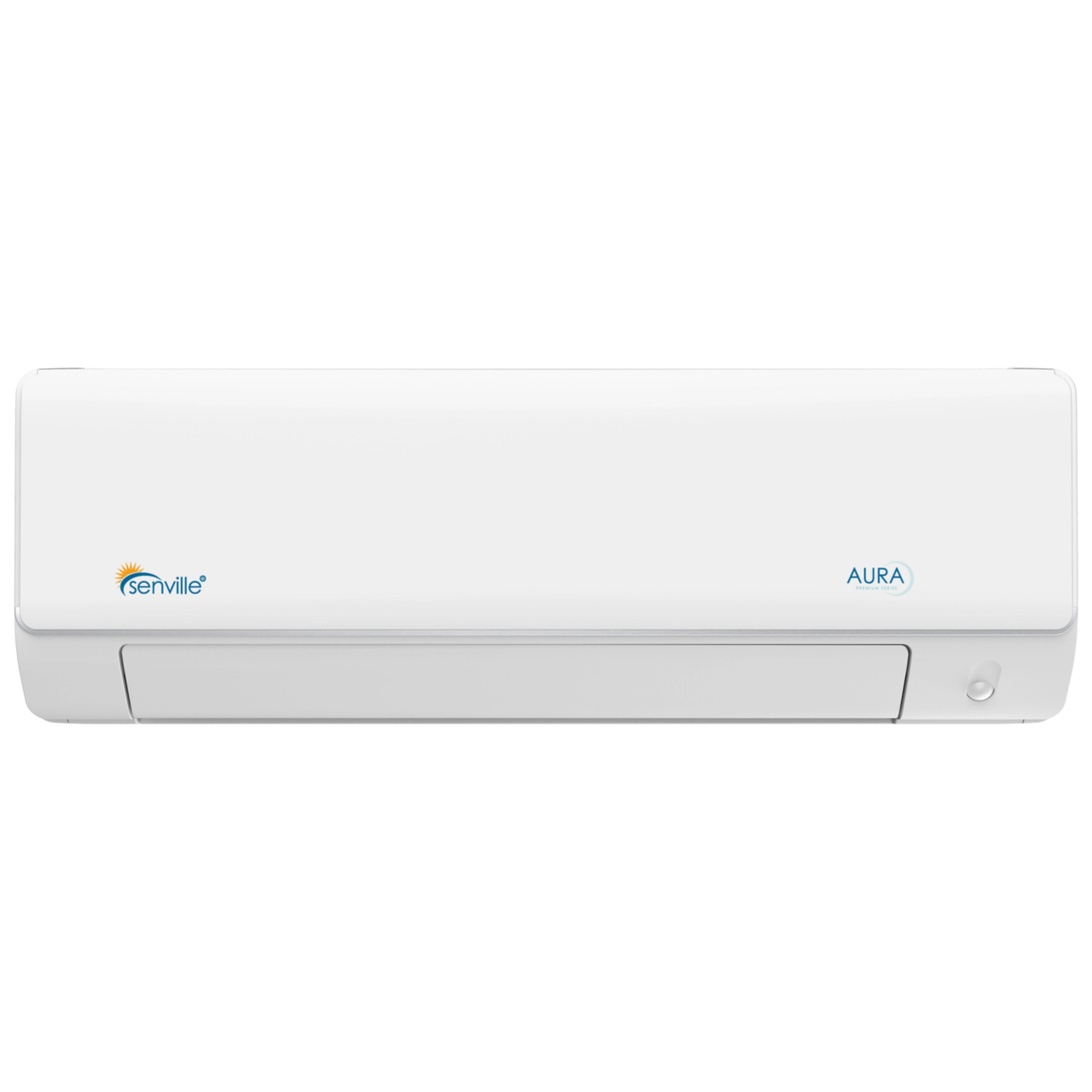

Air Handler | |
Indoor Dimensions (WxDxH) (in.) | 33.40 x 9.18 x 11.76 |
Indoor Weight | 22.93 Lbs. |
Indoor Air Flow (Turbo/H/M/L) CFM | 382.6 / 323.7 / 229.6 / 176.6 |
Indoor Noise Level (Turbo/H/M/L) dB | 44.0 / 36.5 / 32.5 / 22.0 |
Technical Specifications | |
Style | Ductless Mini Split AC With Heat Pump |
Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
Voltage Range | 187-253 |
SEER2 | 25.5 |
EER2 | 18 |
Cooling Capacity (BTU) | 6000 |
Cooling Range (BTU) | 2300~12600 |
Cooling Input Range (W) | 166~950 |
Cooling Current Range (A) | 0.9~4.6 |
Heating Capacity (BTU) | 7000 |
Heating Range (BTU) | 3000~11000 |
Heating Input Range (W) | 241~1090 |
Heating Current Range (A) | 1.3~4.8 |
HSPF2-4 | 14.8 |
HSPF2-5 | 11.5 |
COP W/W | 4.2 |
Minimum Circuit Ampacity (A) | 12 |
Max. Fuse (A) | 15 |
Moisture Removal (L/H) | 0.3 |
Minimum Outdoor Heating Temperature | -22°F / -30°C |
Refrigerant Type / Charge oz | R454B / 32.45 |

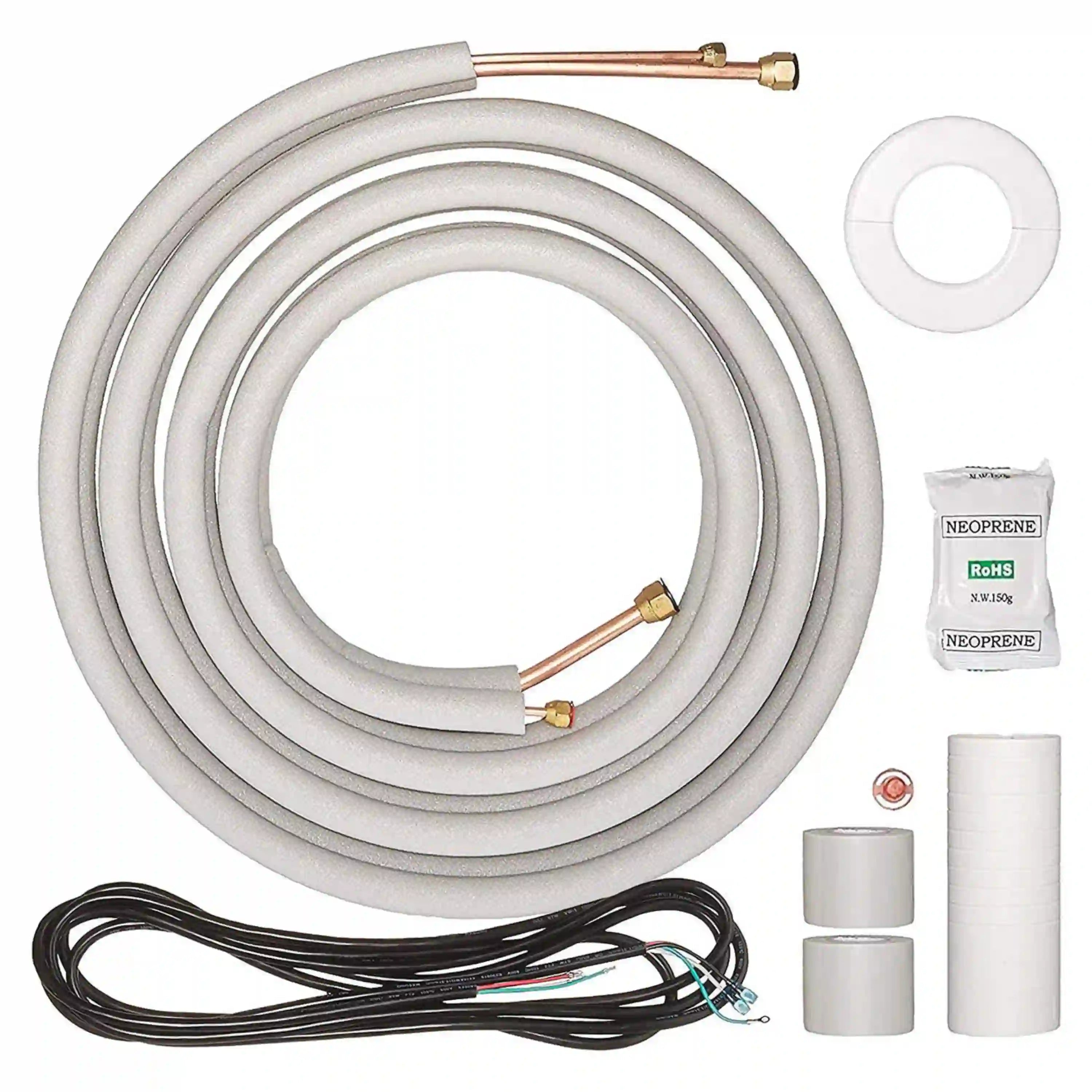

Refrigerant Pre-charge | 25 Ft. |
Connection Wiring | 14*4 AWG |

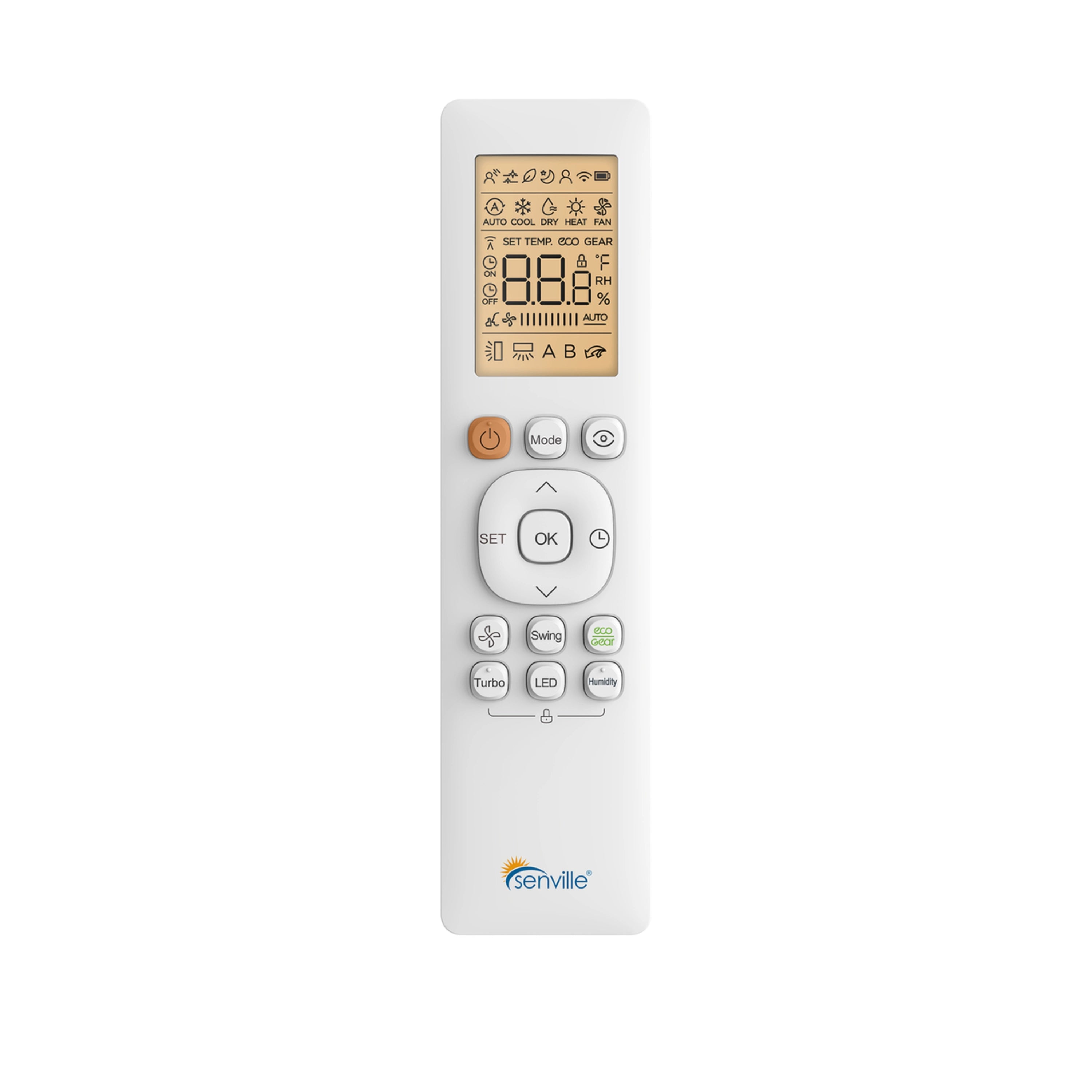

Thermostat Type | Remote Control |
Alexa | Enabled |
Warranty | 10 Years Compressor / 5 Years Parts |
Certification | ENERGY STAR Certified UL Certified |
What BTU rating should I choose for my air handler?
Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
6K |
Up to 200 Sq. Ft.
|
9K |
Up to 375 Sq. Ft.
|
12K | Up to 500 Sq. Ft. |
18K | Up to 750 Sq. Ft. |
24k | Up to 1,000 Sq. Ft. |
36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
