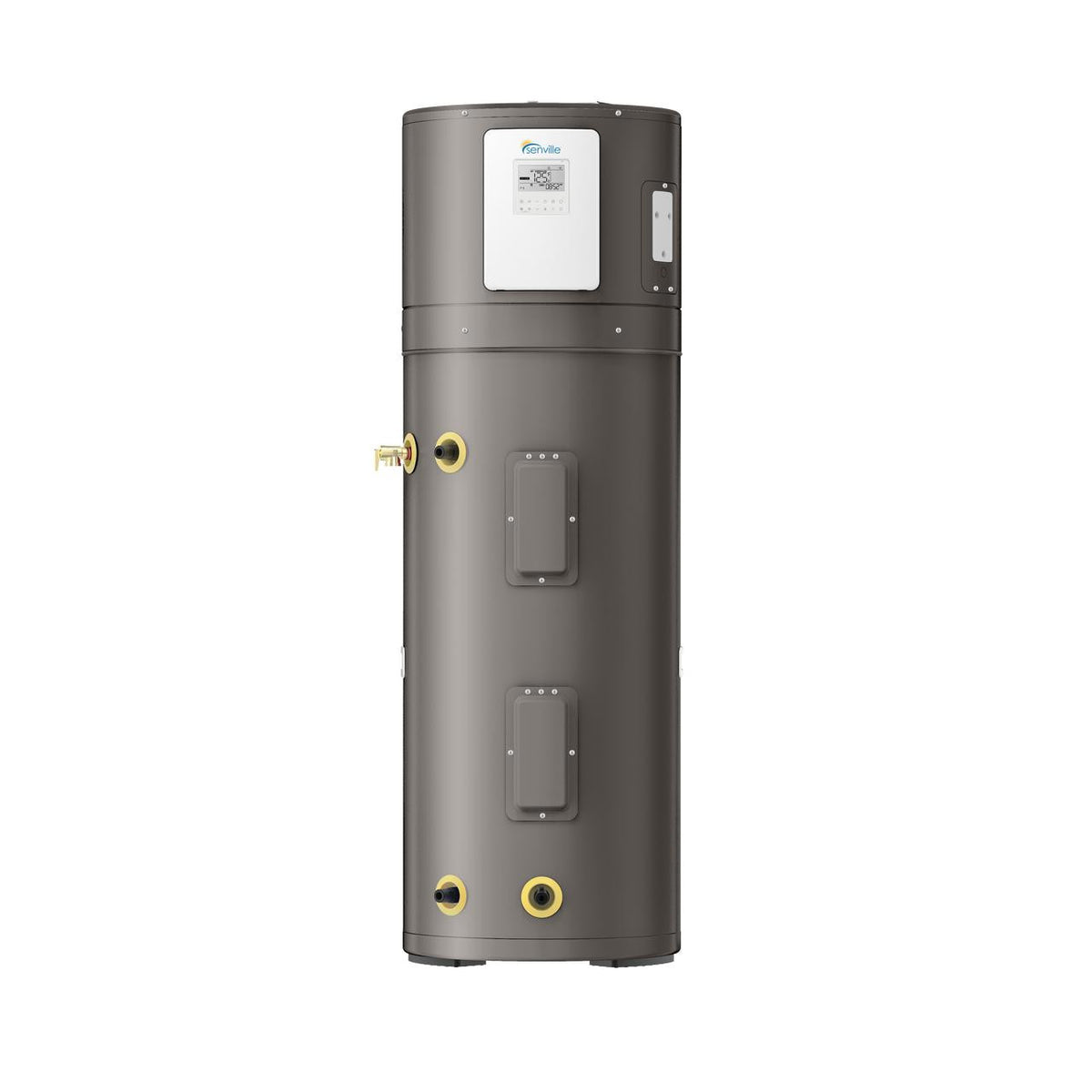

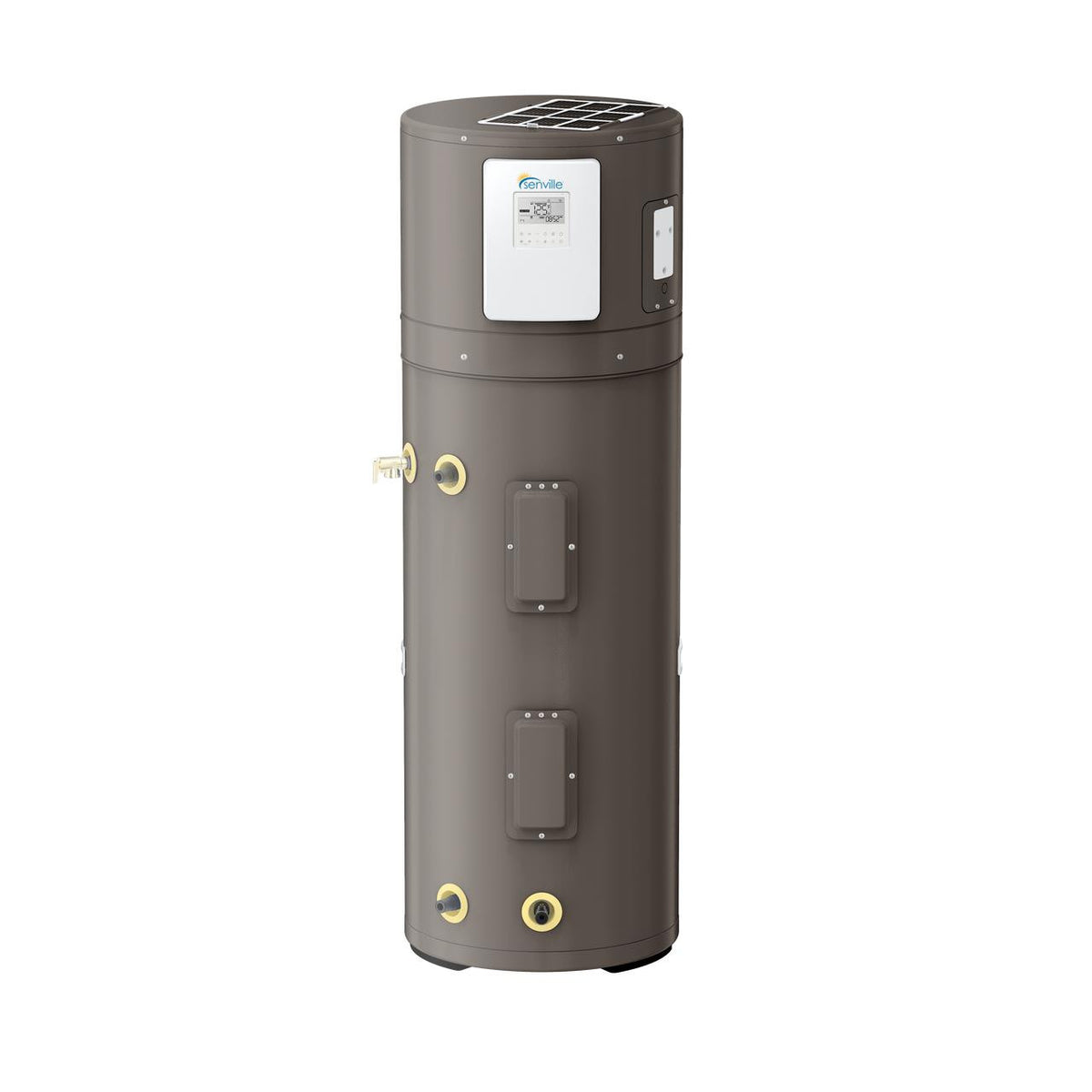

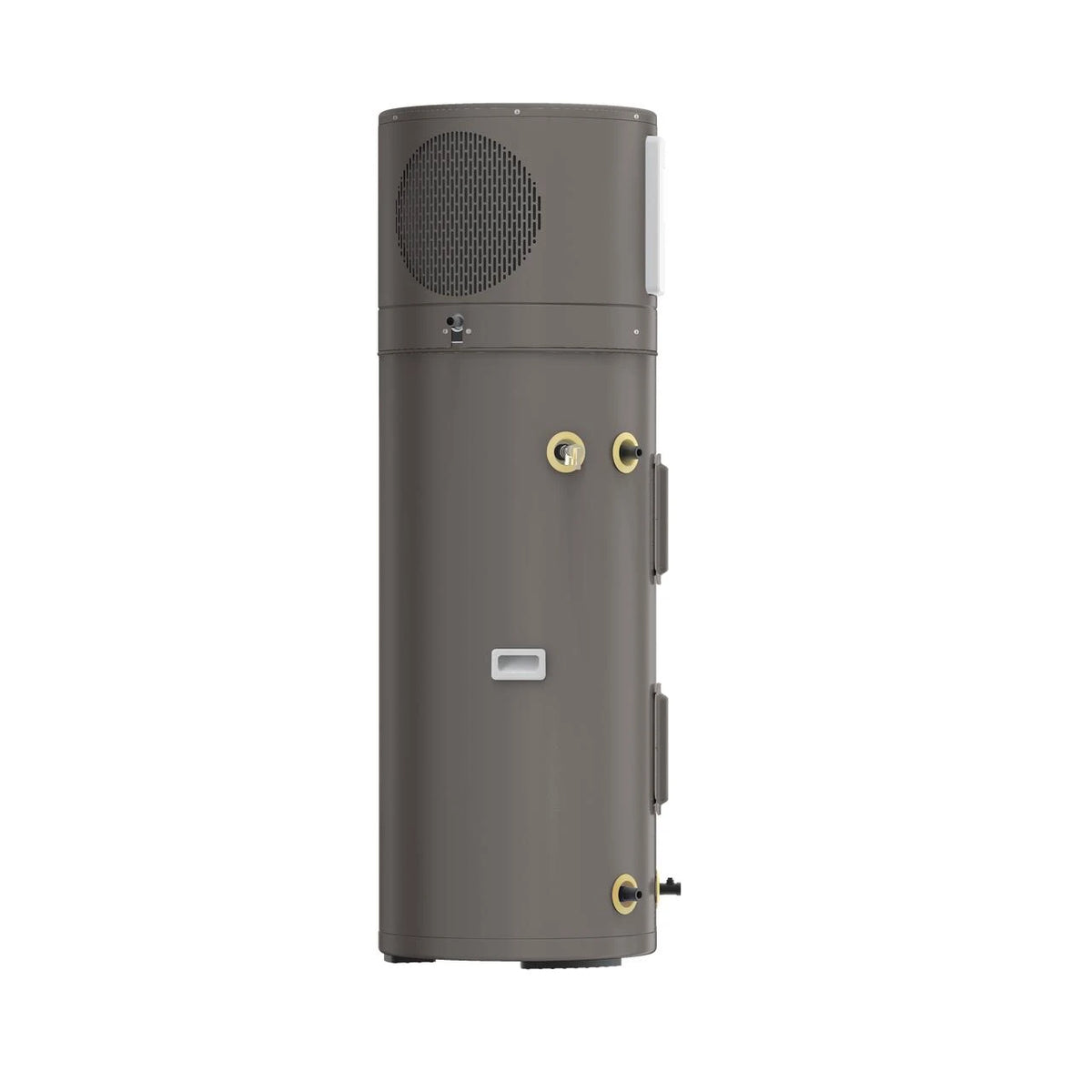

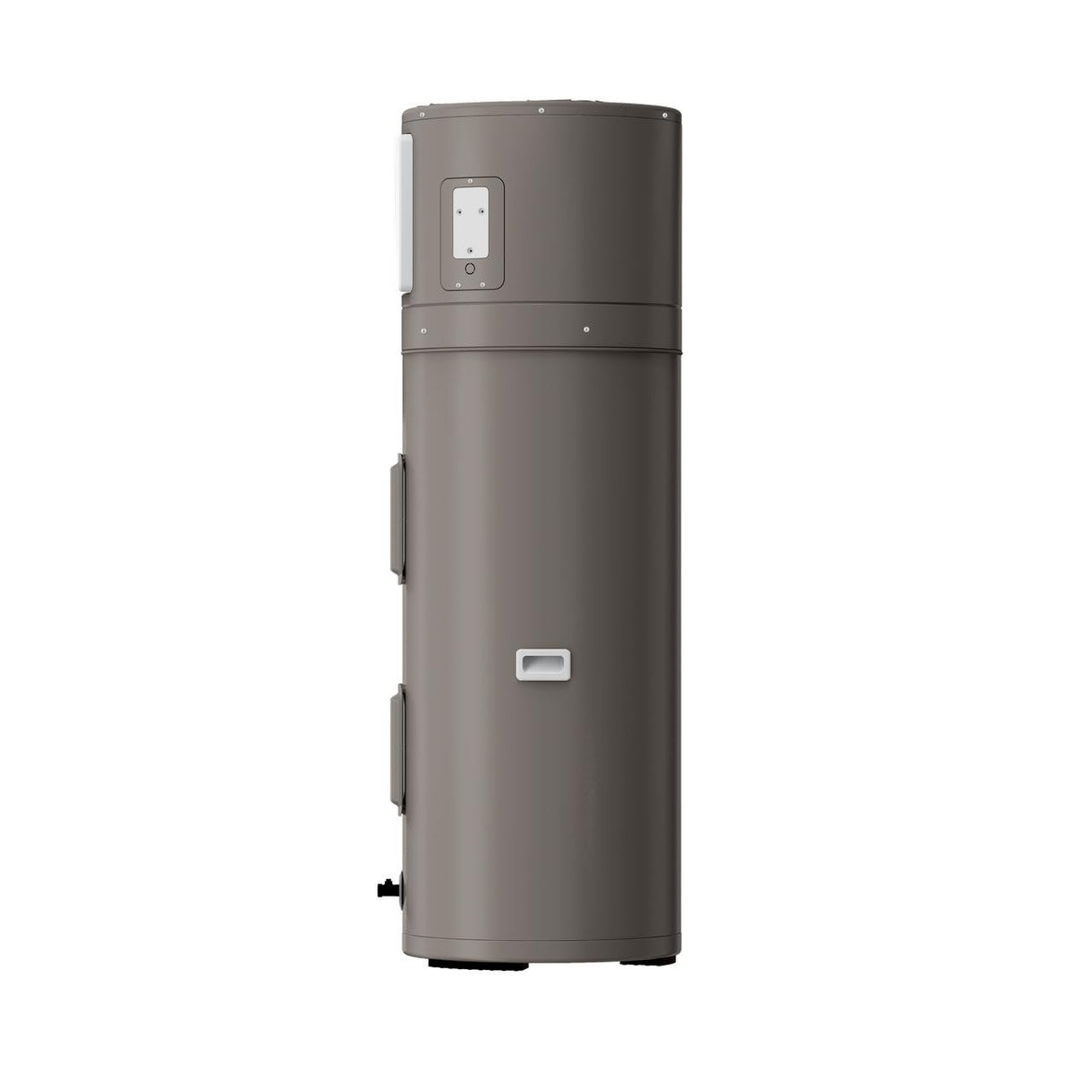

The Senville SENWH-HP50US is a 50 gallon heat pump water heater that draws heat from the surrounding air to heat water instead of relying on electric resistance alone. It earns a Uniform Energy Factor of 3.75 and a First Hour Rating of 69 gallons, so a household gets dependable hot water while spending noticeably less on electricity.
Backup 4500 W heating elements step in when demand outpaces the compressor, and the unit is ENERGY STAR certified, UL certified and AHRI listed. Senville backs it with a 7-year parts warranty and a 10-year compressor warranty.
Features
-
3.75 UEF - Heat pump technology delivers a Uniform Energy Factor of 3.75 for substantially lower electricity costs than a conventional electric tank.
-
69 Gallon First Hour Rating - Supplies 69 gallons of hot water in the first hour of heavy use, so back-to-back showers and appliances are covered.
-
ENERGY STAR Certified - ENERGY STAR certified, UL certified and AHRI listed, and marked by Senville as eligible for tax credit.
-
Hybrid Heating - A 1500 W compressor handles everyday heating while 4500 W upper and lower elements (240 V) add capacity when demand spikes, for a total power of 5500 W.
-
Cold Climate Efficiency of 3.0 - Holds a CCE rating of 3.0 for strong efficiency in cooler installation spaces.
-
Wide Ambient Operating Range - The heat pump operates in surrounding air temperatures of 37-109 °F, and the electric elements extend coverage to 5-115 °F.
-
27.5 GPH Recovery - Recovers 27.5 gallons per hour at a 90 °F temperature rise.
-
Adjustable Outlet Temperature - Water outlet temperature is selectable from 109-149 °F.
-
Quiet 49.5 dBA Operation - Runs at 49.5 dBA for quiet operation.
-
7-Year Parts / 10-Year Compressor Warranty - Backed by a 7-year parts warranty and a 10-year compressor warranty.
Please Note
- Professional installation by a licensed plumber and electrician is recommended, and installation must follow local codes and permit requirements.
- Requires a dedicated 240 V, single-phase, 60 Hz circuit (operating range 208-240 V) with 10 AWG x 3 wiring. Minimum circuit ampacity is 23.6 A at 208 V or 26.8 A at 240 V; maximum fuse is 25 A at 208 V or 30 A at 240 V.
- Heat pump mode operates in ambient air temperatures of 37-109 °F; the electric elements cover 5-115 °F. Install in a space that stays within these ranges for best efficiency.
- Allow installation clearances of 0 in at the back, 6 in at the sides and 20 in above the unit. The unit measures 66.4 in high by 21.70 in in diameter and weighs 218 lb, so confirm doorway and ceiling clearance before delivery.
- Water inlet and outlet connections are 3/4 in, and the condensate drain hose connection is 3/4 in. A condensate drain is required.
- Tank capacity is 50 gallons (45 gal nominal). Uses R134a refrigerant with an 18.34 oz charge.
- This listing is for the SENWH-HP50US water heater only; installation hardware, expansion tank and drain pan are not included.
- Senville lists this model as eligible for tax credit. Confirm eligibility and requirements for your situation with a tax professional.
