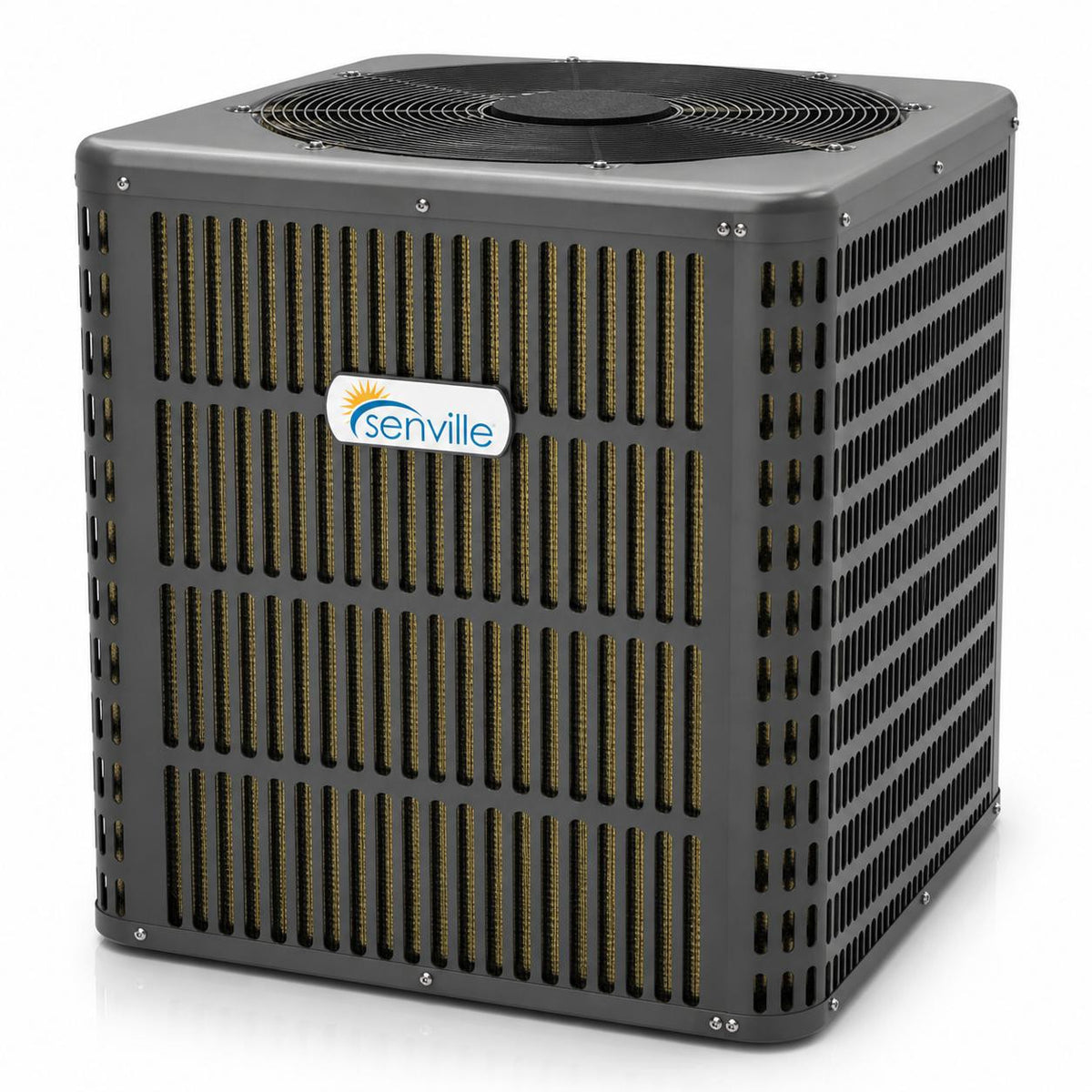

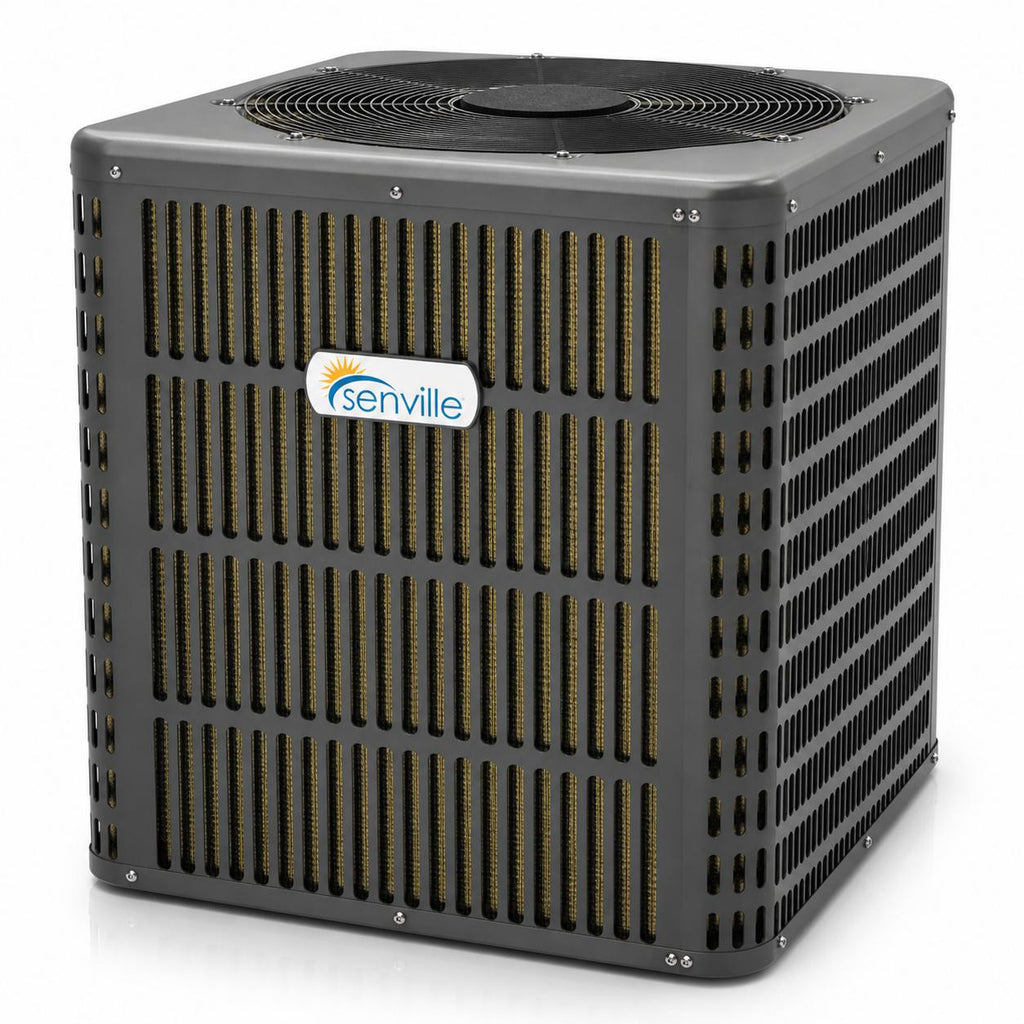

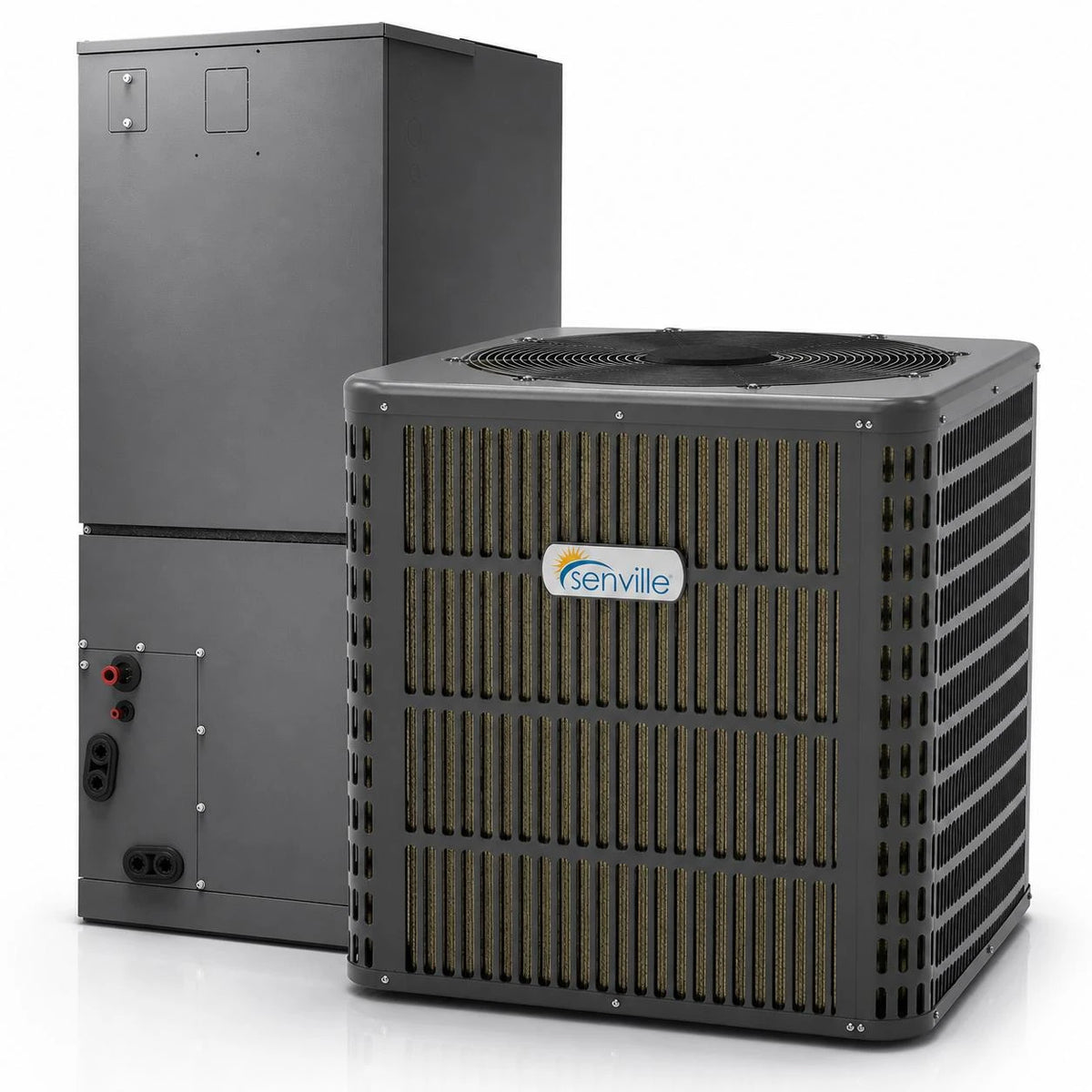

Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)
Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)
Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)
Roll over image to zoom in Click on image to zoom
Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)
Click on image to zoom

Senville 48K BTU Top Discharge Central Split System with 17.6 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-48TD)

SenvilleSKU: SENTC-48TD-16
Price:
$3,999.99 $5,199.99SAVE 23%
Heat Kit: None
Type:
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Senville SENTC-48TD is a 4 ton (48,000 BTU) top discharge central heat pump system engineered for larger residential spaces. The outdoor condenser pairs with a ducted indoor air handler to deliver strong, consistent airflow and efficient temperature control through your home's duct system, with the capacity to keep up during peak seasonal demand. A Twin-Rotary DC Inverter compressor matches output to the load, and the Hyper Heat design keeps heating down to -4°F outdoor.

Rated at 17.6 SEER2, 11.3 EER2 and 9.1 HSPF2 (Region 4), the system runs on 208/230V single-phase power and uses R-32 refrigerant. Select the line set length (16 Ft. or 50 Ft.) and an optional auxiliary electric heat kit (5K, 10K, 15K or 20K) to fit the installation.

Features

  • 4 Ton Capacity - Rated for 47,000 BTU/h cooling and 50,000 BTU/h heating, with a cooling range of 15,000 – 49,000 BTU/h and a heating range of 11,000 – 52,000 BTU/h.
  • Hyper Heat Cold-Climate Heating - Heats in outdoor temperatures down to -4°F, delivering 36,000 BTU/h at 5°F and 32,000 BTU/h at -4°F.
  • 17.6 SEER2 Efficiency - Rated 17.6 SEER2, 11.3 EER2 and 9.1 HSPF2 (Region 4) with a heating COP of 3.39 W/W.
  • Twin-Rotary DC Inverter Compressor - GMCC inverter compressor varies its output to match the load for steady temperatures and efficient operation.
  • Top Discharge Condenser - Outdoor unit discharges air upward and moves up to 3,050 CFM at 60 dB(A).

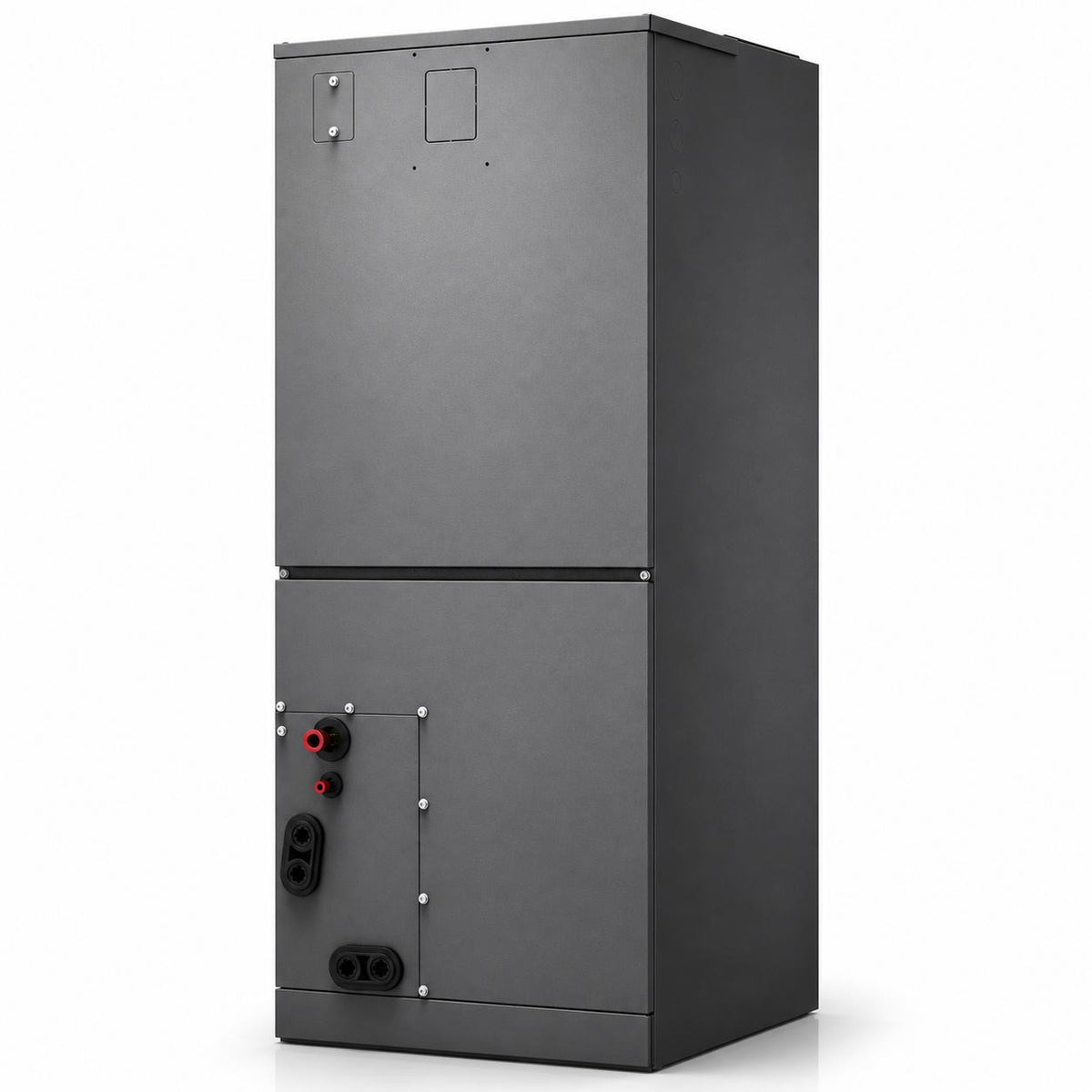

  • Ducted Air Handler - Indoor unit delivers 1,690 / 750 CFM on high / low at 51 / 44 dB(A) for whole-home duct systems.
  • Wide Cooling Range - Cools in outdoor temperatures from 5°F to 131°F and still delivers 40,000 BTU/h at 109°F.
  • R-32 Refrigerant - Factory charged with 3.4 kg (119.9 oz) of R-32; supports pipe runs up to 246 ft (75 m) and a 98.4 ft (30 m) height difference with flared connections.
  • AHRI Certified - AHRI certificate and EnergyGuide label are available for the matched system.

Please Note

  • Professional installation by a licensed HVAC technician is required.
  • Package includes the outdoor heat pump condenser and the indoor ducted air handler. The Line Set Length option selects the installation kit (16 Ft. or 50 Ft.) shipped with the system.
  • The Heat Kit option adds an auxiliary electric heater for supplemental heat: choose None, 5K (5 kW), 10K (10 kW), 15K (15 kW) or 20K (20 kW).
  • Requires 208/230V, 60 Hz, single-phase power. Outdoor unit MCA / MOP is 36 A / 40 A; indoor unit MCA / MOP is 7 A / 15 A. An auxiliary heat kit adds to the indoor electrical requirement; consult the installation manual.
  • Indoor and outdoor units connect with AWG 25×3 shielded communication wiring. Liquid / gas line sizes are 3/8 in / 3/4 in.
  • Rated capacities are nominal; actual output varies with outdoor temperature as listed in the specifications.
DIMENSIONS & WEIGHT
Indoor Unit (W × D × H)
24-31/64" × 21-1/32" × 52-63/64"
Indoor Net / Gross Weight
164 / 181 lbs
Outdoor Unit (W × D × H)
29-9/64" × 29-9/64" × 32-7/8"
Outdoor Net / Gross Weight
187 / 196 lbs
EFFICIENCY RATINGS
SEER2
17.6 BTU/W
EER2
11.3 BTU/W
HSPF2 (Region 4)
9.1 BTU/W
COP (Heating)
3.39 W/W
COOLING PERFORMANCE
Rated Cooling Capacity
47,000 BTU/h
Cooling Capacity Range
15,000 – 49,000 BTU/h
Cooling Input Power
4,159 W (range: 830–5,700 W)
Capacity @ 109°F Outdoor
40,000 BTU/h
Capacity @ 5°F Outdoor
48,000 BTU/h
Cooling Operating Range (Outdoor)
5°F – 131°F
HEATING PERFORMANCE
Rated Heating Capacity
50,000 BTU/h
Heating Capacity Range
11,000 – 52,000 BTU/h
Heating Input Power
4,320 W (range: 830–5,700 W)
Capacity @ 47°F Outdoor
50,000 BTU/h
Capacity @ 17°F Outdoor
30,000 BTU/h
Capacity @ 5°F Outdoor
36,000 BTU/h
Capacity @ –4°F Outdoor
32,000 BTU/h
Heating Operating Range (Outdoor)
–4°F – 75°F
AIRFLOW
Indoor Airflow — High / Low
1,690 / 750 CFM
Outdoor Airflow (Max)
3,050 CFM
NOISE LEVELS
Indoor Noise Level — High / Low
51 / 44 dB(A)
Outdoor Noise Level
60 dB(A)
ELECTRICAL REQUIREMENTS
Power Supply
208/230V, 60 Hz, 1-Phase
Cooling Current Draw
18.8 A (range: 3.7–25.3 A)
Indoor MCA / MOP
7 A / 15 A
Outdoor MCA / MOP
36 A / 40 A
Compressor RLA
6.8 A
Outdoor Fan Motor RLA / Output
2.3 A / 200 W
Indoor Fan Motor RLA / Output
5.4 A / 560 W
REFRIGERANT & PIPING
Refrigerant Type
R-32
Factory Refrigerant Charge
3.4 kg (119.9 oz)
Additional Charge Rate
0.52 oz/ft (48 g/m)
Liquid / Gas Line Size
3/8 in / 3/4 in
Max. Pipe Length
246 ft (75 m)
Max. Height Difference
98.4 ft (30 m)
Connection Method
Flared
Throttle Type (Outdoor / Indoor)
EXV / Piston
COMPRESSOR
Compressor Type
Twin-Rotary DC Inverter
Compressor Model / Brand
KTQ420D41SN5A1 / GMCC
CONTROLS & CONNECTIVITY
Communication Wiring
AWG 25×3 Shielded
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Senville Dealer
Full manufacturer warranty on every Senville product we sell.
Explore Senville
Senville

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Central Split System FAQs

What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
