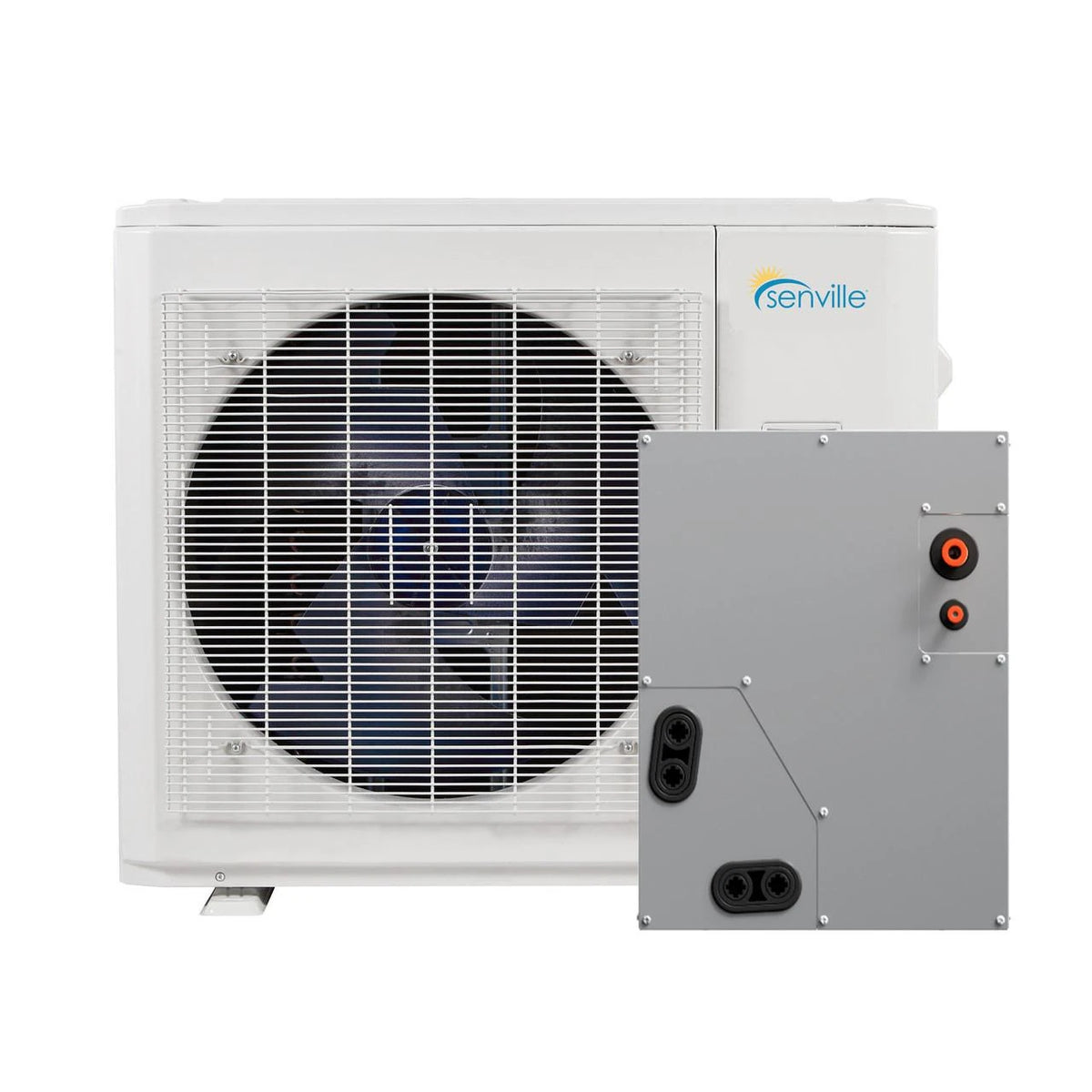

Senville 48K BTU Central Split System with 16.5 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-48CO)

The Senville SENDC-48CO central split system pairs a 4 ton (48,000 BTU) Senville inverter heat pump condenser with the SENDC-48CO evaporator A-coil. It is built for homes that already have a furnace: the A-coil mounts on the existing furnace, the furnace blower moves the air, and the outdoor heat pump delivers cooling and heating through the ductwork you already have, so there is no air handler to buy or install. The matched condenser and coil combination carries an AHRI certificate and EnergyGuide label. The condenser is rated at 16.5 SEER2 and 10.5 EER2 for cooling and 9.5 HSPF2-4 for heating, keeps heating down to -22°F (-30°C), and is engineered to cool spaces up to 2,000 square feet.

The SENDC-48CO A-coil installs in a horizontal or vertical position, uses a durable aluminum coil, and includes an advanced R454B refrigerant sensor. It is designed for easy maintenance and supports multiple control options, including a WiFi-enabled wired controller or a compatible third-party 24V thermostat. Choose a 16 Ft., 25 Ft. or 50 Ft. line set to match your run, or select No Line Set if your installer is supplying the refrigerant lines.

Features

• Matched Condenser and A-Coil - The heat pump condenser and SENDC-48CO coil are sold as a matched HVAC combination backed by an AHRI certificate and EnergyGuide label.
• 16.5 SEER2 Cooling - The 48,000 BTU heat pump condenser is rated at 16.5 SEER2 and 10.5 EER2.
• Inverter Variable-Speed Compressor - The variable-speed compressor powered by Inverter Technology modulates across a 15600~51000 BTU cooling range and a 15500~57300 BTU heating range instead of cycling on and off.
• Heating Down to -22°F - Heat pump heating is rated at 9.5 HSPF2-4 and 3.4 COP, with a 50,000 BTU heating capacity and consistent heating down to -22°F (-30°C).
• Works With Your Existing Furnace - The A-coil mounts on the furnace and uses the furnace blower to move air, so no separate air handler is needed.
• Multi-Position A-Coil - The SENDC-48CO coil installs in a horizontal or vertical position to suit the furnace layout.
• Durable Aluminum Coil - Aluminum coil construction designed for easy maintenance.
• R454B Refrigerant Sensor - The system runs on R454B refrigerant, and the coil includes an advanced R454B refrigerant sensor.
• Flexible Controls - Use a WiFi-enabled wired controller or connect a compatible third-party 24V thermostat.
• 10-Year Compressor Warranty - Backed by a 10-year compressor warranty and a 5-year parts warranty.

Please Note

• Professional installation is required. Senville recommends this system for professional installation only.
• This package includes the heat pump condenser and the SENDC-48CO evaporator A-coil only. No furnace or air handler is included; an existing furnace with a working blower is required to move air through the coil.
• Line Set Length option: choose a 16 Ft., 25 Ft. or 50 Ft. line set, or select No Line Set if your installer is supplying the refrigerant lines.
• The condenser requires a 208/230V, 1Ph, 60Hz power supply with a 38 A minimum circuit ampacity and a 40 A maximum fuse. The coil controls are compatible with 24V thermostats. Have your installer confirm wiring against the unit's rating plate and installation manual.
• Capacity, efficiency and electrical figures listed are Senville's published specifications for its 48,000 BTU heat pump condenser. The certified ratings for this specific condenser and A-coil combination are published on its AHRI certificate and EnergyGuide label.
• The 2,000 sq. ft. coverage is Senville's rating for the condenser; actual coverage depends on your climate, insulation, ductwork and furnace blower, so have your installer confirm sizing before purchase.
