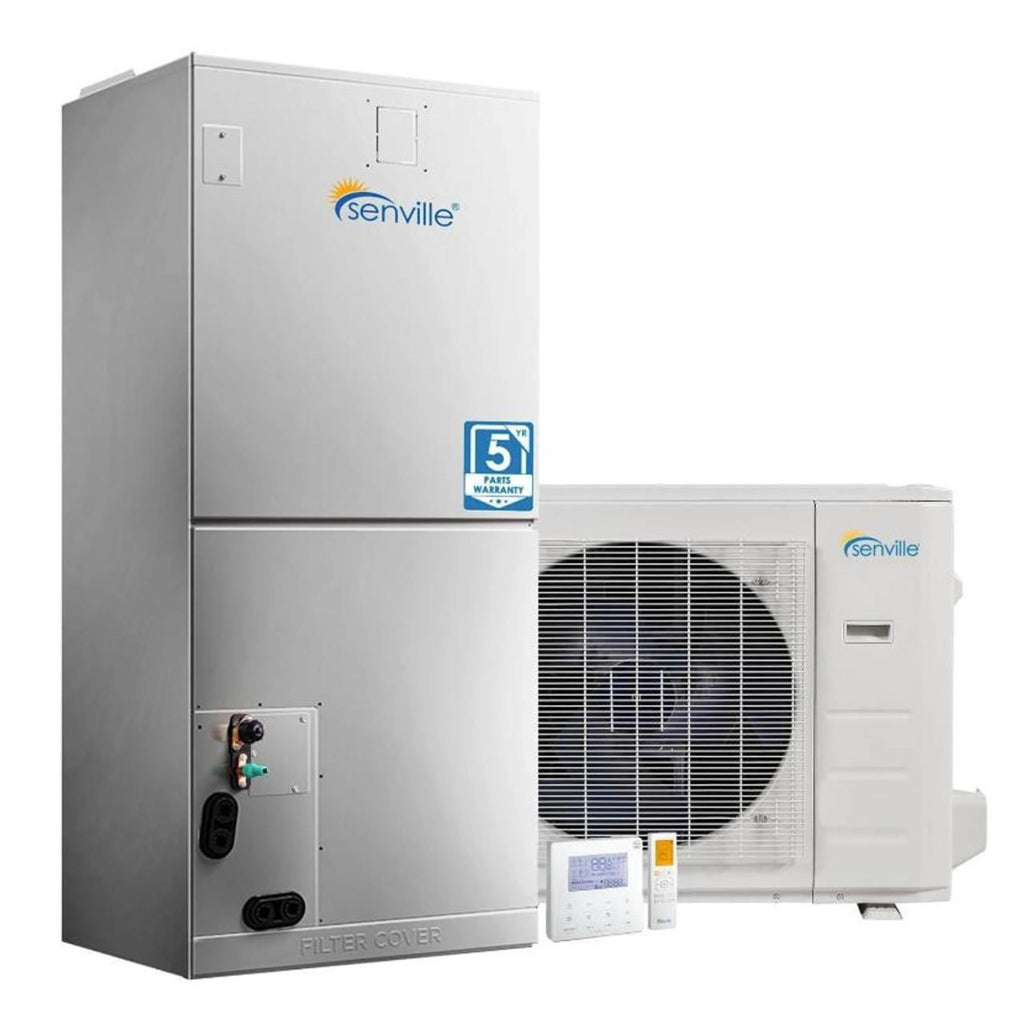

Enhance your current central air conditioning system by converting it into an ultra-efficient mini-split setup with our advanced variable-speed compressor powered by Inverter Technology. Say farewell to outdated, energy-wasting central AC units.

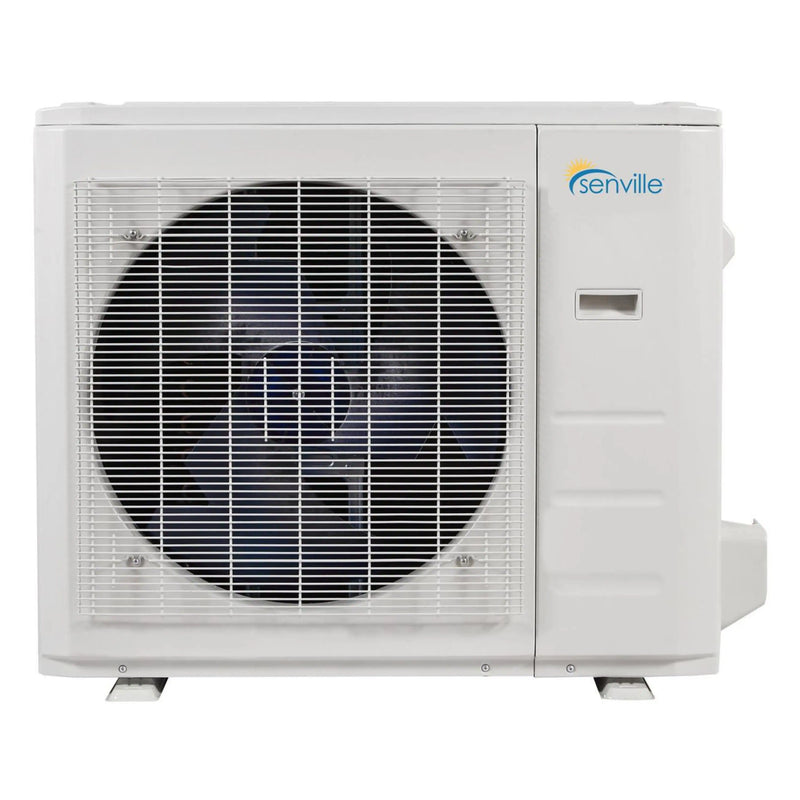

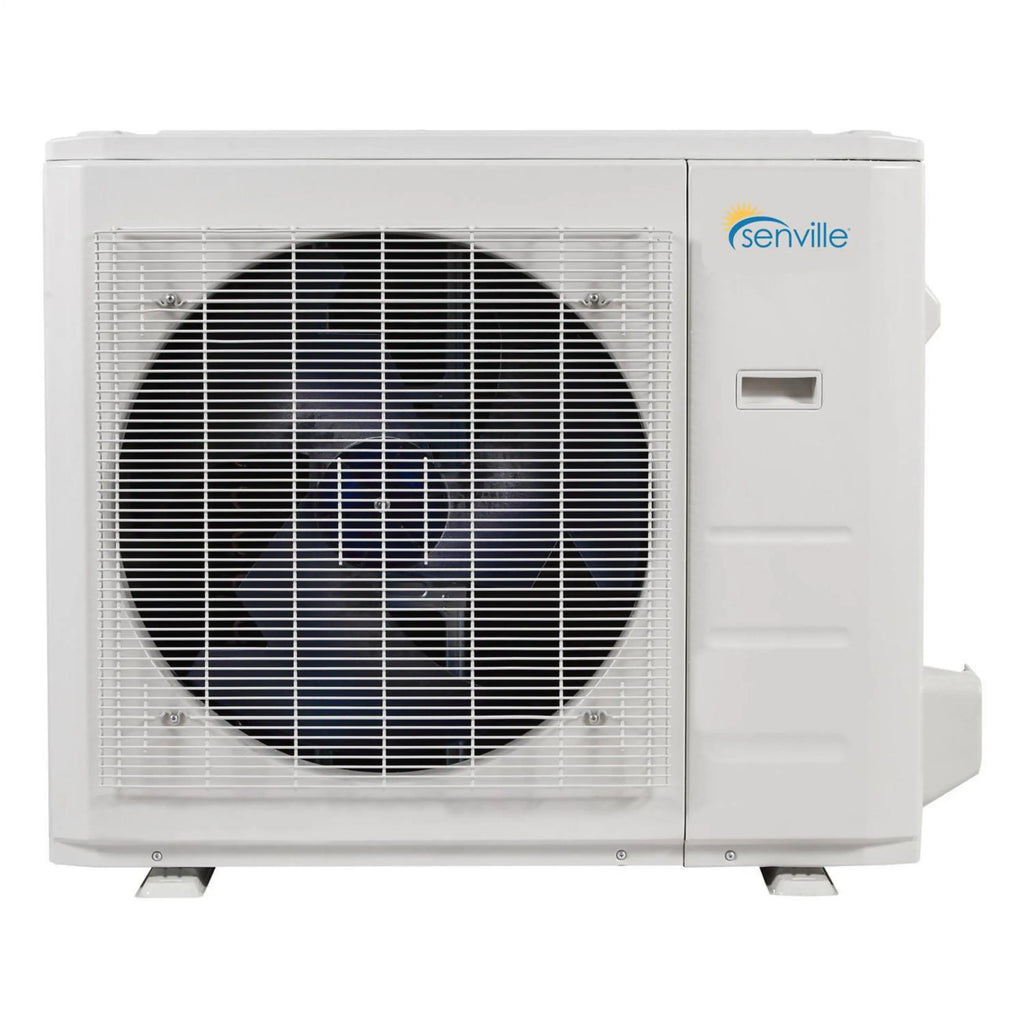

| Condenser | |
| Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |
| Air Flow (Max) CFM | 3037.1 |
| Noise Level dB | 65 |
| Weight | 201.06 Lbs |

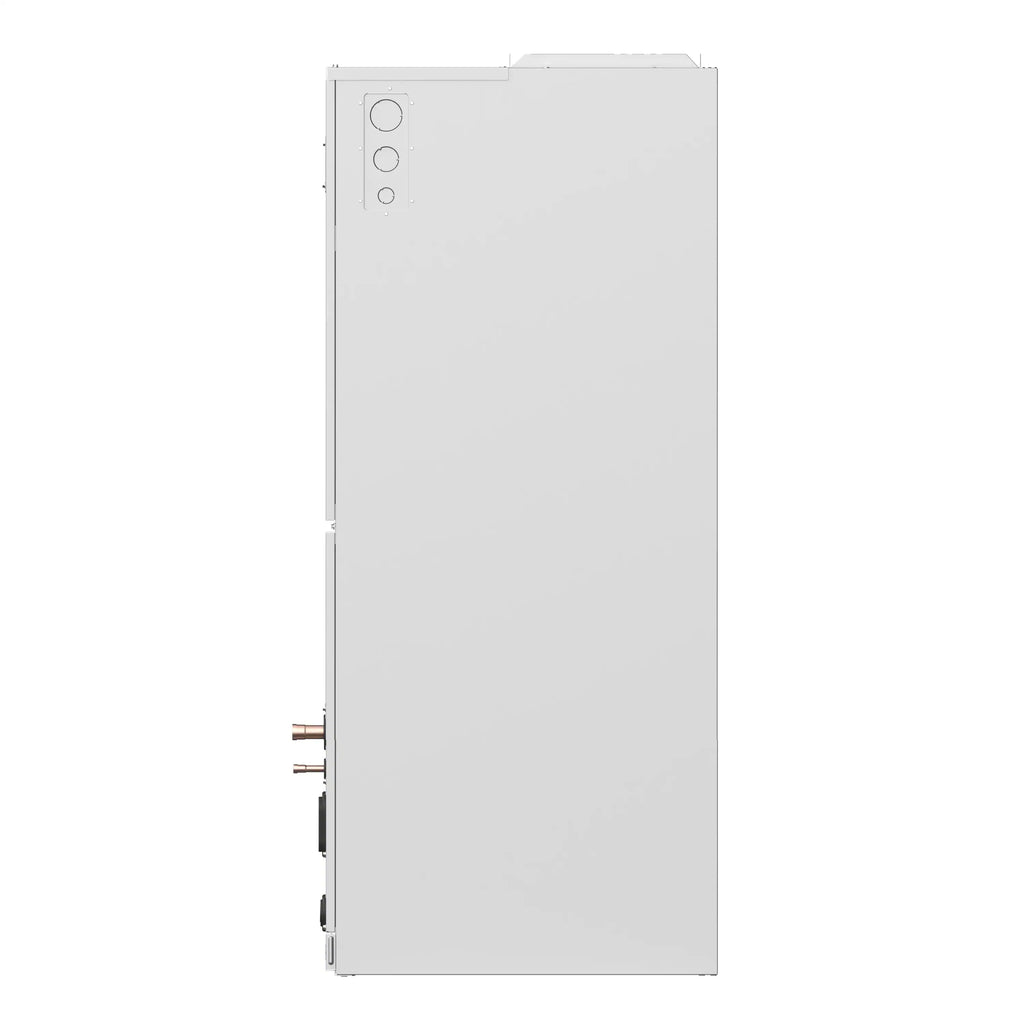

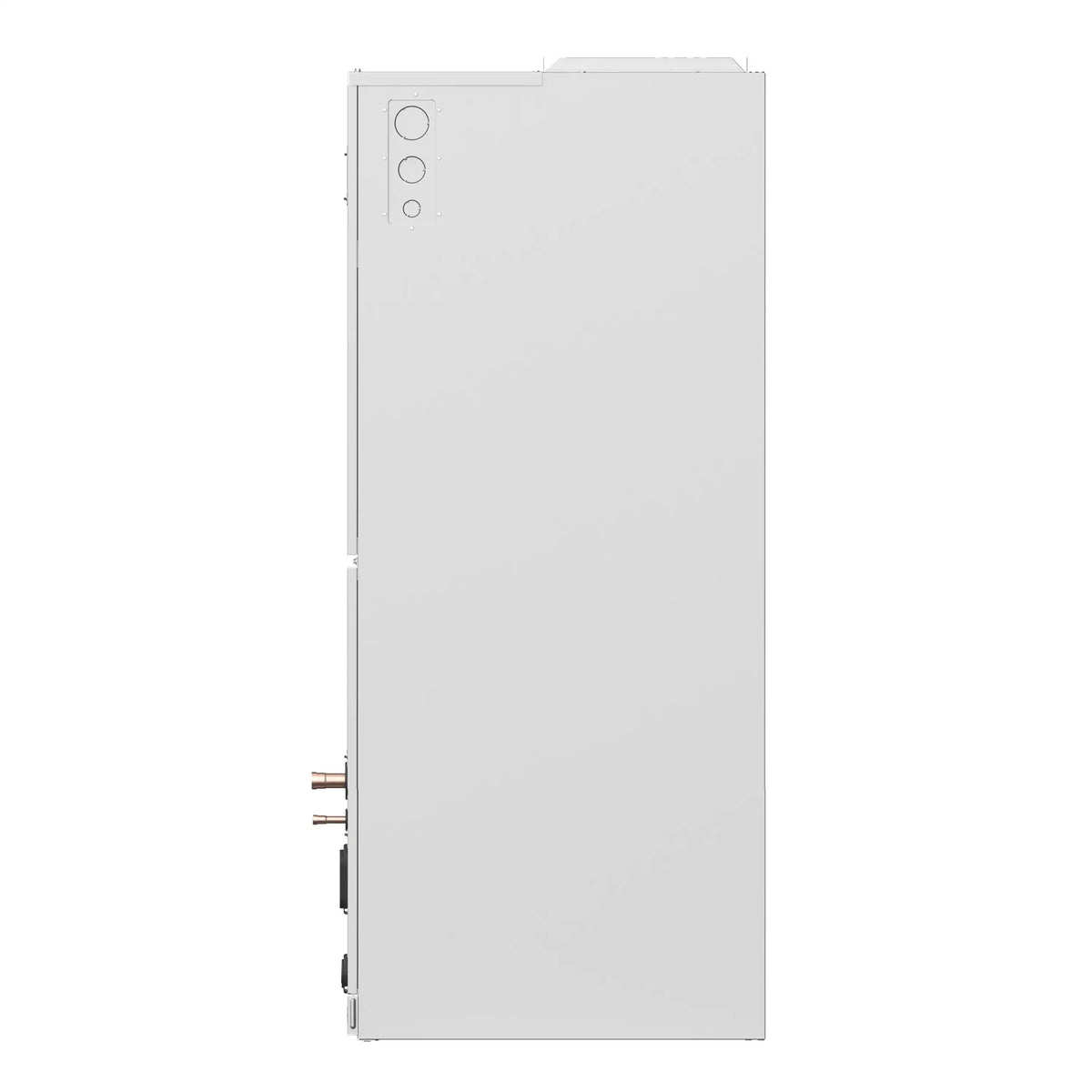

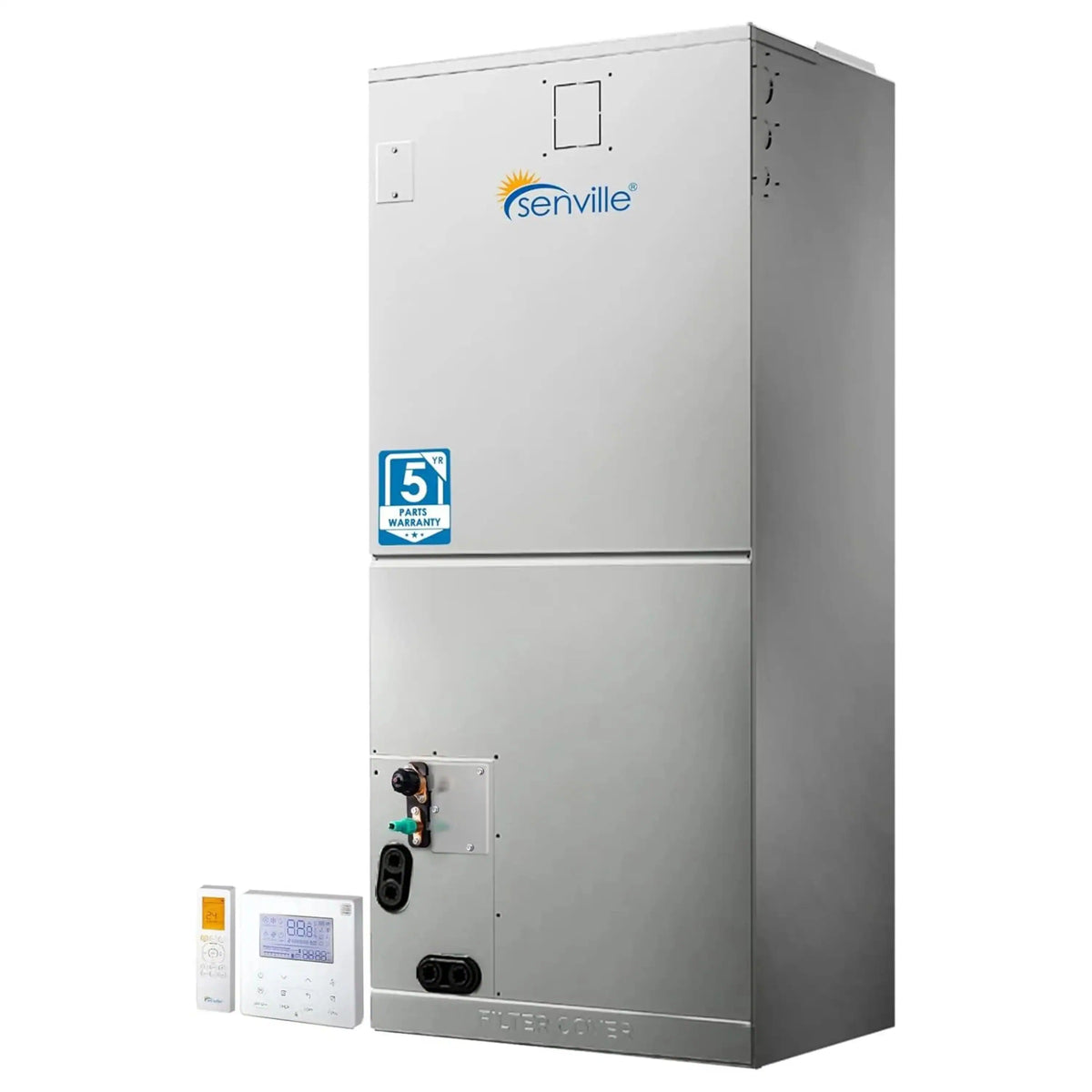

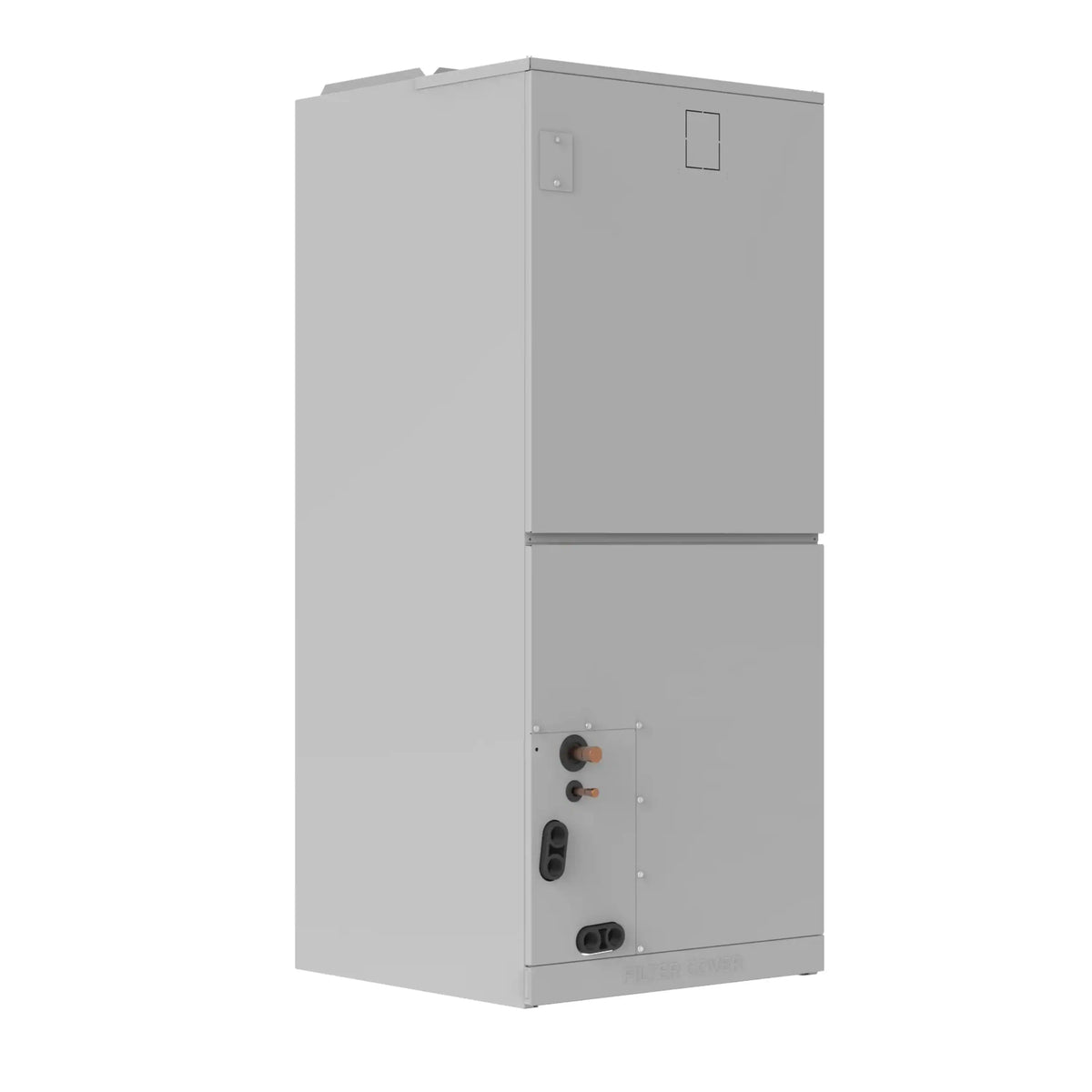

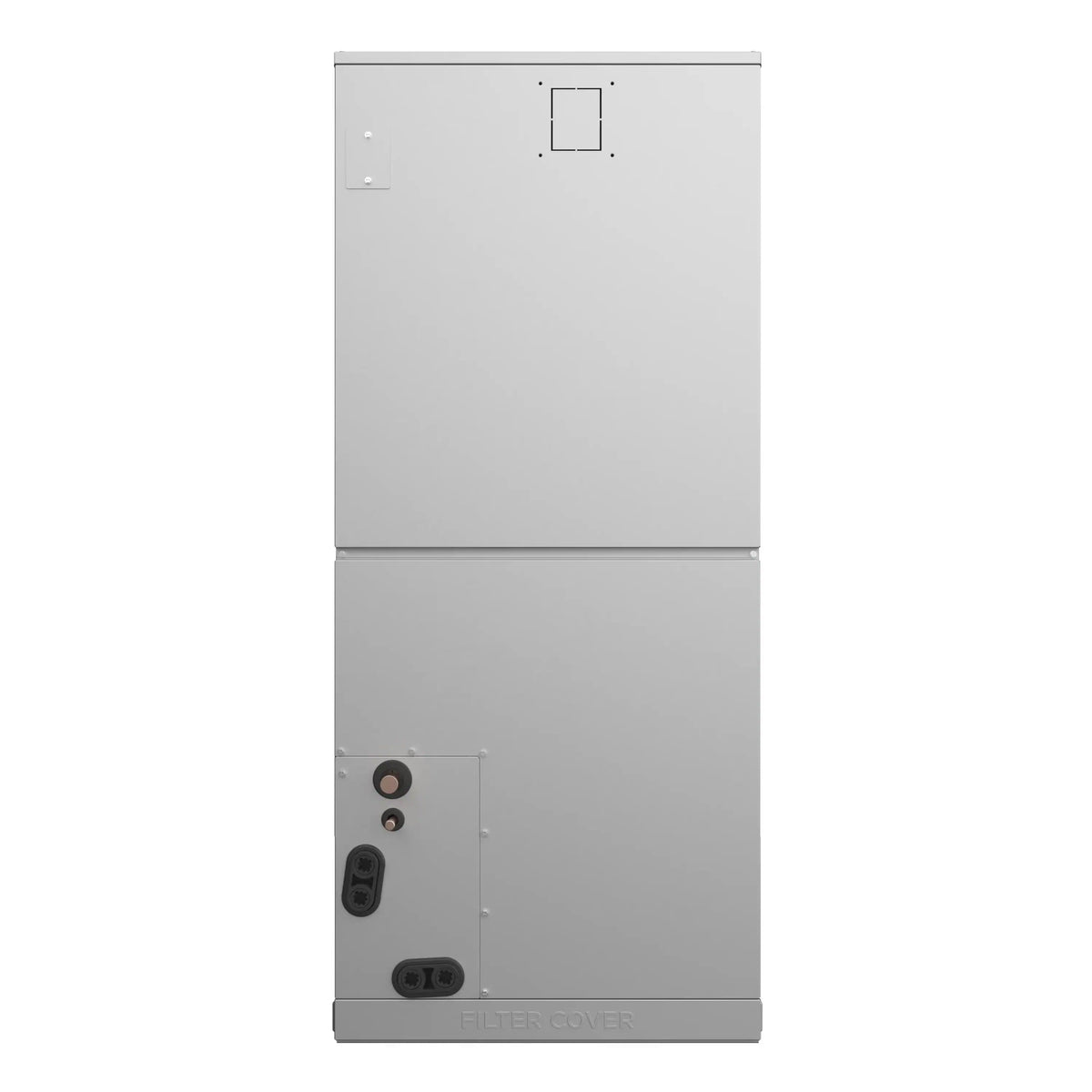

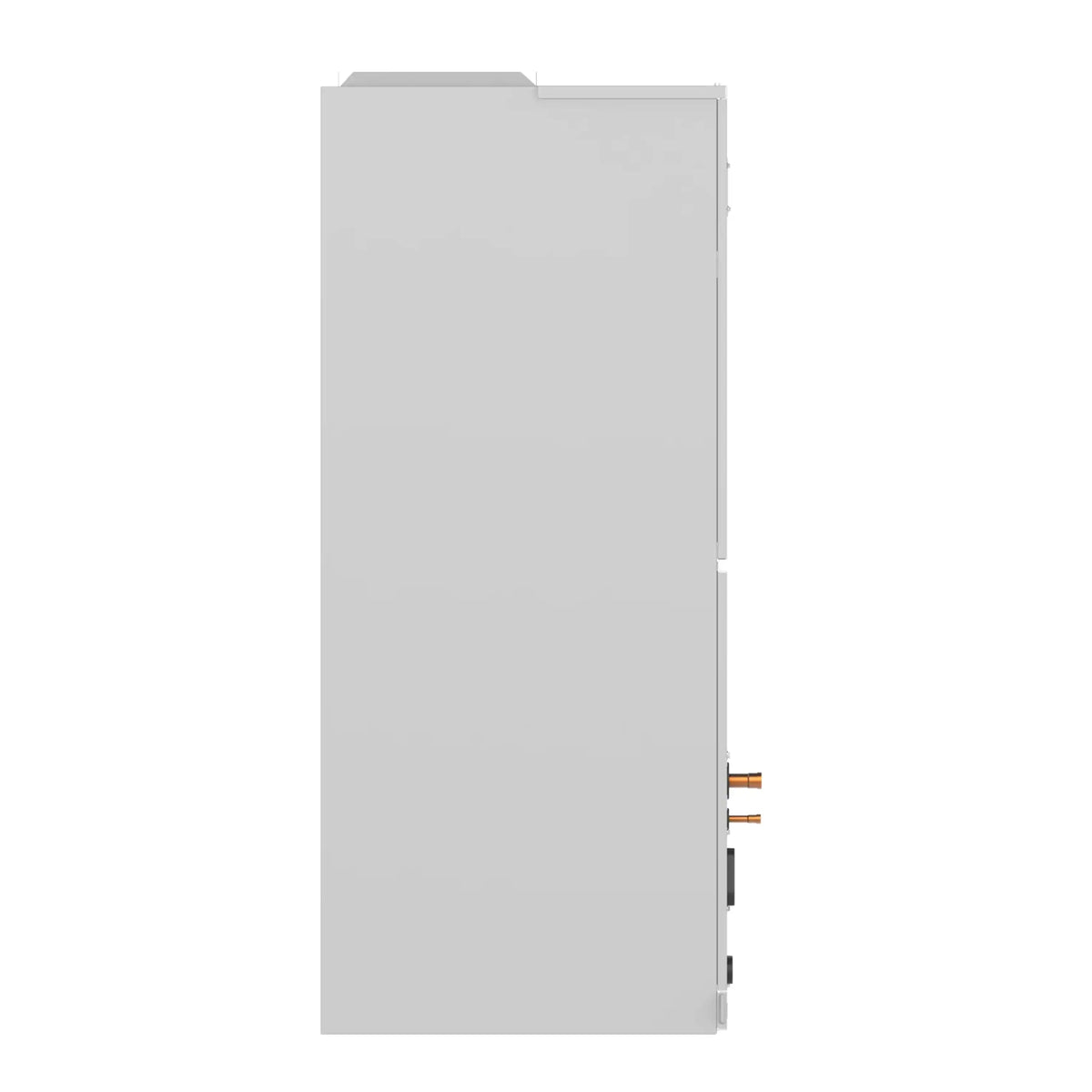

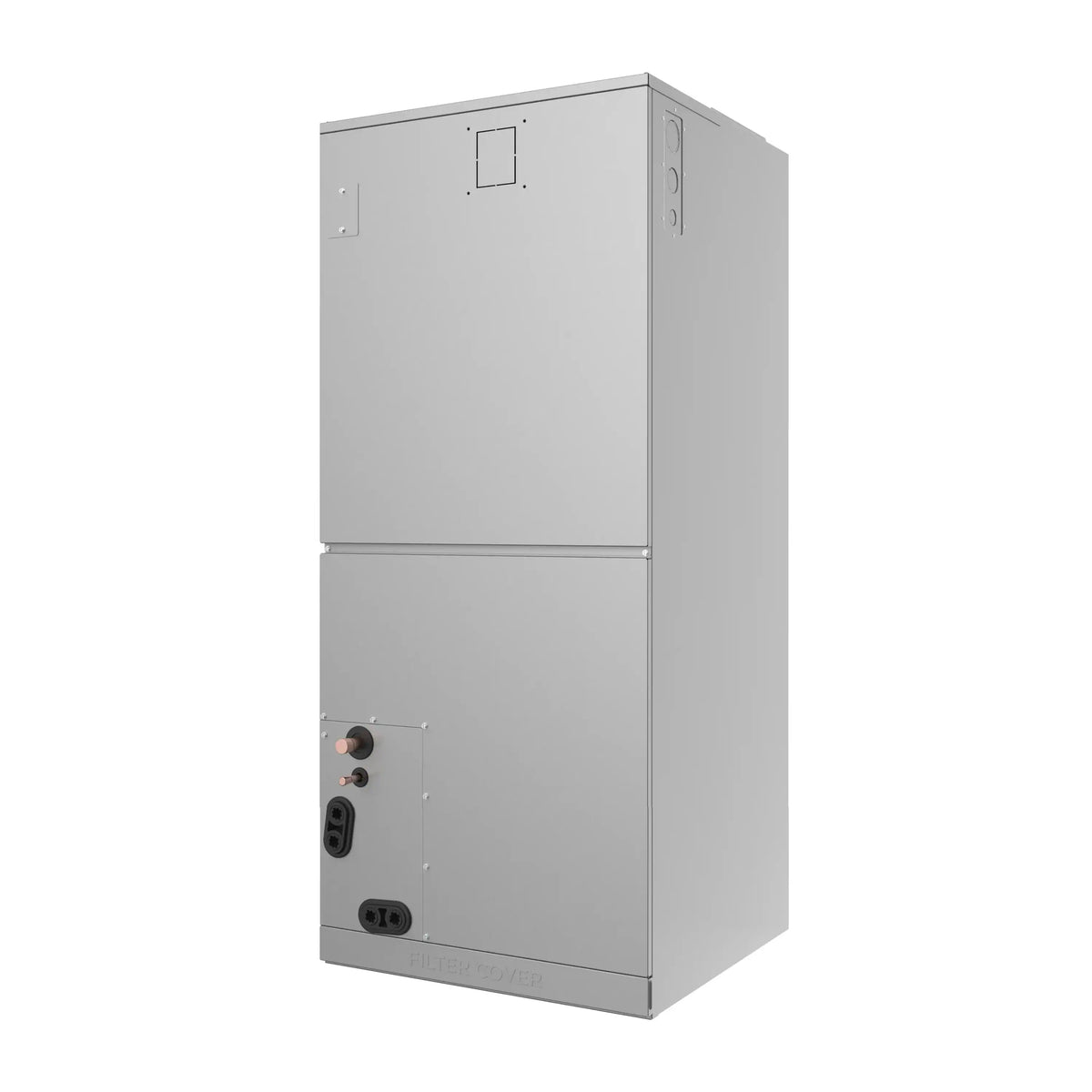

| Air Handler | |
| Dimensions (WxDxH) (in.) | 21.02 x 24.49 x 52.99 |
| Air Flow (Turbo/H/M/L) CFM | 1601.0 / 1471.5 / 1283.1 / 1094.8 |
| Noise Level (H/M/L) dB | 50 / 50 / 44 |
| Weight | 162.92 Lbs. |
| Technical Specification | |
| SEER2 | 16.5 |
| EER2 | 10.5 |
| Style | Central Air Conditioner with Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Cooling Capacity (BTU) | 48000 |
| Cooling Range (BTU) | 15600~51000 |
| Cooling Input Range (W) | 1345~5180 |
| Cooling Current Range (A) | 6.4~22.9 |
| Heating Capacity (BTU) | 50000 |
| Heating Range (BTU) | 15500~57300 |
| Heating Input Range (W) | 1045~5200 |
| Heating Current Range (A) | 5.7~23.1 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 8 |
| COP W/W | 3.4 |
| Minimum Circuit Ampacity (A) | 38 |
| Max. Fuse (A) | 40 |
| Moisture Removal (L/H) | 3.85 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 134.04 |
| Thermostat Type | Wall Remote Thermostat |
| Warranty | 10 Years Compressor / 5 Years Parts |
