Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)
Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)
Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)
Roll over image to zoom in Click on image to zoom
Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)
Click on image to zoom

Senville 36K BTU Top Discharge Central Split System with 18.6 SEER2 Hyper Heat Pump Condenser and Air Handler (SENTC-36TD)

SenvilleSKU: SENTC-36TD-16
Price:
$3,499.99 $4,549.99SAVE 23%
Heat Kit: None
Type:
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

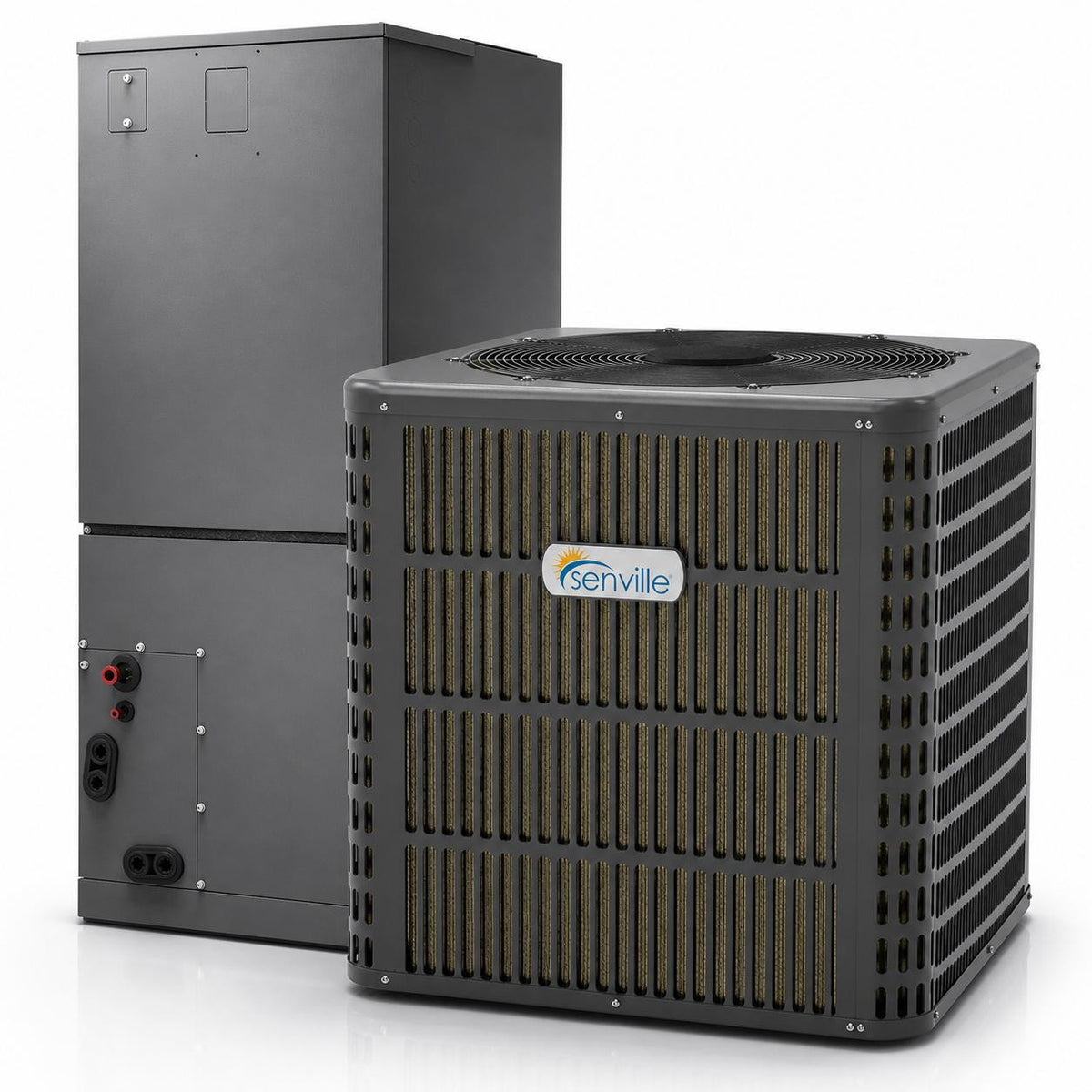

The Senville SENTC-36TD is a 3 ton (36,000 BTU) central heat pump split system that pairs a top discharge outdoor condenser with a ducted indoor air handler. Rated at 18.6 SEER2 and 9.0 HSPF2 (Region 4), it heats and cools medium-sized homes through ductwork while helping reduce energy costs. The top discharge configuration suits tighter installations, and the Hyper Heat inverter design keeps heating in outdoor temperatures down to –4°F.

The system runs on 208/230V single-phase power and uses R-32 refrigerant with flared connections. Choose a 16 Ft. or 50 Ft. line set and, if needed, an auxiliary electric heat kit (5K, 10K, 15K or 20K) to match the installation.

Features

  • 3 Ton Hyper Heat System - Rated for 34,000 BTU/h of cooling and 36,000 BTU/h of heating, with a heating capacity range of 11,000 – 39,000 BTU/h.
  • 18.6 SEER2 Efficiency - 18.6 SEER2, 11.7 EER2 and 9.0 HSPF2 (Region 4) ratings help lower operating costs year-round.
  • Cold-Climate Heating - Delivers 27,000 BTU/h at 5°F and 25,000 BTU/h at –4°F outdoor, with a heating operating range of –4°F to 75°F.
  • Wide Cooling Range - Cools in outdoor temperatures from 5°F to 131°F and holds 32,000 BTU/h at 109°F.
  • Twin-Rotary DC Inverter Compressor - The variable-speed GMCC compressor modulates cooling output between 13,000 and 38,000 BTU/h for steady, even comfort.

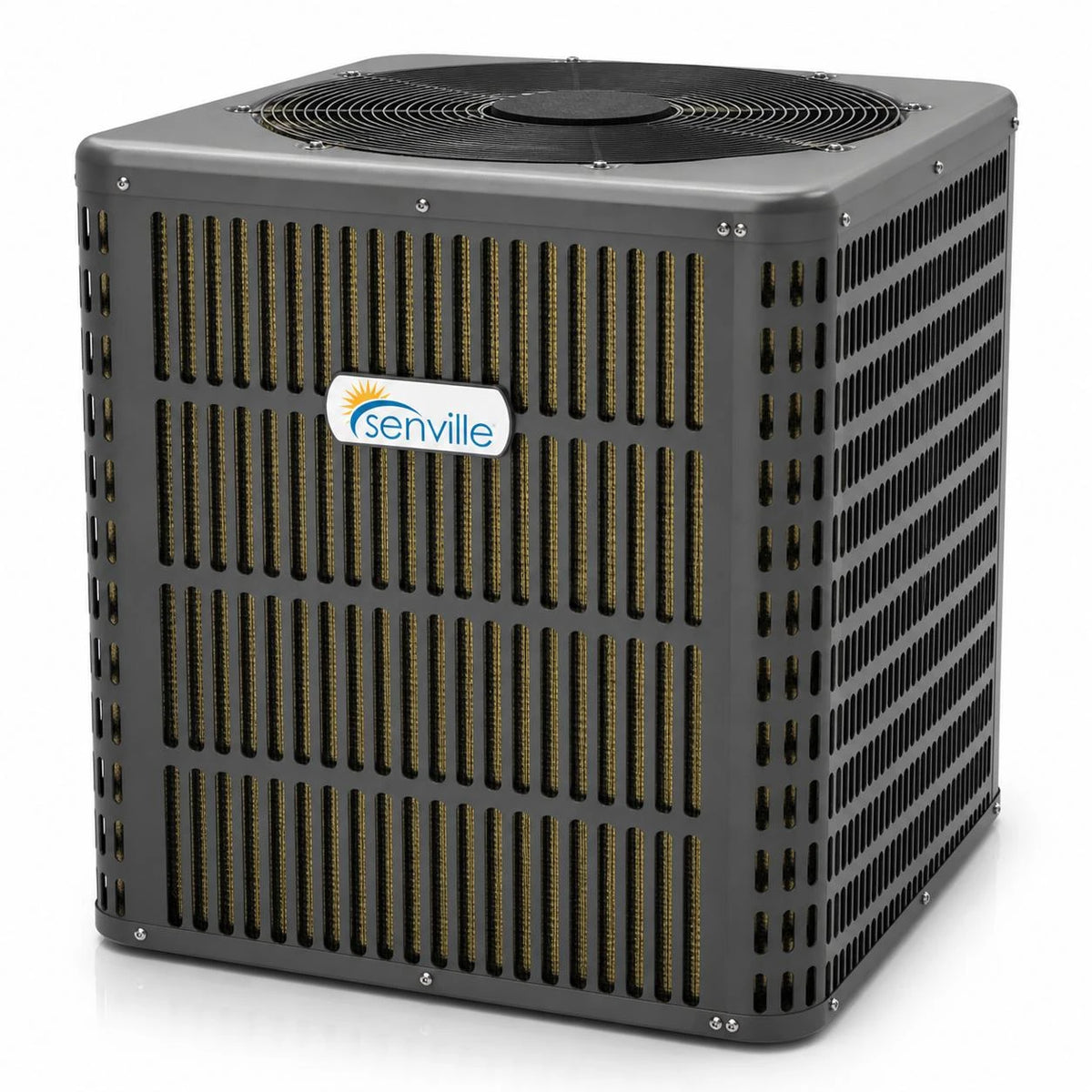

  • Top Discharge Condenser - Vertical airflow fits tighter outdoor placements; the 29-9/64" × 29-9/64" × 25" cabinet weighs 143 lbs.

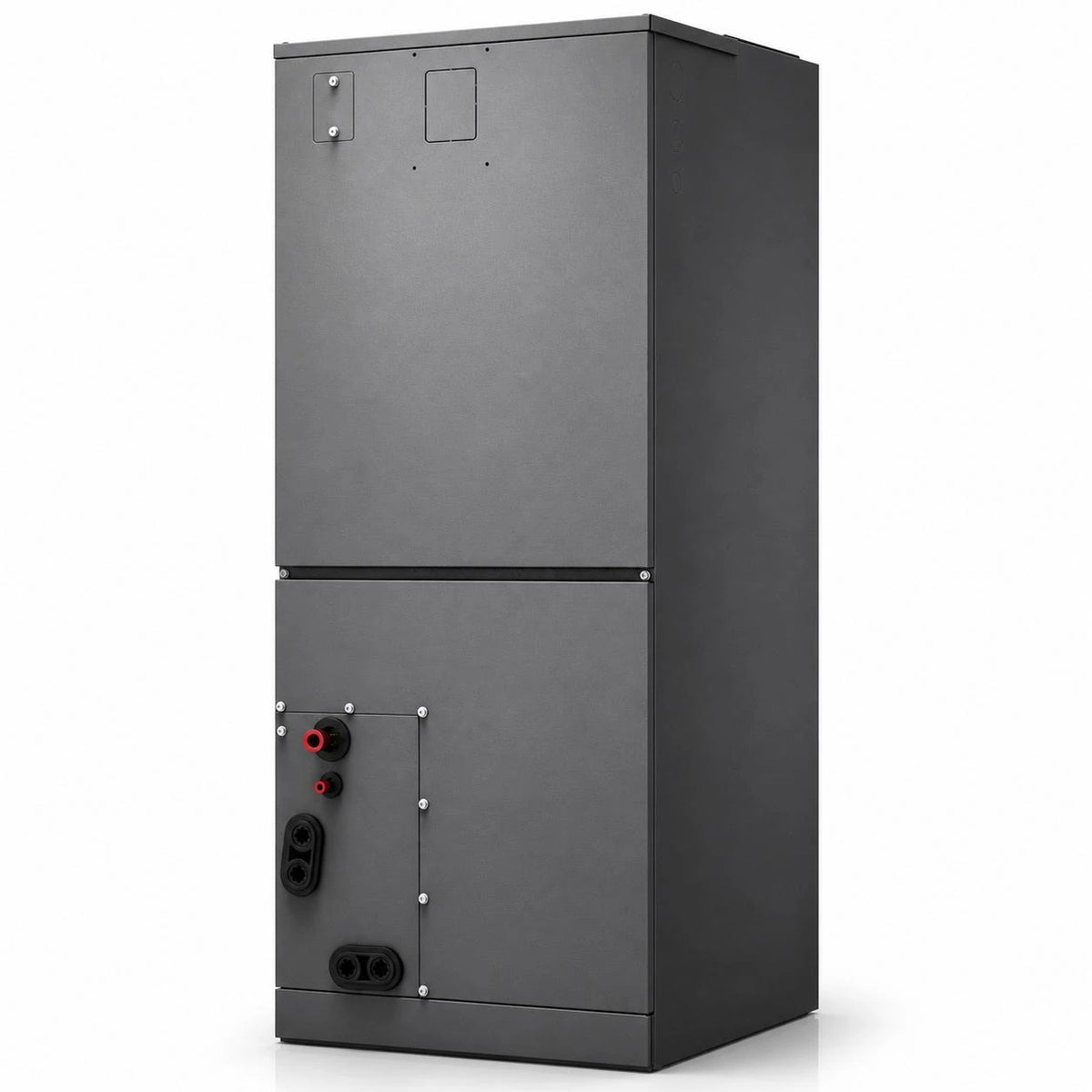

  • Ducted Air Handler - The indoor unit moves 1,110 / 520 CFM (high / low) at 50 / 38 dB(A) and measures 21-1/32" × 21-1/32" × 49-7/32".
  • Quiet Outdoor Operation - Outdoor unit rated at 58 dB(A) with 2,800 CFM of maximum airflow.
  • Long Line Set Capability - Supports up to 246 ft (75 m) of piping and 98.4 ft (30 m) of height difference with 3/8 in liquid and 3/4 in gas lines.
  • AHRI Certified - Listed in the AHRI directory with an EnergyGuide label.

Please Note

  • Professional installation by a licensed HVAC technician is required.
  • Package includes the outdoor heat pump condenser and the indoor ducted air handler.
  • Line Set Length selects the installation kit length (16 Ft. or 50 Ft.) supplied with the system. Additional refrigerant may be needed on longer runs at 0.52 oz/ft (48 g/m).
  • Heat Kit selects an optional auxiliary electric heater (5K, 10K, 15K or 20K) for the air handler to provide supplemental heat; choose None if not required. Electrical requirements for the air handler increase when a heat kit is installed, so have your installer size the circuit accordingly.
  • Requires a 208/230V, 60 Hz, single-phase power supply. Outdoor unit MCA / MOP is 24 A / 30 A; indoor unit MCA / MOP is 5 A / 15 A.
  • Factory charged with 2.9 kg (102.3 oz) of R-32 refrigerant.
  • Indoor and outdoor installation manuals and a service manual are available from the manufacturer.
DIMENSIONS & WEIGHT
Indoor Unit (W × D × H)
21-1/32" × 21-1/32" × 49-7/32"
Indoor Net / Gross Weight
137 / 151 lbs
Outdoor Unit (W × D × H)
29-9/64" × 29-9/64" × 25"
Outdoor Net / Gross Weight
143 / 151 lbs
EFFICIENCY RATINGS
SEER2
18.6 BTU/W
EER2
11.7 BTU/W
HSPF2 (Region 4)
9.0 BTU/W
COP (Heating)
3.20 W/W
COOLING PERFORMANCE
Rated Cooling Capacity
34,000 BTU/h
Cooling Capacity Range
13,000 – 38,000 BTU/h
Cooling Input Power
2,906 W (range: 460–3,600 W)
Cooling Current Draw
13.2 A (range: 2.1–16 A)
Capacity @ 109°F Outdoor
32,000 BTU/h
Capacity @ 5°F Outdoor
34,000 BTU/h
Cooling Operating Range (Outdoor)
5°F – 131°F
HEATING PERFORMANCE
Rated Heating Capacity
36,000 BTU/h
Heating Capacity Range
11,000 – 39,000 BTU/h
Heating Input Power
3,300 W (range: 600–3,600 W)
Capacity @ 47°F Outdoor
36,000 BTU/h
Capacity @ 17°F Outdoor
17,500 BTU/h
Capacity @ 5°F Outdoor
27,000 BTU/h
Capacity @ –4°F Outdoor
25,000 BTU/h
Heating Operating Range (Outdoor)
–4°F – 75°F
COMPRESSOR
Compressor Type
Twin-Rotary DC Inverter
Compressor Model / Brand
KTM240D57UMT / GMCC
AIRFLOW
Indoor Airflow — High / Low
1,110 / 520 CFM
Outdoor Airflow (Max)
2,800 CFM
NOISE LEVELS
Indoor Noise Level — High / Low
50 / 38 dB(A)
Outdoor Noise Level
58 dB(A)
ELECTRICAL REQUIREMENTS
Power Supply
208/230V, 60 Hz, 1-Phase
Indoor MCA / MOP
5 A / 15 A
Outdoor MCA / MOP
24 A / 30 A
Compressor RLA
9.45 A
Outdoor Fan Motor RLA / Output
2.3 A / 200 W
Indoor Fan Motor RLA / Output
3.6 A / 375 W
REFRIGERANT & PIPING
Refrigerant Type
R-32
Factory Refrigerant Charge
2.9 kg (102.3 oz)
Additional Charge Rate
0.52 oz/ft (48 g/m)
Liquid / Gas Line Size
3/8 in / 3/4 in
Max. Pipe Length
246 ft (75 m)
Max. Height Difference
98.4 ft (30 m)
Connection Method
Flared
Throttle Type (Outdoor / Indoor)
EXV / Piston
CONTROLS & CONNECTIVITY
Communication Wiring
AWG 25×3 Shielded
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Senville Dealer
Full manufacturer warranty on every Senville product we sell.
Explore Senville
Senville

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Central Split System FAQs

What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
