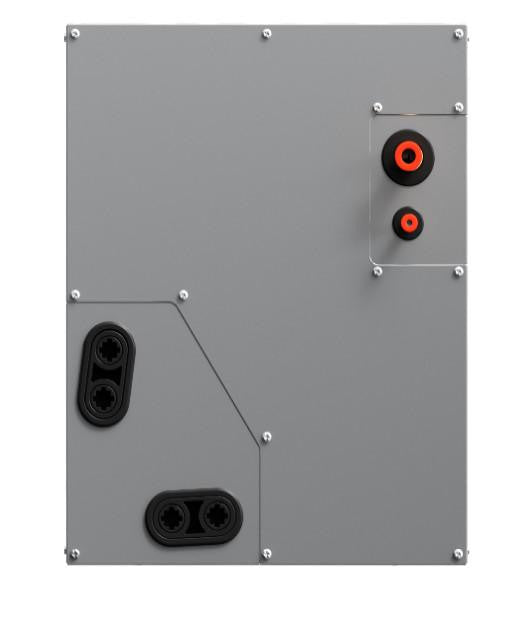

Senville 36K BTU Multi-Position Evaporator A-Coil for Central Split Systems (SENDC-36CO-B)
Roll over image to zoom in Click on image to zoom
Senville 36K BTU Multi-Position Evaporator A-Coil for Central Split Systems (SENDC-36CO-B)
Click on image to zoom

Senville 36K BTU Multi-Position Evaporator A-Coil for Central Split Systems (SENDC-36CO-B)

SenvilleSKU: SENDC-36CO-B
4 reviews
Price:
$849.99 $1,104.99SAVE 23%
BTU:
Option:
In Stock
Estimated delivery: Nov 19th-Dec 3rd
Free shipping — delivered to your door by parcel carrier

Free shipping

Included on every order
Ships free by parcel carrier. Your order ships with FedEx, UPS, USPS, or similar.
Tracking lands in your inbox. We email your tracking number as soon as the order leaves our warehouse.
Delivered to your door. Most parcel deliveries don't require a signature, so you don't need to be home.
Something arrives damaged: contact us right away and we'll make it right.

Description

The Senville SENDC-36CO-B is a 36,000 BTU indoor evaporator A-coil built for Senville central split systems. It installs in either a horizontal or vertical position, and its durable aluminum coil is paired with an advanced R454B refrigerant sensor.

Designed for easy maintenance, the coil also supports multiple control options, including a WiFi-enabled wired controller or compatibility with third-party 24V thermostats. The indoor section runs on a 24V, 1Ph, 60Hz power supply, and the matched system is listed in the AHRI directory.

Features

  • Multi-Position Installation - Installs in either a horizontal or vertical position.
  • Aluminum Coil - Durable aluminum coil construction.
  • R454B Refrigerant Sensor - Equipped with an advanced R454B refrigerant sensor.
  • Easy Maintenance - Designed with easy maintenance in mind.
  • Multiple Control Options - Works with a WiFi-enabled wired controller or third-party 24V thermostats.
  • 24V Indoor Power Supply - Indoor section operates on 24V, 1Ph, 60Hz.
  • 36,000 BTU Capacity - Sized for Senville 36,000 BTU central split systems.
  • AHRI Certified - Matched system is listed in the AHRI directory with an EnergyGuide label.

Please Note

  • Professional installation by a licensed HVAC technician is required.
  • This listing is for the indoor evaporator A-coil (SENDC-36CO-B) only.
  • The specification table published for this model includes outdoor-unit figures (SEER2, EER2, HSPF2-4, COP, compressor type, outdoor airflow, outdoor sound level and outdoor dimensions/weight) that describe the matched Senville 36,000 BTU central split system rather than the coil on its own.
  • Indoor power supply is 24V, 1Ph, 60Hz.
  • Refrigerant: R454B.
  • Confirm compatibility with your Senville condenser model before ordering.
GENERAL INFORMATION
Model Number
SENDC-36CO-B
Compressor Type
Twin Rotary (EKPQ420D1UMUA)
CAPACITY & PERFORMANCE
Capacity
36,000 BTU
Outdoor Airflow (Max)
3,002 CFM
EFFICIENCY RATINGS
SEER2
15.8
EER2
10.7
HSPF2-4
9.4
COP
3.3
NOISE LEVELS
Outdoor Sound Level
64 dBA
DIMENSIONS & WEIGHT
Indoor Dimensions (W×D×H)
17.5 × 21 × 23.5 in
Outdoor Dimensions (W×D×H)
38.56 × 16.38 × 38.38 in
Indoor Net/Gross Weight
59.5 / 68 lbs
Outdoor Net/Gross Weight
204 / 235 lbs
ELECTRICAL REQUIREMENTS
Indoor Power Supply
24V, 1Ph, 60Hz
REFRIGERANT & PIPING
Refrigerant
R454B
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Senville Dealer
Full manufacturer warranty on every Senville product we sell.
