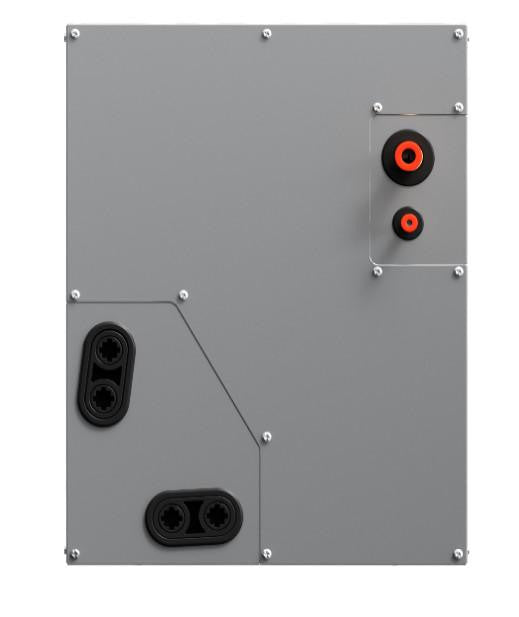

The Senville SENDC-36CO-C is a 36,000 BTU indoor evaporator A-coil built for Senville central split systems. It installs in either a horizontal or vertical position, so it fits a wide range of furnace and air handler layouts, and it pairs a durable aluminum coil with an R454B refrigerant sensor.
The coil is designed for easy maintenance and gives you flexible control options: use a WiFi-enabled wired controller or connect a third-party 24V thermostat. The indoor unit runs on a 24V, 1Ph, 60Hz supply. This is the C model, which uses a 21 × 21 × 24 in cabinet.
Features
-
Multi-Position Installation - Installs horizontally or vertically to suit the furnace or air handler and the space available.
-
Aluminum Coil - Durable aluminum coil construction.
-
R454B Refrigerant Sensor - Advanced built-in sensor designed for R454B refrigerant systems.
-
36,000 BTU Capacity - Sized for Senville 36,000 BTU central split systems.
-
Flexible Controls - Works with a WiFi-enabled wired controller or a third-party 24V thermostat.
-
Easy Maintenance - Designed for straightforward service and upkeep.
-
24V Indoor Power - Indoor unit runs on a 24V, 1Ph, 60Hz supply.
-
AHRI Certified - AHRI certificate and EnergyGuide label are available for the matched system.
-
Matched System Efficiency - Rated at 15.8 SEER2, 10.7 EER2, 9.4 HSPF2-4 and 3.3 COP when paired with the matching Senville outdoor unit.
Please Note
- Professional installation by a licensed HVAC technician is required.
- This listing is for the indoor A-coil only. The outdoor condenser or heat pump, line set, and thermostat or wired controller are not included.
- Efficiency ratings (SEER2, EER2, HSPF2-4, COP) and the outdoor-unit figures in the specifications (compressor, airflow, sound level, dimensions and weight) describe the matched Senville central split system and are listed for reference.
- The C model uses a 21 × 21 × 24 in cabinet. Confirm the cabinet size matches your furnace or air handler, plenum and the Senville system you are pairing it with before ordering.
- Designed for R454B refrigerant systems; pair only with a compatible R454B Senville outdoor unit.
- Indoor power supply is 24V, 1Ph, 60Hz.
- Ships at 74 lbs gross in a 20.5 × 26.13 × 26.38 in carton.
