Senville 36K BTU Central Split System with 15.8 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-36CO)
Roll over image to zoom in Click on image to zoom
Senville 36K BTU Central Split System with 15.8 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-36CO)
Click on image to zoom

Senville 36K BTU Central Split System with 15.8 SEER2 Heat Pump Condenser and Evaporator A-Coil (SENDC-36CO)

SenvilleSKU: SENDC-36CO-16
Price:
$3,199.99 $4,159.99SAVE 23%
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

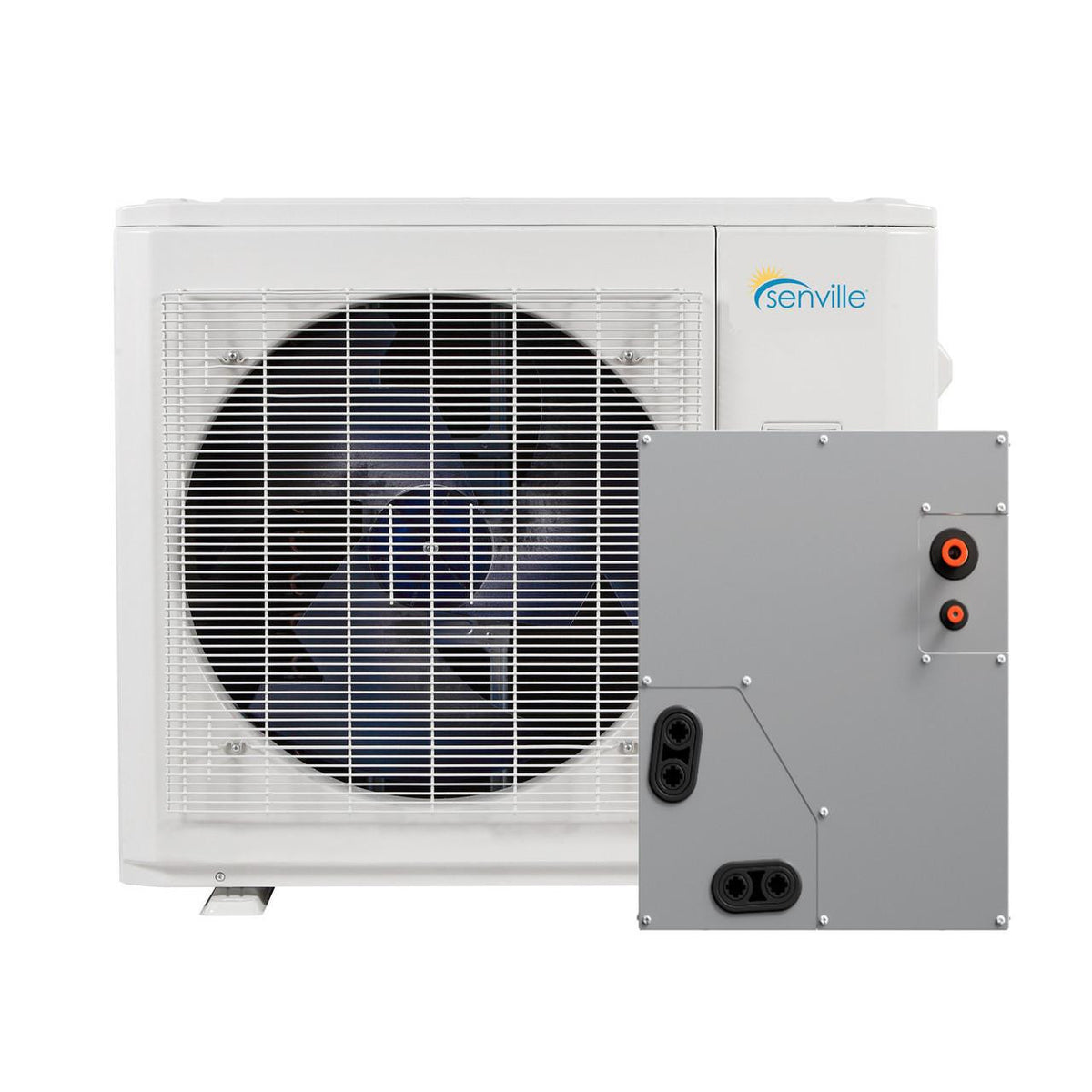

The Senville SENDC-36CO is a 3-ton central split heat pump system built for homes that already have a furnace. It pairs a 36,000 BTU Senville inverter heat pump condenser with the SENDC-36CO-B evaporator A-coil, so your existing furnace blower moves the air while the heat pump handles cooling and heating. There is no air handler in this package; the A-coil mounts on your furnace and uses its blower.

The matched condenser and coil are rated at 15.8 SEER2, 10.7 EER2 and 9.4 HSPF2-4 and run on R454B refrigerant. The coil installs horizontally or vertically, uses a durable aluminum coil with a built-in R454B refrigerant sensor, and works with a WiFi-enabled wired controller or a third-party 24V thermostat.

Features

  • Matched Condenser and A-Coil - A 36,000 BTU heat pump condenser paired with the SENDC-36CO-B evaporator coil for installation on an existing furnace.
  • Inverter Variable-Speed Compressor - The twin rotary inverter compressor modulates output across a 13000~47400 cooling range and an 11000~57200 heating range (BTU).
  • Heat Pump Heating and Cooling - Provides year-round comfort, with heat pump operation rated down to -22°F (-30°C).
  • Multi-Position Coil - The A-coil installs in a horizontal or vertical position to fit your furnace layout.
  • Durable Aluminum Coil - Aluminum coil construction built for long service life and easy maintenance.
  • R454B Refrigerant Sensor - The coil includes an advanced R454B refrigerant sensor.
  • Flexible Controls - Supports a WiFi-enabled wired controller or a compatible third-party 24V thermostat.
  • AHRI Certified - The matched system carries an AHRI certificate and EnergyGuide label.
  • Quiet Outdoor Operation - The condenser is rated at 64 dBA.
  • Warranty - Backed by a 10-year compressor and 5-year parts warranty.

Please Note

  • Professional installation is required.
  • This package includes the heat pump condenser and the SENDC-36CO-B evaporator A-coil only. It does not include an air handler or blower; a working furnace or blower unit is required to move air through the coil.
  • Line Set Length option: choose a 16 Ft., 25 Ft. or 50 Ft. line set installation kit. The No Line Set option ships the condenser and coil without a line set, for installers supplying their own.
  • The condenser requires 208/230V, 1Ph, 60Hz power with a 41 A minimum circuit ampacity and 50 A maximum fuse. The coil uses 24V control power.
  • The condenser refrigerant pre-charge covers 25 Ft. of line; longer runs may require additional refrigerant at installation.
  • Efficiency ratings listed are for the condenser matched with the SENDC-36CO-B coil. Supplemental heat is provided by your furnace; no electric heat kit applies to this package.
  • Thermostat or controller requirements should be confirmed with your installer.
DIMENSIONS & WEIGHT
Indoor Dimensions (W×D×H)
17.5 × 21 × 23.5 in
Indoor Net/Gross Weight
59.5 / 68 lbs
Outdoor Dimensions (W×D×H)
38.56 × 16.38 × 38.38 in
Outdoor Net/Gross Weight
204 / 235 lbs
GENERAL INFORMATION
Style
Central Air Conditioner with Heat Pump
Evaporator Coil Model Number
SENDC-36CO-B
Compressor Type
Twin Rotary (EKPQ420D1UMUA)
Coil Material
Aluminum
Coil Installation Position
Multi-position (horizontal or vertical)
Refrigerant Sensor
R454B refrigerant sensor
Certifications
AHRI
CAPACITY & PERFORMANCE
Capacity
36,000 BTU
Cooling (Range)
13000~47400
Heating (Range)
11000~57200
Cooling Input (W)
3673 (462-5700)
Heating Input (W)
3448 (593-5700)
Outdoor Airflow (Max)
3,002 CFM
EFFICIENCY RATINGS
SEER2
15.8
EER2
10.7
HSPF2-4
9.4
COP
3.3
NOISE LEVELS
Outdoor Sound Level
64 dBA
ELECTRICAL REQUIREMENTS
Outdoor Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Indoor Power Supply
24V, 1Ph, 60Hz
Voltage Range
187-253
Cooling Rated Current (A)
15.97
Heating Rated Current (A)
15
Minimum Circuit Ampacity (A)
41
Max. Fuse (A)
50
REFRIGERANT & PIPING
Refrigerant Type
R454B / 165.79 Oz
Refrigerant Pre-charge
25 Ft.
CONTROLS & CONNECTIVITY
Connection Wiring
14AWG*2 Stranded, Shielded
Control Options
WiFi-enabled wired controller or third-party 24V thermostat
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized Senville Dealer
Full manufacturer warranty on every Senville product we sell.
Explore Senville
Senville

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Central Split System FAQs

What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
