Description
DIMENSIONS & WEIGHT
- Dimensions (WxDxH) (in.)
- 38.58 x 16.34 x 38.39
- Weight
- 211.86 Lbs
GENERAL INFORMATION
- Style

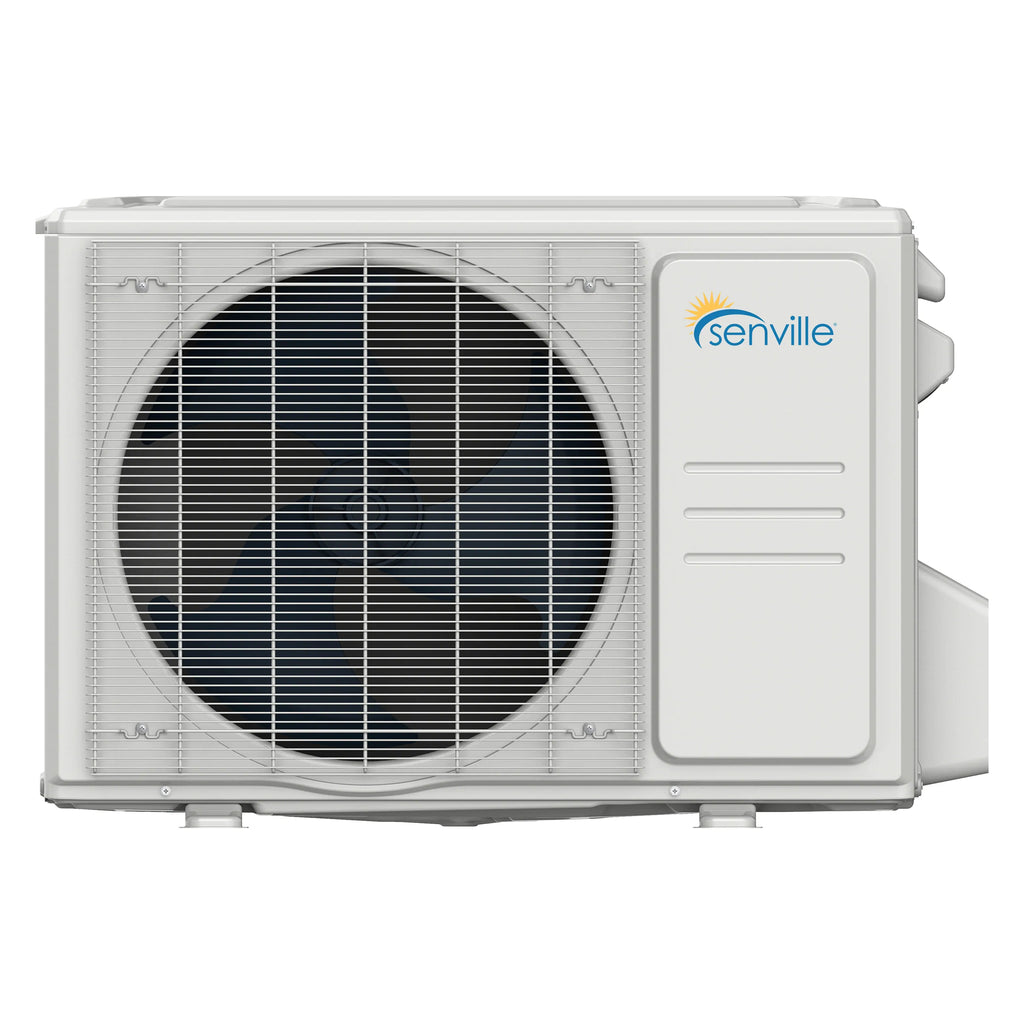

- Ductless Mini Split AC With Heat Pump
- Number of Zones
- 2-4
- Power Supply (V-Ph-Hz)
- 208/230V, 1Ph, 60Hz
- Max. Fuse (A)
- 40
CAPACITY & PERFORMANCE
- Air Flow (Max) CFM
- 3037.2
- SEER2
- 23
- EER2
- 13
- Cooling Capacity (BTU)
- 36000
- Cooling Range (BTU)
- 9000~43000
- Cooling Input Range (W)
- 600~4000
- Cooling Current Range (A)
- 5.2~17.8
- Heating Capacity
- 36000
- Heating Range (BTU)
- 10000~44000
- Heating Input Range (W)
- 600~3750
- Heating Current Range (A)
- 5.2~16.6
- HSPF2-4
- 10.7
- HSPF2-5
- 8.5
- COP W/W
- 4
- Minimum Outdoor Heating Temperature
- -22°F / -30°C
NOISE LEVELS
- Noise Level dB
- 65
ELECTRICAL REQUIREMENTS
- Voltage Range
- 187-253
- Minimum Circuit Ampacity (A)
- 37

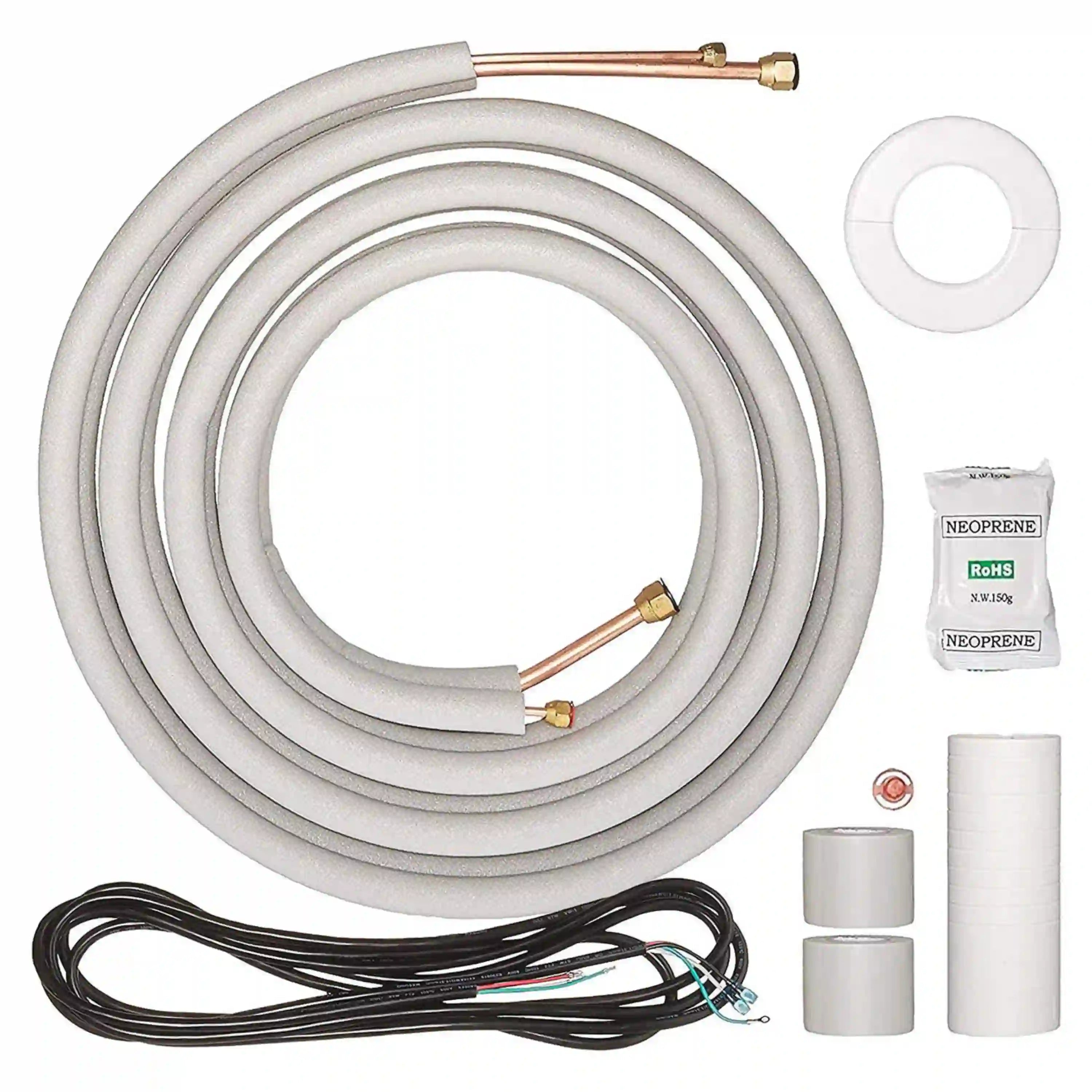

REFRIGERANT & PIPING
- Refrigerant Type / Charge
- R454B / 134.04 oz
- Refrigerant Pre-charge
- 100 Ft.
WARRANTY
- Warranty
- 10 Years Compressor / 5 Years Parts
Senville AURA Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU
up to 250 sq ft · Small bedroom, office
9K BTU
up to 450 sq ft · Bedroom, home office
12K BTU
up to 750 sq ft · Large bedroom, den
15K BTU
up to 800 sq ft · Living room
18K BTU
up to 1000 sq ft · Living room, master suite
24K BTU
up to 1350 sq ft · Open living area
33K BTU
up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
This system’s condenser supports up to 36K BTU connected. Toggle zones to see how your mix loads it — Senville multi-zone condensers accept up to about 133% connected, because zones rarely all run at max.
