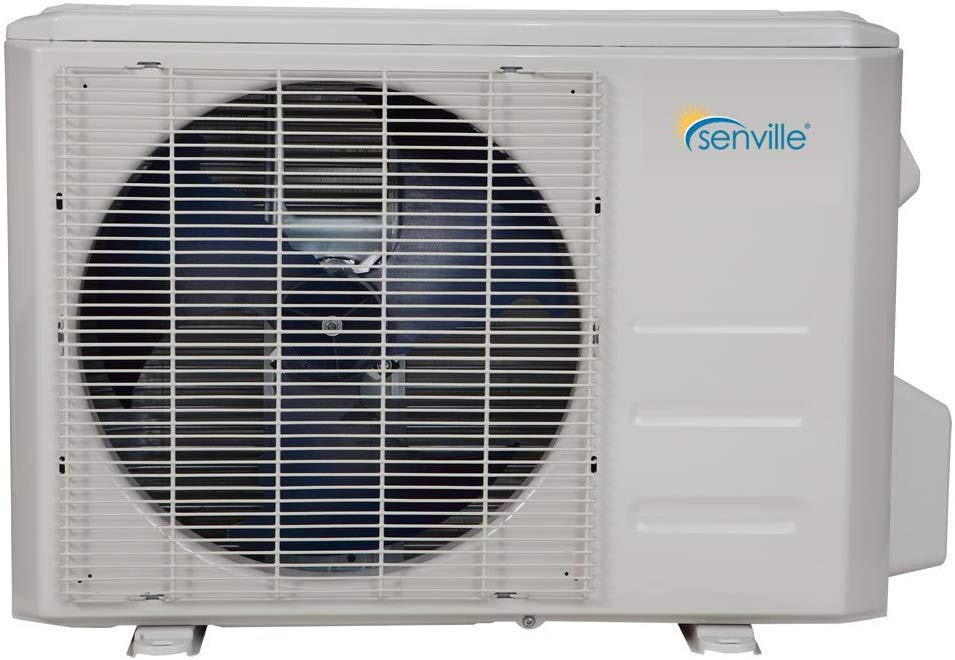

Outdoor mini split condenser unit with fan grille, white housing
Roll over image to zoom in Click on image to zoom
Outdoor mini split condenser unit with fan grille, white housing
Click on image to zoom

Senville 36000 BTU Multi Zone Mini Split Condenser 2- 5 Zones (SENA-36HF-MOA)

SenvilleSKU: SENA-36HF-MOA
2 reviews
Price:
$2,099.99 $2,729.99SAVE 23%
BTU:
In Stock
Estimated delivery: Oct 31st-Nov 14th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Senville 36000 BTU Multi Zone Outdoor Unit (2-5 Zones) is the perfect solution for those looking to create a customized mini-split system for their home or office. With the ability to mix and match multi-zone outdoor units with various styles and combinations, you have the freedom to design a system that fits your specific needs.

With the Senville Build Your Own mini-split system, you can easily verify indoor/outdoor compatibility by viewing the Multi-Zone Combinations Specifications Sheet for a complete list of styles and size combinations. This ensures that you can create a system that works seamlessly together for optimal performance.

Included with the outdoor unit are the installation manual, user's manual, and manufacturer warranty (labor not included). This makes it easy to install and use your new multi-zone system with confidence.

Don't settle for a one-size-fits-all solution when it comes to your HVAC needs. With the Senville 36000 BTU Multi Zone Outdoor Unit, you can create a customized system that meets your exact specifications and provides efficient and effective climate control for your space.

Features

  • 36,000 BTU total cooling and heating capacity, configurable across 2 to 5 independent zones
  • Cooling range 9,000–43,000 BTU and heating range 10,000–44,000 BTU for flexible multi‑zone control
  • High‑efficiency 23 SEER2 / 13 EER2 — ENERGY STAR certified
  • Ultra‑Inverter technology for variable‑capacity, energy‑saving operation
  • Arctic‑series heat pump operates in temperatures as low as ‑22°F / ‑30°C — ideal for cold climates
  • Eco‑friendly R454B refrigerant, factory pre‑charged for line sets up to 125 ft.
  • Quiet outdoor operation at 65 dB(A)
  • Wi‑Fi and Alexa compatible for smartphone app and voice control (with compatible indoor units)
  • Works with multiple indoor styles — wall‑mount, ceiling cassette, concealed duct, and ceiling
  • Self‑Cleaning Mode, Refrigerant Leak Detection, and Self‑Diagnosis for worry‑free maintenance
  • 208/230V, 1‑phase, 60Hz power supply — 37A min. circuit ampacity, 40A max fuse
  • Outdoor dimensions: 38.58" W x 16.34" D x 38.39" H — 211.86 lbs
  • UL and AHRI certified
  • 10‑Year Compressor / 5‑Year Parts warranty
DIMENSIONS & WEIGHT
Dimensions (W x D x H)
38.58" W x 16.34" D x 38.39" H
Net Weight
211.86 lbs
ELECTRICAL REQUIREMENTS
Voltage
208/230 V
Phase
1
Cycle
60 Hz
Minimum Circuit (Disconnect)
37 A
Maximum Fuse (Breaker)
40 A
CAPACITY & PERFORMANCE
Cooling Capacity
36,000 BTU
Standard Operating Range (Cooling)
-22°F – 120°F
SEER2
23
EER2
13
Heating Capacity
36,000 BTU
Standard Operating Range (Heating)
-22°F – 120°F
HSPF2-4
10.7
HSPF2-5
8.5
COP
4
Outdoor Noise Level
65 dB(A)
REFRIGERANT & PIPING
Refrigerant Type
R454B
Connection Method
Flared
CERTIFICATIONS & WARRANTY
Certifications
Energy Star Certified, UL Certified
Warranty
10 Years Compressor / 5 Years Parts

Senville AURA Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU up to 250 sq ft · Small bedroom, office
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
15K BTU up to 800 sq ft · Living room
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1350 sq ft · Open living area
33K BTU up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
