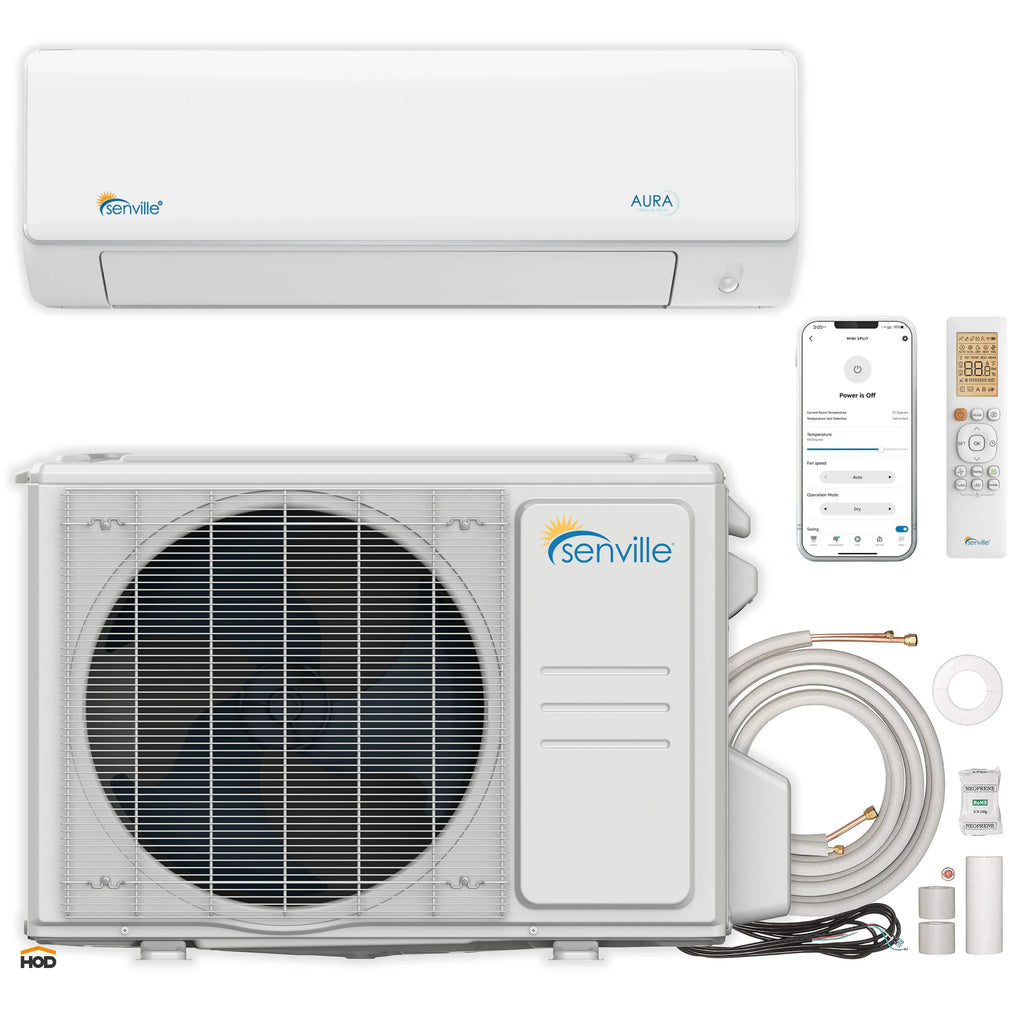

Senville SENA-33HF is a high-efficiency 33,000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

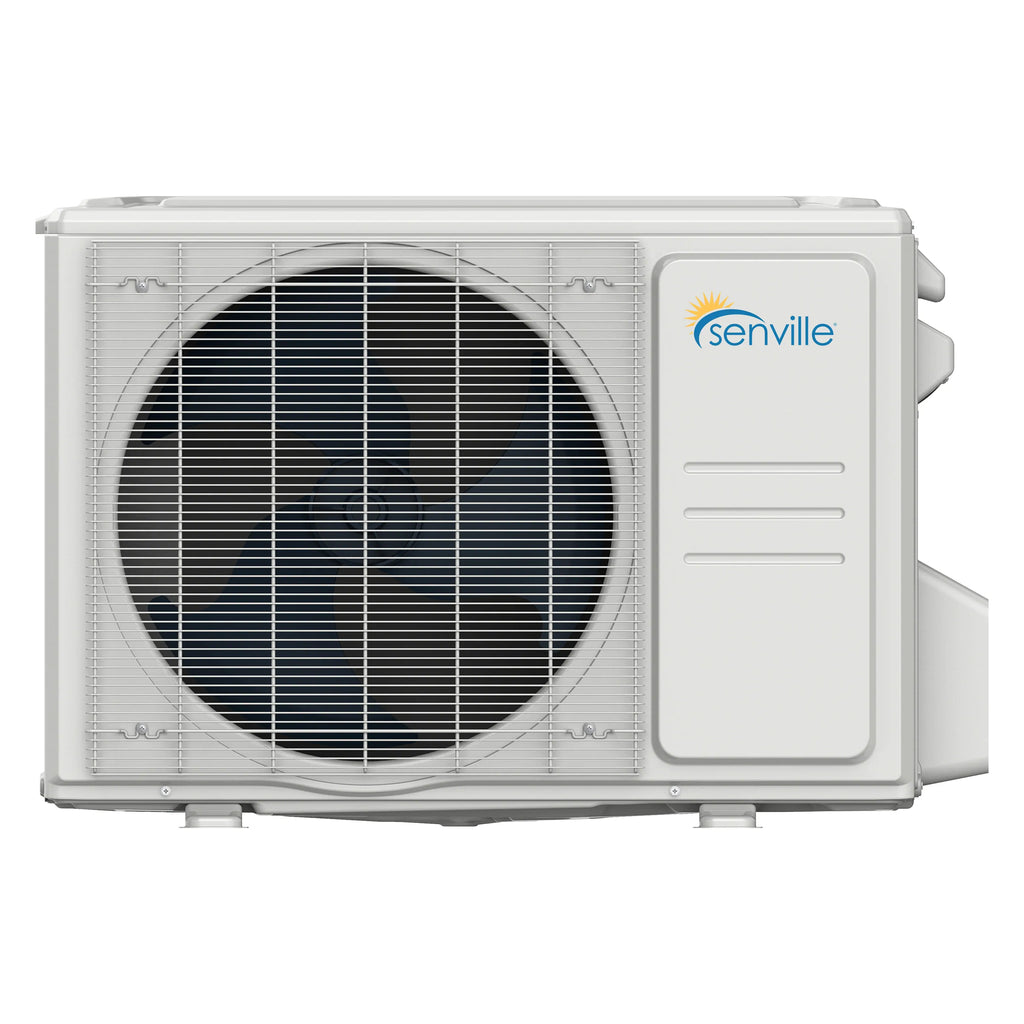

| Condenser | |
| Outdoor Dimensions (WxDxH) | 38.6 x 16.1 x 33.1 in |
| Outdoor Weight | 140 lbs |
| Outdoor Air Flow (Max) CFM | 2500 |
| Outdoor Noise Level dB | 63 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |

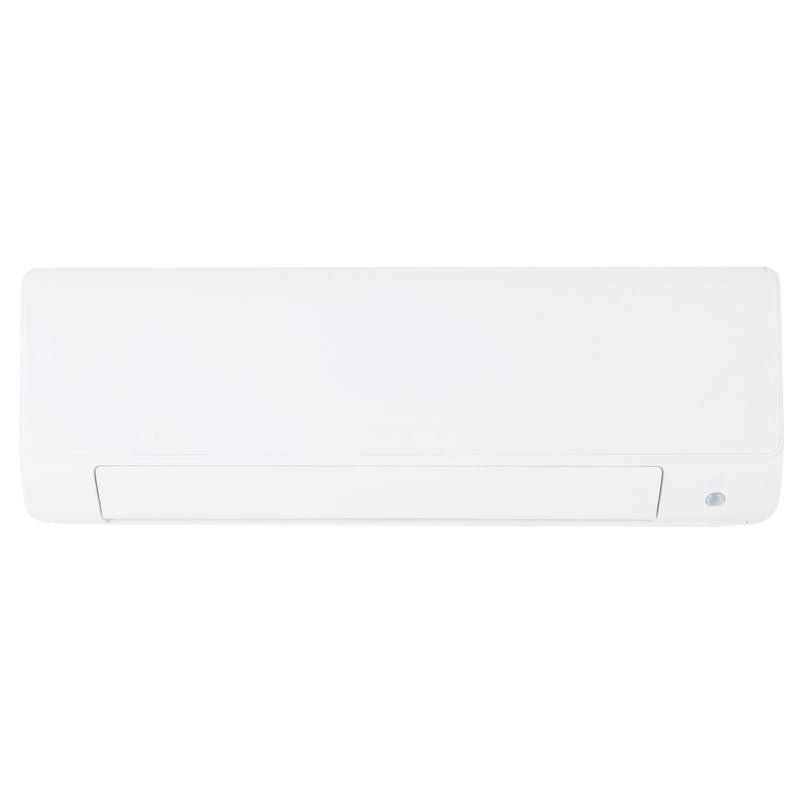

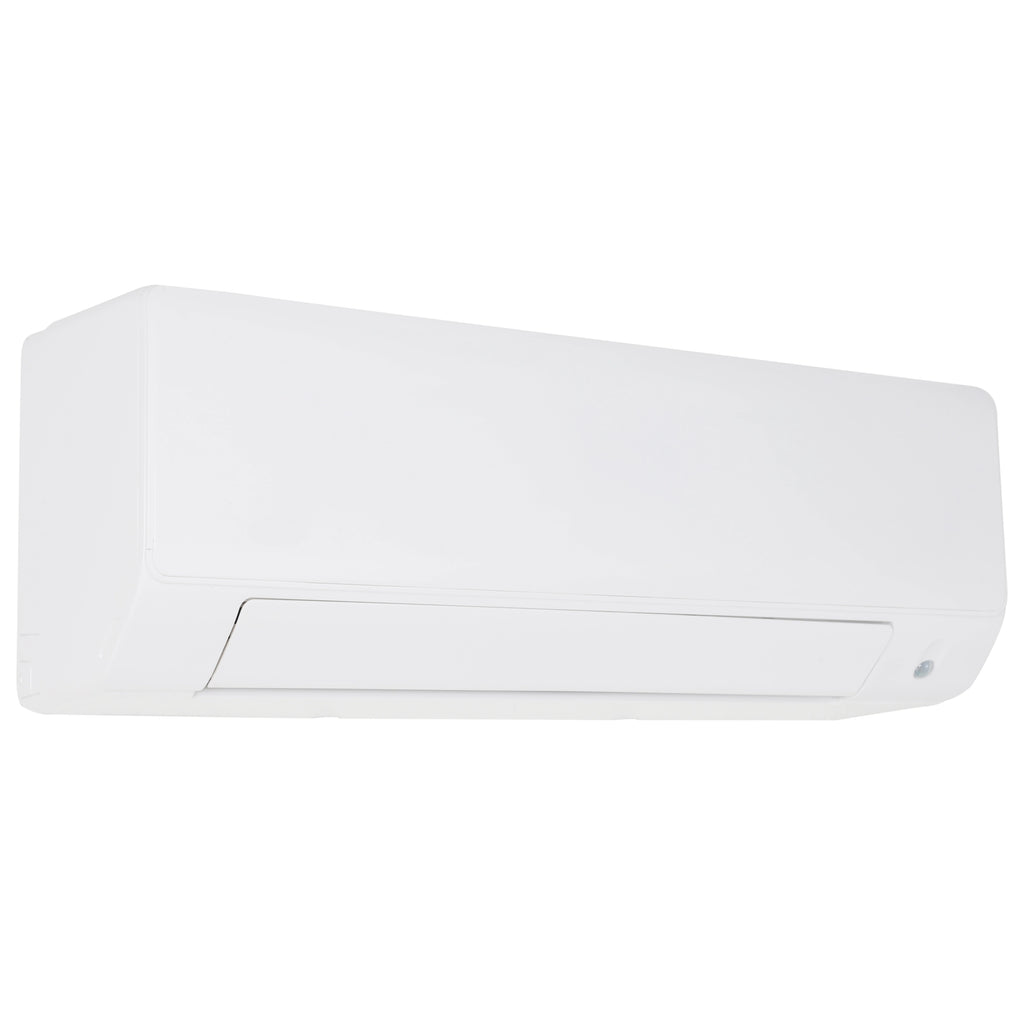

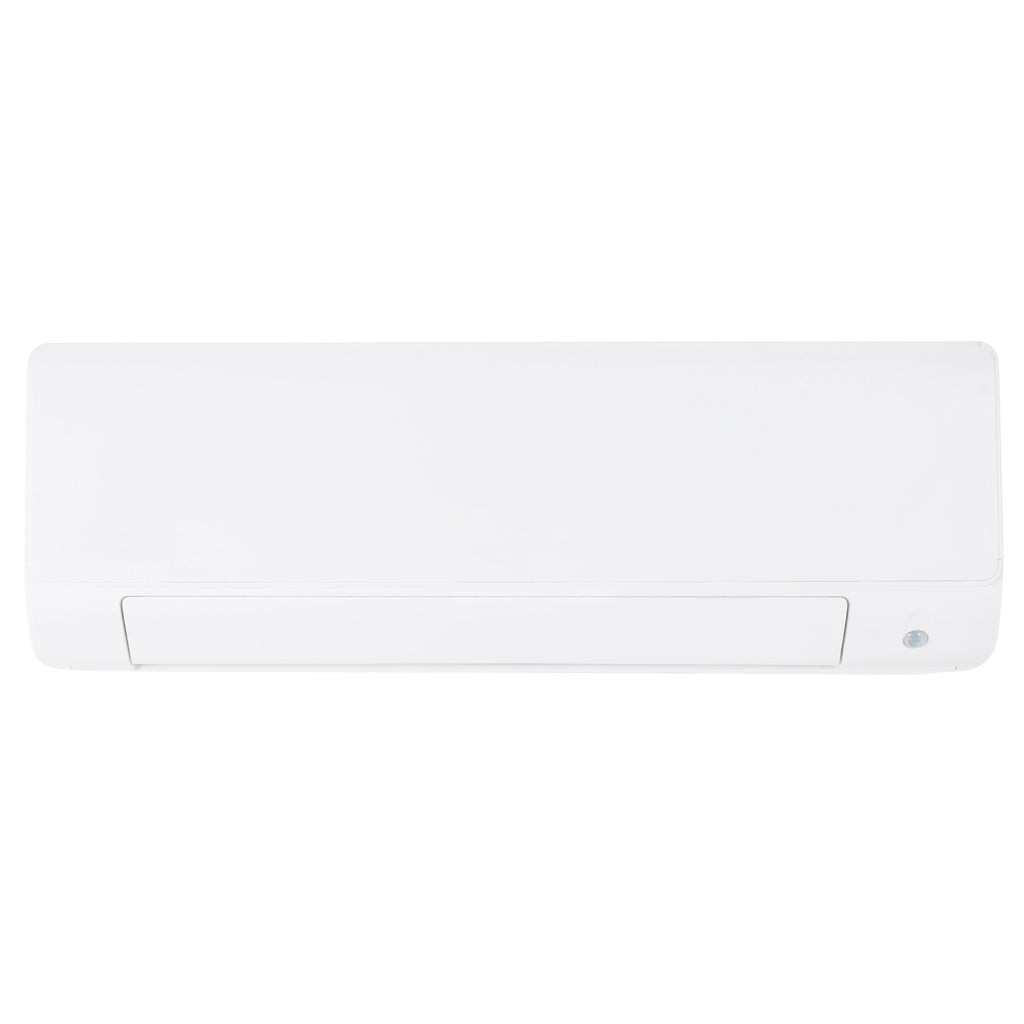

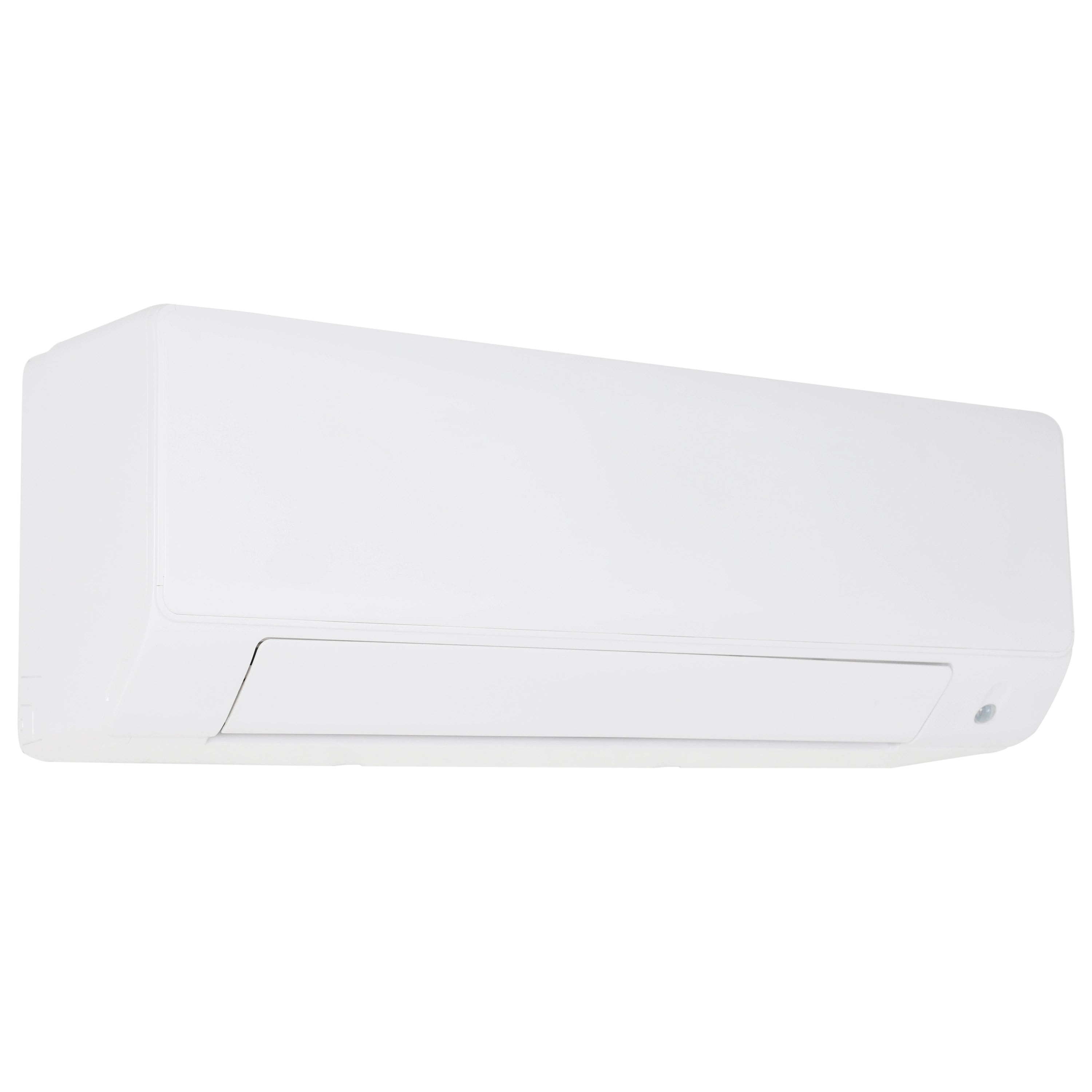

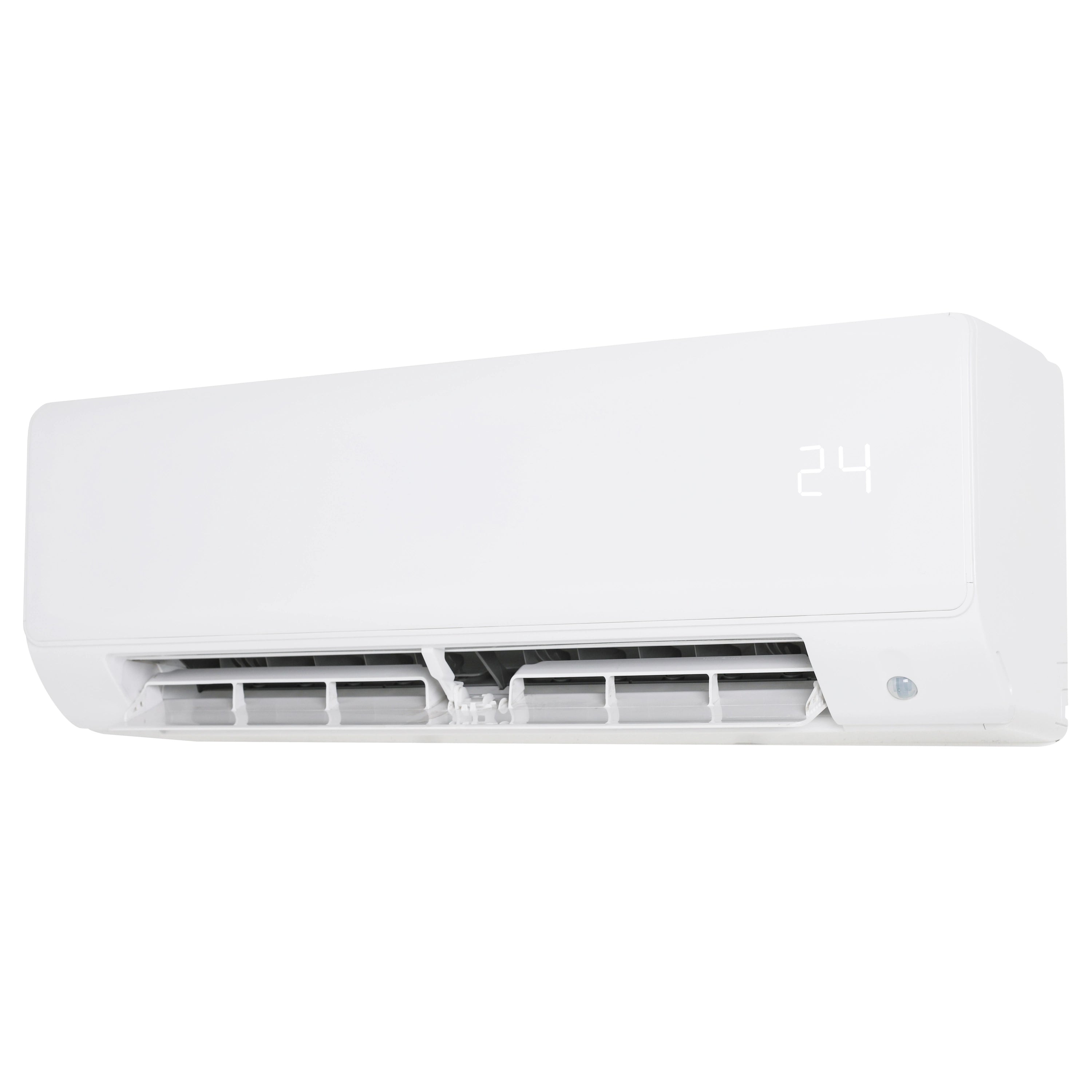

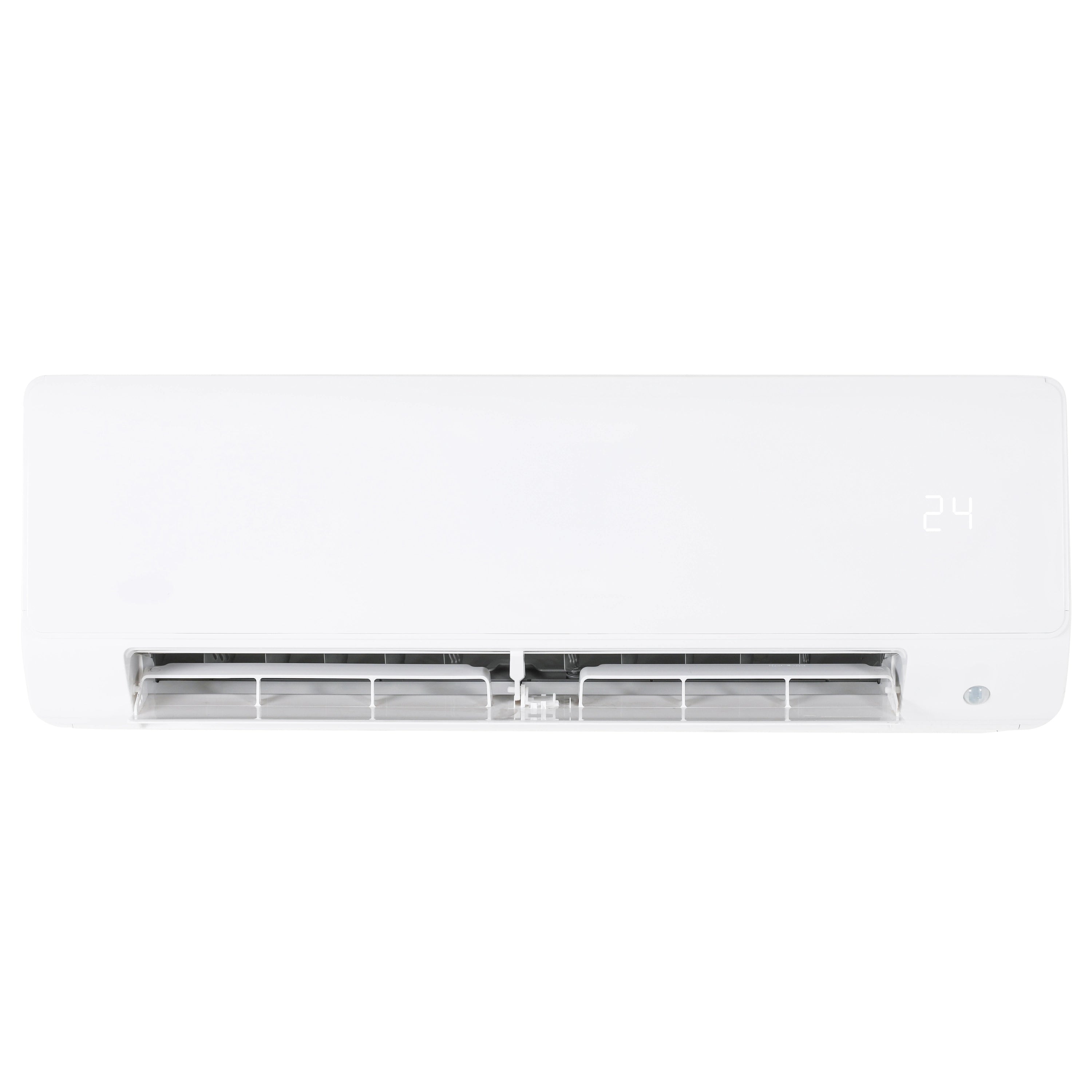

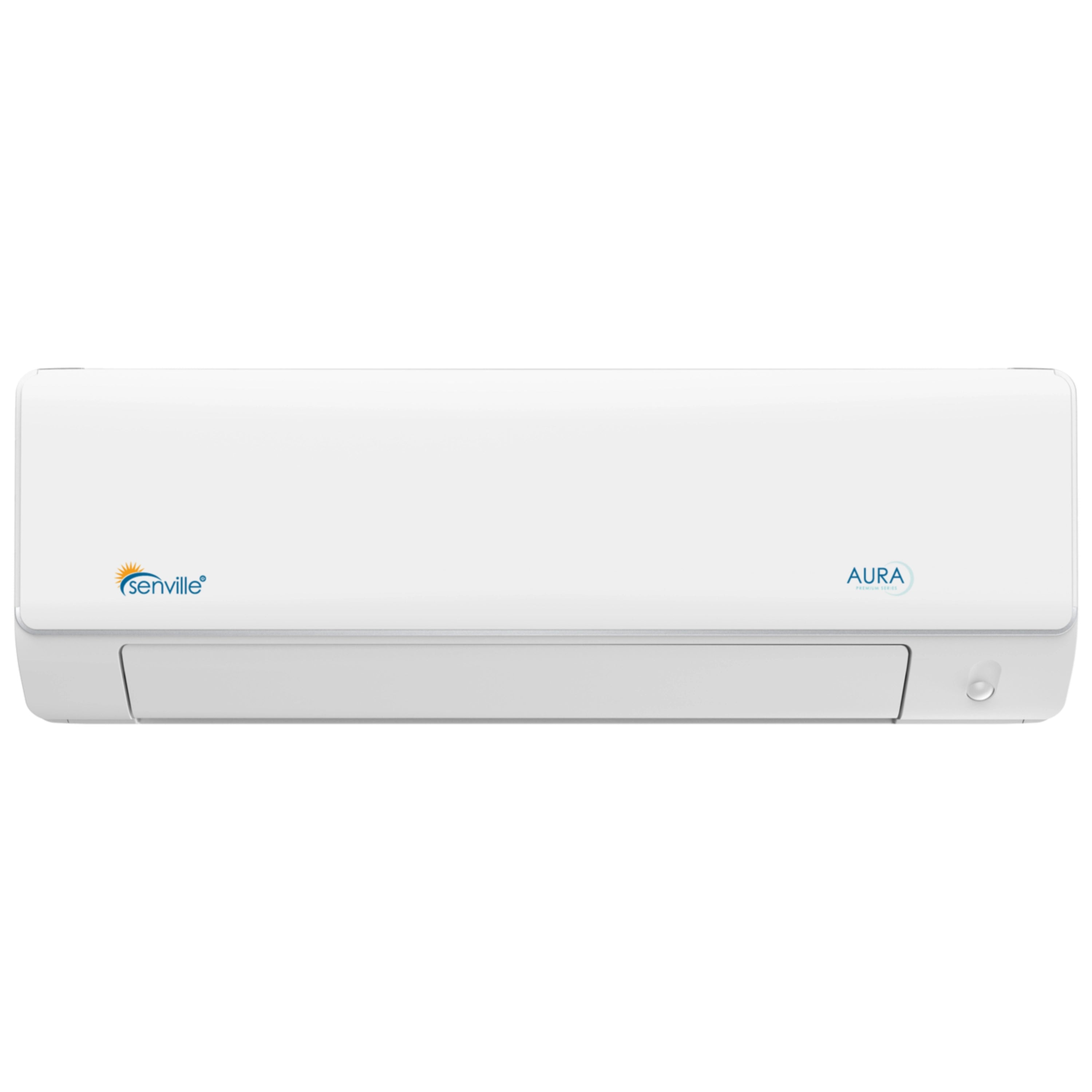

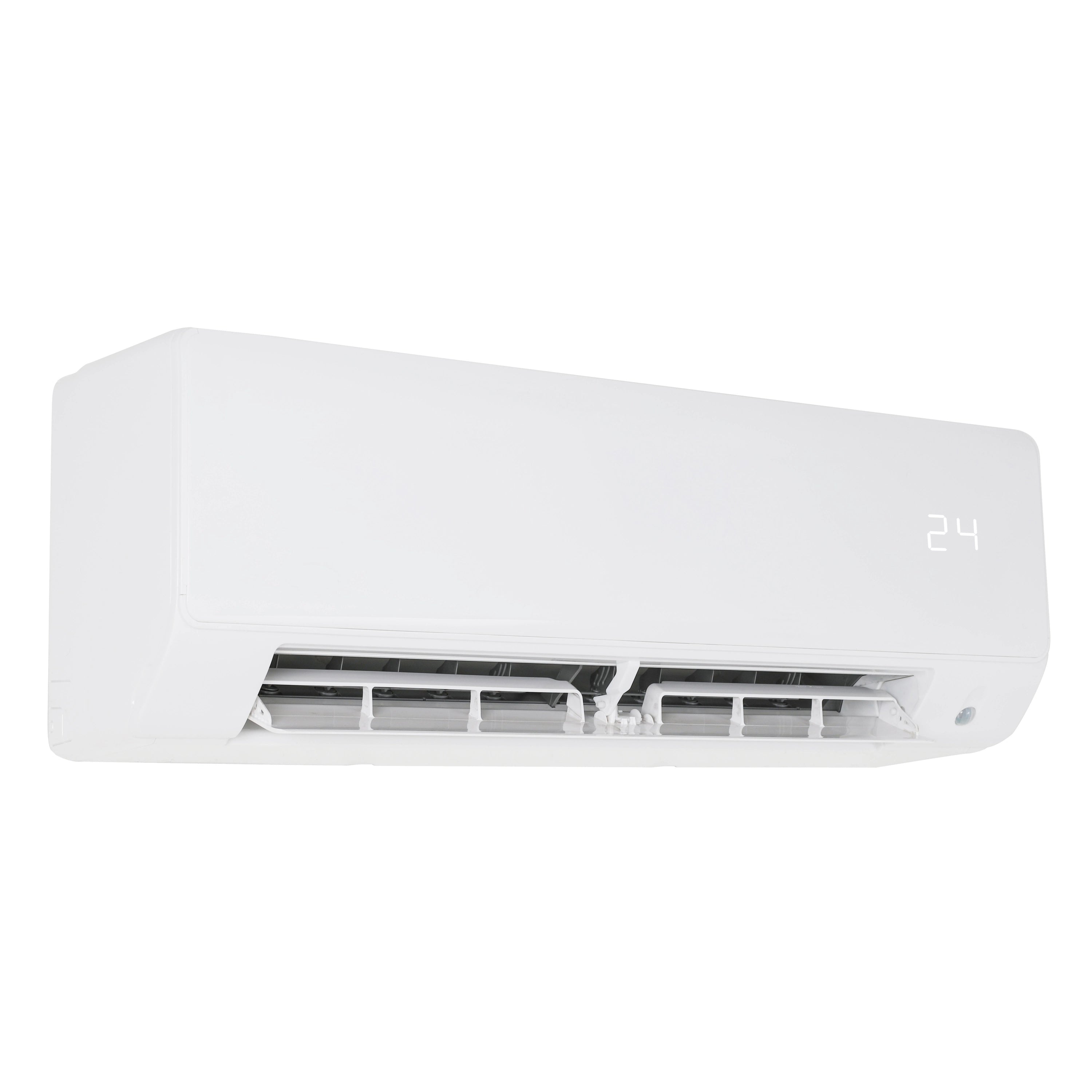

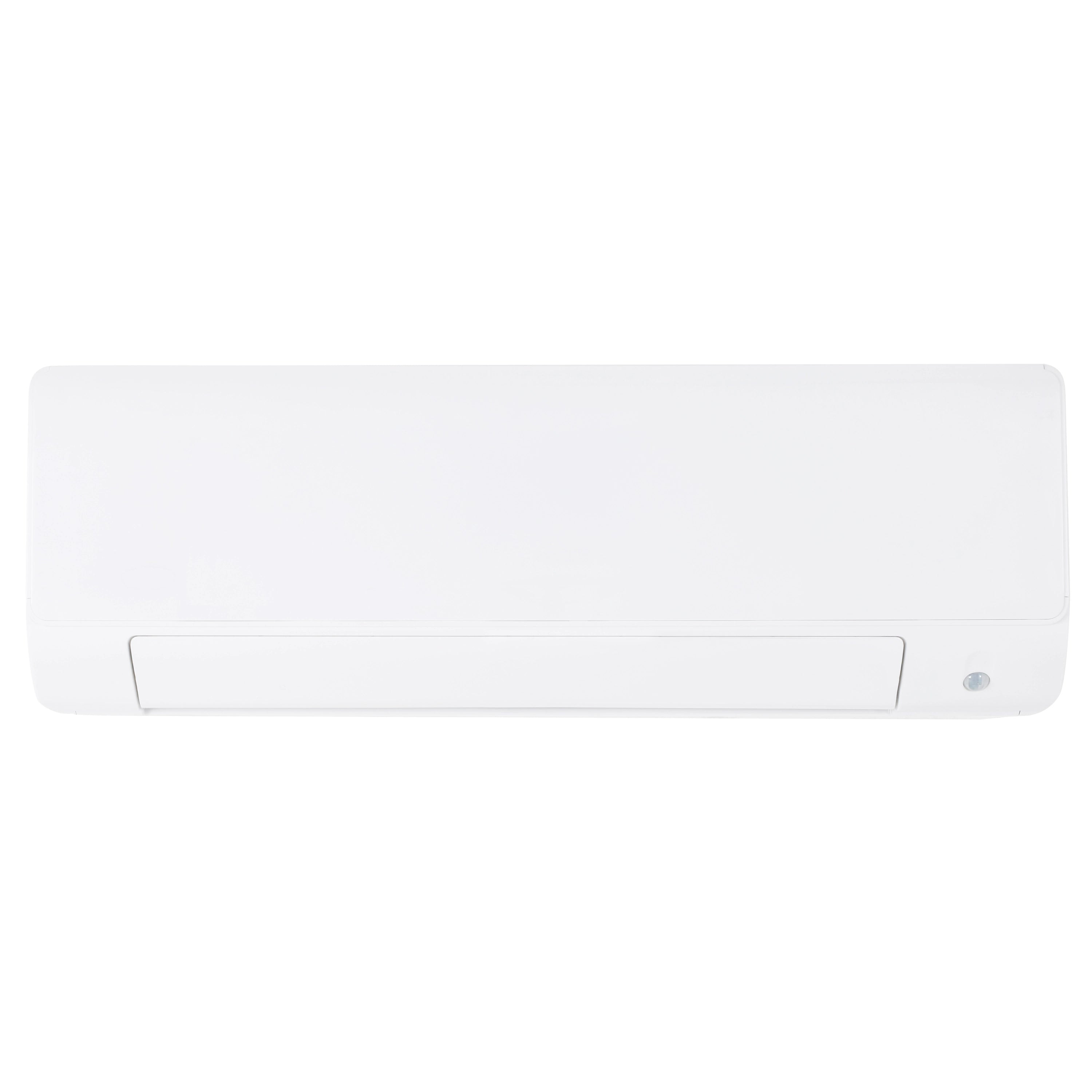

| Air Handler | |
| Indoor Dimensions (WxDxH) | 48.8 x 11.2 x 14.6 in |
| Indoor Weight | 44.1 lbs |
| Indoor Air Flow (Turbo/H/M/L) CFM | 890 / 720 / 540 / 410 |
| Indoor Noise Level (Turbo/H/M/L) dB | 53 / 45 / 38 / 30 |
| Tehnical Specification | |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 19.5 |
| EER2 | 11.5 |
| Cooling Capacity (BTU) | 33,000 |
| Cooling Range (BTU) | 12,000~36,000 |
| Cooling Input (W) | 750~2900 |
| Cooling Current (A) | 4.5~13.0 |
| Heating Capacity (BTU) | 34,500 |
| Heating Range (BTU) | 13,000~38,000 |
| Heating Input (W) | 850~3200 |
| Heating Current (A) | 4.8~14.2 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP W/W | 3.3 |
| Minimum Circuit Ampacity (A) | 22 |
| Max. Fuse (A) | 25 |
| Moisture Removal (L/H) | 3.5 |
| Refrigerant Type / Charge | R454B / 68.4 oz |

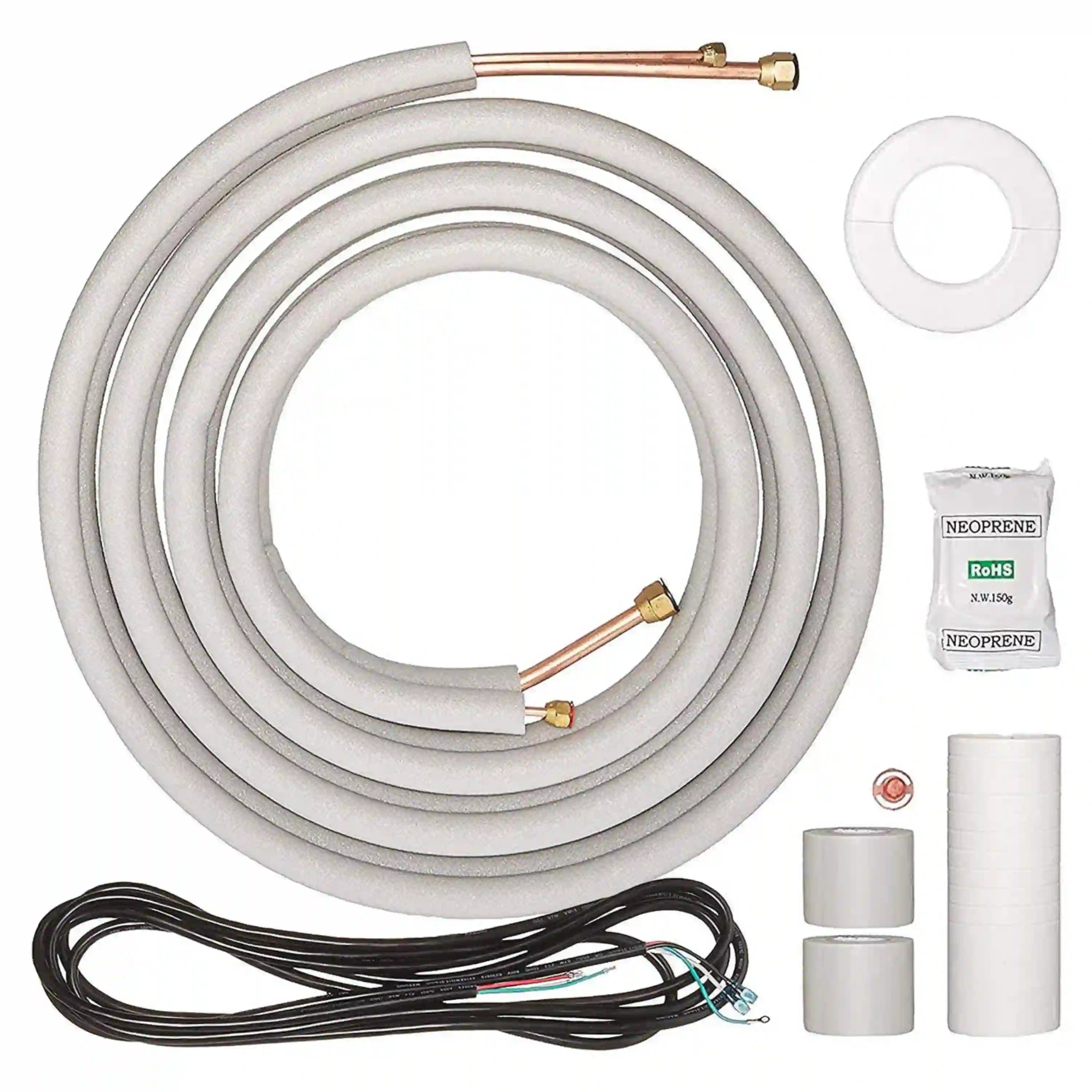

| Refrigerant Pre-charge | 25 ft |
| Connection Wiring | 14×4 AWG |

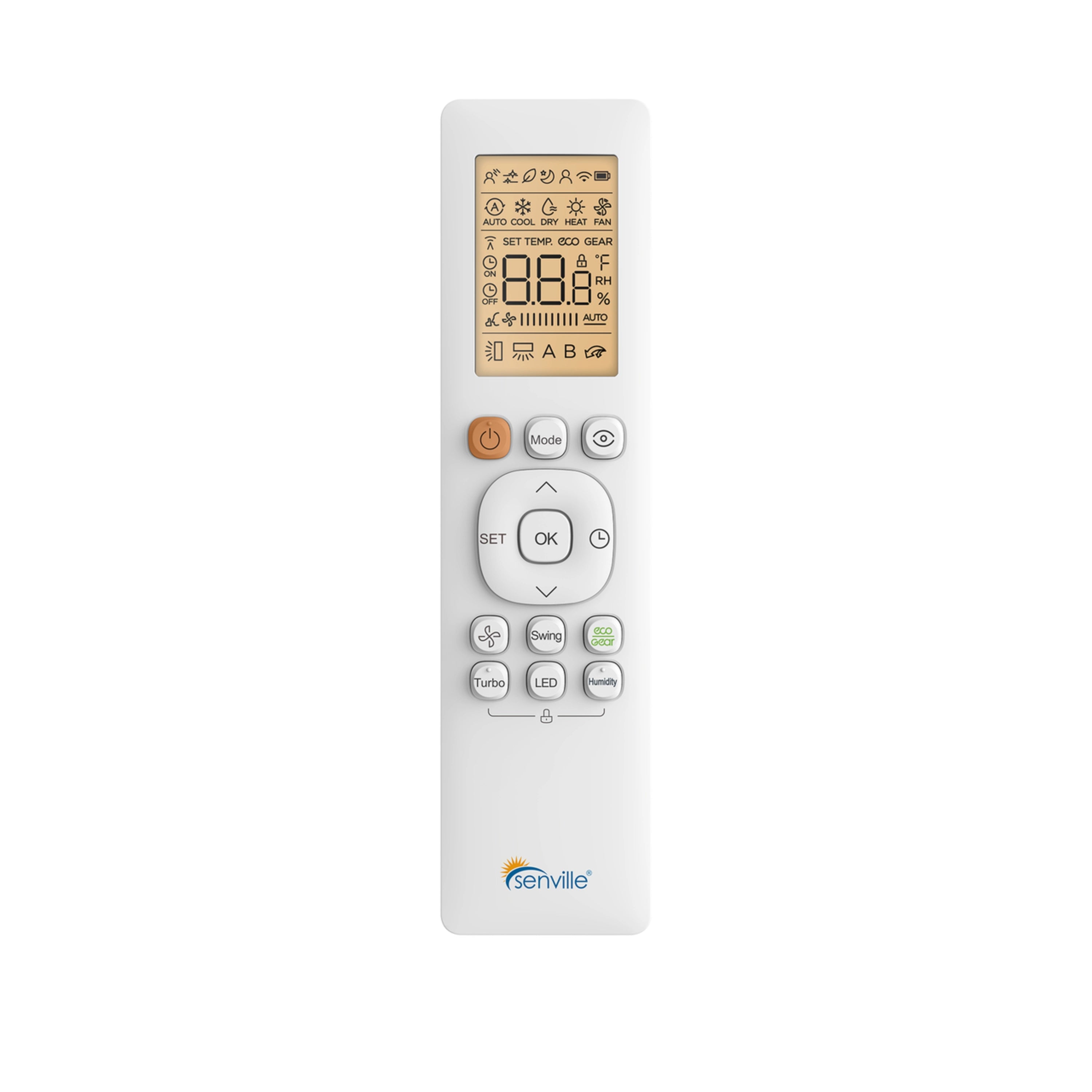

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
