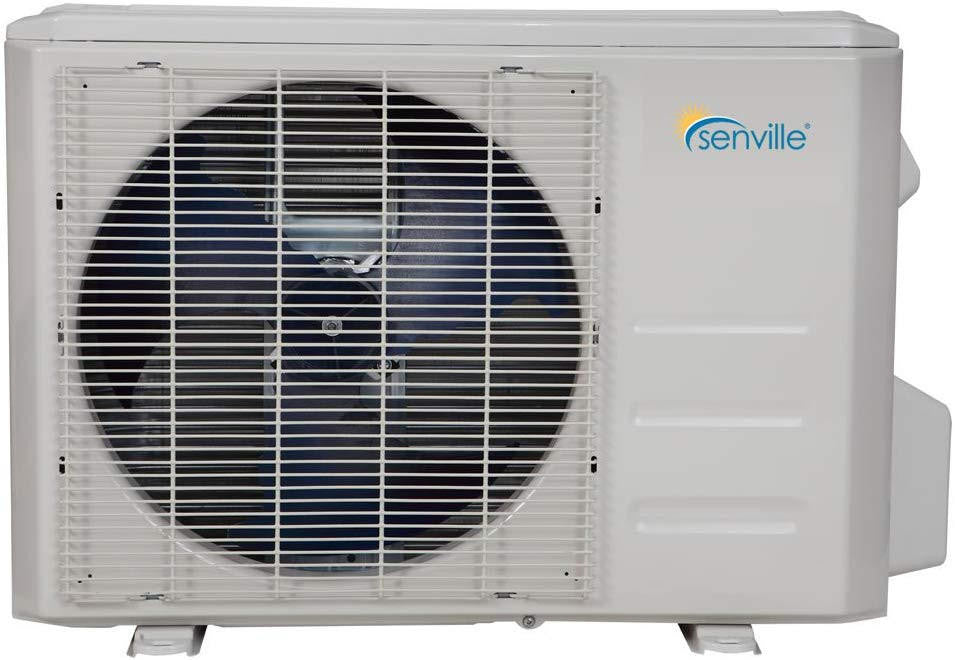

Senville outdoor HVAC condenser unit with front fan grille, white metal casing
Roll over image to zoom in Click on image to zoom
Senville outdoor HVAC condenser unit with front fan grille, white metal casing
Click on image to zoom

Senville 28000 BTU Multi Zone Outdoor Unit 2-4 Zones (SENA-28HF-MOA)

SenvilleSKU: SENA-28HF-MOA
2 reviews
Price:
$1,599.99 $2,079.99SAVE 23%
BTU:
In Stock
Estimated delivery: Sep 13th-27th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Senville SENA-28HF-MOA is the outdoor condensing unit for the premium AURA Series 28,000 BTU multi-zone ductless mini split system. Designed to support 2 to 3 independent indoor zones, this ENERGY STAR certified unit delivers powerful, precisely controlled heating and cooling across multiple rooms simultaneously. Compatible with a wide variety of AURA indoor air handlers — including wall-mounted, ceiling cassette, concealed duct, and ceiling mount styles — it offers exceptional flexibility for custom home and commercial installations. Backed by an industry-leading 10-year compressor warranty, it is one of the most advanced and efficient multi-zone solutions available.

Features

  • 28,000 BTU total cooling capacity and 27,000 BTU heating capacity across 2 to 3 independent zones
  • Cooling range of 7,200 to 37,000 BTU and heating range of 8,400 to 36,000 BTU for flexible zone control
  • High-efficiency 23 SEER2 rating — ENERGY STAR certified for energy savings of up to 50% annually
  • Advanced Ultra-Inverter Technology for superior efficiency and consistent performance at varying loads
  • Arctic Heat Pump operates in extreme temperatures as low as -22°F / -30°C — ideal for cold climates
  • Compatible with R454B eco-friendly refrigerant, pre-charged for up to 75 ft. of line set
  • Whisper-quiet outdoor operation at 61 dB with ultra-quiet indoor performance
  • Works with Alexa for voice control and remote smartphone app control via Wi-Fi on iOS and Android (when paired with compatible indoor units)
  • Compatible with multiple indoor air handler styles — wall-mounted, ceiling cassette, concealed duct, and ceiling mount
  • Self-Cleaning Mode, Refrigerant Leak Detection, and Self-Diagnosis System for worry-free maintenance
  • Requires 208-230V / 60Hz power supply; max fuse size 35A
  • Outdoor dimensions: 37.24 x 16.14 x 31.89 in.
  • UL and AHRI certified — meets the highest industry standards for safety and performance
DIMENSIONS & WEIGHT
Dimensions
37.2" W x 16.1" D x 31.9" H
GENERAL INFORMATION
Brand
Senville
Model Number
SENA-28HF-MOA
Style
Multi-Zone Outdoor Condenser (Heat Pump), 2-4 Zones
Compressor
Continuously Variable (Inverter)
CAPACITY & PERFORMANCE
Cooling Capacity (BTU)
27000
SEER2
23
EER2
12.5
Heating Capacity at 47°F (BTU)
27000
Heating Capacity at 17°F (BTU)
30000
Heating Capacity at 5°F (BTU)
27000
HSPF2-4
10.5
COP at 5°F
2.0
Cold Climate Certified
Yes
ELECTRICAL REQUIREMENTS
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
REFRIGERANT & PIPING
Refrigerant Type
R454B
Liquid Line Connections
1/4" x 4
Gas Line Connections
3/8" x 3, 1/2" x 1 (adaptors included)
Connection Method
Flared
Max. Total Line Length
131 Ft. (2 zones) / 197 Ft. (3 zones) / 262 Ft. (4 zones)
Max. Line Length Per Indoor Unit
82 Ft. (2 zones) / 98 Ft. (3 zones) / 115 Ft. (4 zones)
Max. Height Difference (Indoor to Outdoor)
49 Ft.
Max. Height Difference (Between Indoor Units)
33 Ft.
COMPATIBILITY
Zones
2-4
Compatible Indoor Unit Styles
Wall Mount, Ceiling Cassette, Concealed Duct, Console
Compatible Indoor Unit Sizes
6K / 9K / 12K / 18K / 24K BTU
SAFETY
Certifications
Energy Star Certified (AHRI Reference No. 215735314)
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
