Senville 24K BTU Top Discharge Central Split System with 20 SEER2 Hyper Heat Pump Condenser and Ducted Air Handler (SENTC-24TD)

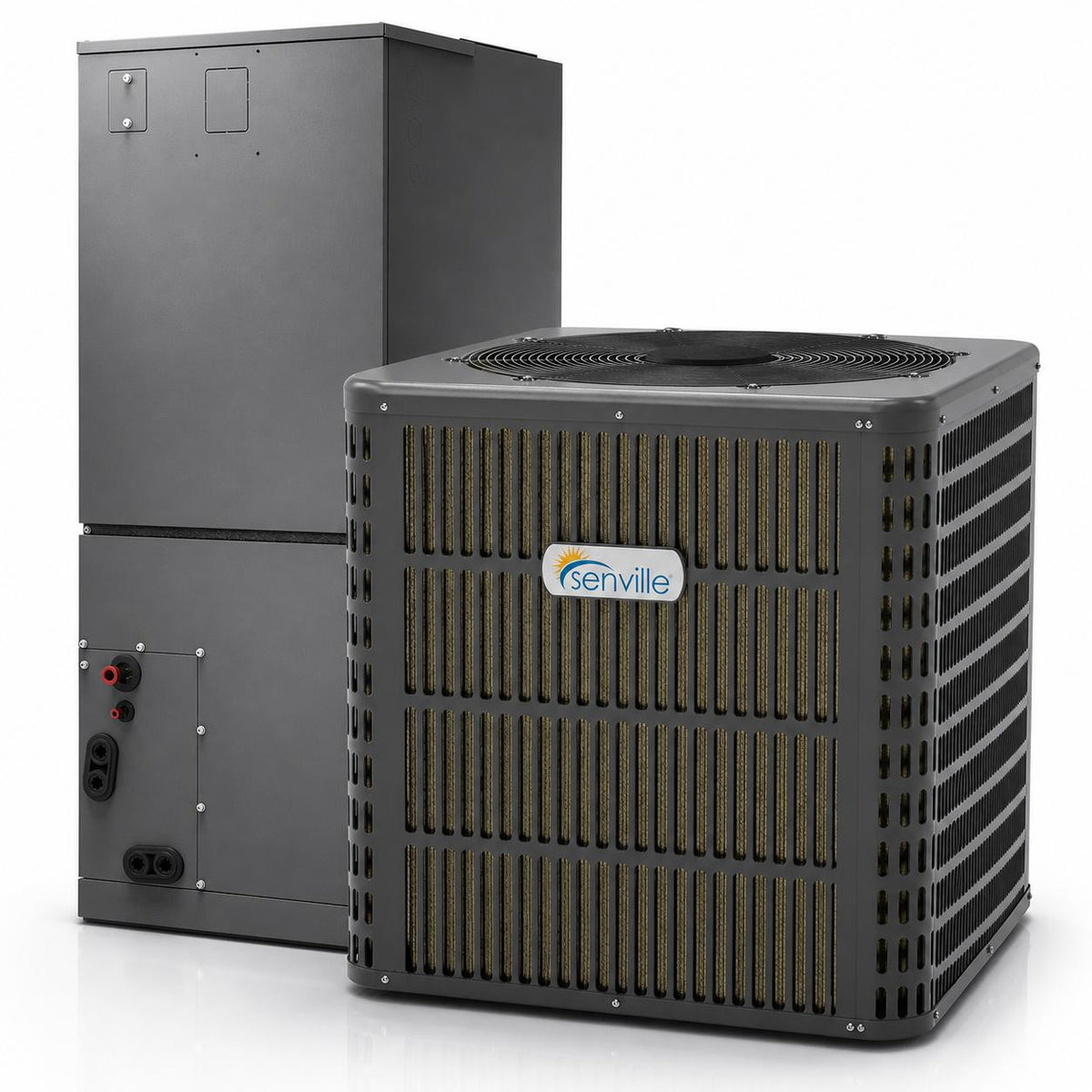

The Senville SENTC-24TD is a 2 ton (24,000 BTU) top discharge central heat pump system sized for condos, apartments, and homes up to approximately 1,200 sq ft. It pairs a compact top discharge Hyper Heat condenser with a ducted indoor air handler, so it works with a conventional central duct system while delivering inverter-level efficiency: 20.0 SEER2, 13.3 EER2, and 9.4 HSPF2 (Region 4).

A twin-rotary DC inverter compressor modulates output to match the load instead of cycling on and off, which holds a steady indoor temperature and keeps sound at 42 dB(A) at the air handler and 58 dB(A) outdoors. In heating mode the system still produces 23,000 BTU/h at 5°F and 19,000 BTU/h at -4°F outdoor, and it runs on R-32 refrigerant. Choose the line set length that fits your installation and add an optional auxiliary electric heat kit for backup heat on the coldest days.

Features

• Hyper Heat Cold-Climate Heating - Rated for 24,000 BTU/h of heating at 47°F outdoor and still delivers 23,000 BTU/h at 5°F and 19,000 BTU/h at -4°F, with a heating operating range of -4°F to 75°F.
• High-Efficiency Ratings - 20.0 SEER2, 13.3 EER2, 9.4 HSPF2 (Region 4), and a heating COP of 3.27 W/W.
• Twin-Rotary DC Inverter Compressor - The GMCC twin-rotary inverter compressor modulates cooling output between 6,800 and 25,000 BTU/h and heating output between 9,000 and 28,000 BTU/h to match demand.

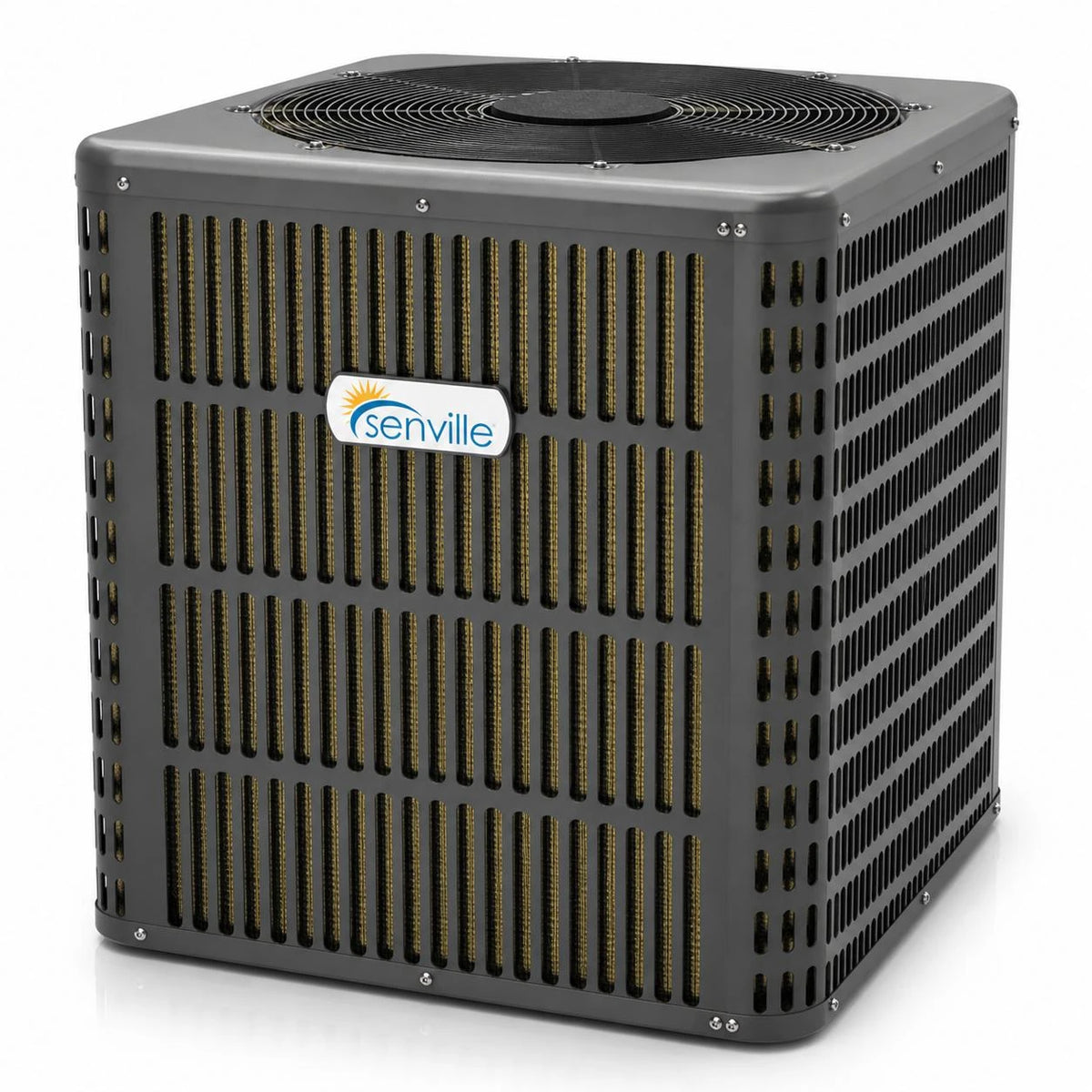

• Compact Top Discharge Condenser - The outdoor unit measures 29-9/64" x 29-9/64" x 25" and discharges air upward, keeping the footprint small for tight side yards and equipment pads.

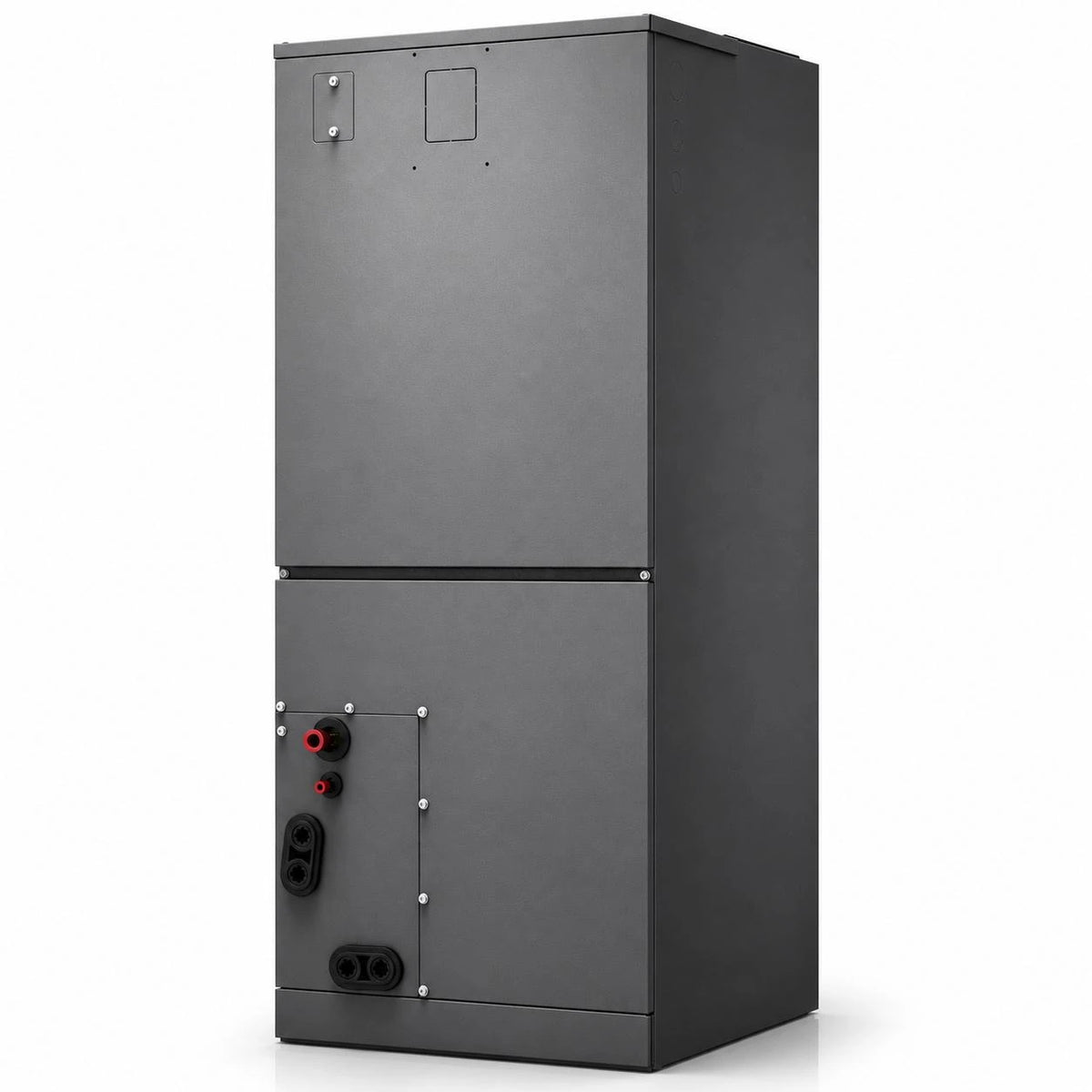

• Ducted Indoor Air Handler - Moves 830 CFM on high and 420 CFM on low through your ductwork from a 21-1/32" x 21-1/32" x 49-7/32" cabinet weighing 125 lbs.
• Quiet Operation - Indoor noise levels of 42 dB(A) on high and 38 dB(A) on low, with the outdoor unit at 58 dB(A).
• Wide Cooling Operating Range - Cools in outdoor temperatures from 5°F to 131°F and still produces 20,500 BTU/h at 109°F.
• R-32 Refrigerant - Ships with a 2.9 kg (102.3 oz) factory charge and supports line runs up to 164 ft (50 m) with up to 82 ft (25 m) of height difference, using flared connections.
• Auxiliary Heat Kit Ready - Add a 5 kW, 10 kW, 15 kW, or 20 kW electric heat kit to the air handler for supplemental or backup heat.
• AHRI Certified - An AHRI certificate and EnergyGuide label are published for this system, and it is supported by indoor, outdoor, and service manuals.

Please Note

• Professional installation is required. Refrigerant connections, evacuation, and electrical hookup must be performed by a licensed HVAC technician.
• Power supply is 208/230V, 60 Hz, 1-phase. The indoor unit is rated 5 A MCA / 15 A MOP and the outdoor unit 19 A MCA / 20 A MOP. Adding an electric heat kit increases the indoor electrical requirement, so confirm circuit sizing with your installer.
• Line Set Length selects the installation kit shipped with the system: 16 Ft. or 50 Ft. Maximum pipe length is 164 ft (50 m) and maximum height difference is 82 ft (25 m); longer runs may require additional refrigerant at 0.52 oz/ft (48 g/m).
• Heat Kit "None" ships the air handler without an auxiliary electric heater. The 5K, 10K, 15K, and 20K options add a factory electric heat kit (rated in kW) for backup or supplemental heat.
• Package includes the outdoor top discharge condenser, the indoor ducted air handler, the selected 16 Ft. or 50 Ft. installation kit, and the auxiliary heat kit if one is chosen.
• Communication wiring between the indoor and outdoor units is specified as AWG 25x3 shielded.
• Heating operating range is -4°F to 75°F outdoor; cooling operating range is 5°F to 131°F outdoor.
• Refrigerant line connections are flared: 3/8 in liquid and 3/4 in gas.
