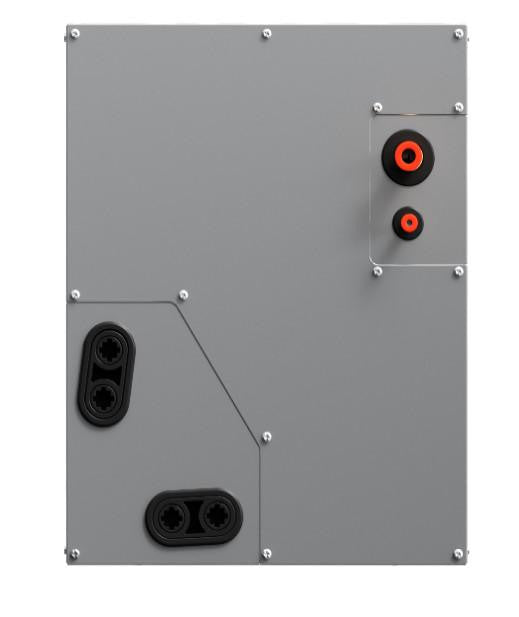

The Senville SENDC-24CO-B is a 24,000 BTU multi-position evaporator A-coil for Senville central split systems. It installs horizontally or vertically to suit the layout of the furnace or air handler cabinet, uses a durable aluminum coil, and carries an R454B refrigerant sensor for current R454B equipment.
The coil is designed for easy maintenance and runs on a 24V control circuit, so it works with a WiFi-enabled wired controller or a third-party 24V thermostat. The unit is AHRI listed, with the certificate and EnergyGuide label available through the AHRI directory.
Features
-
Multi-Position Installation - Mounts horizontally or vertically to fit the cabinet and ductwork layout.
-
Aluminum Coil - Durable aluminum coil construction.
-
R454B Refrigerant Sensor - Built-in sensor designed for R454B refrigerant systems.
-
Easy Maintenance - Designed for straightforward access and routine service.
-
Multiple Control Options - Compatible with a WiFi-enabled wired controller or third-party 24V thermostats.
-
24V Control Power - Indoor power supply is 24V, single phase, 60Hz.
-
AHRI Certified - Listed in the AHRI directory with a matching EnergyGuide label.
-
24,000 BTU Capacity - Sized for 24,000 BTU Senville central split systems.
Please Note
- Professional installation by a licensed HVAC technician is required.
- This listing is for the indoor evaporator A-coil only. The outdoor condenser, furnace or air handler, and line set are sold separately.
- Control options include a WiFi-enabled wired controller or a third-party 24V thermostat; confirm your controller selection before installation.
- This is the B model cabinet (SENDC-24CO-B). Confirm the coil model matches the AHRI-listed pairing for your outdoor unit before ordering.
- SEER2, EER2, HSPF2-4, COP and the outdoor unit specifications shown are system ratings that depend on the matched Senville outdoor unit.
- Designed for R454B refrigerant; pair with compatible R454B outdoor equipment.
- Indoor power supply: 24V, 1Ph, 60Hz low-voltage control.
- Indoor coil dimensions are 17.5 × 21 × 18 in (W×D×H); check cabinet clearances and the installation manual before ordering.
