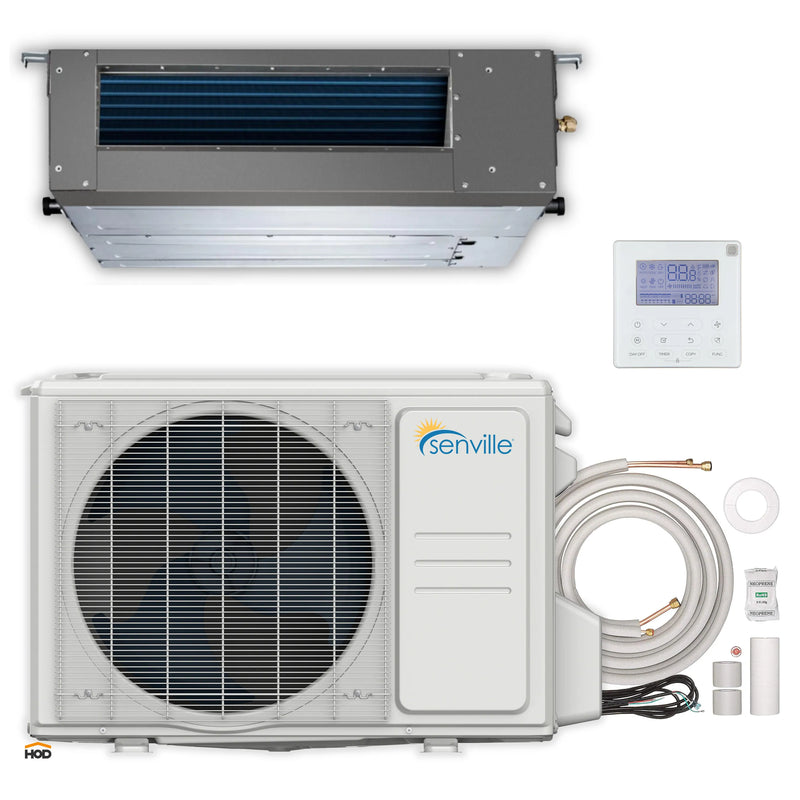

Mini split kit with condenser, concealed duct unit, thermostat, and line set components

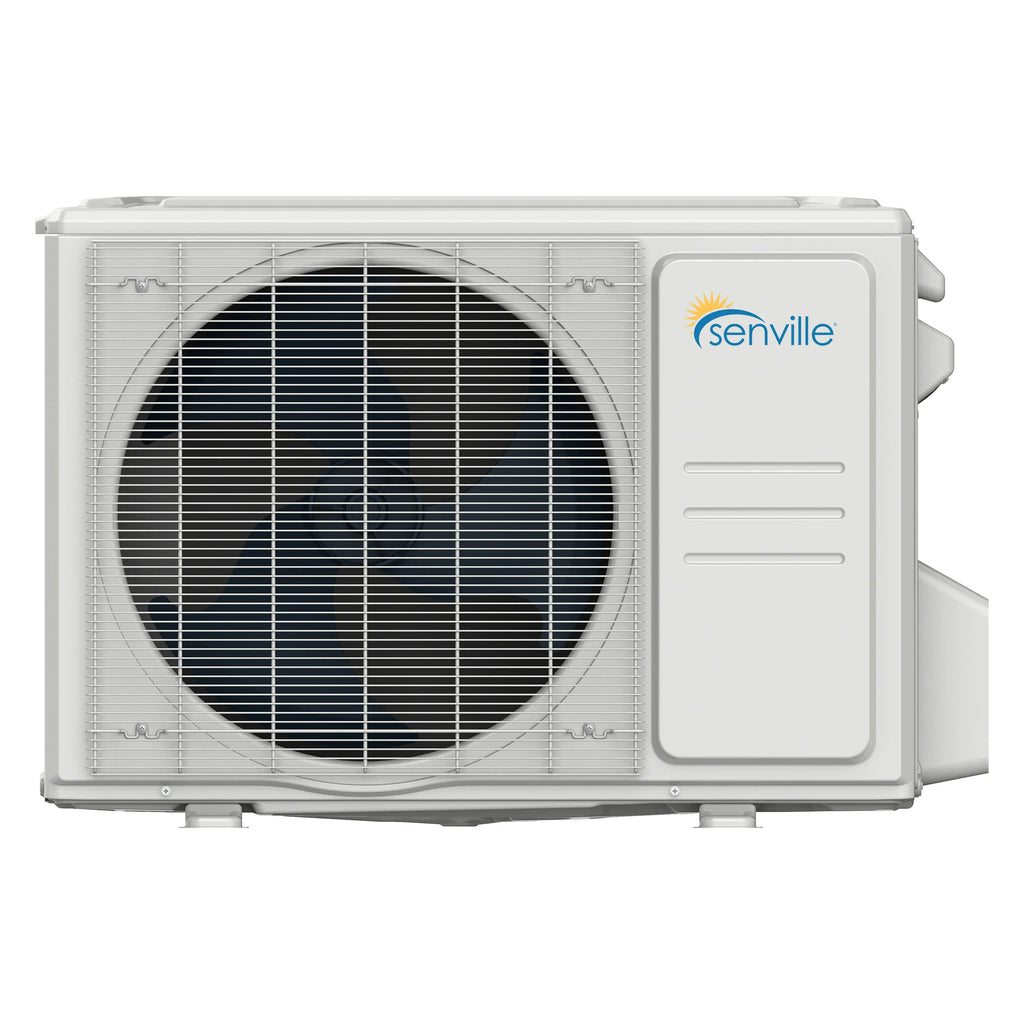

White mini split heat pump condenser unit with large circular fan grille

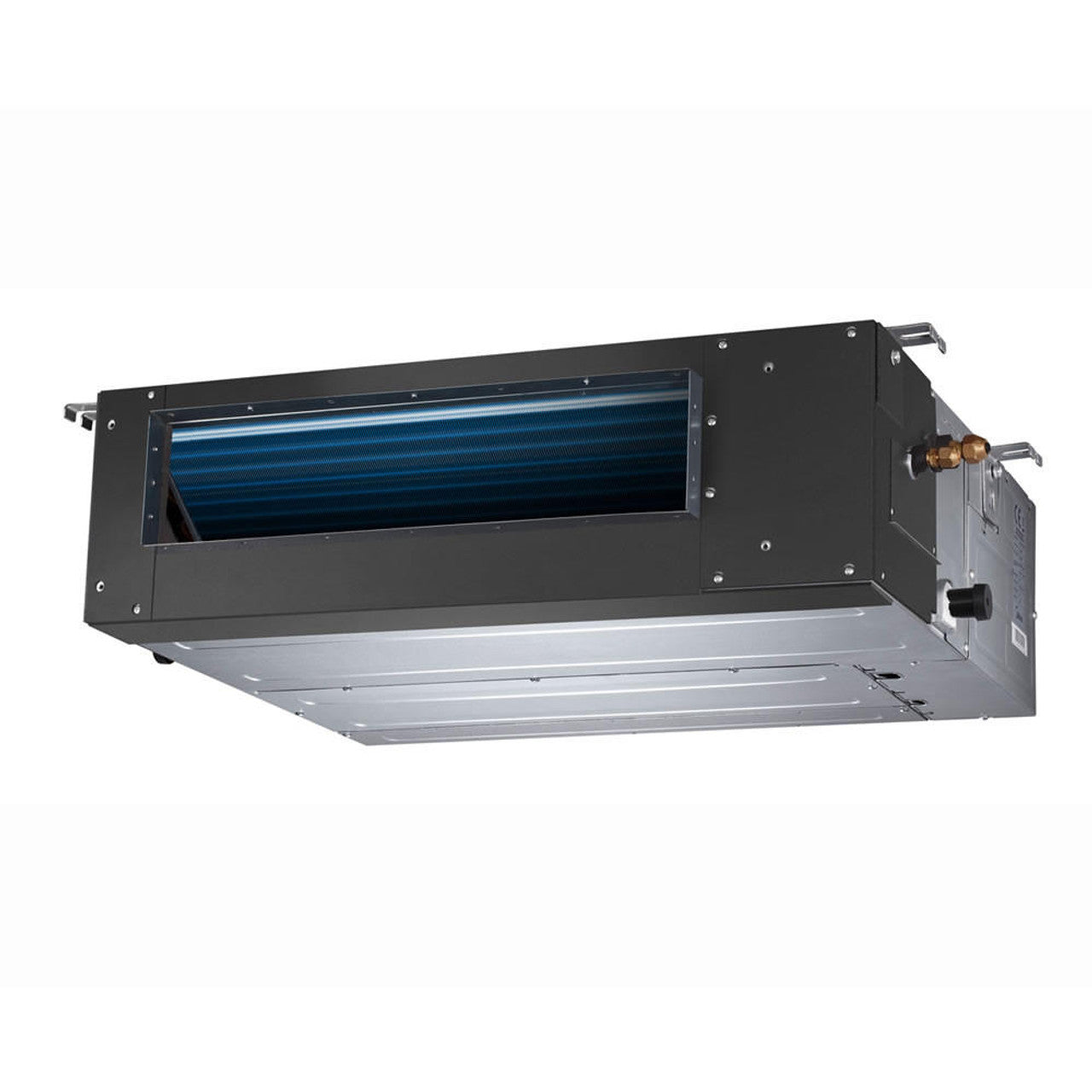

Black and silver concealed duct indoor air handler unit with blue filter grille

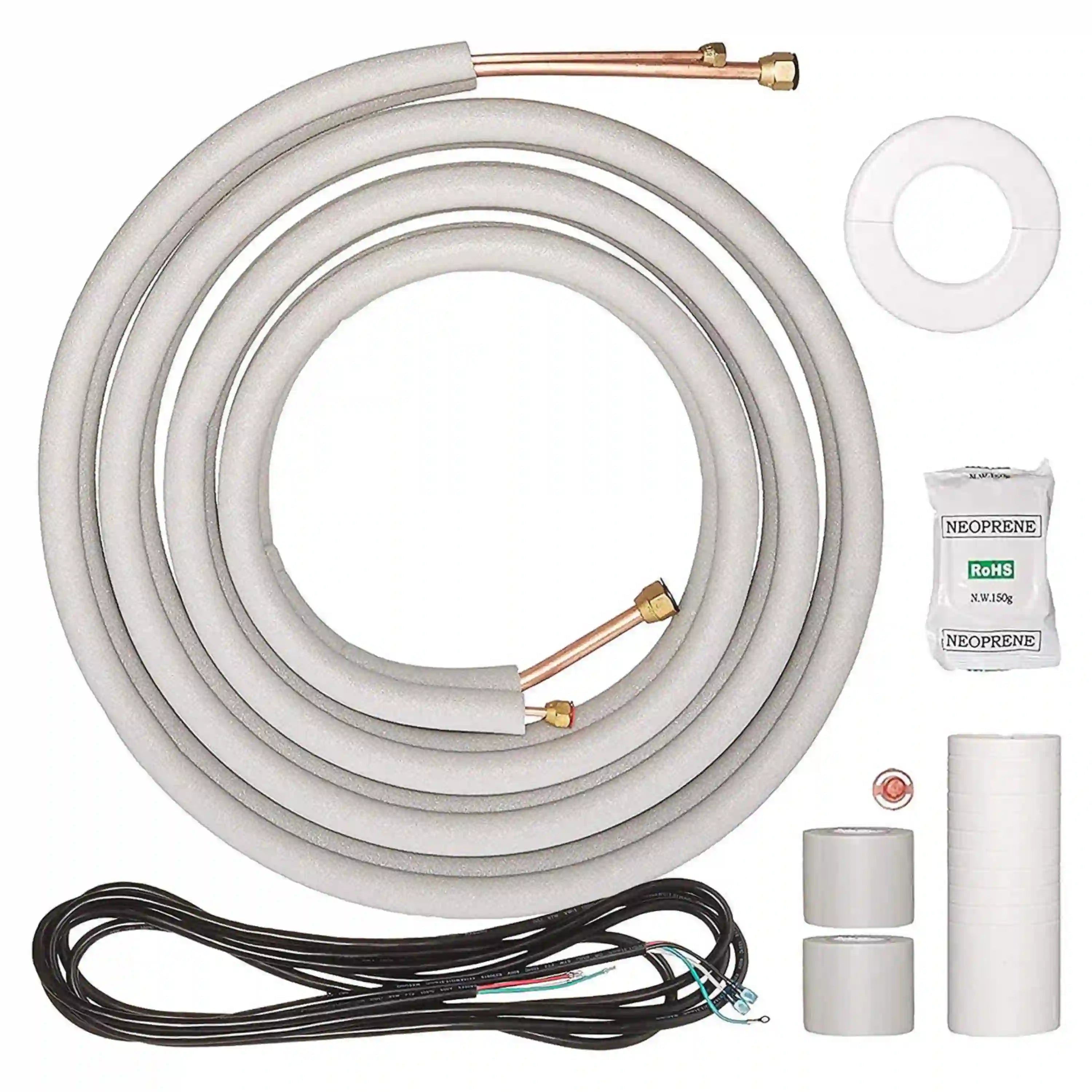

Gray refrigerant line set kit with copper ends, insulated tubing, wiring and caps
Roll over image to zoom in Click on image to zoom
Mini split kit with condenser, concealed duct unit, thermostat, and line set componentsWhite mini split heat pump condenser unit with large circular fan grilleBlack and silver concealed duct indoor air handler unit with blue filter grilleGray refrigerant line set kit with copper ends, insulated tubing, wiring and caps
Click on image to zoom

Senville 24K BTU Mini Split with 19 SEER2, 230V Concealed Duct Air Conditioner and Heat Pump Condenser (SENA-24HF-ID)

SenvilleSKU: SENA-24HF-ID16
4 reviews
Price:
$1,799.99 $2,339.99SAVE 23%
Type:
BTU:
In Stock
Estimated delivery: Nov 11th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The 30-second rundown
24,000 BTUHeating + Cooling
Professional RequiredInstallation
19 SEER2Efficiency
1,250 Sq. Ft.Coverage (estimate)
1-Zone
208/230VPower
Energy Star Certified

Senville · AURA Series · Concealed Duct

SENA-24HF-ID Concealed-Duct Air Conditioner and Heat Pump
24,000 BTU of discreet, year-round comfort.

ENERGY STAR certified cooling and heating with the indoor unit concealed above the finished space. The cold-climate heat pump is designed to provide heating down to -30 °C (-22 °F).

Performance at a Glance

  • 19 SEER2 — ENERGY STAR efficiency
  • 11.7 HSPF2-4
  • 12 EER2
  • Down to -30 °C (-22 °F) — Cold-weather heating
  • As low as 29.5 dB — Low indoor setting
  • Horizontal only — Indoor-unit orientation
  • R454B — Refrigerant

Conditioned Air Without a Wall-Mounted Unit

The indoor unit is installed horizontally in a concealed location and connects to field-supplied ductwork, leaving only the supply and return grilles visible in the room.

Why Choose the SENA-24HF-ID?

  • Concealed-duct format — Distributes conditioned air through field-supplied ductwork while keeping the indoor unit out of the occupied room.
  • Cold-climate performance — Provides cooling and heat-pump operation, with heating down to -30 °C (-22 °F) at up to 75% efficiency.
  • Diagnostics and leak detection — Built-in self-diagnostics and refrigerant leak detection support system monitoring and service troubleshooting.

Everything You Need to Get Started

  • Concealed-duct indoor unit — Horizontal indoor unit
  • Outdoor heat-pump unit — Cold-climate inverter
  • Controls and selected kit — Remote, wired control and components
  • Selected installation kit — 16, 25 or 50 ft.; optional None

Buy with Confidence

Manufacturer warranty: 10 years on the compressor · 5 years on parts. Coverage is subject to Senville’s warranty terms.

Professional installation required — horizontal orientation only. This concealed-duct indoor unit cannot be installed vertically. Vertical installation may prevent the system from functioning properly. Installation must follow the approved orientation and instructions in the installation manual. The 50 ft. installation kit also requires additional refrigerant to be added on-site by the installer.

DIMENSIONS
Indoor Dimensions (WxDxH)
39.37 x 29.53 x 9.65 in
Indoor Weight
80.47 lbs
Outdoor Dimensions (WxDxH)
37.24 x 16.14 x 31.89 in
Outdoor Weight
130.29 lbs
GENERAL INFORMATION
Brand Name
Senville
Series
AURA (Concealed Duct)
Model Number
SENA-24HF-ID
Style
Concealed Duct Mini Split AC With Heat Pump
Indoor Unit Orientation
Horizontal only
Thermostat Type
Wired Control
COOLING PERFORMANCE
Cooling Capacity
24,000 BTU
Cooling Range
5,000~28,000 BTU
SEER2
19
EER2
12
Cooling Input Range
870~2,410 W
Cooling Current Range
4.0~10.6 A
Moisture Removal
2.03 L/h
HEATING PERFORMANCE
Heating Capacity
26,000 BTU
Heating Range
7,300~31,400 BTU
HSPF2-4
11.7
HSPF2-5
9.3
COP (W/W)
3.81
Heating Input Range
440~2,480 W
Heating Current Range
2.4~11 A
Minimum Outdoor Heating Temperature
-22°F / -30°C
TECHNICAL DETAILS
Power Supply
208/230V, 1Ph, 60Hz
Voltage Range
187-253
Minimum Circuit Ampacity
25 A
Max. Fuse
25 A
Connection Wiring
14*4 AWG
Refrigerant Type / Charge
R454B / 63.49 oz
Refrigerant Pre-charge
25 Ft.
Indoor Air Flow (Turbo/H/M/L)
853.5 / 706.3 / 618.0 / 500.3 CFM
Indoor Noise Level (Turbo/H/M/L)
40.0 / 37.0 / 35 / 29.5 dB
Outdoor Air Flow (Max)
2236.7 CFM
Outdoor Noise Level
61.5 dB
WARRANTY & CERTIFICATIONS
Warranty
10 Years Compressor / 5 Years Parts
Certifications
ENERGY STAR

Senville AURA Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU up to 250 sq ft · Small bedroom, office
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
15K BTU up to 800 sq ft · Living room
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1350 sq ft · Open living area
33K BTU up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
