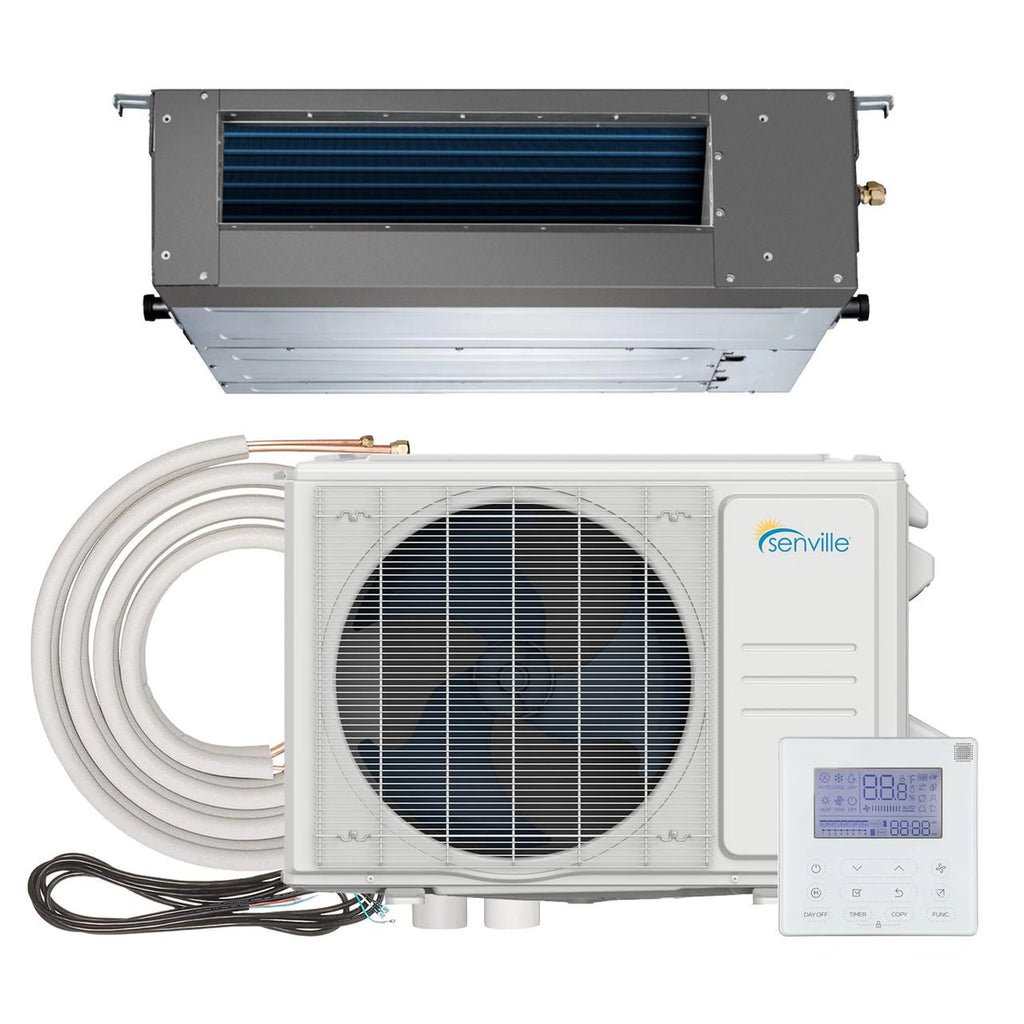

Senville mini split: concealed duct air handler, outdoor condenser, remote control

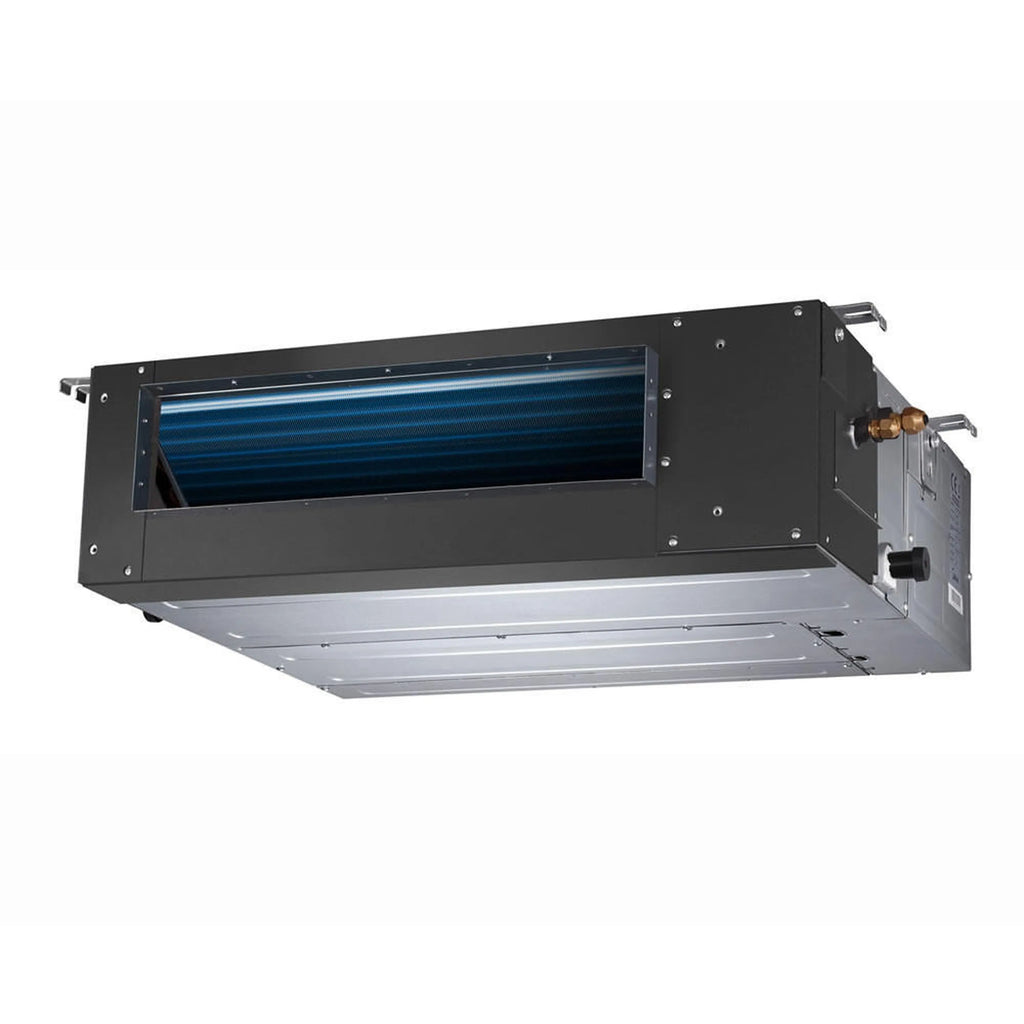

Concealed duct air handler unit with blue finned coil and front grille

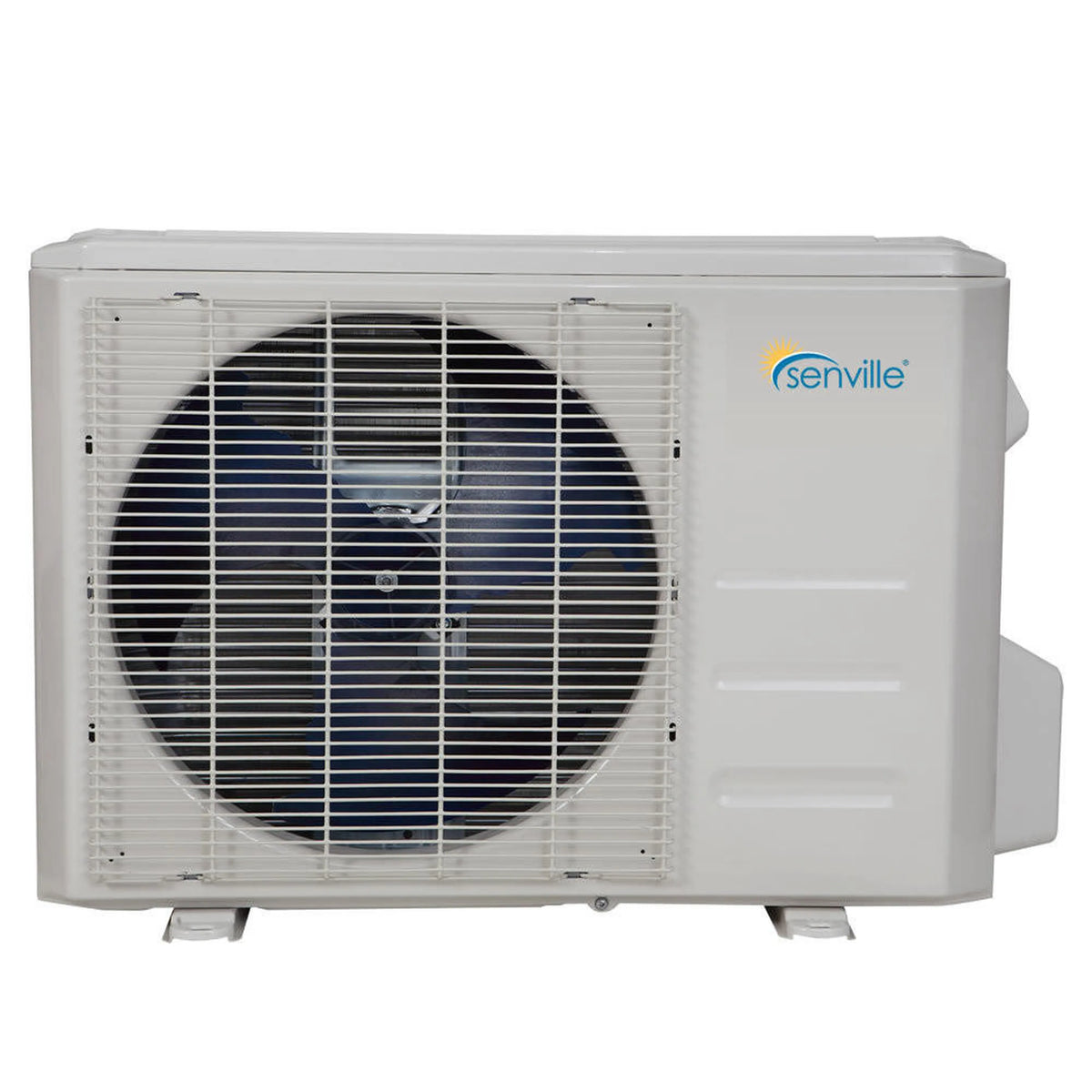

Senville outdoor condenser with circular fan grille and louvered coil cover
ENERGYGUIDE label for Senville SENA-18HF-ID, SEER2 18.00–21.70
Roll over image to zoom in Click on image to zoom
Senville mini split: concealed duct air handler, outdoor condenser, remote controlConcealed duct air handler unit with blue finned coil and front grilleSenville outdoor condenser with circular fan grille and louvered coil coverENERGYGUIDE label for Senville SENA-18HF-ID, SEER2 18.00–21.70
Click on image to zoom

Senville 18K BTU, 18 SEER2 Mini Split Air Conditioner and Heat Pump Condenser with Concealed Duct Air Handler (SENA-18HF-ID)

SenvilleSKU: SENA-18HF-ID16
2 reviews
Price:
$1,599.99 $2,079.99SAVE 23%
Type:
BTU:
Backorder
Estimated restock: 2-4 Weeks
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Senville SENA-18HF/ID is a high-efficiency 18000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

  • 18 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
  • Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
  • Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
  • Professional Installation - Required to maintain warranty coverage.
  • ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
  • Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
  • Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
  • 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
  • Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty
DIMENSIONS & WEIGHT
Dimensions (WxDxH) (in.)
34.65 x 26.54 x 8.27
Weight
54.45 Lbs.
GENERAL INFORMATION
Brand
Senville
Model Number
SENA-18HF
Style
Concealed Duct Mini Split AC With Heat Pump
CAPACITY & PERFORMANCE
SEER2
18
EER2
12
HSPF2-4
10.5
HSPF2-5
9
COP (W/W)
3.37
Cooling Capacity (BTU)
17000
Cooling Range (BTU)
6500~18800
Cooling Input Range (W)
310~1750
Cooling Current Range (A)
2.3~8
Heating Capacity (BTU)
19000
Heating Range (BTU)
8900~22000
Heating Input Range (W)
550~2250
Heating Current Range (A)
3.8~12
Minimum Outdoor Heating Temperature
-22°F / -30°C
Air Flow (Turbo/H/M/L) CFM
600.4 / 559.2 / 500.3 / 441.4
Air Flow (Max) CFM
1764.7
NOISE LEVELS
Noise Level (Turbo/H/M/L) dB
40 / 39 / 38 / 32
Noise Level (dB)
59
ELECTRICAL REQUIREMENTS
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Voltage Range
187-253V
Minimum Circuit Ampacity (A)
19
Max. Fuse (A)
20
REFRIGERANT & PIPING
Refrigerant Type
R454B
Refrigerant Charge (oz)
55.38
Refrigerant Pre-charge
25 Ft.
CONTROLS & CONNECTIVITY
Connection Wiring
14*4 AWG
Thermostat Type
Wired Control
Alexa
Enabled
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts
