Senville SENL-18CD is a high-efficiency 18000 BTU mini split air conditioner and heat pump designed to deliver affordable, year-round comfort for your home or business. Enjoy whisper-quiet operation, powerful cooling, and heating—even in cold climates.

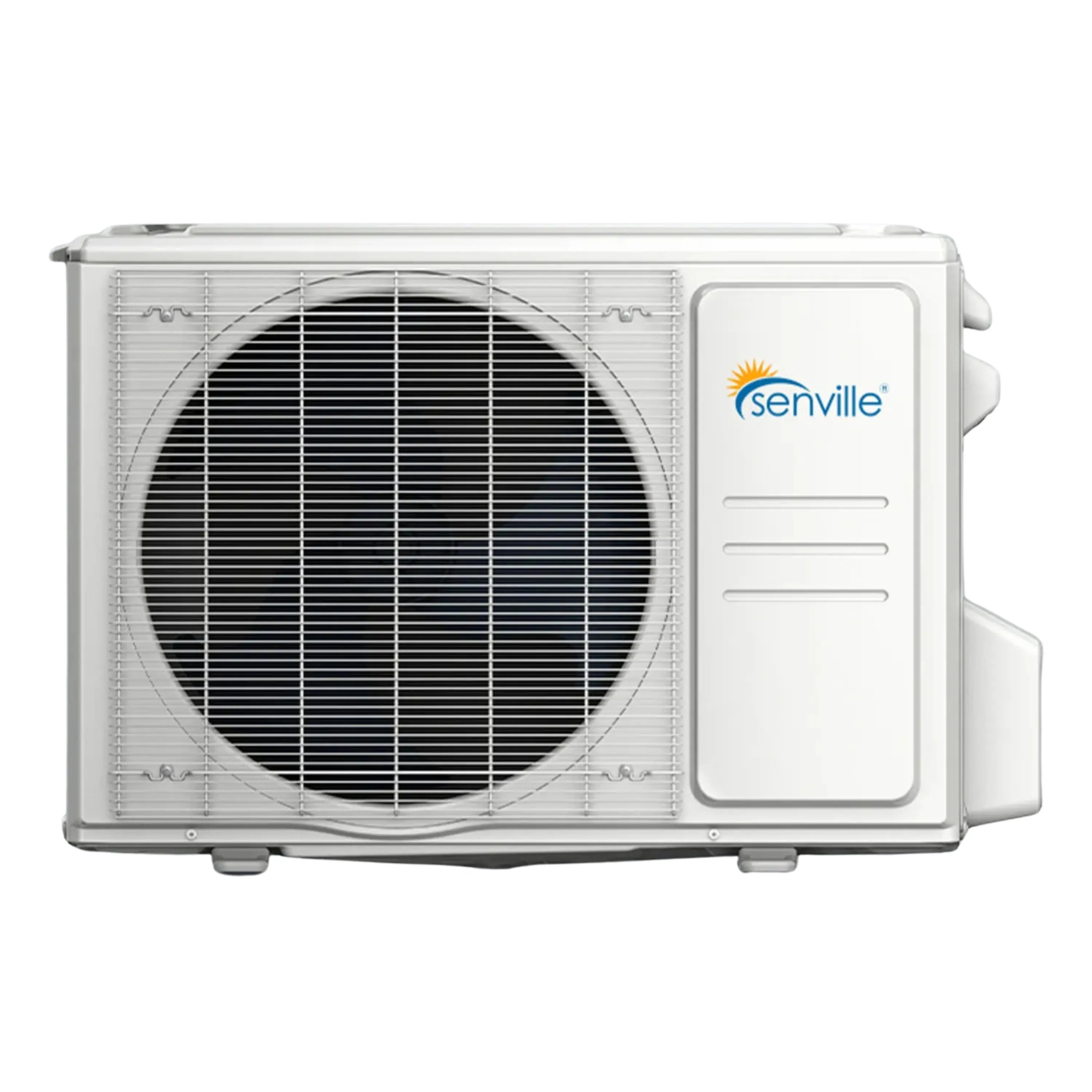

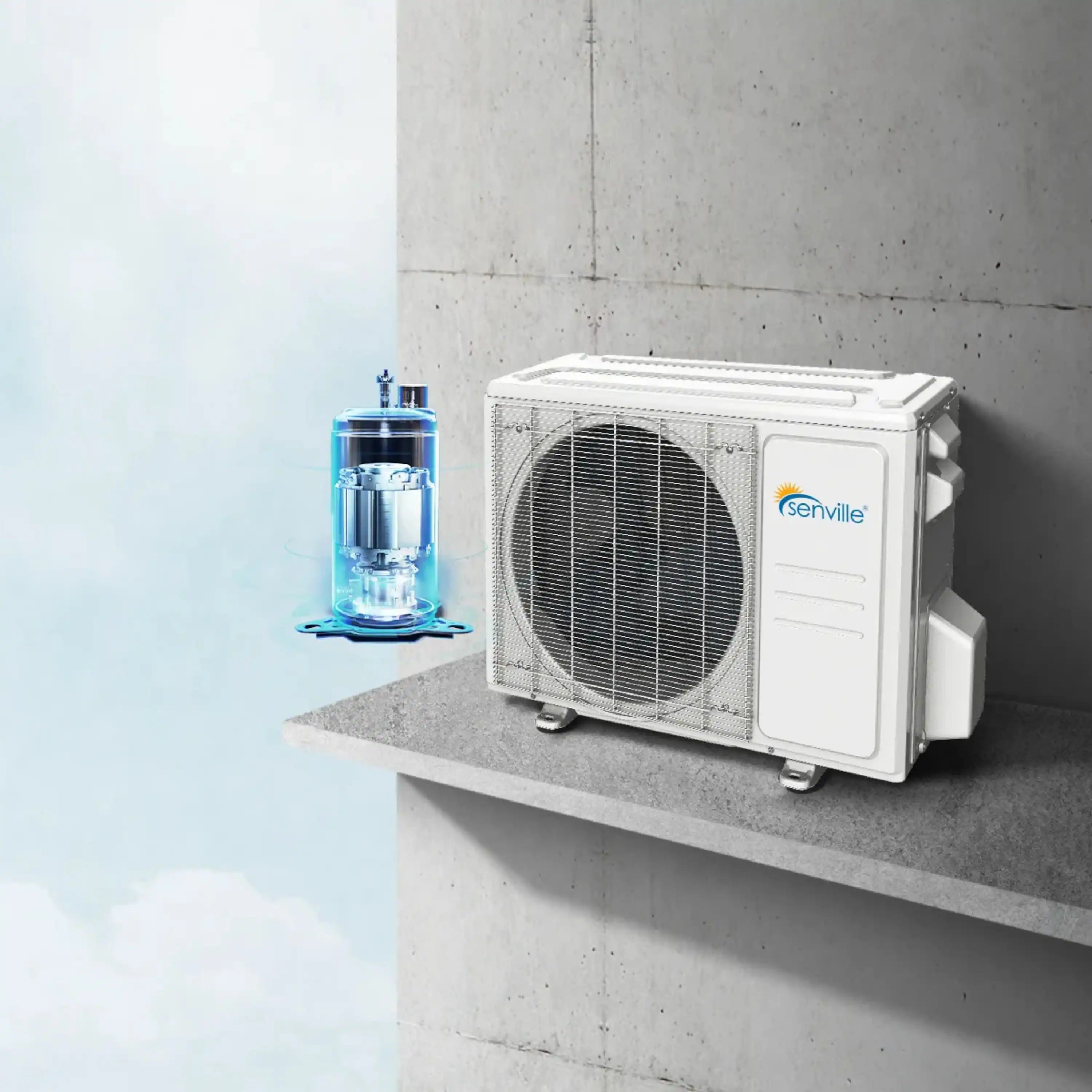

| Condenser | |
| Dimensions (WxDxH) (in.) | 31.69 x 12.99 x 21.81 in |
| Weight | 72.31 lbs |
| Air Flow (Max) CFM | 1235.3 |
| Noise Level dB | 56 |

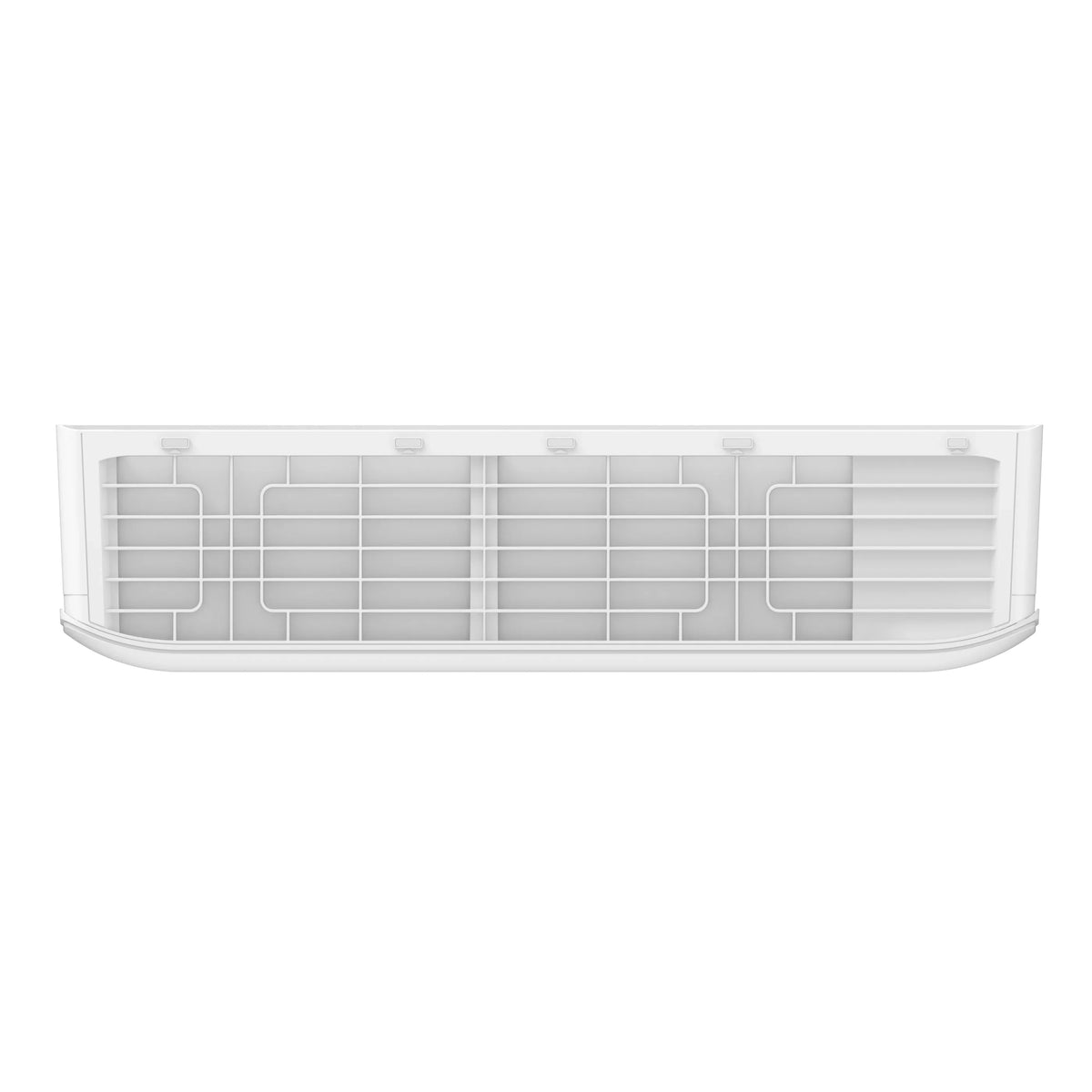

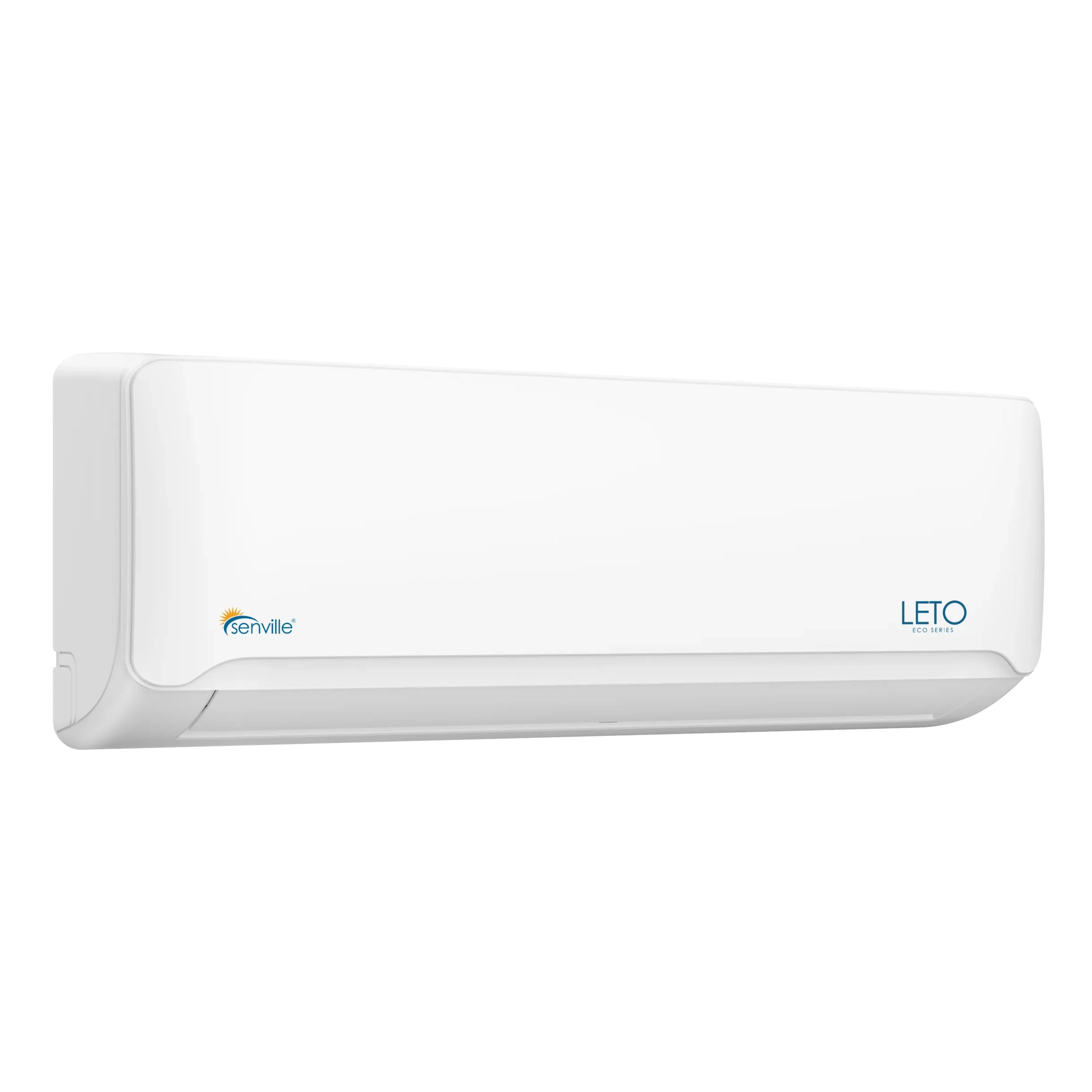

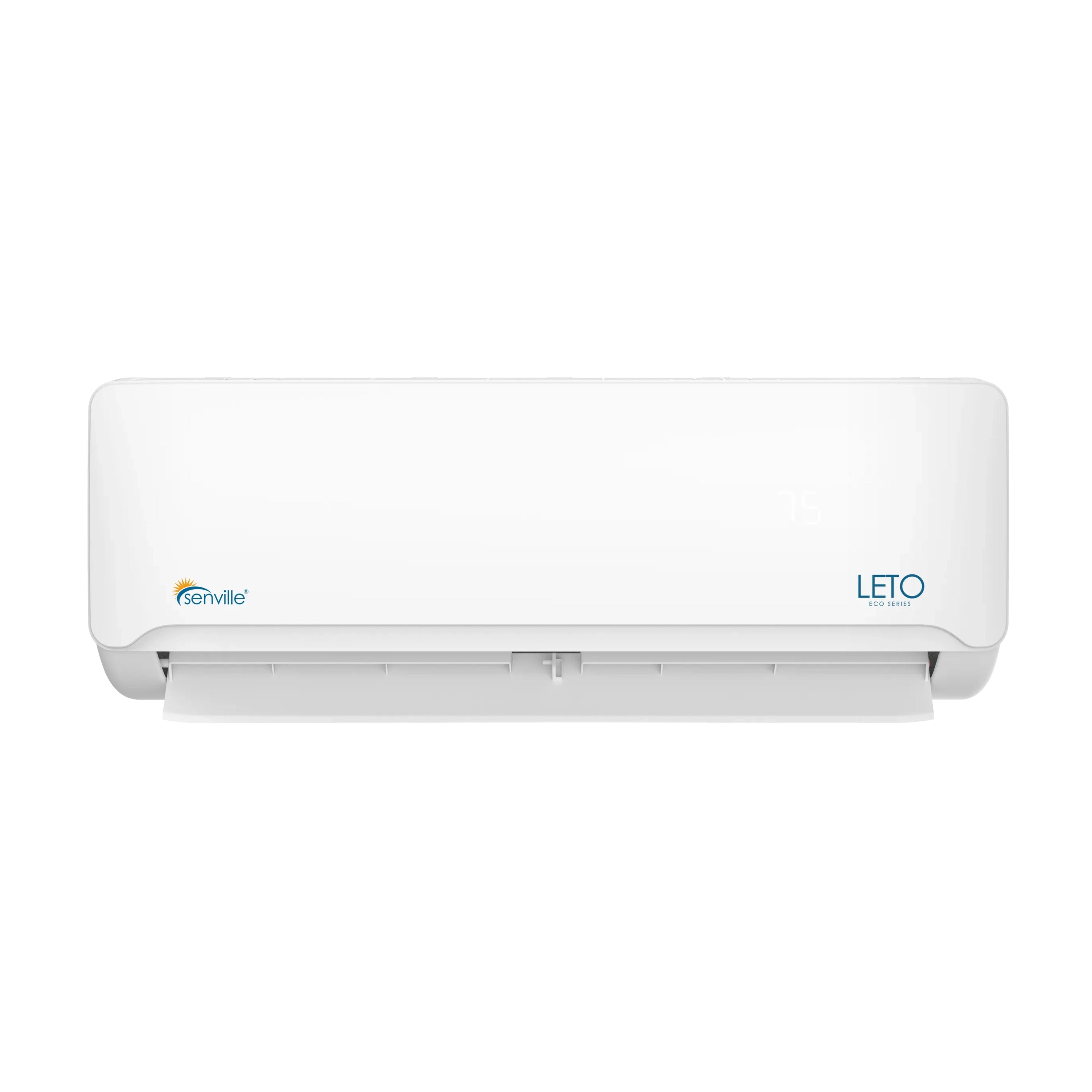

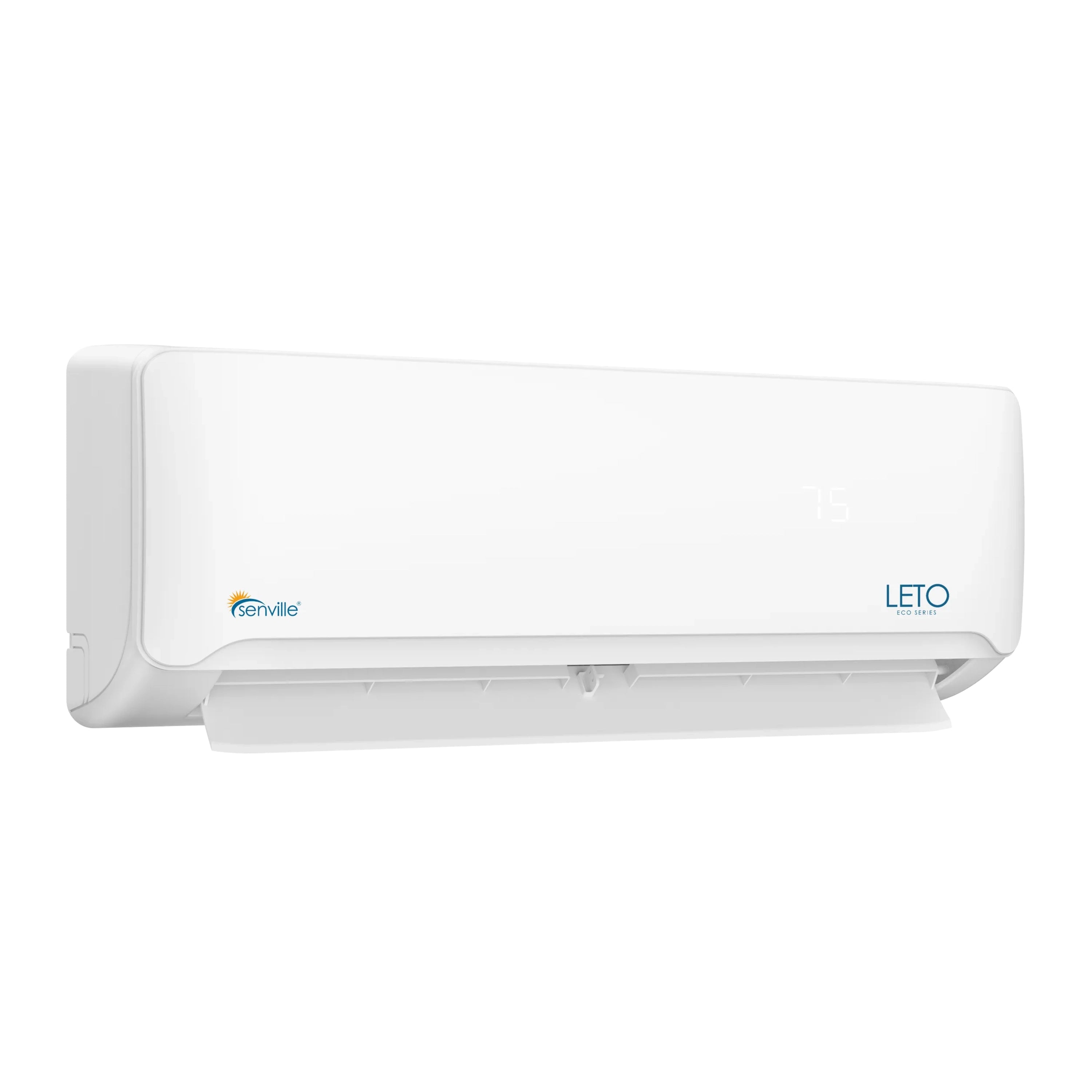

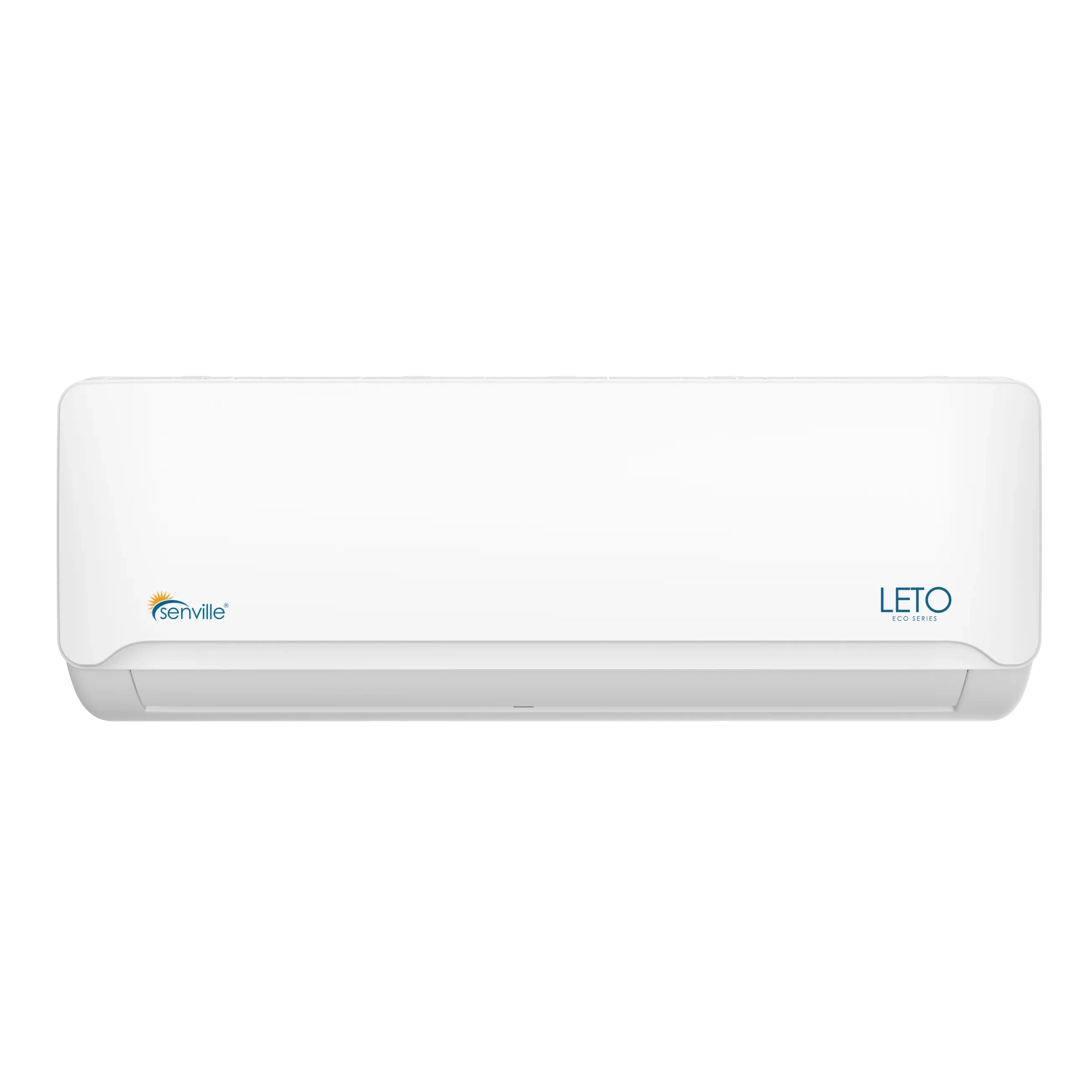

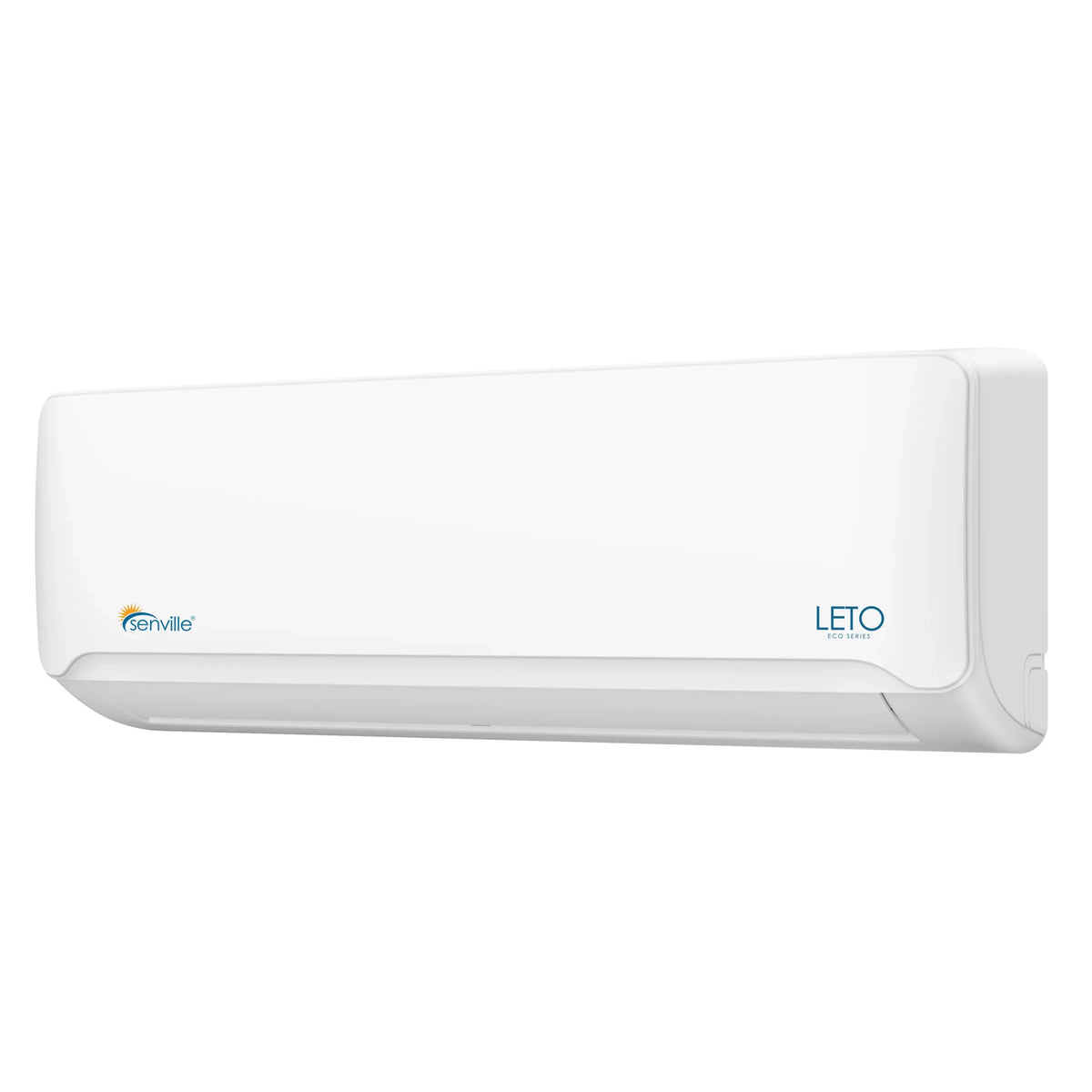

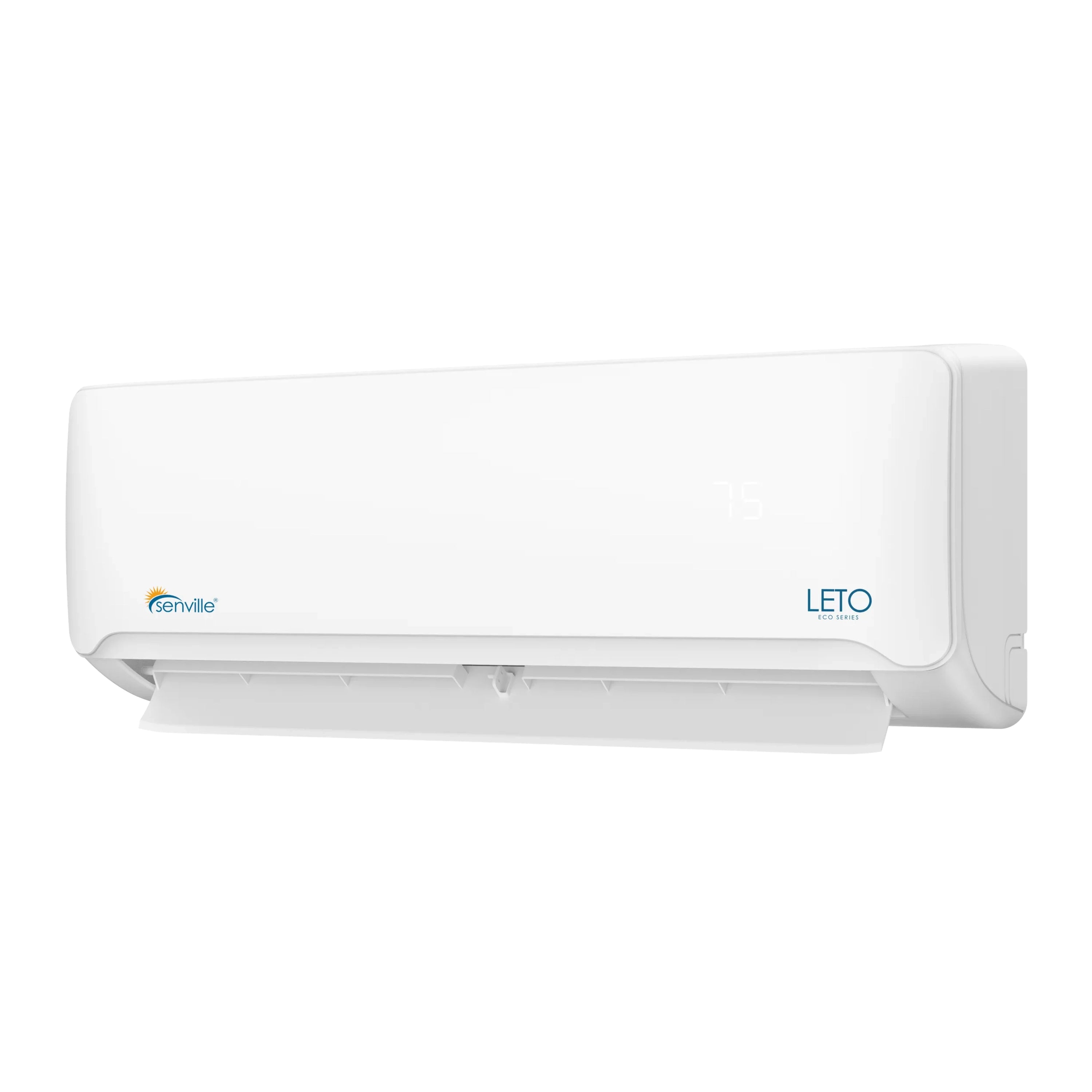

| Air Handler | |
| Dimensions (WxDxH) (in.) | 37.99 x 8.46 x 12.56 in |
| Weight | 24.47 lbs |
| Air Flow (Turbo/H/M/L) CFM | 429.7 / 388.5 / 259.0 / 217.8 |
| Noise Level (Turbo/H/M/L) dB | 50.5 / 45 / 36 / 24 |
| Technical Specifications | |
| SEER2 | 19.2 |
| EER2 | 10.8 |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| Cooling Capacity (BTU) | 18000 |
| Cooling Range (BTU) | 4100~19000 |
| Cooling Input Range (W) | 365~1720 |
| Cooling Current Range (A) | 1.7~7.6 |
| Heating Capacity (BTU) | 18800 |
| Heating Range (BTU) | 6200~20200 |
| Heating Input Range (W) | 380~1850 |
| Heating Current Range (A) | 2.1~8.2 |
| HSPF2-4 | 9.6 |
| HSPF2-5 | 7.5 |
| COP W/W | 3.06 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 20 |
| Moisture Removal (L/H) | 2.5 |
| Refrigerant Type | R454B |

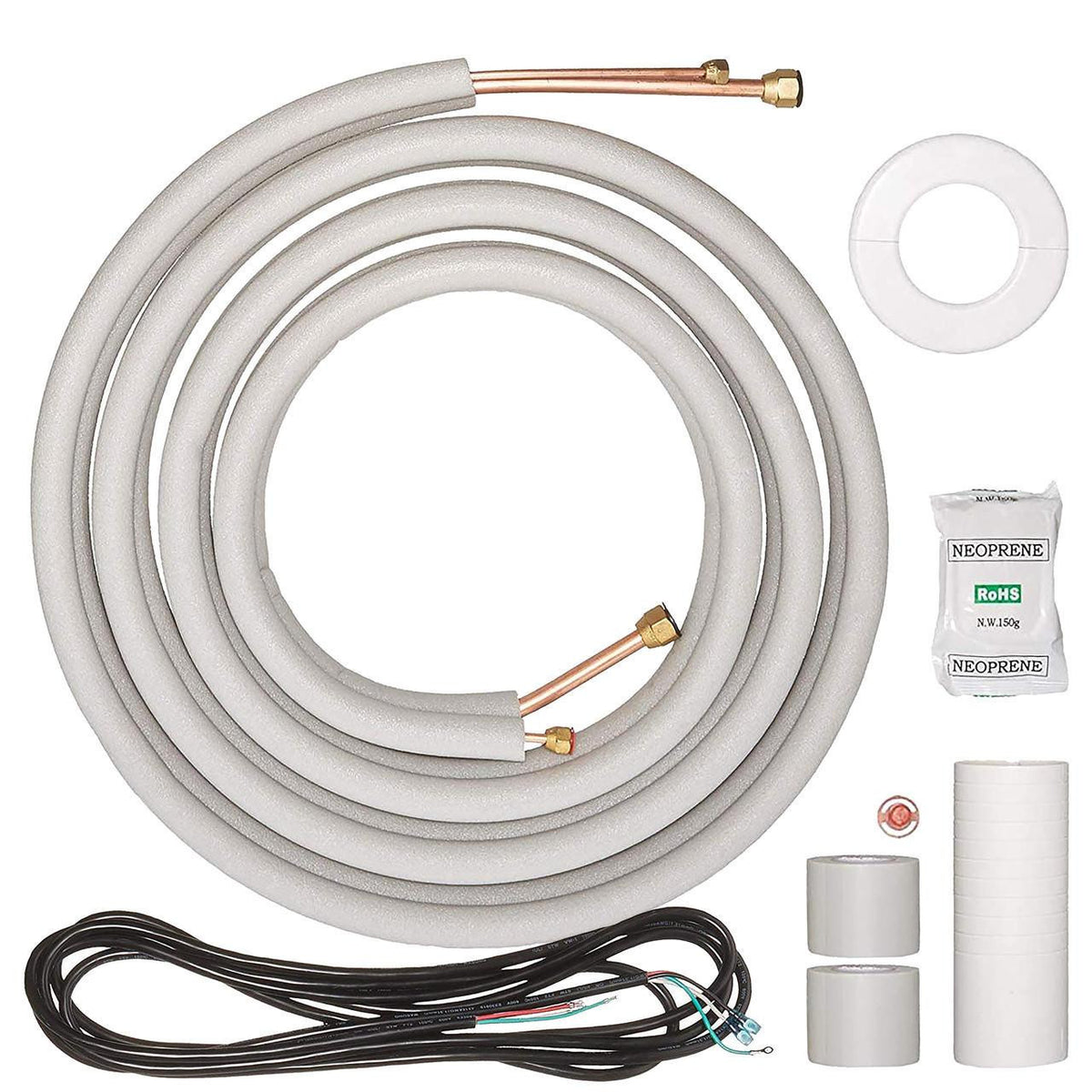

| Refrigerant Pre-charge | 25 ft. |
| Connection Wiring | 14*4 AWG |

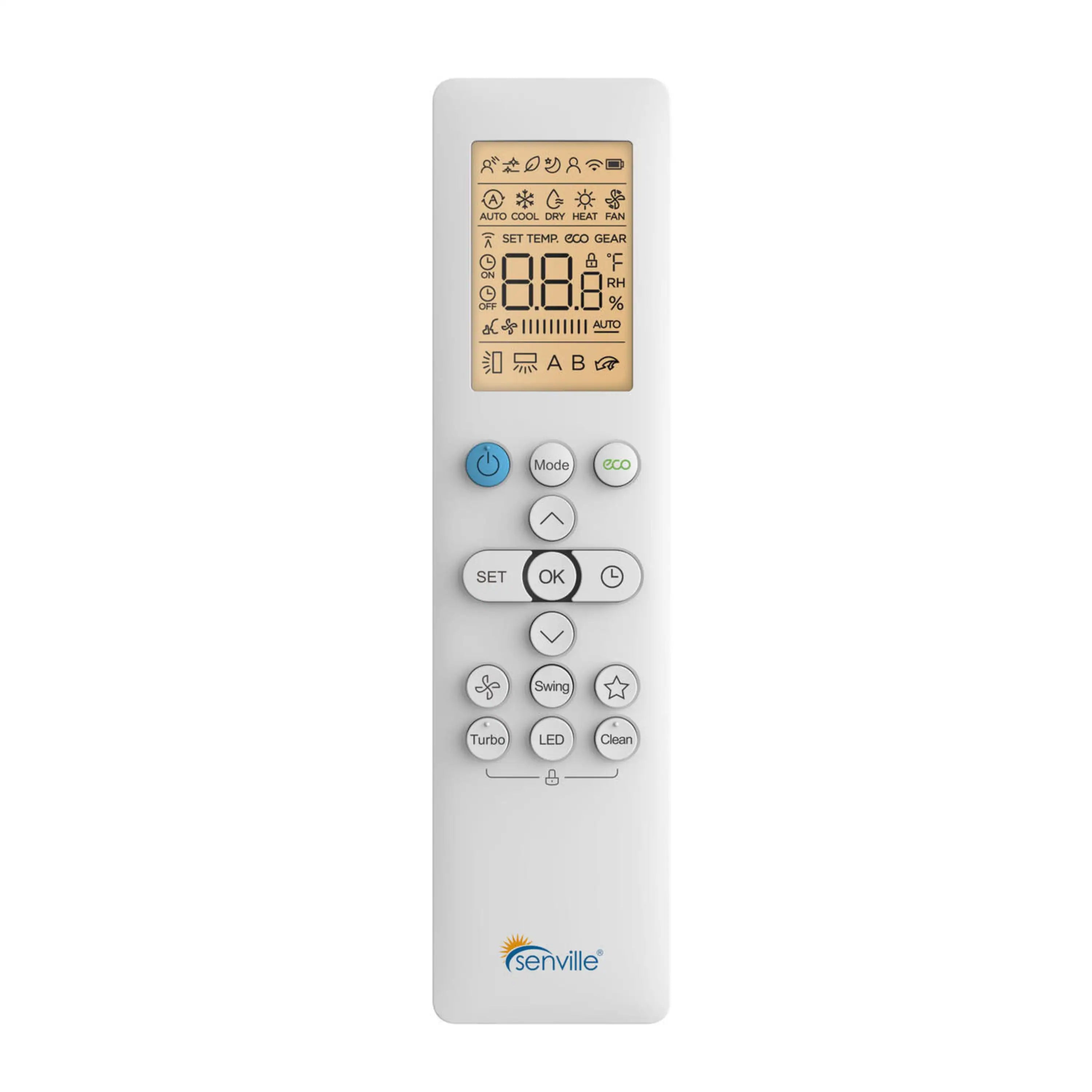

| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 5 Years Compressor / 5 Years Parts |
| Certification | ETL Certified/ AHRI Certified |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
