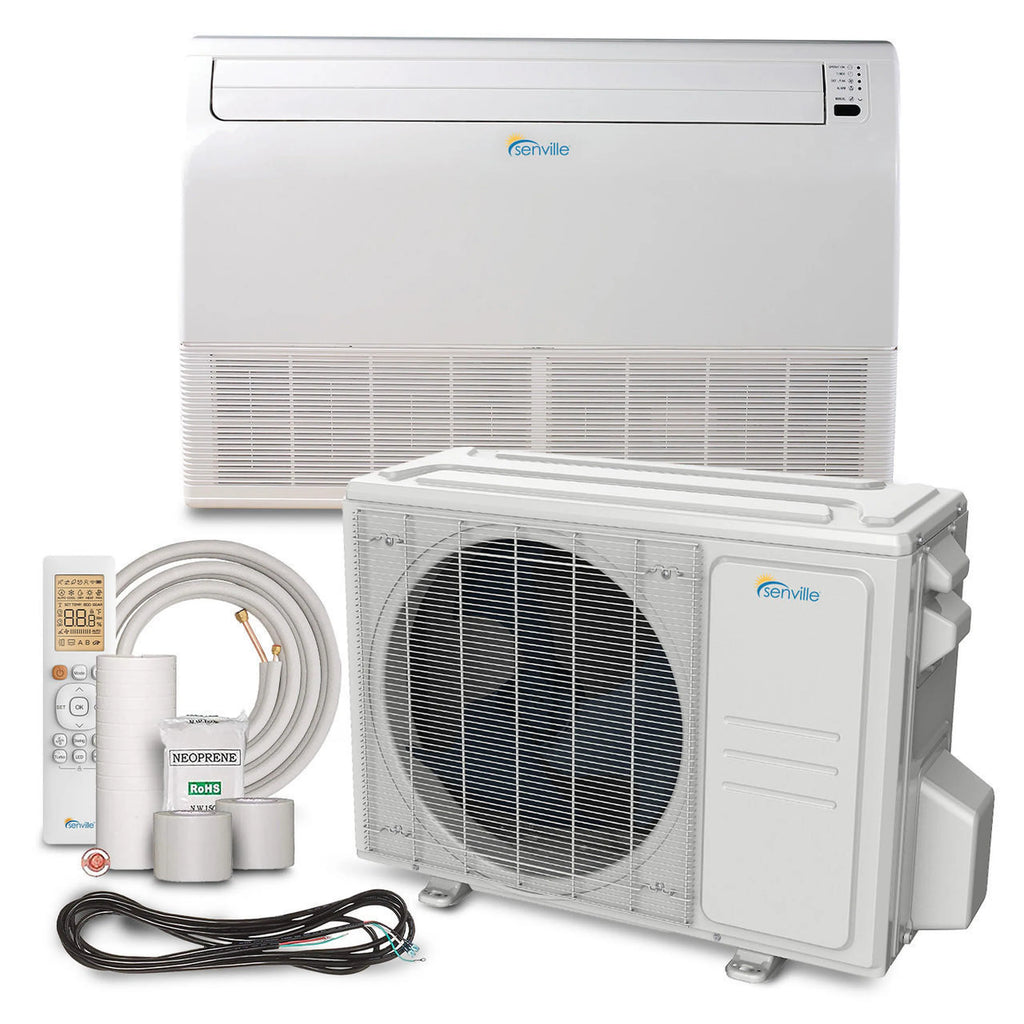

Ductless mini split heat pump kit with indoor air handler, outdoor unit, remote, and line set

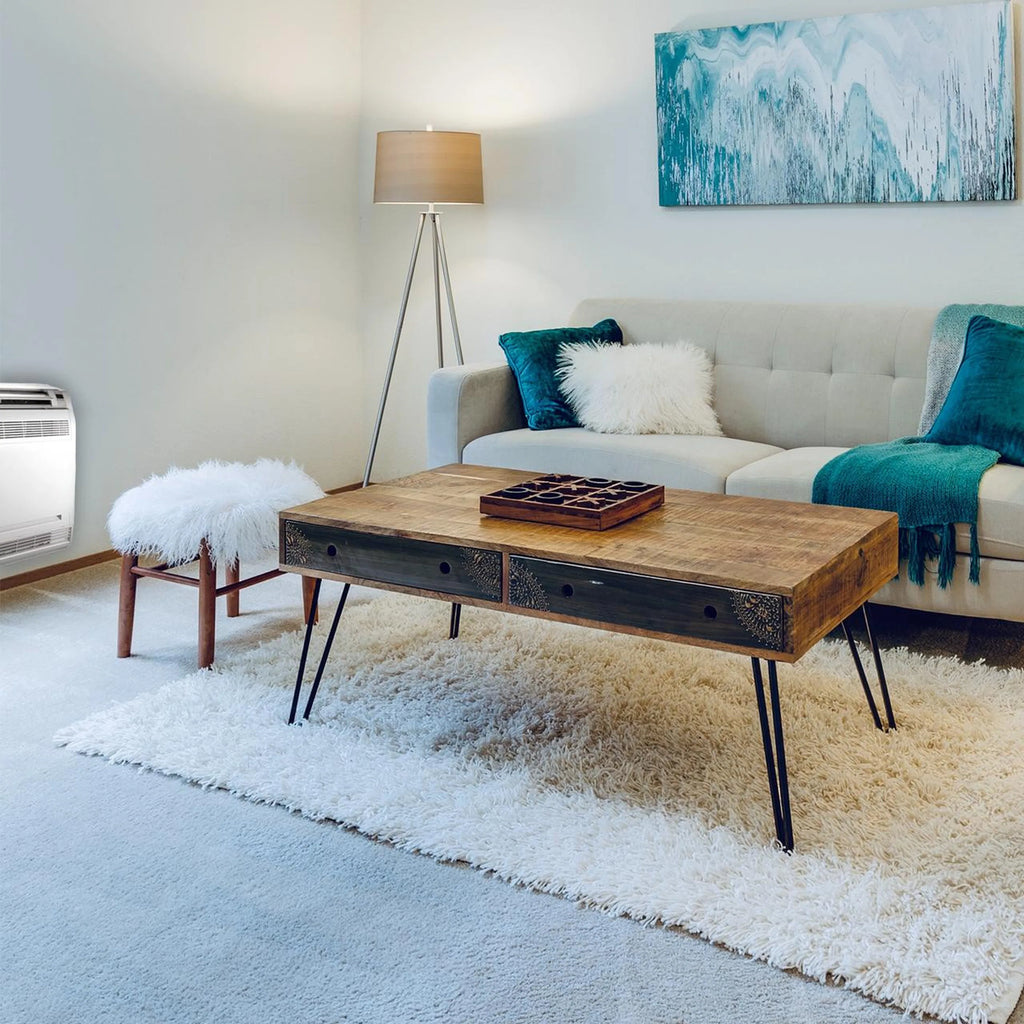

White floor-mounted ductless mini split air handler with grille in a modern living room

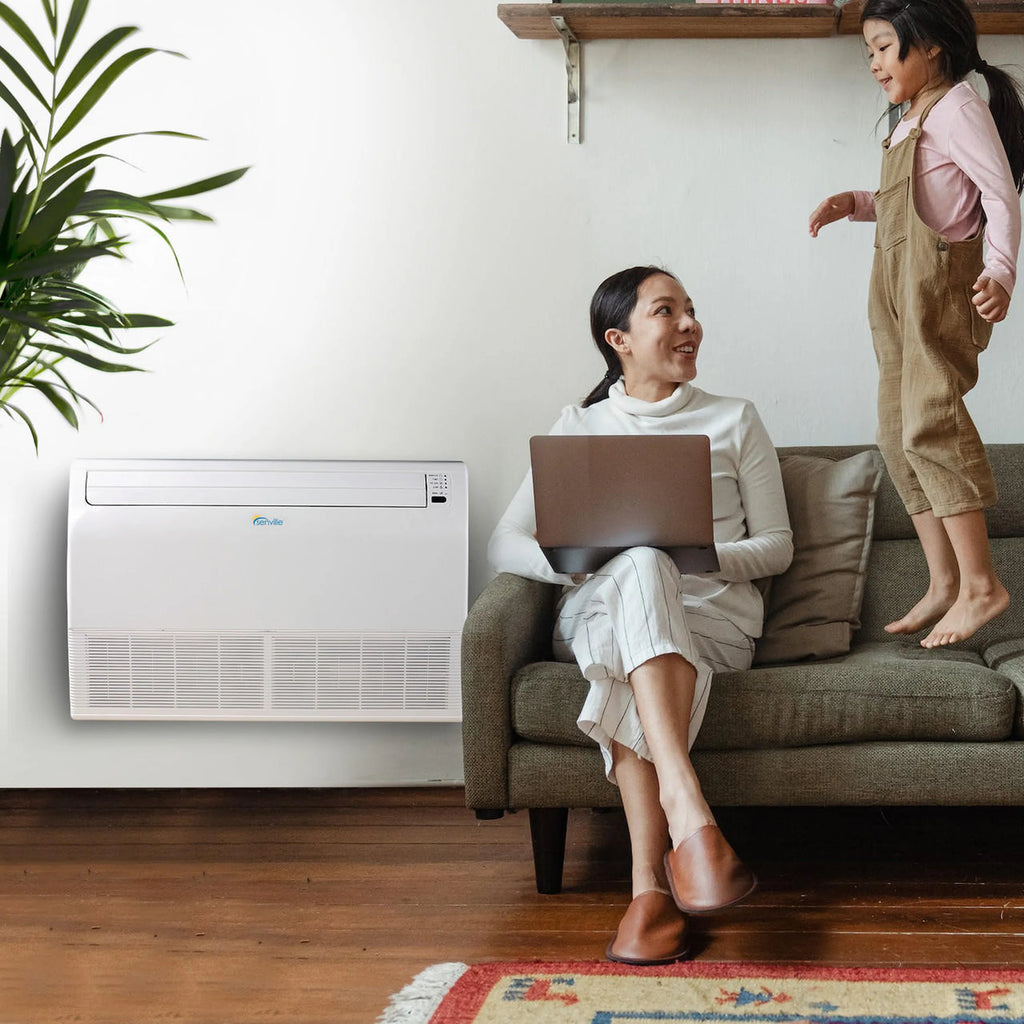

White floor-mounted ductless mini split air handler installed on wall in a living room

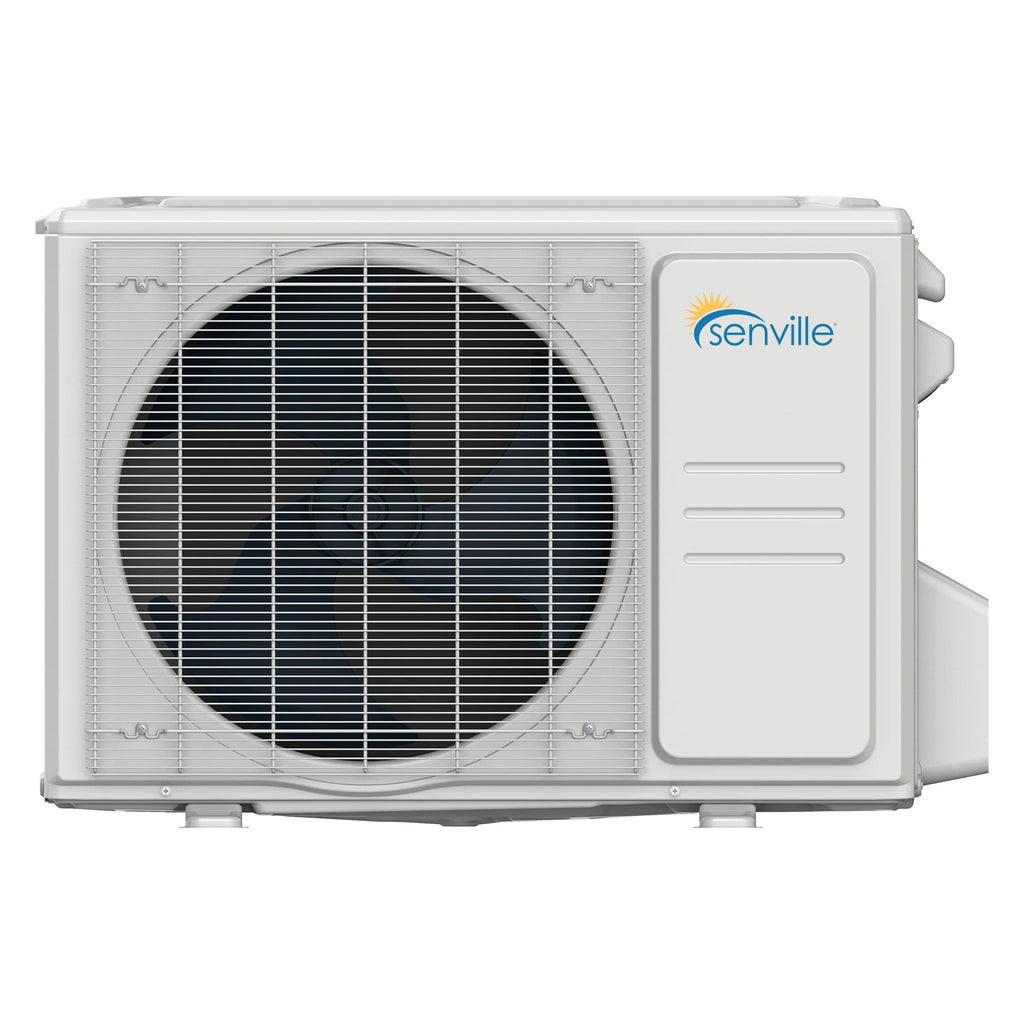

Senville ductless mini split outdoor condenser unit in white with circular fan grille

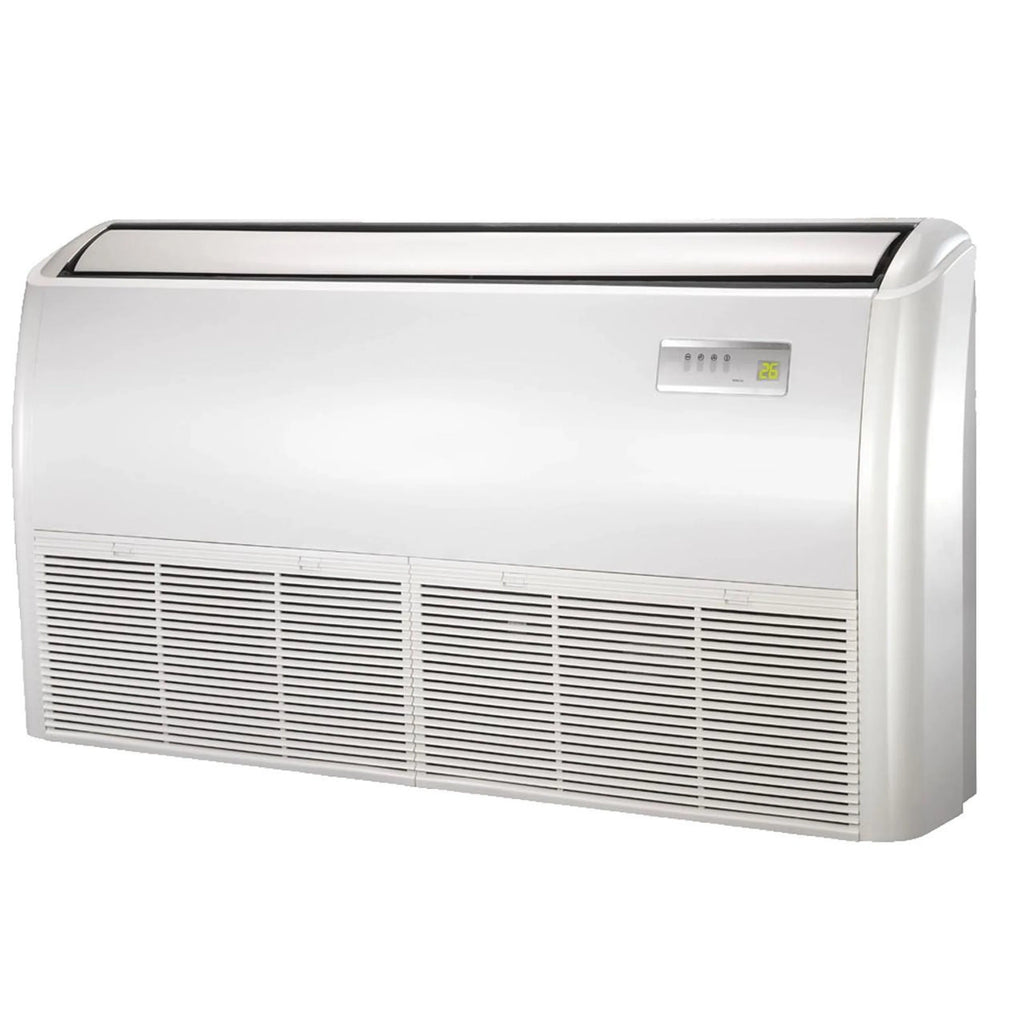

White ductless mini split air handler with front vent grille and digital display

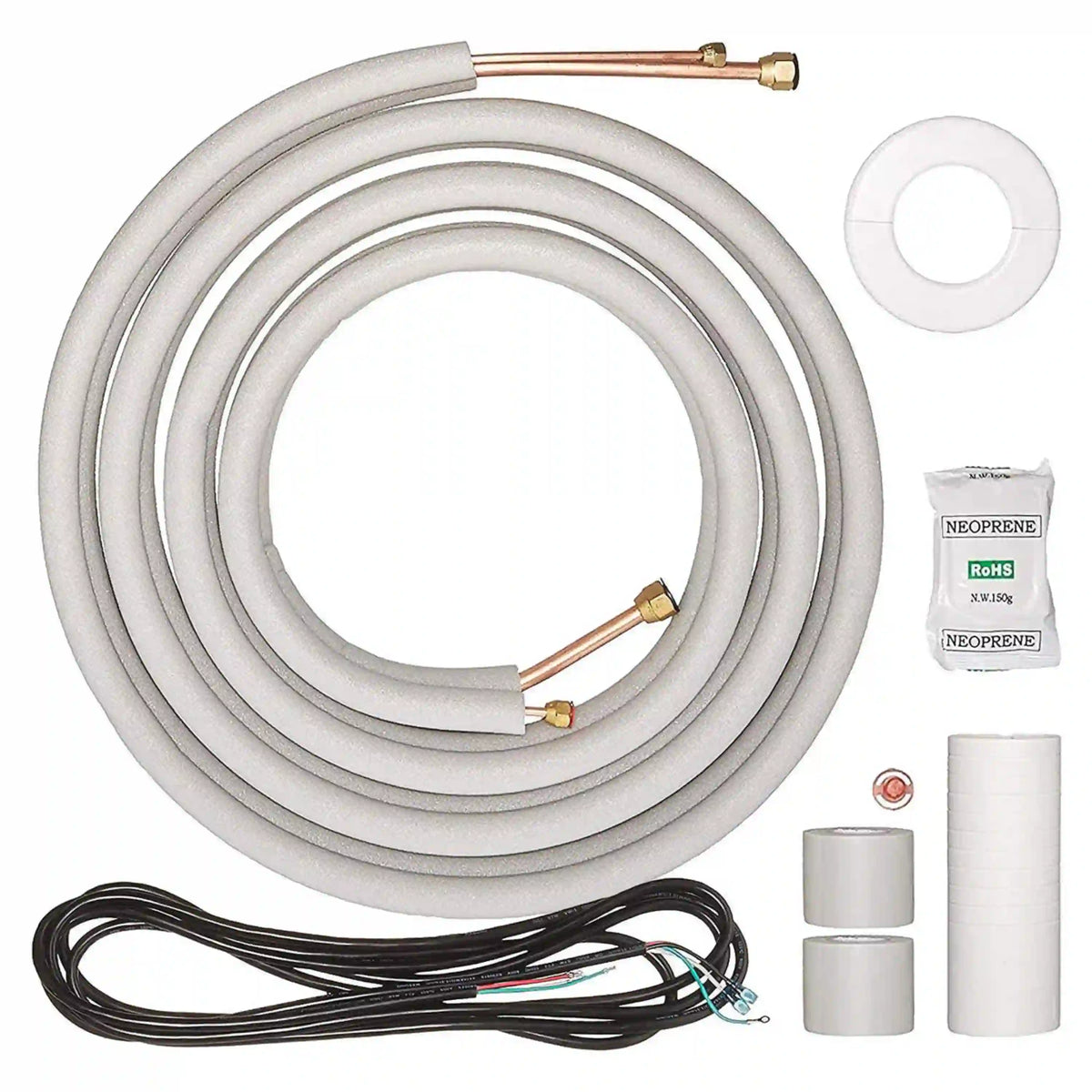

Insulated refrigerant line set with copper tubes, fittings, and accessories for ductless mini split

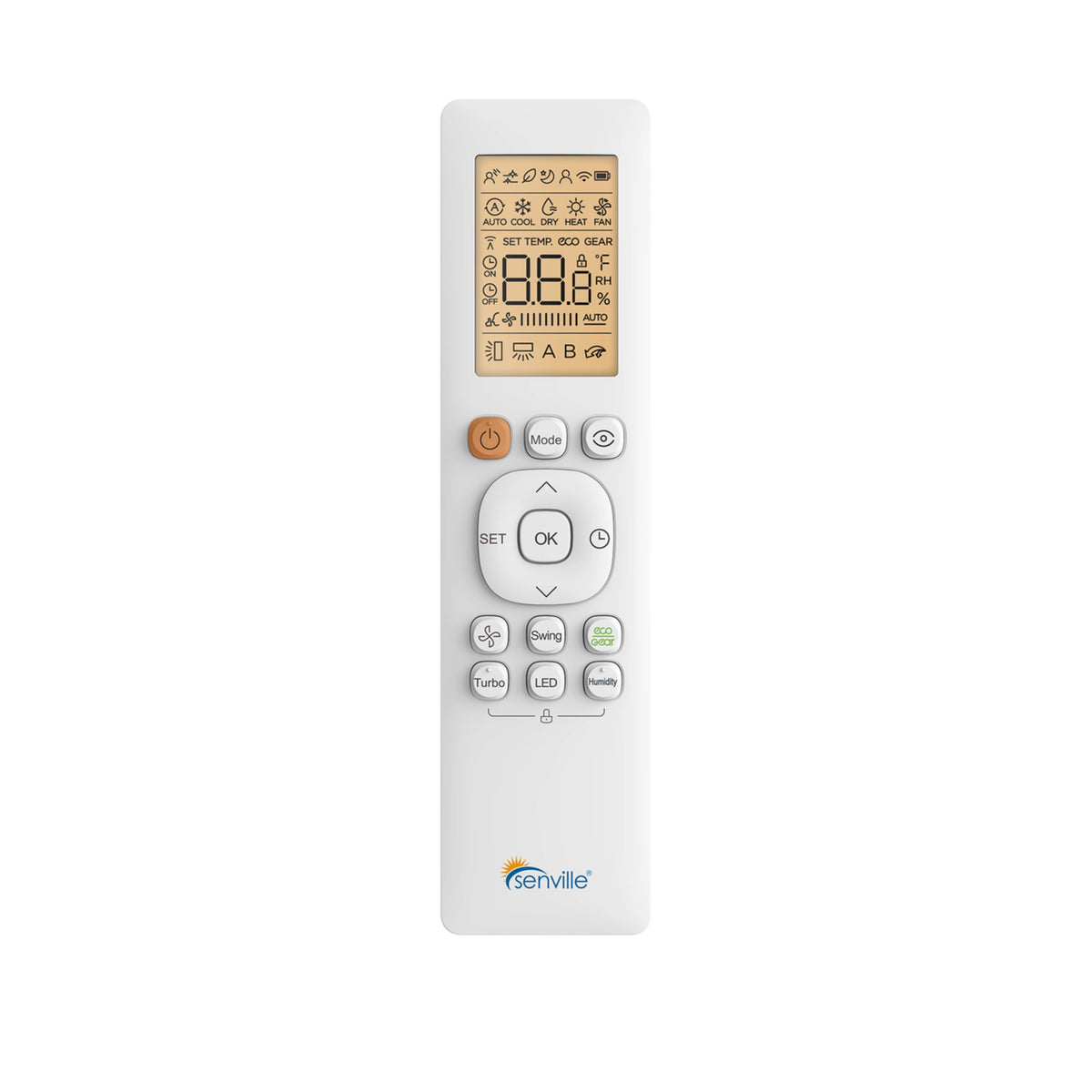

White Senville ductless mini split remote control with LCD screen and buttons
Roll over image to zoom in Click on image to zoom
Ductless mini split heat pump kit with indoor air handler, outdoor unit, remote, and line setWhite floor-mounted ductless mini split air handler with grille in a modern living roomWhite floor-mounted ductless mini split air handler installed on wall in a living roomSenville ductless mini split outdoor condenser unit in white with circular fan grilleWhite ductless mini split air handler with front vent grille and digital displayInsulated refrigerant line set with copper tubes, fittings, and accessories for ductless mini splitWhite Senville ductless mini split remote control with LCD screen and buttons
Click on image to zoom

Senville 18K BTU Mini Split with 20.4 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Floor Mounted Air Handler (SENA-18HF-IF)

SenvilleSKU: SENA-18HF-IF16
2 reviews
Price:
$1,599.99 $2,079.99SAVE 23%
Type:
BTU:
In Stock
Estimated delivery: Oct 30th-Nov 13th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Senville SENA-18HF/IF is a high-efficiency 18000 BTU floor mount ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

  • 20.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
  • Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
  • Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
  • Professional Installation - Required to maintain warranty coverage.
  • ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
  • Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
  • Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
  • 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
  •  Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Installation Kit
  • Indoor-Outdoor Wiring Harness
  • Installation Manual
  • User’s Manual
  • 10-Year Manufacturer Warranty
DIMENSIONS & WEIGHT
Dimensions (WxDxH) (in.)
35.04 x 13.46 x 26.50
Weight
99.87 Lbs
GENERAL INFORMATION
Style
Floor Mount Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)
208/230V, 1Ph, 60Hz
Max. Fuse (A)
20
Moisture Removal (L/H)
1.73
CAPACITY & PERFORMANCE
Air Flow (Max) CFM
1765.8
Minimum Outdoor Heating Temperature
-22°F / -30°C
Air Flow (Turbo/H/M/L) CFM
576.8 / 547.4 / 485.6 / 420.8
SEER2
20.4
EER2
12.5
Cooling Capacity (BTU)
17000
Cooling Range (BTU)
7400~19200
Cooling Input Range (W)
500~2300
Cooling Current Range (A)
2.5~7.4
Heating Capacity (BTU)
19000
Heating Range (BTU)
8300~20700
Heating Input Range (W)
525~1830
Heating Current Range (A)
2.8~8.0
HSPF2-4
10.3
HSPF2-5
8.2
COP W/W
3.07
NOISE LEVELS
Noise Level dB
58
Noise Level (Turbo/H/M/L) dB
45 / 42.5 / 39.5 / 30.5
ELECTRICAL REQUIREMENTS
Voltage Range
187-253
Minimum Circuit Ampacity (A)
19
REFRIGERANT & PIPING
Refrigerant Type / Charge oz
R454B / 55.38
Refrigerant Pre-charge
25 Ft.
CONTROLS & CONNECTIVITY
Connection Wiring
14*4 AWG
Thermostat Type
Remote Control
WARRANTY
Warranty
10 Years Compressor / 5 Years Parts

Senville AURA Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU up to 250 sq ft · Small bedroom, office
9K BTU up to 450 sq ft · Bedroom, home office
12K BTU up to 750 sq ft · Large bedroom, den
15K BTU up to 800 sq ft · Living room
18K BTU up to 1000 sq ft · Living room, master suite
24K BTU up to 1350 sq ft · Open living area
33K BTU up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
