Description
DIMENSIONS & WEIGHT
- Dimensions (WxDxH) (in.)
- 31.69 x 12.99 x 21.81
- Weight
- 72.75 Lbs
GENERAL INFORMATION
- Style

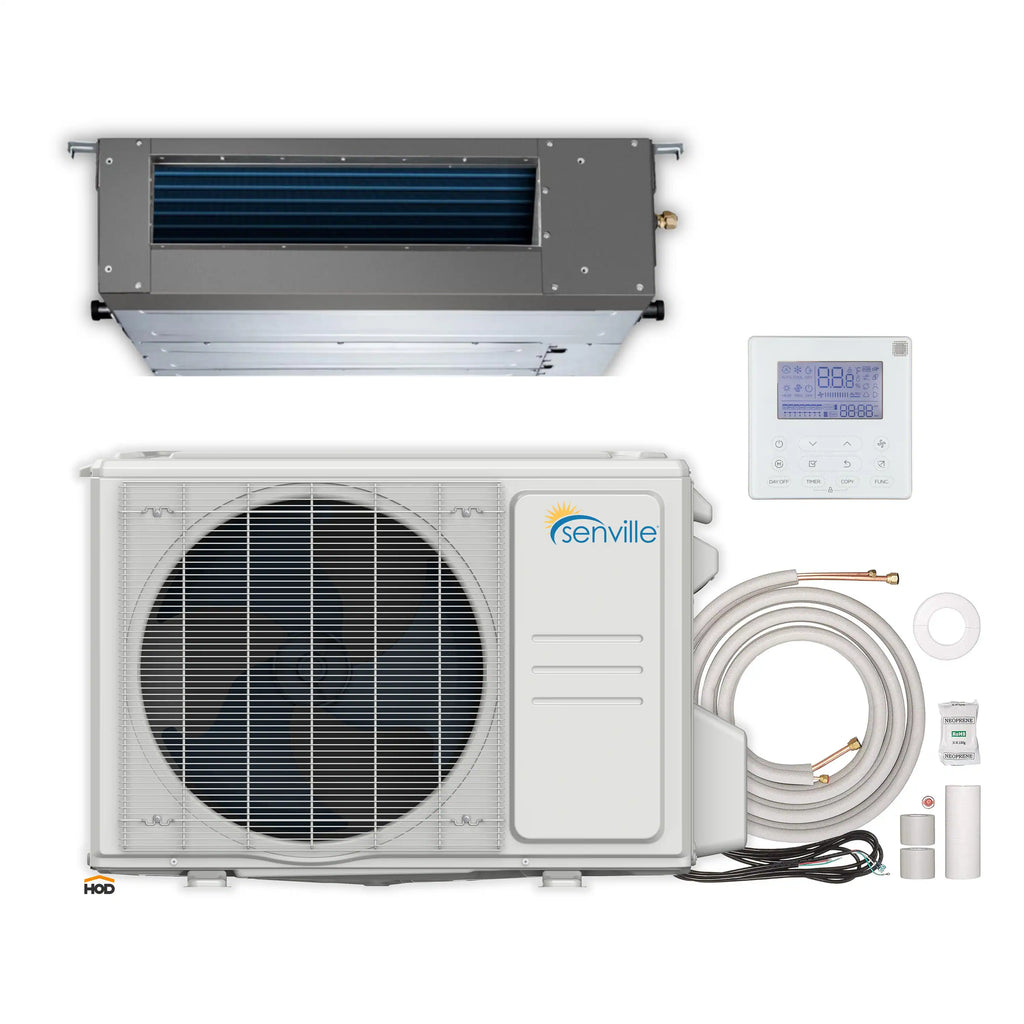

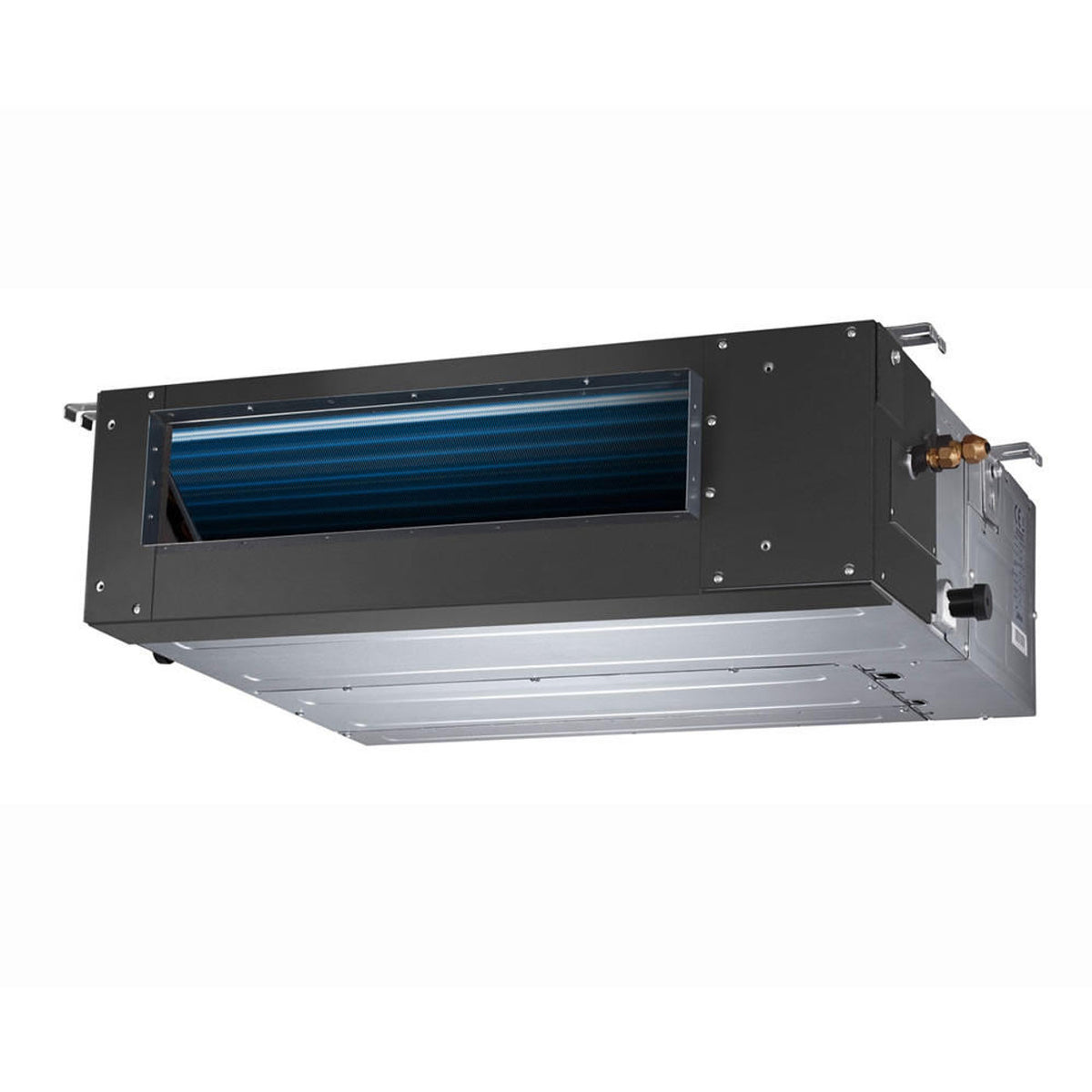

- Concealed Duct Mini Split AC With Heat Pump
- Power Supply (V-Ph-Hz)
- 208/230V, 1Ph, 60Hz
- Max. Fuse (A)
- 15
- Moisture Removal (L/H)
- 1.2
CAPACITY & PERFORMANCE
- Air Flow (Max) CFM
- 1470.6
- Air Flow (Turbo/H/M/L) CFM
- 400.2 / 323.7 / 264.9 / 176.6
- SEER2
- 20
- EER2
- 12
- Cooling Capacity (BTU)
- 12000
- Cooling Range (BTU)
- 3400~13500
- Cooling Input Range (W)
- 145~1200
- Cooling Current Range (A)
- 1.3~5.5
- Heating Capacity (BTU)
- 12500
- Heating Range (BTU)
- 3800~16200
- Heating Input Range (W)
- 260~1450
- Heating Current Range (A)
- 1.9~6.5
- HSPF2-4
- 10
- HSPF2-5
- 8
- COP W/W
- 3.39
- Minimum Outdoor Heating Temperature
- -22°F / -30°C
NOISE LEVELS
- Noise Level dB
- 56
- Noise Level (H/M/L) dB
- 36 / 34.5 / 32.5
ELECTRICAL REQUIREMENTS
- Voltage Range
- 187-253
- Minimum Circuit Ampacity (A)
- 15

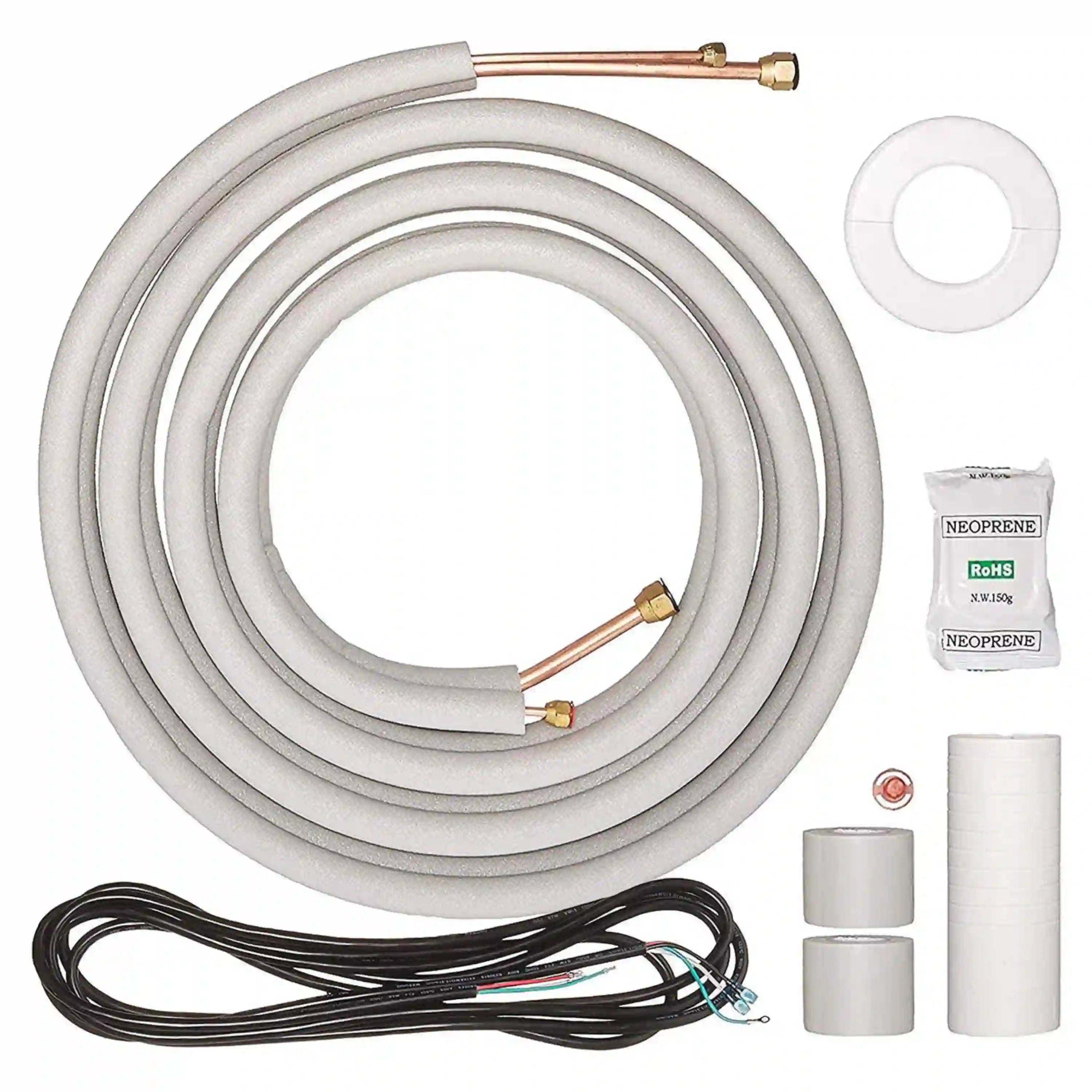

REFRIGERANT & PIPING
- Refrigerant Type / Charge oz
- R454B / 35.27
- Refrigerant Pre-charge
- 25 Ft.
CONTROLS & CONNECTIVITY
- Connection Wiring
- 14*4 AWG
- Thermostat Type
- Remote Control
- Alexa
- Enabled
WARRANTY
- Warranty
- 10 Years Compressor / 5 Years Parts
Senville AURA Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ft
33K BTU
24K BTU
18K BTU
15K BTU
12K BTU
9K BTU
6K BTU
6K BTU
up to 250 sq ft · Small bedroom, office
9K BTU
up to 450 sq ft · Bedroom, home office
12K BTU
up to 750 sq ft · Large bedroom, den
15K BTU
up to 800 sq ft · Living room
18K BTU
up to 1000 sq ft · Living room, master suite
24K BTU
up to 1350 sq ft · Open living area
33K BTU
up to 1750 sq ft · Great room, small home
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
